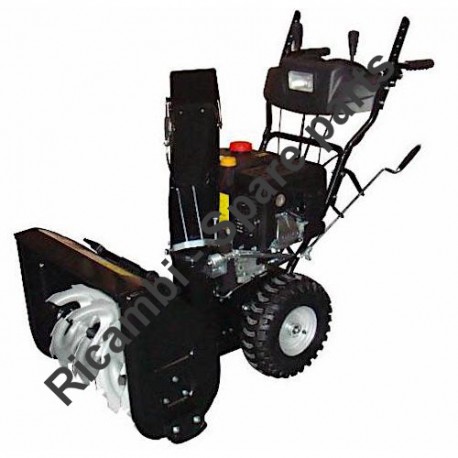

Ama Spare Parts for Snow Throwers Play Snow PS756 - 79590
Ama Technical Assistance, original Accessories and spare parts, Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for
Snow Throwers Play Snow PS756 - 79590 .
Online Only Contact Us for Availability In the following table, look for the model of the Snow Throrowers and the respective parts of the code.
Snow Throwers Play Snow PS756 - 79590

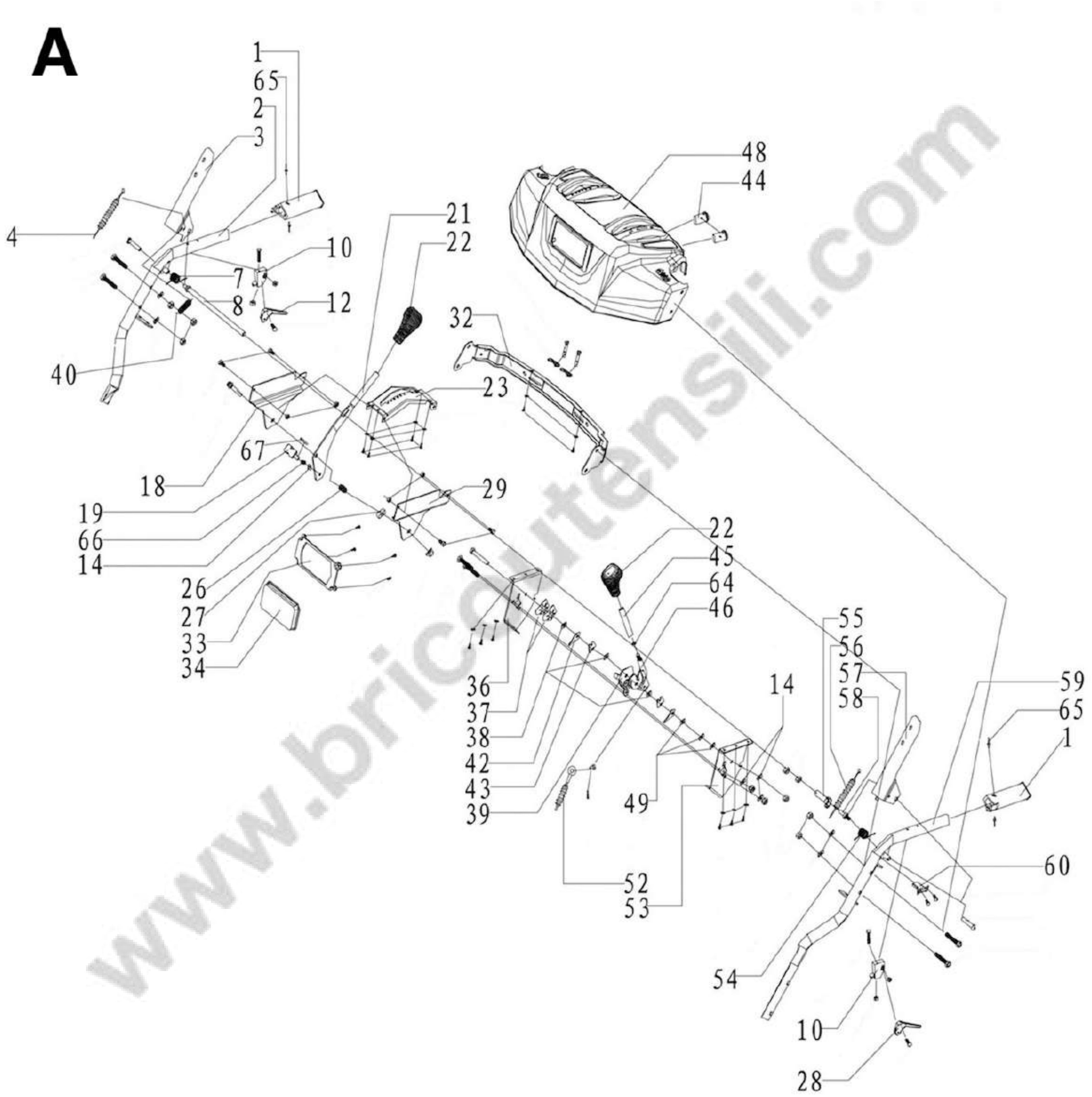

A Pag.1
# Part Num. Description
1
SPZTG6556NA
Handle
2
SPZNF-002B hj
Handle assembly
3
SPZSX-11-031-1A
Handle welding drawing
4
SPZSJ-231
Stepped Wire
7
SPZNF-001-14-1
Clutch Handle Spring 1
8
SPZNF-001-12
Clutch Joint Rod
10
SPZSX-11-029
Handle sleeve
12
SPZSX-11-028
Handle
14
SPZFB-8*16*1.2
Plain Cushion
18
SPZNF-001-4-02
Gear lever fixed hub
19
SPZGPP6562C-01-07
Adjusting joint rod
21
SPZNF-001-8
Gear frame welding drawing
22
SPZSTG8062Ae-26
Rocker Handle
23
SPZNF-001-15
Gear Lever
24
SPZFB-5*12*1
Plain Cushion
26
SPZSTG11 13 70 10AE
Adjusting Spring
27
SPZFB-10*28*3
Plain Cushion
28
SPZNHLN-6
Handle
29
SPZNF-001-4-01
Gear lever fixed hub(1)
32
SPZNF-001-5-02
Plate
33
SPZSTG8062AE-22
Lamp fixed bracket
34
SPZL-620
Lamp
36
SPZNF-001-7-01
Right Fix Plate for Chute
37
SPZSJ-223
Washer
38
SPZSA-008
Washer
39
SPZSJ-210-1
Adjuster Damp Fixing Plate
40
SPZNF-001-14-3
Spring 3
42
SPZSJ-224
Gourd Fiche
43
SPZSJ-215
U Fiche
44
SPZSA-011
Switch
45
SPZNF-001-13
Second Rod for Chute Gear
46
SPZSJ-209
Adjust Rod For Welding
48
SPZNF-010
Panel
49
SPZFB-8*22*2
Plain Cushion
52
SPZSX-11-36E
Chute Bowden
53
SPZNF-001-7
Left Fix Plate for Chute
54
SPZNF-001-14-1
Clutch Handle Spring 2
55
SPZNF-001-01
Washer
56
SPZSX-11-036B
Auger Bowden
57
SPZNF-SX-11-31-1
Handel
58
SPZNF-001-11
Clutch Rod
59
SPZNF-002A hj
Welding Left Handel
60
SPZNF-001-6
Washer
64
SPZSW-8
Spring
65
SPZBE-4*12
Screw
66
SPZPP6562C-01-0
Spring 1

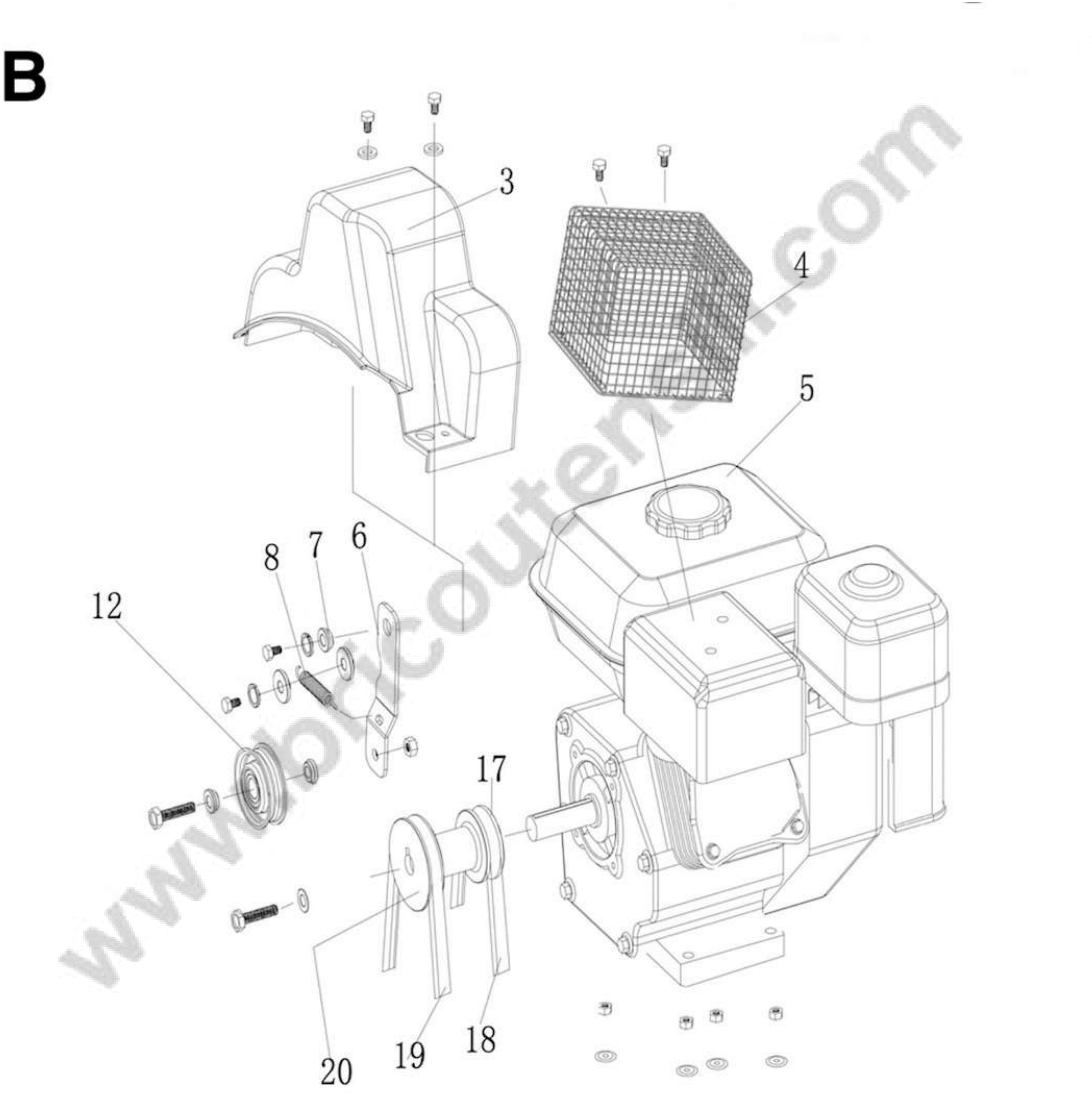

B Pag. 2
3
SPZSJ-031
SJ Pulley Steel Cover
4
SPZSJ-130
Protect Heat shield
5
SPZZS168FBE
Engine
6
SPZSJ-045
SJ Tensioning board
7
SPZSJ-046-1
Tension Convex Washer
8
SPZSJ-035-1
SJ spring 3
12
SPZSX-11-170
Tension Pulley Comp
17
SPZSJ-049
Man Synchronization
18
SPZTB-5M*750
V-belt
19
SPZLBV13-890
Synchro-Belt
20
SPZSJ-049B
SJ main pulley

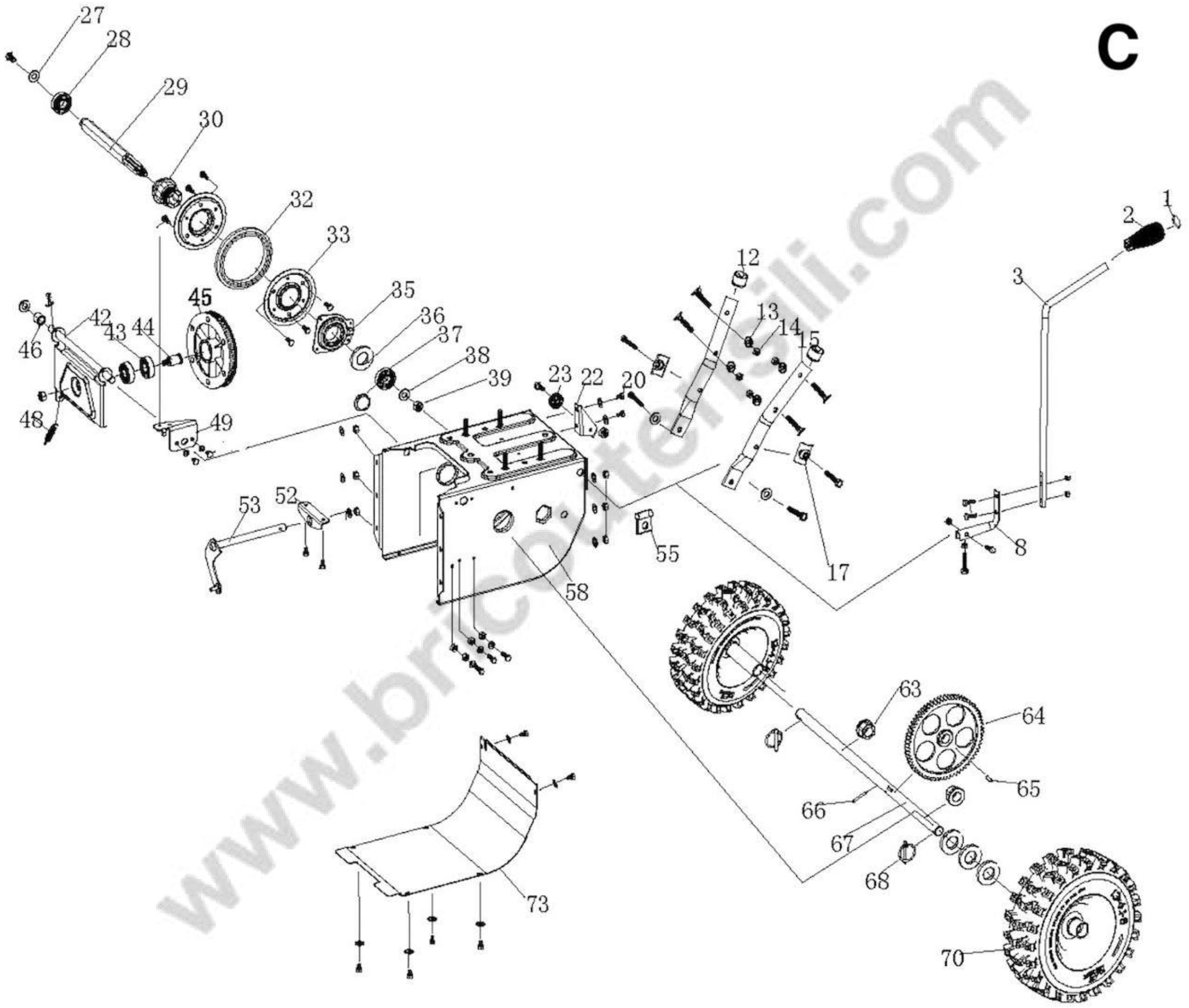

C Pag. 3
1
SPZSTG8062Ae-24
Handle cover
2
SPZSTG8062Ae-26
Engagea gear handle
3
SPZSTG8062Ae-09
Control lever
8
SPZSJ-068B
SJ Steel Grip Lever
12
SPZFSMG-25
Cover 25
13
SPZSA-131
Flange washer
14
SPZNHLN-8
hexagon locknut
15
SPZSJ-042-2A-2
Handle apart 2
17
SPZSJ-028
SJ Handle cushion
20
SPZHS-6*12
Outer hexagon nipples
22
SPZSJ-016A
Sj Pulley Sub Panel 1
23
SPZSJ-016B
Sj Wire Pulley
27
Plain cushion
28
SPZKBE-6203
Ball bearing with spring
29
SPZSJ-005
SJ Hexagon Gear Shaft
30
SPZSJ-013C
SJ change pulley
32
SPZSJ-013D
SJ change pulley rubber ring
33
SPZSJ-013A
SJ Change Pulley Washer
35
SPZSJ-013B
SJ Change Pulley
36
SPZSR-35
Snap spring
37
SPZKBE-6203
Ball bearing with spring
38
Plain cushion
39
hexagon locknut
42
SPZSJ-007
SJ Pulley Bracket
43
SPZKBE-6203
Ball bearing with spring
44
SPZSJ-010B
SJ Driving Wheel Shaft
45
SPZSJ-010A
SJ Driving Sync Wheel
46
SPZSJ-107
SJ Separate Sleeve
48
SPZSJ-069
Spring 6
49
SPZSTG9056Ae-
SJ Pulley fixing abroad
52
SPZSJ-002
SJ Orthogonal Iron
53
SPZSJ-040
SJ Gearlever
55
SPZFD-04-62
Wire fixing lock
58
SPZSJ-102
SJ Drive box shield
63
SPZSJ-026
SJ Cover Shaft Sheath
64
SPZSJ-003
SJ Big Gear
65
SPZWK-5*7.5*19
woodruff key
66
SPZOSP-4*30
Split spring pin
67
SPZSJ-017
SJ Drive Wheel Shaft
68
SPZSJ-066
SJ Spring Pin
70
SPZTC-13
Tyre
73
SPZSJ-102
SJ Dirve Steel Cover
D Pag. 4
1
SPZSJ-242
Crank Handle
2
SPZSJ-240
Handle Cover
3
SPZSJ-227
Chute Rocker
4
SPZSJ-312
Bolt
5
SPZSJ-227-2
Chute Helical Rocker
6
SPZSJ-238
Bracket Washing
7
SPZOSP-4*42
Spring pin
8
SPZSJ-208
Spiral Gear
10
SPZSJ-225
Bracket
13
SPZSJ-300
Belt board
15
SPZFB-8*28*2
Plain cushion
16
SPZSJ-039-2
SJ Pulley
17
SPZFK-C6*17
C Key
18
SPZSJ-004
SJ Rockered Cover
19
SPZBE-UC204
Bearing
21
SPZSJ-037
Spring 5
24
SPZSJ-023-1
SJ Dead Plate 1
25
SPZSJ-050
SJ hexagon nipples
26
SPZSJ-230
Spring
28
SPZSJ-008C
SJ gasket
29
SPZSJ-008
Tension Pulley +Bearing
30
SPZSJ-008B
SJ Cushion
33
SPZSJ-021
Chute Sheeting
34
SPZSJ-021C
Chute washing
36
SPZSJ-237
Plastic Ring
37
SPZSJ-232
Chute Wire
38
SPZSJ-226
Chute Extension Spring
39
SPZSJ-200A/B
Chute assy
44
SPZSJ-012
SJ Discharge Chute Accessori
45
SPZSJ-036
Spring 4
46
SPZSJ-150
Plastic shovel
47
SPZSJ-151
Shovel base
48
SPZSJ-104
SJ Housing
49
SPZSJ-111
SJ Sliding Stick
51
SPZFRP-6*30
Spring pin
52
SPZSJ-001
SJ Fan
53
SPZOS-32*20*6
Seal
54
SPZBE-51104
One way thrust bearing
56
SPZBE-6904
Deep groove ball bearing
57
SPZSJ-030
SJ Dirve shaft
58
SPZBE-16001
Deep groove ball bearing
59
SPZSJ-101A
SJ Pedestal
60
SPZRM-5HP
Oil nipple
62
SPZSJ-019
SJ Drive Shaft Sheath
63
SPZSJ-108-1
SJ Shaft Bushing
64
SPZOS-30*19*7
Seal
66 SPZSJ-038 SJ worm wheel
67
SPZSJ-101
SJ Upper Pedestal
72
SPZ22-SX-11-301
Shaft bushing 22-2
73
SPZ22-SX-11-300
Shaft bushing 22-1
74
SPZ30-SX-11-125
Right auger
75
SPZFB-19*38*1.5
Plain cushion
76
SPZSJ-020
SJ Shaft Bushing
77
SPZSJ-024
SJ Bearing Cover
80
SPZSJ-006-2
SJ Shave Plate
81
SPZWK-5*7.5*19
Woodruff key
82
SPZNJ-02
Trigger pin
83
SPZ22-SX-11-134
Output shaft
85
SPZ30-SX-11-135
Left auger

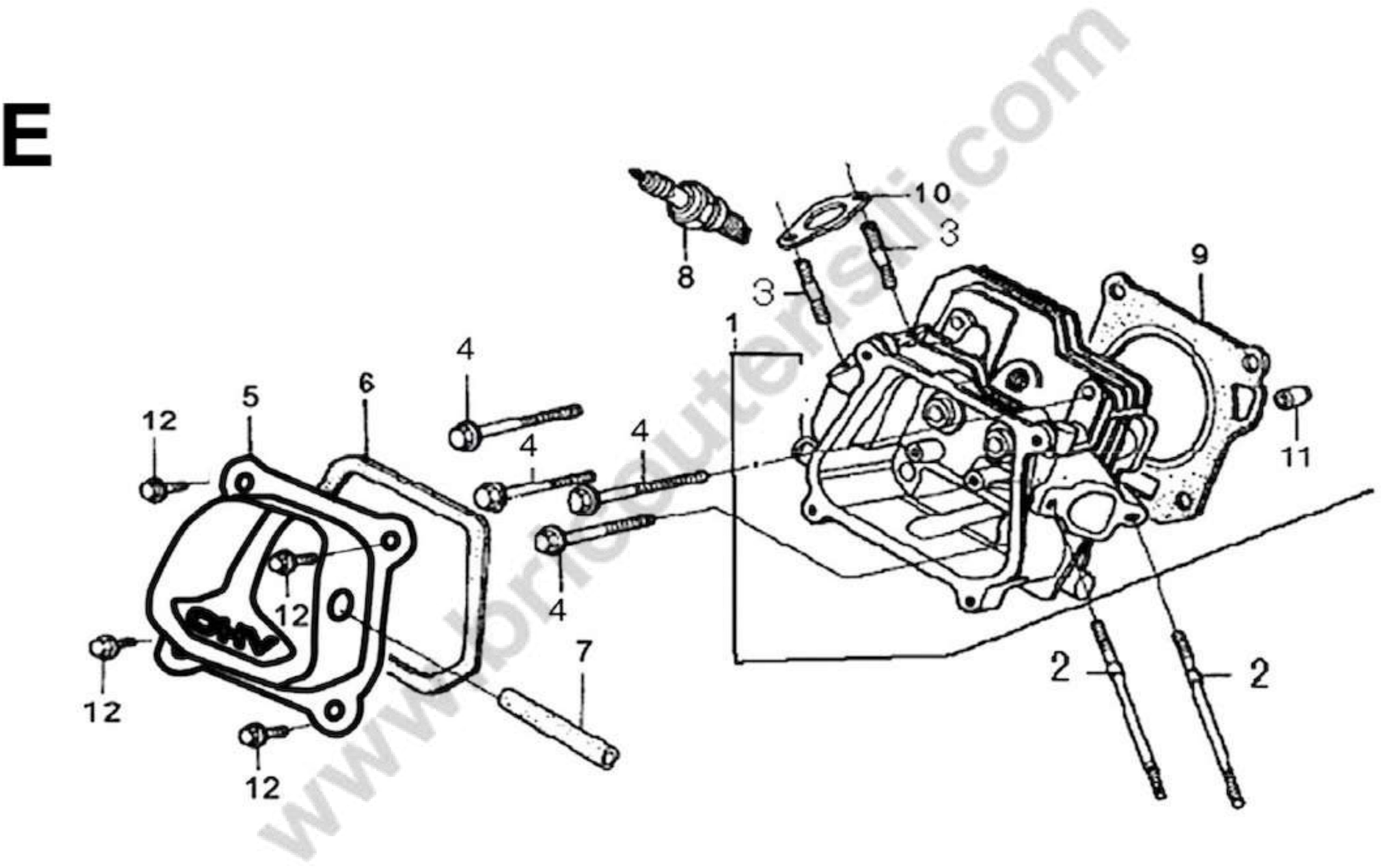

E Pag. 5
1
SPZ120080370-T210
HEAD COMP .,CYLINDER
2
SPZ380180093-0001
BOLT , STUD , IN.6×113.5
3
SPZ380180109-0001
BOLT , STUD , IN.8×40
4
SPZ380140336-0001
BOLT , FLANGE , 8×60
5
SPZ120220022-T150
COVER COMP ., HEAD
6
SPZ120250013-T040
PACKING , HEAD COVER
7
SPZ380740571-T020
TUBE , BREATHER
8
SPZ270960014-T040
PLUG , SPARK
9
SPZ120150124-T210
GASKET , CYLINDER
10
SPZ180650077-T150
GASKET , EX.PIPE
11
SPZ380600117-T040
PIN , DOWEL
12
SPZ380140001-0005
BOLT , FLANGE , 6×12

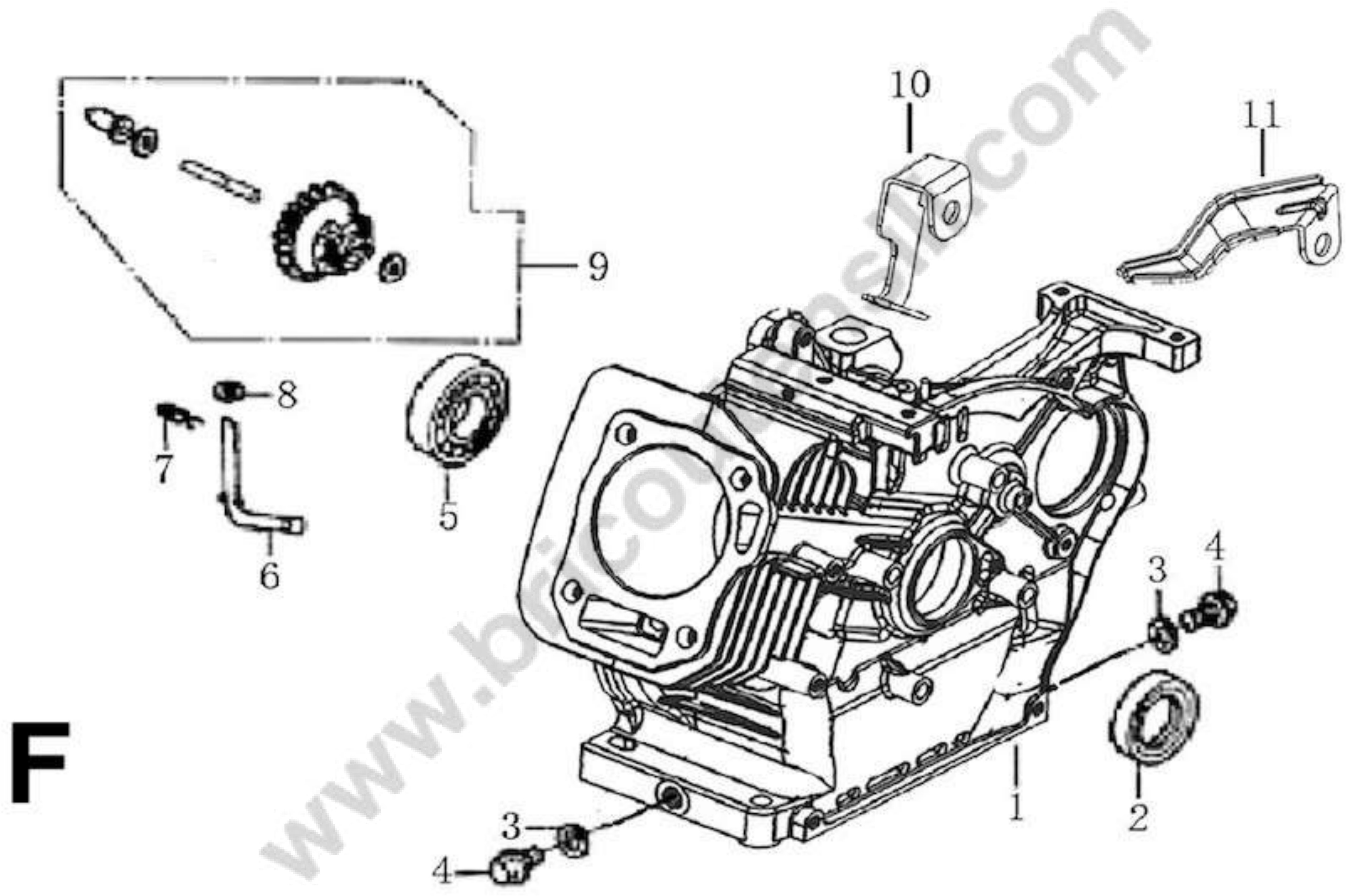

F Pag. 6
1
SPZ110810093-T210
CRANK CASE
2
SPZ380650490-T040
OIL SEAL 25×41.25×6
3
SPZ380450514-T040
WASHER 10×16×1.5
4
SPZ110260025-T040
BOLT , DRAIN PLUG10×15
5
SPZ380630137-0002
BEARING , RADIAL BALL
6
SPZ171630001-T040
SHAFT , GOVERNOR ARM
7
SPZ381350004-T040
PIN , LOCK
8
SPZ380450531-T040
WASHER 6×13×1
9
SPZ171750002-T040
GOVERNOR ASSY.
10
SPZ380940536-T153
FUEL LINE RESTRICT BOARD
11
SPZ270280019-T153
PLATE WINDING

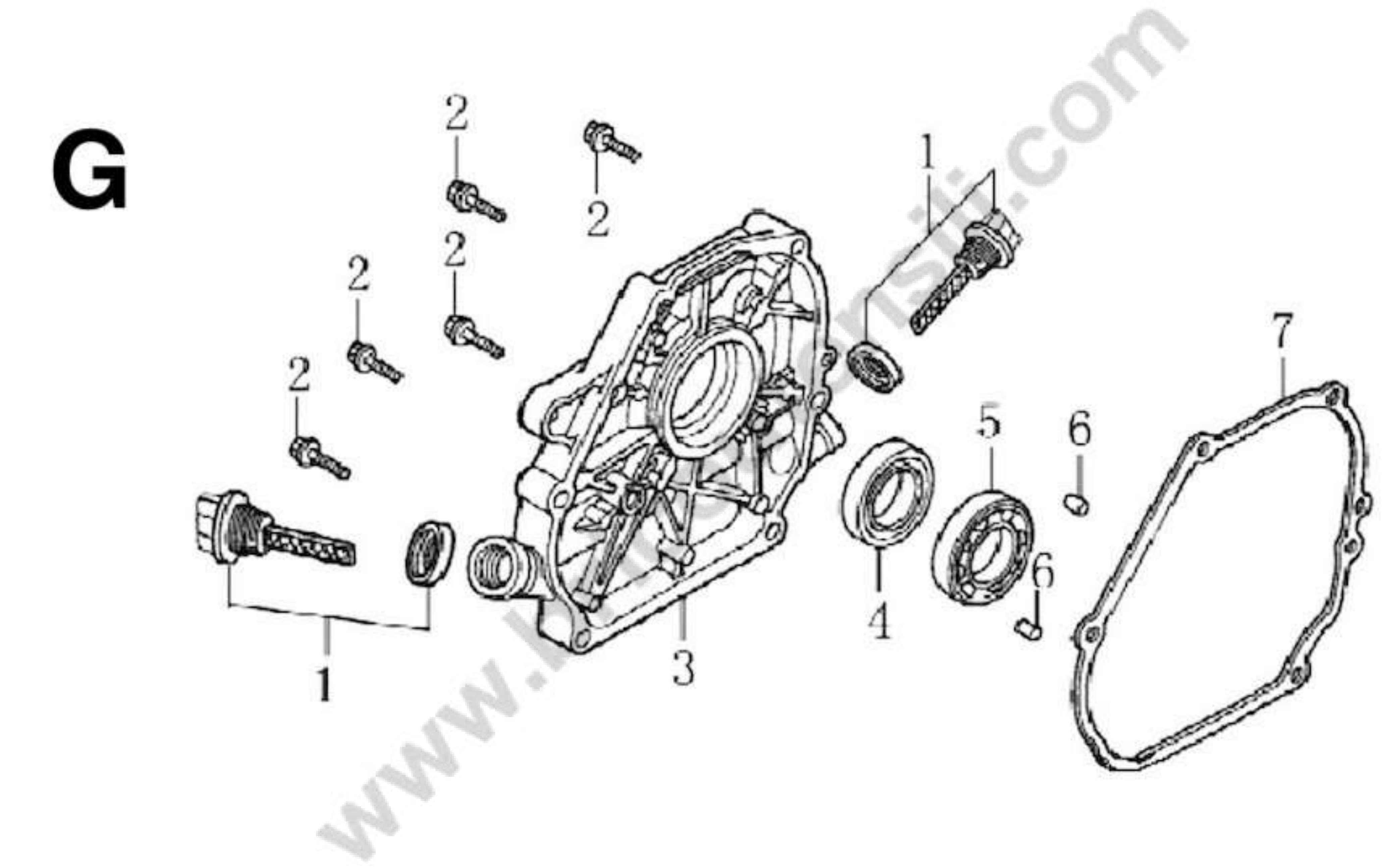

G Pag. 7
1
SPZ110690035-T150
GAUGE ASSY., OIL LEVEL
2
SPZ380140028-0004
BOLT , FLANGE 8×32
3
SPZ110820028-T150
CASE COVER
4
SPZ380650491-T040
OIL SEAL 25×41.25×6
5
SPZ380630137-0002
BEARING
6
SPZ380600120-T040
PIN , DOWEL 8×14
7
SPZ110830030-T150
PACKING , CASE COVER

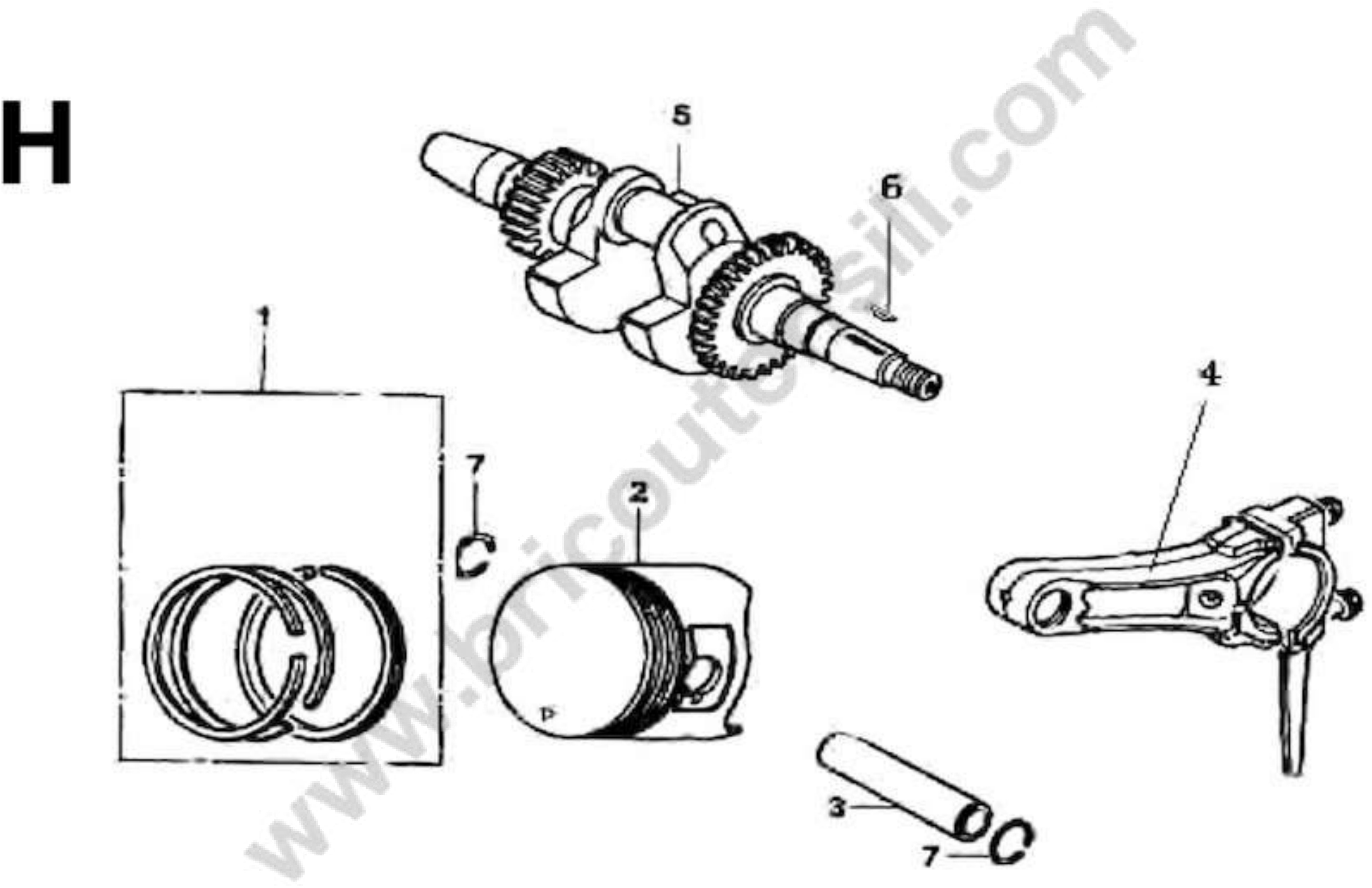

H Pag. 8
1
SPZ130070085-T320
RING SET
2
SPZ130030092-T320
PISTON
3
SPZ130060030-T030
PIN , PISTON
4
SPZ130150062-T210
ROD ASSY ., CONNECTING
5
SPZ130290178-T150
CRANKSHAFT COMP
6
SPZ380620050-001
KEY 4×5.5×12.5
7
SPZ380560055-T030
CLIP , PISTON PIN

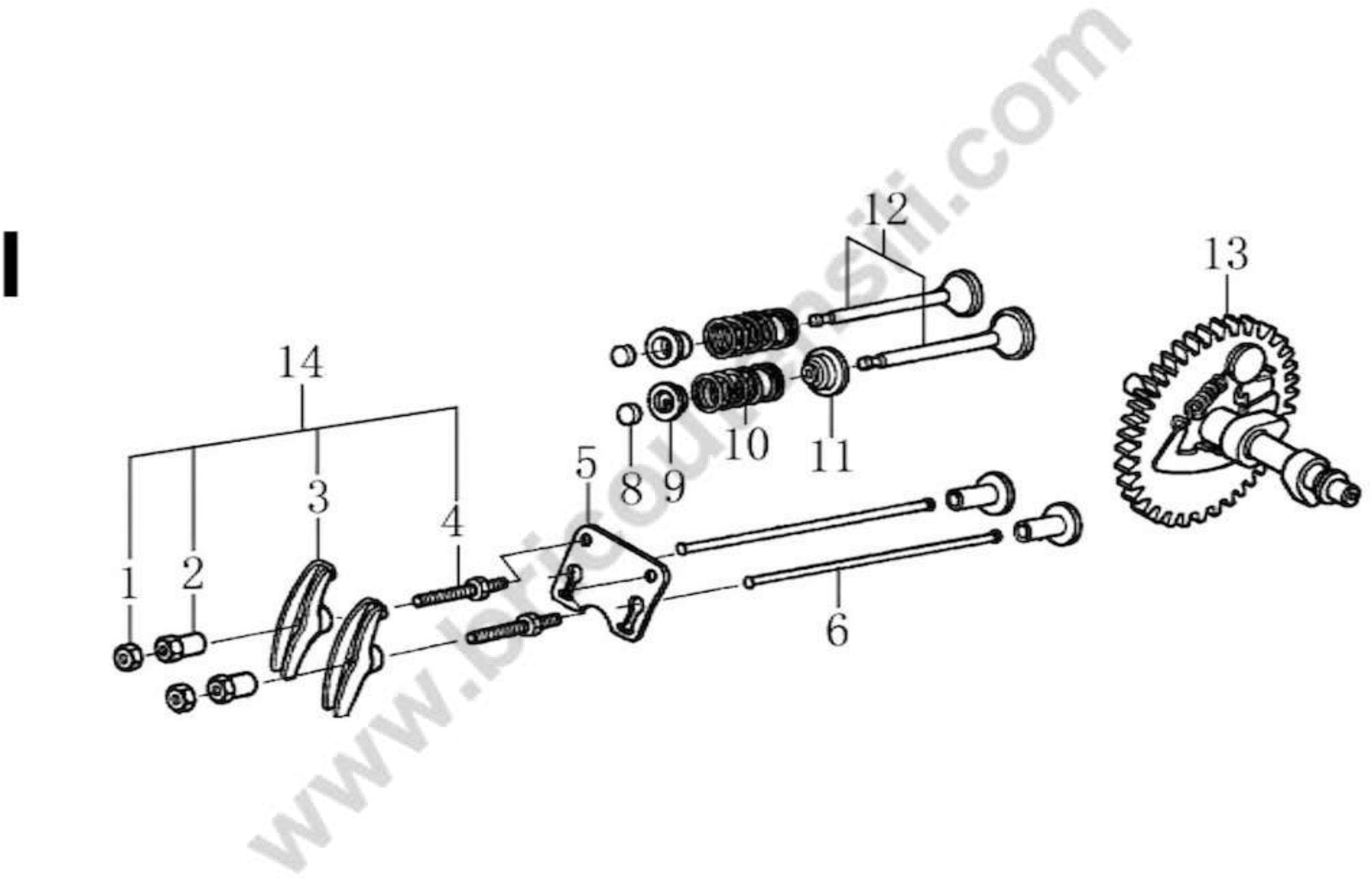

I Pag. 9
1
SPZ140470001-T040
NUT , PIVOT ADJUSTING
2
SPZ140490012-T040
PIVOT , ROCKER ARM
3
SPZ140460030-T040
ARM , VALVE ROCKER
4
SPZ140480012-T040
BOLT , PIVOT , ARM
5
SPZ140710001-T040
PLATE ASSY.,
6
SPZ140670004-T040
ROD , PUSH
8
SPZ140320001-T040
RATATOR , VALVE
9
SPZ140380017-T040
RETAINER , VALVE SPRING
10
SPZ140340022-T040
SPRING , VALVE
11
SPZ140400016-T05K
SEAL , GUIDE
12
SPZ500550024-T040
VALVE COMP.
13
SPZ140020076-T050
CAMSHAFT ASSY.
14
SPZ140450022-T040
ARM COMP.

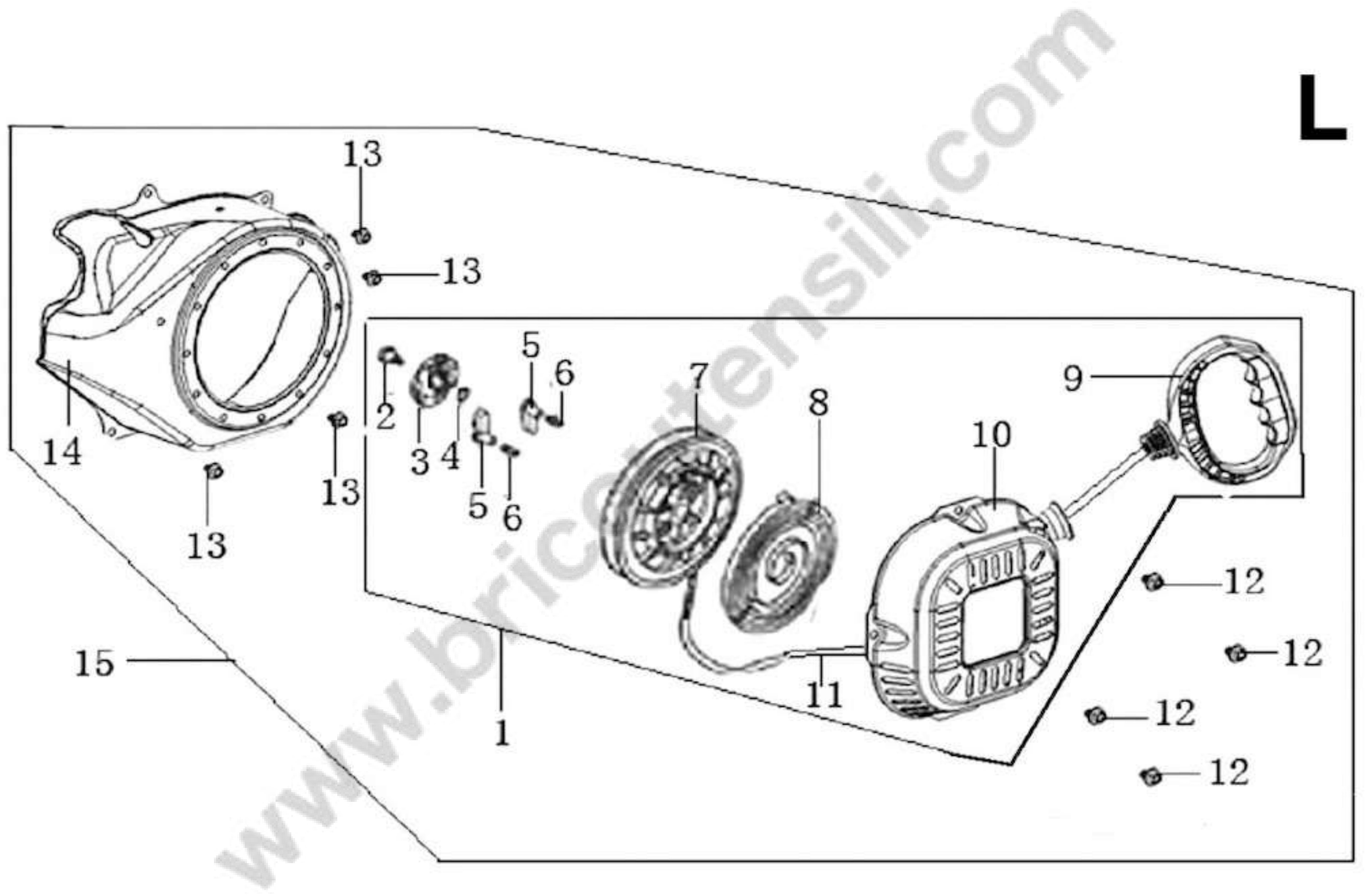

L Pag. 10
1
SPZ193500044-T153
STARTER ASSY.
2
SPZ380020067-T040
SCREW , SETTING
3
SPZ193550003-T040
GUIDE , RATCHET
4
SPZ381150342-T040
SPRING , FRICTION
5
SPZ193540003-T040
RATCHET , STARTER
6
SPZ381160090-T040
SPRING , RETURN
7
SPZ193520003-T040
REEL , RECOIL STARTER
8
SPZ193340018-T040
SPRING , RECOIL STARTER
9
SPZ193560012-T153
KNOB , RECOIL STARTER
10
SPZ193640021-T153
COVER COMP ., FAN
11
SPZ193530010-T040
ROPE
12
SPZ380140089-0005
BOLT , FLANGE 6×8
13
SPZ380140215-0003
BOLT , FLANGE 6×14
14
SPZ160210040-T153
COVER COMP ., FAN
15
SPZ193490122-T153
RECOIL STARTER COMP.

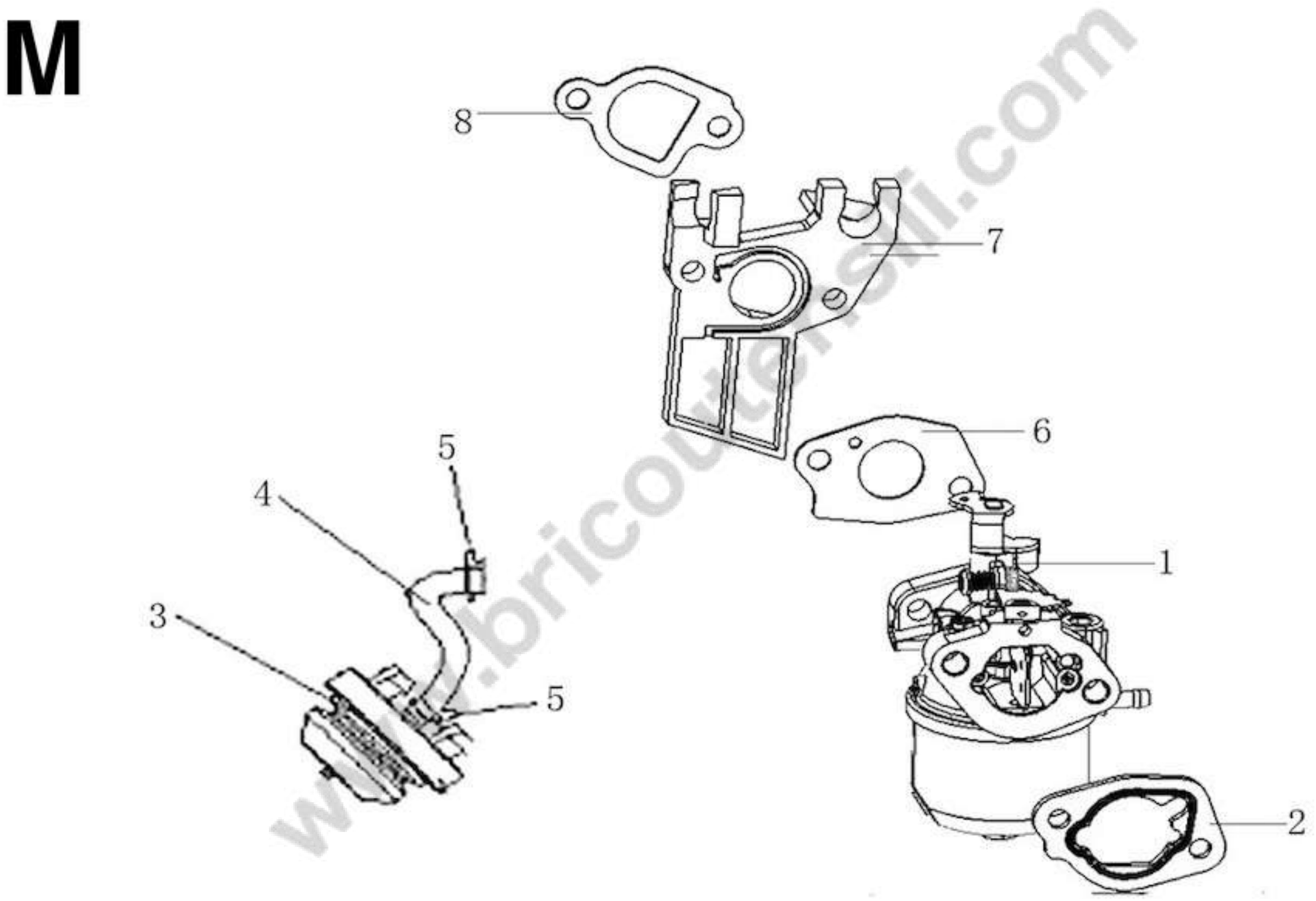

M Pag. 11
1
SPZ170020667-T153
CARBURETOR
2
SPZ170430065-T040
SPACER COMP ., AIR CLEANER
3
SPZ173390001-T040
AIR PUMP PCOMP,CARBURETOR
4
SPZ380750360-T153
PUMP RUBHER TUBP
5
SPZ380950258-T153
CLIP,CONNECTING PIPE
6
SPZ170430048-T05K
GASKET PACKING,CARBURETOR
7
SPZ170440038-T040
INSULATOR , CARBURETOR
8
SPZ170430060-T05K
PACKING , INSULATOR

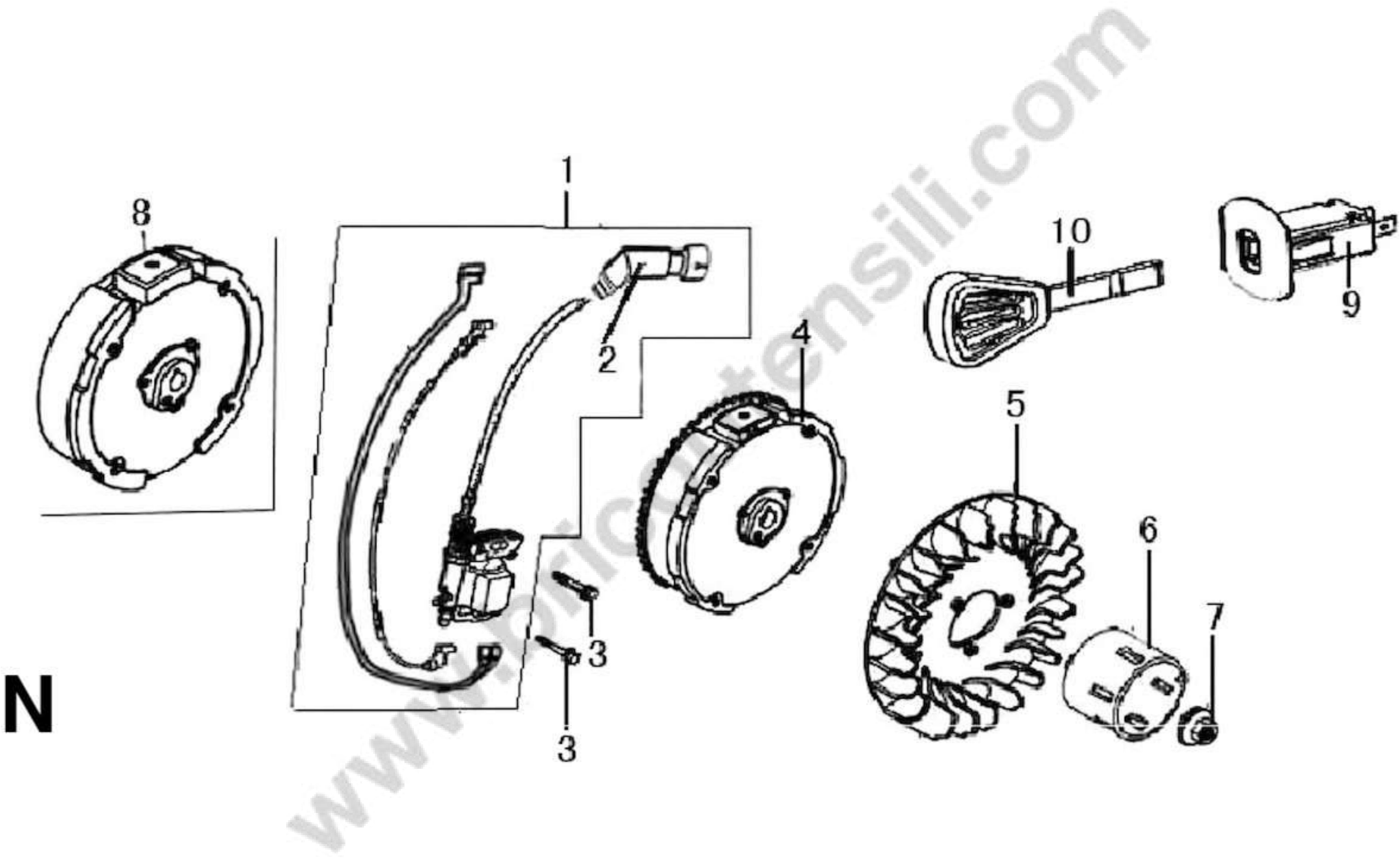

N Pag. 12
1
SPZ270920222-T153
COIL ASSY . , IGNITION
2
SPZ270950042-T040
CAP ASSY ., NOISE SUPPRESSOR
3
SPZ380140102-0004
BOLT , FLANGE , 6×25
4
SPZ270020150-T151
FLYWHEEL COMP
5
SPZ160180023-T150
FAN , COOLING
6
SPZ193590017-T150
PULLEY , STARTER
7
SPZ380370051-0001
NUT , SPECIAL
8
SPZ270020139-T150
FLYWHEEL COMP
9
SPZ271660054-T251
OIL FILLER ASSY
10
SPZ273210001-T153
SWITCH KEY

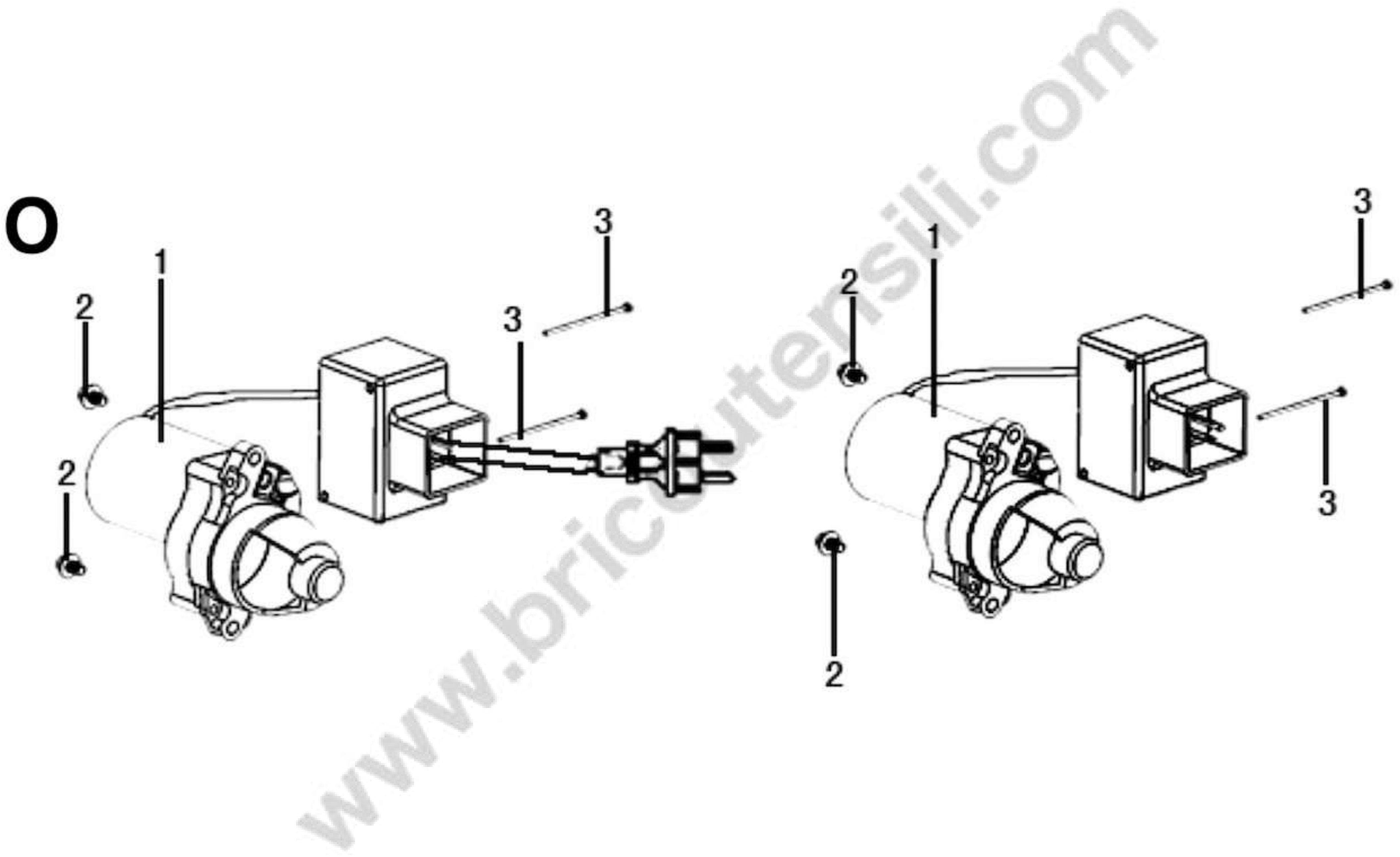

O Pag. 13
1
SPZ270360052-T151
STARTER MOTOR 230V 50HZ
2
SPZ380140054-0003
BOLT , FLANGE , 6×30
3
SPZ380200134-0001
Screw,Cross Recessed Hexagon4×55

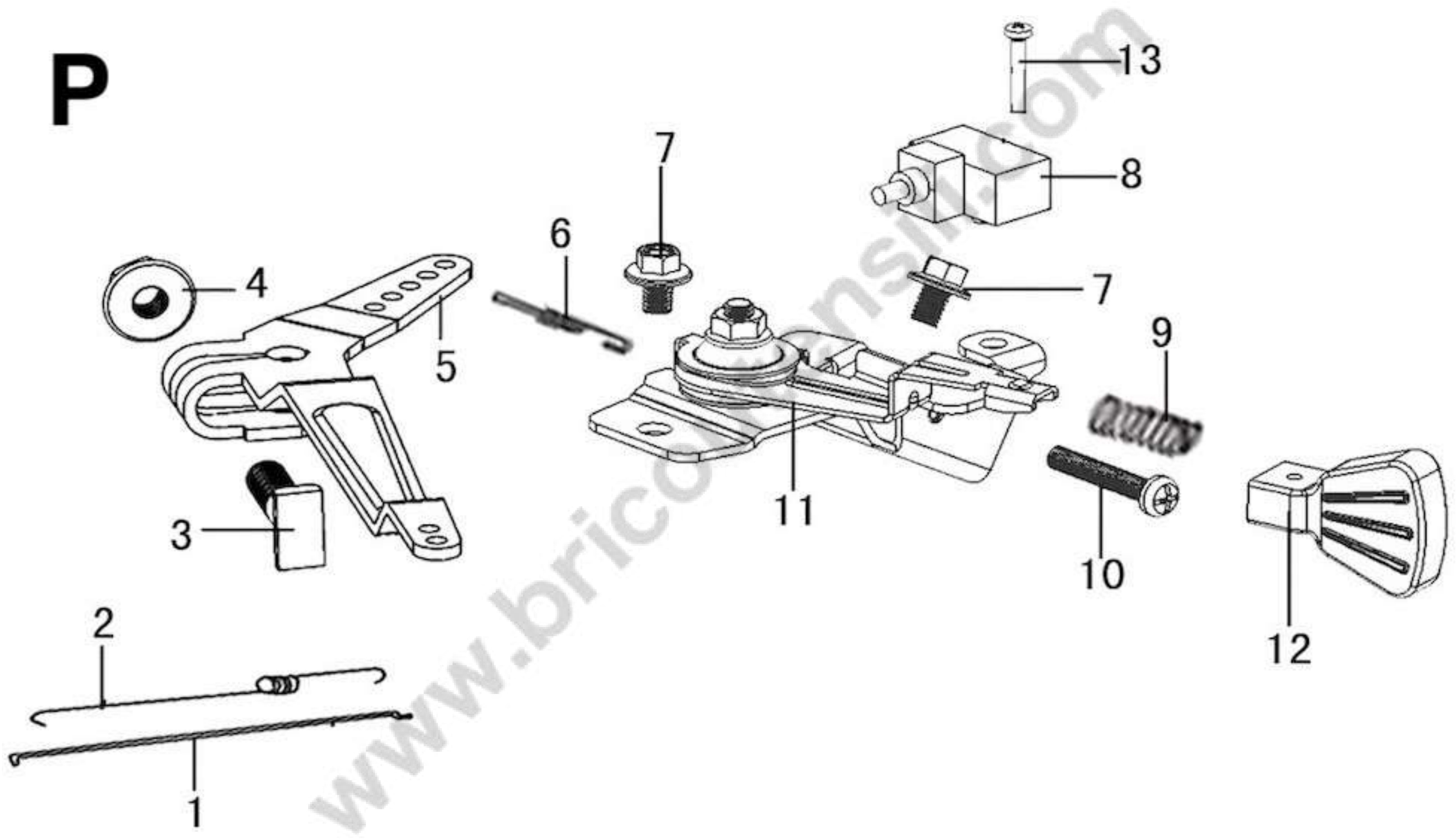

P Pag. 14
1
SPZ171590002-T040
ROD, GOVERNOR
2
SPZ171610002-T040
SPRING, THROTTLE RETURN
3
SPZ380250002-T040
BOLT, QUADRATE HEAD6×21
4
SPZ380370048-0001
NUT, FLANGE,6MM
5
SPZ171620018-T153
ARM, GOVERNOR
6
SPZ171600031-T153
SPRING, GOVERNOR
7
SPZ380140011-0004
BOLT, FLANGE, 6×10
8
SPZ271660026-T350
SWITCH ASSY,ENGINE STOP
9
SPZ171660001-T040
SPRING
10
SPZ380200017-0005
SCREW , 5×35
11
SPZ171680056-T153
CONTROL ASSY.
12
SPZ173710001-T153
GUM COVER,CONTROL HANDLE
13
SPZ380200008-0005
SCREW , 4×10

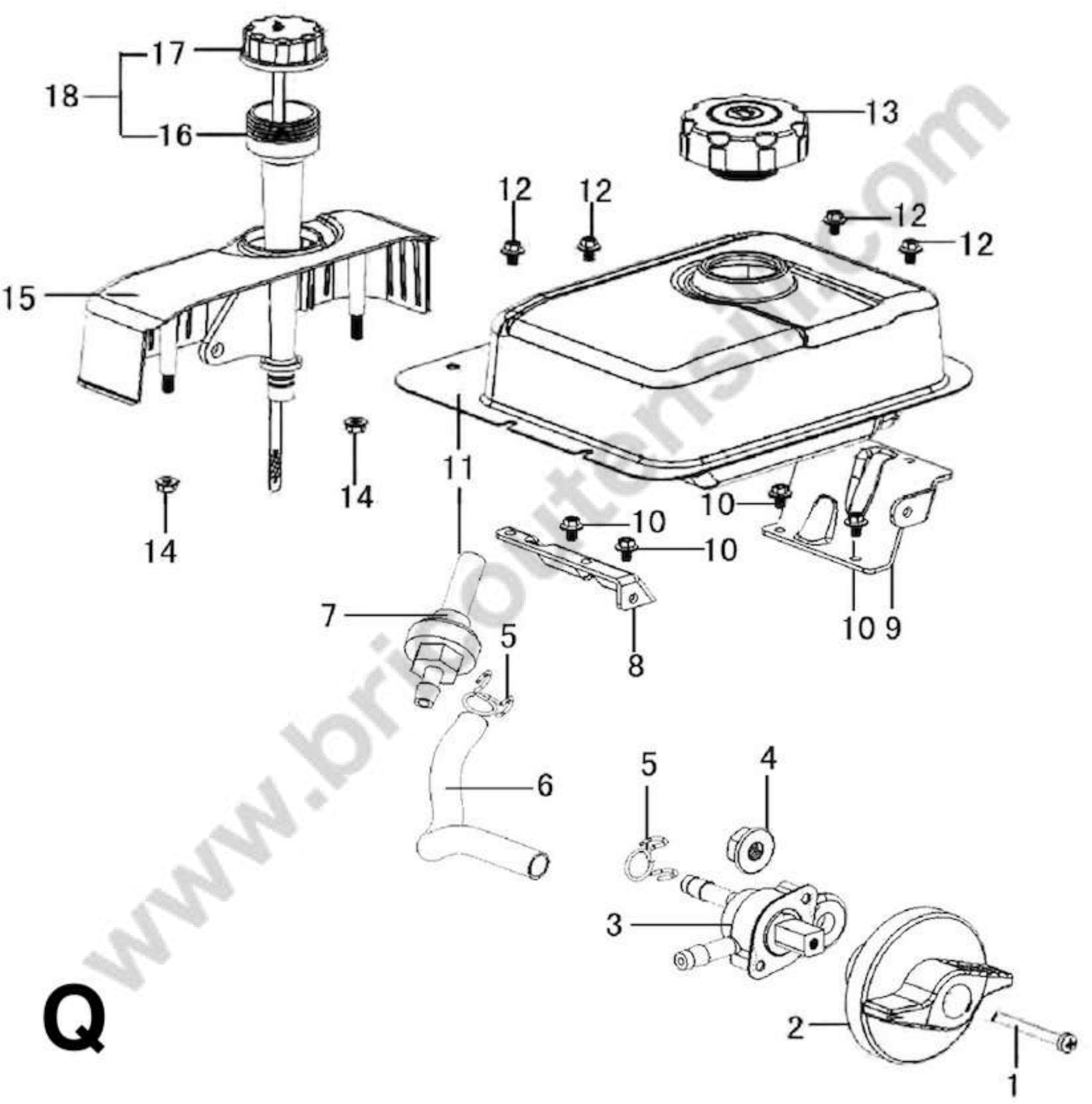

Q Pag. 15
1
SPZ180070128-T153
COVER，AIR CLEANER
2
SPZ171480018-T153
STAY COMP.,CHOKE
3
SPZ380140011-0006
BOLT, FLANGE, 6×10
4
SPZ380370047-0001
NUT, FLANGE,4MM
5
SPZ171530003-T153
PUSN ROD, CHOKE
6
SPZ380821943-T153
BUSH
7
SPZ180290016-T153
ELBOW,AIR CLEANER
8
SPZ180300001-T153
ELBOW,AIR CLEANER2
9
SPZ380310136-0001
SCREW. CROSS RECESSED HEXAGON
10
SPZ271460056-T251
CHOKE LEVER
11
SPZ380370048-0003
NUT, FLANGE,6MM

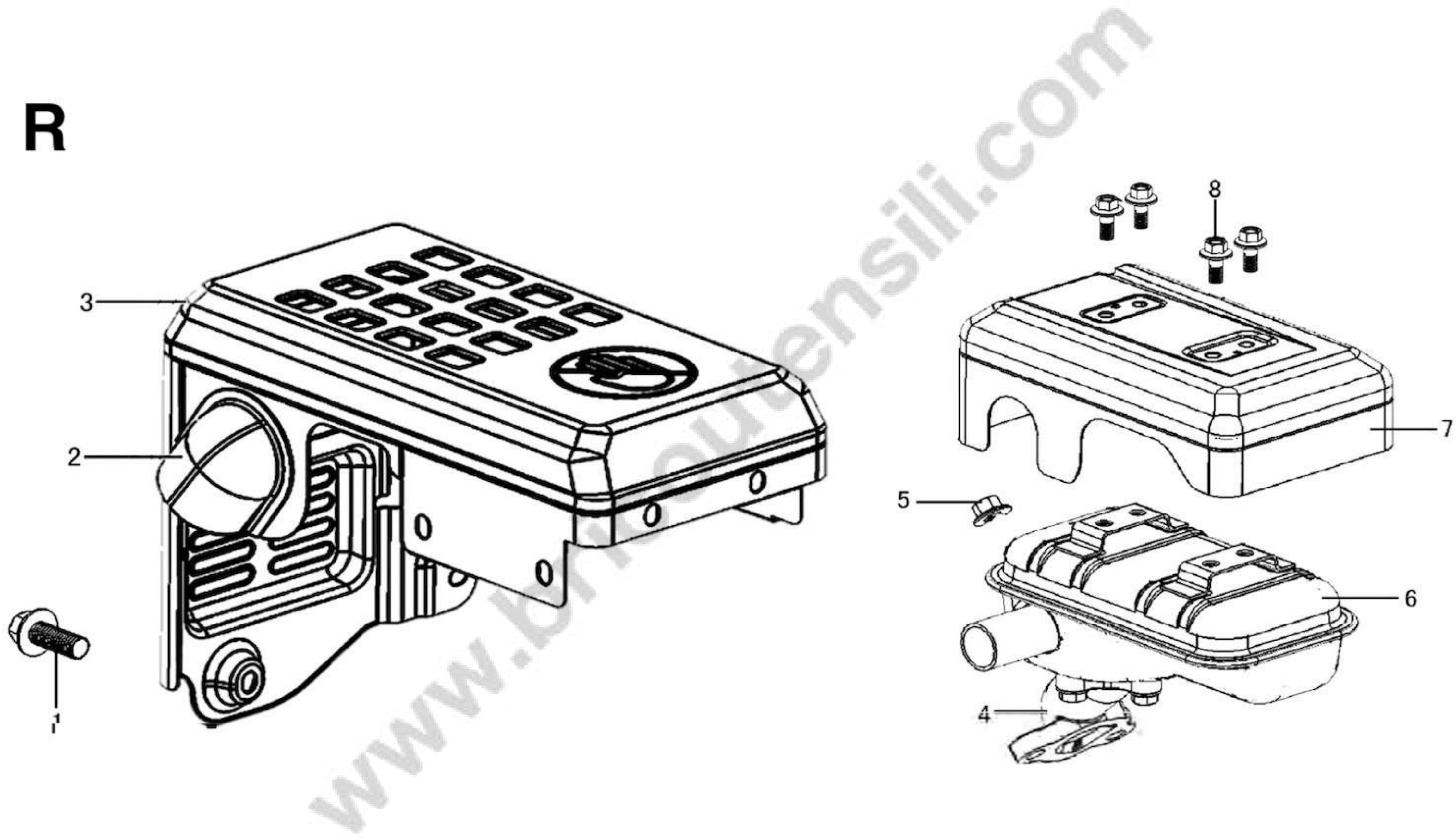

R Pag. 16
1
SPZ380140011-0006
BOLT, FLANGE, 6×10
2
SPZ181900006-T153
PROTECTOR COVER, MUFFLER
3
SPZ180960072-T153
PROTECTOR, MUFFLER
4
SPZ180590168-T153
PIPE，EXHAUST
5
SPZ380370048-0001
NUT, FLANGE,M8
6
SPZ180690059-T153
BODY, MUFFLER
7
SPZ180970027-T153
PROTECTOR, MUFFLER
8
SPZ380140011-0006
BOLT, FLANGE, 6×10

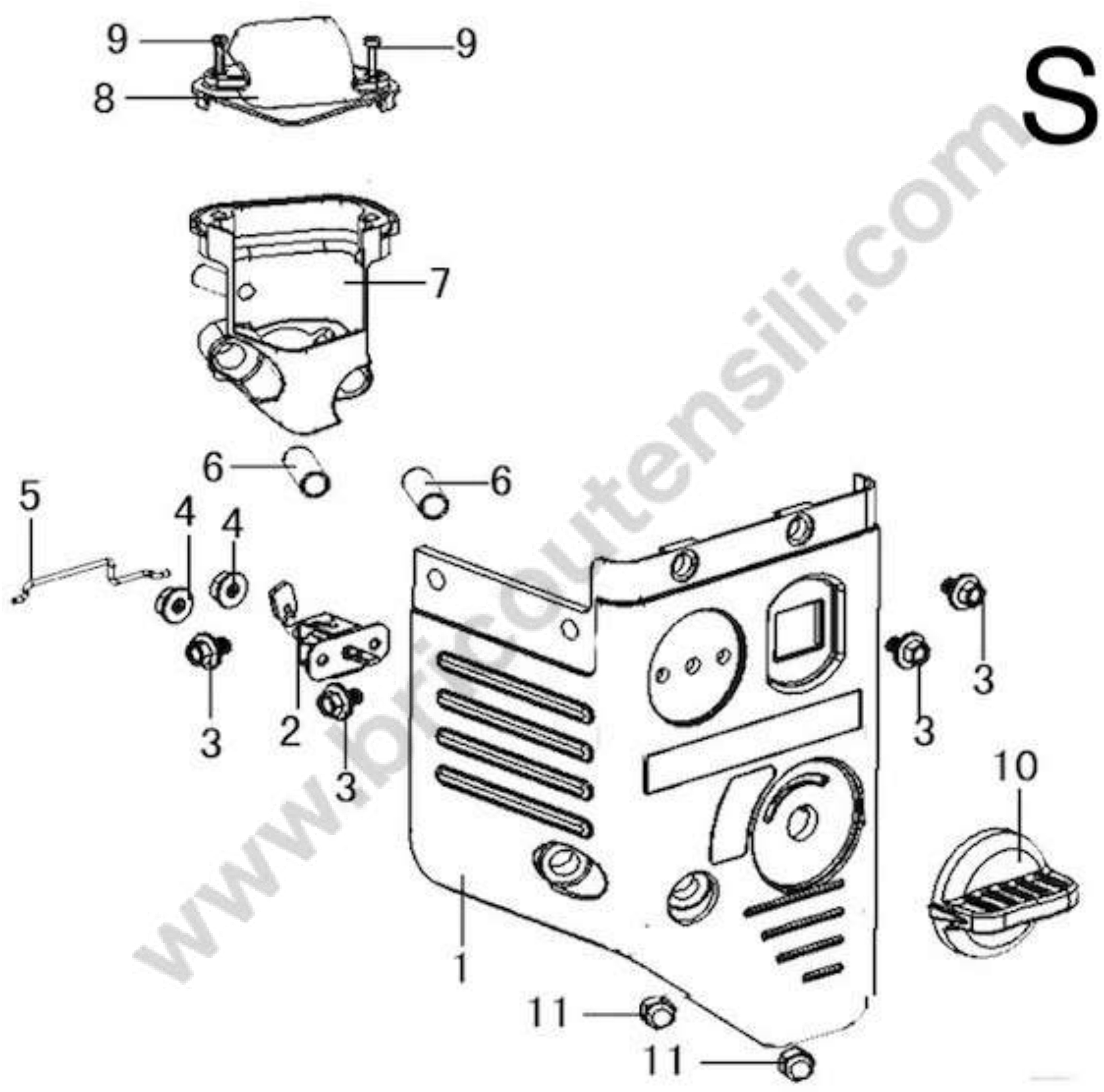

S Pag. 17
1
SPZ380200062-0005
SCREW ,M4×20
2
SPZ173260001-T55G
KNOB FUEL SWITCH
3
SPZ170980081-T251
FUEL SWITCH
4
SPZ380370048-0001
NUT, FLANGE,M6
5
SPZ380960121-0001
CLIP , TUBE
6
SPZ380750457-T153
TUBE , FUEL
7
SPZ170660077-T040
JOINT ASSY. , FUEL TANK
8
SPZ172840008-T153
HOLDER,FUEL TANK
9
SPZ172840009-T153
HOLDER,FUEL TANK
10
SPZ380140215-0003
BOLT , FLANGE , 6×14
11
SPZ170490695-T153
TANK COMP ., FUEL
12
SPZ380140001-0005
BOLT , FLANGE , 6×12
13
SPZ170870074-T153
CAP COOMP.,FUEL FILLER
14
SPZ380370048-0001
NUT, FLANGE,6MM
15
SPZ343210007-T153
REAR SOVER TANK
16
SPZ110710002-T153
EXTENSION,OIL FILTER
17
SPZ111090001-T153
OIL FILLER CAP
18
SPZ110690042-T153
CAP ASSY.

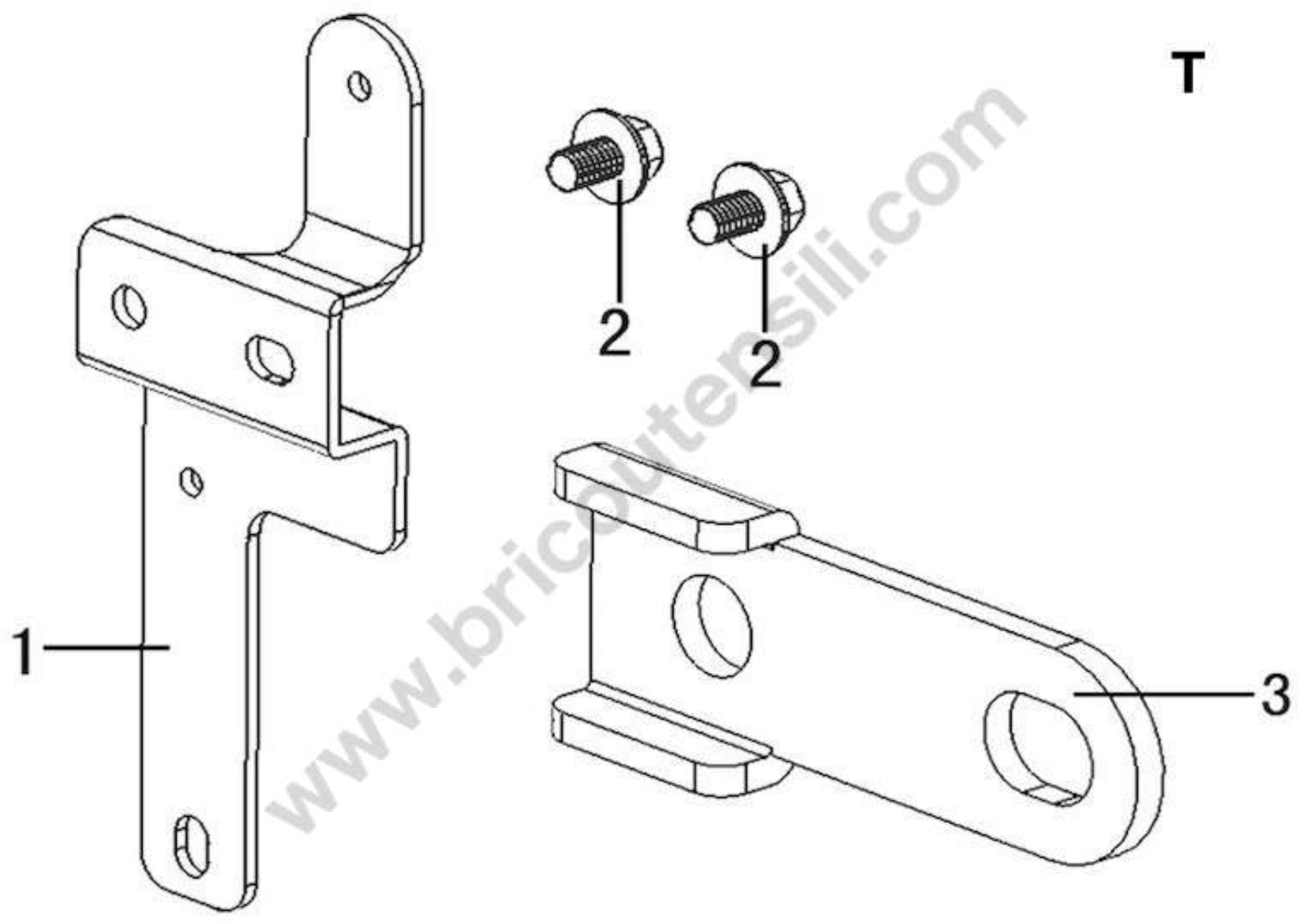

T Pag. 18
1
SPZ270860030-T153
HOLDER,ELECTRIC STARTING BOX
2
SPZ380140215-0004
BOLT , FLANGE ,M6×10
3
SPZ661650001-T153
HOLDER,ELECTRIC STARTING BOX

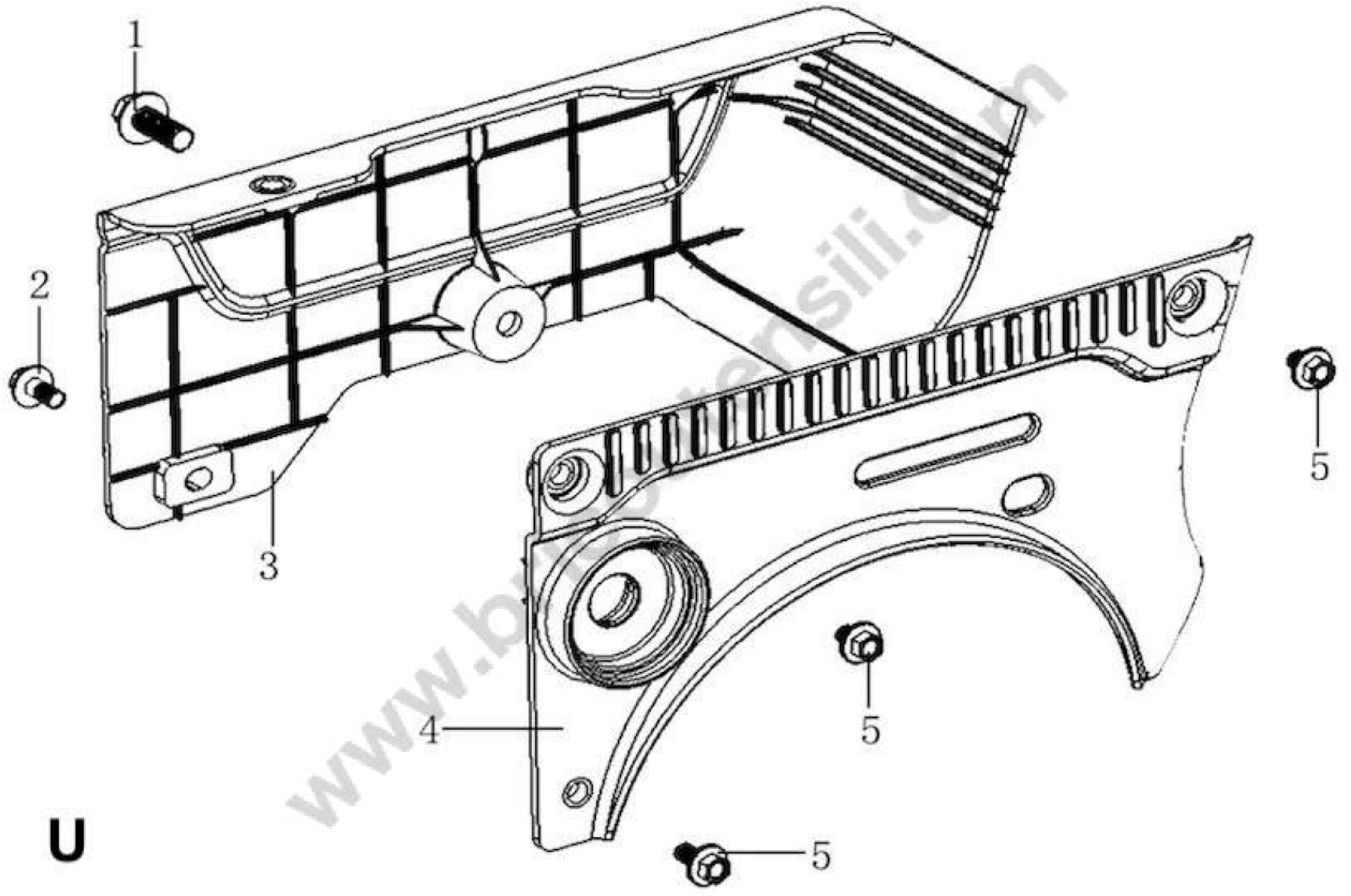

U Pag. 19
1
SPZ380140091-0006
BOLT, FLANGE, M8×25
2
SPZ380140215-0004
BOLT, FLANGE, M6×14
3
SPZ661280002-T153
COVER，ENGINE
4
SPZ661280001-T153
COVER，ENGINE
5
SPZ380140215-0004
BOLT, FLANGE, M6×14
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Reference
Ama Play Snow PS756 - 79590
Available
12 Items
Data sheet
SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
Condition
New
Download
Ama PS756 - 79590 Drawing
Download (916.84KB)
Italiano
