A.M.A. S.p.A.

Ama Spare Parts for TRANSPORTER TAG500N - 79903

SKU: Ama TAG500N - 79903
€19.00
VAT included

Ama Spare Parts for TRANSPORTER TAG500N - 79903

Ama genuine spare parts or replacements parts for to repair Transporter TAG500N - Art.79903.

Online Only Contact Us for Availability
Ama Spare Parts for TRANSPORTER TAG500N - 79903
  • Online only
  • Ama Spare Parts for TRANSPORTER TAG500N - 79903
  • Ama Spare Parts for TRANSPORTER TAG500N - 79903
  • Ama Spare Parts for TRANSPORTER TAG500N - 79903
  • Ama Spare Parts for TRANSPORTER TAG500N - 79903
  • Ama Spare Parts for TRANSPORTER TAG500N - 79903
A.M.A. S.p.A.

Ama Spare Parts for TRANSPORTER TAG500N - 79903

SKU: Ama TAG500N - 79903 Condition: New
€19.00
VAT included

Ama Spare Parts for TRANSPORTER TAG500N - 79903

Ama genuine spare parts or replacements parts for to repair Transporter TAG500N - Art.79903.

Online Only Contact Us for Availability
settings 69 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Available on Reservation

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

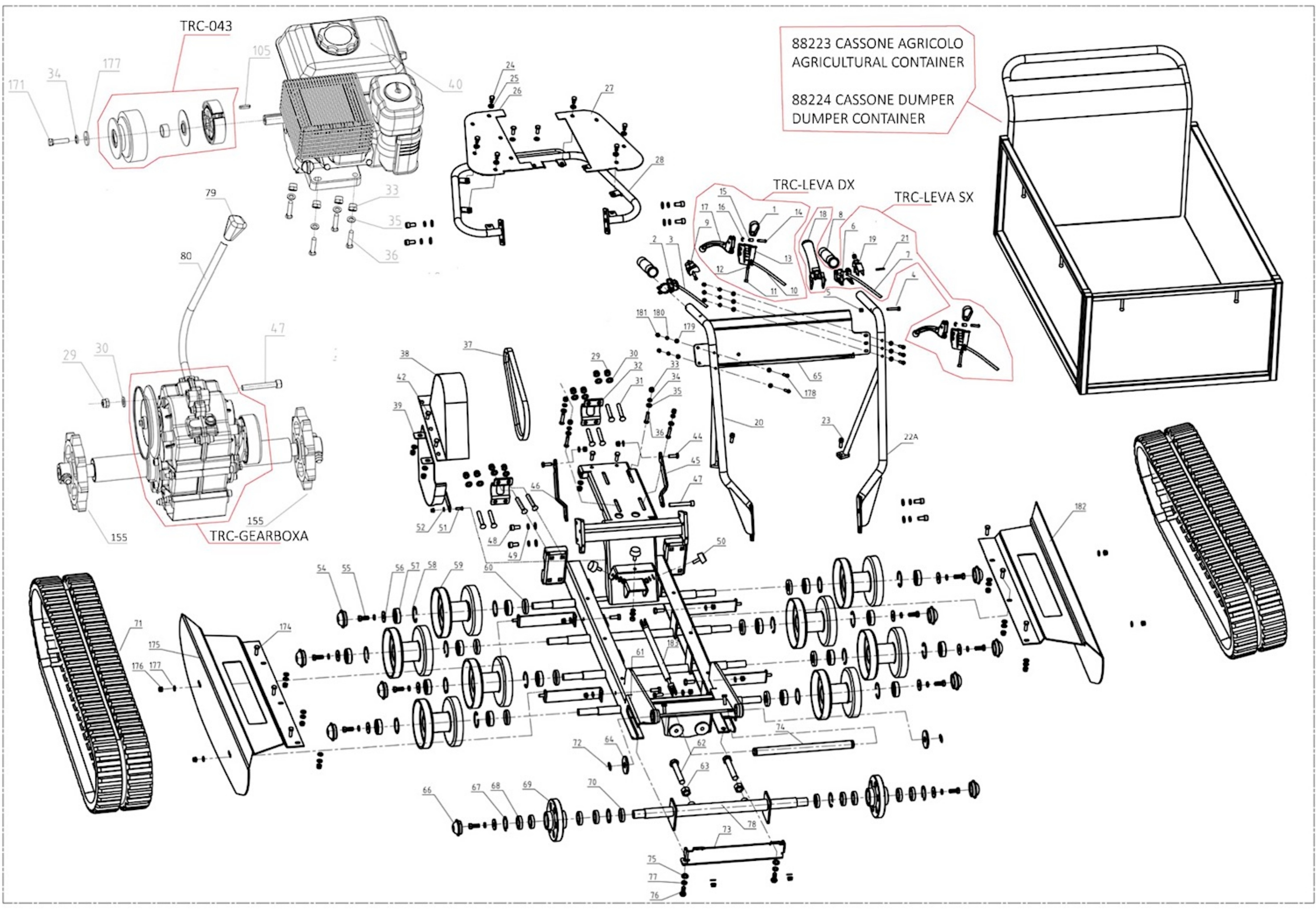

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon TRC-001 Hoop(25) €9.51
2
 photo_cameraImage coming soon TRC-002 Throtte Lever €11.08
3
 photo_cameraImage coming soon TRC-003 Throrte Cable €11.81
6
 photo_cameraImage coming soon TRC-006 Handle bracket €11.08
7
 Expansion Pulley Brake Cable for Transporter AMA TAG 300N TRC-007 Expansion Pulley Brake Cable for Transporter AMA TAG 300N €18.99
8
 photo_cameraImage coming soon TRC-008 Handle Sleeve €8.55
9
 ON/OFF Switch for Transporter AMA TAG 300N - TAG 500N TRC-009 ON/OFF Switch for Transporter AMA TAG 300N - TAG 500N €21.60 Not available for order
10
 Direction Change Cable for Transporters AMA TAG 300N - TAG 500N TRC-010 Direction Change Cable for Transporters AMA TAG 300N - TAG 500N €23.59
18
 photo_cameraImage coming soon TRC-018 Safety Contro! Handle €8.88
19
 photo_cameraImage coming soon TRC-019 Safety cap €8.55
20
 photo_cameraImage coming soon TRC-020 Handle Frame DX €56.46
21
 photo_cameraImage coming soon TRC-021 Cylindrical pin 4X25 €8.55
23
 photo_cameraImage coming soon TRC-022A Handle Frame SX €50.19
34
 photo_cameraImage coming soon TRC-034 Washer a8 €8.55
37
 Transporter AMA TAG 300N V-Betl B762 X 300 TRC-037 Transporter AMA TAG 300N V-Betl B762 X 300 €17.74
43
 Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N TRC-043 Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N €84.25
57
 photo_cameraImage coming soon TRC-057 Bearing 6204-2RS €9.51
59
 photo_cameraImage coming soon TRC-059 Support Wheel Weldment €58.05
60
 photo_cameraImage coming soon TRC-060 Gasket 25x47x7 €8.55
63
 photo_cameraImage coming soon TRC-063 Nut M16 €9.51
66
 photo_cameraImage coming soon TRC-066 Ø 47 Axle Head Cover (Guide Wheel) €8.55
68
 photo_cameraImage coming soon TRC-068 Bearing 61905 €9.51
69
 photo_cameraImage coming soon TRC-069 Guide Wheel €62.71
70
 photo_cameraImage coming soon TRC-070 Gasket 42x30x7 €8.55
71
 photo_cameraImage coming soon TRC-071A Caterpillar Chain 18ÙX5ÙX3B €292.21
79
 photo_cameraImage coming soon TRC-079 Lever Knob €8.55
80
 photo_cameraImage coming soon TRC-080 Gear Shift Lever Weldment €22.02
84
 photo_cameraImage coming soon TRC-084 Pin 5x30 €14.87
90
 photo_cameraImage coming soon TRC-090 Vent-Plug €8.55
91
 photo_cameraImage coming soon TRC-091 Obturating Ring Assembly 14 €8.55
95
 photo_cameraImage coming soon TRC-095 Seal FB17X40X7 €9.51
96
 photo_cameraImage coming soon TRC-096 Gear Box Case (L) €115.98
98
 photo_cameraImage coming soon TRC-098 Gear Box Underlay €9.60
101
 photo_cameraImage coming soon TRC-101 Gear III-2 €39.55
103
 photo_cameraImage coming soon TRC-103 Gear III-4 €28.28
104
 photo_cameraImage coming soon TRC-104 Gear III-3 €27.03
107
 photo_cameraImage coming soon TRC-107 Gear II-1 €27.03
109
 photo_cameraImage coming soon TRC-109 Gear II-2 €27.03
110
 photo_cameraImage coming soon TRC-110 Gear II-3 €27.03
112
 photo_cameraImage coming soon TRC-112 Gear II-4 €27.03
113
 photo_cameraImage coming soon TRC-113 Gear II-5 €22.02
114
 photo_cameraImage coming soon TRC-114 Gear Box Case ( R) €94.91
115
 photo_cameraImage coming soon TRC-115 Big Pulley Weldment €28.28
116
 photo_cameraImage coming soon TRC-116 Slip Duplex Pulley €43.92
117
 photo_cameraImage coming soon TRC-117 Shaft I €34.56
118
 photo_cameraImage coming soon TRC-118 Gear €43.92
125
 photo_cameraImage coming soon TRC-125 Plug €8.55
129
 photo_cameraImage coming soon TRC-129 Rivet Assembly €22.02
130
 Brake Pad for Transporters AMA TAG 300N - TAG 500N TRC-130 Brake Pad for Transporters AMA TAG 300N - TAG 500N €30.01
131
 photo_cameraImage coming soon TRC-131 Expansion Brake Cover Weldment €18.36
133
 photo_cameraImage coming soon TRC-133 Output Gear Bush Gasket €9.60
139
 photo_cameraImage coming soon TRC-139 Clutch Bush €50.19
141
 photo_cameraImage coming soon TRC-141 Joint Bush €43.92
142
 photo_cameraImage coming soon TRC-142 Steel Ball 5 €7.49
149
 photo_cameraImage coming soon TRC-149 Seal FB42x25x7 €9.60
150
 photo_cameraImage coming soon TRC-150 Output Shaft Composite Bushing €8.88
151
 photo_cameraImage coming soon TRC-151 Output Shaft House €65.33
152
 photo_cameraImage coming soon TRC-152 Guard Cover €56.46
155
 Drive Wheel for Transporter AMA TAG 300N - TAG 500N TRC-155 Drive Wheel for Transporter AMA TAG 300N - TAG 500N €62.71 Not available for order
156
 photo_cameraImage coming soon TRC-156 Seal FB16x22x4 €12.76
157
 Hopper Cable for Transporters AMA TAG 300N - TAG 500N TRC-157 Hopper Cable for Transporters AMA TAG 300N - TAG 500N €23.98
159
 photo_cameraImage coming soon TRC-159 Handle Weldment €31.41
162A
 photo_cameraImage coming soon TRC-162A Right Hopper €114.88
162B
 photo_cameraImage coming soon TRC-162B Left Hopper €114.88
165
 photo_cameraImage coming soon TRC-165 Star Grip Knob €6.70
166
 photo_cameraImage coming soon TRC-160 Handle Sleeve(cp28) €8.55
166
 photo_cameraImage coming soon TRC-166 Backstop spring €8.55
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

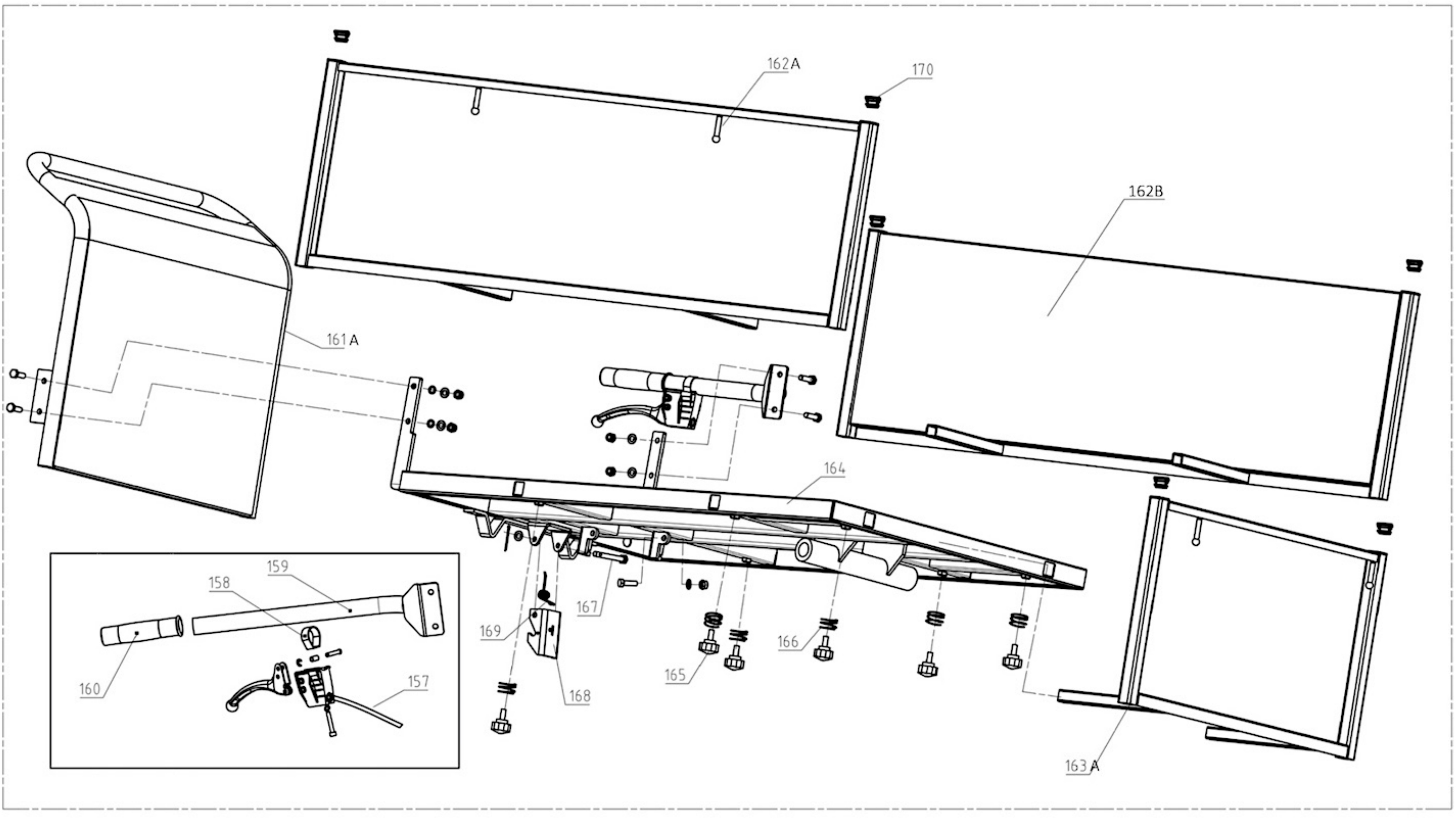

Esploso pagina 2
Pos. Item Price Buy
157
 Hopper Cable for Transporters AMA TAG 300N - TAG 500N TRC-157 Hopper Cable for Transporters AMA TAG 300N - TAG 500N €23.98
159
 photo_cameraImage coming soon TRC-159 Handle Weldment €31.41
165
 photo_cameraImage coming soon TRC-165 Star Grip Knob €6.70
166
 photo_cameraImage coming soon TRC-160 Handle Sleeve(cp28) €8.55
166
 photo_cameraImage coming soon TRC-166 Backstop spring €8.55
503
 Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N TRC-043 Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N €84.25
504
 Gear Box Assy for Transporters AMA TAG 500N TRC-GEARBOXA Gear Box Assy for Transporters AMA TAG 500N €1,079.29 Not available for order
505
 photo_cameraImage coming soon 88223 Complete Agricultural container €719.68
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

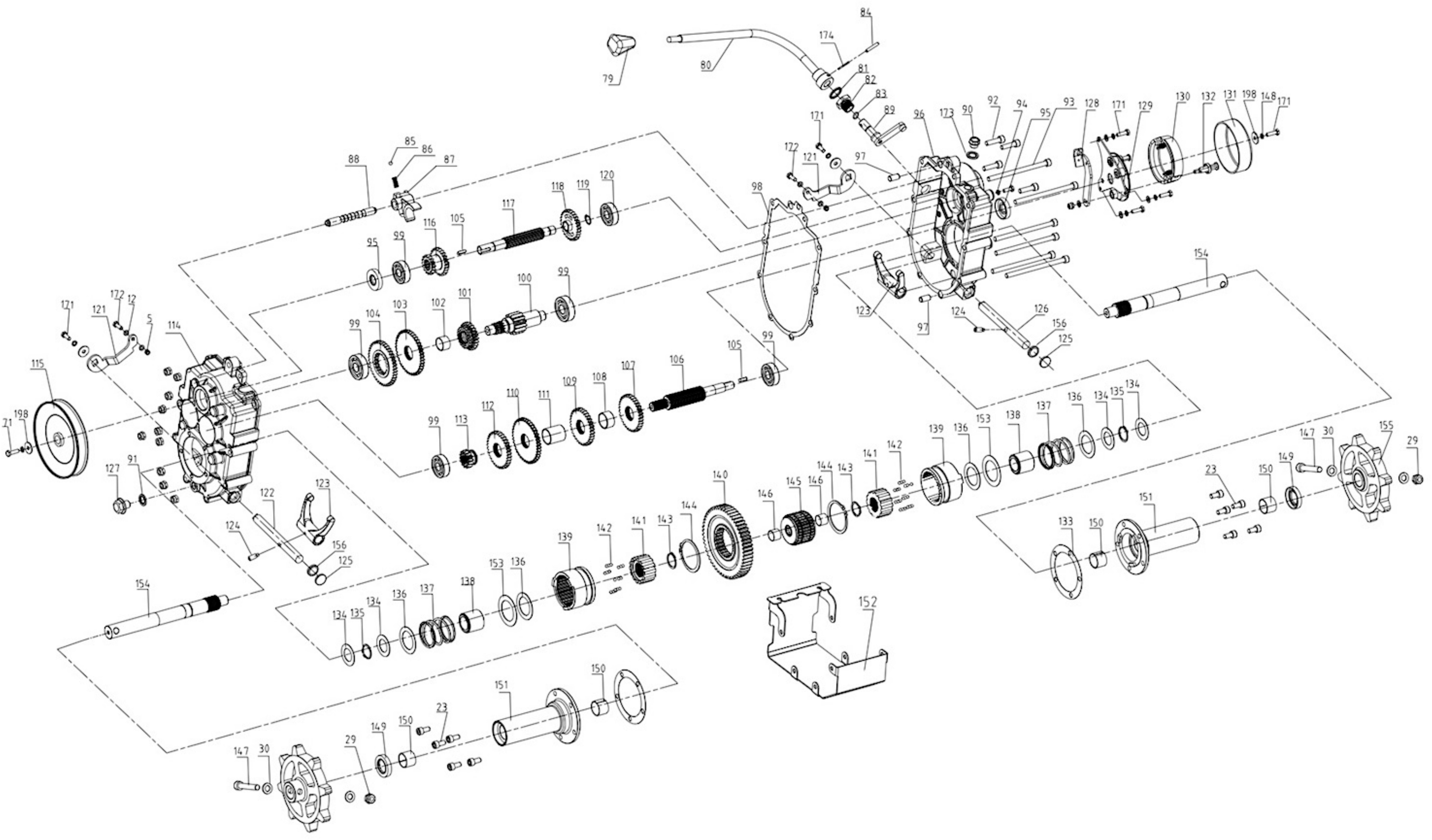

Esploso pagina 3
Pos. Item Price Buy
84
 photo_cameraImage coming soon TRC-084 Pin 5x30 €14.87
90
 photo_cameraImage coming soon TRC-090 Vent-Plug €8.55
91
 photo_cameraImage coming soon TRC-091 Obturating Ring Assembly 14 €8.55
95
 photo_cameraImage coming soon TRC-095 Seal FB17X40X7 €9.51
96
 photo_cameraImage coming soon TRC-096 Gear Box Case (L) €115.98
98
 photo_cameraImage coming soon TRC-098 Gear Box Underlay €9.60
101
 photo_cameraImage coming soon TRC-101 Gear III-2 €39.55
103
 photo_cameraImage coming soon TRC-103 Gear III-4 €28.28
104
 photo_cameraImage coming soon TRC-104 Gear III-3 €27.03
107
 photo_cameraImage coming soon TRC-107 Gear II-1 €27.03
109
 photo_cameraImage coming soon TRC-109 Gear II-2 €27.03
110
 photo_cameraImage coming soon TRC-110 Gear II-3 €27.03
112
 photo_cameraImage coming soon TRC-112 Gear II-4 €27.03
113
 photo_cameraImage coming soon TRC-113 Gear II-5 €22.02
114
 photo_cameraImage coming soon TRC-114 Gear Box Case ( R) €94.91
115
 photo_cameraImage coming soon TRC-115 Big Pulley Weldment €28.28
116
 photo_cameraImage coming soon TRC-116 Slip Duplex Pulley €43.92
117
 photo_cameraImage coming soon TRC-117 Shaft I €34.56
118
 photo_cameraImage coming soon TRC-118 Gear €43.92
125
 photo_cameraImage coming soon TRC-125 Plug €8.55
129
 photo_cameraImage coming soon TRC-129 Rivet Assembly €22.02
130
 Brake Pad for Transporters AMA TAG 300N - TAG 500N TRC-130 Brake Pad for Transporters AMA TAG 300N - TAG 500N €30.01
131
 photo_cameraImage coming soon TRC-131 Expansion Brake Cover Weldment €18.36
133
 photo_cameraImage coming soon TRC-133 Output Gear Bush Gasket €9.60
139
 photo_cameraImage coming soon TRC-139 Clutch Bush €50.19
141
 photo_cameraImage coming soon TRC-141 Joint Bush €43.92
142
 photo_cameraImage coming soon TRC-142 Steel Ball 5 €7.49
149
 photo_cameraImage coming soon TRC-149 Seal FB42x25x7 €9.60
150
 photo_cameraImage coming soon TRC-150 Output Shaft Composite Bushing €8.88
151
 photo_cameraImage coming soon TRC-151 Output Shaft House €65.33
152
 photo_cameraImage coming soon TRC-152 Guard Cover €56.46
156
 photo_cameraImage coming soon TRC-156 Seal FB16x22x4 €12.76

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for TRANSPORTER TAG500N - 79903

Ama genuine spare parts or replacements parts for to repair Transporter TAG500N - Art.79903.

Online Only Contact Us for Availability

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama TAG500N - 79903

TRANSPORTER TAG500N - Art.79903 Pag.1
# Part Num. Description
1 TRC-001 Hoop(mm 25)
2 TRC-002 Throttle Lever
3 TRC-003 Throttle Cable
6 TRC-006 Handle bracket
7 TRC-007 Expansion Pulley Brake Cabla
8 TRC-008 Handle Sleeve
9 TRC-009 ON/OFF Switch
10 TRC-010 Direction Change Cable
18 TRC-018 Safety Contrai Handle
19 TRC-019 Safety Cap
20 TRC-020 Handle Frame DX
21 TRC-021 Cylindrical pin 4X25
23 TRC-022A Handle Frame SX
24 TRC-024 Bolt M8x16
25 TRC-025 Bolt M8x20
34 TRC-034 Compression Spring
37 TRC-037 Belt B762 X 300
40 TRC-M0T5.5HP Engine (G200F LONCIN) 6,5HP
43 TRC-043 Clutch
56 TRC-056 Washer mm 10
57 TRC-057 Bearing 6204—2RS
58 TRC-058 Circlip 47
59 TRC-059 Support Wheel Weldment
60 TRC-060 Gasket 25x47x7
62 TRC-062 Bolt M1 6x100
63 TRC-063 Nut M16
66 TRC-066 mm 47 Axle Head Cover (Guide Wheel)
67 TRC-067 Circlip 42
68 TRC-068 Bearing 61905
69 TRC-069 Guide Wheel
70 TRC-070 Gasket 42x30x7
71 TRC-071A Caterpillar Chain 18ÙX5ÙX3B
73 TRC-073A Support Bracket 500KG
79 TRC-079 Lever Knob
80 TRC-080 Gear Shift Lever Weldment
84 TRC-084 Pin 5x30
90 TRC-090 Vent-Plug
91 TRC-091 Obturating Ring Assembly 14
95 TRC-095 Seal FB17X40X7
96 TRC-096 Gear Box Case (L)
98 TRC-098 Gear Box Underlay
100 TRC-100 Gear Shat III
101 TRC-101 Gear III-2
103 TRC-103 Gear III-4
104 TRC-104 Gear III-3
107 TRC-107 Gear II-1
109 TRC-109 Gear II-2
110 TRC-110 Gear II-3
112 TRC-112 Gear II-4
113 TRC-113 Gear II-5
114 TRC-114 Gear Box Case (R)
115 TRC-115 Big Pulley Weldment
116 TRC-116 Slip Duplex Pulley
117 TRC-117 Shaft I
118 TRC-1 18 Gear
125 TRC-125 Plug
129 TRC-129 Rivet Assemhly
130 TRC-130 Brake Pad Assembly
131 TRC-131 Expansion Brake Cover Weldment
133 TRC-133 Output Gear Bush Gasket
134 TRC-134 Gasket 1
136 TRC-136 Spring Gasket
139 TRC-139 Clutch Bush
140 TRC-140 Output Gear
141 TRC-141 Joint Bush
142 TRC-142 Steel Ball 5
147 TRC-147 Bolt M10x60
149 TRC-149 Seal FB42x25x7
150 TRC-150 Output Shaft Composite Bushing
151 TRC-151 Output Shaft House
152 TRC-152 Guard Cover
155 TRC-155 Driving Wheel
156 TRC-156 Seal FB16x22x4
157 TRC-157 Hopper Cable
159 TRC-159 Handle Weldment
166 TRC-160 Handle Sleeve (28}
162A TRC-162A Right Hopper
162B TRC-162B Left Hopper
163A TRC-163A Front Hopper
164A TRC-164A Hopper Base
165 TRC-165 Star Grip Knob
166 TRC-166 Backstop Spring
169 TRC-169 Torsional Spring
170 TRC-170 Plug 25
171 TRC-171 Bolt M6x16
Kit Pag.2
501 TRC-L EVA DX Kit Lever + cable RIGHT
502 TRC-LEVA SX Kit Lever + cable- LEFT
503 TRC-043 Kit complete clutch
504 TRC-GEARBOXA Kit Gearbox Assy
505 88223 Complete Agricultural container
506 83224 Complete Dumper container

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama TAG500N - 79903
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Ama TAG500N

Diagram Ama TAG500N

Download (822.72KB)

You might also like

Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-043
Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N
Clutch Set Assy for Transporter AMA TAG 300N - TAG 500N Original replacement part AMA, Clutch Set Assy for Transporter TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 300N/TAG...
Last items in stock €84.25
Details
Drive Wheel for Transporter AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-155
Drive Wheel for Transporter AMA TAG 300N - TAG 500N
Drive Wheel for Transporter AMA TAG 300N - TAG 500N Original replacement part AMA, Drive Wheel for Transporter TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 300N/TAG 300ND -...
Out-of-Stock €62.71
Details
Right Lever Set Assy for Transporter AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-LEVA DX
Right Lever Set Assy for Transporter AMA TAG 300N - TAG 500N
Right Lever Set Assy for Transporter AMA TAG 300N - TAG 500N Original replacement part AMA, Right Lever Set Assy for Transporter TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER...
Last items in stock €42.06
Details
Brake Pad for Transporters AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-130
Brake Pad for Transporters AMA TAG 300N - TAG 500N
Brake Pad for Transporters AMA TAG 300N - TAG 500N Original replacement part AMA, Brake Pad Assembly for Transporters TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 300N/TAG...
Available on Order €30.01
Details
Hopper Cable for Transporters AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-157
Hopper Cable for Transporters AMA TAG 300N - TAG 500N
Hopper Cable for Transporters AMA TAG 300N - TAG 500N Original replacement part AMA, Hopper Cable for Transporters TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 300N/TAG...
Last items in stock €23.98
Details
Direction Change Cable for Transporters AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-010
Direction Change Cable for Transporters AMA TAG 300N - TAG 500N
Direction Change Cable for Transporters AMA TAG 300N - TAG 500N Original replacement part AMA, Direction Change Cable for Transporters TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -...
Usually Ships in: 7/10 Business Days Approx. €23.59
Details
Gear Box Assy for Transporters AMA TAG 500N
A.M.A. S.p.A. SKU: TRC-GEARBOXA
Gear Box Assy for Transporters AMA TAG 500N
Gear Box Assy for Transporters AMA TAG 500N Original replacement part AMA, Kit Gear Box Assy for Transporters  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 500N - 79903 - Code : TRC-GEARBOXA
Out-of-Stock €1,079.29
Details
ON/OFF Switch for Transporter AMA TAG 300N - TAG 500N
A.M.A. S.p.A. SKU: TRC-009
ON/OFF Switch for Transporter AMA TAG 300N - TAG 500N
ON/OFF Switch for Transporter AMA TAG 300N - TAG 500N Original replacement part AMA, ON/OFF Switch for Transporter TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -  TRANSPORTER TAG 300N/TAG...
Out-of-Stock €21.60
Details
Expansion Pulley Brake Cable for Transporter AMA TAG 300N
A.M.A. S.p.A. SKU: TRC-007
Expansion Pulley Brake Cable for Transporter AMA TAG 300N
Expansion Pulley Brake Cable for Transporter AMA TAG 300N - TAG 500N Original replacement part AMA, Expansion Pulley Brake Cable for Transporter TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products: -...
on Demand Only Call Us Before €18.99
Details
Transporter AMA TAG 300N V-Betl B762 X 300
A.M.A. S.p.A. SKU: TRC-037
Transporter AMA TAG 300N V-Betl B762 X 300
Transporters AMA TAG 300N - TAG 500N V-Betl B762 X 300 Original replacement part AMA, V-Betl B762 X 300 for Transporters TAG 300N/TAG 300ND - 79900/79901 -  TAG 500N - 79903. Part for the following products:...
on 7/10 Business Days Approx. €17.74
Details
Comments (0)
