Ama genuine spare parts or replacements parts for to repair Engine Loncin 196 cc 6.5 Hp LC1P170FAD x Lawn Tractor RIDER ARR62L - 84890.
In the following table, look for the model of the Lawnmower and the respective parts of the code.![]()
| Engine Loncin LC1P170FAD x Lawn Tractor RIDER ARR62L - 84890 |
||

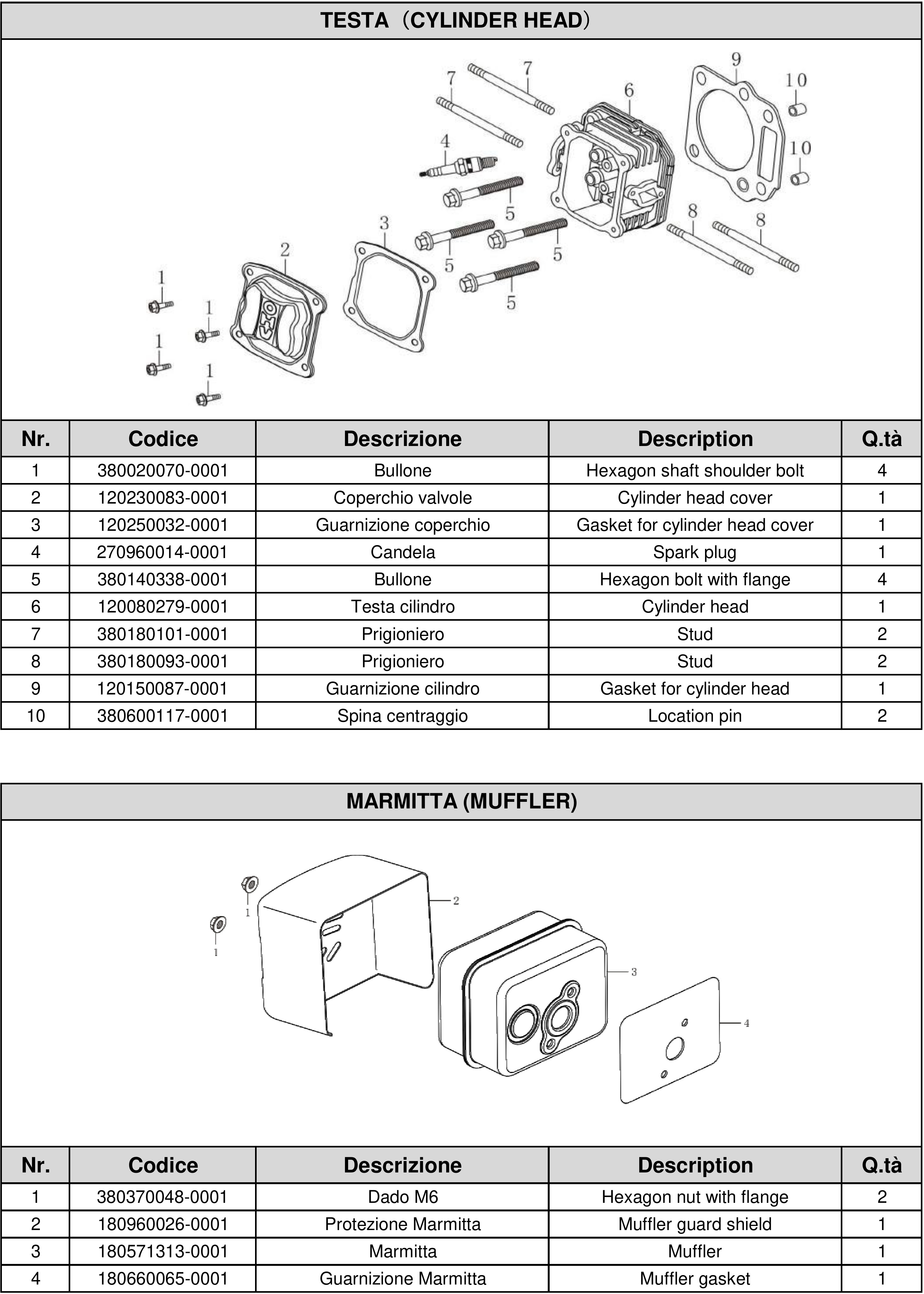

| CYLINDER HEAD | ||
| -------------> | Lawn Tractor RIDER ARR62L - 84890 | |
| # | Part Num. | Description |
| 1 | 380020070-0001 | Hexagon shaft shoulder bolt |
| 2 | 120230083-0001 | Cylinder head cover |
| 3 | 120250032-0001 | Gasket for cylinder head cover |
| 4 | 270960014-0001 | Spark plug |
| 5 | 380140338-0001 | Hexagon bolt with flange |
| 6 | 120080279-0001 | Cylinder head |
| 7 | 380180101-0001 | Stud |
| 8 | 380180093-0001 | Stud |
| 9 | 120150087-0001 | Gasket for cylinder head |
| 10 | 380600117-0001 | Location pin |

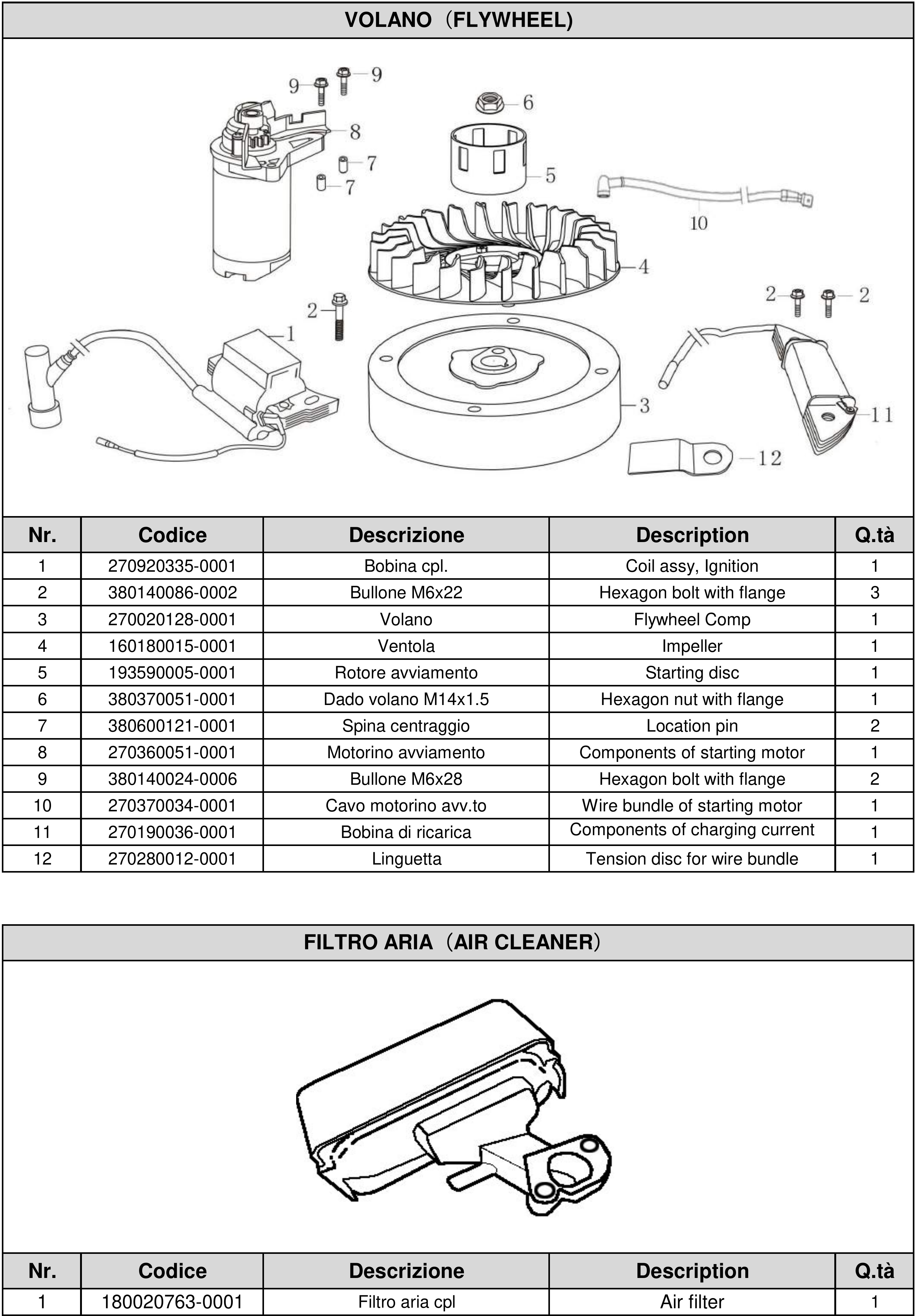

| FLYWHEEL | ||
| 1 | 270920335-0001 | Coil assy, Ignition |
| 2 | 380140086-0002 | Hexagon bolt with flange |
| 3 | 270020128-0001 | Flywheel Comp |
| 4 | 160180015-0001 | Impeller |
| 5 | 193590005-0001 | Starting disc |
| 6 | 380370051-0001 | Hexagon nut with flange |
| 7 | 380600121-0001 | Location pin |
| 8 | 270360051-0001 | Components of starting motor |
| 9 | 380140024-0006 | Hexagon bolt with flange |
| 10 | 270370034-0001 | Wire bundle of starting motor |
| 11 | 270190036-0001 | Components of charging current |
| 12 | 270280012-0001 | Tension disc for wire bundle |
| AIR CLEANER | ||
| 1 | 180020763-0001 | Air filter |

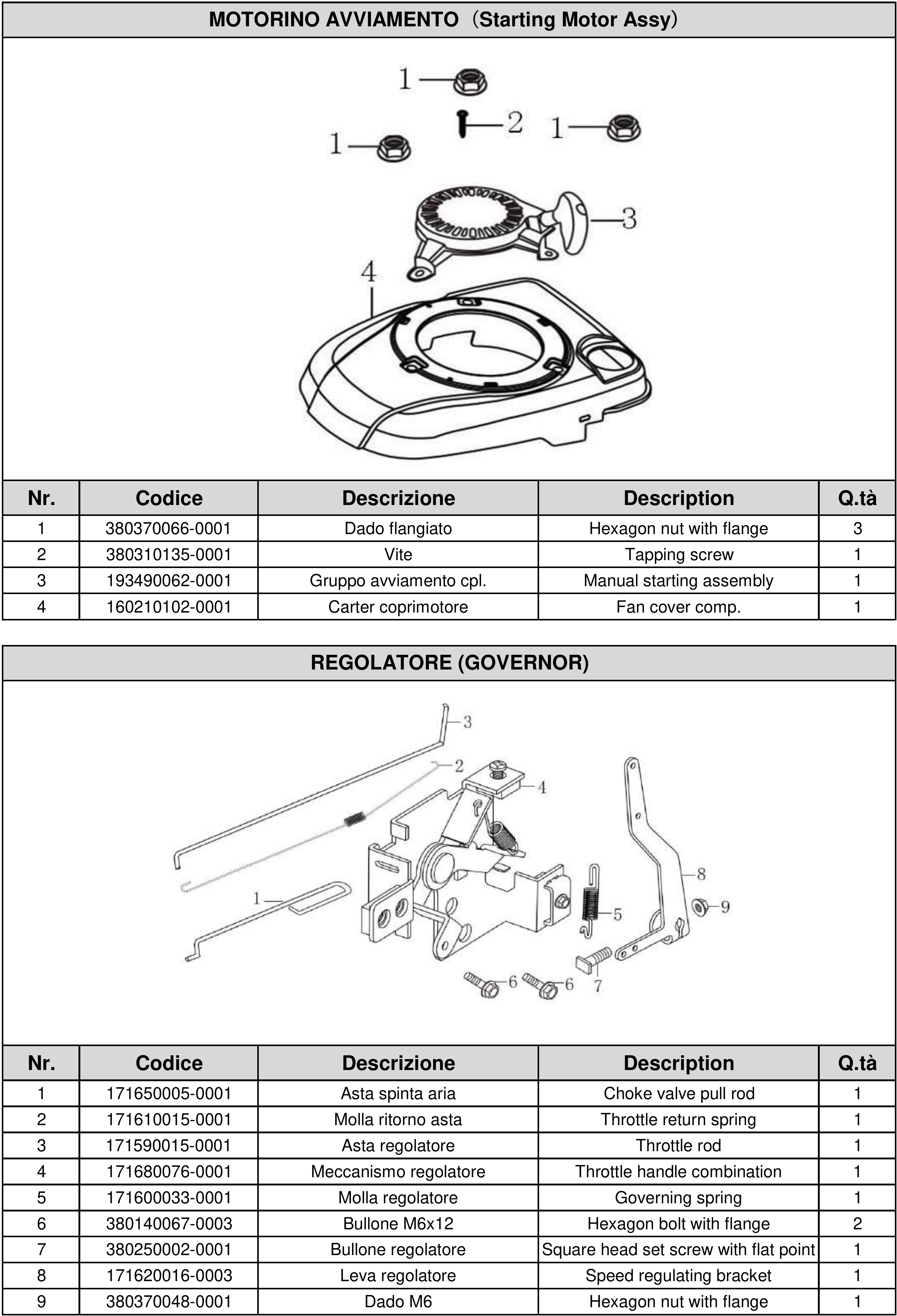

| Starter Assy | ||
| 1 | 380370066-0001 | Hexagon nut with flange |
| 2 | 380310135-0001 | Tapping screw |
| 3 | 193490062-0001 | Manual starting assembly |
| 4 | 160210102-0001 | Fan cover comp. |
| GOVERNOR | ||
| 1 | 171650005-0001 | Choke valve pull rod |
| 2 | 171610015-0001 | Throttle return spring |
| 3 | 171590015-0001 | Throttle rod |
| 4 | 171680076-0001 | Throttle handle combination |
| 5 | 171600033-0001 | Governing spring |
| 6 | 380140067-0003 | Hexagon bolt with flange |
| 7 | 380250002-0001 | Square head set screw with flat point |
| 8 | 171620016-0003 | Speed regulating bracket |
| 9 | 380370048-0001 | Hexagon nut with flange |

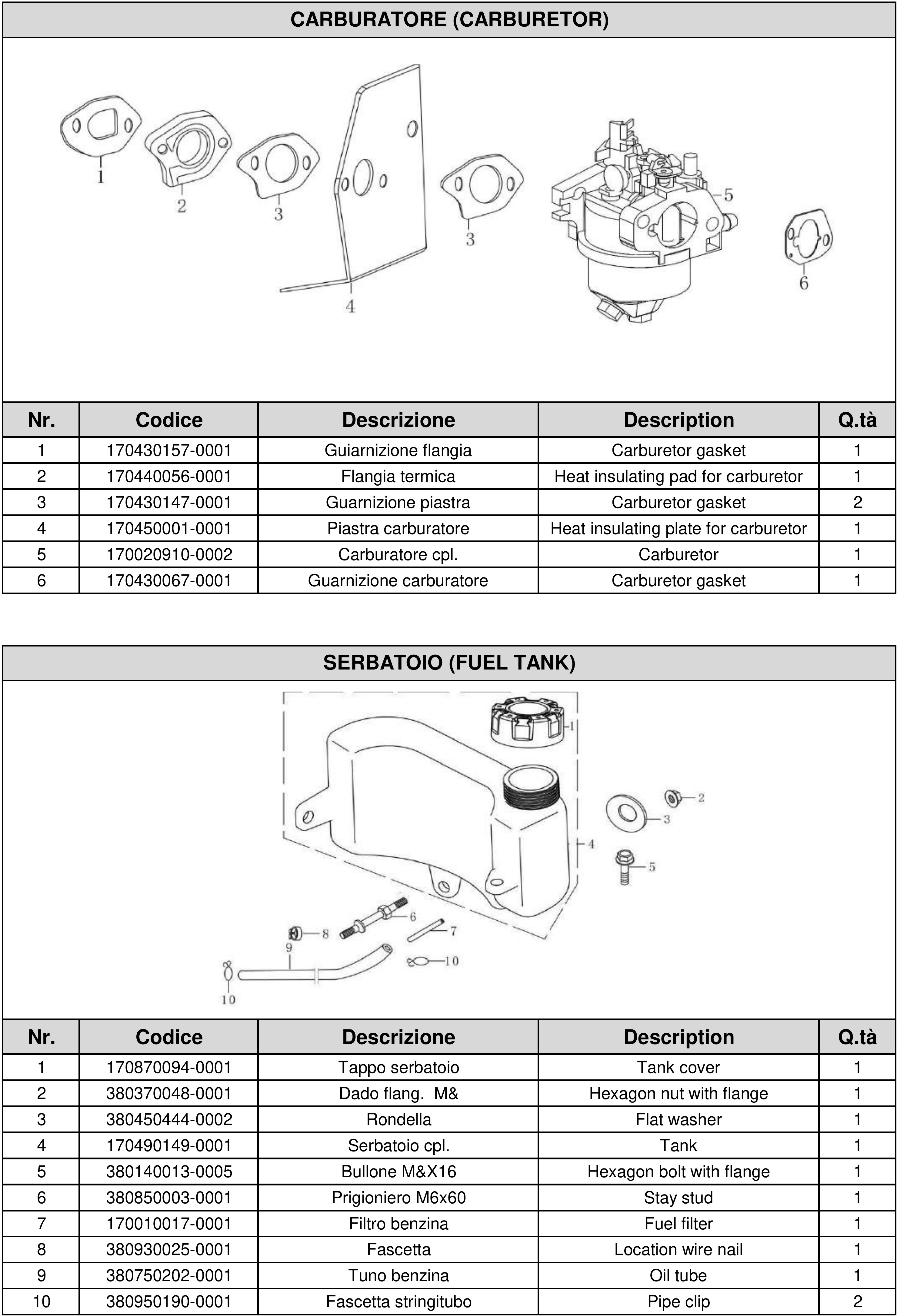

| CARBURETOR | ||
| 1 | 170430157-0001 | Carburetor gasket |
| 2 | 170440056-0001 | Heat insulating pad for carburetor |
| 3 | 170430147-0001 | Carburetor gasket |
| 4 | 170450001-0001 | Heat insulating plate for carburetor |
| 5 | 170020910-0002 | Carburetor |
| 6 | 170430067-0001 | Carburetor gasket |
| FUEL TANK | ||
| 1 | 170870094-0001 | Tank cover |
| 2 | 380370048-0001 | Hexagon nut with flange |
| 3 | 380450444-0002 | Flat washer |
| 4 | 170490149-0001 | Tank |
| 5 | 380140013-0005 | Hexagon bolt with flange |
| 6 | 380850003-0001 | Stay stud |
| 7 | 170010017-0001 | Fuel filter |
| 8 | 380930025-0001 | Location wire nail |
| 9 | 380750202-0001 | Oil tube |
| 10 | 380950190-0001 | Pipe clip |

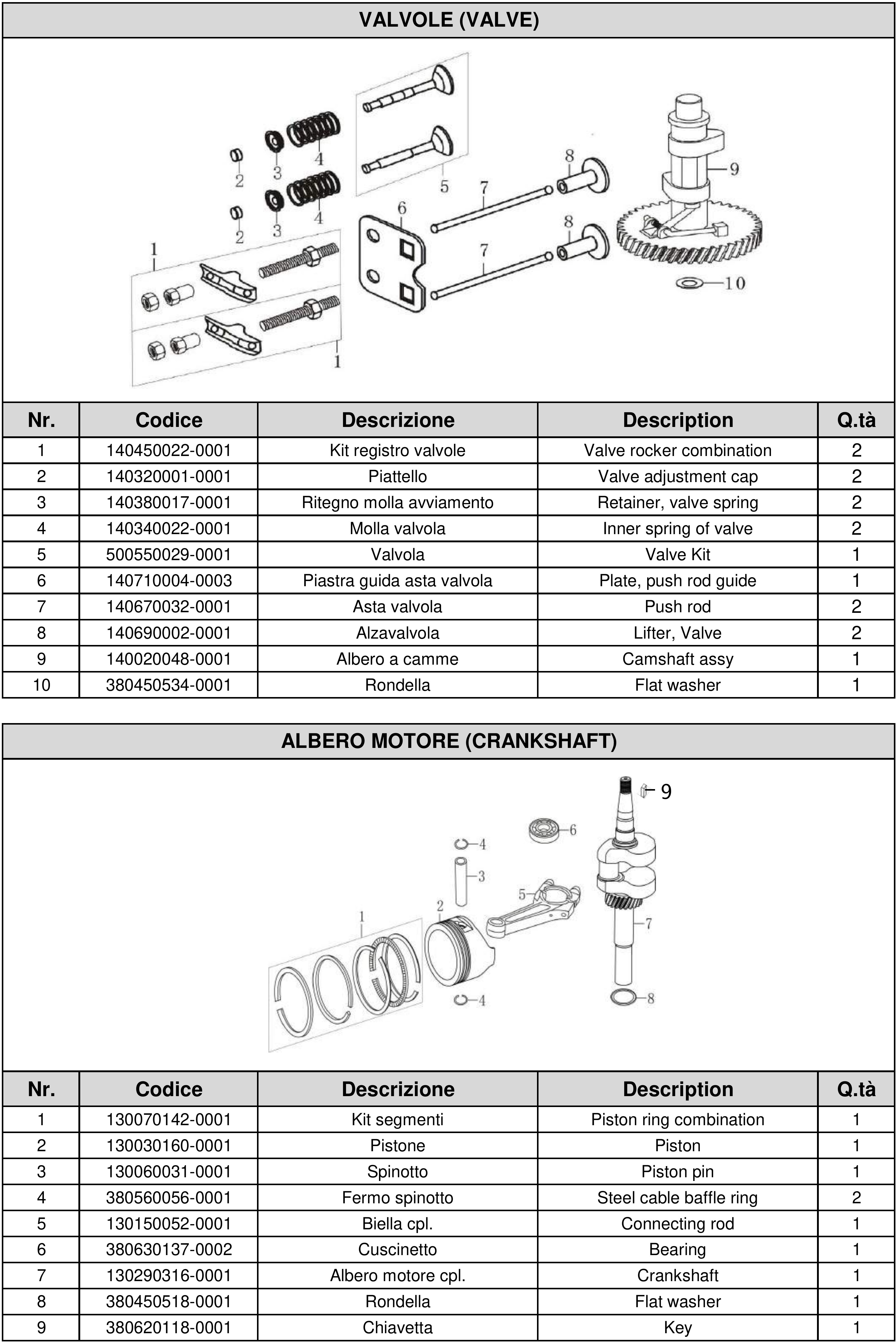

| VALVE | ||
| 1 | 140450022-0001 | Valve rocker combination |
| 2 | 140320001-0001 | Valve adjustment cap |
| 3 | 140380017-0001 | Retainer, valve spring |
| 4 | 140340022-0001 | Inner spring of valve |
| 5 | 500550029-0001 | Valve Kit |
| 6 | 140710004-0003 | Plate, push rod guide |
| 7 | 140670032-0001 | Push rod |
| 8 | 140690002-0001 | Lifter, Valve |
| 9 | 140020048-0001 | Camshaft assy |
| 10 | 380450534-0001 | Flat washer |
| CRANKSHAFT | ||
| 1 | 130070142-0001 | Piston ring combination |
| 2 | 130030160-0001 | Piston |
| 3 | 130060031-0001 | Piston pin |
| 4 | 380560056-0001 | Steel cable baffle ring |
| 5 | 130150052-0001 | Connecting rod |
| 6 | 380630137-0002 | Bearing |
| 7 | 130290316-0001 | Crankshaft |
| 8 | 380450518-0001 | Flat washer |
| 9 | 380620118-0001 | Key |

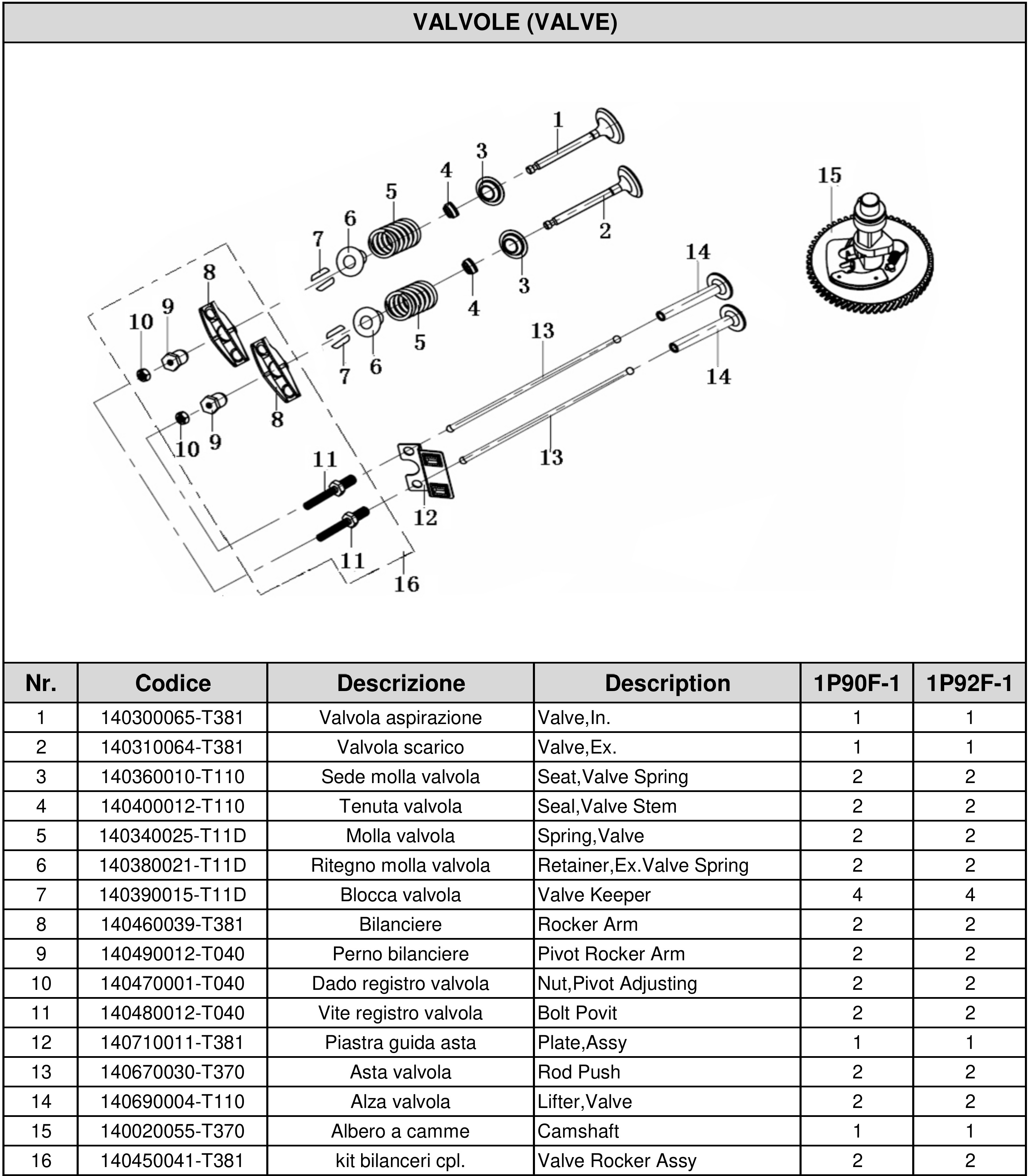

| VALVE | ||
| 1 | 140300065-T381 | Valve,In. |
| 2 | 140310064-T381 | Valve,Ex. |
| 3 | 140360010-T110 | Seat,Valve Spring |
| 4 | 140400012-T110 | Seal,Valve Stem |
| 5 | 140340025-T11D | Spring,Valve |
| 6 | 140380021-T11D | Retainer,Ex.Valve Spring |
| 7 | 140390015-T11D | Valve Keeper |
| 8 | 140460039-T381 | Rocker Arm |
| 9 | 140490012-T040 | Pivot Rocker Arm |
| 10 | 140470001-T040 | Nut,Pivot Adjusting |
| 11 | 140480012-T040 | Bolt Povit |
| 12 | 140710011-T381 | Plate,Assy |
| 13 | 140670030-T370 | Rod Push |
| 14 | 140690004-T110 | Lifter,Valve |
| 15 | 140020055-T370 | Camshaft |
| 16 | 140450041-T381 | Valve Rocker Assy |

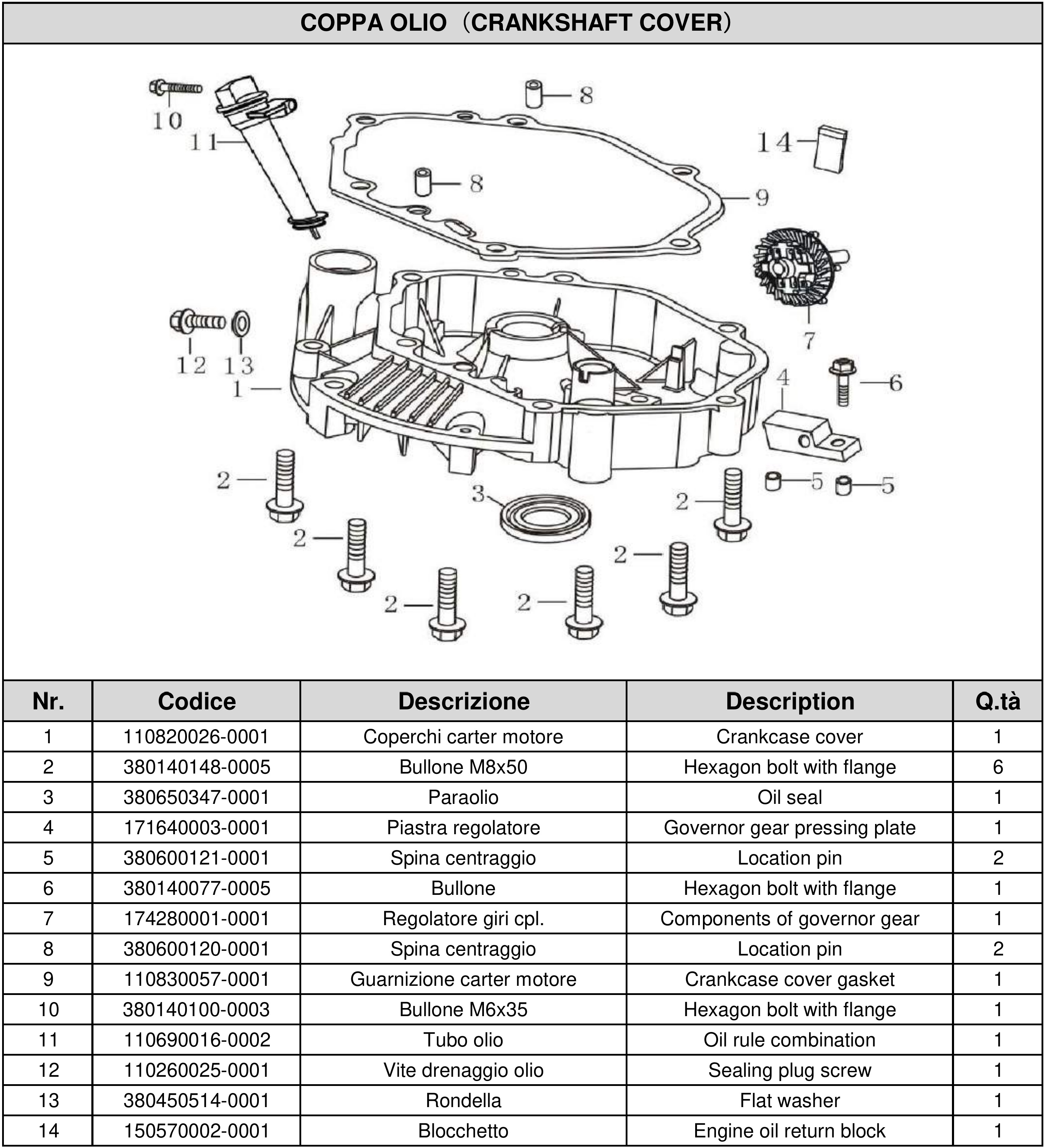

| CRANKSHAFT COVER | ||
| 1 | 110820026-0001 | Crankcase cover |
| 2 | 380140148-0005 | Hexagon bolt with flange |
| 3 | 380650347-0001 | Oil seal |
| 4 | 171640003-0001 | Governor gear pressing plate |
| 5 | 380600121-0001 | Location pin |
| 6 | 380140077-0005 | Hexagon bolt with flange |
| 7 | 174280001-0001 | Components of governor gear |
| 8 | 380600120-0001 | Location pin |
| 9 | 110830057-0001 | Crankcase cover gasket |
| 10 | 380140100-0003 | Hexagon bolt with flange |
| 11 | 110690016-0002 | Oil rule combination |
| 12 | 110260025-0001 | Sealing plug screw |
| 13 | 380450514-0001 | Flat washer |
| 14 | 150570002-0001 | Engine oil return block |

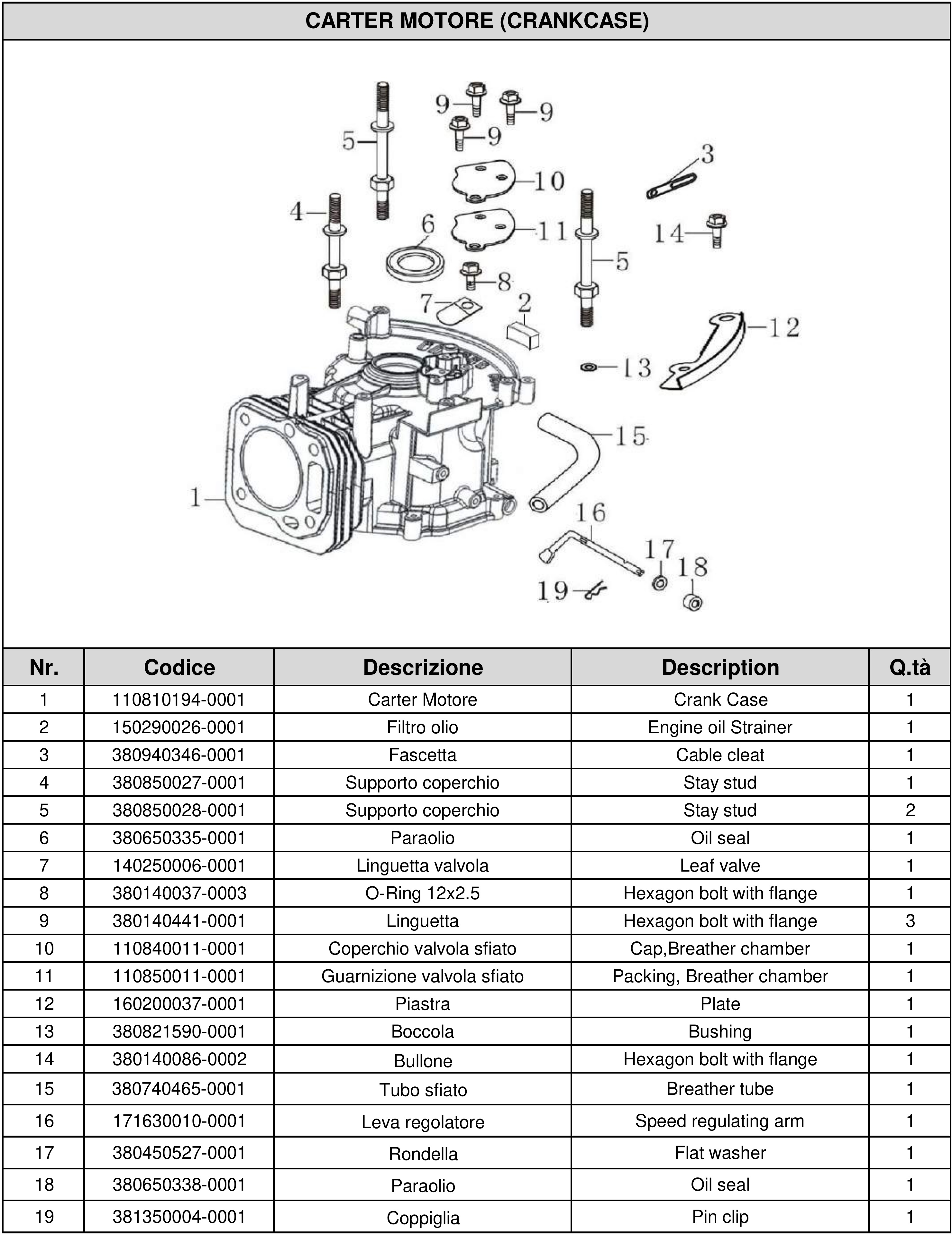

| CRANKCASE | ||
| 1 | 110810194-0001 | Crank Case |
| 2 | 150290026-0001 | Engine oil Strainer |
| 3 | 380940346-0001 | Cable cleat |
| 4 | 380850027-0001 | Stay stud |
| 5 | 380850028-0001 | Stay stud |
| 6 | 380650335-0001 | Oil seal |
| 7 | 140250006-0001 | Leaf valve |
| 8 | 380140037-0003 | Hexagon bolt with flange |
| 9 | 380140441-0001 | Hexagon bolt with flange |
| 10 | 110840011-0001 | Cap,Breather chamber |
| 11 | 110850011-0001 | Packing, Breather chamber |
| 12 | 160200037-0001 | Plate |
| 13 | 380821590-0001 | Bushing |
| 14 | 380140086-0002 | Hexagon bolt with flange |
| 15 | 380740465-0001 | Breather tube |
| 16 | 171630010-0001 | Speed regulating arm |
| 17 | 380450527-0001 | Flat washer |
| 18 | 380650338-0001 | Oil seal |
| 19 | 381350004-0001 | Pin clip |
