A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-461

SKU: Ama NRT-461 - 90839
€6.12
VAT included

Ama Spare Parts for Lawnmower NRT-461

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower NRT-461 - 90839.
Ama Spare Parts for Lawnmower NRT-461
  • Online only
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
  • Ama Spare Parts for Lawnmower NRT-461
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRT-461

SKU: Ama NRT-461 - 90839 Condition: New
€6.12
VAT included

Ama Spare Parts for Lawnmower NRT-461

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower NRT-461 - 90839.
settings 72 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
72 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
Pos. Item Price Buy
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
2
 photo_cameraImage coming soon 89398 Stop lever €14.50
3
 photo_cameraImage coming soon 92562 Self-propelled Lever €12.40
4
 photo_cameraImage coming soon 84959 Upper handrail €39.04
5
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
7
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
10
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
11
 Brake Cable for Lawnmower AMA RS461 84971 Brake Cable for Lawnmower AMA RS461 €11.15
12
 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H 84836 Propelled Cable for Self-Propelled Lawnmower AMA LT 52H €17.48
13
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
15
 Handle Knob for Lawnmower AMA NRS-421 92504 Handle Knob for Lawnmower AMA NRS-421 €3.55
17
 photo_cameraImage coming soon 84973 Lower handrail €36.06
18
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
20
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
22
 photo_cameraImage coming soon 92503 Triangle knob €2.11
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92564 Deck welding assy. €173.86
4
 photo_cameraImage coming soon 90504 Pipe connector nut €3.83
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 88572 Left handle bracket €13.50
7
 photo_cameraImage coming soon 88573 Right handle bracket €13.39
10
 photo_cameraImage coming soon 88574 Height adjustment board €7.00
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 89390 Height Adjustment Pull Rod €4.50
15
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
18
 Mulching Cap for Lawnmower AMA RS461 84842 Mulching Cap for Lawnmower AMA RS461 €13.81
21
 photo_cameraImage coming soon 92541 Mulching board €4.82
22
 AMA NRS-461T Side Deflector 92509 AMA NRS-461T Side Deflector €13.99
23
 photo_cameraImage coming soon 88583 Mulch Shaft €1.99
24
 photo_cameraImage coming soon 88584 Mulch board spring €2.98
25
 photo_cameraImage coming soon 92543 Front mask €3.83
26
 photo_cameraImage coming soon 92542 Front mask €7.43
30
 photo_cameraImage coming soon 92550 Control board upper cover €3.59
31
 photo_cameraImage coming soon 92555 Cover spring €3.34
32
 photo_cameraImage coming soon 92547 Rear discharge cover €10.58
33
 photo_cameraImage coming soon 92554 Gasket €3.34
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 88581 Front drive assy. €35.60
2
 photo_cameraImage coming soon 89885 Wheel assy €17.48
3
 photo_cameraImage coming soon 92552 Resilient washer €2.78
5
 AMA NRS-461 Wheel Hubcap 92530 AMA NRS-461 Wheel Hubcap €5.00
6
 photo_cameraImage coming soon 89875 Inner cover of hub €5.91
7
 photo_cameraImage coming soon 90261 Front bracket fastener €6.70
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 89451 Rear drive assy. €53.46
1.1
 photo_cameraImage coming soon 92545 Height adjustment ball €3.97
2
 photo_cameraImage coming soon 90365 Selfpropelled assy €127.64
3
 photo_cameraImage coming soon 92529 Rear wheel axle sleeve €3.83
4
 photo_cameraImage coming soon 92560 Rear drive left bracket €3.10
5
 photo_cameraImage coming soon 84938 Rear drive right bracket €3.08
6
 photo_cameraImage coming soon 92549 Inner cover of hub €4.82
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
8
 Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
10
 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
11
 Ratchet Pin for Lawnmower AMA NRT-521 90304 Ratchet Pin for Lawnmower AMA NRT-521 €0.72
12
 AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
15
 photo_cameraImage coming soon 92532 Outer cover of hub €5.08
16
 AMA NRT-461 Traction Spring 92537 AMA NRT-461 Traction Spring €3.81
17
 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 84845 Traction V-Belt for Self-Propelled Lawnmower AMA NRT-461 €11.02
18
 photo_cameraImage coming soon 90314 Brake spring €9.49
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 92556 Fabric metal frame €11.28
2
 photo_cameraImage coming soon 92507 Top of grass box €20.96
3
 photo_cameraImage coming soon 92551 Filter plate €6.20
4
 photo_cameraImage coming soon 92527 Fabric grass bag €46.03
5
 photo_cameraImage coming soon 92548 Rear discharge cover €8.50
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 photo_cameraImage coming soon 88575 Rear discharge cover dust proof €3.93
10
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 6
Pos. Item Price Buy
1
 Blade Holder for Self-Propelled Lawnmower AMA LT 52H 84844 Blade Holder for Self-Propelled Lawnmower AMA LT 52H €28.62
2
 Blade cm 46 for Push Lawnmower AMA RS461 84843 Blade cm 46 for Push Lawnmower AMA RS461 €30.06
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
8
 AMA NRT-461 Belt Cover 84846 AMA NRT-461 Belt Cover €11.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower NRT-461

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower NRT-461 - 90839.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Lawnmower NRT-461 - 90839

AMA GArden Lawnmower NRT-461 - 90839

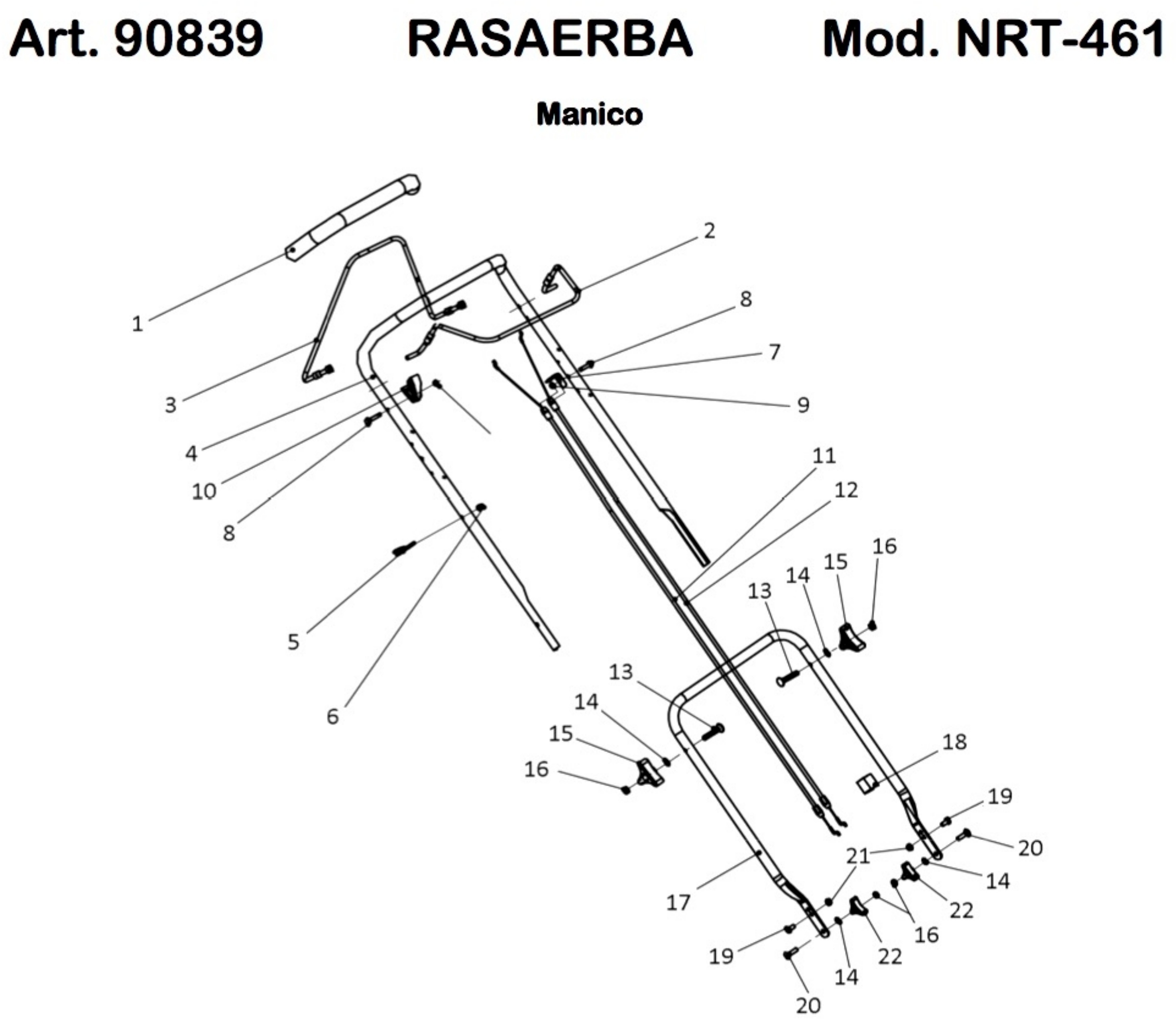

Handle Pag.1
# Part Num. Description
1 88566 Foam Rubber Handle Grip
2 89398 Stop lever
3 92562 Self-propelled Lever
4 84959 Upper handrail
5 88568 Rope Guide
7 84822 Brake Cable Assy plate
10 89399 Plastic stopper
11 84971 Brake cable
12 84836 Selfpropelled cable
13 89893 Heterotypic carriage bolts
15 92504 Triangle knob
17 84973 Lower handrail
18 88247 Fastener
20 88571 Half round head square neck bolts
22 92503 Triangle knob

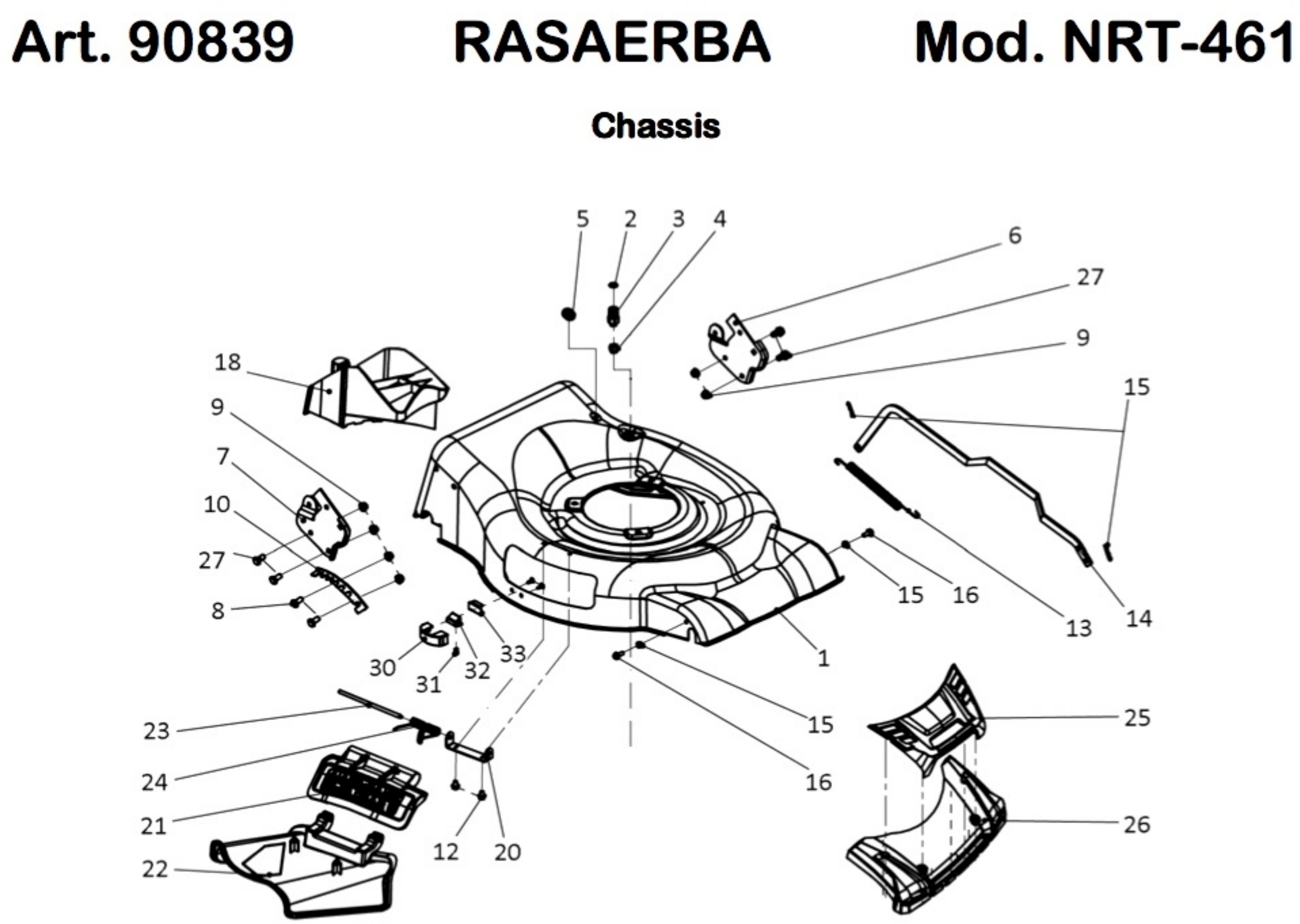

Chassis Pag.2
1 92564 Deck welding assy.
3 89447 Inlet
4 90504 Pipe connector nut
5 89515 Cable stopper
6 88572 Left handle bracket
7 88573 Right handle bracket
10 88574 Height adjustment board
13 73221 Pull Spring for Pull Rod
14 89390 Height Adjustment Pull Rod
15 88625 R type pin
18 84842 Mulching Cap
20 92558 Bracket plate for defelctor
21 92541 Mulching board
22 92509 Side discharge cover
23 88583 Mulch Shaft
24 88584 Mulch board spring
25 92543 Front mask
26 92542 Front mask
30 92550 Fixed block holder
31 92555 Limit block spring
32 92547 The side row overlays
33 92554 The side row covers

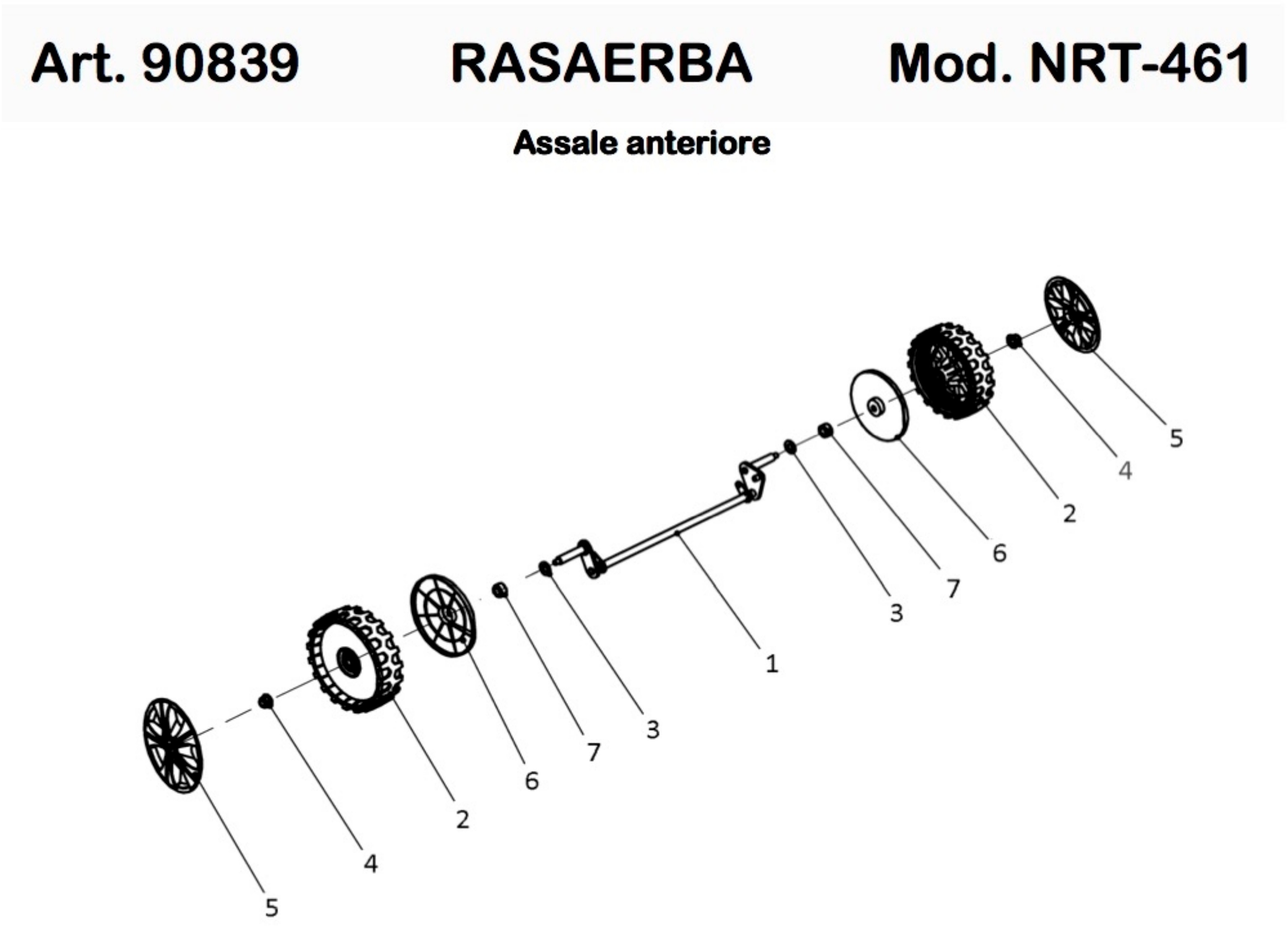

Front Axle Pag.3
1 88581 Front drive assy.
2 89885 Wheel assy.
3 92552 Resilient washer
4 89450 Self-locking nut
5 92530 Outer cover of hub
6 89875 Inner cover of hub
7 90261 Front bracket fastener

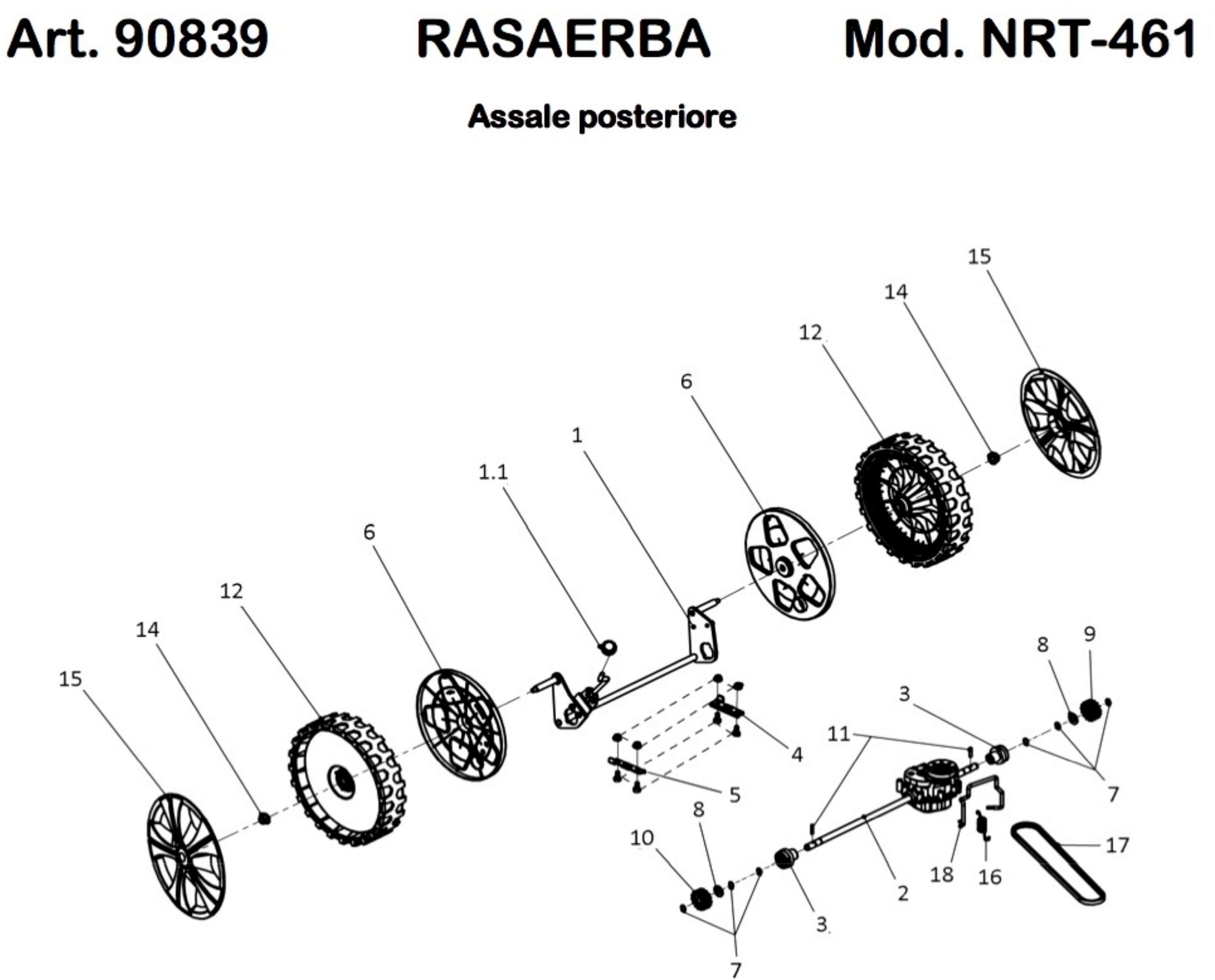

Rear Axle Pag.4
1 89451 Rear drive assy
1.1 92545 Height adjustment ball
2 90365 Selfpropelled assy
3 92529 Bush
4 92560 Rear Plate L
5 84938 Rear Plate R
6 92549 Inner cover of hub
7 79423 Spring washer
8 89889 Selfpropelled ratchet washer
9 89919 Ratchet Wheel L
10 89920 Ratchet Wheel R
11 90304 Ratchet pin
12 89887 Wheel assy.
14 89450 Self-locking nut
15 92532 Outer cover of hub
16 92537 Selfpropelled spring
17 84845 V-belt
18 90314 Brake spring

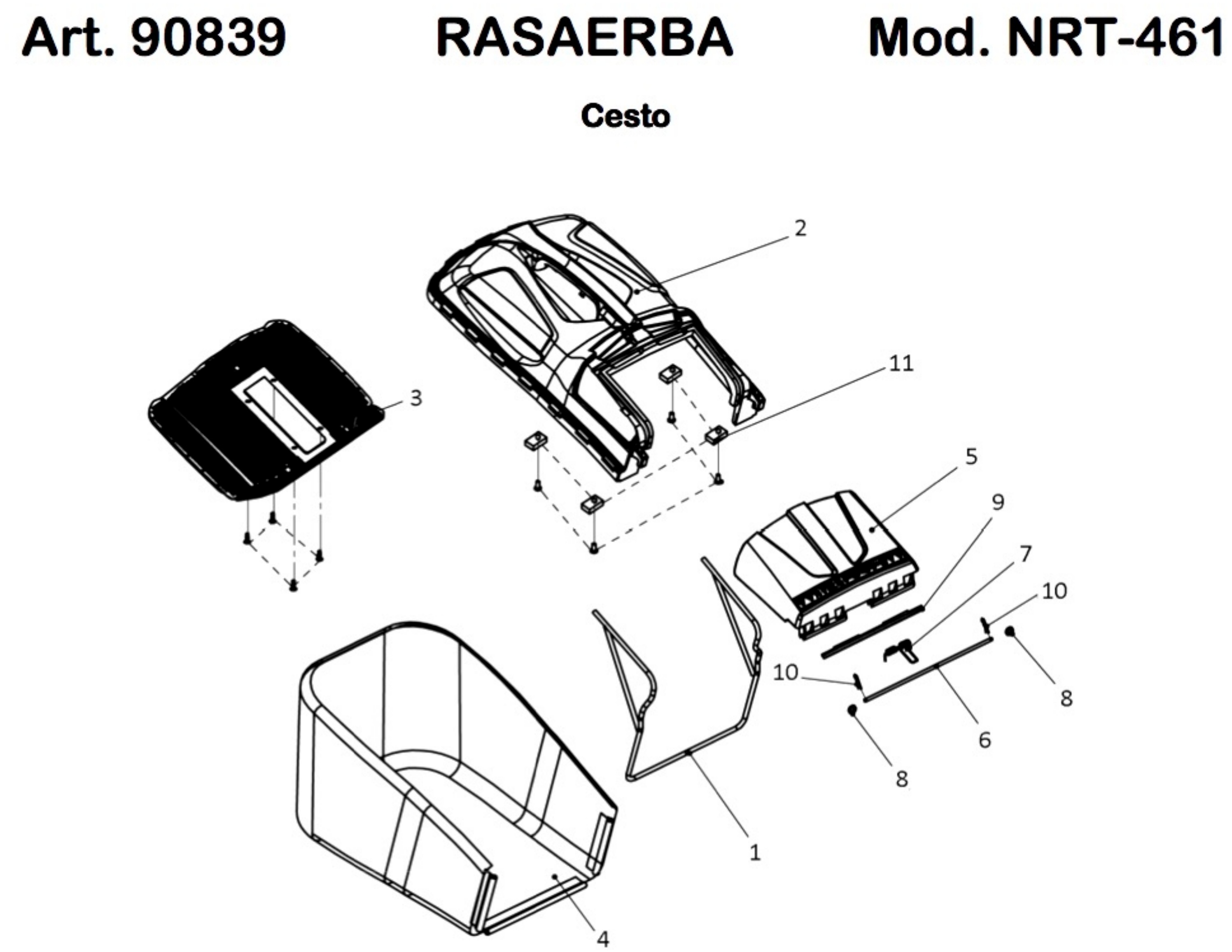

Grass Bag Pag.5
1 92556 Fabric metal frame
2 92507 Top of grass box
3 92551 Filter net of grass bag
4 92527 Fabric grass bag
5 92548 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
9 88575 Rear discharge cover dust proof
10 88625 R type pin
11 90513 Blade washer

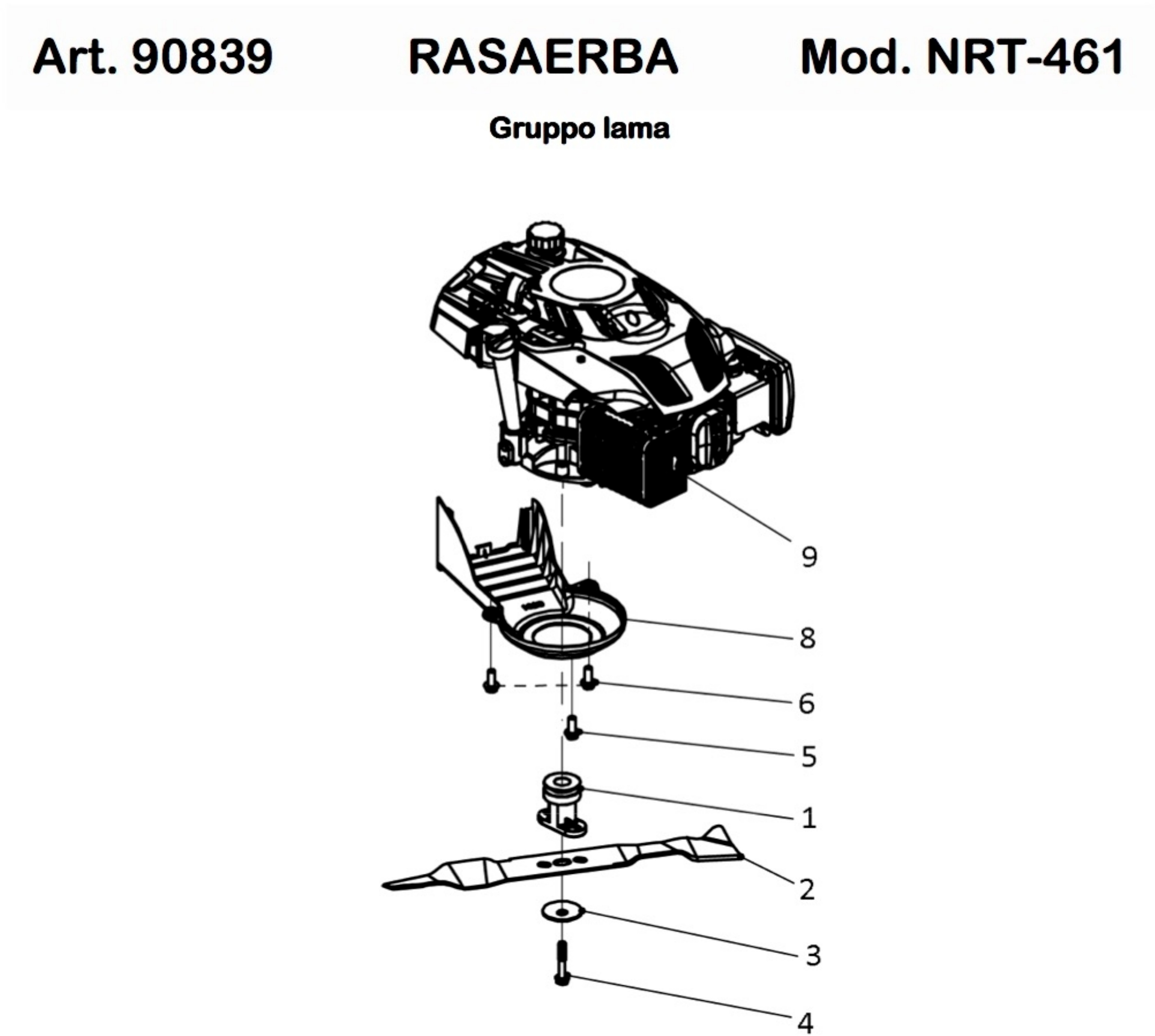

Blade Pag.6
1 84844 Blade Adapter Assy
2 84843 Double-edge blade
3 73223 Blade washer
4 84815 Inch hex flange bolts
5 88628 Hex flange bolts
8 84846 Belt cover
9 88245 Petrol engine
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama NRT-461 - 90839
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA NRT-461

Diagram AMA NRT-461

Download (599.35KB)

You might also like

Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84844
Blade Holder for Self-Propelled Lawnmower AMA LT 52H
Blade Holder for Self-Propelled Lawnmower AMA LT 52H Genuine replacement part AMA, Blade Holder for Self-Propelled Lawnmower AMA LT 52H - RT521 - RT522. Part for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Last items in stock €28.62
Details
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
A.M.A. S.p.A. SKU: 84836
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H
Propelled Cable for Self-Propelled Lawnmower AMA LT 52H Genuine part AMA, Propelled Cable for Self-Propelled Lawnmowers AMA LT 52H - RT521 - RT522 Part for the following products: -  Self Propelled...
Last items in stock €17.48
Details
Blade Special Washer for Lawnmowers AMA
A.M.A. S.p.A. SKU: 73223
Blade Special Washer for Lawnmowers AMA
Blade Special Washer for Lawnmowers AMA Genuine parts AMA, Blade Special Washer for Lawnmower AMA RS421 - RS461 - RT521 - RT522 - LT 52H Parts for the following products: -...
AVAILABLE €5.02
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88571
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522
Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 Genuine part AMA, Half Round Head Square Neck Bolt for Self-Propelled Lawnmower AMA RT521 - RT522 - LT 52H. Part for the following products: - Lawnmower RS461 - Self-Propelled...
AVAILABLE €0.54
Details
M8X25/8.8 Engine Bolt for Lawnmowers AMA
A.M.A. S.p.A. SKU: 88628
M8X25/8.8 Engine Bolt for Lawnmowers AMA
M8X25/8.8 Engine Bolt for Lawnmowers AMA Genuine replacement part AMA, M8X25/8.8 Engine Bolt for Lawnmower AMA RS421 - RS461 - RT521 - NRS-421 - NRS-461 - NRS-461T - NRT-461 - NRT-461B. Part for the following products: - Lawnmower...
Last items in stock €0.89
Details
Cable Clamp Grommet for Lawnmower AMA
A.M.A. S.p.A. SKU: 88247
Cable Clamp Grommet for Lawnmower AMA
Cable Clamp Grommet for Lawnmower AMA Genuine part AMA, Cable Clamp Grommet for Lawnmowers AMA RS421 - RS461 - RT521 - RT522 - LT 52H - RT522B - NRS-421 - NRS-461. Part for the following products: - Push Lawnmover RS421 - 89501 - Push...
AVAILABLE €2.64
Details
Mulching Cap for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84842
Mulching Cap for Lawnmower AMA RS461
Mulching Cap for Lawnmower AMA RS461 Genuine replacement part AMA, Mulching Cap for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H - RT461B....
Last items in stock €13.81
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Brake Cable for Lawnmower AMA RS461
A.M.A. S.p.A. SKU: 84971
Brake Cable for Lawnmower AMA RS461
Brake Cable for Lawnmower AMA RS461 Genuine replacement part AMA, Brake Cable for Lawnmowers RS461 - NRS-461 - NRS-461T - NRT-461 - NRT-461B - LT 46E - LTS 461H...
Last items in stock €11.15
Details
Ratchet Pin for Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 90304
Ratchet Pin for Lawnmower AMA NRT-521
Ratchet Pin for Lawnmower AMA NRT-521 Genuine part AMA, Ratchet Pin for Self-Propelled Lawnmower AMA RTE 521 - RTV 521 - NRT-461 - NRT-522 Part for the following products: -  Self-Propelled Lawnmower NRT-521 - 90860 -  Self-Propelled...
on 7/10 Business Days Approx €0.72
Details
Foam Rubber Handle Grip for Lawnmower AMA RS421
A.M.A. S.p.A. SKU: 88566
Foam Rubber Handle Grip for Lawnmower AMA RS421
Foam Rubber Handle Grip for Lawnmower AMA RS421 Genuine part AMA, Foam Rubber Handle Grip for Lawnmowers AMA RS421 - NRS-421 Parts for the following products: -  Lawnmower AMA RS421 - 89501 -  Lawnmower AMA NRS-421 - 90876 -...
on 7/10 Business Days Approx. €11.90
Details
Handle Knob for Lawnmower AMA NRS-421
A.M.A. S.p.A. SKU: 92504
Handle Knob for Lawnmower AMA NRS-421
Handle Knob for Lawnmower AMA NRS-421 Genuine part AMA, Handle Knob for Lawnmowers AMA NRS-421 - NRS-461 - Rasaerba NRS-461T - NRT-461B. Part for the following products: -  Lawnmower AMA GARDEN NRS-421 -  Lawnmower AMA GARDEN NRS-461...
AVAILABLE €3.55
Details
AMA NRT-461 Traction Spring
A.M.A. S.p.A. SKU: 92537
AMA NRT-461 Traction Spring
AMA Lawnmower NRT-461 Traction Spring Genuine replacement part AMA, Traction Spring for Self-Propelled Lawnmower NRT-461 - NRT-461B - NRT-465 4 in1. Part for the following products: -  Self-Propelled...
AVAILABLE €3.81
Details
AMA RTT521 Rear Wheel
A.M.A. S.p.A. SKU: 89887
AMA RTT521 Rear Wheel
AMA Lawnmower RTT521 Rear Wheel Genuine replacement part AMA Garden, Rear Wheel Ass'y for Self-Propelled Lawnmowers RT521 - RT522 - RT522B. Parts for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €22.55
Details
AMA NRT-461 Belt Cover
A.M.A. S.p.A. SKU: 84846
AMA NRT-461 Belt Cover
AMA Lawnmower NRT-461 Belt Cover Original spare part AMA Garden, Belt Cover for Lawmower NRT-461 - NRT-461B - LT 46E. Parts for the following products: -  Lawnmower NRT-461 - 90839 - ...
Last items in stock €11.22
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
AMA NRS-461T Side Deflector
A.M.A. S.p.A. SKU: 92509
AMA NRS-461T Side Deflector
AMA Lawnmower NRS-461T Side Deflector Original spare parts AMA Garden, Side deflector for Lawnmower NRS-461T - NRT-461. Parts for the following products: -  Lawnmower NRS-461T - 90835 - ...
Last items in stock €13.99
Details
AMA NRS-461 Wheel Hubcap
A.M.A. S.p.A. SKU: 92530
AMA NRS-461 Wheel Hubcap
AMA Lawnmower NRS-461 Wheel Hubcap Original AMA Garden, Grey Front Wheel Hubcap for Lawnmower NRS-461 - NRS-461T - NRT-461. Parts for the following products: -  Lawnmower Ama NRS-461 - 90830 - ...
AVAILABLE €5.00
Details
AMA Lever Guard for RTE 521
A.M.A. S.p.A. SKU: 89399
AMA Lever Guard for RTE 521
AMA Lever Guard for Lawmmower RTE 521 Genuine replacement part AMA Garden, Plastic Lever Guard for Lawnmower RTE521 - RS421 - RS461. Part for the following products: -  Lawnmower Ama RS421 - 89501...
AVAILABLE €5.50
Details
Comments (0)
