A.M.A. S.p.A.

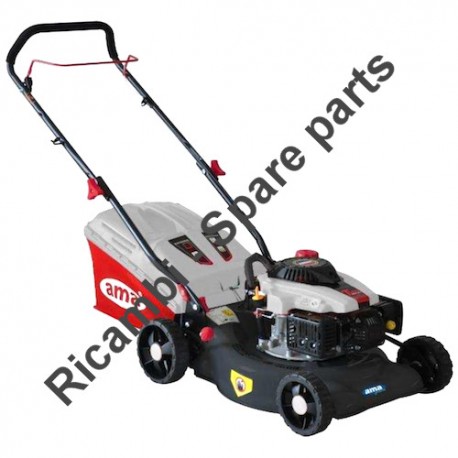

Ama Spare Parts for Lawnmower NRS-421

SKU: Ama Garden NRS-421 - 90876
€227.51
VAT included

Ama Spare Parts for Lawnmower NRS-421

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawnmower NRS-421 - 90876.
Ama Spare Parts for Lawnmower NRS-421
  • Online only
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
  • Ama Spare Parts for Lawnmower NRS-421
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower NRS-421

SKU: Ama Garden NRS-421 - 90876 Condition: New
€227.51
VAT included

Ama Spare Parts for Lawnmower NRS-421

AMA Garden Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawnmower NRS-421 - 90876.
settings 43 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
43 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Esploso pagina 2
Esploso pagina 3
Esploso pagina 4
Esploso pagina 5
Esploso pagina 6
1 / 6
Pos. Item Price Buy
1
 Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden 55823 Four Stroke Engine Model Mvgt 100 For Lawnmowers AMA Garden €199.43
1
 Foam Rubber Handle Grip for Lawnmower AMA RS421 88566 Foam Rubber Handle Grip for Lawnmower AMA RS421 €11.90
1
 Blade Holder for Lawnmower AMA RS421 89522 Blade Holder for Lawnmower AMA RS421 €18.26
1
 photo_cameraImage coming soon 92533 Outer cover of hub €3.81
2
 Blade cm 42 for Push Lawnmower AMA RS421 89523 Blade cm 42 for Push Lawnmower AMA RS421 €33.30
2
 photo_cameraImage coming soon 92546 Back €6.28
2
 photo_cameraImage coming soon 92561 Stop lever €9.65
3
 Blade Special Washer for Lawnmowers AMA 73223 Blade Special Washer for Lawnmowers AMA €5.02
3
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
4
 photo_cameraImage coming soon 88116 Shaft for rear discharge cover €3.71
4
 AMA Lever Guard for RTE 521 89399 AMA Lever Guard for RTE 521 €5.50
4
 photo_cameraImage coming soon 92535 Wheel assy. €6.91
4
 photo_cameraImage coming soon 92536 Wheel assy. €8.24
5
 photo_cameraImage coming soon 84822 Brake Cable Assy plate €6.70
5
 photo_cameraImage coming soon 89499 Air-out board of fabric grass bag €4.69
5
 photo_cameraImage coming soon 89514 Rear discharge base €3.79
5
 photo_cameraImage coming soon 89521 Front drive assy. €25.93
5
 photo_cameraImage coming soon 92545 Height adjustment ball €3.97
6
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
6
 photo_cameraImage coming soon 89479 Rear drive assy. €37.85
6
 photo_cameraImage coming soon 89498 Protection board of grass bag €9.37
6
 photo_cameraImage coming soon 89506 Rear discharge base €5.55
7
 photo_cameraImage coming soon 84959 Upper handrail €39.04
7
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
7
 photo_cameraImage coming soon 89507 Bolt €3.92
7
 photo_cameraImage coming soon 92506 Top of grass box €15.64
8
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
9
 photo_cameraImage coming soon 89504 Right bracket €9.85
10
 Stop Cable for Self-Propelled Lawnmower AMA Playcut LT52H 84829 Stop Cable for Self-Propelled Lawnmower AMA Playcut LT52H €12.54
10
 photo_cameraImage coming soon 89488 Plastic top frame €20.01
11
 photo_cameraImage coming soon 92528 Fabric grass bag €34.99
12
 Handle Knob for Lawnmower AMA NRS-421 92504 Handle Knob for Lawnmower AMA NRS-421 €3.55
13
 photo_cameraImage coming soon 89503 Height Adjustment Pull Rod €16.62
14
 M8X25/8.8 Engine Bolt for Lawnmowers AMA 88628 M8X25/8.8 Engine Bolt for Lawnmowers AMA €0.89
15
 photo_cameraImage coming soon 92503 Triangle knob €2.11
15
 photo_cameraImage coming soon 92566 Deck assy. €160.36
16
 photo_cameraImage coming soon 89518 Height adjustment board €7.74
17
 photo_cameraImage coming soon 89517 Right bracket €9.85
18
 photo_cameraImage coming soon 89476 Lower handrail €31.31
19
 Cable Clamp Grommet for Lawnmower AMA 88247 Cable Clamp Grommet for Lawnmower AMA €2.64
20
 photo_cameraImage coming soon 90504 Pipe connector nut €3.83
20
 photo_cameraImage coming soon 92502 Thin knob €2.33
21
 photo_cameraImage coming soon 89515 Cable stopper €2.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower NRS-421

AMA Garden Original spare part

s at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Lawnmower NRS-421 - 90876.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama Garden NRS-421 - 90876.

Push-Lawnmower AMA GArden NRS-421 - 90876

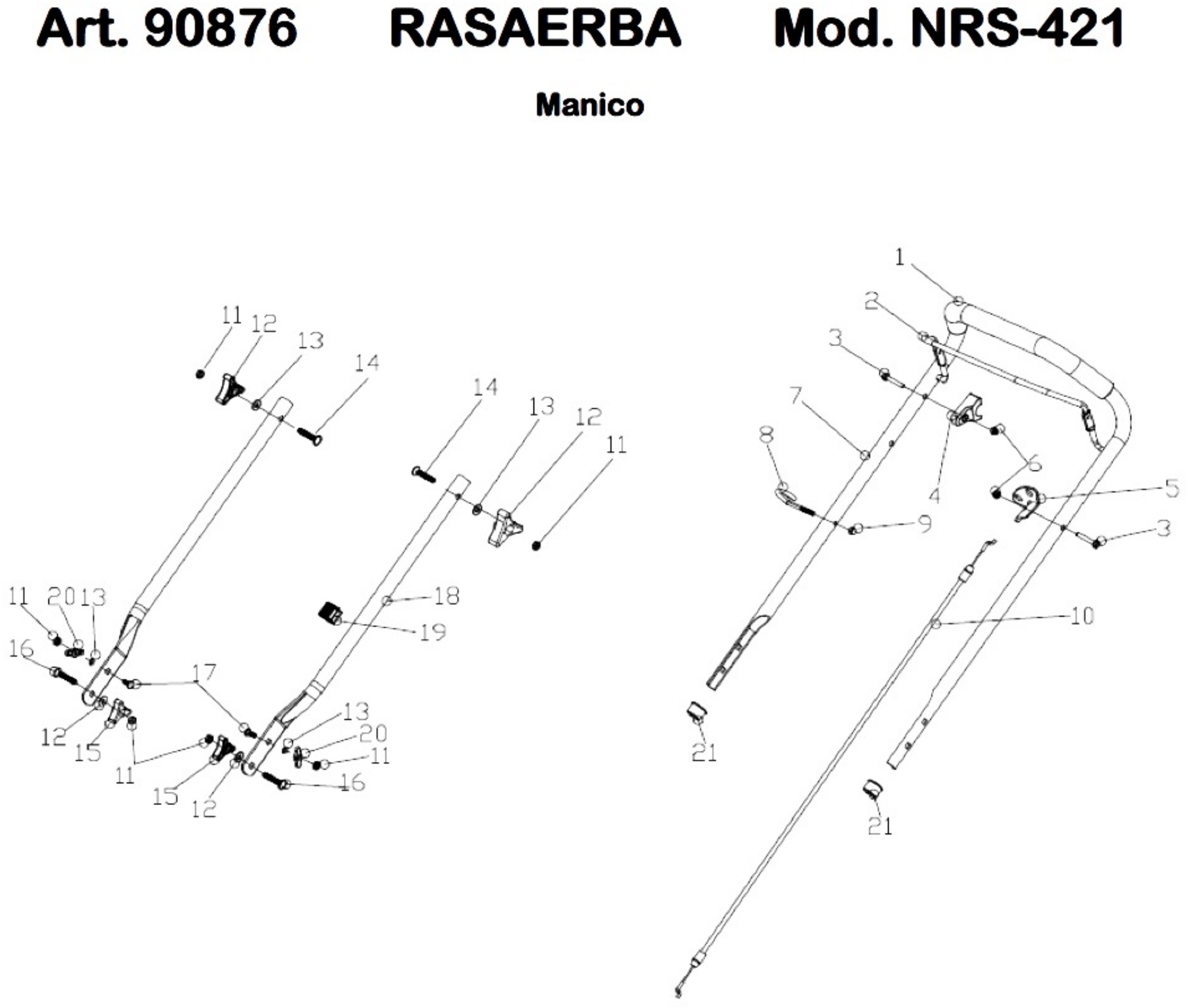

Handle
# Part Num. Description
1 88566 Foam Rubber Handle Grip
2 92561 Stop lever
4 89399 Lever guard
5 84822 Brake Cable Assy plate
7 84959 Upper handrail
8 88568 Rope Guide
9 88564 Cap nut
10 84829 Engine Stop cable
12 92504 Triangle knob
15 92503 Triangle knob
18 89476 Lower handrail
19 88247 Fastener
20 92502 Thin knob
21 89867 Handrail stopper

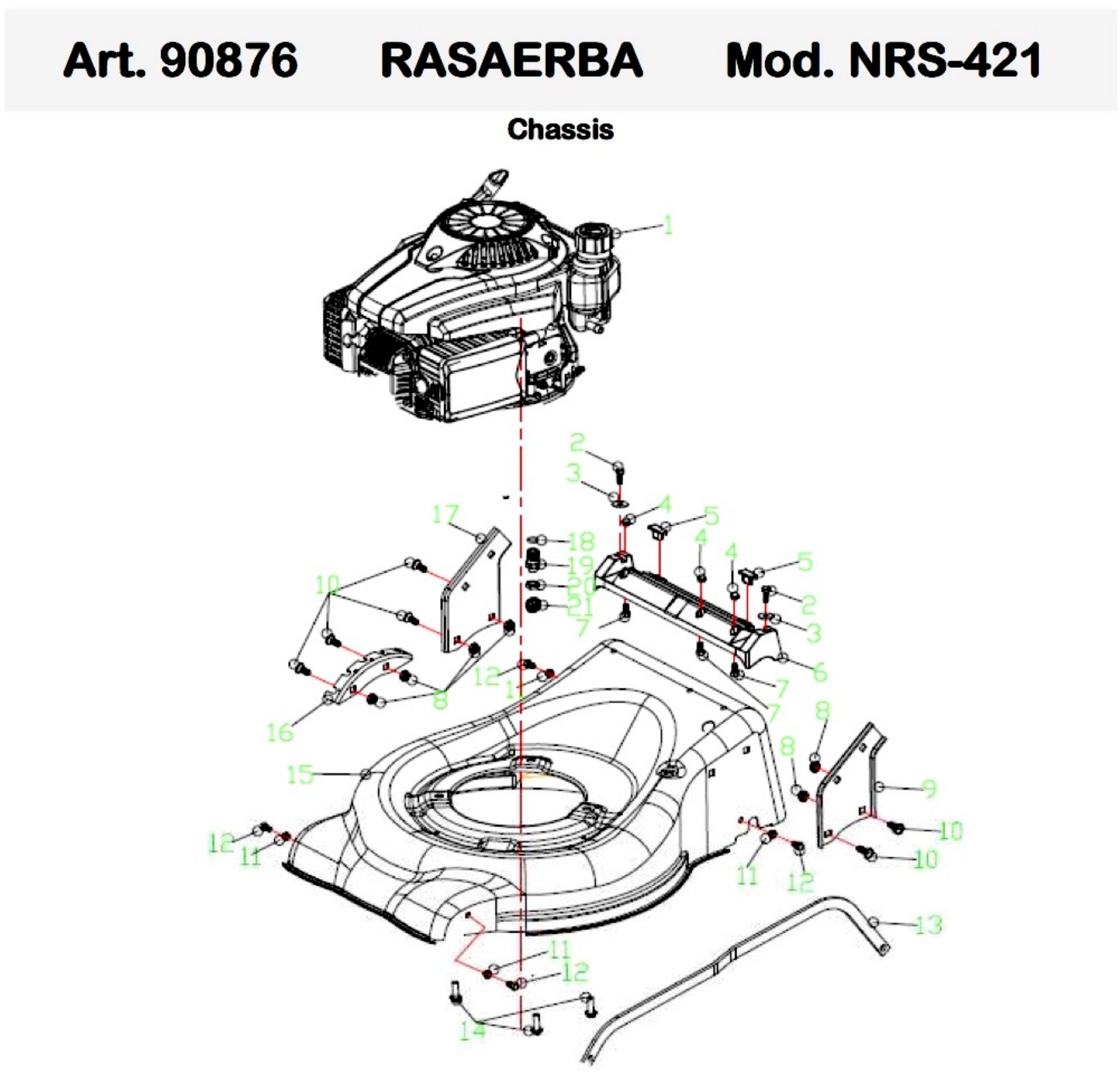

Chassis
1 55823 Petrol engine
5 89514 Rear discharge base
6 89506 Rear discharge base
7 89507 Bolt
9 89504 Right bracket
13 89503 Height Adjustment Pull Rod
14 88628 Hexagon head bolts
15 92566 Deck assy.
16 89518 Height adjustment board
17 89517 Right bracket
19 89447 Inlet
20 90504 Pipe connector nut
21 89515 Cable stopper

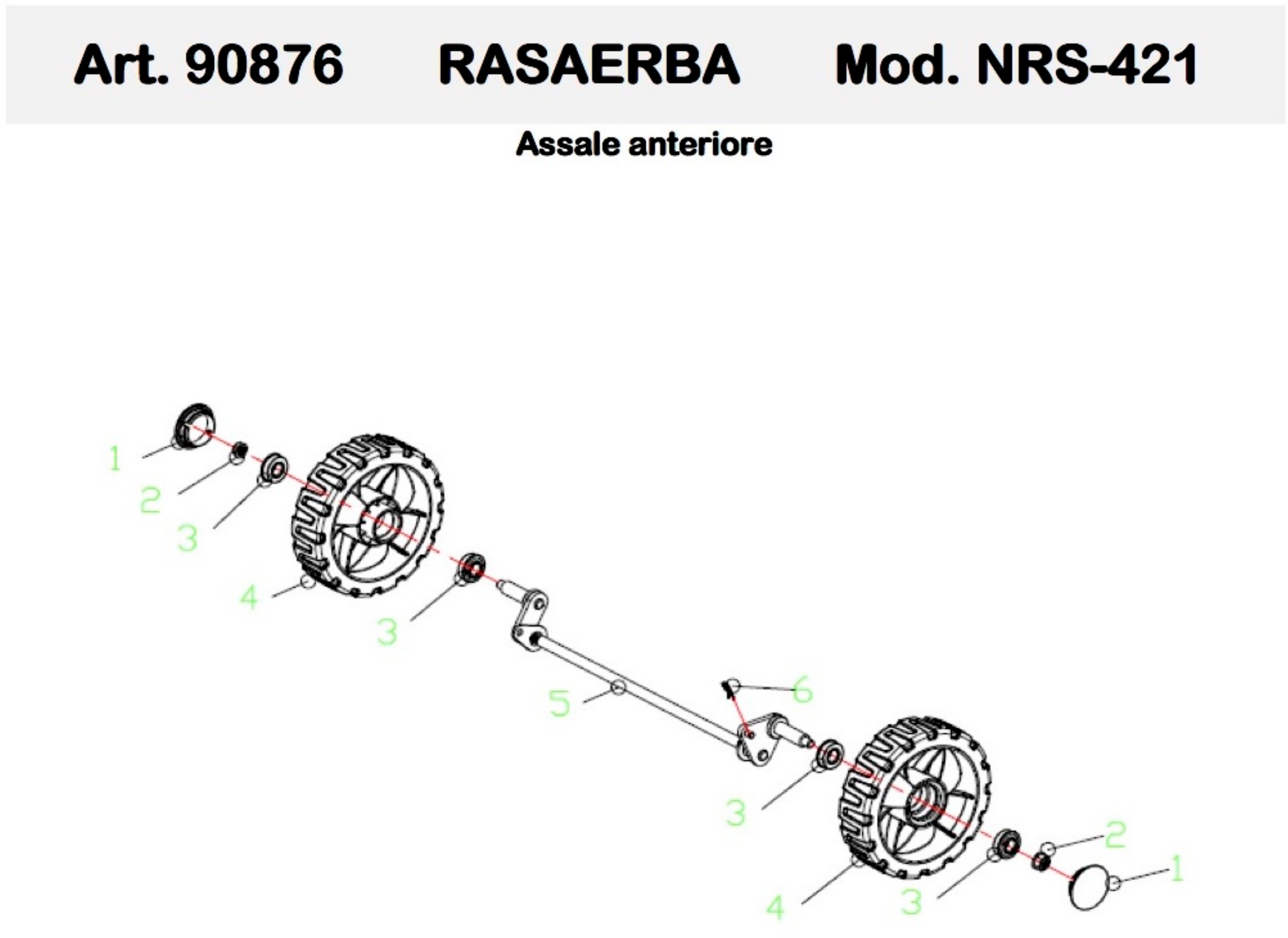

Front Axle
1 92533 Outer cover of hub
2 89450 Self-locking nut
4 92535 Wheel assy.
5 89521 Front drive assy.
6 88625 R type pin

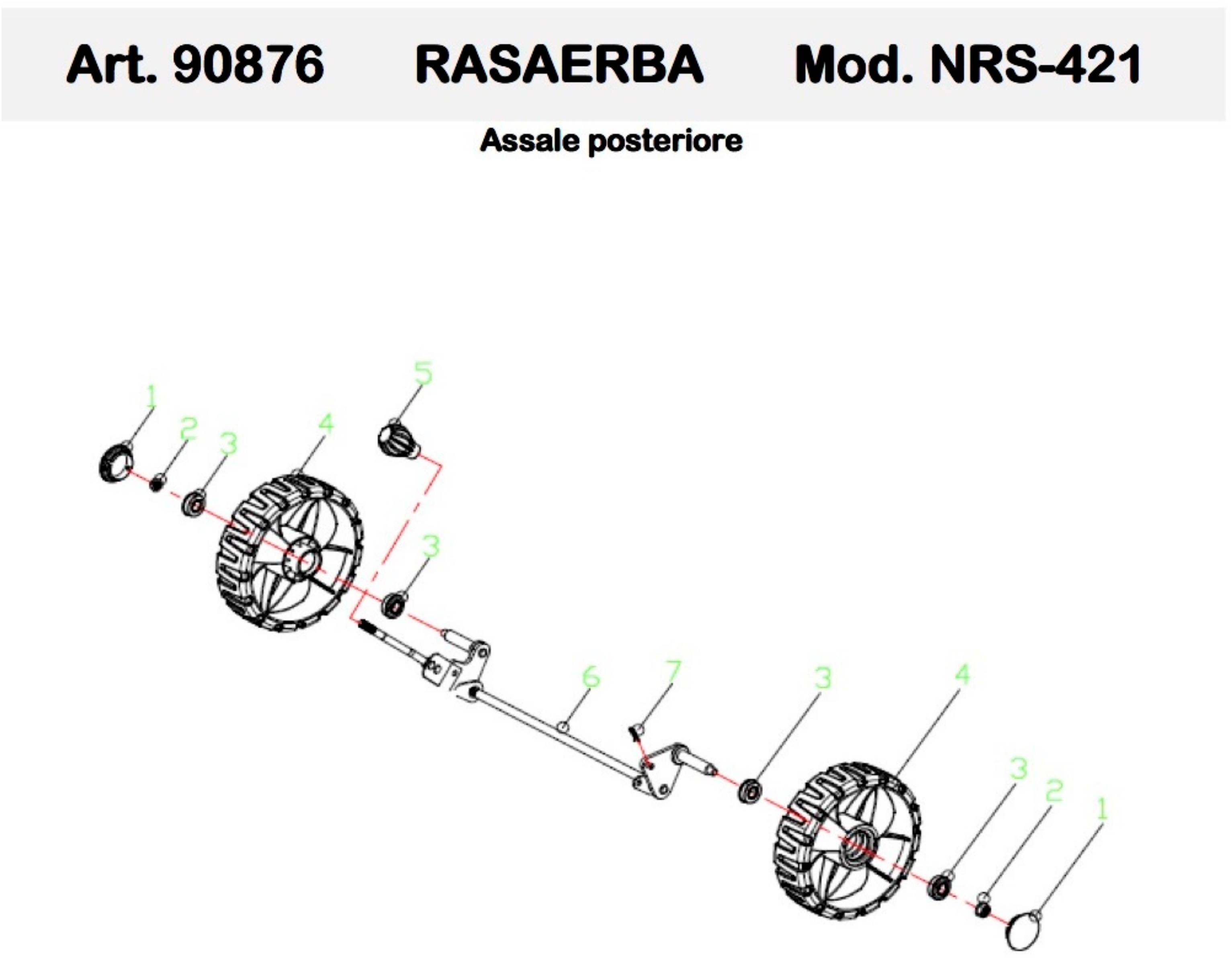

Rear Axle
1 92533 Outer cover of hub
2 89450 Self-locking nut
4 92536 Wheel assy.
5 92545 Height adjustment ball
6 89479 Rear drive assy.
7 88625 R type pin

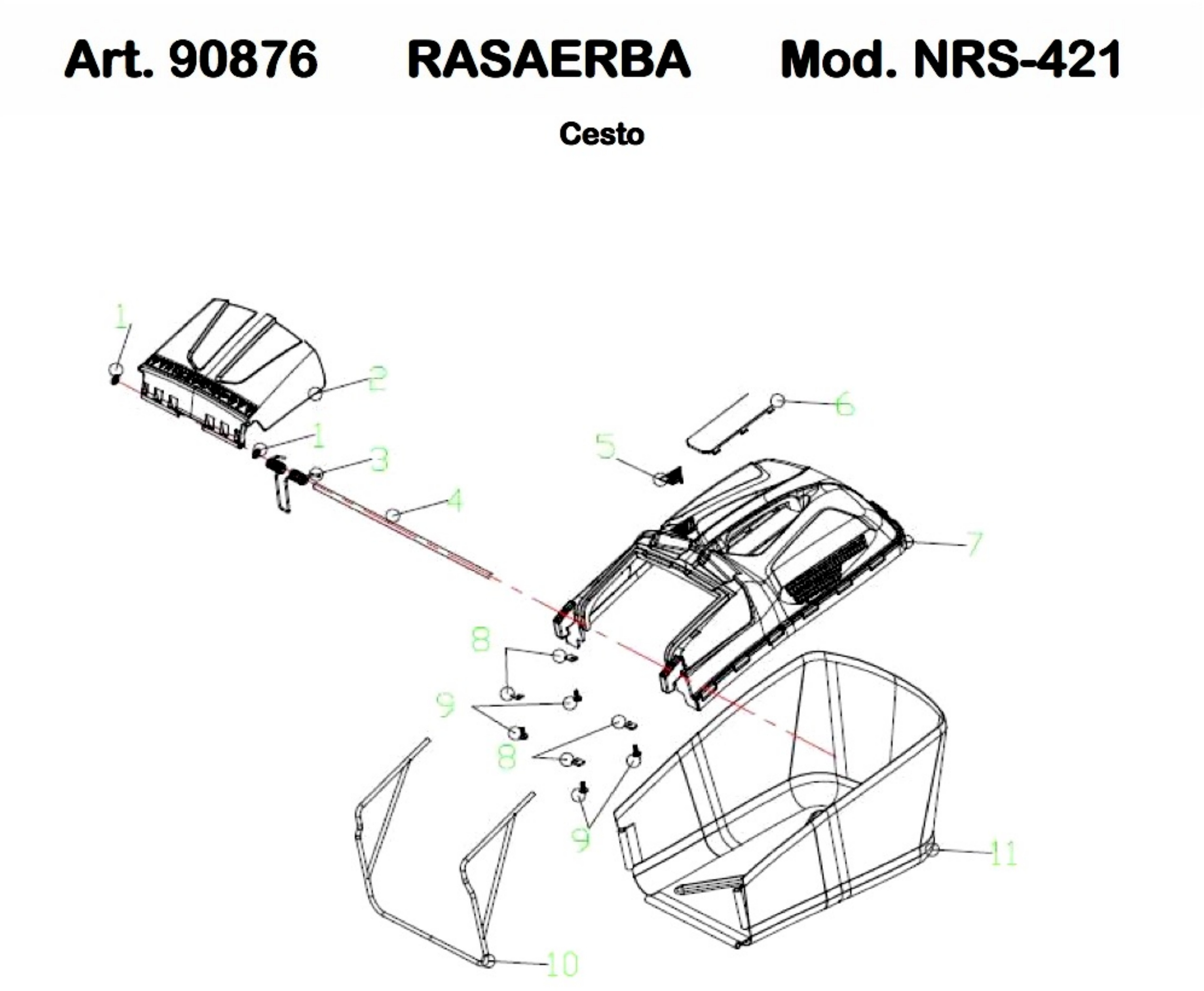

Grass Bag
2 92546 Back
3 84987 Cover spring
4 88116 Shaft for rear discharge cover
5 89499 Air-out board of fabric grass bag
6 89498 Protection board of grass bag
7 92506 Top of grass box
10 89488 Plastic top frame
11 92528 Fabric grass bag

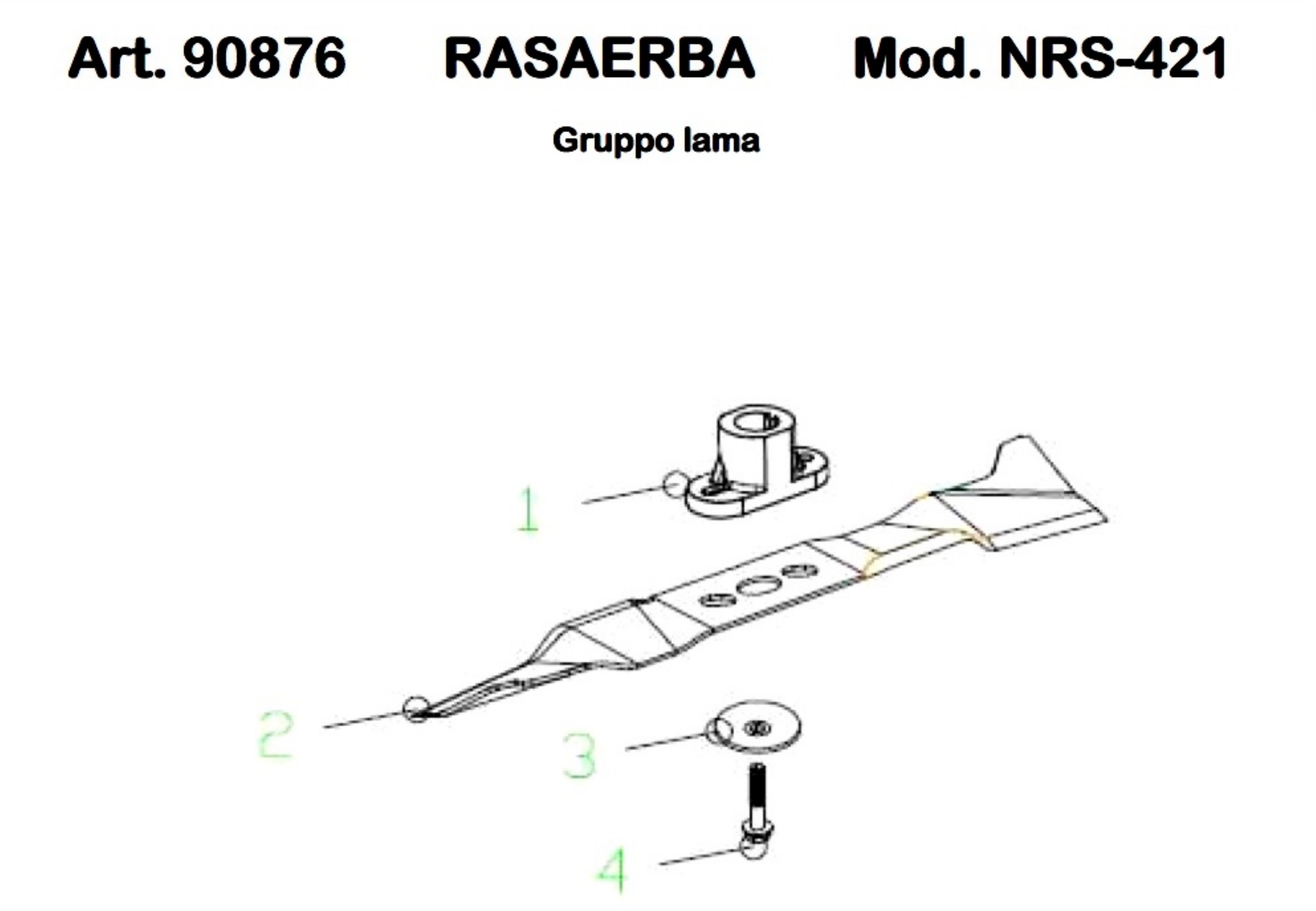

Blade
1 89522 Blade Boss
2 89523 Blade
3 73223 Blade washer
4 84815 Inch hex flange bolts

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama Garden NRS-421 - 90876
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA NRS-421

Diagram AMA NRS-421

Download (587.95KB)
