A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTV521

SKU: Ama RTV521 - 90015
€3.59
VAT included

Ama Spare Parts for Lawnmower RTV521

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower RTV521 - 90015.

Ama Spare Parts for Lawnmower RTV521
  • Online only
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
  • Ama Spare Parts for Lawnmower RTV521
A.M.A. S.p.A.

Ama Spare Parts for Lawnmower RTV521

SKU: Ama RTV521 - 90015 Condition: New
€3.59
VAT included

Ama Spare Parts for Lawnmower RTV521

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower RTV521 - 90015.

settings 80 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
80 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

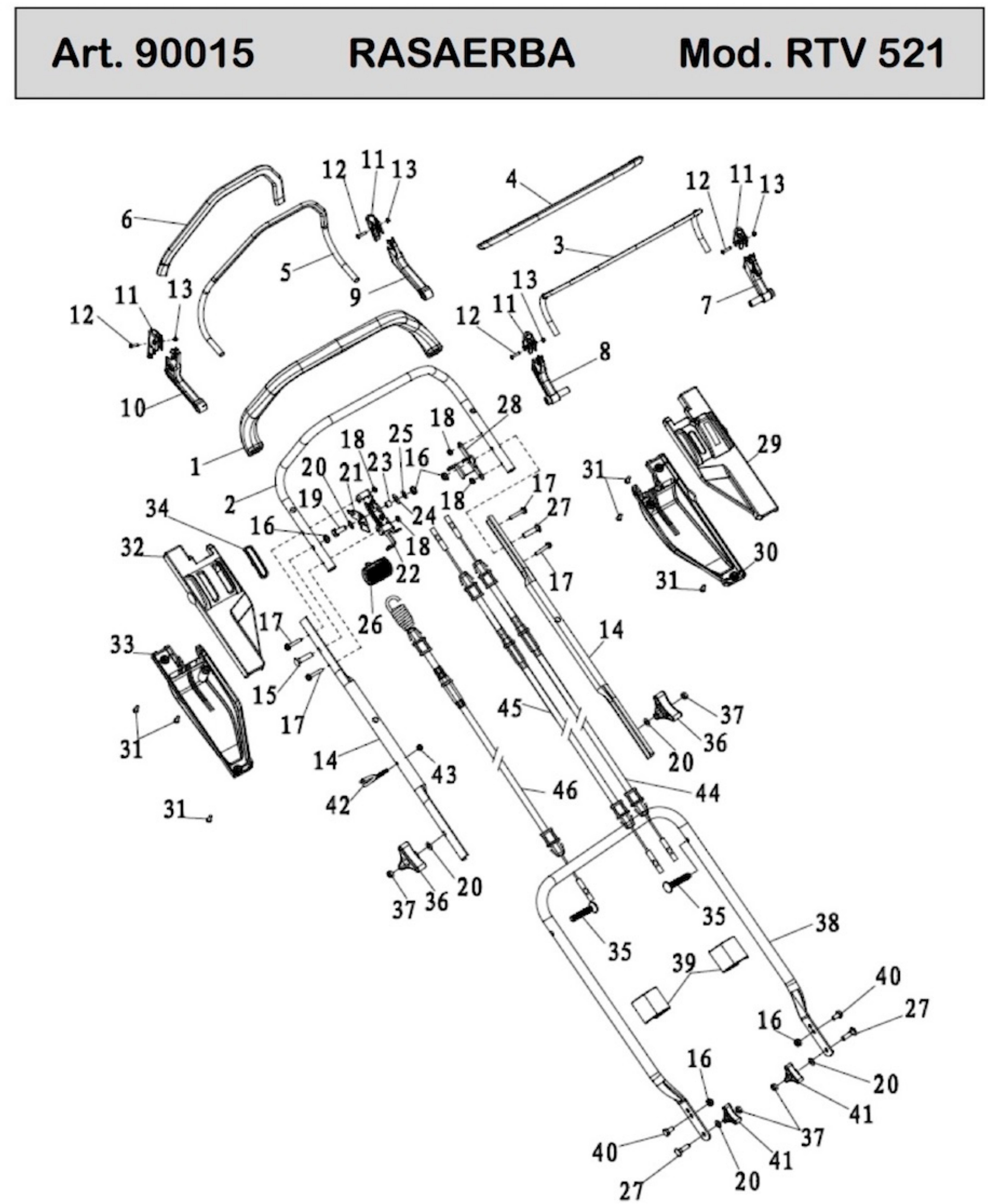

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 90280 Foam pipe €11.11
3
 photo_cameraImage coming soon 90336 Stop lever €14.41
4
 photo_cameraImage coming soon 90281 Foam pipe €11.11
6
 photo_cameraImage coming soon 90282 Foam pipe €11.11
7
 photo_cameraImage coming soon 90289 Flameout wrench fixed block €6.66
8
 photo_cameraImage coming soon 90290 Flameout wrench fixed block €6.66
9
 photo_cameraImage coming soon 90287 Wrench fixed block €6.66
10
 photo_cameraImage coming soon 90288 Wrench fixed block €6.66
14
 photo_cameraImage coming soon 90333 Middle handrail €26.23
21
 photo_cameraImage coming soon 90351 Stepless speed regulation handle €5.55
22
 photo_cameraImage coming soon 90339 Self-propelled Lever €16.12
23
 photo_cameraImage coming soon 90324 Bushing €8.82
26
 photo_cameraImage coming soon 90277 Throttle box handle €5.55
27
 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 88571 Handle Half Round Head Bolt for Lawnmower AMA RT521-RT522 €0.54
28
 photo_cameraImage coming soon 90312 Cable fixed block €6.66
29
 photo_cameraImage coming soon 90274 Left control box cover €3.39
30
 photo_cameraImage coming soon 90275 Left control box cover €3.39
32
 photo_cameraImage coming soon 90272 Right control box cover €3.39
33
 photo_cameraImage coming soon 90273 Right control box cover €3.39
34
 photo_cameraImage coming soon 90276 Adjust ment cover plate €3.39
35
 Lower Handle Bolt for Lawnmower AMA RT522 89893 Lower Handle Bolt for Lawnmower AMA RT522 €3.03
36
 photo_cameraImage coming soon 90257 Triangle knob €6.49
38
 photo_cameraImage coming soon 84973 Lower handrail €36.06
42
 AMA RS421Starter Rope Stop 88568 AMA RS421Starter Rope Stop €3.72
44
 photo_cameraImage coming soon 90344 Brake cable €9.35
45
 photo_cameraImage coming soon 90343 Selfpropelled cable €9.35
46
 photo_cameraImage coming soon 90345 Throttle cale €9.35
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

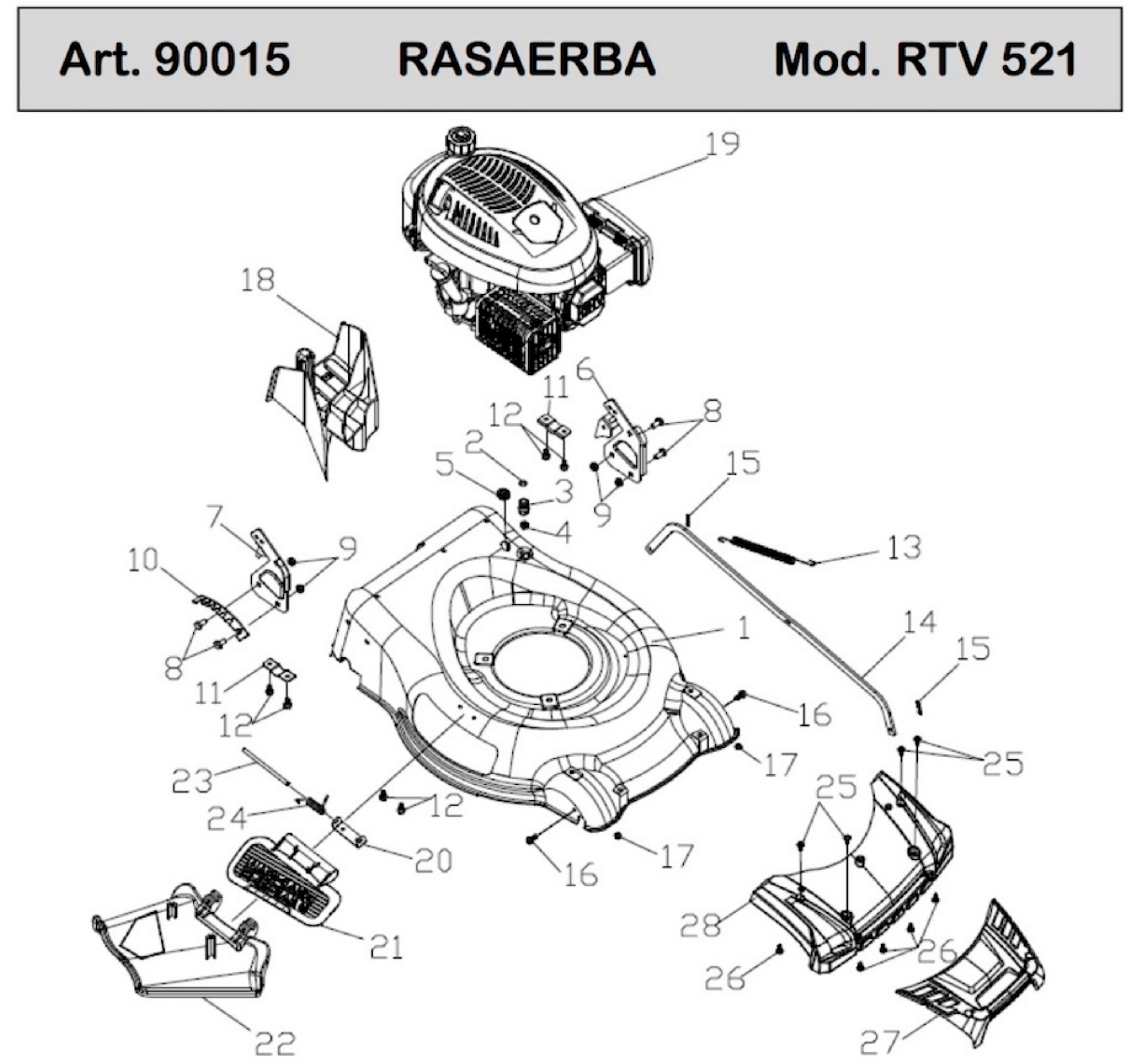

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 90341 Deck welding assy. €205.29
4
 photo_cameraImage coming soon 89448 Pipe connector nut €1.39
5
 photo_cameraImage coming soon 89515 Cable stopper €2.52
6
 photo_cameraImage coming soon 88360 Left handle bracket €13.40
7
 photo_cameraImage coming soon 88361 Rigth handle bracket €13.40
10
 photo_cameraImage coming soon 88362 Height adjustment board €6.96
11
 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H 84976 Rear Drive Right Bracket for Self-Propelled Lawnmower AMA LT 52H €2.56
13
 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H 73221 Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H €6.12
14
 photo_cameraImage coming soon 84977 Height Adjustment Pull Rod €4.47
15
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
18
 AMA NRT-52X Mulching Plug 88244 AMA NRT-52X Mulching Plug €12.87
19
 Four-Stroke Engine Model Mvg 675 For Lawnmower AMA Garden 88456 Four-Stroke Engine Model Mvg 675 For Lawnmower AMA Garden €332.48
21
 photo_cameraImage coming soon 84979 Mulching board €23.59
22
 Side Discharge Cover for Lawnmower AMA RT521-RT522 88246 Side Discharge Cover for Lawnmower AMA RT521-RT522 €15.67
23
 photo_cameraImage coming soon 88418 Mulch Shaft €1.97
24
 photo_cameraImage coming soon 84981 Mulch board spring €3.47
27
 photo_cameraImage coming soon 90262 Front mask €17.05
28
 photo_cameraImage coming soon 90263 Front mask €17.05
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

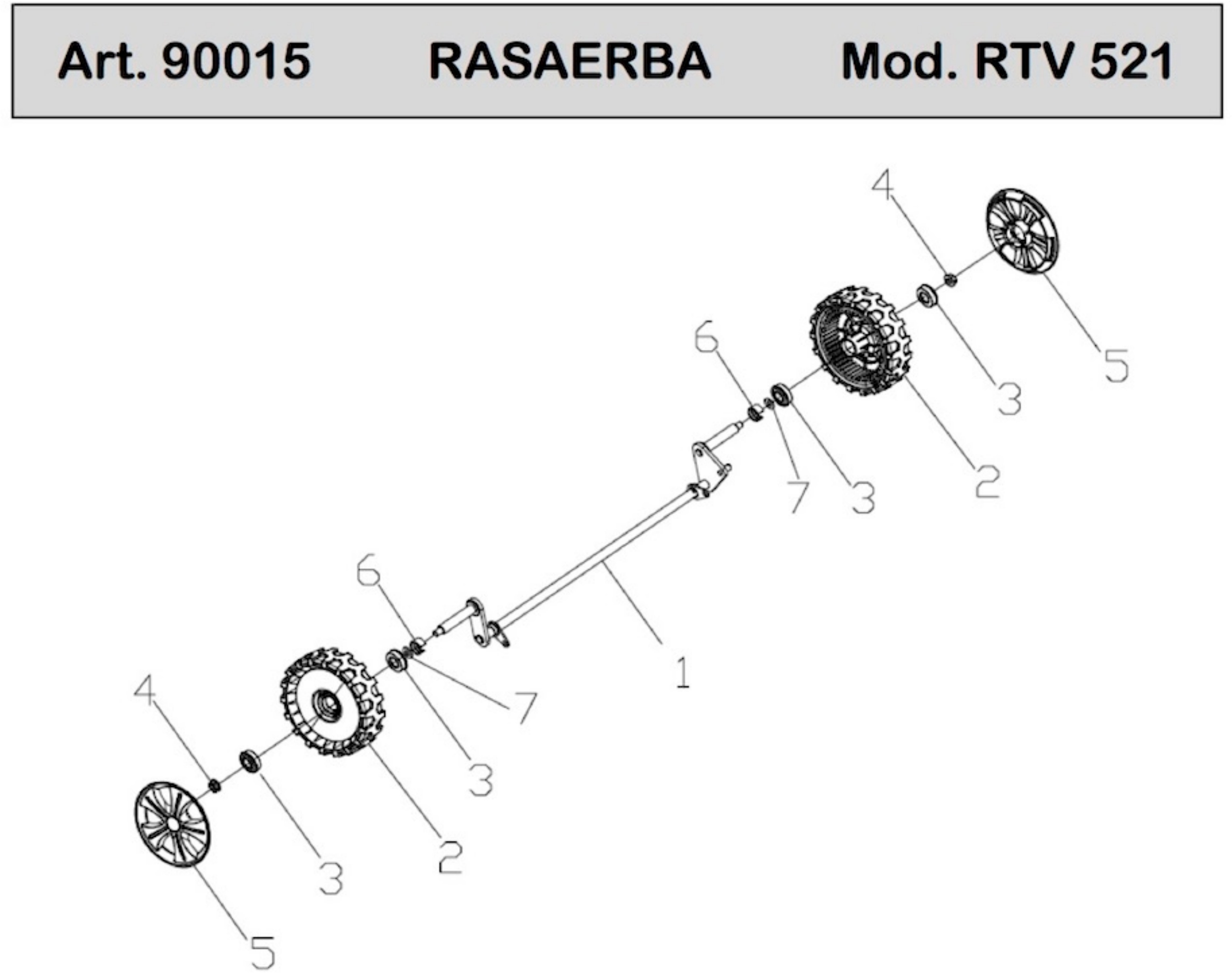

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 84990 Front drive assy. €36.39
2
 photo_cameraImage coming soon 89885 Wheel assy €17.48
3
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
5
 Outer Cover of Hub for Lawnmower AMA RT521 89876 Outer Cover of Hub for Lawnmower AMA RT521 €5.15
6
 photo_cameraImage coming soon 90261 Front bracket fastener €6.70
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY

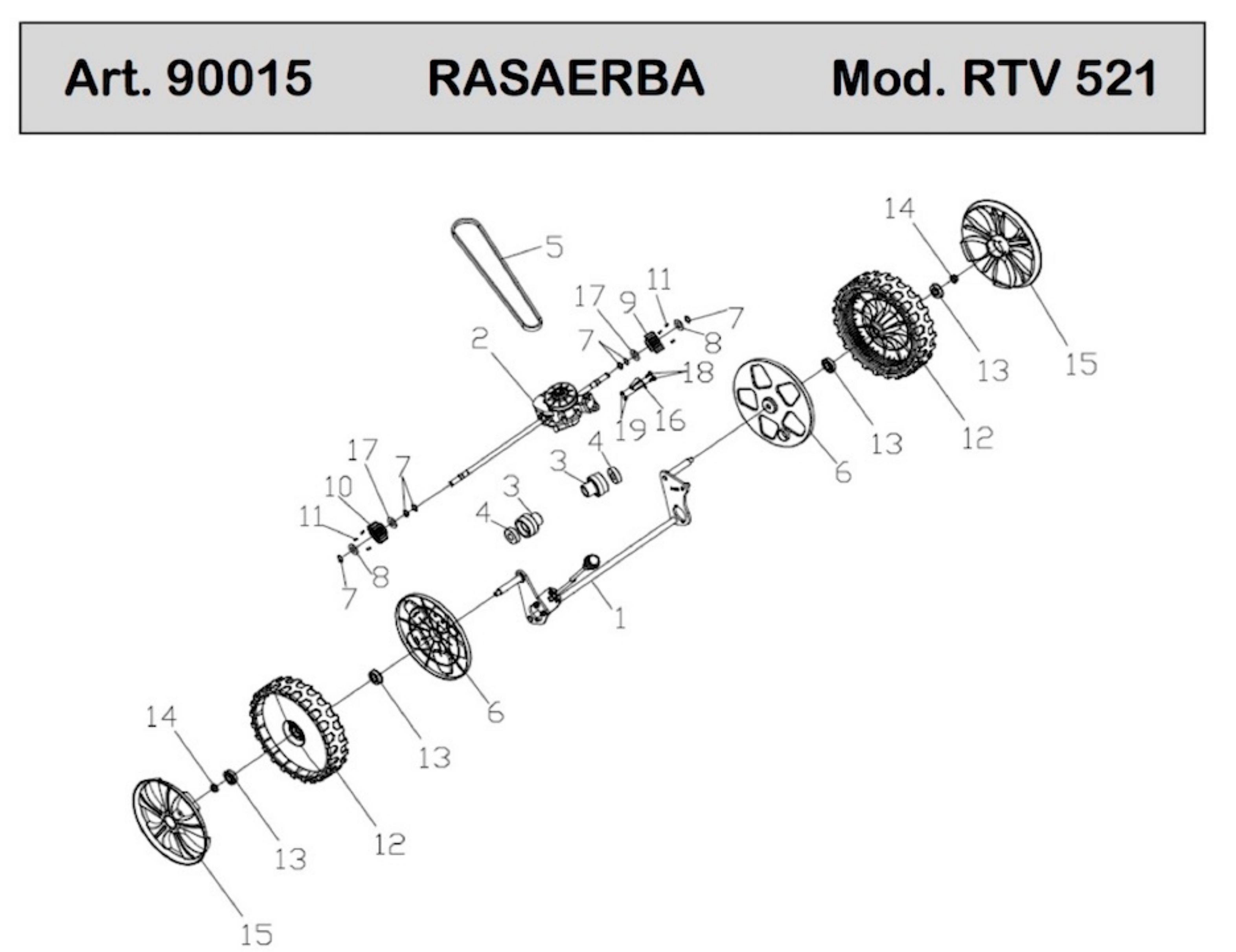

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 73201 Height adjustment ball €3.49
1
 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 84982 Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 €55.29
2
 photo_cameraImage coming soon 90349 Selfpropelled assy. €157.50
3
 photo_cameraImage coming soon 90284 Rear wheel axle sleeve €4.47
4
 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H 84985 Rear Drive Assy Bearing for Self-Propelled Lawnmower AMA LT 52H €7.61
5
 photo_cameraImage coming soon 90306 V-belt €11.01
6
 Inner Wheel Cover for Lawnmower AMA RT521 89874 Inner Wheel Cover for Lawnmower AMA RT521 €8.38 Not available for order
7
 Lock Ring for Lawnmower AMA RT521 79423 Lock Ring for Lawnmower AMA RT521 €0.34
8
 Ratchet Washer for Lawnmower AMA RT521 89889 Ratchet Washer for Lawnmower AMA RT521 €1.23
9
 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 89919 Ratchet Wheel Left Side for Self-Propelled Lawnmower AMA NRT-521 €16.61
10
 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 89920 Ratchet Wheel Right Side for Lawnmower AMA RT521-RT522 €17.68
11
 Ratchet Pin for Lawnmower AMA NRT-521 90304 Ratchet Pin for Lawnmower AMA NRT-521 €0.72
12
 AMA RTT521 Rear Wheel 89887 AMA RTT521 Rear Wheel €22.55
13
 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 73848 Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 €7.61
15
 photo_cameraImage coming soon 89879 Outer cover of hub €6.65
16
 photo_cameraImage coming soon 90327 Self propelled plate €9.42
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY

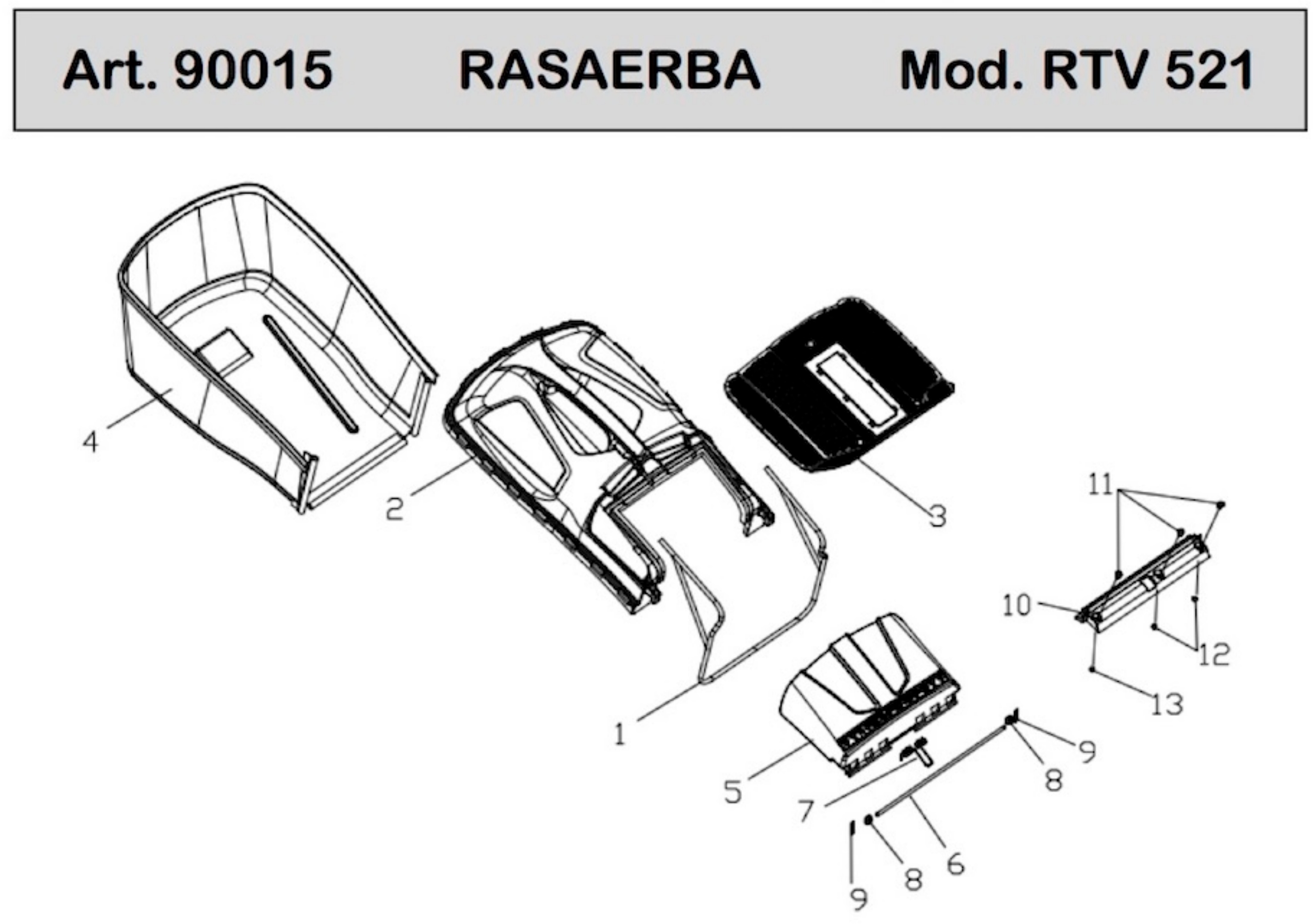

Esploso pagina 5
Pos. Item Price Buy
3
 photo_cameraImage coming soon 90299 Filter net of grass bag €21.88
4
 photo_cameraImage coming soon 90259 Fabric grass bag €66.78
5
 photo_cameraImage coming soon 84837 Rear discharge cover €22.95
6
 photo_cameraImage coming soon 88419 Shaft for rear discharge cover €4.29
7
 Cover Spring for Lawnmower AMA 84987 Cover Spring for Lawnmower AMA €4.16
9
 Pin for Lawnmower AMA RT522-RS421 88625 Pin for Lawnmower AMA RT522-RS421 €0.34
10
 photo_cameraImage coming soon 89883 Rear discharge cover dust proof €3.92
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY

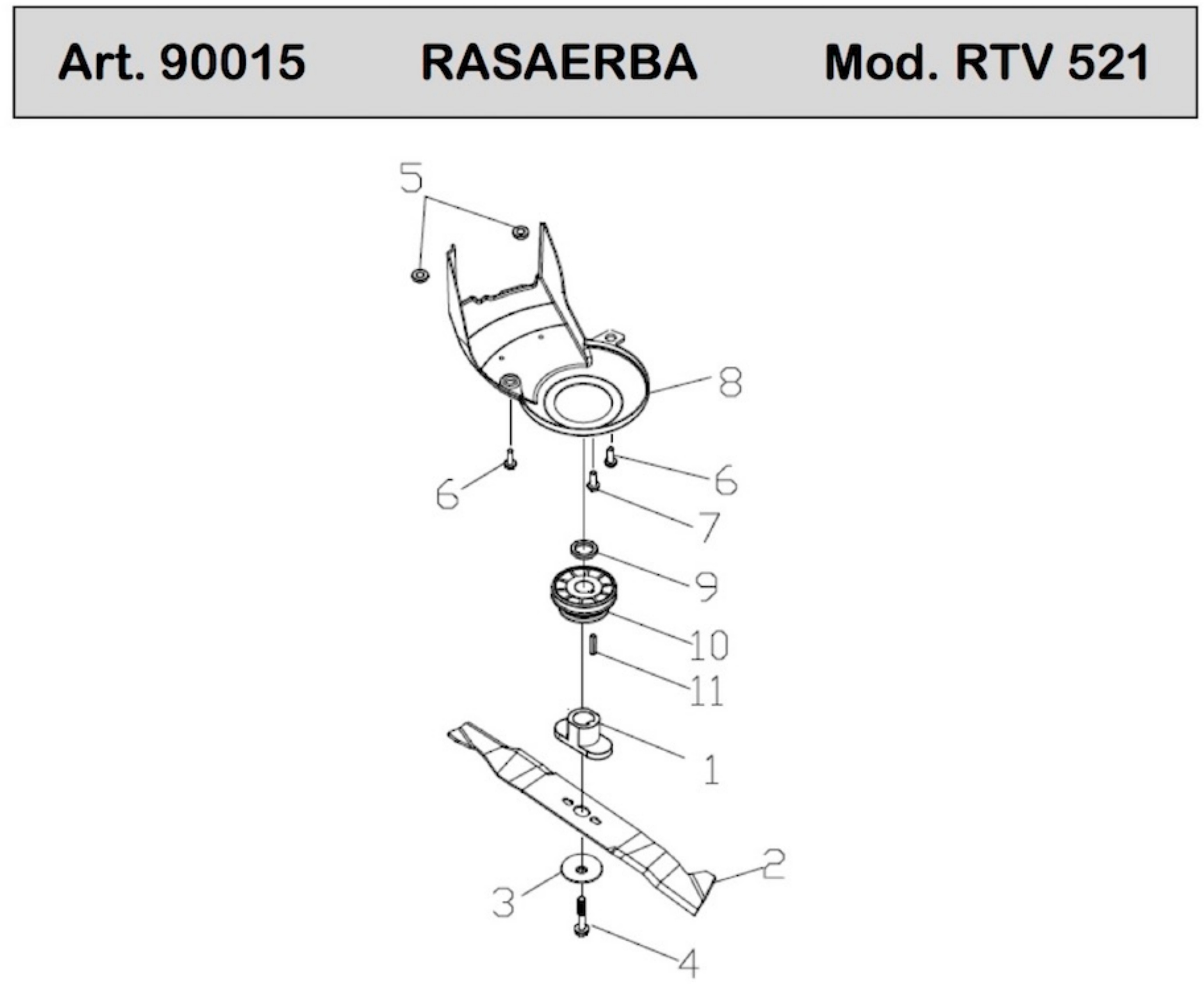

Esploso pagina 6
Pos. Item Price Buy
1
 Blade Boss for Self-Propelled Lawnmower RTV521 90322 Blade Boss for Self-Propelled Lawnmower RTV521 €36.50
2
 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 84935 Blade for Self-Propelled Lawnmowers AMA RT521-RT522 €32.44
3
 photo_cameraImage coming soon 90308 Blade washer €4.94
4
 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H 84815 Blade Special Bolt for Self-Propelled Lawnmower AMA LT 52H €5.02
5
 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 84988 Belt Guard Bushing for Lawnmowers AMA RT521-RT522 €4.34
8
 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 84989 Carter Belt Guard for Self-Propelled Lawnmowers AMA RT521-RT522 €17.92
9
 photo_cameraImage coming soon 90309 Blade washer €2.30
10
 photo_cameraImage coming soon 90340 Small Belt Wheel €9.42
11
 photo_cameraImage coming soon 90329 Long Key for Crankshaft €9.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Lawnmower RTV521

We are AMA GARDEN original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawnmower RTV521 - 90015.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Ama RTV521 - 90015

AMA Garden Lawnmower RTV521 - 90015
Handle Pag.1
# Part Num. Description
1 90280 Foam pipe
2 90330 Upper handrail
3 90336 Stop lever
4 90281 Foam pipe
5 90337 Self-propelled Lever
6 90282 Foam pipe
7 90289 Flameout wrench fixed block
8 90290 Flameout wrench fixed block
9 90287 Wrench fixed block
10 90288 Wrench fixed block
11 90291 Fixed block
13 Hex lock nut
14 90333 Middle handrail
15 Half round head square neck bolts
16 Hex lock nut
17 Countersunk head screws
18 Self-locking nut
19 Hexagon head bolts
20 Flat washer
21 90351 Stepless speed regulation handle
22 90339 Cable fixed block
23 90324 Bushing
24 Spring washer
25 Flat washer
26 90277 Throttle box handle
27 88571 Half round head square neck bolts
28 90312 Cable fixed block
29 90274 Left control box cover
30 90275 Left control box cover
31 head tapping screws
32 90272 Right control box cover
33 90273 Right control box cover
34 90276 Adjust ment cover plate
35 89893 Heterotypic carriage bolts
36 90257 Triangle knob
37 Hexagon nut
38 84973 Lower handrail
39 90266 Fastener
40 Hexagon head bolts
41 90256 triangle knob
42 88568 Rope Guide
43 88564 Cap nut
44 90344 Brake cable
45 90343 Selfpropelled cable
46 90345 Throttle cale
Chassis Pag.2
1 90341 Deck welding assy.
3 89447 Inlet
4 89448 Pipe connector nut
5 89515 Cable stopper
6 88360 Left handle bracket
7 88361 Left handle bracket
10 88362 Height adjustment board
11 84976 Rear drive bracket
13 73221 Pull Spring for Pull Rod
14 84977 Height Adjustment Pull Rod
15 88625 R type pin
18 88244 Mulching plug
19 88456 Petrol engine
20 90316 Bracket plate for defelctor
21 84979 Mulching board
22 88246 Side discharge cover
23 88418 Mulch Shaft
24 84981 Mulch board spring
27 90262 Front mask
28 90263 Front mask
Front Axle Pag.3
1 84990 Front drive assy.
2 89885 Wheel assy.
3 73848 Wheel punch bearing
4 89450 Self-locking nut
5 89876 Outer cover of hub
6 90261 Front bracket fastener
7 Flat washer
Traction Group Pag.4
1 84982 Rear drive assy.
1 73201 Height adjustment ball
2 90349 Selfpropelled assy.
3 90284 Bush
4 84985 Bearing
5 90306 V-belt
6 89874 Inner wheel cover
7 79423 Spring washer
8 89889 Selfpropelled ratchet washer
9 89919 Ratchet Wheel L
10 89920 Ratchet Wheel R
11 90304 Ratchet pin
12 89887 Wheel assy.
13 73848 Wheel punch bearing
14 89450 Self-locking nut
15 89879 Outer cover of hub
16 90327 Self propelled plate
17 Flat washer
18 Hexagon head bolts
19 Self-locking nut
Grass Bag Pag.5
1 84840 Frame
2 84838 Grass Catcher Cover Substituted by --> 92584
3 90299 Filter net of grass bag
4 90259 Fabric grass bag
5 84837 Rear discharge cover
6 88419 Shaft for rear discharge cover
7 84987 Cover spring
8 Lock washer
9 88625 R type pin
10 89883 Rear discharge cover dust proof
11 Bolt
12 Self-locking nut
13 88420 Cap nut
Blade Pag.6
1 90322 Blade Adapter
2 84935 Blade
3 90308 Blade washer
4 84815 Inch hex flange bolts
5 84988 Chassis bushing
6 Hex flange bolts
7 Hex flange bolts
8 84989 Belt cover
9 90309 Blade washer
10 90340 Small Belt Wheel
11 90329 Long Key for Crankshaft
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama RTV521 - 90015
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram AMA RTV521

Diagram AMA RTV521

Download (629.24KB)

You might also like

Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
A.M.A. S.p.A. SKU: 73848
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522
Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 Genuine part AMA, Front and Rear Shaft Wheel Bearing for Lawnmowers RT521 - RT522 - Lawnmowers AMA RS421 - RS461. Part for the following products: - Lawnmowers AMA RT521...
Last items in stock €7.61
Details
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84935
Blade for Self-Propelled Lawnmowers AMA RT521-RT522
Blade for Self-Propelled Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Blade for Self-Propelled Lawnmowers AMA RT521 - RT522 - LT 52H - LTS 52H Parts for the following products: -...
Last items in stock €32.44
Details
Pin for Lawnmower AMA RT522-RS421
A.M.A. S.p.A. SKU: 88625
Pin for Lawnmower AMA RT522-RS421
Pin for Lawnmower AMA RT522-RS421 Genuine part AMA, Pin for Lawnmower AMA RT522 - 89535 - RS421 - 89501 - RS461 - 89502 - RT521 - 89509 - LT 52H - 84878. Part for the following products: - Lawnmower RT522 - 89535 - Lawnmower RS421 -...
AVAILABLE €0.34
Details
Cover Spring for Lawnmower AMA
A.M.A. S.p.A. SKU: 84987
Cover Spring for Lawnmower AMA
Cover Spring for Lawnmower AMA Genuine part AMA, Cover Spring for Lawnmower AMA RS421 - RS461 - Selfpropelled Lawnmower RT521- RT522 - LT 52H Parts for the following products: - Lawnmower AMA...
Usually Ships in: 7/10 Business Days Approx. €4.16
Details
Side Discharge Cover for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 88246
Side Discharge Cover for Lawnmower AMA RT521-RT522
Side Discharge Cover for Lawnmower AMA RT521-RT522 Genuine part AMA, Side Discharge Cover for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: - Self-Propelled...
Last items in stock €15.67
Details
Outer Cover of Hub for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 89876
Outer Cover of Hub for Lawnmower AMA RT521
Outer Cover of Hub for Lawnmower AMA RT521 Genuine replacement part AMA, Outer Cover of Hub for Lawnmowers RT521 - RT522 - RTE521 - RTV521 - RT522B. Part for the following products:...
AVAILABLE €5.15
Details
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
A.M.A. S.p.A. SKU: 84988
Belt Guard Bushing for Lawnmowers AMA RT521-RT522
Belt Guard Bushing for Lawnmowers AMA RT521-RT522 Genuine replacement part AMA, Belt Guard Bushing for Self-Propelled Lawnmower AMA RT521 - RT522. Part for the following products: -  Self-Propelled...
Last items in stock €4.34
Details
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
A.M.A. S.p.A. SKU: 84982
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522
Rear Wheel Axe Complete for Lawnmower AMA RT521-RT522 Genuine part AMA, Rear Wheel Axe Complete for Self-Propelled Lawnmower AMA RT521 - RT522 - Lawnmower AMA RS421 - RS461. Part for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €55.29
Details
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
A.M.A. S.p.A. SKU: 73221
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H
Pull Spring for Pull Rod for Lawnmower AMA Garden LT 52H Genuine Spare Part AMA Garden, Pull Spring for Pull Rod for Lawnmowers RS461 - RT521 - RT522 - RTE521 -  RT522B - LT 52H - Playcut LS 46. Ricambio per i seguenti prodotti - Push...
Last items in stock €6.12
Details
Lower Handle Bolt for Lawnmower AMA RT522
A.M.A. S.p.A. SKU: 89893
Lower Handle Bolt for Lawnmower AMA RT522
Lower Handle Bolt for Lawnmower AMA RT522 Genuine part AMA, Lower Handle Heterotypic Carriage Bolt 8x50 for Self-Propelled Lawnmowers RTE 521 - RT522 - RT522B - RTT531 - RTT531B - RTV521 - NRT-461 - NRT-461B. Part for the following...
Last items in stock €3.03
Details
Inner Wheel Cover for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 89874
Inner Wheel Cover for Lawnmower AMA RT521
Inner Wheel Cover for Lawnmower AMA RT521 Genuine replacement part AMA, Inner Wheel Cover for Lawnmowers RT521 - RT522 - RTE521 - RTV521 - RT522B. Part for the following products: -  Self Propelled Lawnmower AMA RT521 - 89509 -  Self...
Out-of-Stock €8.38
Details
Lock Ring for Lawnmower AMA RT521
A.M.A. S.p.A. SKU: 79423
Lock Ring for Lawnmower AMA RT521
Lock Ring for Lawnmower AMA RT521 Genuine part AMA, Axe Lock Ring Ø 12 for Self-Propelled Lawnmower AMA AMA RT521 - RT522 - RTT531 - RTT531B. Part for the following products: -  Lawnmower RT521 - 89509 -  Lawnmower RT522 - 89535 -...
on 7/10 Business Days Approx €0.34
Details
Ratchet Pin for Lawnmower AMA NRT-521
A.M.A. S.p.A. SKU: 90304
Ratchet Pin for Lawnmower AMA NRT-521
Ratchet Pin for Lawnmower AMA NRT-521 Genuine part AMA, Ratchet Pin for Self-Propelled Lawnmower AMA RTE 521 - RTV 521 - NRT-461 - NRT-522 Part for the following products: -  Self-Propelled Lawnmower NRT-521 - 90860 -  Self-Propelled...
on 7/10 Business Days Approx €0.72
Details
Blade Boss for Self-Propelled Lawnmower RTV521
A.M.A. S.p.A. SKU: 90322
Blade Boss for Self-Propelled Lawnmower RTV521
Blade Boss for Self-Propelled Lawnmower RTV521 Genuine replacement part AMA, Blade Boss for Self-Propelled Lawnmower RTV521 - 90015. Parts for the following products: -  Self-Propelled Lawnmower RTV521 -...
Last items in stock €36.50
Details
AMA RTT521 Rear Wheel
A.M.A. S.p.A. SKU: 89887
AMA RTT521 Rear Wheel
AMA Lawnmower RTT521 Rear Wheel Genuine replacement part AMA Garden, Rear Wheel Ass'y for Self-Propelled Lawnmowers RT521 - RT522 - RT522B. Parts for the following products: -  Lawnmower RT521 - 89509...
Last items in stock €22.55
Details
AMA NRT-52X Mulching Plug
A.M.A. S.p.A. SKU: 88244
AMA NRT-52X Mulching Plug
AMA Lawnmower NRT-52X Mulching Plug Original spare part AMA Garden, Mulching Plug for Lawmower NRT-52X - RT522 - RT522B. Parts for the following products: -  Lawnmower NRT-52X - 92635 - ...
Last items in stock €12.87
Details
AMA RS421Starter Rope Stop
A.M.A. S.p.A. SKU: 88568
AMA RS421Starter Rope Stop
AMA Starter Rope Stop for Lawnmower RS421 Original AMA Spare Part, Starter Rope Stop for the following lawnmowers: RS421, Playcut LT52H, RT461B, Push Lawnmower RS421, NRS-421. Part for the following products: - Push Lawnmower RS421...
Last items in stock €3.72
Details
Comments (0)
