A.M.A. S.p.A.

Ama Spare Parts for Auger E3WT-300A

SKU: Ama 3WT-300A - 90380
€5.90
VAT included

Ama Spare Parts for Auger E3WT-300A

Original parts AMA, with fast delivery and low prices, we are an after-sales centre able to quickly solve maintenance and repair problems for Auger E3WT-300A - 90380.
Ama Spare Parts for Auger E3WT-300A
  • Online only
  • Ama Spare Parts for Auger E3WT-300A
  • Ama Spare Parts for Auger E3WT-300A
  • Ama Spare Parts for Auger E3WT-300A
A.M.A. S.p.A.

Ama Spare Parts for Auger E3WT-300A

SKU: Ama 3WT-300A - 90380 Condition: New
€5.90
VAT included

Ama Spare Parts for Auger E3WT-300A

Original parts AMA, with fast delivery and low prices, we are an after-sales centre able to quickly solve maintenance and repair problems for Auger E3WT-300A - 90380.
settings 92 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
81 spare parts

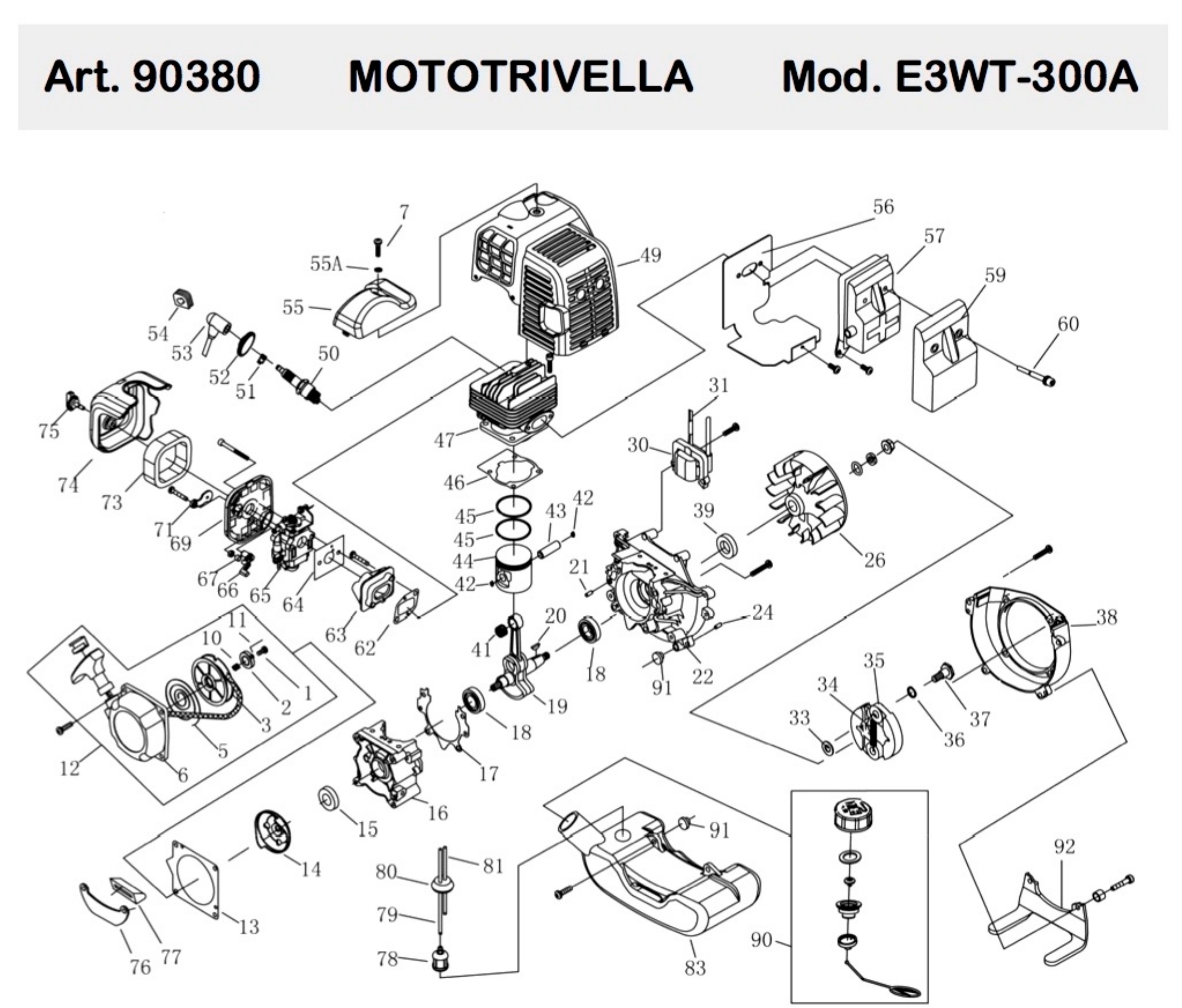

Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon 88309 Ratchet €4.25
3
 photo_cameraImage coming soon 90478 Starter rope reel €5.30
5
 photo_cameraImage coming soon 90479 Recoil spring  €3.81
10
 photo_cameraImage coming soon 88310 Spring €3.01
11
 photo_cameraImage coming soon 90482 Start pole  €2.09
12
 photo_cameraImage coming soon 90483 Starter  €10.61
13
 photo_cameraImage coming soon 88299 Gasket €4.48
14
 photo_cameraImage coming soon 90484 Start reel  €3.81
15
 photo_cameraImage coming soon 13554 Oil-Seal  €2.30
16
 photo_cameraImage coming soon 88422 Crank Case €13.45
17
 photo_cameraImage coming soon 88423 Gasket €5.00
19
 AMA Brushcutter AG3 450 CrankShaft 88424 AMA Brushcutter AG3 450 CrankShaft €53.80
22
 photo_cameraImage coming soon 88425 Crank Case €17.33
26
 photo_cameraImage coming soon 90629 Magneto rotor  €16.77
34
 photo_cameraImage coming soon 90630 Spring  €2.09
35
 photo_cameraImage coming soon 90631 Expander  €6.15
37
 photo_cameraImage coming soon 90632 screw pin  €2.09
38
 photo_cameraImage coming soon 90633 Fan cover  €7.51
39
 photo_cameraImage coming soon 88643 Oil-Seal  €1.35
41
 Needle Bearing for Piston Pin Brushcutters AMA AG2-3 450-450U 79347 Needle Bearing for Piston Pin Brushcutters AMA AG2-3 450-450U €5.02
42
 Seeger for Piston Pin Brushcutters AMA AG2-3 450-530U 79348 Seeger for Piston Pin Brushcutters AMA AG2-3 450-530U €0.45
43
 Piston for Brushcutters AMA AG3 530-530U 88432 Piston for Brushcutters AMA AG3 530-530U €18.50
44
 Piston Pin for Brushcutters AMA AG3 450-530U 88426 Piston Pin for Brushcutters AMA AG3 450-530U €4.19
45
 Piston Ring for Brushcutters AMA AG3 530-530U 88431 Piston Ring for Brushcutters AMA AG3 530-530U €6.05
46
 Cylinder Gasket for Brushcutter AMA AG3 530 88430 Cylinder Gasket for Brushcutter AMA AG3 530 €4.24
47
 Cylinder Replacement for Brushcutters AMA AG3 530-530U 88429 Cylinder Replacement for Brushcutters AMA AG3 530-530U €46.51
49
 photo_cameraImage coming soon 90634 Guide cover ass'y  €12.44
50
 photo_cameraImage coming soon 10660 Spark plug €5.90
50
 photo_cameraImage coming soon 90381 Drill for auger Ø 80 mm.  €51.16
51
 photo_cameraImage coming soon RSOF5  Spring  €0.58
53
 AMA AG2 280 Spark Plug Cap 38421 AMA AG2 280 Spark Plug Cap €2.42
55
 photo_cameraImage coming soon 79353 SPARK PLUG COVER X 45 CC EURO 2 €3.62
56
 AMA AG2 450 E2 Muffler Gasket 79354 AMA AG2 450 E2 Muffler Gasket €14.31
57
 photo_cameraImage coming soon 90635 Muffler  €22.81
59
 photo_cameraImage coming soon 90636 Cover  €4.07
62
 Thermal Flange Gaket for Brushcutter AMA AG2 450 E 79356 Thermal Flange Gaket for Brushcutter AMA AG2 450 E €1.59
63
 photo_cameraImage coming soon 79357 FLANGE TERM X 45 CC EURO 2 €7.89
64
 Intake Manifold-Carburator Gasket for Brushcutter AMA AG3 450 79358 Intake Manifold-Carburator Gasket for Brushcutter AMA AG3 450 €2.96
65
 Carburator for Brushcutters AMA AG2 450 E2 - AG3 530 79359 Carburator for Brushcutters AMA AG2 450 E2 - AG3 530 €57.38
66
 photo_cameraImage coming soon 13754 Choker Handle €3.59
69
 Air Filter Holder with Lever for Brushcutters AMA 13751 Air Filter Holder with Lever for Brushcutters AMA €12.28
71
 AMA Brushcutter AG3 350 Choker 88311 AMA Brushcutter AG3 350 Choker €3.60
73
 Air Filter for Brushcutters AMA 13715 Air Filter for Brushcutters AMA €4.92
74
 Cleaner Outside Cover for Brushcutter AMA AG2 450 E2 79339 Cleaner Outside Cover for Brushcutter AMA AG2 450 E2 €4.97
75
 photo_cameraImage coming soon 13748 Screw €3.81
76
 photo_cameraImage coming soon 88297 Stand €4.40
77
 photo_cameraImage coming soon 88298 Rubber Cover €3.01
78
 photo_cameraImage coming soon 88857 Cleaner cover  €2.56
79
 photo_cameraImage coming soon 88342 Fuel Pipe €5.11
80
 Tank Rubber for Brushcutters AMA AG3 350-AG3 280 13568 Tank Rubber for Brushcutters AMA AG3 350-AG3 280 €2.72
83
 Petrol Tank for Brushcutter AMA AG2 450 E2 79361 Petrol Tank for Brushcutter AMA AG2 450 E2 €20.80
90
 Fuel Tank Cap for Brushcutters AMA 13758 Fuel Tank Cap for Brushcutters AMA €6.99
91
 Tank Damper for Brushcutter AMA AG3 350 88301 Tank Damper for Brushcutter AMA AG3 350 €3.10

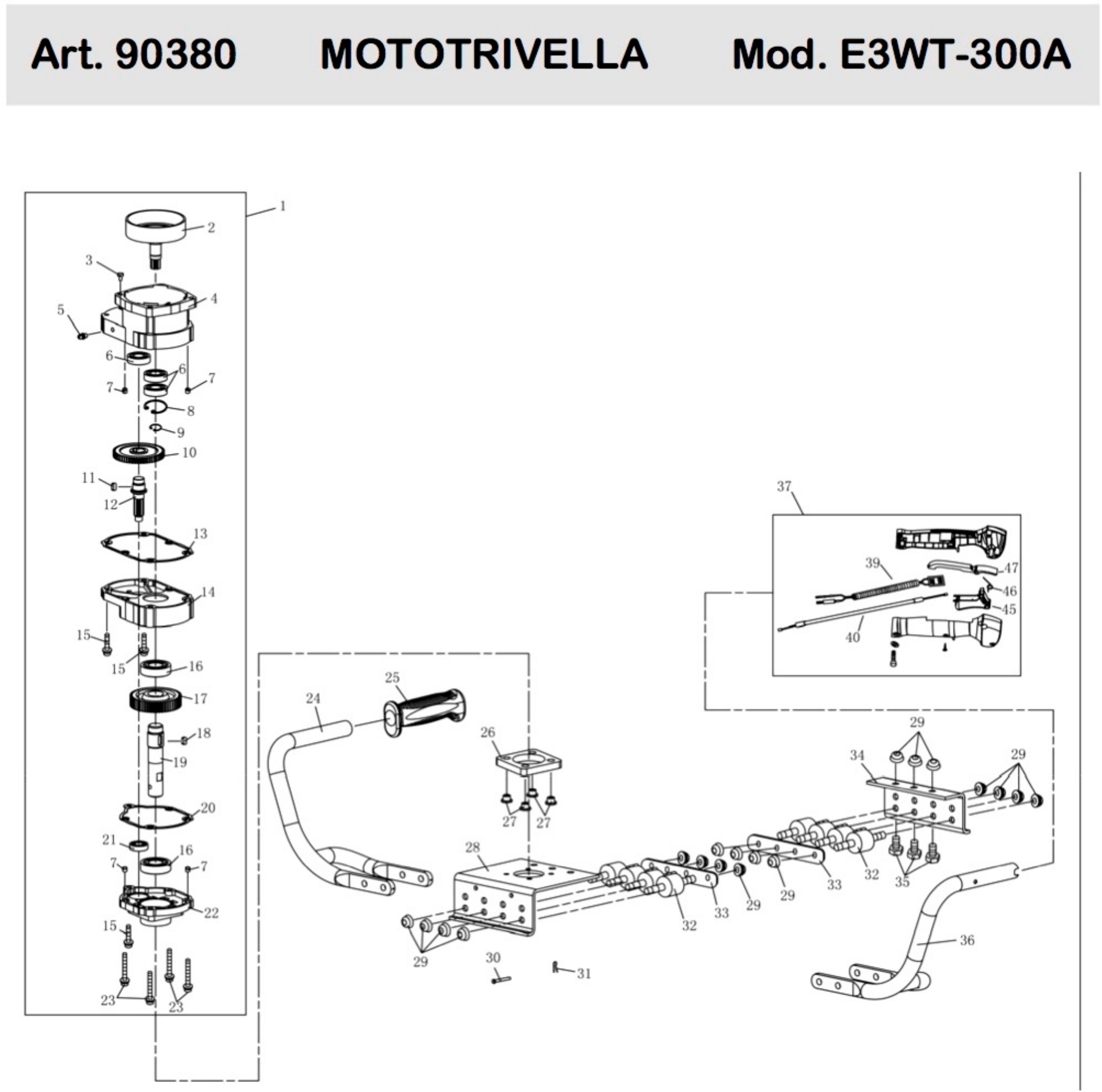

Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 90638 Gear Box  €111.06
2
 photo_cameraImage coming soon 90639 Clutch Drum Comp.  €13.42
3
 photo_cameraImage coming soon 90640 Vent-plug  €4.19
4
 photo_cameraImage coming soon 90641 Wheel Box  €15.64
10
 photo_cameraImage coming soon 90642 Gear  €12.32
12
 photo_cameraImage coming soon 90644 Gear Shaft  €9.85
13
 photo_cameraImage coming soon 90645 Gasket  €3.81
14
 photo_cameraImage coming soon 90646 Wheel Box  €11.21
17
 photo_cameraImage coming soon 90647 Gear  €18.00
19
 photo_cameraImage coming soon 90648 Shaft  €11.21
20
 photo_cameraImage coming soon 90649 Gasket  €3.81
24
 photo_cameraImage coming soon 90651 Handle  €12.44
25
 photo_cameraImage coming soon 90652 Rubber Ringer  €4.54
26
 photo_cameraImage coming soon 90653 Rubber Washer  €3.81
30
 photo_cameraImage coming soon 90656 Shaft  €2.33
31
 photo_cameraImage coming soon 90657 Pin  €2.15
32
 photo_cameraImage coming soon 90658 Rubber Pole  €3.94
33
 photo_cameraImage coming soon 90659 Cushion  €3.94
34
 photo_cameraImage coming soon 90660 Brace II  €10.23
36
 photo_cameraImage coming soon 90661 Handle  €12.44
37
 Throttle Handle Ass'y for Auger AMA 3WT-300A 90662 Throttle Handle Ass'y for Auger AMA 3WT-300A €35.55
39
 photo_cameraImage coming soon 90663 Stop Button Comp.  €4.32
40
 photo_cameraImage coming soon 90664 Cable Comp.  €3.81
46
 photo_cameraImage coming soon 90666 Spring  €2.33
47
 photo_cameraImage coming soon 90667 Handgrip  €3.81
501
 photo_cameraImage coming soon 90379 Drill for auger Ø 100 mm. €71.61
502
 photo_cameraImage coming soon 90382 Drill for auger Ø 150 mm.  €94.43
503
 photo_cameraImage coming soon 90383 Drill for auger Ø 200 mm.  €132.14

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Auger E3WT-300A

Original parts AMA, with fast delivery and low prices, we are an after-sales centre able to quickly solve maintenance and repair problems for Auger E3WT-300A - 90380.

In the following table, look for the model of the Auger and the respective parts of the code.
Ama 3WT-300A - 90380

Auger E3WT-300A - 90380/Engine Pag.1
# Part Num. Description
2 88309 Ratchet
3 90478 Starter rope reel
5 90479 Recoil spring
10 88310 Spring
11 90482 Start pole
12 90483 Starter
13 88299 Gasket
14 90484 Start reel
15 13554 Oil-Seal
16 88422 Crank case
17 88423 Gasket
18 Bearing 6202/P5
19 88424 Crank shaft
20 88645 Key 3X5X13
21 88799 Pin B4 X 10
22 88425 Crank case
24 88799 Pin B4 X 10
26 90629 Magneto rotor
34 90630 Spring
35 90631 Expander
36 13789 W asher
37 90632 screw pin
38 90633 Fan cover
39 88643 Oil-Seal
41 79347 Bearing
42 79348 Ring
43 88432 Piston
44 88426 Piston Pin
45 88431 Piston Ring
46 88430 Gasket
47 88429 Cylinder
49 90634 Guide cover ass'y
50 10660 Spark plug
51 RSOF5  Spring
52 13821 Plug Cap
53 38421 Cap
54 88262 Plug
55 79353 Cover
56 79354 Gasket
57 90635 Muffler
59 90636 Cover
62 79356 Gasket
63 79357 Intake Manifold thermic
64 79358 Carburator Gasket
65 79359 Carburetor
66 13754 Choker handle
69 13751 Cleaner inside cover
71 88311 Choker
73 13715 Filter net
74 79339 Cleaner outside cover
75 13748 Screw
76 88297 Stand
77 88298 Rubber cover
78 88857 Cleaner cover
79 88342 Fuel pipe 3 x 1 x 80
80 13568 Plug
81 Fuel pipe 3 x 1 x 80
83 79361 Fuel tank
90 13758 Lid ass'y
91 88301 Tank Damper
92 90637 Stand
Auger E3WT-300A - 90380/Gear Box - Handle Pag.2
1 90638 Gear Box
2 90639 Clutch Drum Comp.
3 90640 Vent-plug
4 90641 Wheel Box
5 Fuel Cup M6
6 Bearing 6002-2Rs/P5
7 Bushing
8 Stop Ring 32
9 Stop Ring 15
10 90642 Gear
11 90643 Key
12 90644 Gear Shaft
13 90645 Gasket
14 90646 Wheel Box
15 Screw M6 X 30
16 Bearing 6004-2RS/P5
17 90647 Gear
18 90643 Key
19 90648 Shaft
20 90649 Gasket
21 Bearing 6000-2RS/P5
22 90650 Case Cover
23 Screw M6 X 55
24 90651 Handle
25 90652 Rubber Ringer
26 90653 Rubber Washer
27 90654 Spacer
28 90655 Brace I
29 Nut M5
30 90656 Shaft
31 90657 Pin
32 90658 Rubber Pole
33 90659 Cushion
34 90660 Brace II
35 Screw M8 X 20
36 90661 Handle
37 90662 Lever Ass'y
39 90663 Stop Button Comp.
40 90664 Cable Comp.
45 90665 Handgrip
46 90666 Spring
47 90667 Handgrip
50 90381 Drill for auger Ø 80 mm.
501 90379 Drill for auger Ø 100 mm.
502 90382 Drill for auger Ø 150 mm.
503 90383 Drill for auger Ø 200 mm.
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama 3WT-300A - 90380
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA 3WT-300A

Diagram AMA 3WT-300A

Download (324.77KB)

You might also like

Cylinder Replacement for Brushcutters AMA AG3 530-530U
A.M.A. S.p.A. SKU: 88429
Cylinder Replacement for Brushcutters AMA AG3 530-530U
Cylinder Replacement for Brushcutters  AMA AG3 530-530U Genuine part AMA, Replacement cylinder for brushcutters AMA AG3 530–84900 - AG3 530U–84901 Part for the following article: -  BRUSHCUTTER AMA AG3 530–84900 -  BRUSHCUTTER AMA...
AVAILABLE €46.51
Details
Cylinder Replacement for Brushcutters AMA AG3 530-530U
A.M.A. S.p.A. SKU: 88432
Piston for Brushcutters AMA AG3 530-530U
Piston for Brushcutters  AMA AG3 530-530U Genuine part AMA, Piston for brushcutters AMA AG3 530–84900 - AG3 530U–84901 Part for the following article: -  BRUSHCUTTER AMA AG3 530–84900 -  BRUSHCUTTER AMA AG3 530U–84901 -  Blower AMA...
AVAILABLE €18.50
Details
Carburator for Brushcutters AMA AG2 450 E2 - AG3 530
A.M.A. S.p.A. SKU: 79359
Carburator for Brushcutters AMA AG2 450 E2 - AG3 530
Carburator for Brushcutters AMA AG2 450 E2 - AG3 530 Genuine part AMA, Carburator for Brushcutters AG2 450 E2 - AG2 450U E2 - AG3 450 - AG3 450U - AG3 530 - AG3 530U - Mototrivella AMA...
Last items in stock €57.38
Details
Cylinder Gasket for Brushcutter AMA AG3 530
A.M.A. S.p.A. SKU: 88430
Cylinder Gasket for Brushcutter AMA AG3 530
Cylinder Gasket for Brushcutter AMA AG3 530 Original spare part AMA, Cylinder Gasket for Brushcutters AG3 530–84900 - AG3 530U–84901 - Soffiatore KBL-500 - 88601 - Mototrivella E3WT-300A - 90380. Part for the following products: -...
AVAILABLE €4.24
Details
Petrol Tank for Brushcutter AMA AG2 450 E2
A.M.A. S.p.A. SKU: 79361
Petrol Tank for Brushcutter AMA AG2 450 E2
Petrol Tank for Brushcutter AMA AG2 450 E2 Original spare part AMA, Petrol Tank for Brushcutters AG2 450 E2 - AG2 450U E2 - AG3 450 - AG3 530 - AG3 450U - AG3 530U. Parts for the following products: - Brushcutter AG2 450 E2-79101 -...
AVAILABLE €20.80
Details
Tank Damper for Brushcutter AMA AG3 350
A.M.A. S.p.A. SKU: 88301
Tank Damper for Brushcutter AMA AG3 350
Tank Damper for Brushcutter AMA AG3 350 Genuine replacement part AMA, Tank Damper for Brushcutters AMA AG3 350 - AG3 450 - AG3 530. Part for the following products: -  Brushcutter AG3 350–84885 -  Brushcutter AG3 450–84895 -...
AVAILABLE €3.10
Details
Cleaner Outside Cover for Brushcutter AMA AG2 450 E2
A.M.A. S.p.A. SKU: 79339
Cleaner Outside Cover for Brushcutter AMA AG2 450 E2
Cleaner Outside Cover for Brushcutter AMA AG2 450 E2 Genuine part AMA, Cleaner Outside Cover for brushcutters AMA AG2 450 E2 - 450U E2 - AG3 450 - AG3 450U. Part for the following products: -  BRUSHCUTTER AG2 450 E2 -  BRUSHCUTTER...
on 7/10 Business Days Approx €4.97
Details
Thermal Flange Gaket for Brushcutter AMA AG2 450 E
A.M.A. S.p.A. SKU: 79356
Thermal Flange Gaket for Brushcutter AMA AG2 450 E
Thermal Flange Gaket for Brushcutter AMA AG2 450 E2 Genuine part AMA, Thermal Flange Gaket for brushcutters AMA AG2 450 E2 - 450U E2 - AG3 450 - AG3 450U. Part for the following products: -  BRUSHCUTTER AG2 450 E2...
on 7/10 Business Days Approx €1.59
Details
Throttle Handle Ass'y for Auger AMA 3WT-300A
A.M.A. S.p.A. SKU: 90662
Throttle Handle Ass'y for Auger AMA 3WT-300A
Throttle Handle Ass'y for Auger AMA 3WT-300A Genuine replacement part AMA, Throttle Handle Ass'y for - Auger AMA 3WT-300A - 90380. Body entirely in Aluminium Die Polished aluminum cylinder Part for the following article: -  Auger AMA...
Last items in stock €35.55
Details
AMA Brushcutter AG3 450 CrankShaft
A.M.A. S.p.A. SKU: 88424
AMA Brushcutter AG3 450 CrankShaft
AMA Brushcutter AG3 450 CrankShaft Genuine part AMA, CrankShaft for Brushcutters AMA AG3 450 - AG3 450U. Part for the following products: -  BRUSHCUTTER AG3 450 – 84895 -  BRUSHCUTTER AG3 450U...
Last items in stock €53.80
Details
AMA Brushcutter AG3 350 Choker
A.M.A. S.p.A. SKU: 88311
AMA Brushcutter AG3 350 Choker
AMA Brushcutter AG3 350 Choker Original spare part AMA Garden, Choker for Engine Brush Cutters AG3 450 - AG3 450U - AG3 530U. Parts for the following products: -  Brushcutter AG3 450U – 84896...
Last items in stock €3.60
Details
AMA AG2 280 Spark Plug Cap
A.M.A. S.p.A. SKU: 38421
AMA AG2 280 Spark Plug Cap
AMA Spark Plug Cap for Brushcutter AG2 280 Genuine replacement part AMA, Spark Plug Cap x 26/33 DC for Brushcutters AG2 280 - AG 260 TR - AG2 350 - AG3450. Replacement part for the following products: - AMA Brushcutter AG2 280...
Last items in stock €2.42
Details
AMA AG2 450 E2 Muffler Gasket
A.M.A. S.p.A. SKU: 79354
AMA AG2 450 E2 Muffler Gasket
AMA Brushcutter AG2 450 E2 Muffler Gasket Genuine part AMA Garden, Muffler Gaket for brushcutters AMA AG2 450 E2 - 450U E2 - AG3 450 - AG3 450U. Part for the following products: -  BRUSHCUTTER AG2 450 E2-79101 - ...
Last items in stock €14.31
Details
Comments (0)
