Ama Spare Parts for Chainsaw BG 45

Name: Ama Spare Parts for Chainsaw BG 45
Brand: A.M.A. S.p.A.
SKU: Ama BG 45 55070 - 55080
Availability: InStock

SKU: Ama BG 45 55070 - 55080

€7.02

VAT included

Ama Spare Parts for Chainsaw BG 45

Ama genuine spare parts or replacement parts for to repair Chainsaw BG 45/55070-55080.

Fix Your Chainsaw BG 45. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

79 spare parts

Page 1 View exploded Usually Ships in: 7/10 BUSINESS DAYS

1 / 2

Pos.		Item	Price
	Image coming soon	61299 Chain AMA 325"- 058" -1,5MM-72E	€19.89
		63820 Flyweel Nut M8×1 for Chainsaws AMA NTH 26.10 - NTH 26.10C	€1.28
		79541 Chain .325" 0.58 - 1,5 mm 66E for Bar 16"	€38.45
		F03187 Gasoline Filter for Chainsaw AMA	€3.87
55072		55072 Worm Screw for Chainsaws AMA NBG 45.16-45.18	€7.03
55110	Image coming soon	55110 COVER SUP. X BG45 / 50 (OLD)	€6.47
55111	Image coming soon	55111 Filter Cover (AMA) X BG45 (OLD)	€11.12
55112	Image coming soon	55112 KNOB CPL. X TH25 / BG38 / 45/50	€2.91
57241		57241 Guide Bar POH16-58WR 16" for Chainsaw AMA NBG45.16	€35.36
57242		57242 Chain Bar 18" - 450 mm for Chainsaw AMA 45C	€36.03
57496	Image coming soon	57496 Dust cover	€1.22
57497		57497 Thermal Flange Gasket for Chainsaw AMA NBG45.16	€3.44
57498	Image coming soon	57498 Air intake tube	€8.47
57499		57499 Cylinder Gasket for Chainsaws AMA NBG 45.16 - NBG 45.18	€4.00
57500		57500 Starter Spring for Chainsaws AMA NBG 45.16-18 - 50.20	€9.17
57501	Image coming soon	57501 RETAINING SPRING AVV.TO X BG38 / 45	€2.92
57502		57502 Air Filter for Chainsaw AMA BG 45	€9.17
57503		57503 Ignition Coil for Chainsaw AMA NBG 45-50	€20.00
57506		57506 Gasoline Hose for Chainsaws AMA NBG 45.16-18 - 50.20	€4.74
57510		57510 Petrol Tank Cap for Chainsaw AMA BG 45	€4.16
57511	Image coming soon	57511 Carburetor	€83.18
57512	Image coming soon	57512 Front handle assembly	€16.65
57513		57513 Upper Damper for Chainsaws AMA NBG 45.16-45.18	€7.44
57516	Image coming soon	57516 Muffler cover plate	€2.08
57517	Image coming soon	57517 Muffler body	€23.08
57518		57518 Muffler Gasket for Chainsaws AMA NBG 45.16-45.18	€3.61
57522	Image coming soon	57522 Damper	€2.08
57523		57523 Oil Pump for Chainsaws AMA NBG45-50	€22.90
57524		57524 AMA NBG 45.16 Oil Pipe	€3.32
57525		57525 Chain Tensioner Cover Plate for Chainsaws AMA NBG 45.16-45.18	€4.03
57526		57526 Chain Tensioner Screw for Chainsaws AMA NBG 45.16-45.18	€2.86
57527		57527 Chain Guide Block for Chainsaw AMA NBG45.16	€2.28
57528		57528 Chain Tensioner Block for Chainsaws AMA NBG 45.16-45.18	€2.86
57529		57529 Clutch Ass'y for Chainsaws AMA NBG 45.16 - NBG 45.18	€17.24
57530		57530 Clutch Spring for Chainsaws AMA NBG 45.16-45.18	€2.72
57531		57531 Clutch Washer for Chainsaws AMA NBG 45.16-45.18	€2.14
57532		57532 Needle Bearing mm 12×15×14.5 for Chainsaws AMA NBG45.16 - NBC45.18	€5.74
57571		57571 Fitting Oil Filter for Chainsaw AMA BG 38	€4.50
57633		57633 Oil Filter for Chainsaw AMA	€3.87
57795		57795 Sprocket 325.7 for Chainsaws AMA NBG 45.16 - NBG 45.18	€21.57
57801	Image coming soon	57801 Trigger control rack	€4.27
57802		57802 Throttle Lever for Chainsaw AMA BG 45	€1.93
57803		57803 Trigger Torsion Rod Spring for Chainsaws AMA NTH 26.10 - NTH 26.10C	€2.64
57808		57808 Gear Chain Tensioner for Chainsaws AMA BG 45	€2.29
57872	Image coming soon	57872 Cylinder	€53.02
57874		57874 Piston Ring for Chainsaws AMA NBG 45.16 - NBG 45.18	€8.89
57875		57875 Piston for Chainsaws AMA NBG 45.16 - NBG 45.18	€25.73
57876		57876 AMA BG 45 Piston Clip	€1.14
57877		57877 Starter Pulley for Chainsaws AMA NBG 45.16 - NBG 45.18	€6.59
57878		57878 Chainsaw Chain Brake Assy for AMA BG 45	€38.73
57893	Image coming soon	57893 Right shock block	€36.92
58122	Image coming soon	58122 Pin 3×14	€2.30
58197	Image coming soon	58197 Cover plate	€6.31
58198		58198 Recoil Satarter Complete for Chainsaw AMA BG 45	€26.57
58200	Image coming soon	58200 POWLS AVV.TO X BG45 (MET)	€1.29
58204	Image coming soon	58204 Flywheel assembly	€30.93
58207	Image coming soon	58207 HANDLE AVV.TO X BG45 (OLD)	€1.53
58209		58209 Choke Rod for Chainsaws AMA NBG 45.16-45.18	€2.72
58212		58212 Conical Damper Spring for Chainsaws AMA NBG45.16 - NBC45.18	€3.58
58213		58213 Conrod Needle Bearing for Chainsaws AMA NBG45.16	€7.21
58216		58216 Piston Pin Needle Bearing Washer for Chainsaw AMA BG 45	€3.61
58223	Image coming soon	58223 1	€2.63
60331		60331 M8 Chain Bar Stud for Chainsaws AMA	€1.28
60332	Image coming soon	60332 CARTER INNER CHAMBERS.	€1.67
60339	Image coming soon	60339 Chain shield	€3.73
60341		60341 Stop Switch for Chainsaw AMA BG 45	€6.46
60345	Image coming soon	60345 SCREW antivibration. SUPERIOR BG 45	€1.76
62088		62088 Petrol Tank Cap Gasket for Chainsaws AMA BG 45	€2.86
64032	Image coming soon	64032 KIT CYLINDER / PISTON BG45	€58.25
64062	Image coming soon	64062 Petrol Tank Cap	€7.88
64064	Image coming soon	64064 Base	€32.40
64067	Image coming soon	64067 Air intake socket	€5.60
64068	Image coming soon	64068 Air intake tube support	€1.43
64070	Image coming soon	64070 GOMM.X CARBURATION BG 45	€1.67
64073		64073 Right Lower Damper for Chainsaws AMA NBG 45.16-45.18	€4.16
64074		64074 Conical Damper Spring Base for Chainsaws AMA NBG45.16 - NBC45.18	€1.55
64075		64075 Spiked Bumper for Chainsaws AMA NTH 26.10 - NTH 26.10C	€5.60
64077	Image coming soon	64077 Air intake tube flange	€1.22
64078	Image coming soon	64078 Muffler connecting screw	€4.04

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Chainsaw BG 45

Fix Your Chainsaw BG 45/55070-55080. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Chainsaw and the respective parts of the code.

Chainsaw BG 45 – 55070-55080
Part Num.	Description
61299	Chain AMA 325"- 058" -1,5MM-72E
55072	ROTOR OIL PUMP X BG45 / 50
55110	COVER SUP. X BG45 / 50 (OLD)
55111	Filter Cover (AMA) X BG45 (OLD)
55112	KNOB CPL. X TH25 / BG38 / 45/50
57241	GUIDE BAR 16" .325-0.58" -1.5MM x CHAINSAW AMA 45C
79541	CHAIN LOOP 16" .325-0.58" -1.5MM 66E
57242	BAR 18" CHAINSAW AMA 45C
57495	SCREW Shake. MOTOS.45 DC
57496	CAP SCREW ANTI X BG45
57496	CAP SCREW ANTI X BG45
57497	THERMAL FLANGE GASKET X BG45
57498	FLANGE THERMAL X BG45 / 50
57499	SEAL CYLINDER X BG45 / 50
57500	SPRING STARTING CPL.X BG45 / 50
57501	RETAINING SPRING AVV.TO X BG38 / 45
57502	AIR X BG45 / 50 (OLD)
57503	COIL CPL. X CHAINSAW BG45 / 50
57504	WASHER FLY X BG45 (OLD)
63820	NUT FLY (M8X1) X TH25 And BG
57506	FUEL Pipe BG45 / 50
F03187	FILTER MIX SMALL FISHING
57510	CAP BLEND X BG45 (OLD)
57511	CARB X BG45 / 50
57512	HANDLE ANT. (ALL) X BG45 / 50
57513	SUPERIOR ANTI BG45 / 50
57513	SUPERIOR ANTI BG45 / 50
57516	COVER PLATE MUFFLER X BG45
57517	MUFFLER X CHAINSAW BG45 / 50
57518	SEAL MUFFLER X BG45 / 50
57522	PROTECTION CARTER BAR X BG45
57523	OIL PUMP X CHAINSAW BG45 / 50
57524	PIPE OIL OUTPUT X BG45 / 50
57525	PLATE. X BG45
57526	CHAIN PULL BOLT BG45 / 50
57527	CHAIN GUIDE X BG45 / 50
57528	TOOTH TIGHTENER X BG45 / 50
57529	CLUTCH ASSY X BG45 / 50
57530	CLUTCH SPRING X BG45 / 50
57531	CLUTCH WASHER X BG45 / 50
57532	CAGE ROLLER CLUTCH X BG45
57571	FITTING OIL FILTER X BG38
57633	OIL FILTER CPL. X BG45 / 50
57795	SPROCKET (.325) X BG45 / 50
57801	LEVER SICUR. ACCELER. X BG45 / 50
57802	THROTTLE TRIGGER X BG45
57803	SPRING LEVER ACCEL. X TH25 / BG45
57808	Enlarged. TENSIONER TH25 / BG45
57872	CYLINDER X CHAINSAW BG45
57873	PIN X CHAINSAW BG45
57874	SEGMENT X CHAINSAW BG45
57875	PISTON X CHAINSAW BG45
57876	PISTON CIRCLIP X BG45 / 50
57877	STARTING PULLEY X BG45 / 50
57878	CHAIN BRAKE CPL. X BG45 (OLD)
57893	BLOCK ANTI X BG45
58122	PLUG / PIN X TH25 / BG45
58197	COVER OIL PUMP X BG45 / 50
58198	RECOIL STARTER COMPL.MOTOS.45 DC
58200	POWLS AVV.TO X BG45 (MET)
58204	FLYING CPL. X BG45 / 50
58204	FLYING CPL. X BG45 / 50
58207	HANDLE AVV.TO X BG45 (OLD)
58209	CHOKE LEVER X CHAINSAW BG45 / 50
58212	SPRING CONE Shake. BG45 / 50
58213	CAGE ROLLER PISTON BG45 / 50
58216	DISTANCE CAGE ROLLER BG45
58223	GUARNIZ. SUPP. CARB. X.BG45 / 50
60331	STUD M8 X BG38 / 45/50
60332	CARTER INNER CHAMBERS.
60339	COVER CHAINGUARD X BG45 / 50
60341	SWITCH ON / OFF BG45 (OLD)
60345	SCREW antivibration. SUPERIOR BG 45
62088	GUARNIZ.TAPPO MTS.45 NEW MIX
64032	KIT CYLINDER / PISTON BG45
64062	CAP MIX BG 45/38 (NEW)
64064	BASE C / TANK X BG45 / 50
64067	SUPPORT AIR X BG45 / 50
64068	SUPPORT FLANGE TERM. BG45 / 50
64070	GOMM.X CARBURATION BG 45
64073	ANTI LOWER BG45 / 50
64074	BASE SPRING CONE ANTI.BG45 / 50
64075	HOOK X BG38 / BG45 / BG50 / TH25
64077	GUARNIZ. CARB X BG45 / 50
64078	SCREW FISS. MUFFLER X BG45 / 50

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Ama BG 45 55070 - 55080

Available 9 Items

Data sheet

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]

Specific References

Condition New

Download

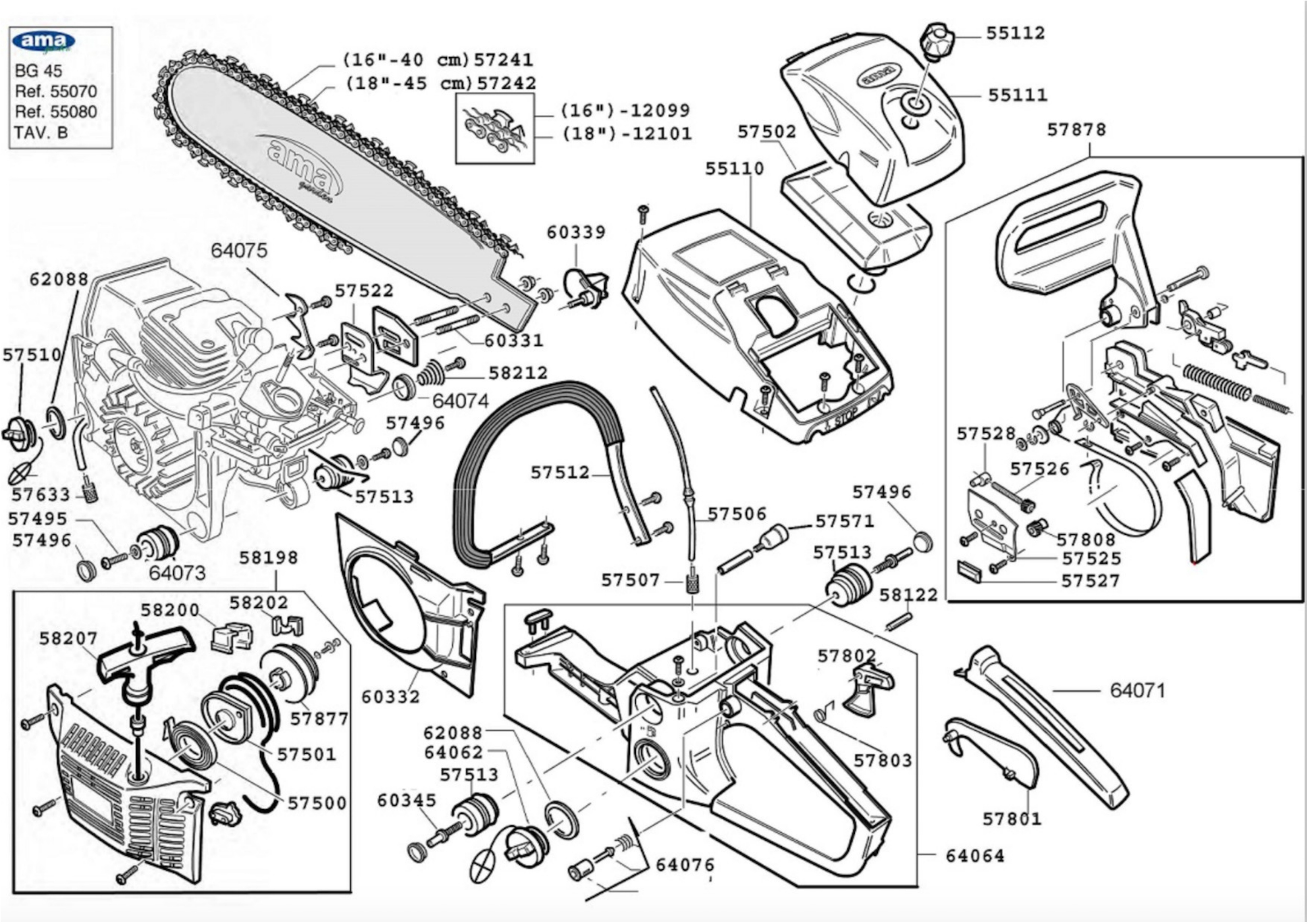

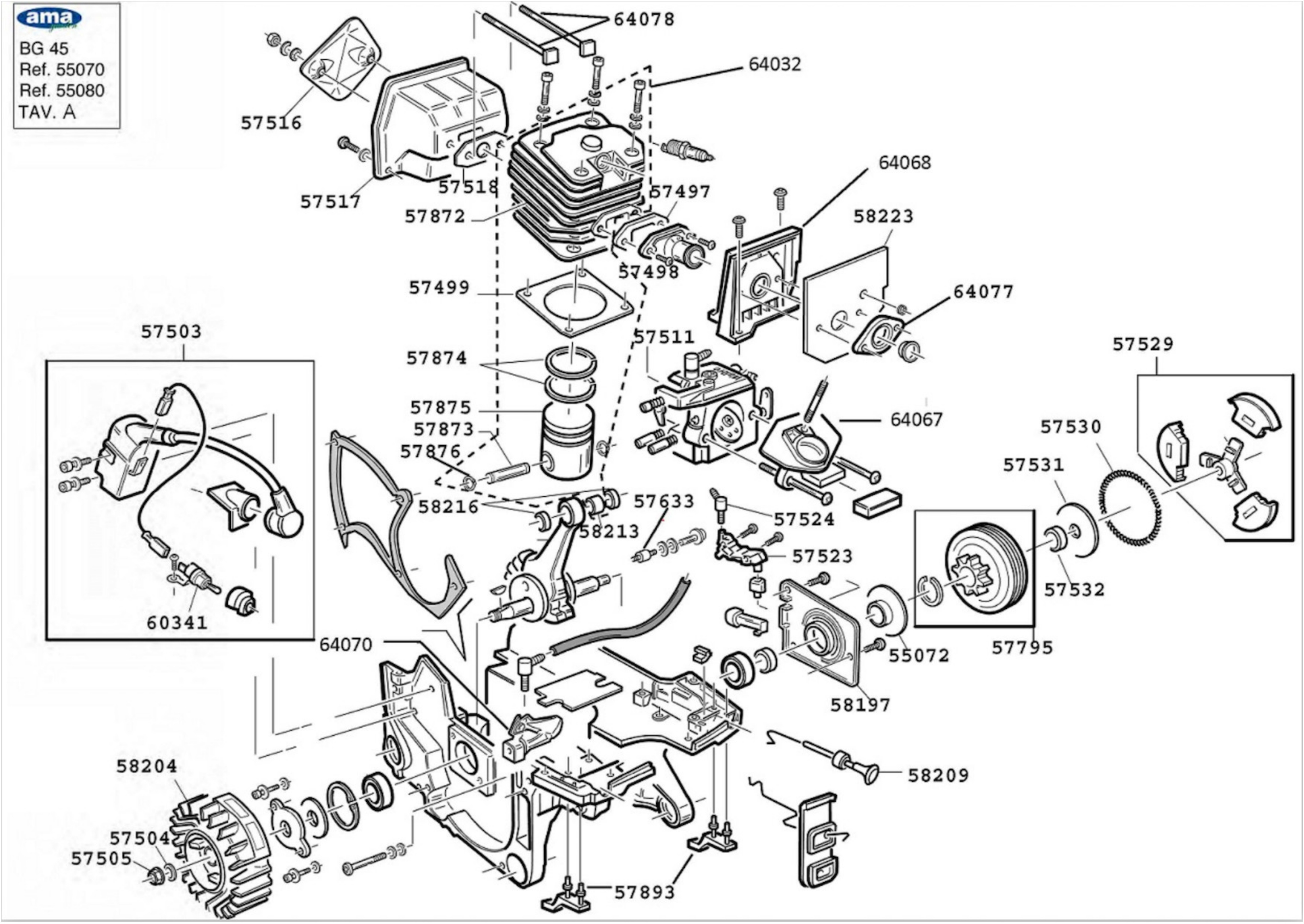

Diagram Ama BG 45

Download (742.39KB)

A.M.A. S.p.A. SKU: 57570

Oil Pump for Chainsaws AMA NTH26-NBG38

Oil Pump for Chainsaws AMA NTH26-NBG38 Genuine part AMA, Oil Pump for Chainsaws NTH 26.10 - 26.10C - BG 38 – 55090-55000 - NBG 38.14 - NBG 38.16. Part for the following products: - CHAINSAW NTH 26.10 - CHAINSAW NTH 26.10C - CHAINSAW...
