Ama Spare Parts for Blower KBL-500

SKU: Ama KBL-500 - 88601
€1.32
VAT included

Ama Spare Parts for Blower KBL-500

Ama original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Blower KBL-500 - 88601.

Ama Spare Parts for Blower KBL-500
  • Online only
  • Ama Spare Parts for Blower KBL-500
  • Ama Spare Parts for Blower KBL-500
  • Ama Spare Parts for Blower KBL-500

Ama Spare Parts for Blower KBL-500

SKU: Ama KBL-500 - 88601 Condition: New
€1.32
VAT included

Ama Spare Parts for Blower KBL-500

Ama original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Blower KBL-500 - 88601.

settings 76 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

67 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
Starter Ass'y for Petrol Blower AMA KBL-500 89642 Starter Ass'y for Petrol Blower AMA KBL-500 €25.12
3
photo_cameraImage coming soon 13728 RECOIL SPRING X 33 DC €8.75
4
photo_cameraImage coming soon 89496 Starter rope reel  €2.50
6
photo_cameraImage coming soon 89497 Start wheel  €1.80
12
photo_cameraImage coming soon 88640 Ratchet  €4.83
13
photo_cameraImage coming soon 13554 Oil-Seal  €2.30
14
photo_cameraImage coming soon 88422 Crank Case €13.45
15
photo_cameraImage coming soon 88423 Gasket €5.00
17
photo_cameraImage coming soon 88641 Crank shaft  €53.08
19
photo_cameraImage coming soon 88642 Crank case  €24.16
20
photo_cameraImage coming soon 88643 Oil-Seal  €1.35
21
photo_cameraImage coming soon 88644 Magneto rotor  €17.63
25
Needle Bearing for Piston Pin Brushcutters AMA AG2-3 450-450U 79347 Needle Bearing for Piston Pin Brushcutters AMA AG2-3 450-450U €5.02
28
Seeger for Piston Pin Brushcutters AMA AG2-3 450-530U 79348 Seeger for Piston Pin Brushcutters AMA AG2-3 450-530U €0.45
29
Piston Pin for Brushcutters AMA AG3 450-530U 88426 Piston Pin for Brushcutters AMA AG3 450-530U €4.19
30
Piston for Brushcutters AMA AG3 530-530U 88432 Piston for Brushcutters AMA AG3 530-530U €18.50
31
Piston Ring for Brushcutters AMA AG3 530-530U 88431 Piston Ring for Brushcutters AMA AG3 530-530U €6.05
32
Piston Ring for Brushcutters AMA AG3 530-530U 88431 Piston Ring for Brushcutters AMA AG3 530-530U €6.05
33
Cylinder Gasket for Brushcutter AMA AG3 530 88430 Cylinder Gasket for Brushcutter AMA AG3 530 €4.24
34
photo_cameraImage coming soon 88646 Cylinder  €41.63
36
photo_cameraImage coming soon 88647 Mantle  €6.78
37
Spark Plug Champion RCJ6Y 56438 Spark Plug Champion RCJ6Y €4.39
38
photo_cameraImage coming soon 88648 Cap  €3.43
39
photo_cameraImage coming soon 88649 Gasket  €2.29
40
photo_cameraImage coming soon 88650 Muffler  €24.16
42
photo_cameraImage coming soon 88651 Cover  €9.65
44
Thermal Flange Gaket for Brushcutter AMA AG2 450 E 79356 Thermal Flange Gaket for Brushcutter AMA AG2 450 E €1.59
45
photo_cameraImage coming soon 88652 Admitting pipe  €7.11
47
photo_cameraImage coming soon 88653 Gasket  €4.70
48
Carburator for Petrol Blower AMA KBL-500 88654 Carburator for Petrol Blower AMA KBL-500 €34.77
49
photo_cameraImage coming soon 88655 Cleaner inside cover  €4.24
51
photo_cameraImage coming soon 88656 Filter net  €2.16
52
photo_cameraImage coming soon 88657 Cleaner outside cover  €6.10
53
photo_cameraImage coming soon 13748 Screw €3.81
54
Ignition Coil for Petrol Blower AMA KBL-500 88658 Ignition Coil for Petrol Blower AMA KBL-500 €30.58
57
photo_cameraImage coming soon 88659 Shield  €2.73
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
2
photo_cameraImage coming soon 88662 Protection  €16.83
4
photo_cameraImage coming soon 88663 Volute case  €57.85
5
photo_cameraImage coming soon 88664 Impeller  €31.86
7
photo_cameraImage coming soon 88665 Volute case  €49.53
10
photo_cameraImage coming soon 88666 Protect net  €4.13
12
photo_cameraImage coming soon 88667 Support  €4.13
13
photo_cameraImage coming soon 88668 Frame  €36.94
16
photo_cameraImage coming soon 88669 Back Mat  €18.51
17
photo_cameraImage coming soon 88670 Band  €11.23
19
photo_cameraImage coming soon 88556 Plug €5.07
20
photo_cameraImage coming soon 90054 Fuel tube  €4.84
21
photo_cameraImage coming soon 90167 Fuel tube  €4.49
22
Gasoline Filter for Brushcutters AMA AG3 280-350-450 13569 Gasoline Filter for Brushcutters AMA AG3 280-350-450 €4.43
23
photo_cameraImage coming soon 88675 Fuel Tank  €20.51
24
Fuel Tank Cap for Brushcutters AMA 13758 Fuel Tank Cap for Brushcutters AMA €6.99
31
photo_cameraImage coming soon 88768 Pan joint  €10.25
32
photo_cameraImage coming soon 88769 Rubber plug  €2.73
34
photo_cameraImage coming soon 88770 Hose  €11.08
36
AMA First Pipe for Petrol Blower KBL-500 88771 AMA First Pipe for Petrol Blower KBL-500 €6.12
37
AMA Second Pipe for Petrol Blower KBL-500 88772 AMA Second Pipe for Petrol Blower KBL-500 €8.88
38
AMA End Pipe for Petrol Blower KBL-500 88773 AMA End Pipe for Petrol Blower KBL-500 €6.91
39
photo_cameraImage coming soon 88774 Handle  €6.70
46
photo_cameraImage coming soon 88777 Left manipulator  €3.82
48
photo_cameraImage coming soon 88328 Spring  €4.08
49
photo_cameraImage coming soon 88327 Handle  €4.37
50
Throttle Lever for Brushcutters AMA AG3 350U-450U-530U 88321 Throttle Lever for Brushcutters AMA AG3 350U-450U-530U €9.17
51
photo_cameraImage coming soon 88322 Long Spring  €1.27
52
photo_cameraImage coming soon 88782 Right manipulator  €3.59
55
photo_cameraImage coming soon 88783 STOP switch  €3.45
56
photo_cameraImage coming soon 88784 Fuel throttle  €7.71
57
photo_cameraImage coming soon 88785 Tube  €1.85

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Blower KBL-500

Ama original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components for Blower KBL-500 - 88601.

In the following table, look for the model of the Blower and the respective parts of the code.
Ama KBL-500 - 88601

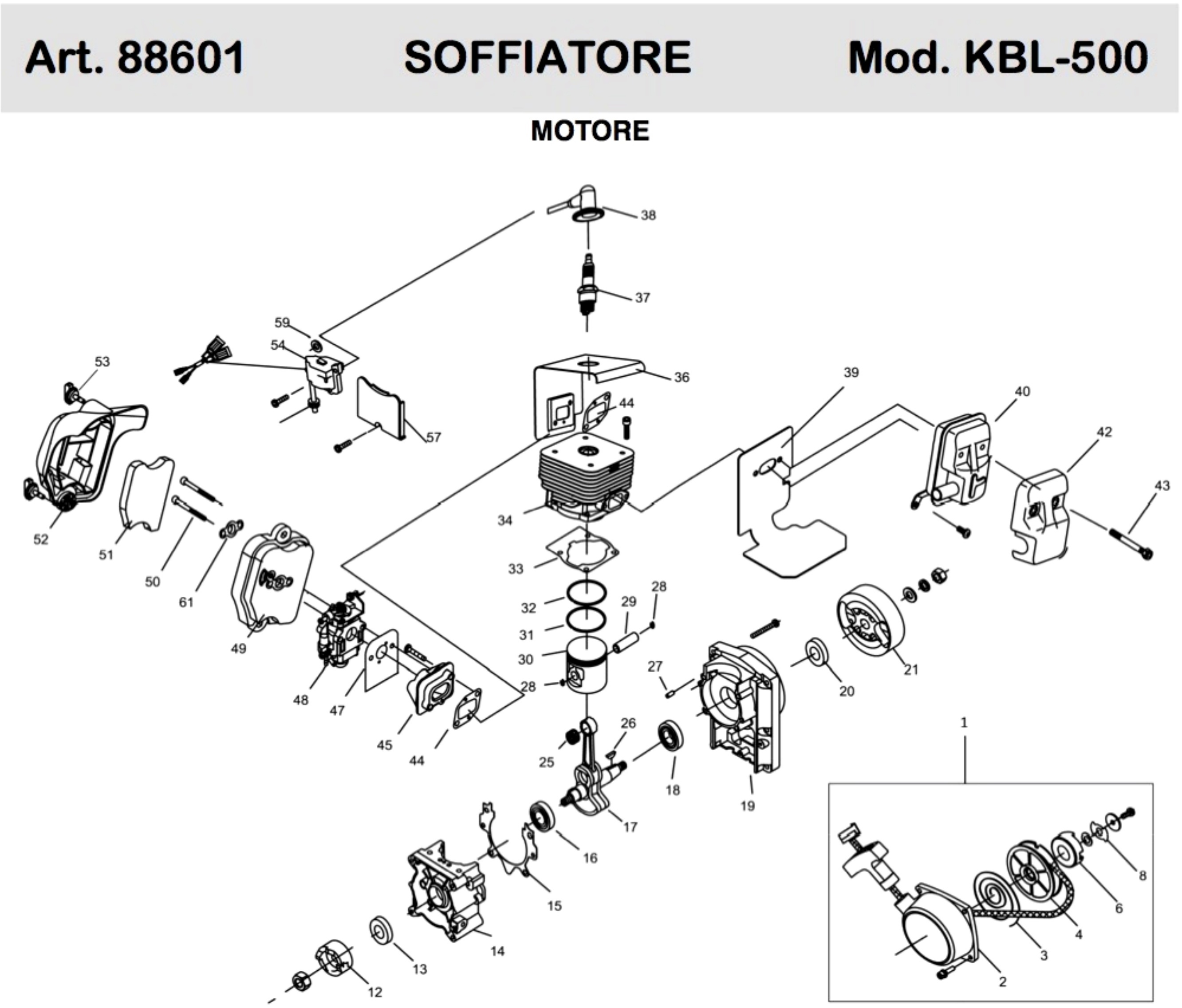

Blower KBL-500 - 88601 Engine Pag.1
# Part Num. Description
1 89642 Starter
2 89495 Case
3 13728 Recoil spring
4 89496 Starter rope reel
6 89497 Start wheel
8 88639 Guide slice
12 88640 Ratchet
13 13554 Oil-Seal
14 88422 Crank case
15 88423 Gasket
16 Bearing 6202/P6
17 88641 Crank shaft
18 Bearing 6202/P6
19 88642 Crank case
20 88643 Oil-Seal
21 88644 Magneto rotor
25 79347 Bearing
26 88645 Key 3X5X13
27 88799 Pin
28 79348 Ring
29 88426 Piston Pin
30 88432 Piston
31 88431 Piston Ring
32 88431 Piston Ring
33 88430 Gasket
34 88646 Cylinder
36 88647 Mantle
37 56438 Spark plug
38 88648 Cap
39 88649 Gasket
40 88650 Muffler
42 88651 Cover
43 Screw M6 x 60 -12,9
44 79356 Gasket
45 88652 Admitting pipe
47 88653 Gasket
48 88654 Carburetor
49 88655 Cleaner inside cover
50 Screw M5 x 55
51 88656 Filter net
52 88657 Cleaner outside cover
53 13748 Screw
54 88658 Ignition coil compl.
57 88659 Shield
59 88803 W asher
61 Baffle

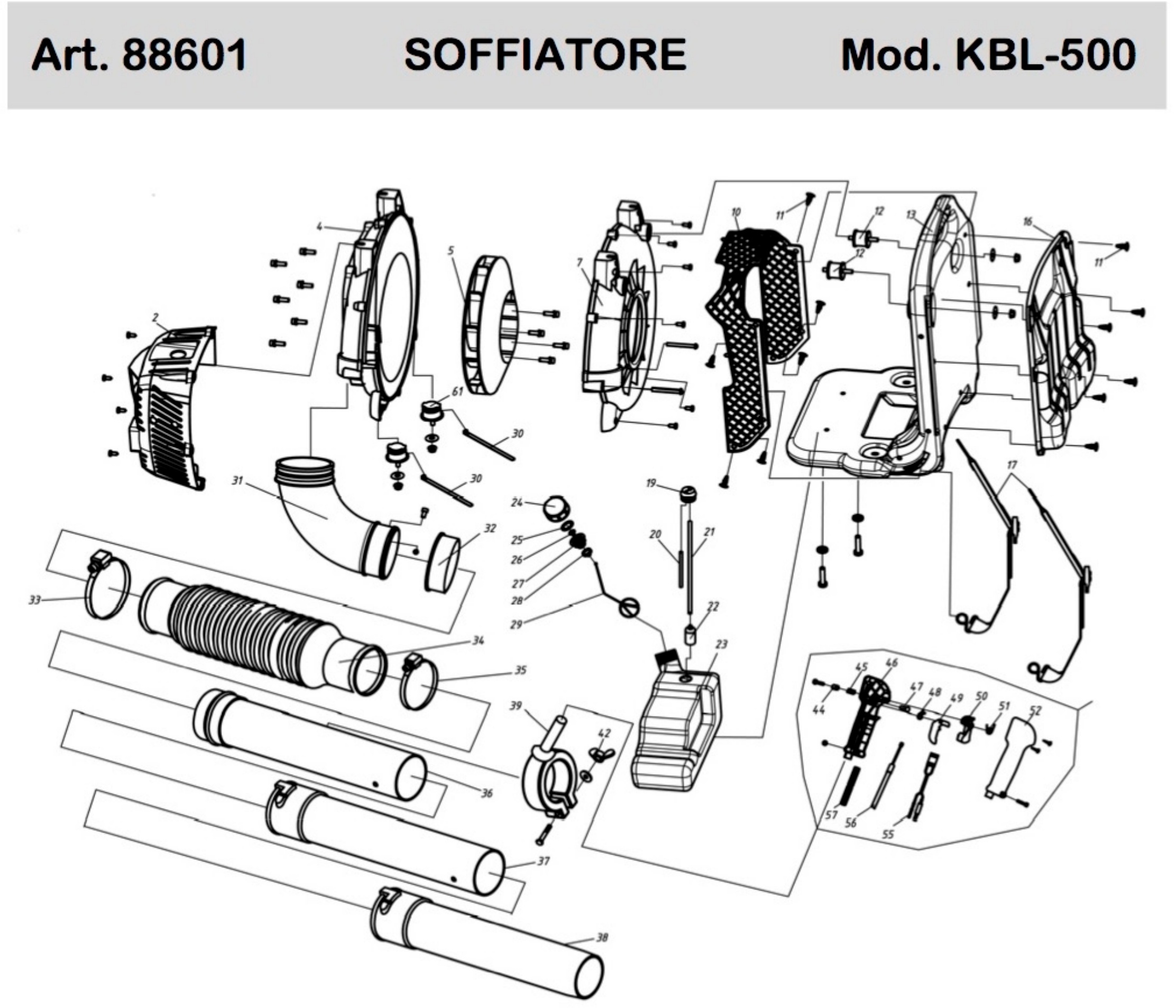

Soffiatore KBL-500 - 88601 Frame Pag.2
2 88662 Protection
4 88663 Volute case
5 88664 Impeller
7 88665 Volute case
10 88666 Protect net
11 Back Clip
12 88667 Support
13 88668 Frame
16 88669 Back Mat
17 88670 Band
19 88556 Vitta plug
20 90054 Fuel tube
21 90167 Fuel tube
22 13569 Filter
23 88675 Fuel Tank
24 13758 Fuel tank lid
30 88767 Line
31 88768 Pan joint
32 88769 Rubber plug
33 Clip (78 -101)
34 88770 Hose
35 Clip (59 -82)
36 88771 Pipe
37 88772 Pipe
38 88773 Pipe
39 88774 Handle
42 Nut M6
44 88775 Push Button
45 88776 Spring
46 88777 Left manipulator
47 Pin
48 88328 Spring
49 88327 Handle
50 88321 Handle
51 88322 Long Spring
52 88782 Right manipulator
55 88783 STOP switch
56 88784 Fuel throttle
57 88785 Tube
61 88671 Support
