Ama Spare Parts for Bruschcutter Playcut BC 450 D

SKU: Ama Playcut BC 450 D - 79682
€2.43
VAT included

Ama Spare Parts for Bruschcutter Playcut BC 450 D

AMA Garden repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bruschcutter Playcut BC 450 D - 79682.
Ama Spare Parts for Bruschcutter Playcut BC 450 D
  • Ama Spare Parts for Bruschcutter Playcut BC 450 D
  • Ama Spare Parts for Bruschcutter Playcut BC 450 D
  • Ama Spare Parts for Bruschcutter Playcut BC 450 D

Ama Spare Parts for Bruschcutter Playcut BC 450 D

SKU: Ama Playcut BC 450 D - 79682 Condition: New
€2.43
VAT included

Ama Spare Parts for Bruschcutter Playcut BC 450 D

AMA Garden repair center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bruschcutter Playcut BC 450 D - 79682.
settings 46 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 79956 Connecter assy €36.50
2
Trasmission Pipe Cpl for Brushcutters Kawasaki KBC 35-45-53U 88415 Trasmission Pipe Cpl for Brushcutters Kawasaki KBC 35-45-53U €23.96
3
Drive Shaft for Brushcutter AMA Playcut BC 260 79945 Drive Shaft for Brushcutter AMA Playcut BC 260 €16.73
6
photo_cameraImage coming soon 79958 Belt Connecter Assy €4.99
10
Gear Case Assy for Brushcutter AMA Playcut BC 350 D 79960 Gear Case Assy for Brushcutter AMA Playcut BC 350 D €56.89
12,2
photo_cameraImage coming soon 79951 Nylon line cutting blade €3.88
12,1
photo_cameraImage coming soon 79955 Protection guard assy €15.02
13
photo_cameraImage coming soon 79961 Handle fixed block assy €12.00
14
photo_cameraImage coming soon 79962 U type handle right part €11.82
15
photo_cameraImage coming soon 79963 U type handle left part €8.63
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 79840 Screw axes €1.27
2
Trasmission Pipe Cpl for Brushcutter AMA Playcut BC 350 D 88415 Trasmission Pipe Cpl for Brushcutter AMA Playcut BC 350 D €27.25
3
Clutch Ass'y for Brushcutters AMA Playcut BC 350 - 450 79842 Clutch Ass'y for Brushcutters AMA Playcut BC 350 - 450 €19.40
7
photo_cameraImage coming soon 79878 Fly wheel cover €4.64
12
AMA BC 450 D Flywheel 79879 AMA BC 450 D Flywheel €25.64
13
photo_cameraImage coming soon 79880 Ignition coil €25.37
15
photo_cameraImage coming soon 79881 front-half crankshaft case €11.82
16
photo_cameraImage coming soon 79882 Crankshaft gasket €2.02
17
photo_cameraImage coming soon 79810 Oil seal TC12x22x7 €2.30
18
photo_cameraImage coming soon 79883 Bearing 6202/P6 €4.37
20
photo_cameraImage coming soon 79884 Crankshaft €25.14
22
photo_cameraImage coming soon 79854 Back-half crankshaft case €13.72
23
photo_cameraImage coming soon 79885 Needle bearing-small head €2.89
24
photo_cameraImage coming soon 79886 (KBK 10x13x15.5) Piston €9.33
25
photo_cameraImage coming soon 79887 Piston pin €2.19
27
photo_cameraImage coming soon 79890 Piston ring €5.02
28
Cylinder Gasket for Brushcutter AMA Playcut BC 450 79891 Cylinder Gasket for Brushcutter AMA Playcut BC 450 €1.79
29
photo_cameraImage coming soon 79892 Cylinder €36.43
30
photo_cameraImage coming soon 79893 Muffler gasket €1.59
31
Muffler for Brushcutter AMA Playcut BC 450 79894 Muffler for Brushcutter AMA Playcut BC 450 €25.74
36
photo_cameraImage coming soon 79896 Inlet pipe €3.88
37
photo_cameraImage coming soon 79897 Carburator gasket €1.32
39
AMA PLAYCUT BC 450 Carburetor Ass'y 79898 AMA PLAYCUT BC 450 Carburetor Ass'y €38.21
40
Air Cleaner Ass'y for Brushcutter AMA Playcut BC 450 79899 Air Cleaner Ass'y for Brushcutter AMA Playcut BC 450 €17.15
45
Starter Cup Ass'y for Brushcutter AMA Playcut BC 350 79865 Starter Cup Ass'y for Brushcutter AMA Playcut BC 350 €8.30
46
photo_cameraImage coming soon 79866 Starter gasket €2.30
47
Easy-Start Starter for Brushcutters AMA Playcut 79867 Easy-Start Starter for Brushcutters AMA Playcut €22.86
48
photo_cameraImage coming soon 79868 Fuel tank holding plate €1.27
50
Engine Cover for Brushcutter AMA Playcut BC 450 79940 Engine Cover for Brushcutter AMA Playcut BC 450 €24.16
51
photo_cameraImage coming soon 79941 Engine case cover baffle €1.31
51
AMA PLAYCUT BC 450 Tank Cap Ass'y 79964 AMA PLAYCUT BC 450 Tank Cap Ass'y €5.60
52
Spark Plug NGK BM6A 08070 Spark Plug NGK BM6A €3.26
52
photo_cameraImage coming soon 79965 Fuel pipe assy €9.92
53
Fuel Tank Ass'y for Brushcutter AMA Playcut BC 450 79942 Fuel Tank Ass'y for Brushcutter AMA Playcut BC 450 €22.86
53
photo_cameraImage coming soon 79966 Foam element €3.19
54
photo_cameraImage coming soon 79967 Air filter cover €3.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Bruschcutter Playcut BC 450 D

AMA Garden repair center  and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Bruschcutter Playcut BC 450 D - 79682.

In the following table, look for the model of the Bruschcutter and the respective parts of the code.
Ama Playcut BC 450 D - 79682

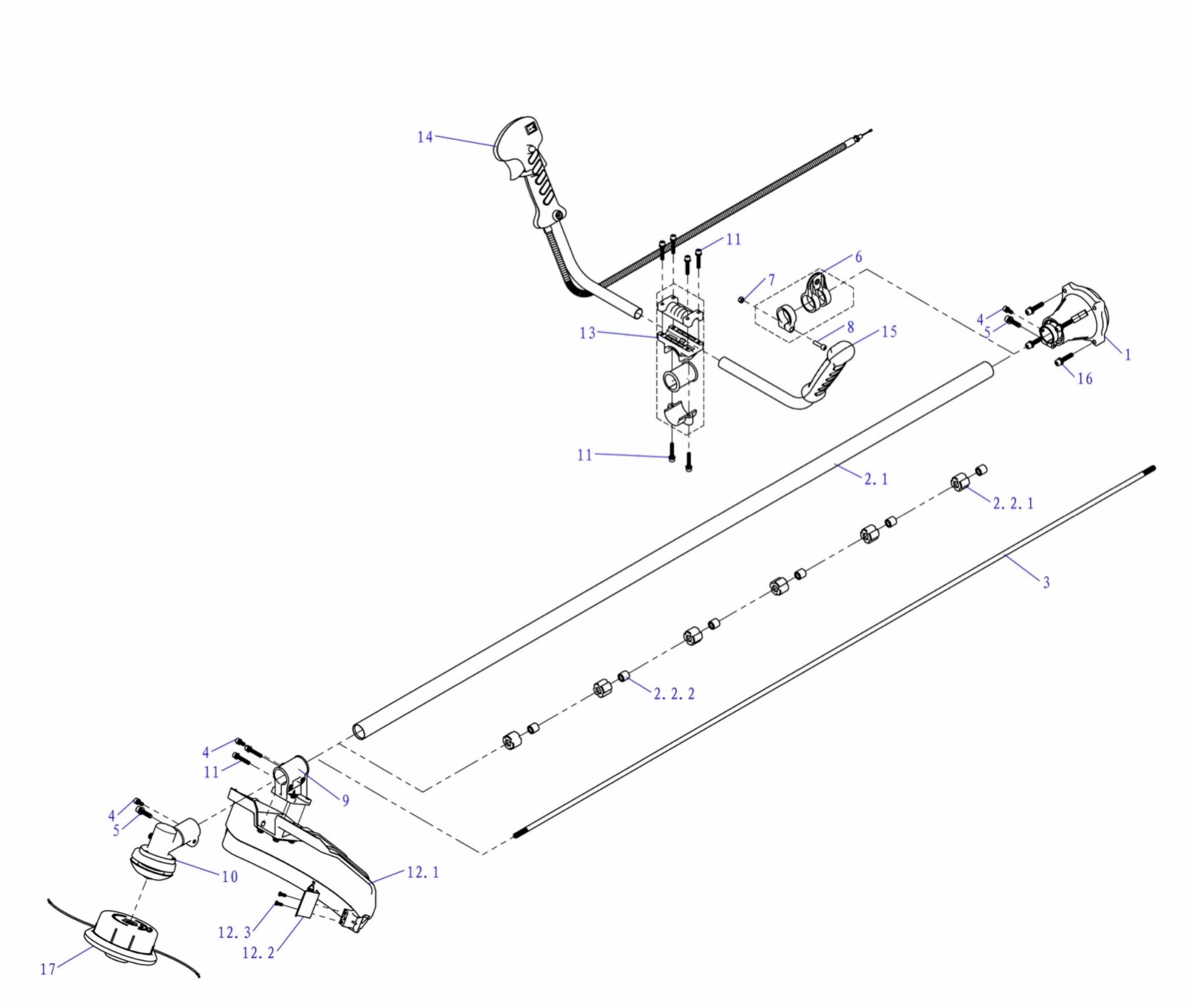

Bruschcutter Playcut BC 450 D Trasmission Pag.1
# Part Num. Description
1 79956 Connecter assy
2 88415 Trasmission Pipe cpl. Φ26x1500
3 79945 Hardness axesΦ8x1520
6 79958 Belt Connecter Assy
9 79959 Protection guard bracket A
10 79960 Gear Case
12,1 79955 Protection guard assy
12,2 79951 Nylon line cutting blade
13 79961 Handle fixed block assy
14 79962 U type handle right part
15 79963 U type handle left part

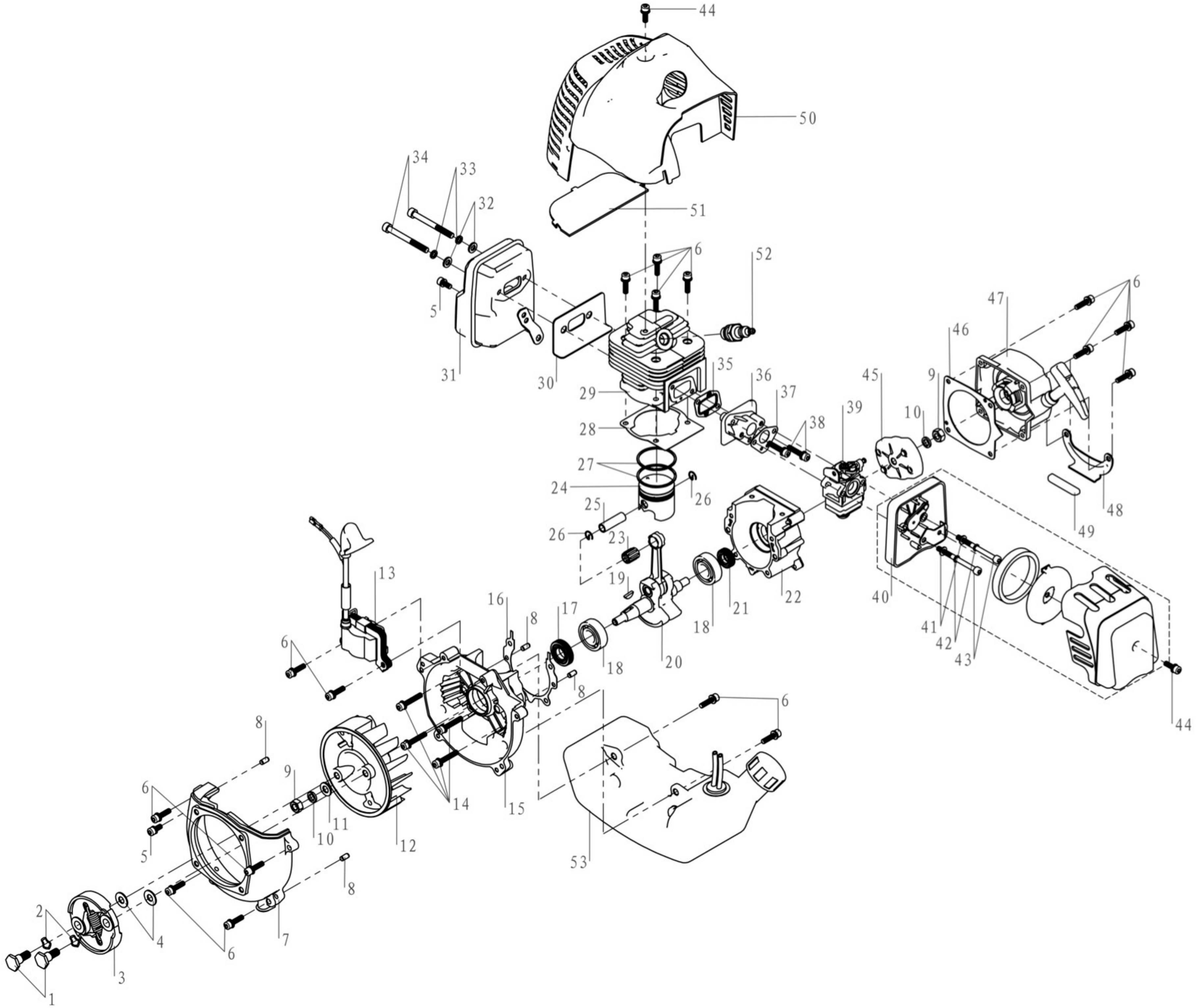

Bruschcutter Playcut BC 450 D Engine Pag.2
1 79840 Screw axes
2 79841 Wave washer
3 79842 Clutch
4 79843 Washer B
7 79878 Fly wheel cover
9 79846 M8 nut
12 79879 Fly wheel
13 79880 Ignition coil
15 79881 front-half crankshaft case
16 79882 Crankshaft gasket
17 79810 Oil seal TC12x22x7
18 79883 Bearing 6202/P6
19 79852 Half-round key3*5*13
20 79884 Crankshaft
22 79854 Back-half crankshaft case
23 79885 Needle bearing-small head
24 79886 (KBK 10x13x15.5) Piston
25 79887 Piston pin
26 79889 Piston pin check ring
27 79890 Piston ring
28 79891 Cylinder gasket
29 79892 Cylinder
30 79893 Muffler gasket
31 79894 Muffler
35 79895 Inlet gasket
36 79896 Inlet pipe
37 79897 Carburetor gasket
39 79898 Carburetor
40 79899 Air Cleaner assy
45 79865 Starter catch plate
46 79866 Starter gasket
47 79867 Easy-start starter
48 79868 Fuel tank holding plate
49 79870 Holding plate rubber gasket
50 79940 Engine case cover
51 79941 Engine case cover baffle
52 08070 Spark plug BM6A
53 79942 Fuel tank assy
51 79964 Tank Cap
52 79965 Fuel pipe assy
53 79966 Foam element
54 79967 Air filter cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama Playcut BC 450 D - 79682
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA BC 450 D

Diagram AMA BC 450 D

Download (440.51KB)
