Ama Spare Parts for Mist Blower MB 6314

SKU: Ama Garden MB 6314
€1.62
VAT included

Ama Spare Parts for Mist Blower MB 6314

We are AMA Garden original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mist Blower MB 6314.
Ama Spare Parts for Mist Blower MB 6314
  • Online only
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314
  • Ama Spare Parts for Mist Blower MB 6314

Ama Spare Parts for Mist Blower MB 6314

SKU: Ama Garden MB 6314 Condition: New
€1.62
VAT included

Ama Spare Parts for Mist Blower MB 6314

We are AMA Garden original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mist Blower MB 6314.
settings 74 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 7/10 Business Days Approx

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

74 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon RSA2002614 FILTER TANK €8.46
3
photo_cameraImage coming soon RSA2002627 GASKET CAP €15.38
4
photo_cameraImage coming soon RSA2002616 TANK COVER €8.22
5
photo_cameraImage coming soon RSA2002609 Cap VENTILAZIONE €2.42
10
photo_cameraImage coming soon RSA2002613 FILTER FUEL €8.20
11
photo_cameraImage coming soon RSA2002612 .8×.22×2 GASKET €4.91
12
photo_cameraImage coming soon RSA2002611 CAP TANK €4.18
16
photo_cameraImage coming soon RSA2001413 FILTER TANK €19.59
17
photo_cameraImage coming soon RSA2001414 CLAMP TUBE €1.47
20
photo_cameraImage coming soon RSA2002713 TUBE FILTER TANK €8.56
23
photo_cameraImage coming soon RSA2002626 ADJUSTER CAP €1.68
24
photo_cameraImage coming soon RSA2002619 JOINT TANK €3.45
26
photo_cameraImage coming soon RSA2002670 JOINT TANK €9.45
30
photo_cameraImage coming soon RSA2002671 ADATTATORE DIFFUSORE ARIA €5.02
31
photo_cameraImage coming soon RSA2002672 JOINT AIR €3.45
32
photo_cameraImage coming soon RSA2002673 Tube FLESSIBILE CONTENITORE €8.24
33
photo_cameraImage coming soon RSA2002677 NUT M22X2 €5.43
34
photo_cameraImage coming soon RSA1402018 GASKET NIPPLE 21X6X3 €1.36
38
photo_cameraImage coming soon RSA2005006 GRIGLIA FORATA €5.02
Page 2 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon RSA2004622 RUBBER HOLDER €13.19
5
photo_cameraImage coming soon RSA2001602 BACK DAMPER €19.59
6
photo_cameraImage coming soon RSA6001004 CHIODO €2.93
Page 3 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon RSA2004602 HOUSING COVER FAN €58.35
Page 4 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon RSA2003116 HANDLE CPL €96.12
5
photo_cameraImage coming soon RSA2003601 Tube A GOMITO €20.30
7
photo_cameraImage coming soon RSA2003064 MISURATORE DOSAGGIO CPL €8.99
14
photo_cameraImage coming soon RSA2003118 STOP BUTTON €9.94
15
photo_cameraImage coming soon RSA2008703 Cable GAS(AIRBLOWER) €15.76
18
photo_cameraImage coming soon RSA2003085 LEVER ACCELERETOR €5.43
23
photo_cameraImage coming soon RSA2003086 LEVER VALVE €8.20
26
photo_cameraImage coming soon RSA2003105 SCREW WHIT KNOB €4.39
28
photo_cameraImage coming soon RSA2003091 CLAMP LEFT €8.03
29
photo_cameraImage coming soon RSA2003092 CLAMP RIGHT €8.03
30
photo_cameraImage coming soon RSA2003094 FASCETTA CONTENITORE €5.86
33
photo_cameraImage coming soon RSA2003093 PLASTIC RING €3.45
34
photo_cameraImage coming soon RSA2008602 CABLE EXHAUST €1.88
35
photo_cameraImage coming soon RSA2003038 MANICOTTO DOSATORE NERO €2.42
41
photo_cameraImage coming soon RSA2003099 EFFUSORE €1.77
42
photo_cameraImage coming soon RSA2003098 ADJUSTER CAP €1.47
47
photo_cameraImage coming soon RSA2003111 NOZZLE CPL €29.74
Page 5 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon RSA2008804 STARTER HOUSING €40.57
16
photo_cameraImage coming soon RSA2008802 Muffler 63CC €61.36
18
photo_cameraImage coming soon RSA2008240 LOCK PIN €3.66
19
photo_cameraImage coming soon RSA2008806 PISTON Q48 63CC €105.44
20
photo_cameraImage coming soon RSA2008058 PISTON RING Q 48 MM €20.97
23
photo_cameraImage coming soon RSA2008810 ROD ASSY.63CC €254.67
24
photo_cameraImage coming soon RSA2008534 GASKET MUFFLER (63CC) €8.99
25
photo_cameraImage coming soon RSA2008801 CYLINDER Q48(63CC) €103.29
26
photo_cameraImage coming soon RSA2008120 GASKET CARBURATOR €1.58
27
photo_cameraImage coming soon RSA2008113 FLANGE CARBURATOR €23.76
29
photo_cameraImage coming soon RSA2008119 GASKET CARBURATOR €2.74
30
photo_cameraImage coming soon RSA2008530 CARBURETOR PLATE €6.69
31
photo_cameraImage coming soon RSA2008126 CARB €231.00
34
photo_cameraImage coming soon RSA2008709 NUT M6X0.75 €1.88
35
photo_cameraImage coming soon RSA2008708 BUTTERFLY VALVE ADJUSTABLE €3.96
36
photo_cameraImage coming soon RSA2008115 AIR LEVER €9.19
38
photo_cameraImage coming soon RSA2008116 PLATE VALVE AIR €1.36
41
photo_cameraImage coming soon RSA2008121 GASKET FLANGE FILTER €2.01
42
photo_cameraImage coming soon RSA2008114 FILTER FLANGE €14.71
43
photo_cameraImage coming soon RSA2008138 GASKET FILTER €2.31
44
photo_cameraImage coming soon RSA6008004 FILTER PLATE €7.73
45
photo_cameraImage coming soon RSA2008131 BODY FILTER €12.84
47
photo_cameraImage coming soon RSA2008132 HOUSING FILTER AIR €11.08
49
photo_cameraImage coming soon RSA2008130 AIR FILTER CPL €22.88
59
photo_cameraImage coming soon RSA2008507 GASKET CYLINDER €4.91
Page 6 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon RSA2008506 BADMINTON €98.89
2
photo_cameraImage coming soon RSA2008308 BEARING PIN SAHFT €2.83
3
photo_cameraImage coming soon RSA2008526 BEARING €2.09
4
photo_cameraImage coming soon RSA2008306 FEEDER NV65AH €1.26
5
photo_cameraImage coming soon RSA2008524 Pulley REW. €24.45
7
photo_cameraImage coming soon RSA2008523 COVER STARTER €16.50
Page 7 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
38
photo_cameraImage coming soon RSA2008760 BRACKET €1.36
42
photo_cameraImage coming soon RSA2008763 KIT REPAIR €54.05
43
photo_cameraImage coming soon RSA2008764 KIT GASKET MEMBRANE €54.05

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Mist Blower MB 6314

We are AMA Garden original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Mist Blower MB 6314.

In the following table, look for the model of the Mist Blower and the respective parts of the code.

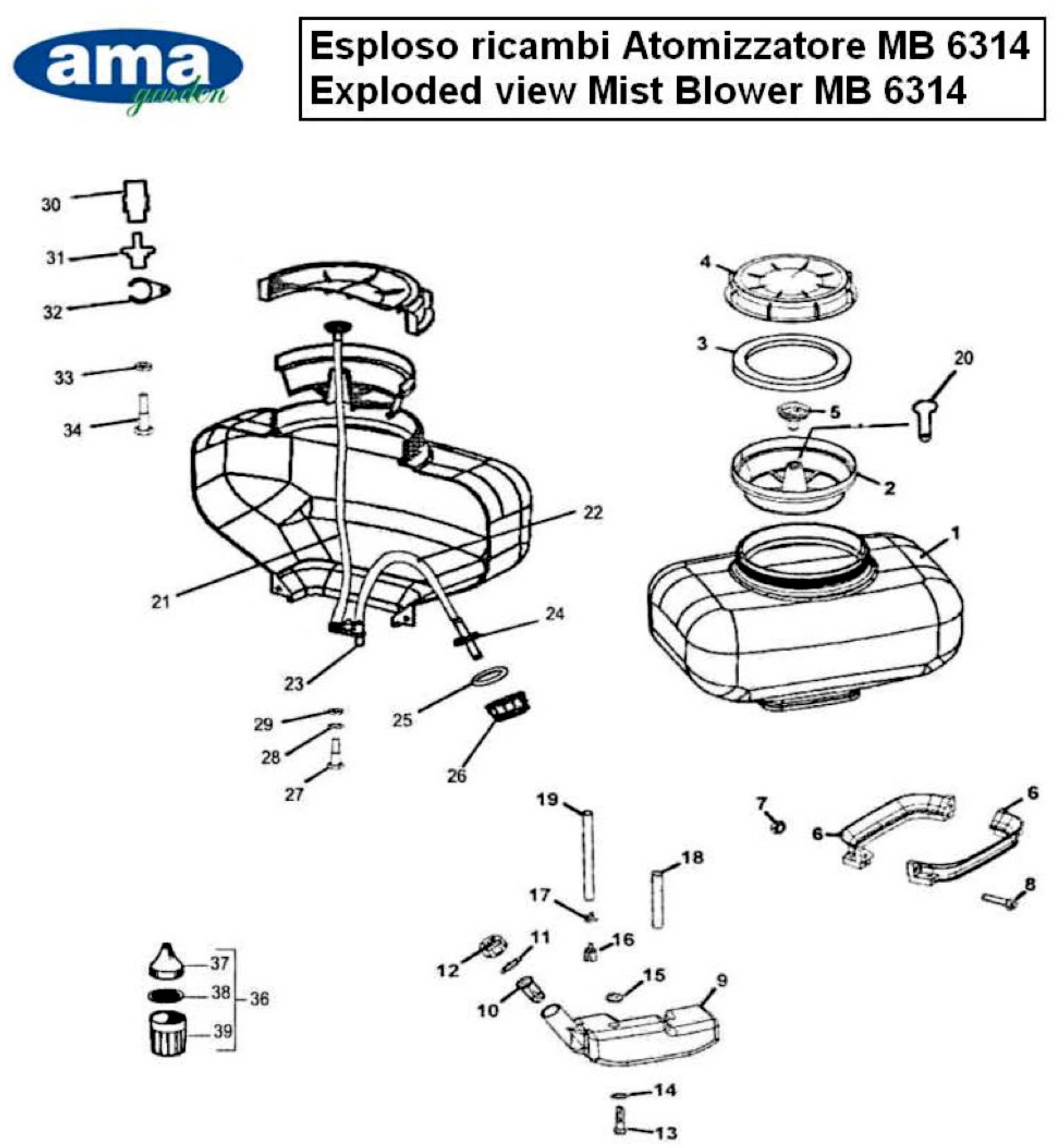

Mist Blower MB 6314 Diagram A pag.1
1 RSA2002678 TANK 14L
2 RSA2002614 FILTER TANK
3 RSA2002627 GASKET CAP
4 RSA2002616 TANK COVER
5 RSA2002609 CAP
9 RSA2002603 TANK FUEL
10 RSA2002613 FILTER FUEL
11 RSA2002612 GASKET
12 RSA2002611 CAP TANK
16 RSA2001413 FILTER TANK
17 RSA2001414 CLAMP TUBE
20 RSA2002713 TUBE FILTER TANK
23 RSA2002626 CAP
24 RSA2002619 JOINT TANK
26 RSA2002670 JOINT TANK
30 RSA2002671 ADAPTER
31 RSA2002672 JOINT AIR
32 RSA2002673 TUBE
33 RSA2002677 NUT M22X2
34 RSA1402018 GASKET NIPPLE 21X6X3
38 RSA2005006 GRILL

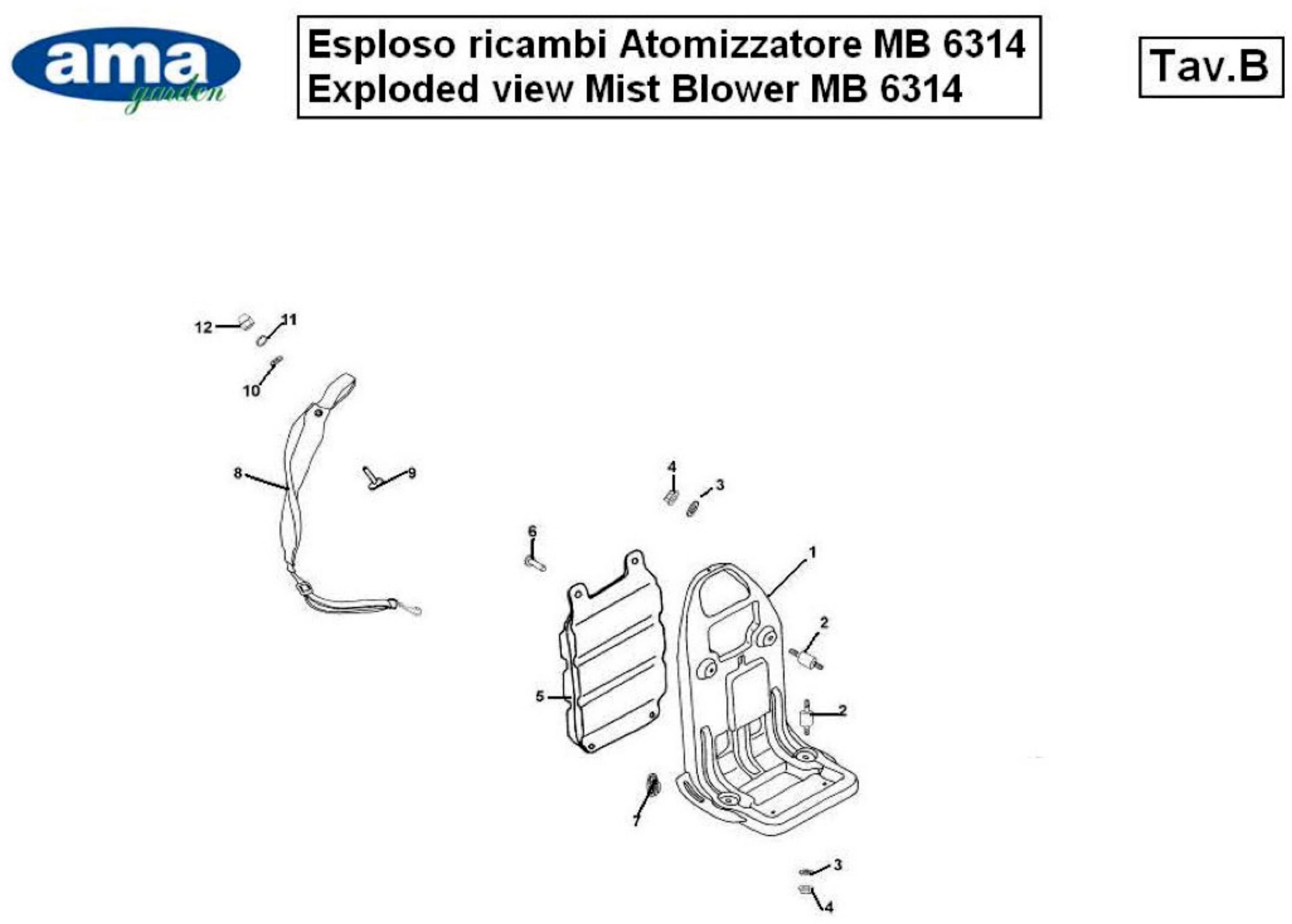

Mist Blower MB 6314 Diagram B pag.2
2 RSA2004622 RUBBER HOLDER
5 RSA2001602 BACK DAMPER
6 RSA6001004 CHIODO
Mist Blower MB 6314 Diagram C pag.3
1 RSA2004602 HOUSING COVER FAN

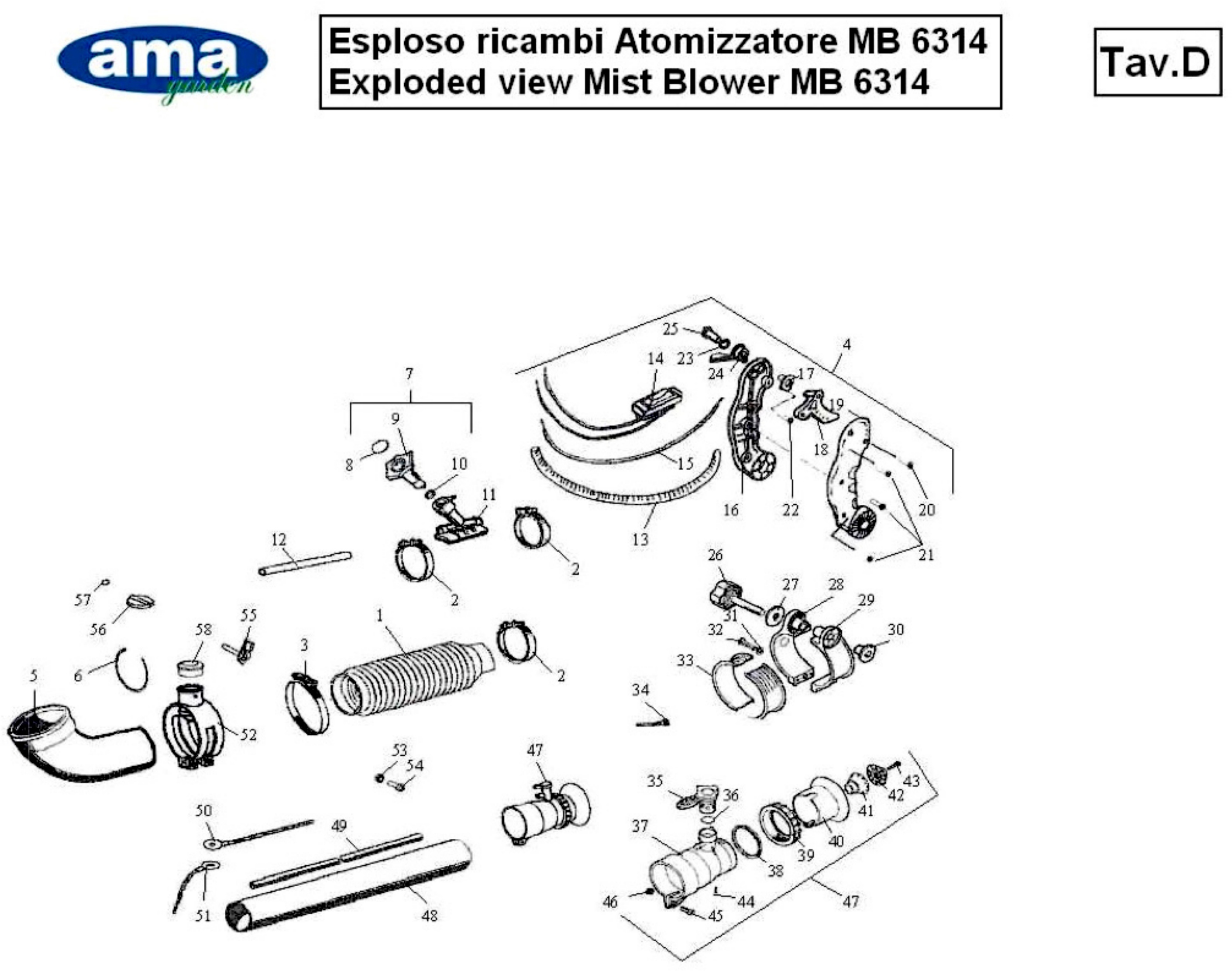

Mist Blower MB 6314 Diagram D pag.4
4 RSA2003116 HANDLE CPL
5 RSA2003601 TUBE
7 RSA2003064 GAUGE
14 RSA2003118 STOP BUTTON
15 RSA2008703 CABLE
18 RSA2003085 LEVER ACCELERETOR
23 RSA2003086 LEVER VALVE
26 RSA2003105 SCREW WHIT KNOB
28 RSA2003091 CLAMP LEFT
29 RSA2003092 CLAMP RIGHT
30 RSA2003094 CLAMP
33 RSA2003093 RING
34 RSA2008602 CABLE EXHAUST
35 RSA2003038 SLEEVE
41 RSA2003099 NOZZLE
42 RSA2003098 CAP
47 RSA2003111 NOZZLE CPL
Mist Blower MB 6314 Diagram E pag.5
4 RSA2008804 STARTER HOUSING
16 RSA2008802 SILENCER
18 RSA2008240 LOCK PIN
19 RSA2008806 PISTON Q48 63CC
20 RSA2008058 PISTON RING Q 48 MM
23 RSA2008810 ROD ASSY.63CC
24 RSA2008534 GASKET MUFFLER (63CC)
25 RSA2008801 CYLINDER Q48(63CC)
26 RSA2008120 GASKET CARBURATOR
27 RSA2008113 FLANGE CARBURATOR
29 RSA2008119 GASKET CARBURATOR
30 RSA2008530 CARBURETOR PLATE
31 RSA2008126 CARBURATOR
34 RSA2008709 NUT M6X0.75
35 RSA2008708 BUTTERFLY VALVE ADJUSTABLE
36 RSA2008115 AIR LEVER
38 RSA2008116 PLATE VALVE AIR
41 RSA2008121 GASKET FLANGE FILTER
42 RSA2008114 FILTER FLANGE
43 RSA2008138 GASKET FILTER
44 RSA6008004 FILTER PLATE
45 RSA2008131 BODY FILTER
46 RSA6008003 SPONGE FILTER
47 RSA2008132 HOUSING FILTER AIR
49 RSA2008130 AIR FILTER CPL
59 RSA2008507 GASKET CYLINDER
Mist Blower MB 6314 Diagram F pag.6
1 RSA2008506 FLYWHEEL
2 RSA2008308 PIN
3 RSA2008526 SPACER
4 RSA2008306 PAWL
5 RSA2008524 PULLEY
7 RSA2008523 COVER STARTER
16 RSA2008225 CAP SPARK PLUG
17 RSA2008815 CAP SPARK PLUG 63CC
18 RSA2008519 COIL
22 RSA2008535 STARTER CPL

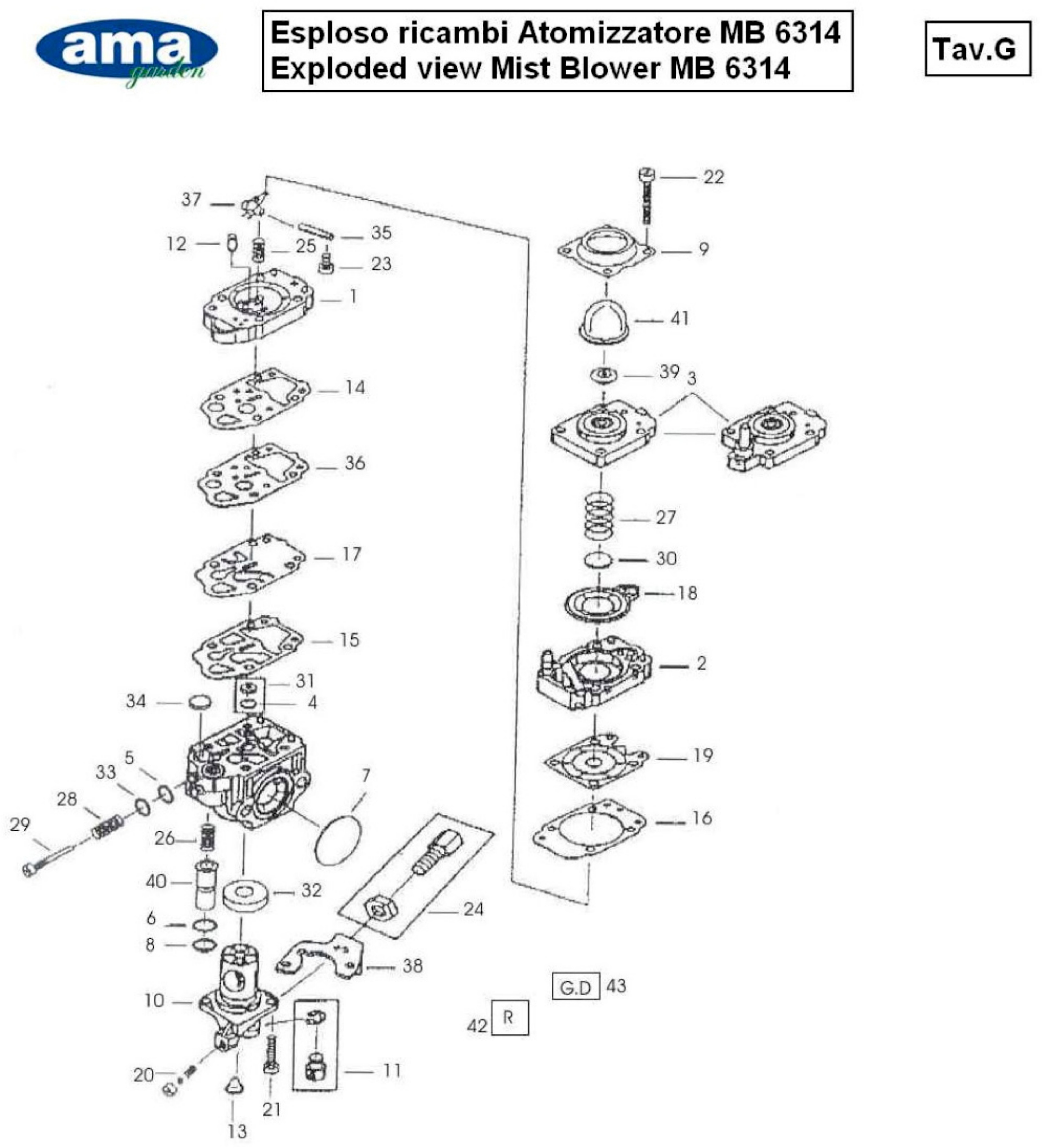

Mist Blower MB 6314 Diagram G pag.7
38 RSA2008760 PLATE
42 RSA2008763 KIT REPAIR
43 RSA2008764 KIT GASKET MEMBRANE
