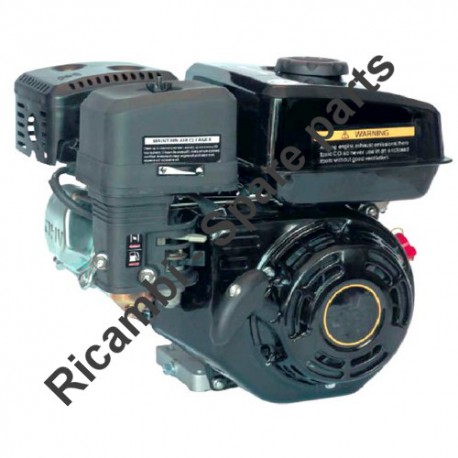

Ama Spare Parts for Engine 4 Stroke G360F

SKU: Ama Garden G360F
€8.80
VAT included

Ama Spare Parts for Engine 4 Stroke G360F

Ama genuine spare parts for replacing or repairing Engine 4 Stoke G360F - 79726 - 84944.
Ama Spare Parts for Engine 4 Stroke G360F
  • Ama Spare Parts for Engine 4 Stroke G360F
  • Ama Spare Parts for Engine 4 Stroke G360F

Ama Spare Parts for Engine 4 Stroke G360F

SKU: Ama Garden G360F Condition: New
€8.80
VAT included

Ama Spare Parts for Engine 4 Stroke G360F

Ama genuine spare parts for replacing or repairing Engine 4 Stoke G360F - 79726 - 84944.
settings 36 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon RMM00257 GASKET, VALVE COVER €5.63
10
photo_cameraImage coming soon RMM00262 ROCKER ARM ASSEMBLY €5.63
11
photo_cameraImage coming soon RMM00263 VALVE SPRING SEAT €4.42
12
photo_cameraImage coming soon RMM00264 ADJUST CAP, EXHAUST €2.76
13
photo_cameraImage coming soon RMM00265 VALVE SPRING SEAT €4.42
14
photo_cameraImage coming soon RMM00266 VALVE SPRING €3.47
15
photo_cameraImage coming soon RMM00267 VALVE SPRING SEAT €4.42
16
photo_cameraImage coming soon RMM00268 INTAKE VALVE SEAL €4.10
29
photo_cameraImage coming soon RMM00284 CARBURETOR INSULATOR €4.10
30
photo_cameraImage coming soon RMM00286 CARBURETOR GASKET €1.45
31
photo_cameraImage coming soon RMM00288 CARBURETOR €32.92
32
photo_cameraImage coming soon RMM00289 AIR FILTER GASKET €1.45
39
photo_cameraImage coming soon RMM00299 AIR FILTER ELEMENT €8.22
41
photo_cameraImage coming soon RMM00300 AIR FILTER COVER €6.76
42
photo_cameraImage coming soon RMM00302 GASKET,CYLINDER HEAD €5.28
43
photo_cameraImage coming soon RMM00303 DOWEL PIN Φ12×20 €1.45
44
photo_cameraImage coming soon RMM00305 EXHAUST VAVLE €7.54
45
photo_cameraImage coming soon RMM00307 INTAKE VAVLE €7.54
46
photo_cameraImage coming soon RMM00309 PUSH ROD €5.25
47
photo_cameraImage coming soon RMM00310 TAPPET €4.49
48
photo_cameraImage coming soon RMM00312 PISTON RING SET €9.92
49
photo_cameraImage coming soon RMM00314 PISTON €19.92
50
photo_cameraImage coming soon RMM00316 PISTON PIN €4.98
51
photo_cameraImage coming soon RMM00317 CIRCLIP, PISTON PIN €1.45
52
photo_cameraImage coming soon RMM00319 CONNECTING ROD €16.52
53
photo_cameraImage coming soon RMM00320 DRAIN BOLT M12×1.5×15 €2.33
54
photo_cameraImage coming soon RMM00321 WASHER Φ12×2×Φ20 €1.45
73
photo_cameraImage coming soon RMM00341 DIPSTICK €8.94
78
photo_cameraImage coming soon RMM00344 IGNITION MODULE €19.92
86
photo_cameraImage coming soon RMM00356 RECOIL STARTER €31.78
94
photo_cameraImage coming soon RMM00361 FUEL TANK €29.92
95
photo_cameraImage coming soon RMM00239 FUEL CAP €7.68
96
photo_cameraImage coming soon RMM00362 THROTTLE LINKAGE €2.33
97
photo_cameraImage coming soon RMM00364 GOVERNOR SPRING €2.33
98
photo_cameraImage coming soon RMM00365 THROTTLE LINKAGE €2.33
98
photo_cameraImage coming soon RMM00366 IDLE SPRING €2.33

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Engine 4 Stroke G360F

Ama genuine spare parts for replacing or repairing Engine 4 Stoke G360F - 79726 - 84944.

In the following table, look for the model of the Engine and the respective parts of the code.
Engine 4 Stoke G360F - 79726 - 84944

Engine 4 Stoke G360F - 79726 - 84944
# Part Num. Description
3 RMM00257 GASKET, VALVE COVER
10 RMM00262 ROCKER ARM ASSEMBLY
11 RMM00263 VALVE SPRING SEAT
12 RMM00264 ADJUST CAP, EXHAUST
13 RMM00265 VALVE SPRING SEAT
14 RMM00266 VALVE SPRING
15 RMM00267 VALVE SPRING SEAT
16 RMM00268 INTAKE VALVE SEAL
28 RMM00282 GASKET, CARBURETOR INSULATOR
29 RMM00284 CARBURETOR INSULATOR
30 RMM00286 CARBURETOR GASKET
31 RMM00288 CARBURETOR
32 RMM00289 AIR FILTER GASKET
39 RMM00299 AIR FILTER ELEMENT
41 RMM00300 AIR FILTER COVER
42 RMM00302 GASKET,CYLINDER HEAD
43 RMM00303 DOWEL PIN Φ12×20
44 RMM00305 EXHAUST VAVLE
45 RMM00307 INTAKE VAVLE
46 RMM00309 PUSH ROD
47 RMM00310 TAPPET
48 RMM00312 PISTON RING SET
49 RMM00314 PISTON
50 RMM00316 PISTON PIN
51 RMM00317 CIRCLIP, PISTON PIN
52 RMM00319 CONNECTING ROD
53 RMM00320 DRAIN BOLT M12×1.5×15
54 RMM00321 WASHER Φ12×2×Φ20
60 RMM00328 OIL SENSOR
67 RMM00332 GOVERNOR GEAR
70 RMM00336 GASKET, CRANKCASE COVER
72 RMM00340 OIL PLUG
73 RMM00341 DIPSTICK
76 RMM00343 OIL SEAL 35×52×7
77 RMM00343 OIL SEAL 35×52×7
78 RMM00344 IGNITION MODULE
86 RMM00356 RECOIL STARTER
94 RMM00361 FUEL TANK
95 RMM00239 FUEL CAP
96 RMM00362 THROTTLE LINKAGE
97 RMM00364 GOVERNOR SPRING
98 RMM00365 THROTTLE LINKAGE
98 RMM00366 IDLE SPRING

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama Garden G360F
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

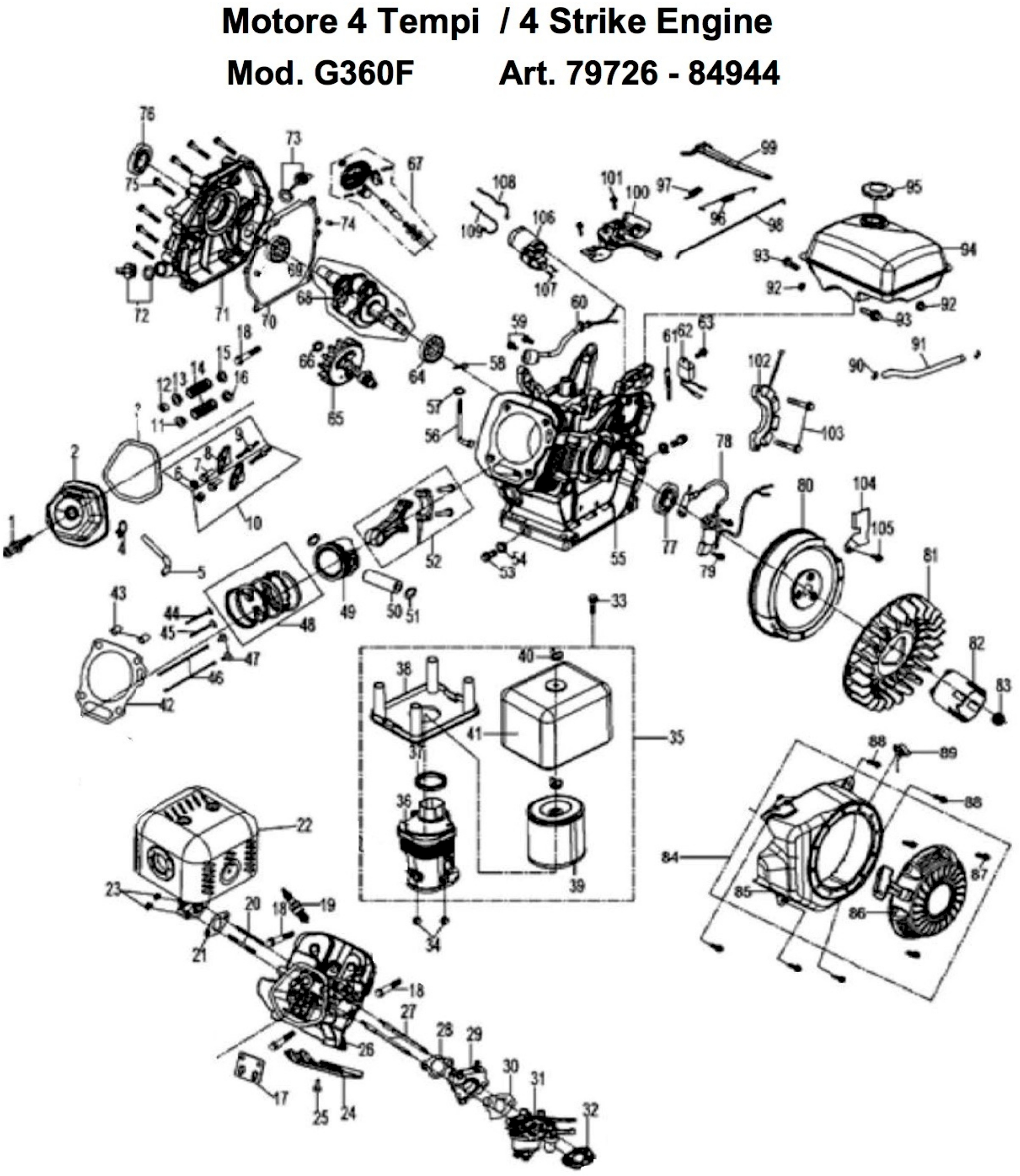

Diagram AMA G360F

Diagram AMA G360F

Download (327.98KB)
