A.M.A. S.p.A.

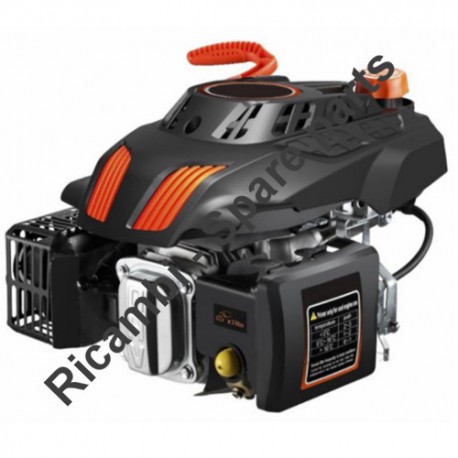

Ama Spare Parts for Engine for Lawnmower MVG - T675

SKU: Ama MVG - T675 - 88456
€19.04
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T675

Ama Genuine spare parts or replacement parts for to repair Engine for Lawnmower MVG - T675 - 88456.

Fix Your Engine for Lawnmower MVG - T675. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

4-stroke petrol engine with 200 CC overhead valves

Ama Spare Parts for Engine for Lawnmower MVG - T675
  • Online only
  • Ama Spare Parts for Engine for Lawnmower MVG - T675
  • Ama Spare Parts for Engine for Lawnmower MVG - T675
A.M.A. S.p.A.

Ama Spare Parts for Engine for Lawnmower MVG - T675

SKU: Ama MVG - T675 - 88456 Condition: New
€19.04
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T675

Ama Genuine spare parts or replacement parts for to repair Engine for Lawnmower MVG - T675 - 88456.

Fix Your Engine for Lawnmower MVG - T675. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

4-stroke petrol engine with 200 CC overhead valves

settings 90 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
46 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

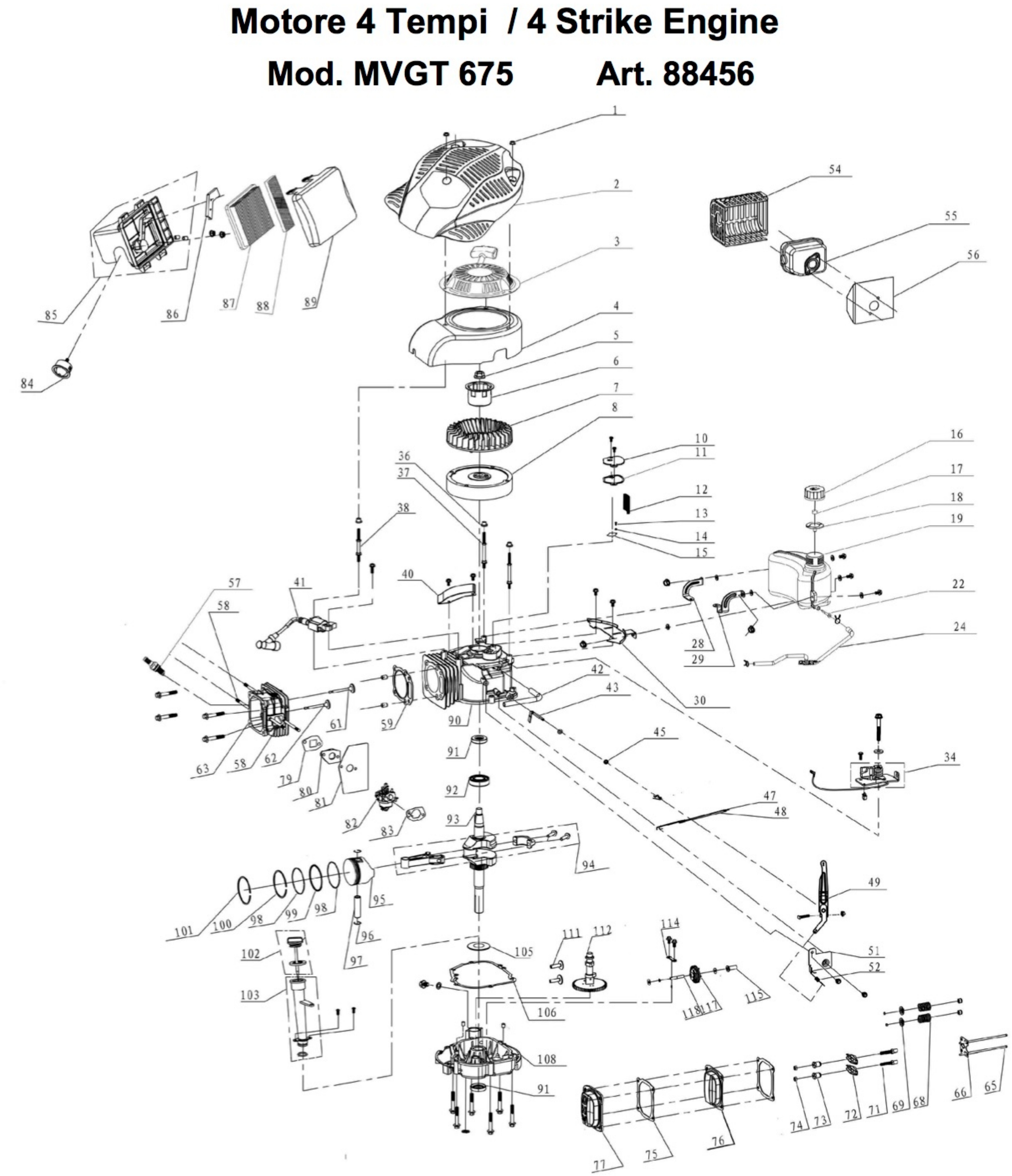

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon RMGP70B070500001  Coprimotore - disp su ordinazione €16.98
3
 photo_cameraImage coming soon RMG65070100000  Avviamento Cpl.  €32.82
5
 photo_cameraImage coming soon RMGGB6177.22000  Spare Part RMGGB6177.22000  €3.04
10
 photo_cameraImage coming soon RMGP70B01010500  Cover Vent  €4.12
11
 photo_cameraImage coming soon RMGP65010109000  Gasket  €0.43
12
 photo_cameraImage coming soon RMGP65010104000  Valve of Vent  €0.49
15
 photo_cameraImage coming soon RMGP70B010106000  Valve of Vent  €1.46
16A
 Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
16
 photo_cameraImage coming soon RMGP65050101000  Cap Serbatoio prima of the 2014 €7.62
17
 photo_cameraImage coming soon RMGP65050106000  Filter Spugna  €0.25
18
 photo_cameraImage coming soon RMGP65050102000  Gasket Cap  €1.10
19
 photo_cameraImage coming soon RMGP70B050101000  Serbatoio  €18.93
22
 photo_cameraImage coming soon RMGP65050500000  Filter Serbatoio  €4.90
34
 photo_cameraImage coming soon RMGP70B01060200  Freno Motor  €15.36
41
 photo_cameraImage coming soon RMGP70B070300000  Coil Cpl.  €42.23
42
 photo_cameraImage coming soon RMGP65050600000  Tubo Sfiato €4.47
45
 photo_cameraImage coming soon RMGP65010112000  Paraolio 6x11x4  €3.48
46
 photo_cameraImage coming soon RMGP65010106000  Spare Part RMGP65010106000  €0.49
49
 photo_cameraImage coming soon RMGP70B01050200  Leva Governor  €6.60
51
 photo_cameraImage coming soon RMGP70B010600000  Plate Regolazione Giri  €3.13
52
 photo_cameraImage coming soon RMGP70B01050300  Molla Regolatore €2.41
56
 photo_cameraImage coming soon RMGP65060200000  Gasket Muffler  €5.32
57
 photo_cameraImage coming soon RMG56443  Spark Plug N11YC €8.44
58
 photo_cameraImage coming soon RMGGB900  Prigioniero €2.79
59
 photo_cameraImage coming soon RMGP70B02040000  Gasket Cylinder  €12.16
61
 photo_cameraImage coming soon RMGP70B08060000  Valve of Intake  €8.10
62
 photo_cameraImage coming soon RMGP70B08070000  Valve of Exhaust  €8.45
66
 photo_cameraImage coming soon RMGP70B08030000  Plate Guida  €2.96
68
 photo_cameraImage coming soon RMGP70B08080000  Spring Valve  €1.50
69
 photo_cameraImage coming soon RMGP65081000000  Sede Spring Valve  €3.72
71
 photo_cameraImage coming soon RMGP65080202000  Support Bilanciere  €4.11
72
 photo_cameraImage coming soon RMGP65080200000  Bilanciere Valve  €1.98
73
 photo_cameraImage coming soon RMGP65080203000  Registro Valvole  €2.23
74
 photo_cameraImage coming soon RMGP65080204000  Nut Bloccaggio Regolazione  €2.23
75
 photo_cameraImage coming soon RMGP65020300000  Gasket Copricilindro  €5.03
82
 photo_cameraImage coming soon RMGV53A100000  Carburetor Cpl. - Tecno AG 0440195 €49.41
83
 photo_cameraImage coming soon RMGP65030500000  Cap rod €6.47
84
 photo_cameraImage coming soon RMGP65051000000  Air Purge €6.62
85
 photo_cameraImage coming soon RMGP65040102010  Sede Filter Aria  €8.81
86
 photo_cameraImage coming soon RMGP65040103000  Deflector of Exhaust  €2.78
87
 photo_cameraImage coming soon RMGP70B040101000  Air Filter €16.51
88
 photo_cameraImage coming soon RMGP65040106000  Pre-Filter Aria  €3.69
89
 photo_cameraImage coming soon RMGP65040101000  Cover Filter  €7.09
90
 photo_cameraImage coming soon RMGP70B01010300 Crankcase Assy €203.88
91
 photo_cameraImage coming soon RMGP65010210000  Paraolio 25x38x7  €5.69
92
 photo_cameraImage coming soon RMGGB276  Bearing 6205  €9.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Engine for Lawnmower MVG - T675

Fix Your Engine for Lawnmower MVG - T675 - 88456. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
4-stroke petrol engine with 200 CC overhead valves

In the following table, look for the model of the Engine and the respective parts of the code.
Contact us to know availability.
Ama MVG - T675 - 88456

Engine MVG - T675 - 88456
# Part Num. Description
2 RMGP70B070500001 Engine Cover II
3 RMG65070100000 Recoil Start Assy
4 RMGP70B070701000 Blower Housing
5 RMGGB6177.22000 Nut M14 X1.5
6 RMGP70B070100000 Start-up Hub
7 RMGP70B070400000 Fan
8 RMGP70B070200000 Flywheel Assy
10 RMGP70B01010500 Respirator Cover Plate
11 RMGP65010109000 Gasket of Respirator Cover
12 RMGP65010104000 Lubricate Filtering Net
13 Bolt M3 X 6
15 RMGP70B010106000 Valve Element of Respirator Cover
16 RMGP65050101000 Fuel Tank Cap before year 2014
16A RMG251700500140 Fuel Tank Cap after year 2014
17 RMGP65050106000 Sponge of Fuel Tank Cap
18 RMGP65050102000 Seal Gasket of Fuel Tank Cap
19 RMGP70B050101000 Fuel Tank
22 RMGP65050500000 Filtering Net
24 RMGP70B050500000 Oil Pipe
28 RMGP70B050400000 Right Bracket of Fuel Tank
29 RMGP70B050300000 Left Bracket of Fuel Tank
30 RMGP70B050200000 Main Bracket of Fuel Tank
34 RMGP70B01060200 Detent(Flameout Wire)
36 RMGP70B070702000 Blower Housing Bush
37 RMGP70B070900000 Abnormity Two Stud Bolt II
38 RMGP70B070800000 Abnormity Two Stud Bolt I
40 RMGP70B071300000 Baffle
41 RMGP70B070300000 Ignition Coil Assy
42 RMGP65050600000 Waste Pipe
43 RMGP70B010104000 Speed Regulator Rocker Spindle
45 RMGP65010112000 Oil Seal 6x11x4
46 RMGP65010106000 Springness Split Pin
47 RMGP70B010504000 Handspike of Valve
48 RMGP70B010505000 Pull Spring of Valve
49 RMGP70B01050200 Speed Regulator Rocker
51 RMGP70B010600000 Speed Regulator Board
52 RMGP70B01050300 Speed Regulator Pull Spring
54 RMGP70B060300000 Muffler Cover Assy
55 RMGP70B060100000 Muffler Assy
56 RMGP65060200000 Heat Insulation Gasket of Muffler
57 RMG56443 Spark Plug N11YC
58 RMGGB900 Two Stud Bolt M6x95
59 RMGP70B02040000 Gasket of Cylinder Head
61 RMGP70B08060000 Intake Valve
62 RMGP70B08070000 Exhaust Valve
63 RMGP70B02010000 Cylinder Head Assy
65 RMGP70B080200000 Handspike
66 RMGP70B08030000 Guide Board of Handspike
68 RMGP70B08080000 Spring of Valve
69 RMGP65081000000 Spring Coil of Exhaust Valve
71 RMGP65080202000 Rocker Support Bolt of Valve
72 RMGP65080200000 Rocker of Valve
73 RMGP65080203000 Adjust Nut of Valve
74 RMGP65080204000 Combined Nut
75 RMGP65020300000 Gasket I of Cylinder Head Cover
76 RMGP70B020200000 Cylinder Head Cover I
77 RMGP70B020300000 Cylinder Head Cover II
79 RMGP70B030200000 Paper Gasket I of Air Inlet Pipe
80 RMGP70B030400000 Air Inlet Pipe
81 RMGP70B030300000 Paper Gasket II of Air Inlet Pipe
82 RMGV53A100000 Carburetor Assy - Tecno AG 0440195
83 RMGP65030500000 Steel Gasket
84 RMGP65051000000 Primer Button II
85 RMGP65040102010 Air Filter Pedestal assembly
86 RMGP65040103000 Exhaust Gas Cover Board
87 RMGP70B040101000 Paper Filter Element
88 RMGP65040106000 Foam Filter Element
89 RMGP65040101000 Air Filter Upper Cover
90 RMGP70B01010300 Crankcase Assy
91 RMGP65010210000 Oil Seal 25x38X7
92 RMGGB276 Ball Bearing 6205
93 RMGP70B010301004 Crankshaft Assy
94 RMGP70B010310000 Connecting Rod Assy
95 RMGP70B010303000 Piston
96 RMGP70B010309000 Circlip of Piston Pin
97 RMGP70B010308000 Piston Pin
98 RMGP70B010307000 Guide Rail
99 RMGP70B010306000 Bushing Ring
100 RMGP70B010305000 Piston Ring II
101 RMGP70B010304000 Piston Ring I
102 RMGP70B010501200 Lubricating Gauge Assy
103 RMGP70B010502100 Lubricating Pipe("O" Ring 20x2.6)
105 RMGP70B010302000 Gear Gasket
106 RMGP70B010101000 Seal Gasket of Crankcase
108 RMGP70B010201003 Crankcase Cover
111 RMGP65080300000 Pin
112 RMGP70B080100000 Camshaft Assy
114 RMGP70B010205000 Gear Shaft Hold-down Plate
115 RMGP70B010202000 Sliding Sleeve
117 RMGP70B010203000 Gear Shaft Assy
118 RMGP70B010204000 Gear Shaft of speed limit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama MVG - T675 - 88456
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA MVG - T675

Diagram AMA MVG - T675

Download (275.52KB)

You might also like

Recoil Starter for Engines AMA MVG - T475 - T575 - T675
A.M.A. S.p.A. SKU: RMG65070100000
Recoil Starter for Engines AMA MVG - T475 - T575 - T675
Recoil Starter for Engines AMA MVG - T475 - T575 - T675 Genuine part AMA, Recoil starter Assy for Engines AMA MVG - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA...
Last items in stock €32.93
Details
Tank Cap for Engines AMA MVG
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €7.72
Details
Tank Cap Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €1.23
Details
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
Details
Muffler Heat Insulation Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €5.60
Details
Air Fiter Carburator Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products:...
Last items in stock €6.59
Details
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675
A.M.A. S.p.A. SKU: RMGP70B08060000
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 Genuine replacement part AMA, Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine AMA MVG - T675 -...
AVAILABLE €8.23
Details
Tank Cap Sponge Filter for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
Details
Speed Governor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
Details
Stude Bolt for 4 Stroke Engine AMA MVG - T675
A.M.A. S.p.A. SKU: RMGP70B07090000
Stude Bolt for 4 Stroke Engine AMA MVG - T675
Stude Bolt for 4 Stroke Engine AMA MVG - T675 Genuine replacement part AMA, Stude Bolt Double Trhead mm 6x115 for 4 Stroke Engine AMA MVG - T675. Part for the following products: -  Engine AMA MVG - T675 - 88456 - Code : RMGP70B07090000
AVAILABLE €4.58
Details
Fuel Tank Filter for Engine AMA MVG - T100
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €1.03
Details
Ignition Coil for 4 Stroke Engine AMA MVG - T675
A.M.A. S.p.A. SKU: RMGP70B070300000
Ignition Coil for 4 Stroke Engine AMA MVG - T675
Ignition Coil for 4 Stroke Engine AMA MVG - T675 Genuine replacement part AMA, Ignition Coil Assy for 4 Stroke Engine AMA MVG - T675. Part for the following products: -  Engine AMA MVG - T675 - 88456 -...
Last items in stock €42.32
Details
Oil Seal MM 23x38x7 for Self Propelled Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
Details
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGP70B02040000
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Cylinder Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod. 90260 -...
on 7/10 Business Days Approx €12.27
Details
Carburetor for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGV53A100000
Carburetor for 4 Stroke Engine AMA MVG - T575
Carburetor for 4 Stroke Engine AMA MVG - T575 - T675 Genuine replacement part AMA, Carburetor Complete for 4 Stroke Engine AMA MVG - T575 - T675. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine AMA MVG -...
Last items in stock €49.53
Details
Comments (0)
