A.M.A. S.p.A.

Ama Spare Parts for Engine for Lawnmower MVG - T575

SKU: Ama MVG - T575 - 88602
€32.94
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T575

Ama genuine spare parts or replacement parts for to repair Engine for Lawnmower MVG - T575 - 88602.
Ama Spare Parts for Engine for Lawnmower MVG - T575
  • Online only
  • Ama Spare Parts for Engine for Lawnmower MVG - T575
  • Ama Spare Parts for Engine for Lawnmower MVG - T575
A.M.A. S.p.A.

Ama Spare Parts for Engine for Lawnmower MVG - T575

SKU: Ama MVG - T575 - 88602 Condition: New
€32.94
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T575

Ama genuine spare parts or replacement parts for to repair Engine for Lawnmower MVG - T575 - 88602.
settings 65 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
65 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

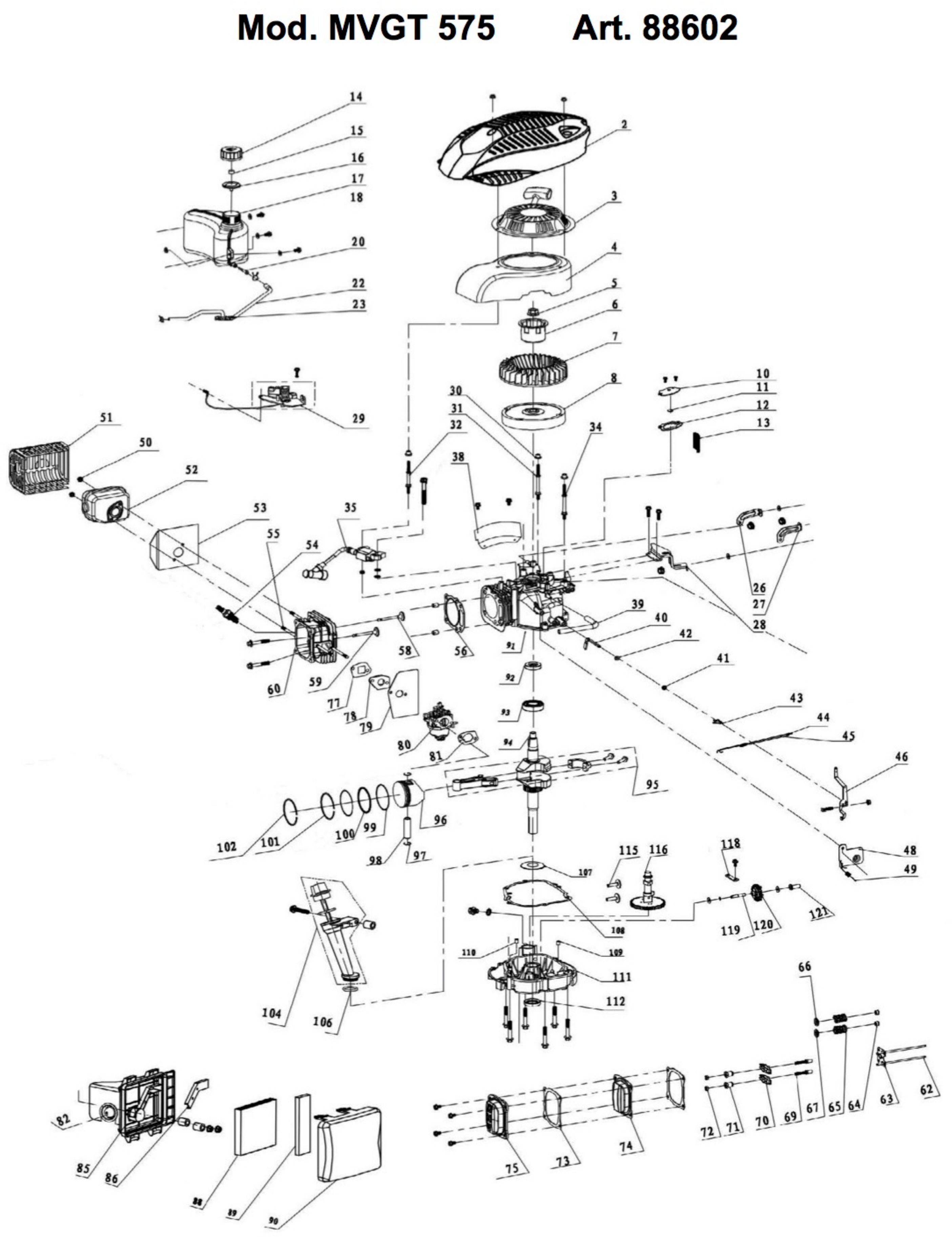

Esploso pagina 1
Pos. Item Price Buy
2
 photo_cameraImage coming soon RMGV570001000 Engine Cover €5.63
3
 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 RMG65070100000 Recoil Starter for Engines AMA MVG - T475 - T575 - T675 €32.93
4
 photo_cameraImage coming soon RMGV570101000 Blower Housing €6.51
10
 photo_cameraImage coming soon RMGV510000000 Respirator Cover Plate €5.93
12
 photo_cameraImage coming soon RMGV510020000 Paper Gasket for Respirator Cover €1.31
13
 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €4.90
14A
 Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
14
 photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €0.00 Not available for order
15
 Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
16
 Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
17
 Fuel Tank for Engine AMA MVG - T475 RMGP65050103000 Fuel Tank for Engine AMA MVG - T475 €26.38
20
 Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €4.90
26
 photo_cameraImage coming soon RMGV550002000 Right Bracket of Fuel Tank €3.40
27
 photo_cameraImage coming soon RMGV550003000 Left Bracket of Fuel Tank €2.97
28
 photo_cameraImage coming soon RMGV550004000 Main Bracket of Fuel Tank €7.62
29
 photo_cameraImage coming soon RMGV51A100000 Detent Assy €11.41
35
 Ignition Coil for Engines AMA MVG T375 - T475 - T575 RMGP65070302000 Ignition Coil for Engines AMA MVG T375 - T475 - T575 €35.81
38
 photo_cameraImage coming soon RMGP65010301001 Detent €25.30
39
 photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
44
 photo_cameraImage coming soon RMGV510103000 Handspike of Valve €2.11
45
 photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
46
 photo_cameraImage coming soon RMGV510004000 Speed Regulator Rocker €5.18
48
 photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
49
 photo_cameraImage coming soon RMGV510005000 Speed Regulator Pull Spring €1.95
51
 photo_cameraImage coming soon RMGV513G101000 Muffler Cover Assy €10.28
52
 photo_cameraImage coming soon RMGV512C100000 Muffler Assy €16.26
53
 Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
55
 photo_cameraImage coming soon RMGGB900 Two Stud Bolt M6x94 €2.91
56
 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 RMGP70B02040000 Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 €12.27
58
 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 RMGP70B08060000 Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 €8.23
59
 photo_cameraImage coming soon RMGP70B08070000 Exhaust Valve €8.57
60
 photo_cameraImage coming soon RMGV52A100000 Cylinder Head Assy €61.98
62
 photo_cameraImage coming soon RMGH150002000 Handspike €4.51
63
 photo_cameraImage coming soon RMGP70B08030000 Guide Board of Handspike €3.08
65
 photo_cameraImage coming soon RMGP70B08080000 Spring of Valve €1.62
66
 photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
67
 photo_cameraImage coming soon RMGP65081000000 Keeper Valve €3.83
69
 photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
70
 photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
71
 photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
72
 photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
73
 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
80
 Carburetor for 4 Stroke Engine AMA MVG - T575 RMGV53A100000 Carburetor for 4 Stroke Engine AMA MVG - T575 €49.53
81
 Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59 Not available for order
82
 photo_cameraImage coming soon RMGP65051000000 Primer Button €6.73
85
 photo_cameraImage coming soon RMGP65040102001 Air Filter Pedestal €4.10
86
 photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
88
 photo_cameraImage coming soon RMGP70B040101000 Paper Filter Element €16.63
89
 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
90
 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
91
 photo_cameraImage coming soon RMGV51B100000 Crankcase Assy €112.71
92
 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
94
 photo_cameraImage coming soon RMGV51D100000 Crankshaft Assy €74.21
96
 photo_cameraImage coming soon RMGV510006000 Piston €16.27
97
 photo_cameraImage coming soon RMGH140003000 Circlip of Piston Pin €3.89
98
 photo_cameraImage coming soon RMGH140002000 Piston Pin €4.88
104
 photo_cameraImage coming soon RMGP65010500000 Lubricating Setting €18.47
107
 photo_cameraImage coming soon RMGV510009000 Gear Gasket €3.79
108
 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 RMGV510007000 Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 €7.03
111
 photo_cameraImage coming soon RMGV510008000 Crankcase Cover €54.47
115
 photo_cameraImage coming soon RMGV580001000 Pin €5.59
116
 photo_cameraImage coming soon RMGV58A100000 Camshaft Assy €39.44
118
 photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
119
 photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.95
121
 Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Engine for Lawnmower MVG - T575

Ama genuine spare parts or replacement parts for to repair Engine for Lawnmower MVG - T575 - 88602.

In the following table, look for the model of the Engine and the respective parts of the code.
Contact us to know availability.
Ama MVG - T575 - 88602

Engine MVG - T575 - 88602
# Part Num. Description
2 RMGV570001000 Engine Cover
3 RMG65070100000 Recoil Start Assy
4 RMGV570101000 Blower Housing
5 Nut M14×1.5
6 RMGP70B070100000 Start-up Hub
7 RMGP70B070400000 Fan
8 RMGV57A100000 Flywheel Assy
10 RMGV510000000 Respirator Cover Plate
11 RMGV510010000 Valve Element of Respirator Cover
12 RMGV510020000 Paper Gasket for Respirator Cover
13 RMGP65010104000 Lubricate Filtering Net
14 RMGP65050101000 Fuel Tank Cap before year 2014
14A RMG251700500140 Fuel Tank Cap before after 2014
15 RMGP65050106000 Sponge of Fuel Tank Cap
16 RMGP65050102000 Seal Gasket of Fuel Tank Cap
17 RMGP65050103000 Fuel Tank
18 GB5789 Bolt M6x22
20 RMGP65050500000 Filtering Net
22 RMGP70B050500000 Oil Pipe
26 RMGV550002000 Right Bracket of Fuel Tank
27 RMGV550003000 Left Bracket of Fuel Tank
28 RMGV550004000 Main Bracket of Fuel Tank
29 RMGV51A100000 Detent Assy
30 RMGP70B070702000 Blower Housing Bush
31 RMGV510001000 Abnormity Two Stud Bolt II
32 RMGV510002000 Abnormity Two Stud Bolt I
34 RMGV510003000 Abnormity Two Stud Bolt III
35 RMGP65070302000 Ignition Assy
38 RMGP65010301001 Blower Plate
39 RMGP65050600000 Waste Air Pipe
40 RMGP65010105000 Speed Regulator Rocker Spindle
41 Oil Seal 6x11x4
43 RMGP65010106000 Springness Split Pin
44 RMGV510103000 Handspike of Valve
45 RMGP65010601000 Pull Spring of Valve
46 RMGV510004000 Speed Regulator Rocker
48 RMGP70B010600000 Speed Regulator Board
49 RMGV510005000 Speed Regulator Pull Spring
51 RMGV513G101000 Muffler Cover Assy
52 RMGV512C100000 Muffler Assy
53 RMGP65060200000 Heat Insulation Gasket of Muffler
54 56443 Spark Plug
55 RMGGB900 Two Stud Bolt M6x94
56 RMGP70B02040000 Gasket of Cylinder Head
58 RMGP70B08060000 Intake Valve
59 RMGP70B08070000 Exhaust Valve
60 RMGV52A100000 Cylinder Head Assy
62 RMGH150002000 Handspike
63 RMGP70B08030000 Guide Board of Handspike
65 RMGP70B08080000 Spring of Valve
66 RMGP65080900000 Spring Coil of Intake Valve
67 RMGP65081000000 Spring Coil of Exhaust Valve
69 RMGP65080202000 Rocker Support Bolt of Valve
70 RMGP65080200000 Rocker of Valve
71 RMGP65080203000 Adjust Nut of Valve
72 RMGP65080204000 Combined Nut
73 RMGP65020300000 Gasket I of Cylinder Head Cover
74 RMGP70B020200000 Cylinder Head Cover I
75 RMGP70B020300000 Cylinder Head Cover II
77 RMGP70B030200000 Paper Gasket I of Air Inlet Pipe
78 RMGP70B030400000 Air Inlet Pipe
79 RMGP70B030300000 Paper Gasket II of Air Inlet Pipe
80 RMGV53A100000 Carburetor Assy - TEKNO AG 0440195
81 RMGP65030500000 Steel Gasket
82 RMGP65051000000 Primer Button
85 RMGP65040102001 Air Filter Pedestal
86 RMGP65040103000 Exhaust Gas Cover Board
88 RMGP70B040101000 Paper Filter Element
89 RMGP65040106000 Foam Filter Element
90 RMGP65040101000 Air Filter Upper Cover
91 RMGV51B100000 Crankcase Assy
92 RMGP65010210000 Oil Seal 25x38x7
93 Ball Bearing 6205
94 RMGV51D100000 Crankshaft Assy
95 RMGV51E100000 Connecting Rod Assy
96 RMGV510006000 Piston
97 RMGH140003000 Circlip of Piston Pin
98 RMGH140002000 Piston Pin
99 RMGP70B010307000 Guide Rail
100 RMGP70B010306000 Bushing Ring
101 RMGP70B010305000 Piston Ring II
102 RMGP70B010304000 Piston Ring I
104 RMGP65010500000 Lubricating Gauge Assy
106 O Type Ring 21×2.3
107 RMGV510009000 Gear Gasket
108 RMGV510007000 Crankcase Gasket
111 RMGV510008000 Crankcase Cover
112 Oil Seal 25x40x7
115 RMGV580001000 Pin
116 RMGV58A100000 Camshaft Assy
118 RMGP65010206000 Gear Shaft Hold-down Plate
119 RMGV410001000 Gear Shaft of speed limit
120 RMGP70B010205000 Governor Assy
121 RMGP65010202000 Sliding Sleeve
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama MVG - T575 - 88602
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AMA MVG - T575

Diagram AMA MVG - T575

Download (248.2KB)

You might also like

Four-Stroke Engine Model Mvg 575 For Lawnmower AMA Garden
A.M.A. S.p.A. SKU: 88602
Four-Stroke Engine Model Mvg 575 For Lawnmower AMA Garden
Four-Stroke Engine Model Mvg 575 For Lawnmower AMA Garden 4-Stroke Engine Model MVGT575 For Lawnmower AMA Garden Max Torque 10.5/3000 Nm/Rpm Tecnical Features: - Description: Engine T575 - Note: Air Cooling - Descrizione Estesa:...
AVAILABLE €291.61
Details
Recoil Starter for Engines AMA MVG - T475 - T575 - T675
A.M.A. S.p.A. SKU: RMG65070100000
Recoil Starter for Engines AMA MVG - T475 - T575 - T675
Recoil Starter for Engines AMA MVG - T475 - T575 - T675 Genuine part AMA, Recoil starter Assy for Engines AMA MVG - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA...
Last items in stock €32.93
Details
Tank Cap for Engines AMA MVG
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T375 -  Engine...
Details
Tank Cap Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €1.23
Details
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
Details
Tank Cap (Big) for Engines AMA MVG
A.M.A. S.p.A. SKU: RMG251700500140
Tank Cap (Big) for Engines AMA MVG
Tank Cap (Big) for Engines AMA MVG Genuine part AMA, Tank Cap (Big) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: - ...
Last items in stock €6.83
Details
Ignition Coil for Engines AMA MVG T375 - T475 - T575
A.M.A. S.p.A. SKU: RMGP65070302000
Ignition Coil for Engines AMA MVG T375 - T475 - T575
Ignition Coil for Engines AMA MVG T375 - T475 - T575 Genuine replacement part AMA, Ignition Coil Cpl. for Engines AMA MVG T375 - T475 - T575 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Engine...
Last items in stock €35.81
Details
Muffler Heat Insulation Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €5.60
Details
Air Fiter Carburator Gasket for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products:...
Out-of-Stock €6.59
Details
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGV510007000
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575
Crank Case Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Crank Case Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod....
Last items in stock €7.03
Details
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675
A.M.A. S.p.A. SKU: RMGP70B08060000
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675
Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675 Genuine replacement part AMA, Intake Valve for 4 Stroke Engine AMA MVG - T575 - T675. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine AMA MVG - T675 -...
AVAILABLE €8.23
Details
Tank Cap Sponge Filter for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
Details
Speed Governor for Engines AMA MVG - T100 - T375 - T475
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
Details
Fuel Tank Filter for Engine AMA MVG - T100
A.M.A. S.p.A. SKU: RMGP65050500000
Fuel Tank Filter for Engine AMA MVG - T100
Fuel Tank Filter for Engine AMA MVG - T100 Genuine replacement part AMA Garden, Fuel Tank Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T680. Part for the following products: -  Engine MVG - T100 -  Engine MVG - T375 -...
Last items in stock €4.90
Details
Sliding Sleeve for Engines AMA MVG
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
Details
Oil Seal MM 23x38x7 for Self Propelled Lawnmover AMA LT 52H
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
Details
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGP70B02040000
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575
Cylinder Gasket for 4 Stroke Engine AMA MVG - T575 Genuine replacement part AMA, Cylinder Gasket for 4 Stroke Engine AMA MVG - T575. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine MVG - T680 cod. 90260 -...
on 7/10 Business Days Approx €12.27
Details
Carburetor for 4 Stroke Engine AMA MVG - T575
A.M.A. S.p.A. SKU: RMGV53A100000
Carburetor for 4 Stroke Engine AMA MVG - T575
Carburetor for 4 Stroke Engine AMA MVG - T575 - T675 Genuine replacement part AMA, Carburetor Complete for 4 Stroke Engine AMA MVG - T575 - T675. Part for the following products: -  Engine AMA MVG - T575 - 88602 -  Engine AMA MVG -...
Last items in stock €49.53
Details
Fuel Tank for Engine AMA MVG - T475
A.M.A. S.p.A. SKU: RMGP65050103000
Fuel Tank for Engine AMA MVG - T475
Fuel Tank for Engine AMA MVG - T475 Genuine spare part AMA, Fuel Tank for Engines AMA MVG - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following...
AVAILABLE €26.38
Details
Comments (0)
