Ama Spare Parts for Engine for Lawnmower MVG - T375

SKU: Ama MVG - T375 - 88603
€6.82
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T375

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Lawnmower MVG - T375 - 88603.

Ama Spare Parts for Engine for Lawnmower MVG - T375
  • Online only
  • Ama Spare Parts for Engine for Lawnmower MVG - T375
  • Ama Spare Parts for Engine for Lawnmower MVG - T375

Ama Spare Parts for Engine for Lawnmower MVG - T375

SKU: Ama MVG - T375 - 88603 Condition: New
€6.82
VAT included

Ama Spare Parts for Engine for Lawnmower MVG - T375

AMA Garden service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Lawnmower MVG - T375 - 88603.

settings 80 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

63 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
2
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H RMGP65010210000 Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H €5.81
3
photo_cameraImage coming soon RMGP65010201000 Crankcase Cover €71.15
7
photo_cameraImage coming soon RMGV410001000 Gear Shaft of speed limit €4.95
9
Speed Controller Ass'y for Engine AMA MVG - T375 RMGP65010203000 Speed Controller Ass'y for Engine AMA MVG - T375 €17.95
11
Sliding Sleeve for Engines AMA MVG RMGP65010202000 Sliding Sleeve for Engines AMA MVG €4.95
12
photo_cameraImage coming soon RMGP65010206000 Gear Shaft Hold-down Plate €2.79
16
Camshaft Complete for Engine AMA MVG - T375 - T475 RMGP65080100000 Camshaft Complete for Engine AMA MVG - T375 - T475 €30.83
17
photo_cameraImage coming soon RMGV41B100000 Crankshaft Assy €72.79
18
Conrod Complete for Engines AMA MVG - T375 - T475 RMGP65010402000 Conrod Complete for Engines AMA MVG - T375 - T475 €21.42
19
photo_cameraImage coming soon 27884 Ball Bearing 6205 €6.37
21
photo_cameraImage coming soon RMGV41D100000 Crankcase Assy €145.39
23
photo_cameraImage coming soon RMGP70B010600000 Speed Governor €3.24
25
photo_cameraImage coming soon RMGP65010603003 Speed Regulator Rocker €6.46
27
photo_cameraImage coming soon RMGP65010603301 Handspike of Valve €3.36
28
photo_cameraImage coming soon RMGP65010601000 Spring Governor Link €8.15
30
photo_cameraImage coming soon RMGP65010112000 Oil Seal 6 x 11 x 4 €3.59
32
photo_cameraImage coming soon RMGP65050600000 Waste Pipe €4.58
34
photo_cameraImage coming soon RMGV450003000 Middle Bracket of Fuel Tank €111.06
35
photo_cameraImage coming soon RMGV470001000 Back Guide Board €6.78
40
Fuel Tank Filter for Engine AMA MVG - T100 RMGP65050500000 Fuel Tank Filter for Engine AMA MVG - T100 €1.03
45
Tank Cap Gasket for Engines AMA MVG RMGP65050102000 Tank Cap Gasket for Engines AMA MVG €1.23
46
Tank Cap Sponge Filter for Engines AMA MVG RMGP65050106000 Tank Cap Sponge Filter for Engines AMA MVG €0.37
47A
Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
47
photo_cameraImage coming soon RMGP65050101000 Fuel Tank Cap Black €7.74
48
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H RMGP65010104000 Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H €0.61
51
photo_cameraImage coming soon RMGP65010107000 Respirator Cover Plate Assy €4.42
52
photo_cameraImage coming soon RMGV47A100000 Flywheel Assy €44.11
54
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
57
Recoil Starter for Engine AMA MVG - T375 RMGV47B100000 Recoil Starter for Engine AMA MVG - T375 €32.93
58
photo_cameraImage coming soon RMGP65070403000 Bush €9.17
61
Ignition Coil for Engines AMA MVG T375 - T475 - T575 RMGP65070302000 Ignition Coil for Engines AMA MVG T375 - T475 - T575 €35.81
64
photo_cameraImage coming soon RMGV41F100000 Detent Assy €11.16
67
photo_cameraImage coming soon RMGP65060300000 Muffler Cover Assy €19.79
68
photo_cameraImage coming soon RMGP65060000000 Muffler Assy €25.27
69
Muffler Heat Insulation Gasket for Engines AMA MVG RMGP65060200000 Muffler Heat Insulation Gasket for Engines AMA MVG €5.60
72
Inlet Valve for Engine AMA MVG T375 - T475 RMGP65080600000 Inlet Valve for Engine AMA MVG T375 - T475 €11.37
73
photo_cameraImage coming soon RMGP65080700000 Exhaust Valve €10.34
77
photo_cameraImage coming soon RMGP65080800000 Spring of Valve €2.20
78
photo_cameraImage coming soon RMGP65080900000 Keeper Valve €2.45
79
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H RMGP65020300000 Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H €5.15
80
photo_cameraImage coming soon RMGP65020100001 Cylinder Head Cover I €8.49
81
photo_cameraImage coming soon RMGP65020100000 Cylinder Head Cover II €6.39
83
photo_cameraImage coming soon RMGP65080204000 Combined Nut €2.35
84
photo_cameraImage coming soon RMGP65080203000 Adjust Nut of Valve €2.35
85
photo_cameraImage coming soon RMGP65080200000 Rocker of Valve €2.09
86
photo_cameraImage coming soon RMGP65080202000 Rocker Support €4.22
88
photo_cameraImage coming soon RMGP65080400000 Handspike €3.54
91
Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 RMGP65030200000 Thermal Flange Head Gasket for Engine AMA MVG - T375 - T475 €1.12
92
photo_cameraImage coming soon RMGP65030400000 Air Inlet Pipe €14.37
93
Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 RMGP65030300000 Thermal Flange Carburator Gasket for Engine AMA MVG - T375 - T475 €1.12
94
Carburetor Ass'y for Engine AMA MVG - T375 RMGV43A100000 Carburetor Ass'y for Engine AMA MVG - T375 €54.07
95
Air Fiter Carburator Gasket for Engines AMA MVG RMGP65030500000 Air Fiter Carburator Gasket for Engines AMA MVG €6.59
96
Air Cleaner Case for Engines AMA MVG - T375 - T475 RMGP65040102002 Air Cleaner Case for Engines AMA MVG - T375 - T475 €21.06
97
photo_cameraImage coming soon RMGP65040103000 Exhaust Gas Cover Board €2.89
99
Air Filter (Sponge for Engine AMA MVG - T375 RMGV440001000 Air Filter (Sponge for Engine AMA MVG - T375 €7.03
100
Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040106000 Sponge Filter Element for Engines AMA MVG T375 - T475 - T575 - T675 €3.80
101
Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 RMGP65040101000 Air Filter Cover for Engines AMA MVG T375 - T475 - T575 - T675 €7.21
102
Primer for Self-Propelled Lawnmower AMA LT 52H RMGP65051000001 Primer for Self-Propelled Lawnmower AMA LT 52H €6.55
103
photo_cameraImage coming soon RMGV410002000 Piston Ring I €6.41
104
photo_cameraImage coming soon RMGV410003000 Piston Ring II €6.41
107
photo_cameraImage coming soon RMGV410006000 Piston Pin €5.42
108
photo_cameraImage coming soon RMGV410007000 Piston €15.54
110
photo_cameraImage coming soon RMGP65010500000 Lubricating Setting €18.47

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Ama Spare Parts for Engine for Lawnmower MVG - T375

AMA Garden service cente

r and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine Lawnmower MVG - T375 - 88603.

In the following table, look for the model of the Engine and the respective parts of the code.
Contact us to know availability.
Ama MVG - T375 - 88603

Engine MVG - T375 - 88603
# Part Num. Description
2 RMGP65010210000 Oil Seal 25 x 38 x 7
3 RMGP65010201000 Crankcase Cover
7 RMGV410001000 Gear Shaft of speed limit
9 RMGP65010203000 Gear Shaft Assy
11 RMGP65010202000 Sliding Sleeve
12 RMGP65010206000 Gear Shaft Hold-down Plate
14 RMGV410008000 Seal Gasket of Crankcase
15 RMGP65080300000 Pin
16 RMGP65080100000 Camshaft Assy
17 RMGV41B100000 Crankshaft Assy
18 RMGP65010402000 Connecting Rod Assy
19 27884 Ball Bearing 6205
20 DDDDDDDDDDD Oil Seal 22 x 35 x 7
21 RMGV41D100000 Crankcase Assy
22 RMGP650106060004 Speed Regulator Pull Spring
23 RMGP70B010600000 Speed Regulator
25 RMGP65010603003 Speed Regulator Rocker
27 RMGP65010603301 Handspike of Valve
28 RMGP65010601000 Spring of Valve
30 RMGP65010112000 Oil Seal 6 x 11 x 4
31 RMGP65010105000 Speed Regulator Rocker Spindle
32 RMGP65050600000 Waste Pipe
33 RMGV450002000 Front Bracket of Fuel Tank - DISCONTINUED
35 RMGV470001000 Back Guide Board
34 RMGV450003000 Middle Bracket of Fuel Tank
38 Tech 00723-00740 Fuel Hose
40 RMGP65050500000 Filtering Net
44 RMGV450006000 Fuel Tank
45 RMGP65050102000 Seal Gasket of Fuel Tank Cap
46 RMGP65050106000 Sponge of Fuel Tank Cap
47 RMGP65050101000 Fuel Tank Cap Before year 2014
47A RMG251700500140 Fuel Tank Cap After year 2014
48 RMGP65010104000 Lubricate Filtering Net
49 RMGP65010108000 Valve Element of Respirator Cover
50 RMGP65010109000 Gasket of Respirator Cover
51 RMGP65010107000 Respirator Cover Plate Assy
52 RMGV47A100000 Flywheel Assy
53 RMGP65070402000 Fan
54 RMGP65070200000 Start-up Hub
55 DDDDDDDDDDD Nut M14 x 1.5
56 RMGP65070401000 Blower Housing
57 RMGV47B100000 Recoil Start Assy
58 RMGP65070403000 Blower Housing Bush
61 RMGP65070302000 Ignition Assy
64 RMGV41F100000 Detent Assy
67 RMGP65060300000 Muffler Cover Assy
68 RMGP65060000000 Muffler Assy
69 RMGP65060200000 Heat Insulation Gasket of Muffler
70 RMGV42A100000 Gasket of Cylinder Head
72 RMGP65080600000 Intake Valve
73 RMGP65080700000 Exhaust Valve
74 RMGP70B010205000 Cylinder Head Assy
77 RMGP65080800000 Spring of Valve
78 RMGP65080900000 Spring Coil of Intake Valve
79 RMGP65020300000 Gasket of Cylinder Head Cover
80 RMGP65020100001 Cylinder Head Cover I
81 RMGP65020100000 Cylinder Head Cover II
83 RMGP65080204000 Combined Nut
84 RMGP65080203000 Adjust Nut of Valve
85 RMGP65080200000 Rocker of Valve
86 RMGP65080202000 Rocker Support Bolt of Valve
87 RMGP65080500000 Guide Board of Handspike
88 RMGP65080400000 Handspike
91 RMGP65030200000 Paper Gasket I of Carburetor
92 RMGP65030400000 Air Inlet Pipe
93 RMGP65030300000 Paper Gasket II of Carburetor
94 RMGV43A100000 Carburetor Assy
95 RMGP65030500000 Gasket
96 RMGP65040102002 Air Filter Pedestal
97 RMGP65040103000 Exhaust Gas Cover Board
99 RMGV440001000 Paper Filter Element
100 RMGP65040106000 Sponge Filter Element
101 RMGP65040101000 Air Filter Upper Cover
102 RMGP65051000001 Primer Button
103 RMGV410002000 Piston Ring I
104 RMGV410003000 Piston Ring II
105 RMGV410004000 Guide Rail
106 RMGV410005000 Bushing Ring
107 RMGV410006000 Piston Pin
108 RMGV410007000 Piston
109 RMGP65010401700 Circlip of Piston Pin
110 RMGP65010500000 Lubricating Setting
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Ama websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Ama brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Ama MVG - T375 - 88603
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

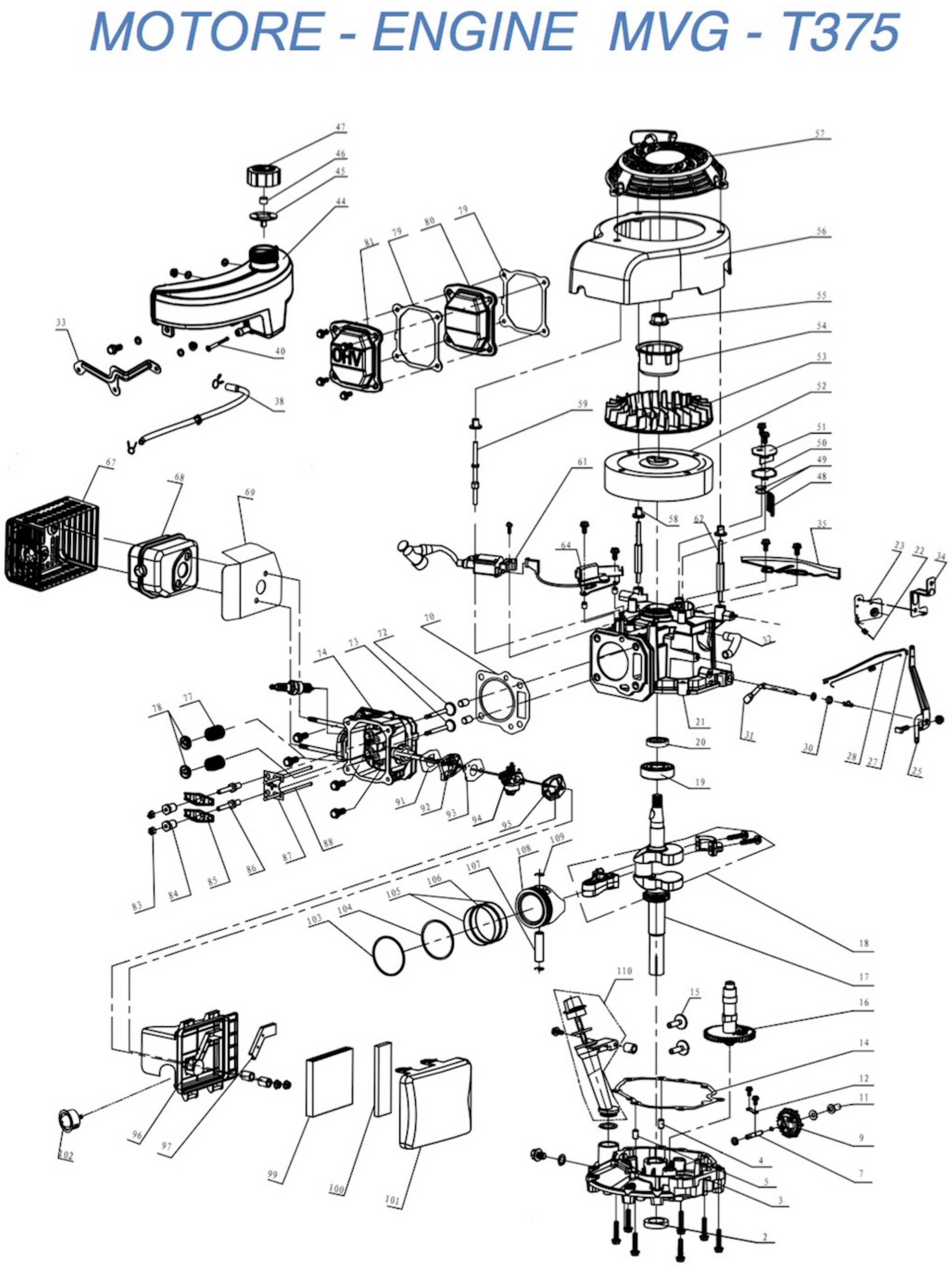

Diagram AMA MVG - T375

Diagram AMA MVG - T375

Download (298.58KB)

You might also like

A.M.A. S.p.A. SKU: Ama Garden RS461 89502
Ama Spare Parts for Push Lawnmower RS461 We have the original Ama Garden Spare Parts for Lawnmower RS461 , the diagram, parts list and tool repair that help you need to get your tools running like new again. Fix Your Push Lawnmower...
A.M.A. S.p.A. SKU: 88603
Four-Stroke Engine Model Mvgt 375 For Lawnmower AMA Garden 4-Stroke Engine Model Mvgt375. For Lawnmower AMA Garden Max Torque 6.5/3200 Nm/Rpm Tecnical Features: - Description: 4 STROKE ENGINE MVG375 - Note: Air Cooling - Model: MVG375...
Last items in stock €253.38
A.M.A. S.p.A. SKU: RMGP65070200000
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Recoil starter Rotor for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €11.35
A.M.A. S.p.A. SKU: RDY0019
Tank Cap for Engines AMA MVG Genuine part AMA, Tank Cap (Small) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propelled Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine...
Usually Ships in: 7/10 Business Days Approx. €7.72
A.M.A. S.p.A. SKU: RMGV47B100000
Recoil Starter for Engine AMA MVG - T375 Genuine part AMA, Recoil Starter Assy for Engines AMA MVG - T375 - 88603. Part for the following products: -  Engines AMA MVG - T375 - 88603 - ...
Last items in stock €32.93
A.M.A. S.p.A. SKU: RMGP65051000001
Primer for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Primer for Self-Propelled Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT 52H - 84878 -...
Usually Ships in: 7/10 Business Days Approx. €6.55
A.M.A. S.p.A. SKU: RMGP65010104000
Lubricate Filtering Net for Self-Propelled Lawnmower AMA LT 52H Genuine parts AMA, Lubricate Filtering Net for Lawnmower AMA LT 52H - Motori MVG - T100 - T375 - T475 Parts for the following products: - Self-Propelled Lawnmower AMA LT...
AVAILABLE €0.61
A.M.A. S.p.A. SKU: RMGV43A100000
Carburetor Ass'y for Engine AMA MVG - T375 Genuine replacement part AMA, Carburetor Complete for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG -...
AVAILABLE €54.07
A.M.A. S.p.A. SKU: 60348
Engine Housing Gasket for Chainsaw AMA NBG 45.16 - 45.18 Genuine part AMA, Engine Housing Gasket for Chainsaw NBG 45.16 - NBG 45.18 - NBG 50.20 Part for the following products: - Chainsaw AMA NBG 45.16 – code 79975 - Chainsaw AMA NBG...
AVAILABLE €2.85
A.M.A. S.p.A. SKU: RMGP65050102000
Tank Cap Gasket for Engines AMA MVG Genuine part AMA, Tank Cap Gasket for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine AMA MVG - T100 -...
AVAILABLE €1.23
A.M.A. S.p.A. SKU: RMGP65020300000
Gasket Head Cover for Self Propeller Lawnmover AMA LT 52H Genuine part AMA, Gasket Head Cover for Engine AMA MVG - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Self...
AVAILABLE €5.15
A.M.A. S.p.A. SKU: RMGP65080100000
Camshaft Complete for Engine AMA MVG - T375 - T475 Genuine spare part AMA, Camshaft Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled...
Last items in stock €30.83
A.M.A. S.p.A. SKU: RMG251700500140
Tank Cap (Big) for Engines AMA MVG Genuine part AMA, Tank Cap (Big) for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: - ...
Usually Ships in: 7/10 Business Days Approx. €6.83
A.M.A. S.p.A. SKU: RMGP65070302000
Ignition Coil for Engines AMA MVG T375 - T475 - T575 Genuine replacement part AMA, Ignition Coil Cpl. for Engines AMA MVG T375 - T475 - T575 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products: - Engine...
Last items in stock €35.81
A.M.A. S.p.A. SKU: RMGV440001000
Air Filter (Sponge for Engine AMA MVG - T375 Genuine replacement part AMA, Air Filter (Sponge) for Engine AMA MVG - T375 - 88603. Part for the following products: - Engine AMA MVG - T375 - 88603 - Code : RMGV440001000
AVAILABLE €7.03
A.M.A. S.p.A. SKU: RMGP65060200000
Muffler Heat Insulation Gasket for Engines AMA MVG Genuine replacement part AMA, Muffler Heat Insulation Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following...
AVAILABLE €5.60
A.M.A. S.p.A. SKU: RMGP65030500000
Air Fiter Carburator Gasket for Engines AMA MVG Genuine replacement part AMA, Air Fiter Carburator Gasket for Engines AMA MVG T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H Art. 84878. Part for the following products:...
Last items in stock €6.59
A.M.A. S.p.A. SKU: RMGP65010402000
Conrod Complete for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Conrod Complete for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover...
Last items in stock €21.42
A.M.A. S.p.A. SKU: RMGP65010203000
Speed Controller Ass'y for Engine AMA MVG - T375 Genuine spare part AMA, Speed Controller Ass'y for Engine AMA MVG - T375 - 88603. Part for the following products: -  Engine AMA MVG - T375 - 88603...
Last items in stock €17.95
A.M.A. S.p.A. SKU: RMGP65050106000
Tank Cap Sponge Filter for Engines AMA MVG Genuine part AMA, Tank Cap Sponge Filter for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover AMA LT 52H. Part for the following products: - Self Propelled...
AVAILABLE €0.37
A.M.A. S.p.A. SKU: RMGP65040102002
Air Cleaner Case for Engines AMA MVG - T375 - T475 Genuine spare part AMA, Air Cleaner Case for Engines AMA MVG - T375 - 88603 - T475 - RMG380264000 - Self-Propelled Lownmover AMA LT 52H - 84878. Part for the following products: -...
AVAILABLE €21.06
A.M.A. S.p.A. SKU: RMGP70B01060000
Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 Genuine part AMA, Speed Regulator Plate for Engines AMA MVG - T100 - T375 - T475 - Self Propeller Lawnmover AMA LT 52H Art. 84878 Part for the following products: - Engine...
Last items in stock €6.83
A.M.A. S.p.A. SKU: RMGP65010202000
Sliding Sleeve for Engines AMA MVG Genuine part AMA, TSliding Sleeve for Engines AMA MVG - T100 - T375 - T475 - T575 - T675 - Self Propeller Lawnmover LT 52H Art. 84878 Part for the following products: -  Engine AMA MVG - T100 -...
AVAILABLE €4.95
A.M.A. S.p.A. SKU: RMGP65010210000
Oil Seal MM 25x38x7 for Self Propelled Lawnmover AMA LT 52H Genuine part AMA, Oil Seal MM 25x38x7 for Engine AMA MVG - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover...
on 7/10 Business Days Approx €5.81
A.M.A. S.p.A. SKU: RMGP65080600000
Inlet Valve for Engine AMA MVG T375 - T475 Genuine part AMA, Inlet Valve for Engine AMA MVG T375 - T475 - Self Propelled Lawnmover AMA LT 52H Art. 84878. Part for the following products: -  Self Propeller Lawnmover AMA LT 52H Art....
on 7/10 Business Days Approx €11.37
Comments (0)
