GGP Italy

Alpina ABR 45 Spare Parts

SKU: Alpina ABR45 - 283420074/A21
€2.10
VAT included

Alpina Brushcutter ABR 45 Spare Parts

ALPINA authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter ABR 45 (2021) 283420074/A21.

Alpina ABR 45 (2021) 283420074/A21
Alpina ABR 45 Spare Parts
  • Alpina ABR 45 Spare Parts
  • Alpina ABR 45 Spare Parts - Engine Drawing
  • Alpina ABR 45 Spare Parts - Transmission Drawing
GGP Italy

Alpina ABR 45 Spare Parts

SKU: Alpina ABR45 - 283420074/A21 Condition: New
€2.10
VAT included

Alpina Brushcutter ABR 45 Spare Parts

ALPINA authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter ABR 45 (2021) 283420074/A21.

Alpina ABR 45 (2021) 283420074/A21
settings 73 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

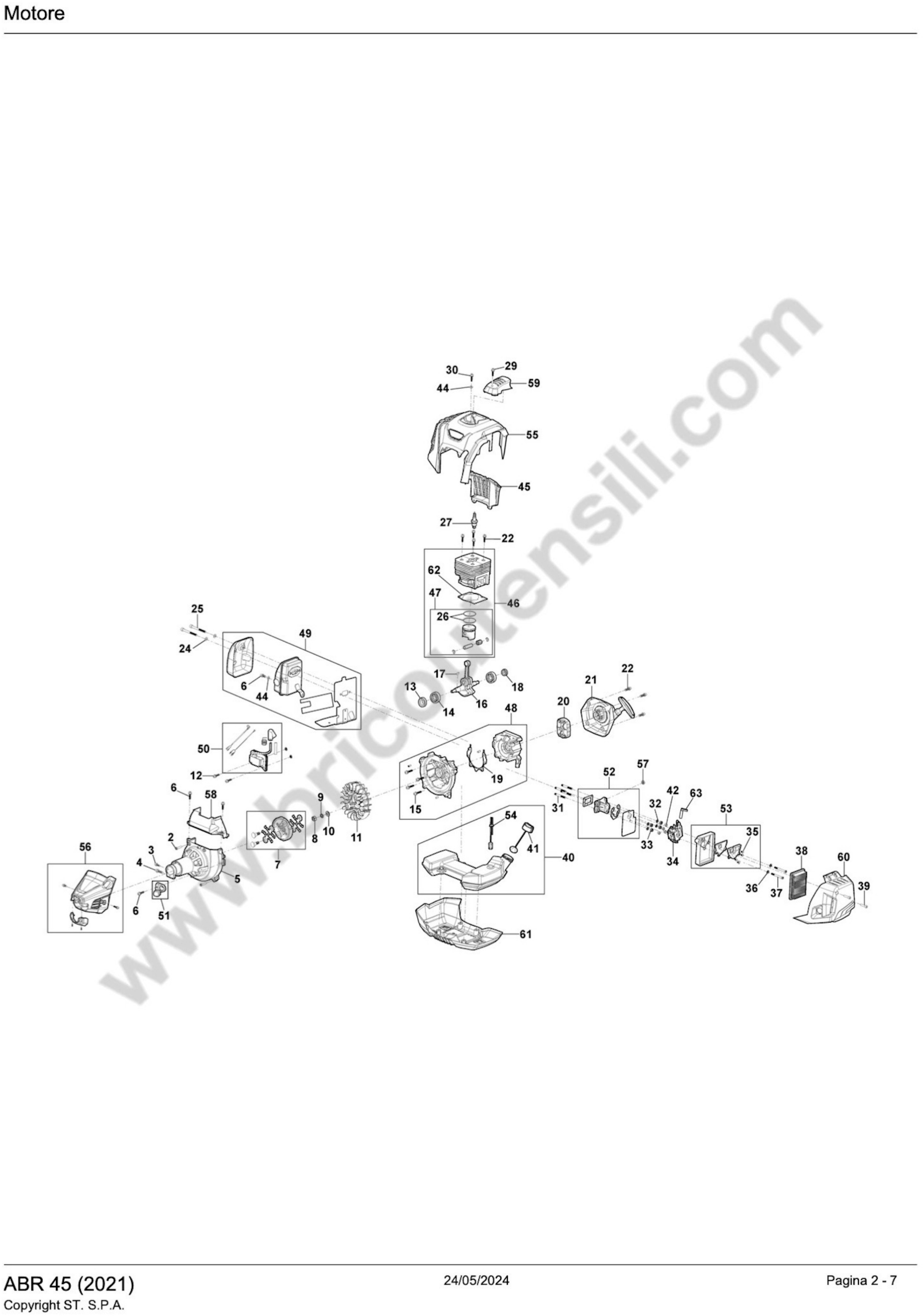

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 112760475/0 Screw €2.18
3
 photo_cameraImage coming soon 6981117 Screw €1.38
4
 photo_cameraImage coming soon 112728721/0 Screw €1.85
5
 photo_cameraImage coming soon 118805131/0 Transmission Support Assy €81.91
7
 photo_cameraImage coming soon 118805132/0 Clutch Assembly €40.33
8
 photo_cameraImage coming soon 112155010/0 Nut €2.24
9
 photo_cameraImage coming soon 112583500/0 Grower €1.64
10
 photo_cameraImage coming soon 122671653/0 Washer €1.59
11
 photo_cameraImage coming soon 118805565/0 Flywheel €22.63
13
 photo_cameraImage coming soon 118801197/0 Seal Ring €1.38
14
 photo_cameraImage coming soon 118805721/0 Bearing €9.63
15
 photo_cameraImage coming soon 2135130 Screw €1.58
16
 photo_cameraImage coming soon 118805134/0 Crankshaft €57.78
17
 photo_cameraImage coming soon 3151050 Key €6.73
18
 Seal Ring 12x22x7 for Brushcutter Alpina B 42 118801188/0 Seal Ring 12x22x7 for Brushcutter Alpina B 42 €2.13
19
 photo_cameraImage coming soon 118804079/0 Crankcase Gasket €1.64
20
 photo_cameraImage coming soon 118805135/0 Starter Cup €3.47
21
 photo_cameraImage coming soon 118805136/0 Starter Ass.y €22.90
22
 photo_cameraImage coming soon 6981118 Outfit, Screws €1.39
24
 photo_cameraImage coming soon 2312010 Flat washer €1.45
25
 photo_cameraImage coming soon 118801180/0 Screw €1.77
26
 Alpina ABR 45 Piston Ring 118805137/0 Alpina ABR 45 Piston Ring €3.53
27
 photo_cameraImage coming soon 118805138/0 Sbc 646-656 - Bpmr7a Spark Plug €14.05
29
 photo_cameraImage coming soon 112760475/0 Screw €2.18
30
 photo_cameraImage coming soon 112760475/0 Screw €2.18
31
 photo_cameraImage coming soon 118805168/0 M5x44 Dowel Screw €1.59
32
 photo_cameraImage coming soon 112581500/0 Grower €1.74
33
 photo_cameraImage coming soon 112154320/0 Nut €1.68
34
 photo_cameraImage coming soon 118805567/0 Carburetor €65.82
35
 Torx Screw M4x10 for Chainsaw Alpina AC 42 112726389/0 Torx Screw M4x10 for Chainsaw Alpina AC 42 €1.74
36
 photo_cameraImage coming soon 9699-0087-02 Washer €2.12
37
 Carburator Torx Screw M5x55 Brushcutters Alpina 2135250 Carburator Torx Screw M5x55 Brushcutters Alpina €2.10
38
 photo_cameraImage coming soon 118805140/0 Air Filter €9.09
39
 photo_cameraImage coming soon 2135060 Screw €1.44
40
 photo_cameraImage coming soon 118805141/0 Fuel Tank Assembly €23.05
41
 photo_cameraImage coming soon 118805142/0 Fuel Tank Cap Assembly €4.40
42
 photo_cameraImage coming soon 112291000/0 Nut €1.63
44
 photo_cameraImage coming soon 9699-0087-02 Washer €2.12
45
 photo_cameraImage coming soon 118805563/0 Guard €4.14
46
 photo_cameraImage coming soon 118805104/1 Cylinder-Piston Kit €123.49
47
 Alpina ABR 45 Piston Kit 118805106/0 Alpina ABR 45 Piston Kit €32.83
48
 photo_cameraImage coming soon 118805108/0 Sbc 646-656 Crankcase Kit €47.04
49
 photo_cameraImage coming soon 118805109/1 Sbc 646-656 Muffler Kit €53.75
50
 photo_cameraImage coming soon 118805566/0 Ignition Coil €59.40
51
 photo_cameraImage coming soon 118805111/0 Sbc 646-656 Prime Bulb Kit €11.65
52
 photo_cameraImage coming soon 118805112/1 Intake manifold €19.81
53
 photo_cameraImage coming soon 118805113/1 Sbc 646-656 Air Filter Base Kit €15.80
54
 photo_cameraImage coming soon 118805114/1 Sbc 646-656 Fuel Pipe Kit €11.51
55
 photo_cameraImage coming soon 118805564/0 Cylinder cover, GRAY €18.75
56
 photo_cameraImage coming soon 118805116/0 Sbc 646-656 Trans. Supp. Cover Kit €14.12
57
 photo_cameraImage coming soon 112292100/0 Nut €1.58
58
 photo_cameraImage coming soon 118805166/0 Sbc 646-656 Air Guide Cover €1.75
59
 photo_cameraImage coming soon 118805167/0 Spark Plug Cap Cover €1.99
60
 photo_cameraImage coming soon 118805169/0 Gray Air Filter Cover €7.36
61
 photo_cameraImage coming soon 118805170/0 Fuel Tank Lower Cover €13.79
62
 photo_cameraImage coming soon 118805307/0 Cylinder gasket €1.38
63
 photo_cameraImage coming soon 118805718/0 Choke lever €7.09
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

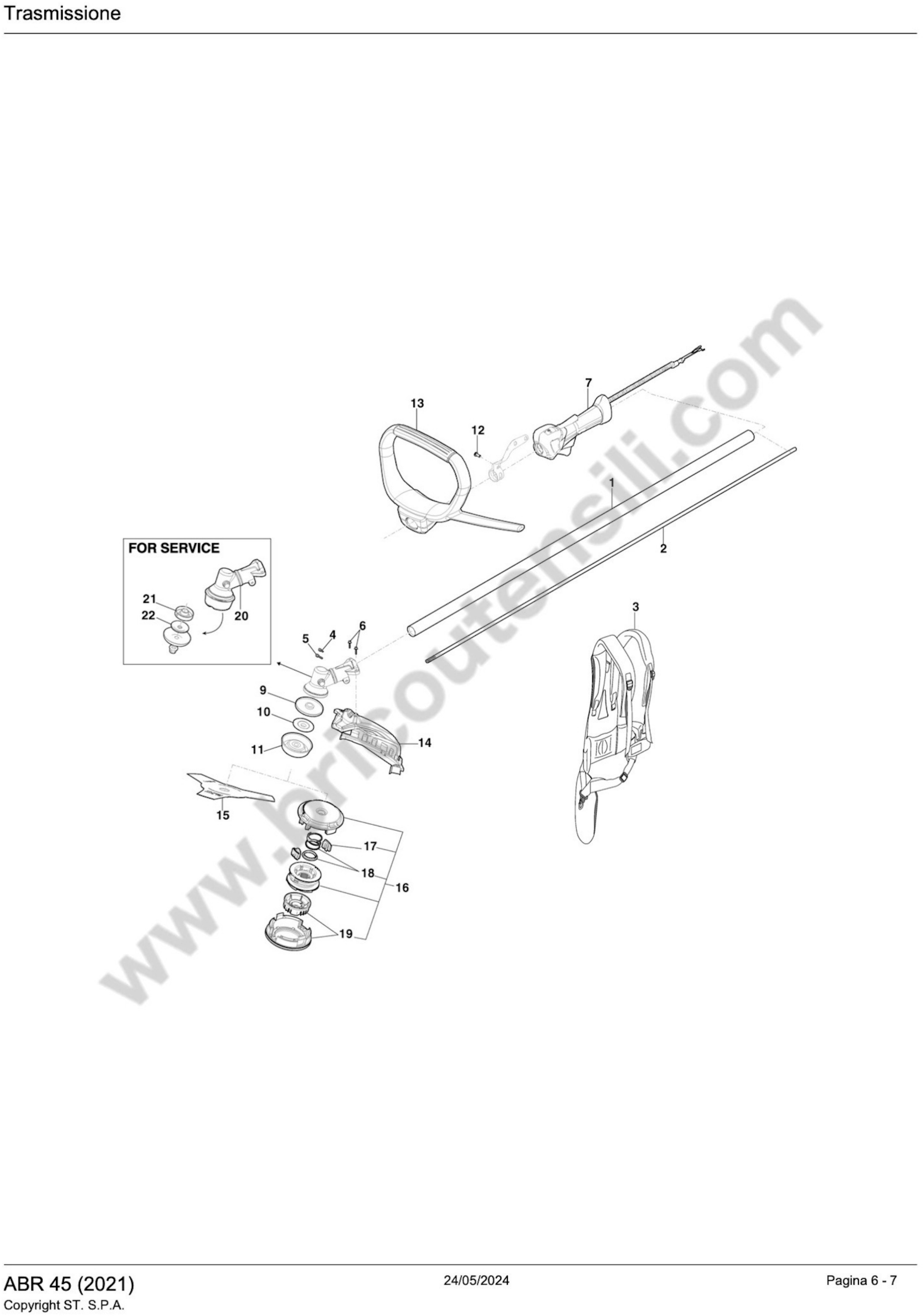

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118805081/0 Aluminium Shaft Assembly D. 28mm €57.78
2
 photo_cameraImage coming soon 118805086/0 Transmission Shaft D. 8mm €38.99
3
 photo_cameraImage coming soon 1911-9259-01 Harness €57.01
4
 Screw 112727796/0 Screw €1.74
5
 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina 2132180 Screw TCCE M6X25 for Chainsaw - Brushcutters Alpina €1.53
6
 photo_cameraImage coming soon 112728721/0 Screw €1.85
7
 photo_cameraImage coming soon 118805087/0 Sbc 646-656 Rear Handle Assembly €30.95
9
 photo_cameraImage coming soon 118805562/0 Upper ring Nut €5.48
10
 photo_cameraImage coming soon 118805561/0 Lower ring Nut €3.33
11
 photo_cameraImage coming soon 118805560/0 Stabilizer Cup €4.40
12
 Screw 112727796/0 Screw €1.74
13
 photo_cameraImage coming soon 118805088/0 Front Handle Assembly €26.54
14
 photo_cameraImage coming soon 118805080/0 Guard Assembly €16.34
15
 photo_cameraImage coming soon 1911-9262-01 3T Blade €5.94
16
 photo_cameraImage coming soon 1911-9229-01 Nylon Head Easy Work 130mm €21.44
17
 photo_cameraImage coming soon 118804890/0 line retainer €5.70
18
 photo_cameraImage coming soon 118805262/0 Spring €5.48
19
 photo_cameraImage coming soon 118805264/0 Cover & Knob €10.71
20
 photo_cameraImage coming soon 118805089/0 Gearbox Assembly D=28 €116.78
21
 photo_cameraImage coming soon 118805093/0 Upper Ring Flange €8.83
22
 photo_cameraImage coming soon 118805094/0 Lower Ring Flange €5.34

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Brushcutter ABR 45 Spare Parts

ALPINA authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter ABR 45 (2021) 283420074/A21.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Alpina ABR 45 (2021) 283420074/A21
ALPINA ABR 45 (2021) 283420074/A21
Motore Pag.1
# Part Num. Description
2 112760475/0 Screw
3 6981117 Screw
4 112728721/0 Screw
5 118805131/0 Transmission Support Assy
7 118805132/0 Clutch Assembly
8 112155010/0 Nut
9 112583500/0 Grower
10 122671653/0 Washer
11 118805565/0 Flywheel
13 118801197/0 Oil Seal TC15X30X7
14 118805721/0 Bearing
15 2135130 Screw
16 118805134/0 Crankshaft
17 3151050 Flywheel Key
18 118801188/0 Oil Seal
19 118804079/0 Crankcase Gasket
20 118805135/0 Starter Cup
21 118805136/0 Starter Ass.y
22 6981118 Screw Outfit
24 2312010 Washer
25 118801180/0 Screw
26 118805137/0 Piston Ring
27 118805138/0 Sbc 646-656 - Bpmr7a Spark Plug
29 112760475/0 Screw
30 112760475/0 Screw
31 118805168/0 M5x44 Dowel Screw
32 112581500/0 Washer M5
33 112154320/0 Nut
34 118805567/0 Carburetor
35 112726389/0 Screw
36 9699-0087-02 Washer
37 2135250 Screw
38 118805140/0 Air Filter
39 2135060 Screw
40 118805141/0 Fuel Tank Assembly
41 118805142/0 Tank cap assembly
42 112291000/0 Nut
44 9699-0087-02 Washer
45 118805563/0 Guard
46 118805104/1 Cylinder-Piston Kit
47 118805106/0 Piston Kit
48 118805108/0 Sbc 646-656 Crankcase Kit
49 118805109/1 Sbc 646-656 Muffler Kit
50 118805566/0 Ignition Coil
51 118805111/0 Sbc 646-656 Prime Bulb Kit
52 118805112/1 Intake manifold
53 118805113/1 Sbc 646-656 Air Filter Base Kit
54 118805114/1 Sbc 646-656 Fuel Pipe Kit
55 118805564/0 Cylinder cover, GRAY
56 118805116/0 Sbc 646-656 Trans. Supp. Cover Kit
57 112292100/0 Nut
58 118805166/0 Sbc 646-656 Air Guide Cover
59 118805167/0 Spark Plug Cap Cover
60 118805169/0 Gray Air Filter Cover
61 118805170/0 Fuel Tank Lower Cover
62 118805307/0 Cylinder gasket
63 118805718/0 Choke lever
ALPINA ABR 45 (2021) 283420074/A21
Trasmission Pag.2
# Part Num. Description
1 118805081/0 Aluminium Shaft Assembly D. 28mm
2 118805086/0 Transmission Shaft D. 8mm
3 1911-9259-01 Double Harness Elite
4 112727796/0 Screw
5 2132180 Screw
6 112728721/0 Screw
7 118805087/0 Sbc 646-656 Rear Handle Assembly
9 118805562/0 Upper ring Nut
10 118805561/0 Lower ring Nut
11 118805560/0 Stabilizer Cup
12 112727796/0 Screw
13 118805088/0 Front Handle Assembly
14 118805080/0 Guard Assembly
15 1911-9262-01 3T Blade
16 1911-9229-01 Nylon Head Easy Work 130mm
17 118804890/0 Line Retainer
18 118805262/0 Spring
19 118805264/0 Cover & Knob
20 118805089/0 Gearbox Assembly D=28
21 118805093/0 Upper Ring Flange
22 118805094/0 Lower Ring Flange
