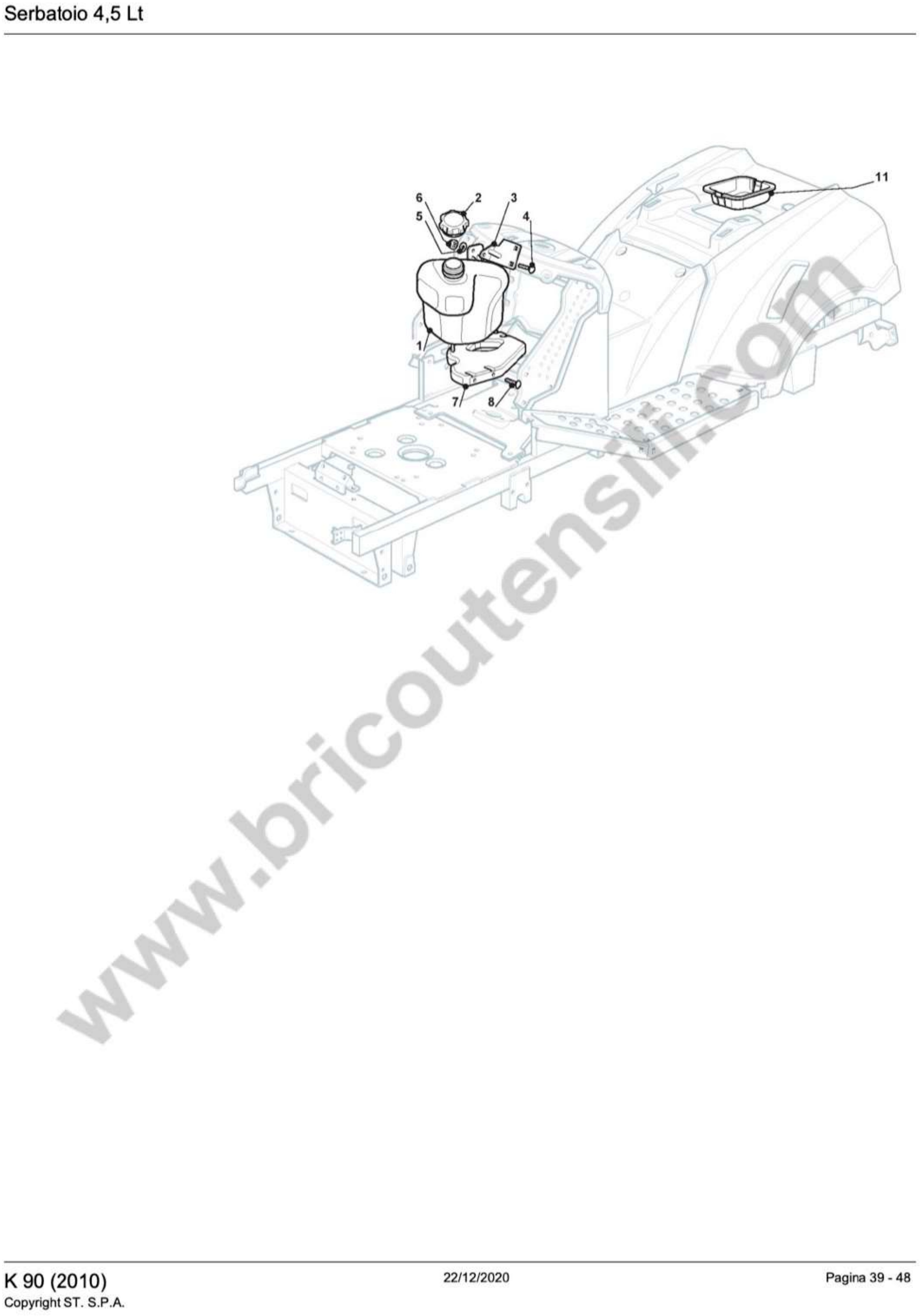

photo_cameraImage coming soon | 325735124/0 Fuel Tank | €54.11 | |
|
2
|
photo_cameraImage coming soon | 125795001/1 TANK CAP FOR TM92.14 | €13.06 | |
|
3
|
photo_cameraImage coming soon | 325785291/0 Upper Fuel Tank Support | €1.50 | |
|
4
|
photo_cameraImage coming soon | 112789195/0 Screw | €1.58 | |
|
5
|
photo_cameraImage coming soon | 112581500/0 Grower | €1.74 | |
|
6
|
photo_cameraImage coming soon | 112437503/0 Axle Fix Plate | €1.44 | |
|
7
|
photo_cameraImage coming soon | 325785289/0 Battery Support | €2.50 | |
|
8
|
photo_cameraImage coming soon | 112735403/0 Screw | €1.62 | |
|
11
|
photo_cameraImage coming soon | 325207176/0 Tank Cover | €6.44 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
photo_cameraImage coming soon | 125961201/0 Steering wheel | €45.34 | |
|
2
|
photo_cameraImage coming soon | 325120230/0 Bearing cover | €2.71 | |
|
11
|
photo_cameraImage coming soon | 325547033/1 Seat Plate | €33.64 | |
|
12
|
photo_cameraImage coming soon | 125430223/2 Adjusting spring | €5.50 | |
|
13
|
photo_cameraImage coming soon | 112789000/0 Screw | €1.77 | |
|
14
|
photo_cameraImage coming soon | 112154330/0 Nut | €1.74 | |
|
15
|
photo_cameraImage coming soon | 327063021/1 Micro Seat Operation Cam | €2.04 | |
|
16
|
photo_cameraImage coming soon | 112789100/0 Bolt M6x16 | €1.44 | |
|
17
|
photo_cameraImage coming soon | 112523020/0 Washer | €1.74 | |
|
18
|
photo_cameraImage coming soon | 112154330/0 Nut | €1.74 | |
|
19
|
photo_cameraImage coming soon | 125722470/0 Seat | €102.31 | |
|
20
|
photo_cameraImage coming soon | 112793101/0 SCREW X PM4850S | €1.62 | |
|
21
|
photo_cameraImage coming soon | 112583500/0 Grower | €1.64 | |
|
22
|
photo_cameraImage coming soon | 112523060/0 Washer | €1.53 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.

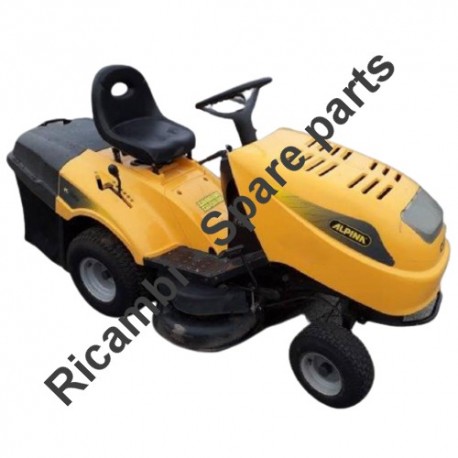

and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Tractor ALPINA K 90 (2010) 2T0320221/10.
In the following table, look for the model of the Snow Throwers and the respective parts of the code.
| ALPINA K 90 (2010) 2T0320221/10 | ||

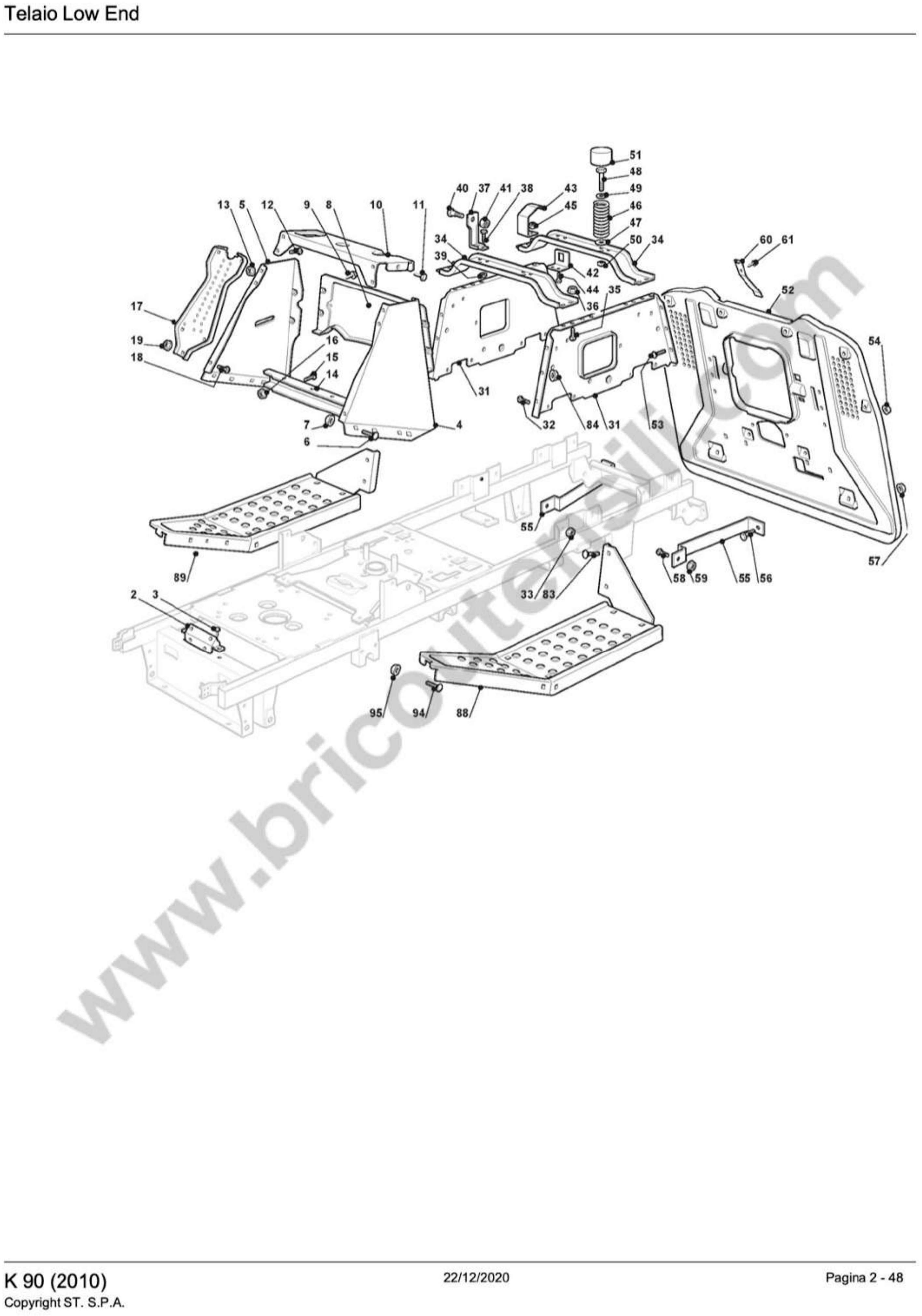

| Low End Chassis Pag.1 | ||
| 2 | 382774253/0 | Muffler Bracket Nj92 |
| 3 | 112735121/0 | Screw |
| 4 | 325785243/1 | Left Dashboard Support |
| 5 | 325785245/0 | Right Dashboard Support |
| 6 | 112818690/0 | Screw M8 X 20 |
| 7 | 112293201/0 | Hexagon Nut M8 |
| 8 | 382785151/1 | Painted Rear Bonnet Supp.Nj92 |
| 9 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |
| 10 | 325785255/0 | Central Dashboard Support |
| 11 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |
| 12 | 112815200/0 | Screw Ttdq M6 X 16 |
| 13 | 112292102/0 | Hexagon Nut M6 |
| 14 | 325785241/0 | Battery Support |
| 15 | 112815200/0 | Screw Ttdq M6 X 16 |
| 16 | 112292102/0 | Hexagon Nut M6 |
| 17 | 382785153/1 | Front Dashboard Support |
| 18 | 112815200/0 | Screw Ttdq M6 X 16 |
| 19 | 112292102/0 | Hexagon Nut M6 |
| 31 | 325785249/0 | Seat Support |
| 32 | 112815200/0 | Screw Ttdq M6 X 16 |
| 33 | 112292102/0 | Hexagon Nut M6 |
| 34 | 325785257/0 | Seat Support To 31-August-2008 |
| 34 | 325785257/1 | Seat Support From 01-September-2008 |
| 35 | 112818690/0 | Screw M8 X 20 |
| 36 | 112293201/0 | Hexagon Nut M8 |
| 37 | 325755039/0 | Bracket |
| 38 | 112792611/0 | Screw Te M8 X 16 |
| 39 | 112293201/0 | Hexagon Nut M8 |
| 40 | 122524970/2 | Seat Fulcrum Pin |
| 41 | 112155010/0 | Self-Locking Nut M8 |
| 42 | 325755043/0 | Bracket |
| 43 | 325430253/0 | Spring |
| 44 | 112789000/0 | Screw Te M5 X 12 |
| 45 | 112154330/0 | Low Self-Locking Nut M5 |
| 46 | 125430257/0 | Spring |
| 47 | 112523070/0 | Washer |
| 48 | 112760515/0 | Screw |
| 49 | 122671653/0 | Washer |
| 50 | 112360425/0 | Square Nut M8 |
| 51 | 325122000/2 | Protection Cap |
| 52 | 382547041/0 | Back Plate |
| 53 | 112792611/0 | Screw Te M8 X 16 |
| 54 | 112293201/0 | Hexagon Nut M8 |
| 55 | 325650119/0 | Plate reinforcement |
| 56 | 112792611/0 | Screw Te M8 X 16 |
| 57 | 112293201/0 | Hexagon Nut M8 |
| 58 | 112818690/0 | Screw M8 X 20 |
| 59 | 112293201/0 | Hexagon Nut M8 |
| 60 | 127430554/0 | Spring |
| 61 | 112735110/0 | Screw |
| 83 | 112792611/0 | Screw Te M8 X 16 |
| 84 | 112293201/0 | Hexagon Nut M8 |
| 88 | 382510079/0 | Left Footboard Support |
| 89 | 382510077/0 | Right Footboard Support |
| 94 | 112815200/0 | Screw Ttdq M6 X 16 |
| 95 | 112292102/0 | Hexagon Nut M6 |

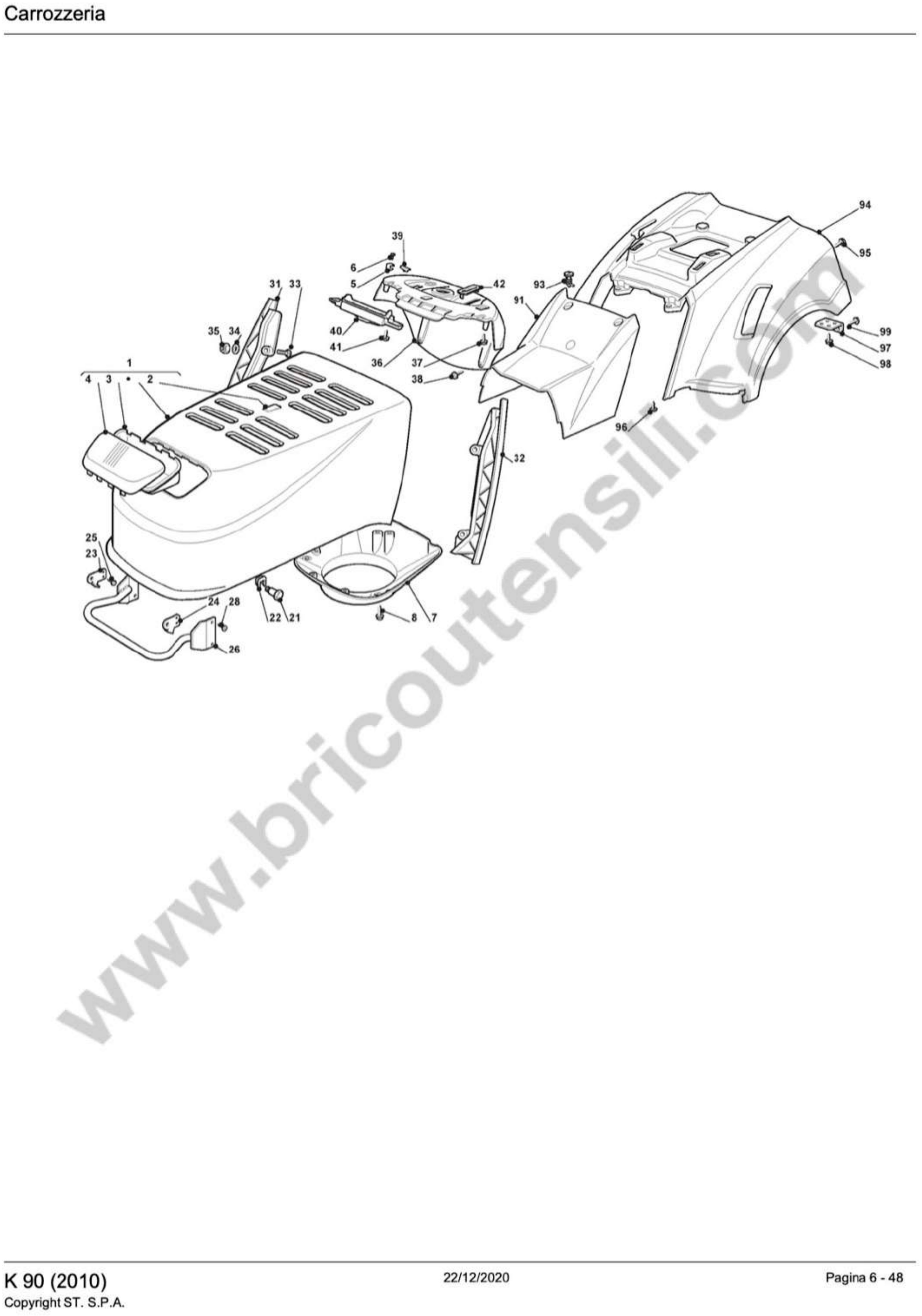

| Chassis Pag.2 | ||
| 1 | 182076832/0 | Yellow Bonnet |
| 2 | 125547104/0 | Yellow plate |
| 3 | 125485001/0 | Headlights Support |
| 4 | 125410865/0 | Grill |
| 5 | 125430215/0 | Spring Hook To 31-August-2010 |
| 5 | 125430215/1 | Spring Hook From 01-September-2010 |
| 6 | 112728450/0 | Screw |
| 7 | 325108028/0 | Conveyor |
| 8 | 112728686/0 | Screw |
| 21 | 125510039/0 | Pin Plate D=8 |
| 22 | 112436050/0 | Plate |
| 23 | 325547089/0 | Plate To 31-August-2010 |
| 23 | 325547089/1 | Right plate From 01-September-2010 |
| 24 | 325547091/0 | Left Plate To 31-August-2010 |
| 24 | 325547091/1 | Left Plate From 01-September-2010 |
| 25 | 112731580/0 | Screw |
| 26 | 382869031/0 | Silenc.Protect Pipe Assy |
| 28 | 112734995/0 | Screw |
| 31 | 325599008/0 | Right Dashboard Profile |
| 32 | 325599009/0 | Left Footboard Support |
| 33 | 112815221/0 | Screw |
| 34 | 112521330/0 | Washer |
| 35 | 112154510/0 | Nut |
| 36 | 325120189/0 | Dashboard |
| 37 | 112728440/0 | Screw |
| 38 | 112735402/0 | Screw |
| 39 | 125260000/0 | Anti-Vibration Rubber Grommet |
| 40 | 325600074/0 | Pc Board Cover |
| 41 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 42 | 325547181/0 | Plate |
| 91 | 325110365/0 | Central Cover, Yellow |
| 93 | 125580020/0 | Belt Guide Peg |
| 94 | 325110323/0 | Wheels Cover [Yellow] |
| 95 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 96 | 112735402/0 | Flanged Hex-Head Screw D=6 X 18 |
| 97 | 325755041/0 | Angle Bracket |
| 98 | 112728686/0 | Plastite Screw M5 X 16 |
| 99 | 112735110/0 | Flanged Self-Tap Screw 4.8 X 13 |

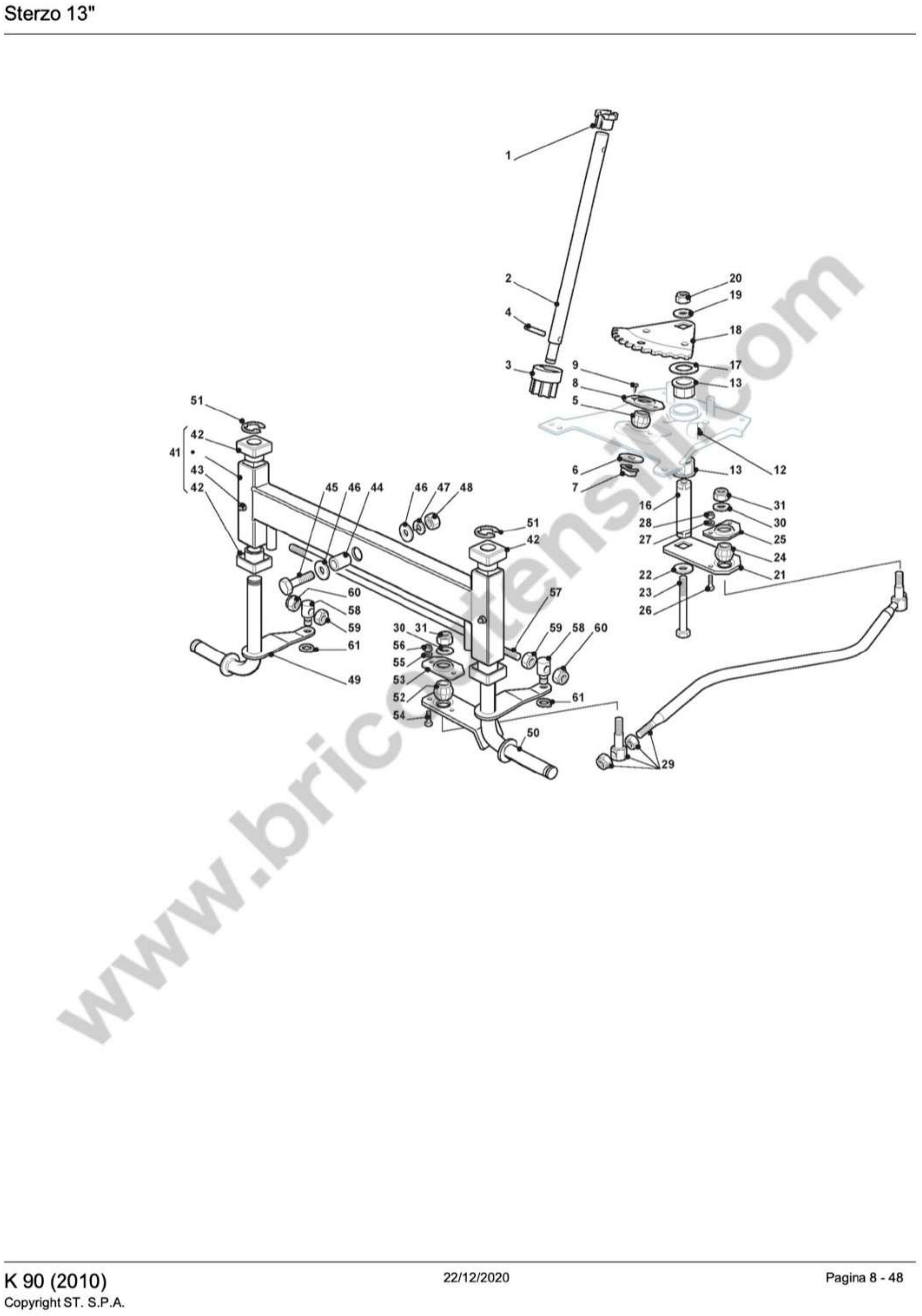

| Steering 13" Pag.3 | ||
| 1 | 325038004/0 | Bushing |
| 2 | 125520006/1 | Steering Column |
| 3 | 127570050/0 | Pinion |
| 4 | 112622650/0 | Dowel Pin |
| 5 | 325743000/0 | Joint |
| 6 | 112521370/0 | Washer |
| 7 | 112436030/0 | Plate |
| 8 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 8 | 325785213/1 | Steering Joint Support From 01-September-2010 |
| 9 | 112729601/0 | Screw To 31-August-2003 |
| 9 | 112729601/1 | Screw From 01-September-2003 |
| 12 | 112379511/0 | Straight Grease Nipple M6 X 1 |
| 13 | 325040624/0 | Steering Bush |
| 16 | 125510092/0 | Pin |
| 17 | 125670019/0 | Anti-Friction Washer 40 X 19.5 X 0.8 |
| 18 | 325735513/0 | Steering Quadrant |
| 19 | 112523080/0 | Washer M10 11 X 30 X 2.5 |
| 20 | 112155020/0 | Self-Binding Nut M10 |
| 21 | 325318205/0 | Steering Control Lever |
| 22 | 112523080/0 | Washer M10 11 X 30 X 2.5 |
| 23 | 112794985/0 | Screw M10 X 120 |
| 24 | 325743000/0 | Joint |
| 25 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 25 | 325785213/1 | Steering Joint Support From 01-September-2010 |
| 26 | 112791213/0 | Screw To 31-August-2003 |
| 26 | 112791213/1 | Screw From 01-September-2003 |
| 27 | 112521330/0 | Washer M6 6.4 X 12 X 1.6 |
| 28 | 112154510/0 | Low Self-Locking Nut M6 |
| 29 | 382000538/1 | Steering Rod Assembly 13" |
| 30 | 112523070/0 | Washer M8 8.5 X 32 X 2.5 |
| 31 | 112155010/0 | Self-Locking Nut M8 |
| 41 | 382034021/1 | Front Axle Assembly 13" |
| 42 | 325040622/0 | Square Bush |
| 43 | 112379511/0 | Straight Grease Nipple M6 X 1 |
| 44 | 125160016/0 | Equalizer Spacer To 31-August-2013 |
| 44 | 125160016/1 | Equalizer Spacer From 01-September-2013 |
| 45 | 112692695/0 | Hex-Head Screw M12 X 60 |
| 46 | 112523100/0 | Washer M12 14 X 36 X 3 |
| 47 | 112587100/0 | Washer M12 |
| 48 | 112295300/0 | Hexagon Nut M12 |
| 49 | 382230363/0 | Right Stub Axle |
| 50 | 382230365/0 | Left stub axle |
| 51 | 112001000/0 | Circlip Id=15 Th=1.5 |
| 52 | 325743000/0 | Steering Joint Support |
| 53 | 325785213/0 | Steering Joint Support To 31-August-2010 |
| 53 | 325785213/1 | Steering Joint From 01-September-2010 |
| 54 | 112791213/0 | Screw To 31-August-2003 |
| 54 | 112791213/1 | Screw From 01-September-2003 |
| 55 | 112521330/0 | Washer M6 6.4 X 12 X 1.6 |
| 56 | 112154510/0 | Low Self-Locking Nut M6 |
| 57 | 125840022/0 | Tie Rod |
| 58 | 125510096/0 | Tie Rod Pin |
| 59 | 112295200/0 | Hexagon Nut M10 |
| 60 | 112156602/0 | Low Self-Locking Nut M10 |
| 61 | 112000956/0 | Circlip D=9 |

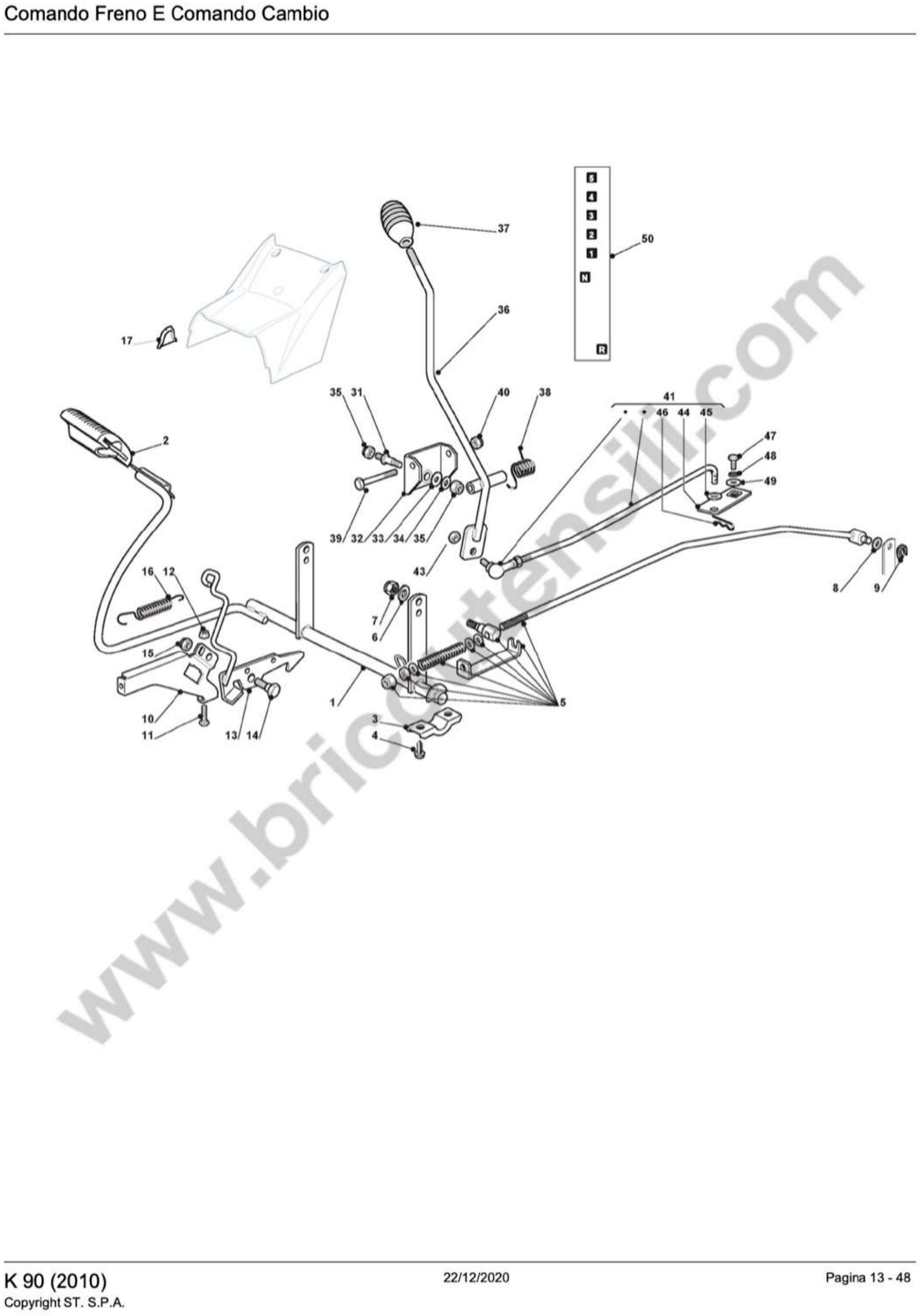

| Brake Control - Gear Control Pag.4 | ||
| 1 | 382500027/1 | Clutch/Brake Pedal Assembly |
| 2 | 125110269/0 | Brake Pedal Cover |
| 3 | 327546015/1 | Axle Fix Plate |
| 4 | 112729601/0 | Self-Tap Screw Te Fl 5.5 X 16 To 31-August-2003 |
| 4 | 112729601/1 | Self-Tap Screw From 01-September-2003 |
| 5 | 382000541/1 | Brake Control Rod |
| 6 | 112523040/0 | Washer |
| 7 | 112154510/0 | Nut |
| 8 | 112521350/0 | Washer |
| 9 | 112436050/0 | Plate |
| 10 | 325785261/0 | Support |
| 11 | 112815200/0 | Screw Ttdq M6 X 16 |
| 12 | 112292102/0 | Nut |
| 13 | 382000531/0 | Parking Brake Lever |
| 14 | 122524970/2 | Seat Fulcrum Pin |
| 15 | 112155000/0 | Nut |
| 16 | 125430213/0 | Spring |
| 17 | 325207172/0 | Plate |
| 31 | 125510035/0 | Pin |
| 32 | 382774247/0 | Gear Control Clamp |
| 33 | 322672152/0 | Anti-Friction Washer 8.2 X 30 X 0.8 |
| 34 | 112523060/0 | Washer |
| 35 | 112155010/0 | Self-Locking Nut M8 |
| 36 | 382318215/0 | Gear Control Lever |
| 37 | 125394510/0 | Control Knob [Black] |
| 38 | 125430258/0 | Spring |
| 39 | 112692050/0 | Screw |
| 40 | 112155000/0 | Nut |
| 41 | 382000545/0 | Change Gear Joint Rod Ass.Y Nj92/98 Dana |
| 43 | 112155000/0 | Nut |
| 44 | 325318169/0 | Lever |
| 45 | 112521340/0 | Washer |
| 46 | 124487997/0 | Clip D=1.8 |
| 47 | 112735520/0 | Screw |
| 48 | 112540040/0 | Washer |
| 49 | 322680009/0 | Washer |
| 50 | 114361447/0 | Label |

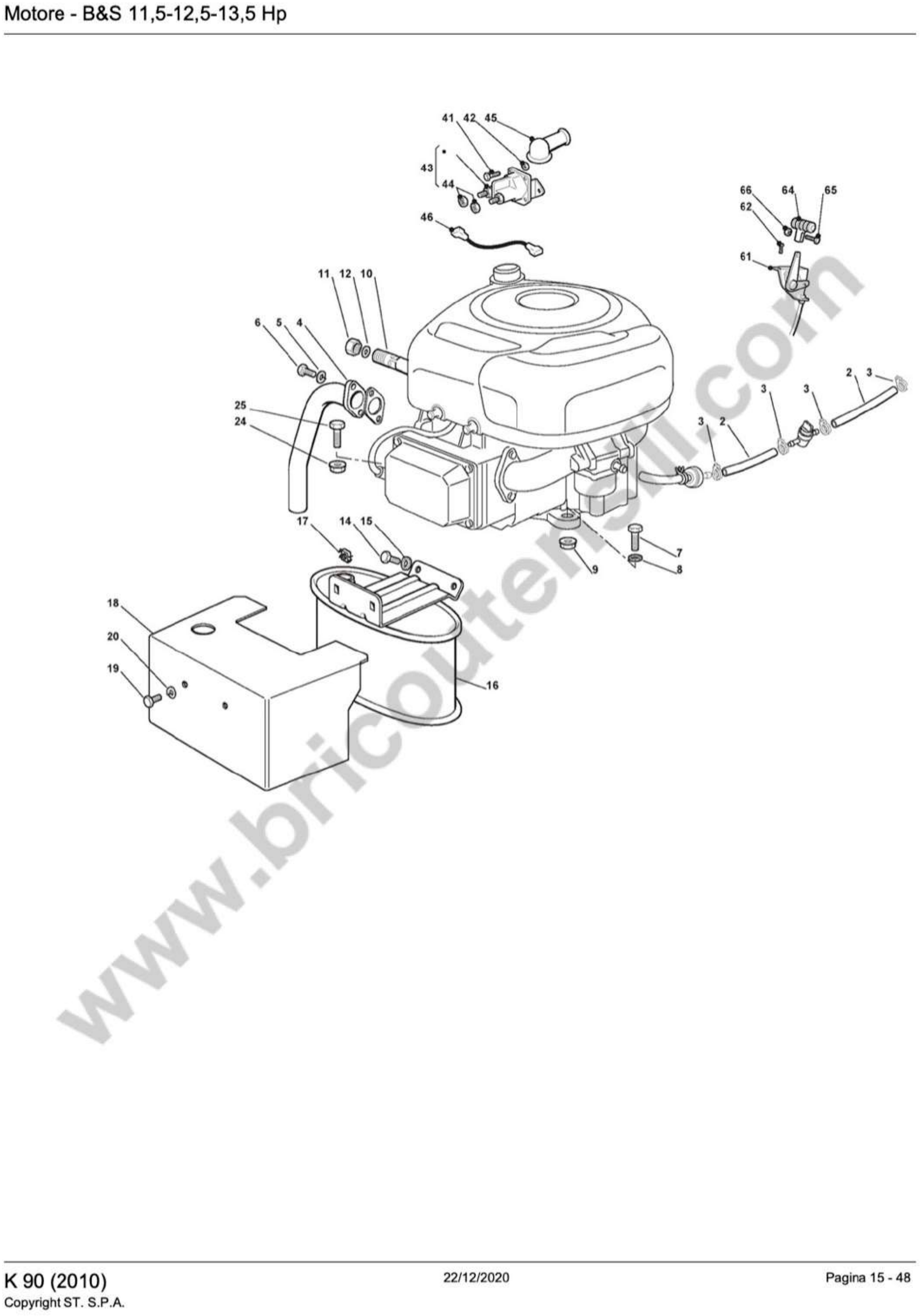

| Engine B&S 11,5-12,5-13,5 Hp Pag.5 | ||
| 2 | 325869057/0 | Fuel Tube L=1000 |
| 3 | 118375051/1 | Cable Clip |
| 4 | 118738224/0 | Exhaust Fitting Pipe |
| 5 | 112583500/0 | Washer M8 |
| 6 | 112735530/0 | Screw |
| 7 | 112691115/0 | Screw |
| 8 | 112540260/0 | Washer M8 |
| 9 | 112154210/0 | Nut |
| 10 | 125598050/0 | Oil Discharge Tube |
| 11 | 118737849/0 | Oil Drain Plug |
| 12 | 118401001/1 | Oil Drain Seal |
| 14 | 112793102/0 | Screw |
| 15 | 112540260/0 | Washer M8 |
| 16 | 182750010/0 | Muffler |
| 17 | 112360425/0 | Square Nut M8 |
| 18 | 382598009/1 | Muffler Guard To 31-August-2003 |
| 18 | 382598009/2 | Muffler Guard From 01-September-2003 |
| 19 | 112792611/0 | Screw Te M8 X 16 |
| 20 | 112583500/0 | Washer M8 |
| 24 | 112154210/0 | Nut |
| 25 | 112691100/0 | Screw |
| 41 | 112791213/0 | Screw To 31-August-2003 |
| 41 | 112791213/1 | Screw From 01-September-2003 |
| 42 | 112292102/0 | Nut |
| 43 | 118736110/0 | Starter Relay |
| 44 | 112360352/0 | Nut |
| 45 | 118564864/1 | Protection Cap |
| 46 | 125065017/0 | Relay cable Adv. |
| 61 | 182000200/1 | Throttle cable |
| 62 | 125943012/0 | Screw |
| 64 | 125394501/0 | Knob |
| 65 | 112726388/0 | Screw |
| 66 | 112290800/0 | Nut |

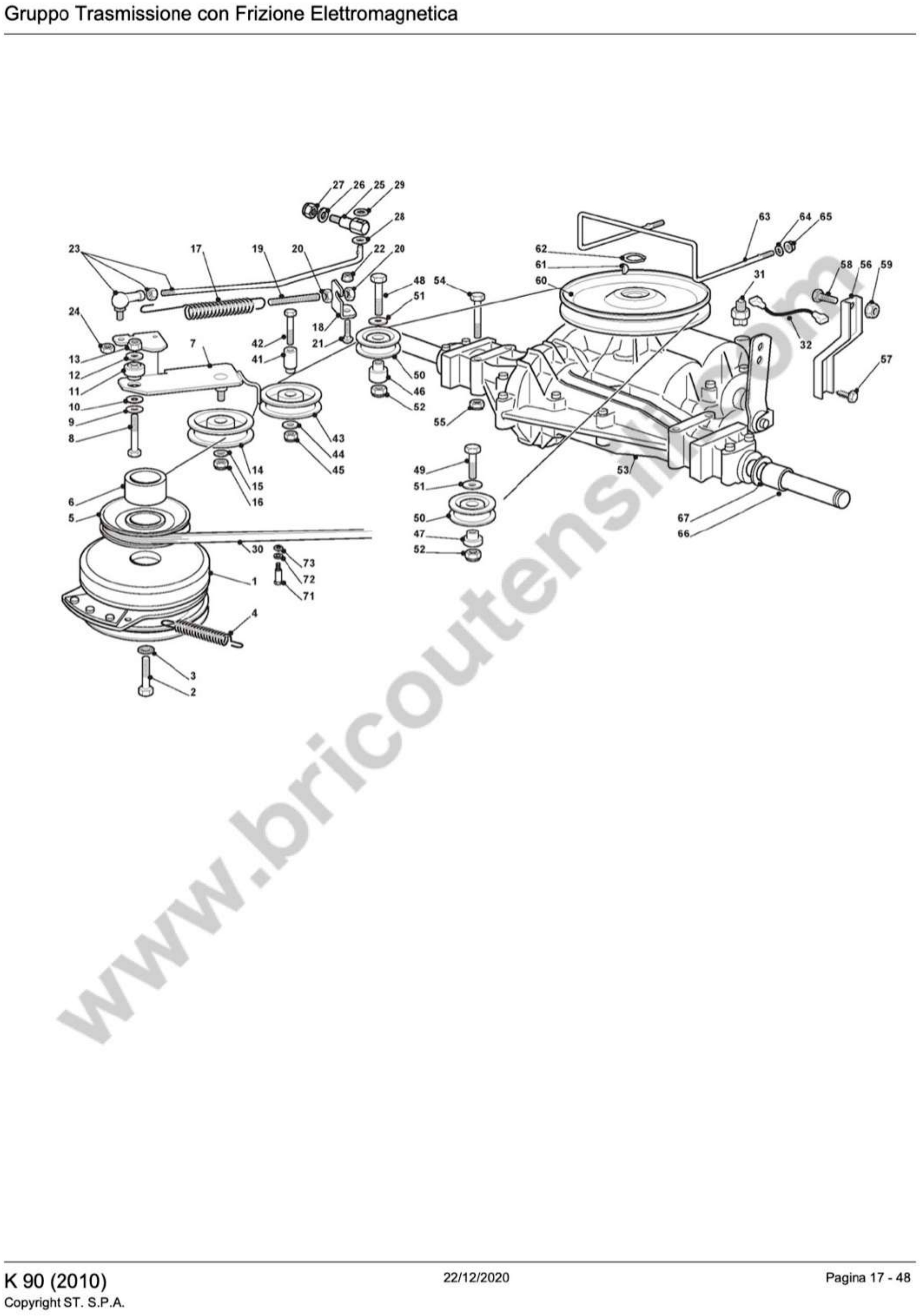

| Drive Gear - Clutch Pag.6 | ||
| 1 | 118399061/0 | Clutch To 31-August-2007 |
| 1 | 118399063/0 | Clutch From 01-September-2007 |
| 2 | 112737320/0 | Screw |
| 3 | 112543000/0 | Washer |
| 4 | 122430216/0 | Tension Spring To 31-August-2010 |
| 4 | 122430216/1 | Tension Spring From 01-September-2010 |
| 5 | 125601567/0 | Pulley |
| 6 | 125160021/0 | Spacer |
| 7 | 382318217/0 | Lever |
| 8 | 112691115/0 | Screw |
| 9 | 112523060/0 | Washer |
| 10 | 327670055/0 | Antifriction Washer |
| 11 | 125510087/0 | Pin |
| 12 | 112523060/0 | Washer |
| 13 | 112155000/0 | Nut |
| 14 | 125601554/0 | Pulley |
| 15 | 112523060/0 | Washer |
| 16 | 112155000/0 | Nut |
| 17 | 125430260/0 | Spring |
| 18 | 325755049/0 | Bracket |
| 19 | 125840005/0 | Tie rod |
| 20 | 112293200/0 | Nut |
| 21 | 112818690/0 | Screw M8 X 20 |
| 22 | 112293201/0 | Hexagon Nut M8 |
| 23 | 382820013/0 | Tie rod Ass'y |
| 24 | 112155000/0 | Nut |
| 25 | 125510063/0 | Pin |
| 26 | 325670011/0 | Antifriction Washer |
| 27 | 112155000/0 | Nut |
| 28 | 112521350/0 | Washer |
| 29 | 112604899/0 | Crown Fastener |
| 30 | 135062012/0 | Belt |
| 31 | 119410610/0 | Micro Switch |
| 32 | 125065026/0 | Cable |
| 41 | 125510100/0 | Pin |
| 42 | 112691800/0 | Screw |
| 43 | 125601555/0 | Pulley |
| 44 | 112523060/0 | Washer |
| 45 | 112155000/0 | Nut |
| 46 | 125160014/1 | Spacer |
| 47 | 125160018/1 | Spacer |
| 48 | 112691200/0 | Screw |
| 49 | 112691100/0 | Screw |
| 50 | 125601588/0 | Pulley |
| 51 | 122671653/0 | Washer |
| 52 | 112155000/0 | Nut |
| 53 | 118400912/0 | TRANSAXLE (Dana 4360-211) |
| 54 | 112691900/0 | Screw |
| 55 | 112154210/0 | Nut |
| 56 | 325774247/0 | Bracket |
| 57 | 112735150/0 | Screw |
| 58 | 112792611/0 | Screw Te M8 X 16 |
| 59 | 112293201/0 | Hexagon Nut M8 |
| 60 | 182601509/0 | Pulley |
| 61 | 112139430/0 | Key |
| 62 | 112608950/0 | Seeger |
| 63 | 125270321/0 | Belt Guide |
| 64 | 112523040/0 | Washer |
| 65 | 112292102/0 | Nut |
| 66 | 125160034/0 | Spacer |
| 67 | 112521410/0 | Washer |
| 71 | 125580030/0 | Belt Guide Peg |
| 72 | 112523060/0 | Washer |
| 73 | 112360425/0 | Nut |

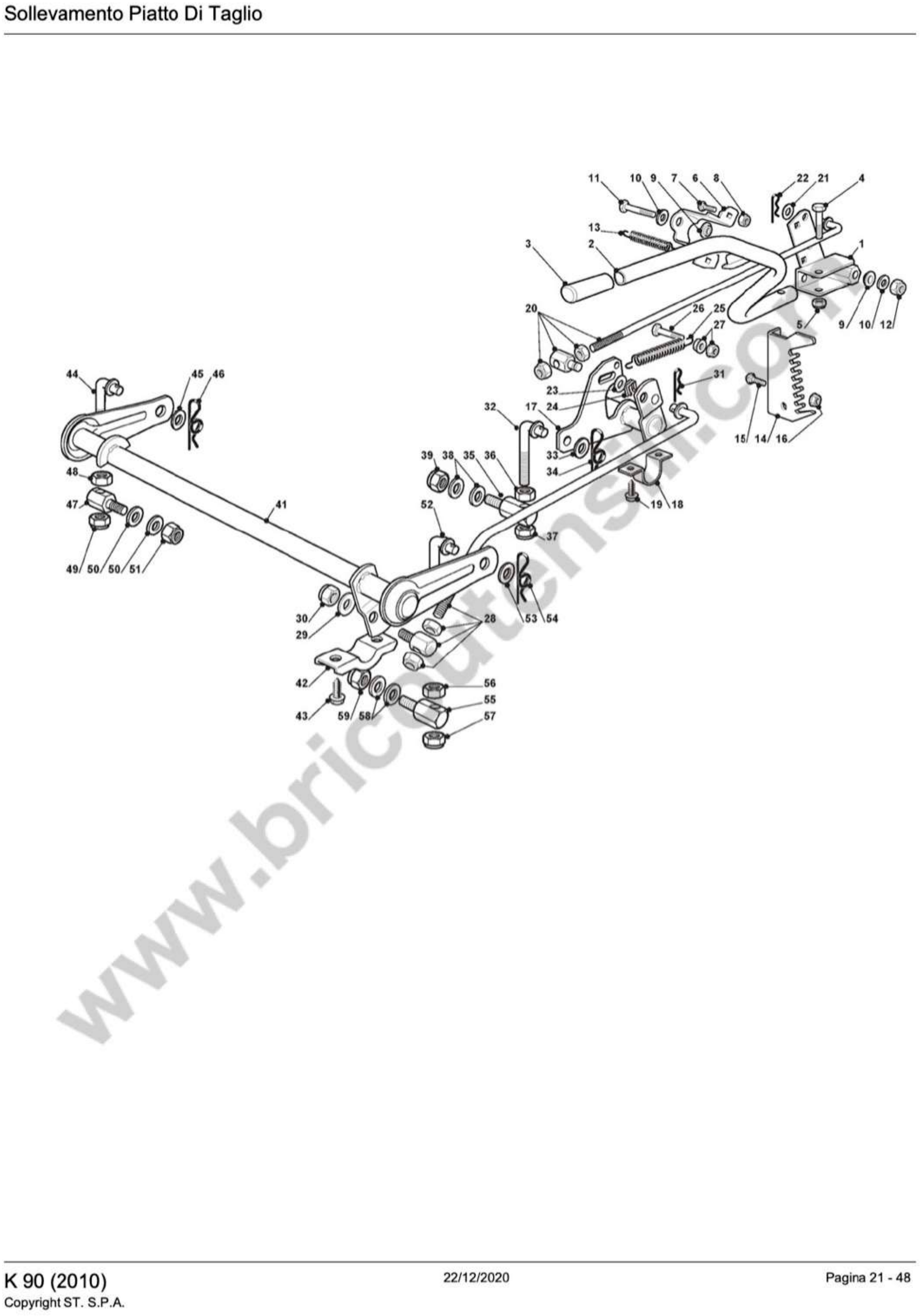

| Cutter Deck Lift Pag.7 | ||
| 1 | 382774249/0 | Clamp |
| 2 | 382318219/0 | Lever |
| 3 | 125394508/0 | Knob |
| 4 | 112674700/0 | Screw |
| 5 | 112154510/0 | Nut |
| 6 | 325650113/0 | Plate |
| 7 | 112818690/0 | Screw M8 X 20 |
| 8 | 112155000/0 | Nut |
| 9 | 122041980/0 | Bushing |
| 10 | 112523060/0 | Washer |
| 11 | 112691600/0 | Screw |
| 12 | 112155000/0 | Nut |
| 13 | 125430259/0 | Spring |
| 14 | 325735511/0 | Sector |
| 15 | 112818690/0 | Screw M8 X 20 |
| 16 | 112293201/0 | Hexagon Nut M8 |
| 17 | 382000387/0 | Axle |
| 18 | 325547041/0 | Left plate |
| 19 | 112731601/0 | Screw |
| 20 | 382000536/0 | Rod |
| 21 | 325670011/0 | Antifriction Washer |
| 22 | 124487998/0 | Cotter pin |
| 23 | 325670008/1 | Washer |
| 24 | 112436050/0 | Plate |
| 25 | 122446402/0 | Spring |
| 26 | 112792410/0 | Screw |
| 27 | 112292102/0 | Nut |
| 28 | 382000537/0 | Connecting rod |
| 29 | 325670008/1 | Washer |
| 30 | 112156602/0 | Nut |
| 31 | 124487998/0 | Cotter pin |
| 32 | 125840025/0 | Tie rod |
| 33 | 325670008/1 | Washer |
| 34 | 124487998/0 | Cotter pin |
| 35 | 125510090/0 | Pin |
| 36 | 112295200/0 | Nut |
| 37 | 112156602/0 | Nut |
| 38 | 325670008/1 | Washer |
| 39 | 112156602/0 | Nut |
| 41 | 382000385/0 | Axle |
| 42 | 327546015/1 | Plate |
| 43 | 112731350/0 | Screw |
| 44 | 125840024/0 | Tie rod |
| 45 | 325670008/1 | Washer |
| 46 | 124487998/0 | Cotter pin |
| 47 | 125510098/0 | Pin |
| 48 | 112295200/0 | Nut |
| 49 | 112156602/0 | Nut |
| 50 | 325670008/1 | Washer |
| 51 | 112156602/0 | Nut |
| 52 | 125840025/0 | Tie rod |
| 53 | 325670008/1 | Washer |
| 54 | 124487998/0 | Cotter pin |
| 55 | 125510090/0 | Pin |
| 56 | 112295200/0 | Nut |
| 57 | 112156602/0 | Nut |
| 58 | 325670008/1 | Washer |
| 59 | 112156602/0 | Nut |

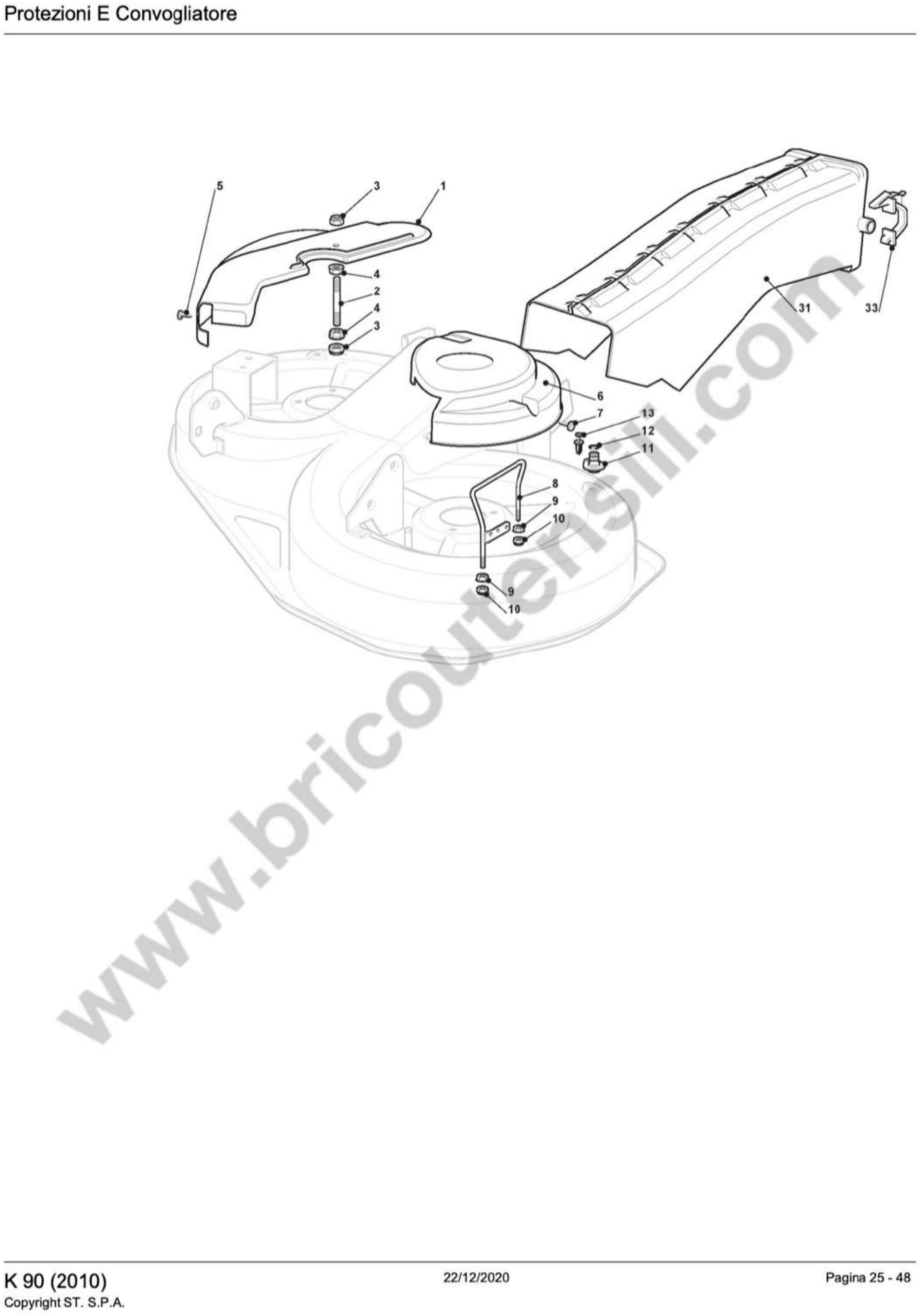

| Discharge Guard Pag.8 | ||
| 1 | 325060111/0 | Right Belt Guard |
| 2 | 125580007/0 | Belt Guide Peg |
| 3 | 112155000/0 | Nut |
| 4 | 112293201/0 | Hexagon Nut M8 |
| 5 | 112735110/0 | Screw |
| 6 | 325060112/0 | Left Belt Guard |
| 7 | 112735110/0 | Screw |
| 8 | 382270301/0 | Belt Guide |
| 9 | 112293201/0 | Hexagon Nut M8 |
| 10 | 112155000/0 | Nut |
| 11 | 125033060/0 | WATER HOSE CONNECTION |
| 12 | 119035000/0 | O-Ring |
| 13 | 112500030/0 | Plastic Rivet 2494 Aa01 |
| 31 | 382108008/0 | Discharge Chute Assembly |
| 33 | 325774373/0 | Release Clamp |

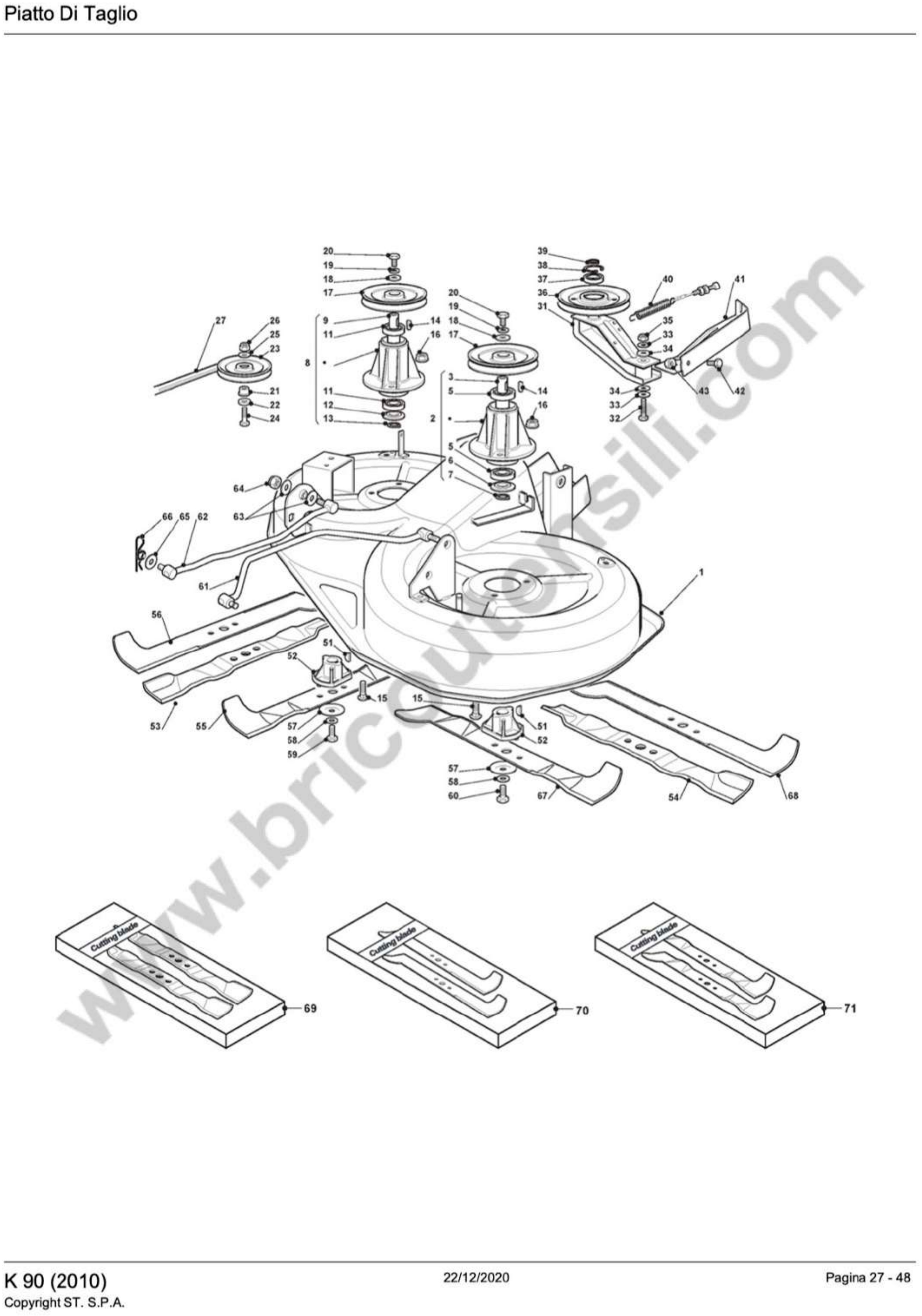

| Cutter Deck Pag.9 | ||
| 1 | 382564075/0 | Cutter Deck Casing Nj92 [Black] |
| 2 | 382207202/0 | Alpina L/H Blade Shaft Assembly |
| 3 | 125020802/0 | Left Blade Shaft |
| 5 | 119216032/0 | Ball Bearing To 31-August-2010 |
| 5 | 119216047/0 | Ball Bearing From 01-September-2010 |
| 6 | 325160501/0 | Dust Cover Washer |
| 7 | 112609260/0 | Circlip D=20 |
| 8 | 382207203/0 | R/H Blade Shaft Assembly |
| 9 | 125020803/0 | Right Blade Shaft |
| 11 | 119216032/0 | Ball Bearing To 31-August-2010 |
| 11 | 119216047/0 | Ball Bearing From 01-September-2010 |
| 12 | 325160501/0 | Dust Cover Washer |
| 13 | 112609260/0 | Circlip D=20 |
| 14 | 112139480/0 | Key 6 X 6 X 20 |
| 15 | 112818700/0 | Screw To 31-August-2016 |
| 15 | 9959-0825-16 | Screw From 01-September-2016 |
| 16 | 112154210/0 | Nut |
| 17 | 125601563/0 | Pulley |
| 18 | 125670007/0 | Washer |
| 19 | 112583500/0 | Grower |
| 20 | 112793102/0 | Screw |
| 21 | 125160007/0 | Spacer To 31-August-2010 |
| 21 | 125160007/1 | Spacer From 01-September-2010 To 31-August-2013 |
| 21 | 125160079/0 | Spacer From 01-September-2013 |
| 22 | 125670007/0 | Washer |
| 23 | 125601555/0 | Pulley To 31-August-2013 |
| 23 | 325601599/0 | Pulley From 01-September-2013 |
| 24 | 112691115/0 | Screw |
| 25 | 112523060/0 | Washer |
| 26 | 112155000/0 | Nut |
| 27 | 135061508/0 | Deck Drive Belt Aa86 |
| 31 | 382318141/2 | Lever |
| 32 | 112691700/0 | Screw |
| 33 | 112523070/0 | Washer |
| 34 | 322672152/0 | Antifriction Washer |
| 35 | 112155000/0 | Nut |
| 36 | 125601564/0 | Pulley To 31-August-2013 |
| 36 | 125601564/1 | Pulley From 01-September-2013 |
| 37 | 119216033/1 | Ball Bearing To 31-August-2010 |
| 37 | 119216048/0 | Ball Bearing From 01-September-2010 |
| 38 | 112610800/0 | Circlip D=35 |
| 39 | 112609200/0 | Circlip D=15 |
| 40 | 382004618/0 | Deck Engage Cable |
| 41 | 382774215/2 | Bracket To 31-August-2010 |
| 41 | 382774215/3 | Bracket From 01-September-2010 |
| 42 | 112792611/0 | Screw Te M8 X 16 |
| 43 | 112293201/0 | Hexagon Nut M8 |
| 51 | 112139100/0 | WOODRUFF KEY (4 x 6.5 D=16) |
| 52 | 1134-9159-01 | Blade Holder Stiga Packed into 125463200/0 |
| 52 | 125463200/0 | Blade Boss |
| 53 | 182004352/0 | Right Mulching Blade 92Cm |
| 54 | 181004346/3 | Left Mulching Blade 46Cm |
| 55 | 182004354/0 | Right Mulching Blade 92Cm |
| 56 | 182004345/1 | Right Winged Blade 92Cm/36" |
| 57 | 122160400/0 | Spring Washer 50 X 2 X 10.2 |
| 58 | 112523080/0 | Washer |
| 59 | 112735695/1 | Screw |
| 60 | 112735694/0 | Screw |
| 61 | 382000535/0 | Equalizer Rod To 31-August-2015 |
| 61 | 382000535/0LC | Equalizer Rod From 01-September-2015 |
| 62 | 382000533/0 | Equalizer Rod |
| 63 | 325670008/1 | Washer |
| 64 | 112156602/0 | Nut |
| 65 | 325670008/1 | Washer |
| 66 | 124487998/0 | Cotter pin |
| 67 | 182004353/0 | Left Mulching Blade 92Cm |
| 68 | 182004344/1 | Left Winged Blade 92Cm/36" |
| 69 | 1134-9223-01 | Right and left Mulching blades, Stiga Packed into 181004346/3 + 182004352/0 |
| 70 | 1134-9222-01 | Right and Left Mulching Winged Blade 92Cm Stiga Packed into 182004353/0 + 182004354/0 |
| 71 | 1134-9224-01 | Right and Left Winged Blade 92Cm/36" Stiga Packed into 182004344/1 + 182004345/1 |

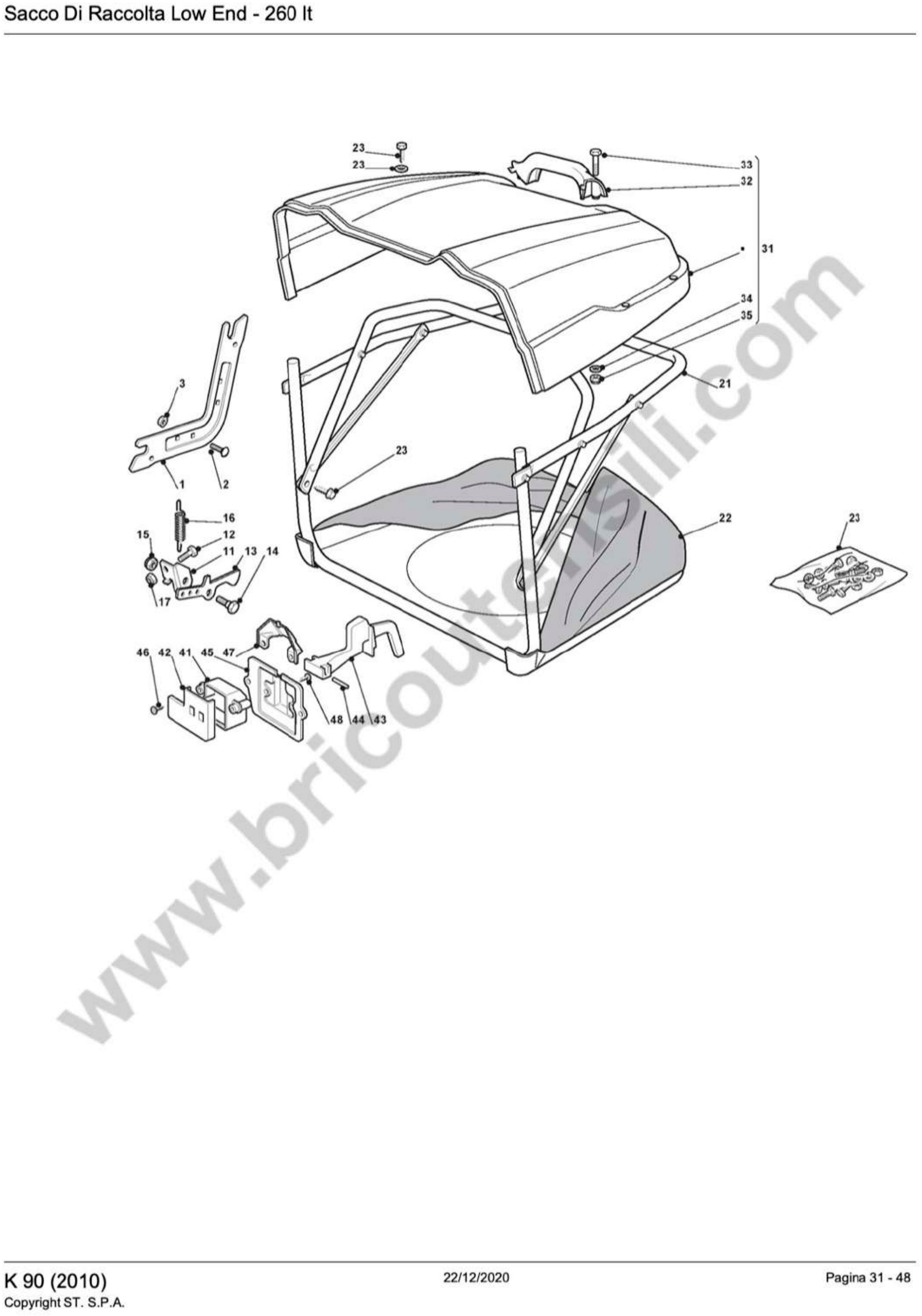

| Grasscatch Low End 260 Lt Pag.10 | ||
| 1 | 325785277/0 | Grasscatch Fulcrum Supp. |
| 2 | 112293201/0 | Hexagon Nut M8 |
| 3 | 112818690/0 | Screw |
| 11 | 325755031/1 | Bracket From 01-September-2010 |
| 12 | 112789000/0 | Screw |
| 13 | 325774315/0 | Bracket To 31-August-2010 |
| 13 | 325774315/1 | Bracket From 01-September-2010 |
| 14 | 125510080/0 | Clamp Pin To 31-August-2010 |
| 14 | 125510080/1 | Clamp Pin From 01-September-2010 |
| 15 | 112292102/0 | Nut |
| 16 | 122450432/0 | Spring |
| 17 | 112154330/0 | Nut |
| 21 | 382800110/0 | Grasscatcher Frame Assembly |
| 22 | 182105974/0 | Grasscatcher Bag 36"/92Cm |
| 23 | 382180047/0 | Screw |
| 31 | 382110273/0 | Grasscatcher Top [Black] |
| 32 | 127394000/0 | Handle |
| 33 | 112789020/0 | Screw |
| 34 | 112523020/0 | Washer |
| 35 | 112154330/0 | Nut |
| 41 | 125600041/0 | Micro Protection Cover Tcj-F |
| 42 | 125600042/0 | Grasscatcher Micro Prot Cover |
| 43 | 125318124/0 | Micro Control Lever |
| 44 | 112400030/0 | Pin D=3 L=30 |
| 45 | 325785272/0 | Micro Switch Cover |
| 46 | 112728510/0 | Screw |
| 47 | 125600048/0 | Micro Bag Protection Cover |
| 48 | 112735110/0 | Screw |

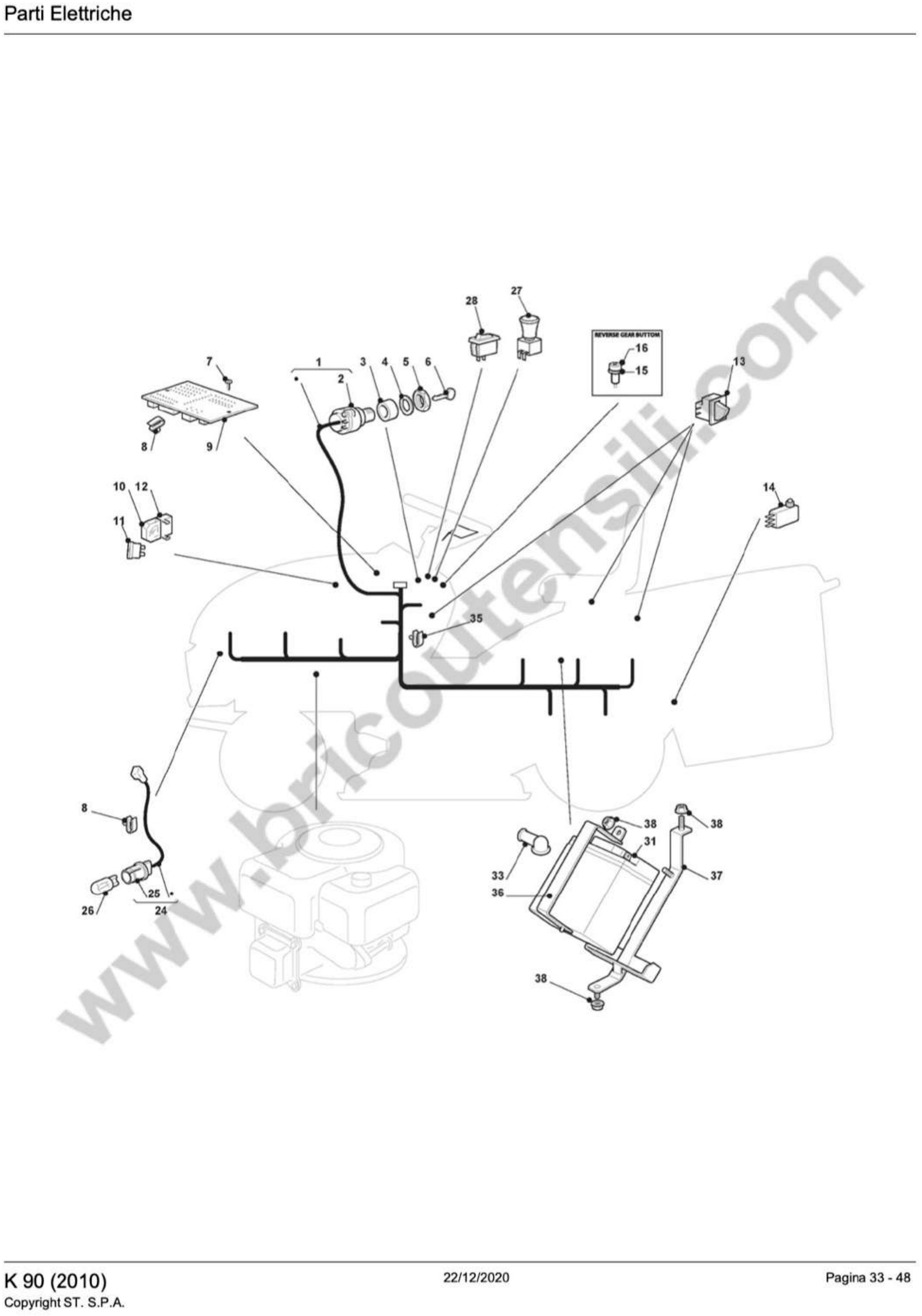

| Electric Parts Pag.11 | ||
| 1 | 182040143/0 | Wiring To 31-August-2009 |
| 1 | 182040153/0 | Wiring From 01-September-2009 To 31-August-2014 |
| 1 | 182040201/0 | Wiring - ISO From 01-September-2014 |
| 2 | 118450072/0 | Ignition Switch |
| 3 | 118550136/0 | Spacer |
| 4 | 118550135/0 | Washer |
| 5 | 118400862/0 | Threaded Ring Nut |
| 6 | 118210022/0 | Ignition Key [Pair] |
| 7 | 112727810/0 | Screw |
| 8 | 133320506/0 | Cable clip |
| 9 | 125722430/0 | Circuit Board To 31-August-2007 |
| 9 | 125722430/1 | Circuit Board (1 Led) From 01-September-2007 To 31-August-2014 |
| 9 | 125722443/0 | Circuit Board (1 Led) From 01-September-2014 |
| 10 | 133215000/0 | Cover |
| 11 | 133340036/0 | 25 A fuse |
| 11 | 133340040/0 | 10 A fuse |
| 12 | 133500007/0 | Fuse holder |
| 13 | 119410606/0 | Micro Switch To 31-August-2009 |
| 13 | 119410613/0 | Micro Switch From 01-September-2010 To 31-August-2019 |
| 13 | 119410615/0 | Micro Switch From 01-September-2009 To 31-August-2010 |
| 13 | 119410622/1 | Micro Switch From 01-September-2019 |
| 14 | 119410605/1 | Micro Switch |
| 15 | 325256250/0 | Ring nut |
| 16 | 325605003/0 | Push Button Reverse Gear |
| 24 | 182040070/0 | Headlights Cable for Lamp Version |
| 25 | 133500030/0 | Lamp holders |
| 26 | 118459100/0 | Lamp |
| 27 | 118450073/0 | Clutch Switch Red |
| 28 | 118450060/1 | Headlight Switch To 31-August-2016 |
| 28 | 118450060/1LC | Headlight Switch From 01-September-2016 To 26-June-2019 |
| 28 | 118450084/0 | Headlight Switch From 27-June-2019 |
| 31 | 118120002/1 | Battery To 31-August-2016 |
| 31 | 118120007/0 | Battery From 01-September-2016 |
| 33 | 118564861/1 | Red Rubber Terminal Cover To 31-August-2017 |
| 33 | 118564861/2 | Red Rubber Terminal Cover From 01-September-2017 |
| 35 | 133320506/0 | Cable clip |
| 36 | 327772099/1 | Bracket |
| 37 | 382785191/0 | Battery Support |
| 38 | 112155000/0 | Nut |

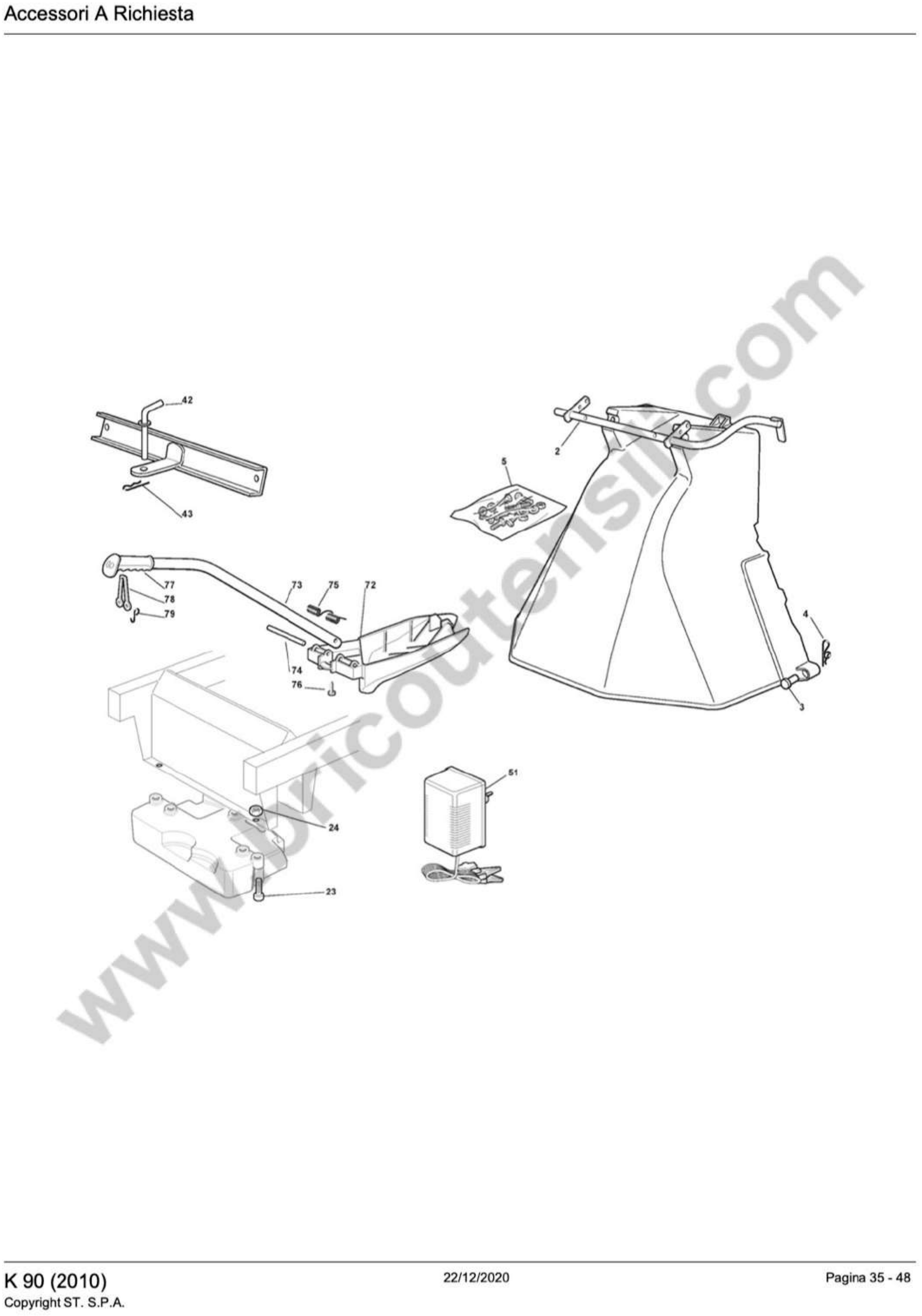

| Accessories on request Pag.12 | ||
| 2 | 382869035/0 | Support Tube |
| 3 | 125510022/0 | Pin To 31-August-2012 |
| 3 | 125510022/1 | Pin From 01-September-2012 |
| 4 | 124487998/0 | Cotter pin |
| 5 | 382180062/0 | Deflector Screw Kit |
| 23 | 112760520/0 | Screw |
| 24 | 112155000/0 | Nut |
| 42 | 125510021/1 | Hitch Pin |
| 43 | 124487999/0 | R Clip D=3 |
| 51 | 182180050/0 | Battery Charger To 31-August-2009 |
| 51 | 182180090/0 | Battery Charger 12V 1A - CE Plugg From 01-September-2009 |
| 72 | 325140093/0 | Mulching Deflector Shoe |
| 73 | 325394007/0 | Handle |
| 74 | 125510077/0 | Fulcrum Pin |
| 75 | 125430245/0 | Spring |
| 76 | 112735410/0 | Screw |
| 77 | 325280000/1 | Handle |
| 78 | 125840011/1 | Tie rod |
| 79 | 125253004/0 | Mulching Kit Fixing Hook |

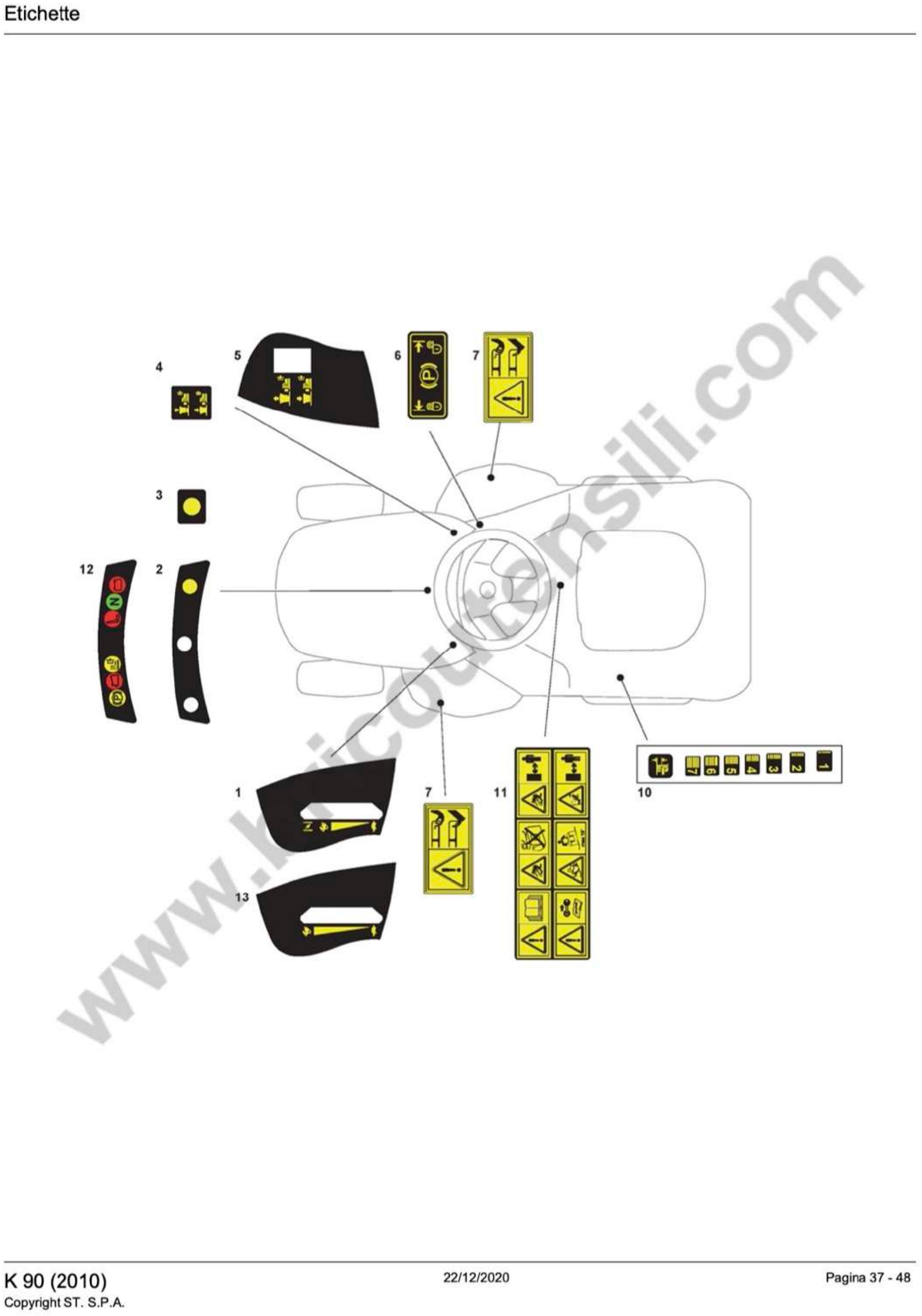

| Decalc Pag.13 | ||
| 1 | 114361440/0 | Throttle Decal |
| 2 | 125420019/0 | Dashboard Decal 1 Led Nj92 High End To 31-August-2014 |
| 2 | 125420024/0 | Dashboard Decal 1 Led Nj92 High End From 01-September-2014 |
| 3 | 125420018/0 | Membrane 1 Led |
| 4 | 114361438/0 | Friction Clutch Decal |
| 5 | 114361439/0 | Deck Engage Decal |
| 6 | 114361452/0 | Parking Brake Decal |
| 7 | 114356699/1 | Cutting Deck Danger Decal |
| 10 | 114361441/0 | Height Of Cut Decal |
| 11 | 114361553/0 | Label To 31-August-2009 |
| 11 | 114361553/1 | Label From 01-September-2009 |
| 12 | 125420020/0 | Label only for 6 led Dashboard |
| 13 | 114364616/0 | Label Only for Honda Engine |
| Fuel Tank 4-5 Lt Pag.14 | ||
| 1 | 325735124/0 | Tank |
| 2 | 125795001/1 | Fuel Tank Cap |
| 3 | 325785291/0 | Upper Fuel Tank Support |
| 4 | 112789195/0 | Screw |
| 5 | 112581500/0 | Washer |
| 6 | 112437503/0 | Plate |
| 7 | 325785289/0 | Support |
| 8 | 112735403/0 | Screw |
| 11 | 325207176/0 | Tank Cover |

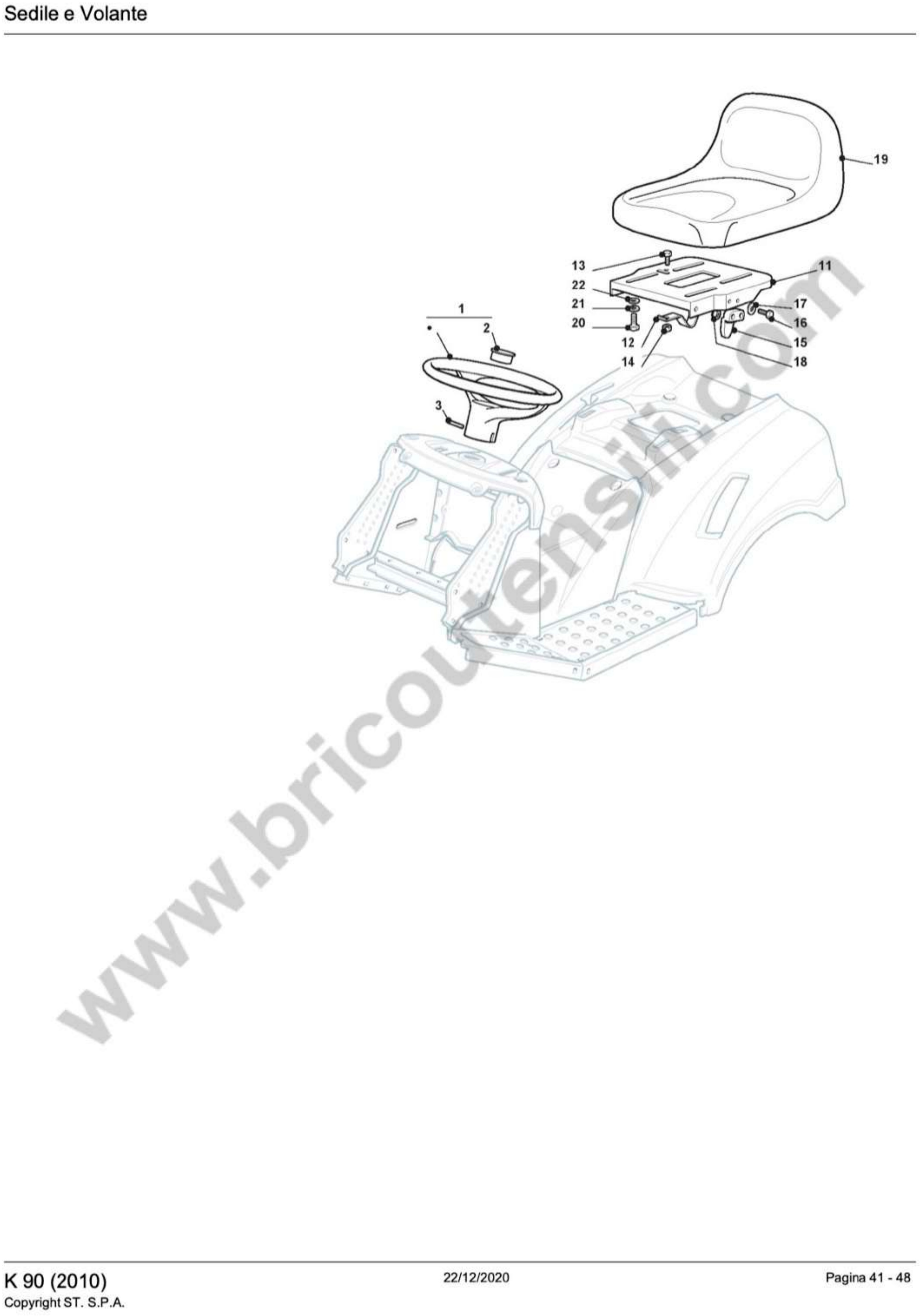

| Seat - Steering Pag.15 | ||
| 1 | 125961201/0 | Steering wheel |
| 2 | 325120230/0 | Cover |
| 3 | 112620299/0 | Spirol Flexible Pin 6 X 45 |
| 11 | 325547033/1 | Seat Plate |
| 12 | 125430223/2 | Spring |
| 13 | 112789000/0 | Screw |
| 14 | 112154330/0 | Nut |
| 15 | 327063021/1 | Micro Seat Operation Cam |
| 16 | 112789100/0 | Screw |
| 17 | 112523020/0 | Washer |
| 18 | 112154330/0 | Nut |
| 19 | 125722470/0 | Seat |
| 20 | 112793101/0 | Screw |
| 21 | 112583500/0 | Washer |
| 22 | 112523060/0 | Washer |

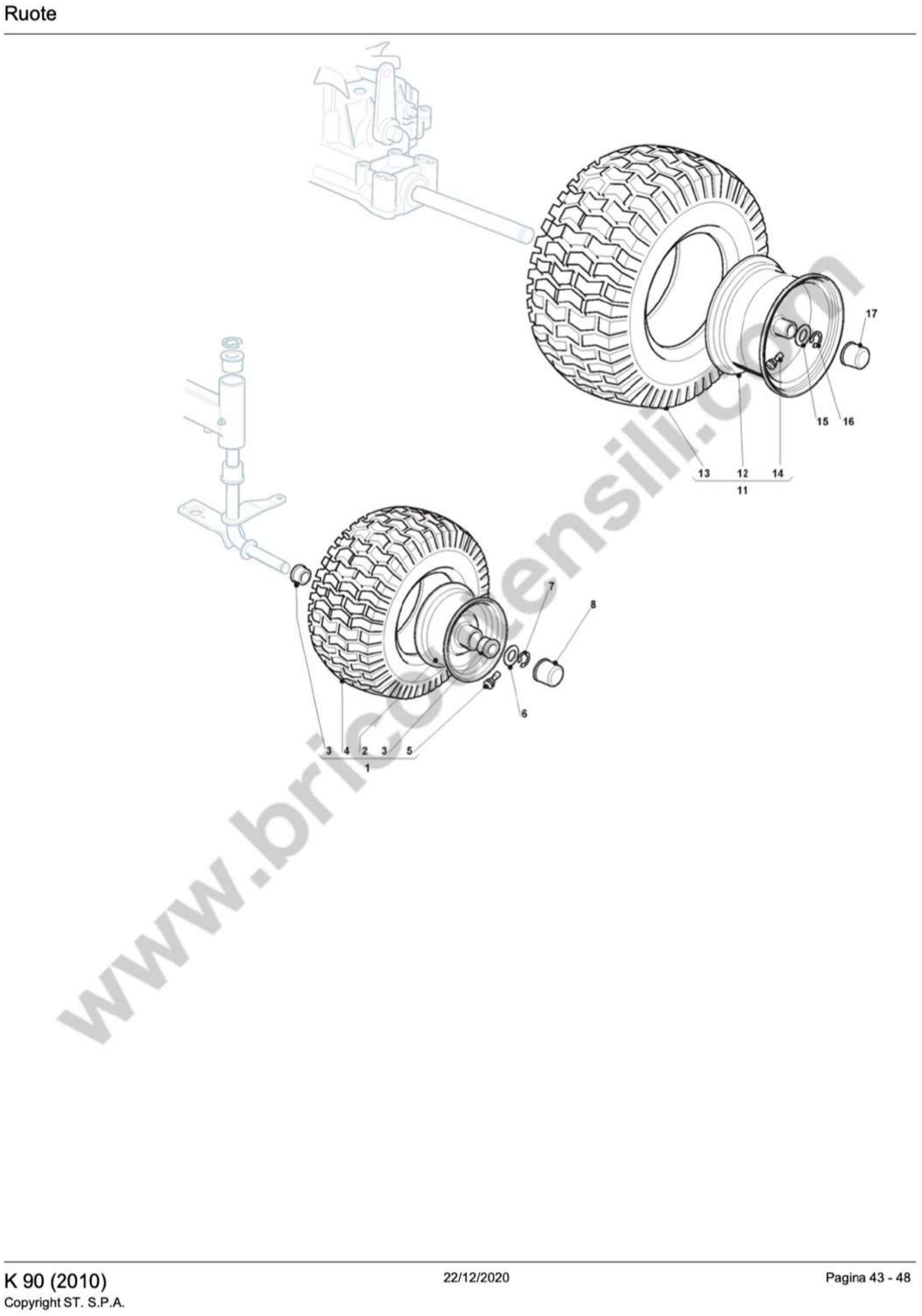

| Wheel Pag.16 | ||
| 1 | 382680002/2 | Front Wheel Assembly 13" [Carlisle] To 31-August-2008 |
| 1 | 382680005/1 | Front wheel |
| 2 | 182000590/1 | Front Wheel Rim |
| 3 | 125122200/2 | Wheel Bearing D=20 |
| 4 | 125590000/0 | FRONT TYRE 13 x 5.00-6 To 31-August-2008 |
| 4 | 125590002/0 | Deli Tire 13x5.00-6 PR2 TL S365 tire |
| 5 | 125950000/0 | Valve |
| 6 | 125670005/1 | Washer |
| 7 | 112001000/0 | Circlip Id=15 Th=1.5 |
| 8 | 122110230/0 | Hub Cover |
| 11 | 382680003/0 | Rear Wheel Assembly [Turf Saver] |
| 11 | 382680006/0 | Rear Wheel Assembly 18" [Wanda] P512 |
| 12 | 182000592/0 | Rear Wheel Rim |
| 13 | 125590001/0 | REAR TYRE 18 x 8.50-8 |
| 13 | 125590003/0 | Deli Tire 160 / 50-8 tire |
| 14 | 125950000/0 | Valve |
| 15 | 125670005/1 | Washer |
| 16 | 112001010/0 | Circlip Id=0,580 Th=0.050 |
| 17 | 122110230/0 | Hub Cover |
| Drive Pag.17 | ||
| 1 | F000-5962-AC | Upper Housing |
| 2 | F000-1919-00 | Screw |
| 3 | F000-5947-00 | Ball, Detent |
| 4 | F000-5948-00 | Spring |
| 5 | F000-5950-00 | Detent, Cover |
| 6 | F084-0052-00 | Screw |
| 7 | F000-7010-00 | V-Ring |
| 8 | F000-6517-00 | Shifter Kit Assy |
| 9 | F000-1106-00 | Circlip |
| 10 | F000-4689-00 | Shim, Kit Assy .625 Shaft |
| 11 | F000-3876-00 | Washer |
| 12 | F000-1746-00 | Woodruff Key |
| 13 | F000-6595-00 | Input Shaft Kit Assy |
| 14 | F000-5620-00 | Bevel, Pinion 12T |
| 15 | F000-3624-00 | Retaining Ring |
| 16 | F000-3625-00 | Chain, 24 Pitches |
| 17 | F000-5510-00 | Flange Bearing |
| 18 | F000-5627-00 | Spur, Gear 12T |
| 19 | F000-5303-00 | Shifter Boot |
| 20 | F000-4758-00 | CLUTCH KEYS KIT |
| 21 | F000-5737-00 | Intermediate Shaft |
| 22 | F000-1375-00 | Woodruff Key |
| 23 | F000-3627-00 | Ring, Retaining |
| 24 | F000-3830-00 | Sprocket,18T |
| 25 | F000-3841-00 | Spacer |
| 26 | F000-5365-00 | Spur,Gear 37T |
| 27 | F000-3867-00 | Spur,Gear 30T |
| 28 | F000-5014-00 | Spur,Gear 27T |
| 29 | F000-3783-00 | Spur,Gear 25T |
| 30 | F000-5202-00 | Spur,Gear 19T |
| 31 | F000-5027-00 | Spacer |
| 32 | F000-3628-00 | Washer |
| 33 | F000-5511-00 | Flange Bearing |
| 34 | F000-5508-00 | OIL SEAL |
| 35 | F000-1425-00 | Washer |
| 36 | F000-6358-00 | Gear, Comb 12T & 30T |
| 37 | F000-3967-00 | Shaft, Idler |
| 38 | F000-7003-00 | BEVEL GEAR 36T |
| 39 | F000-3630-00 | Spacer |
| 40 | F000-3645-00 | Sprocket, 9T |
| 41 | F000-5016-00 | Spacer |
| 42 | F000-5015-00 | Drive Shaft |
| 43 | F000-5364-00 | Spur, Gear 12T |
| 44 | F000-3866-00 | Spur, Gear 20T |
| 45 | F000-5013-00 | Spur, Gear 23T |
| 46 | F000-3719-00 | Spur, Gear 25T |
| 47 | F000-3683-00 | Spur, Gear 31T |
| 48 | F000-3714-00 | Spacer |
| 49 | F000-1145-00 | Washer |
| 50 | F000-5130-00 | Washer |
| 51 | F000-3184-00 | Washer |
| 52 | F000-7070-10 | Wheel Axle-Lh |
| 53 | F000-5622-00 | Gear, Miter, Splined 12T |
| 54 | F000-5270-00 | Retaining Ring |
| 55 | F000-3839-00 | Spur, Gear 32T |
| 56 | F000-3919-00 | Shaft, Cross |
| 57 | F000-5623-00 | Gear, Miter, 12T, Idler |
| 58 | F000-7070-20 | Wheel Axle-Rh |
| 59 | F000-4691-00 | Shim, Kit Ass'y 750 Shaft |
| 60 | F000-5304-R0 | Housing, Lower |
| 61 | F000-7109-00 | Puck, Friction |
| 62 | F000-5960-00 | Disc, Brake |
| 63 | F000-3758-00 | Spacer |
| 64 | F000-5554-00 | Brake |
| 65 | F000-3843-00 | Dowel Pin |
| 66 | F000-7026-00 | Actuating Lever |
| 67 | F000-3760-00 | Washer |
| 68 | F000-5555-00 | Anti-Rotation Bracket |
| 69 | F000-5562-00 | Screw |
| 70 | F000-3847-00 | Nut |
| 71 | 119410610/0 | Micro Switch |
Italiano
