GGP Italy

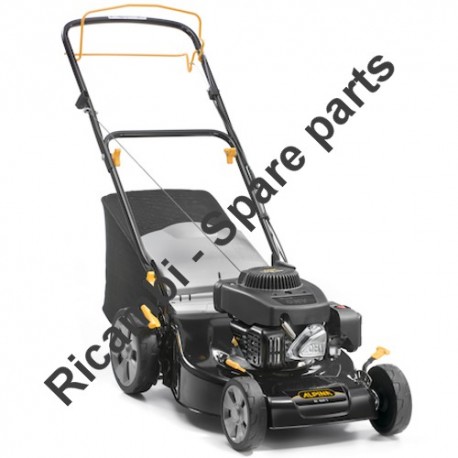

Alpina Spare Parts for Lawn Mower BL 460 S

SKU: BL460S (2016) - 295496044/A14
€143.23
VAT included

Alpina Spare Parts for Lawn Mower BL 460 S

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower  BL 460 S (2016) 295496044/A14.

BL 460 S (2016) - 295496044/A14
Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
  • Alpina Spare Parts for Lawn Mower BL 460 S
GGP Italy

Alpina Spare Parts for Lawn Mower BL 460 S

SKU: BL460S (2016) - 295496044/A14 Condition: New
€143.23
VAT included

Alpina Spare Parts for Lawn Mower BL 460 S

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower  BL 460 S (2016) 295496044/A14.

BL 460 S (2016) - 295496044/A14
settings 204 spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
199 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

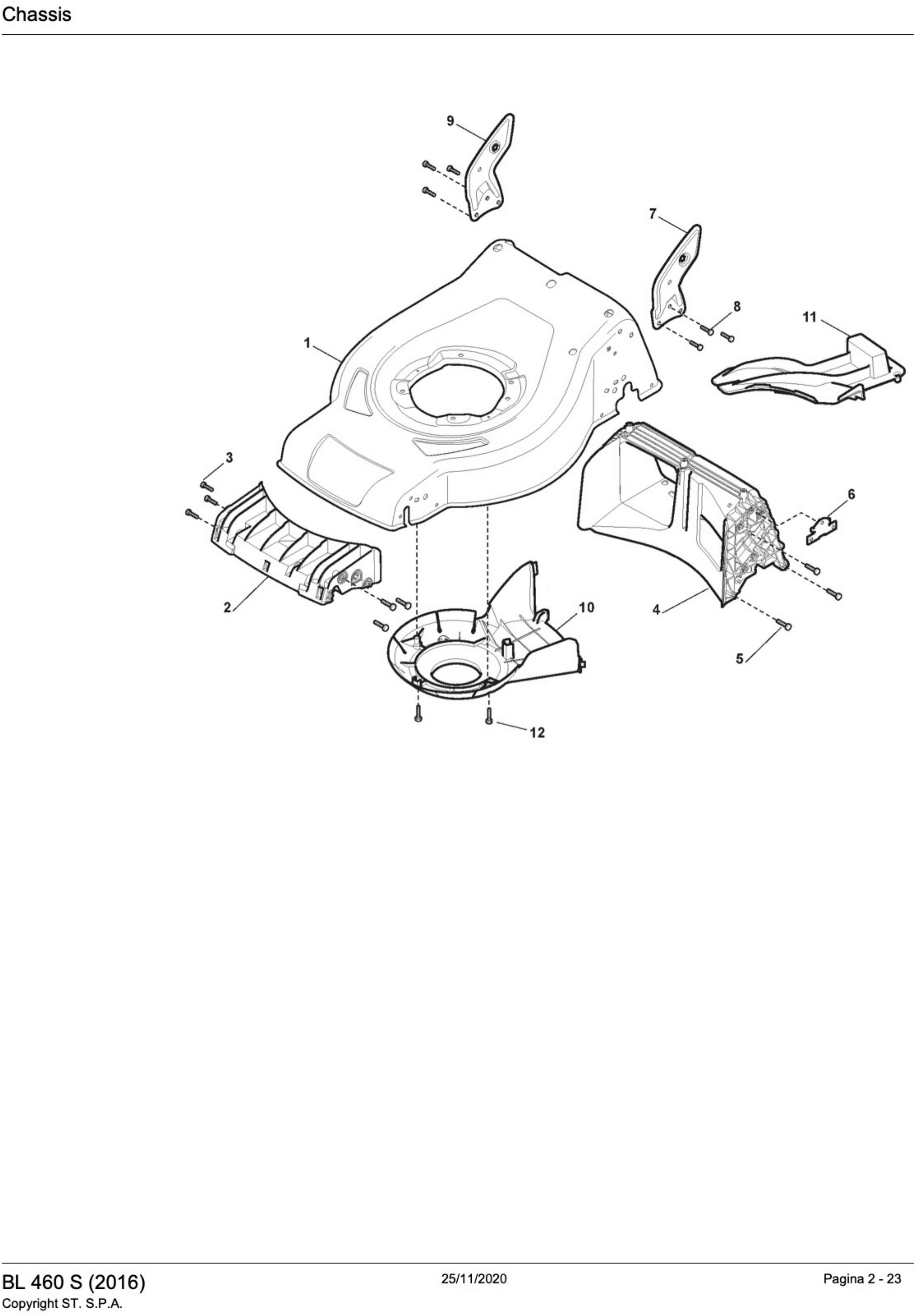

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004051/0 Black Deck €135.01
2
 photo_cameraImage coming soon 322108301/0 Front Conveyor Assy €13.31
2
 photo_cameraImage coming soon 322108301/1 Front Conveyor Assy €14.96
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
5
 photo_cameraImage coming soon 112728699/0 Screw €1.66
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
 photo_cameraImage coming soon 322060242/0 Belt Protection €14.13
11
 Alpina BL 460 SB Mulching Plug Cruiser 48 322140239/0 Alpina BL 460 SB Mulching Plug Cruiser 48 €11.88
12
 photo_cameraImage coming soon 112728530/0 Screw €1.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

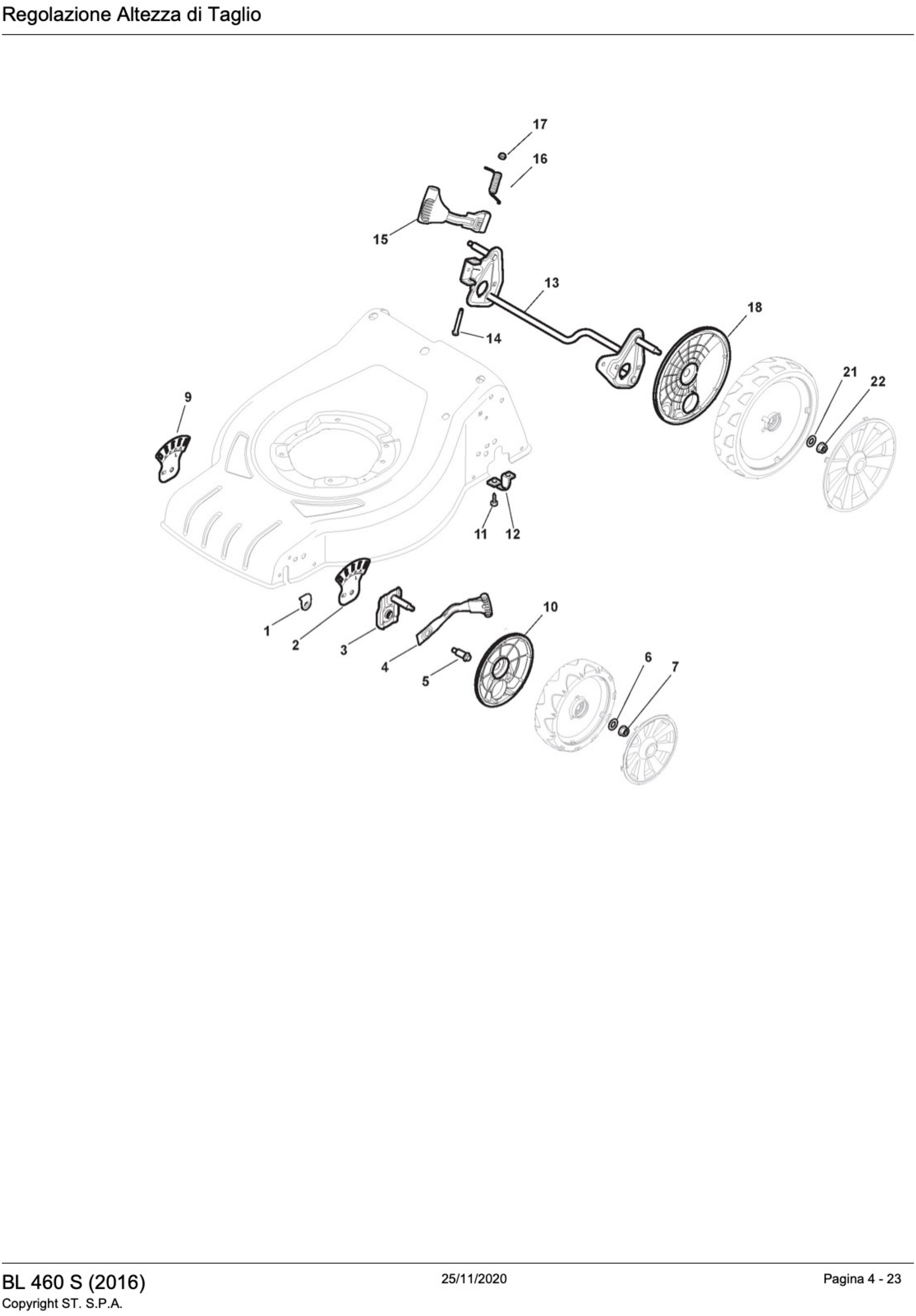

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0 Plate €1.65
2
 photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
 photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
2
 photo_cameraImage coming soon 322735611/0 Height Adjustment Sector From S/N 20BA2WBH058856 €2.46
3
 photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
 photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
3
 photo_cameraImage coming soon 381005253/0 Wheel Support €10.18
3
 photo_cameraImage coming soon 381005265/0 Wheel Support From S/N 20BA2WBH056550 €10.18
4
 photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
 photo_cameraImage coming soon 122519811/0 Pin €1.65
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
9
 photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
 photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
9
 photo_cameraImage coming soon 322735609/0 Height Adjust Sector From S/N 20BA2WBH064330 €2.46
10
 photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
11
 photo_cameraImage coming soon 112728698/0 Screw €1.66
12
 photo_cameraImage coming soon 322545152/0 Plate €1.66
13
 photo_cameraImage coming soon 381302817/0 Rear Wheel Axle €31.54
13
 photo_cameraImage coming soon 381302817/1 Rear Wheel Axle From S/N 20BA2WBH061217 €27.76
14
 Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
15
 photo_cameraImage coming soon 381003357/0 Wheels Rear Adj. Lever €13.51
16
 photo_cameraImage coming soon 122446192/0 Spring €2.20
17
 photo_cameraImage coming soon 112154510/0 Nut €1.66
18
 photo_cameraImage coming soon 322600205/0 Wheel Protection To 31-August-2014 €2.99
18
 photo_cameraImage coming soon 322600205/1 Protection, Wheel €3.72
21
 photo_cameraImage coming soon 112521350/0 Washer €1.74
22
 photo_cameraImage coming soon 112155000/0 Nut €1.66
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

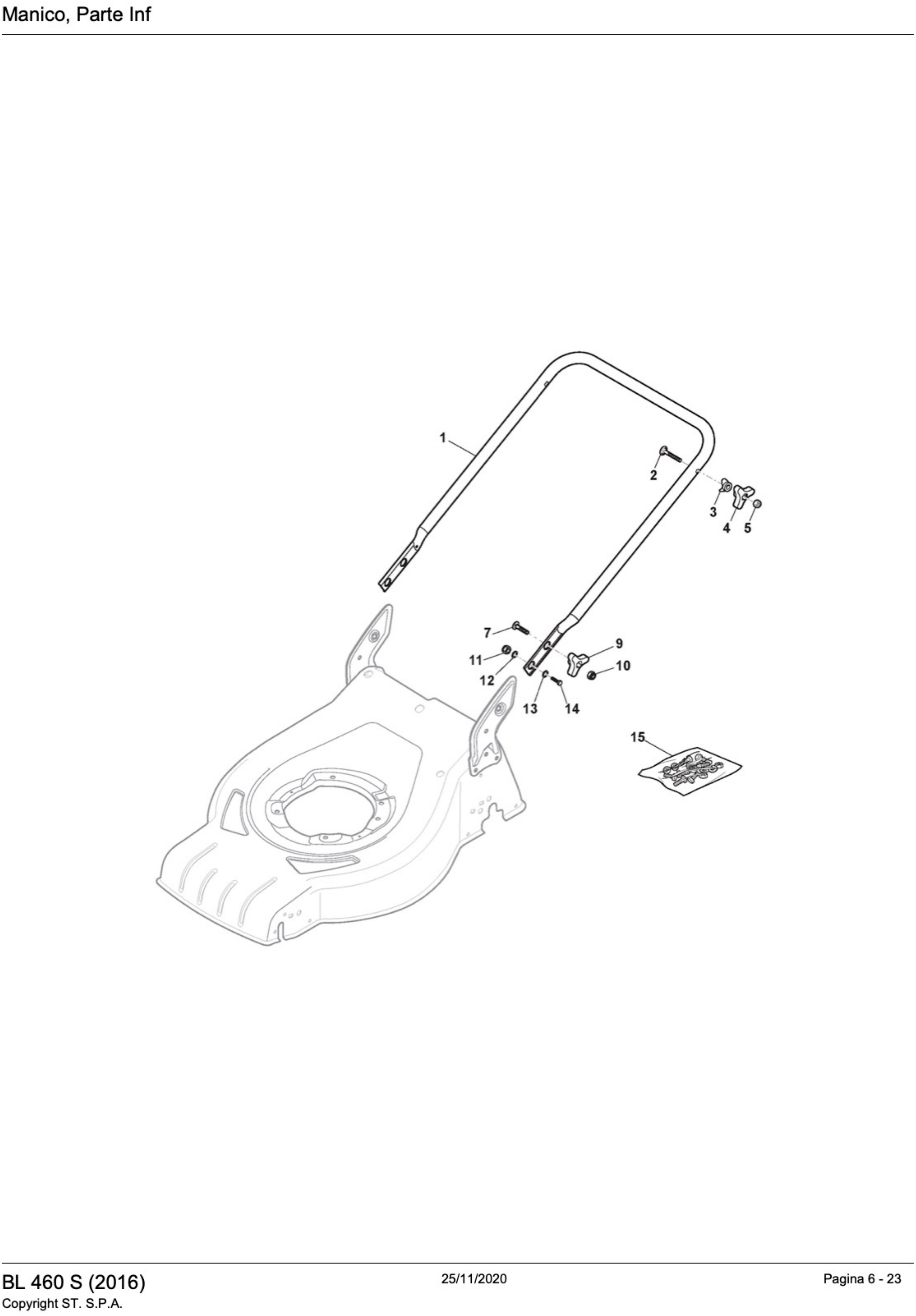

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
 photo_cameraImage coming soon 112819110/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
4
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
5
 photo_cameraImage coming soon 112293200/0 Nut €1.74
7
 photo_cameraImage coming soon 112818900/0 Screw €1.66
9
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
10
 photo_cameraImage coming soon 112293200/0 Nut €1.74
11
 photo_cameraImage coming soon 112155000/0 Nut €1.66
12
 photo_cameraImage coming soon 112521350/0 Washer €1.74
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

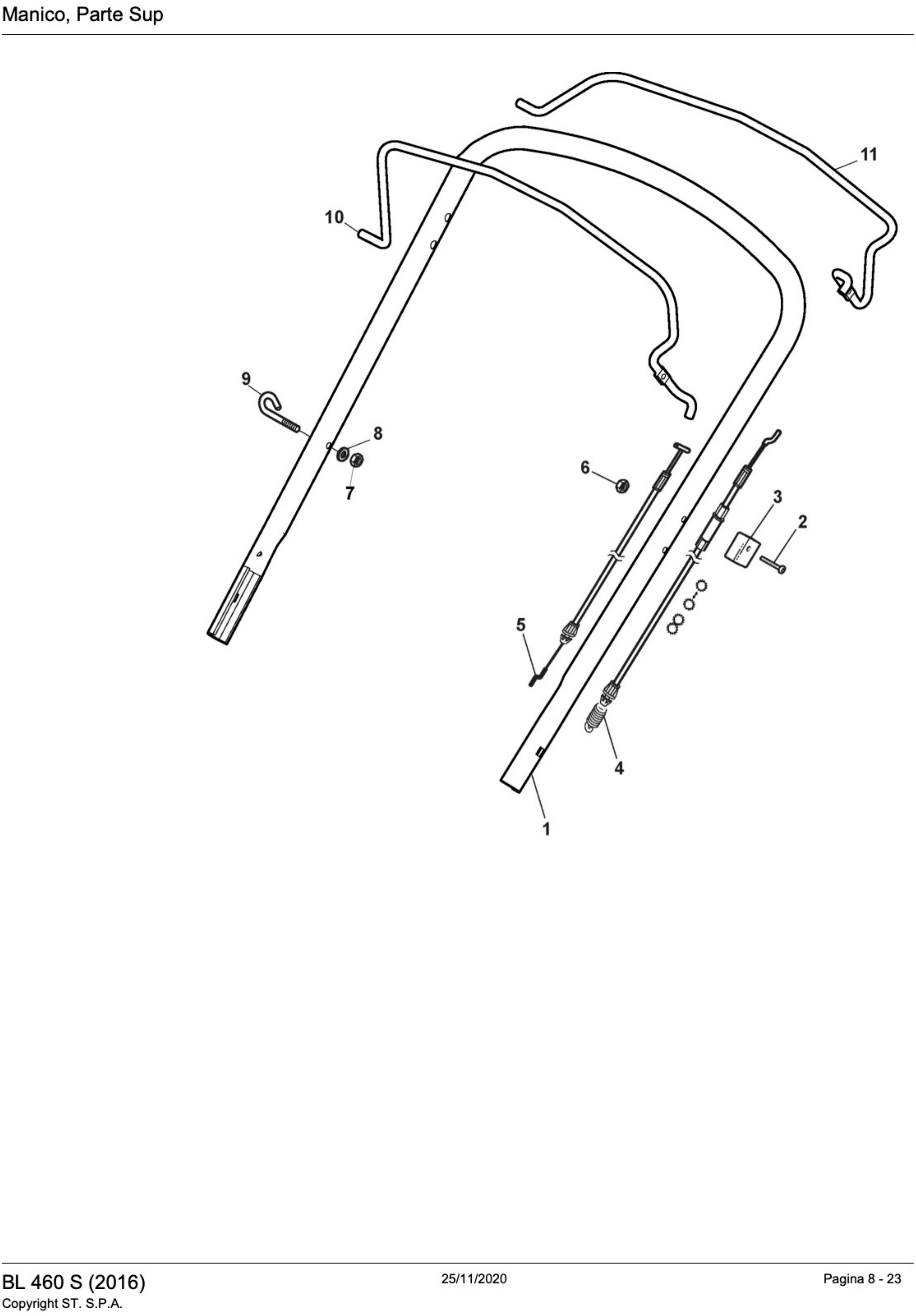

Esploso pagina 4
Pos. Item Price Buy
1
 Alpina BL 510 SHQ Handle, Upper Part 381006740/0 Alpina BL 510 SHQ Handle, Upper Part €27.31
2
 photo_cameraImage coming soon 112727783/0 Screw €1.83
3
 photo_cameraImage coming soon 322551640/0 Plate €7.99
3
 Cable Plate for Lawn Mower DINO 47 322551685/0 Cable Plate for Lawn Mower DINO 47 €7.97
4
 Traction Control Cable for Lawnmower Alpina BL 460 B 381030085/0 Traction Control Cable for Lawnmower Alpina BL 460 B €19.55
5
 Engine Brake Cable Ass'y for Lawnmower Alpina BL 460 B 181030084/0 Engine Brake Cable Ass'y for Lawnmower Alpina BL 460 B €13.80
6
 photo_cameraImage coming soon 112154510/0 Nut €1.66
7
 photo_cameraImage coming soon 112154510/0 Nut €1.66
8
 photo_cameraImage coming soon 112521330/0 Washer €1.70
9
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
10
 photo_cameraImage coming soon 381003394/0 Lever, Engine Brake Yellow €16.57
10
 photo_cameraImage coming soon 381003394/1 Yellow Engine Brake Lever €15.36
11
 photo_cameraImage coming soon 381003395/0 Lever, Driving Yellow €16.57
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

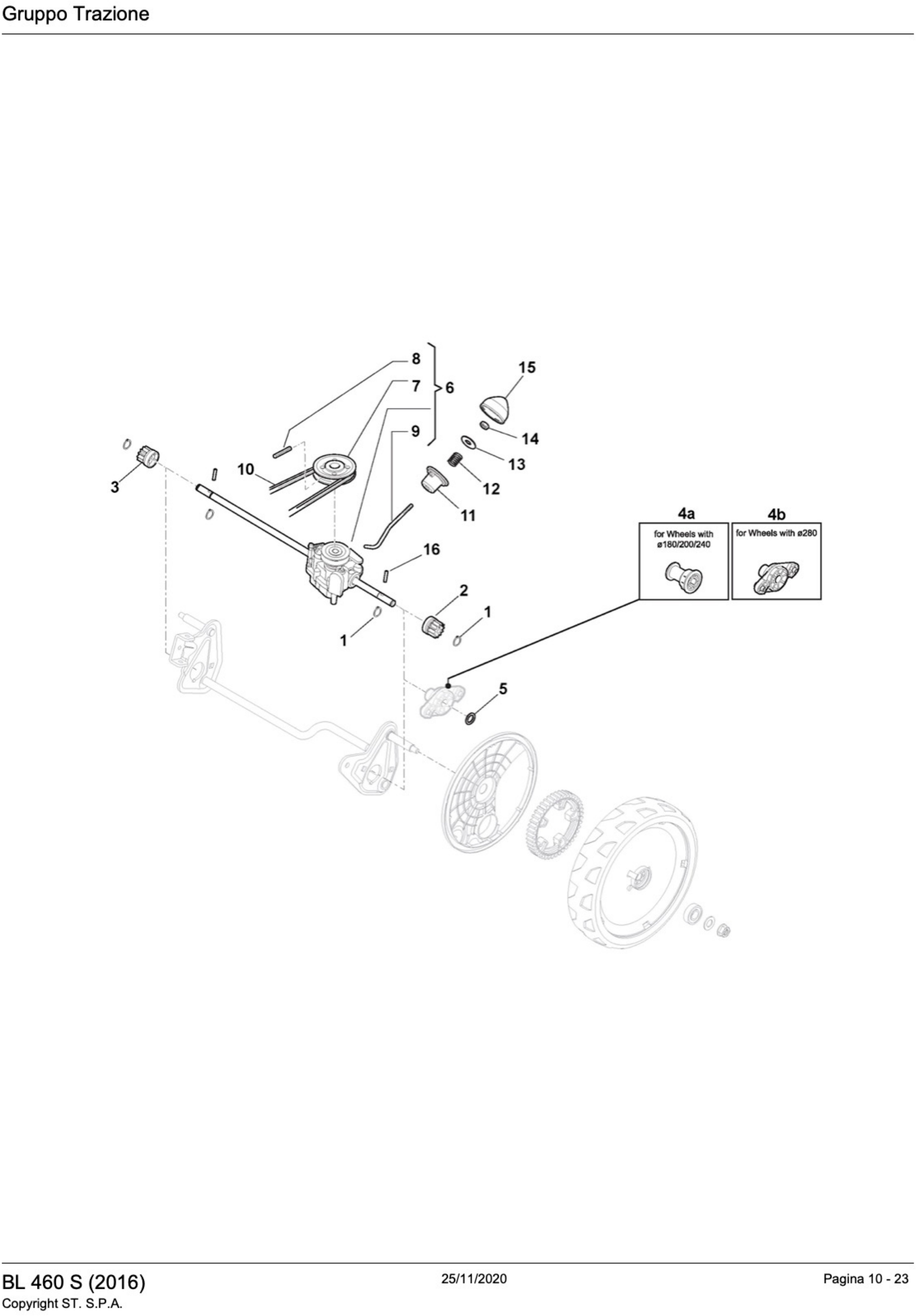

Esploso pagina 5
Pos. Item Price Buy
1
 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
2
 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
3
 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
4a
 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB 322042066/0 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB €3.66
5
 photo_cameraImage coming soon 112521371/0 Washer €1.66
6
 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB 181003092/0 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB €114.62
7
 photo_cameraImage coming soon 122601904/0 Pulley To 31-august-2013 €6.79
7
 photo_cameraImage coming soon 122601909/0 Pulley €7.00
8
 photo_cameraImage coming soon 112645705/0 Elastic pin ø5X32 €1.61
9
 photo_cameraImage coming soon 122033283/0 Adjustment Rod €4.77
10
 photo_cameraImage coming soon 1111-9123-01 Belt Stiga Packed into 135063800/0 €11.75
10
 photo_cameraImage coming soon 135063800/0 Trapezoidal Belt €9.73
11
 photo_cameraImage coming soon 122041957/1 Bushing €1.66
12
 photo_cameraImage coming soon 122450063/0 Spring €1.66
13
 photo_cameraImage coming soon 322680009/0 Washer €1.81
14
 photo_cameraImage coming soon 112154510/0 Nut €1.66
15
 photo_cameraImage coming soon 122110230/0 Hub Cover €1.66
16
 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

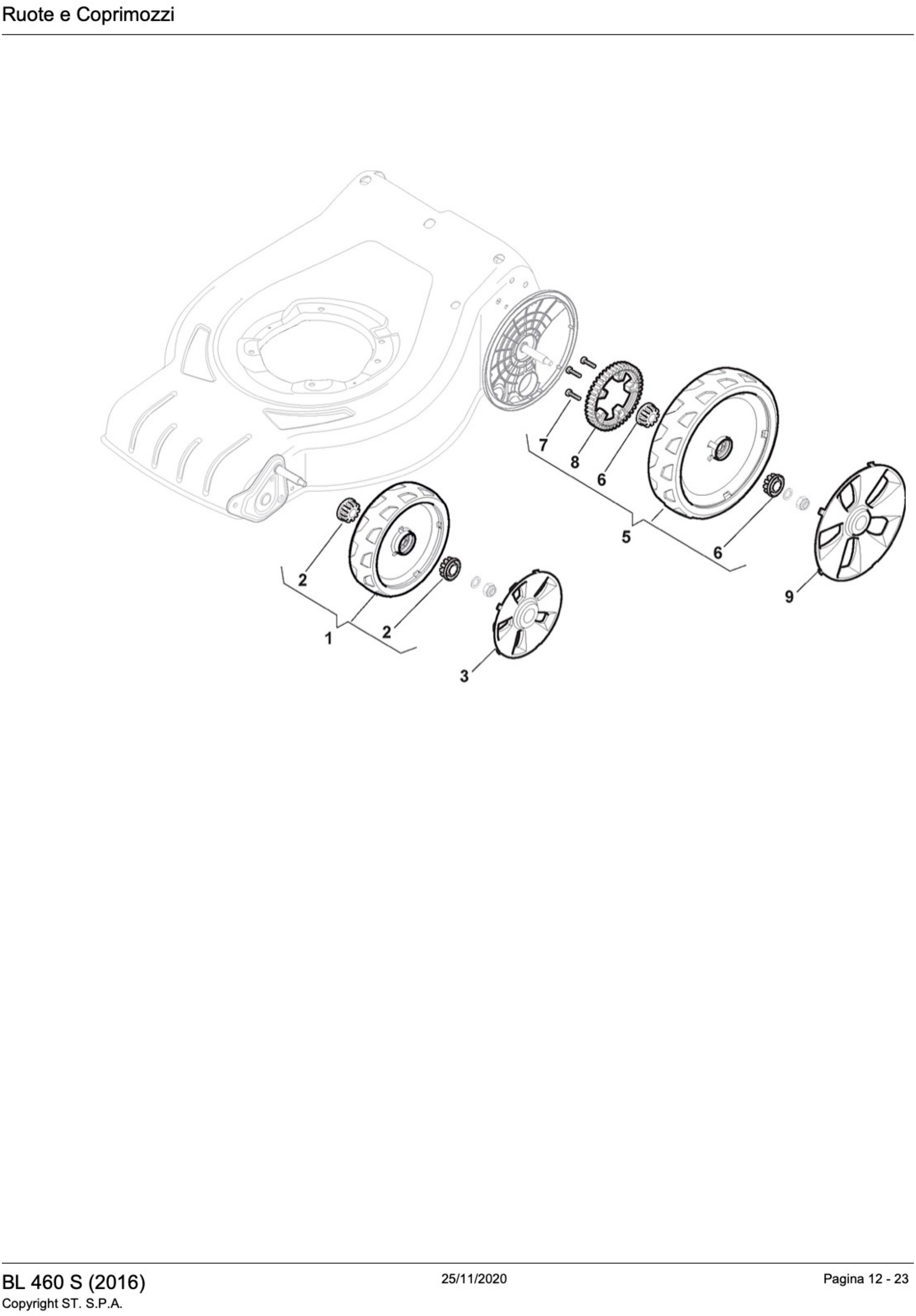

Esploso pagina 6
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007442/0 Wheel To 31-August-2012 €10.82
1
 photo_cameraImage coming soon 381007442/1 Wheel - Short Hub €12.40
2
 photo_cameraImage coming soon 322042064/0 Bushing €1.66
3
 photo_cameraImage coming soon 322110636/0 Hub Cap Grey €2.73
5
 photo_cameraImage coming soon 381007462/0 Wheel To 31-August-2012 €18.86
5
 photo_cameraImage coming soon 381007462/1 Wheel From 01-September-2012 €20.32
6
 photo_cameraImage coming soon 322042064/0 Bushing €1.66
7
 Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
8
 Alpina BL 460 SB Wheel Crown 322120117/0 Alpina BL 460 SB Wheel Crown €5.04
9
 Alpina BL 460 SB Hub Cap Grey 322110637/0 Alpina BL 460 SB Hub Cap Grey €3.60
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

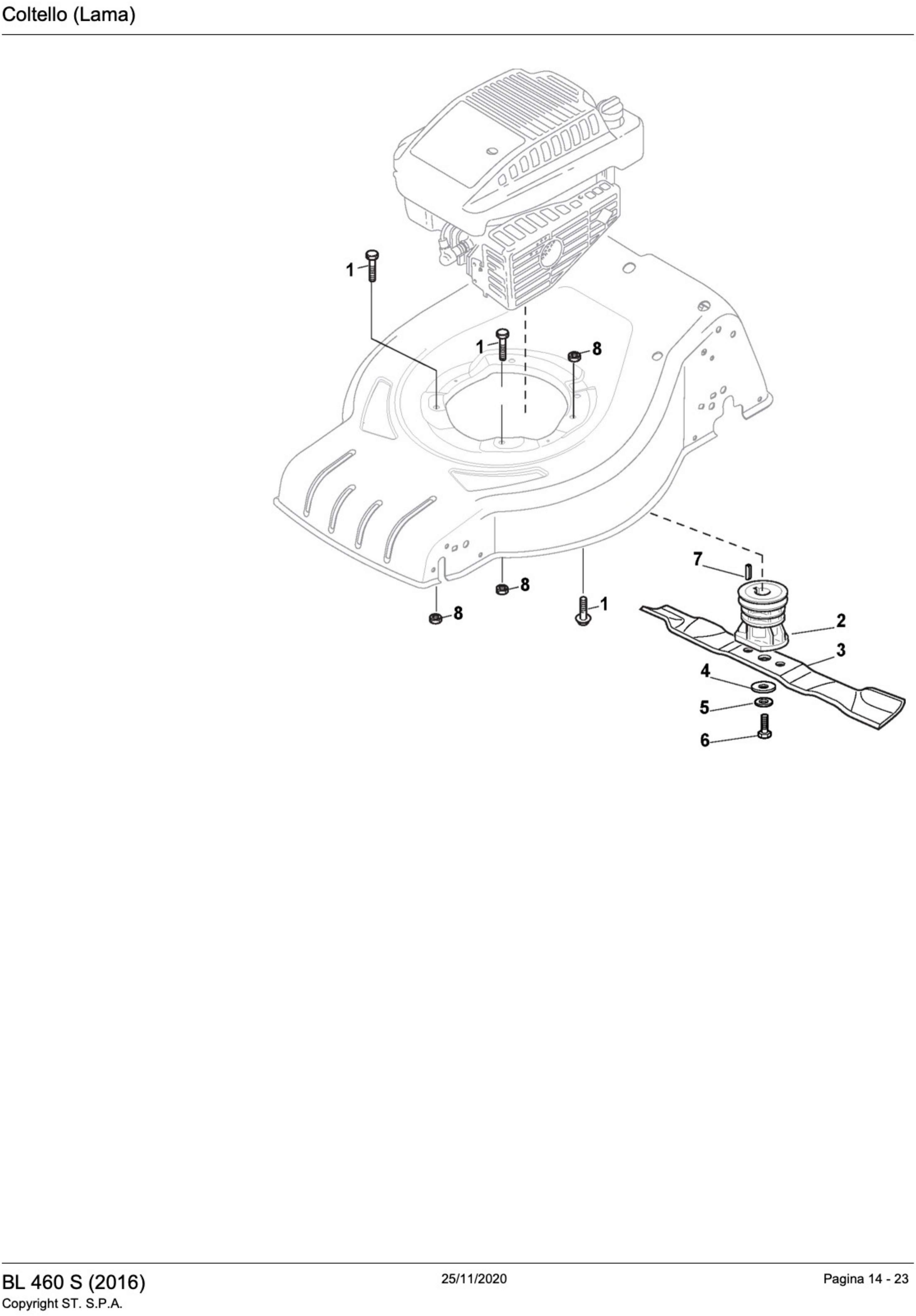

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112735109/2 Screw €2.13
2
 photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
3
 photo_cameraImage coming soon 1111-9278-01 Mulching blade (STIGA Pack) Stiga Packed into 181004460/0 €19.63
3
 photo_cameraImage coming soon 181004346/3 Blade €14.00
3
 photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
4
 Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
4
 photo_cameraImage coming soon 322680021/0 Washer €1.38
5
 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B 112508125/0 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B €1.72
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
8
 photo_cameraImage coming soon 112154210/0 Nut €1.78
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

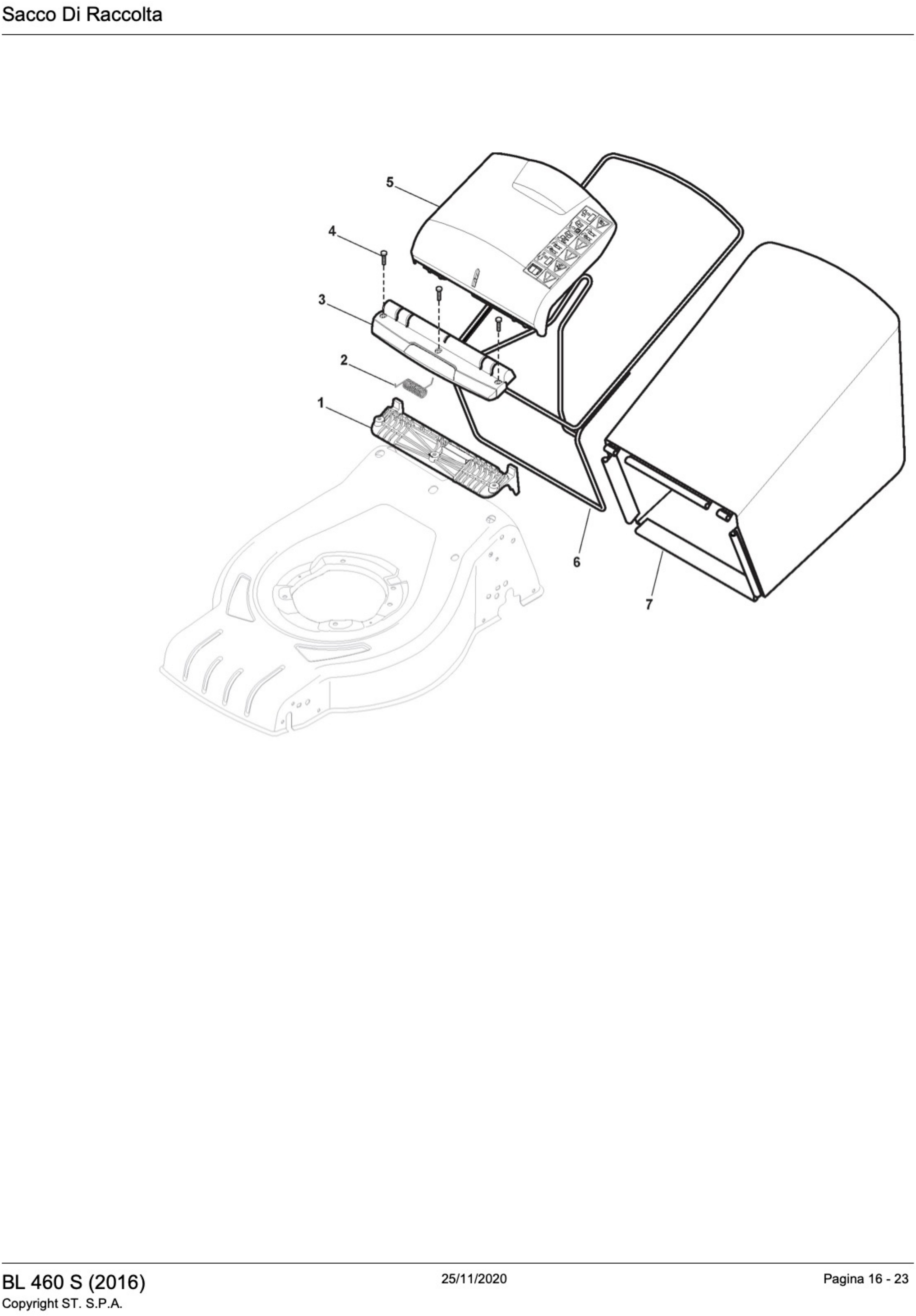

Esploso pagina 8
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
4
 photo_cameraImage coming soon 112728699/0 Screw €1.66
5
 photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
 photo_cameraImage coming soon 322600216/0 Stone Guard Grey To 31-august-2011 €12.59
5
 photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
 photo_cameraImage coming soon 181006409/0 Textile Grasscatcher Frame €37.51
7
 photo_cameraImage coming soon 181002319/0 Textile Grasscatcher Black €54.01
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

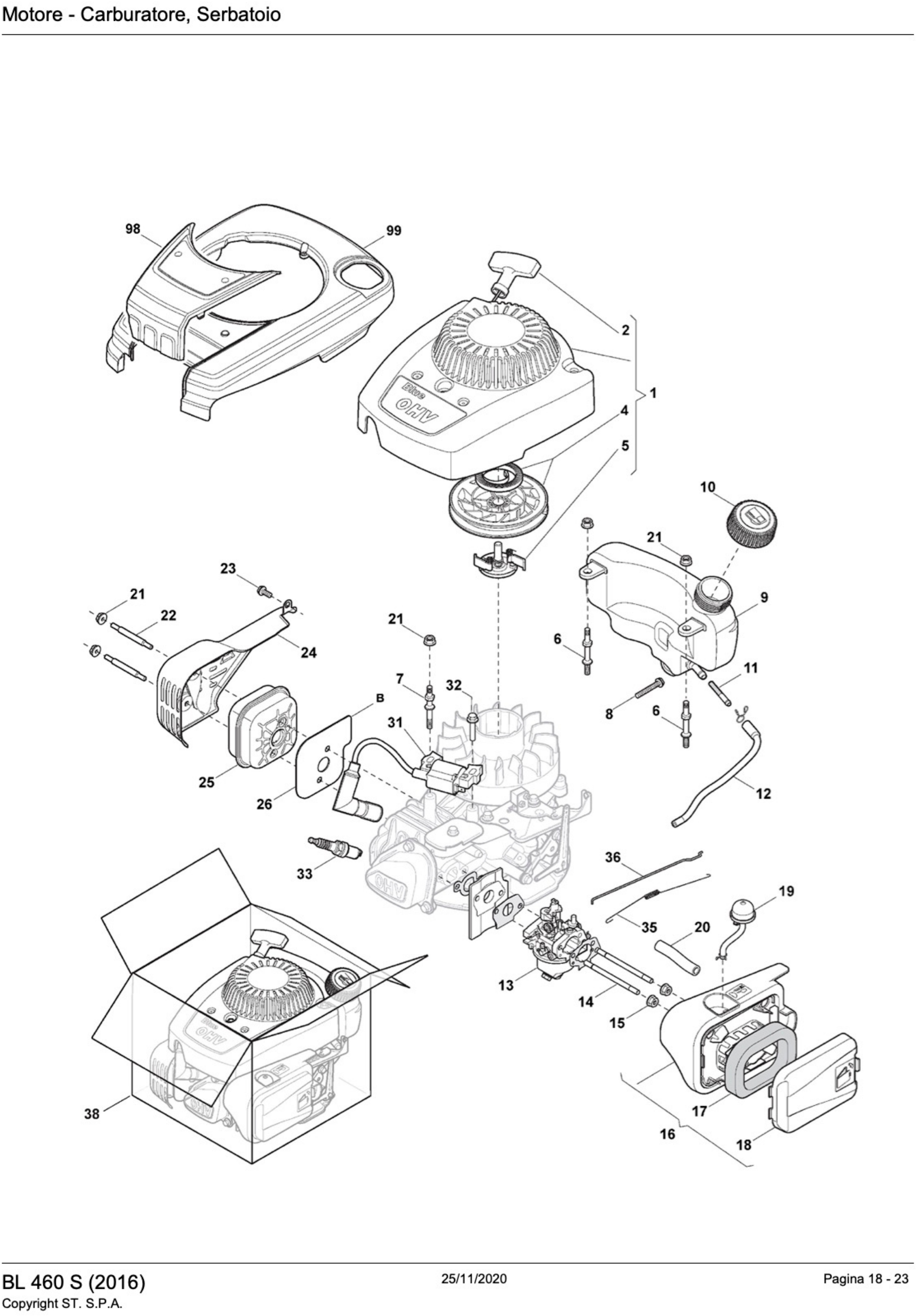

Esploso pagina 9
Pos. Item Price Buy
1
 Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550693/0 Recoil Starter Ass'y for Petrol Engine Alpina RS100 BLUE OHV €44.18
2
 photo_cameraImage coming soon 118550694/0 Starter Handle €3.58
4
 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV 118550695/0 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV €13.50
5
 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV 118550696/0 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV €7.46
6
 photo_cameraImage coming soon 118550713/0 Screw €5.37
7
 photo_cameraImage coming soon 118550714/0 Screw €2.96
8
 photo_cameraImage coming soon 112689515/0 Screw €1.65
9
 photo_cameraImage coming soon 118550712/0 Fuel Tank €16.88
10
 photo_cameraImage coming soon 118550711/0 Fuel Cap €4.74
11
 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G 118550715/0 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G €2.43
12
 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV 118550716/0 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV €4.51
13
 Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550697/0 Carburator Ass'y for Petrol Engine Alpina RS100 BLUE OHV €46.74
14
 photo_cameraImage coming soon 118550706/0 Screw €3.58
15
 photo_cameraImage coming soon 112292102/0 Nut €1.86
16
 Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV 118550702/0 Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV €16.28 Not available for order
17
 photo_cameraImage coming soon 118550704/0 Air Filter €3.66
18
 photo_cameraImage coming soon 118550703/0 Air Cleaner Cover €7.45
19
 photo_cameraImage coming soon 118550698/0 Air Purge Pump €13.02
20
 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV 118550705/0 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV €2.63
21
 photo_cameraImage coming soon 112292102/0 Nut €1.86
22
 photo_cameraImage coming soon 118550710/0 Screw €3.58
23
 photo_cameraImage coming soon 112735699/0 Screw €1.65
24
 photo_cameraImage coming soon 118550709/0 Muffler Guard €20.36
25
 photo_cameraImage coming soon 118550708/0 Muffler €17.42
26
 photo_cameraImage coming soon 118550707/0 Muffler Gasket €2.96
31
 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G 118550719/0 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G €31.54
32
 photo_cameraImage coming soon 112792099/0 Screw €1.63
33
 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G 118550658/0 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G €8.89
35
 photo_cameraImage coming soon 118550720/0 Spring €1.65
36
 photo_cameraImage coming soon 118550721/0 Governor Link €1.73
38
 Four-Stroke Petrol Engine Alpina GGP RS100 118550732/0 Four-Stroke Petrol Engine Alpina GGP RS100 €215.27 €204.51 -5%
98
 photo_cameraImage coming soon 322055521/0 Grey Cover €10.54
99
 photo_cameraImage coming soon 322055518/0 Black Cover €15.99
99
 photo_cameraImage coming soon 381002079/0 Hood Black Assy (Pos. 98 + 99) additional parts not for all models €10.57

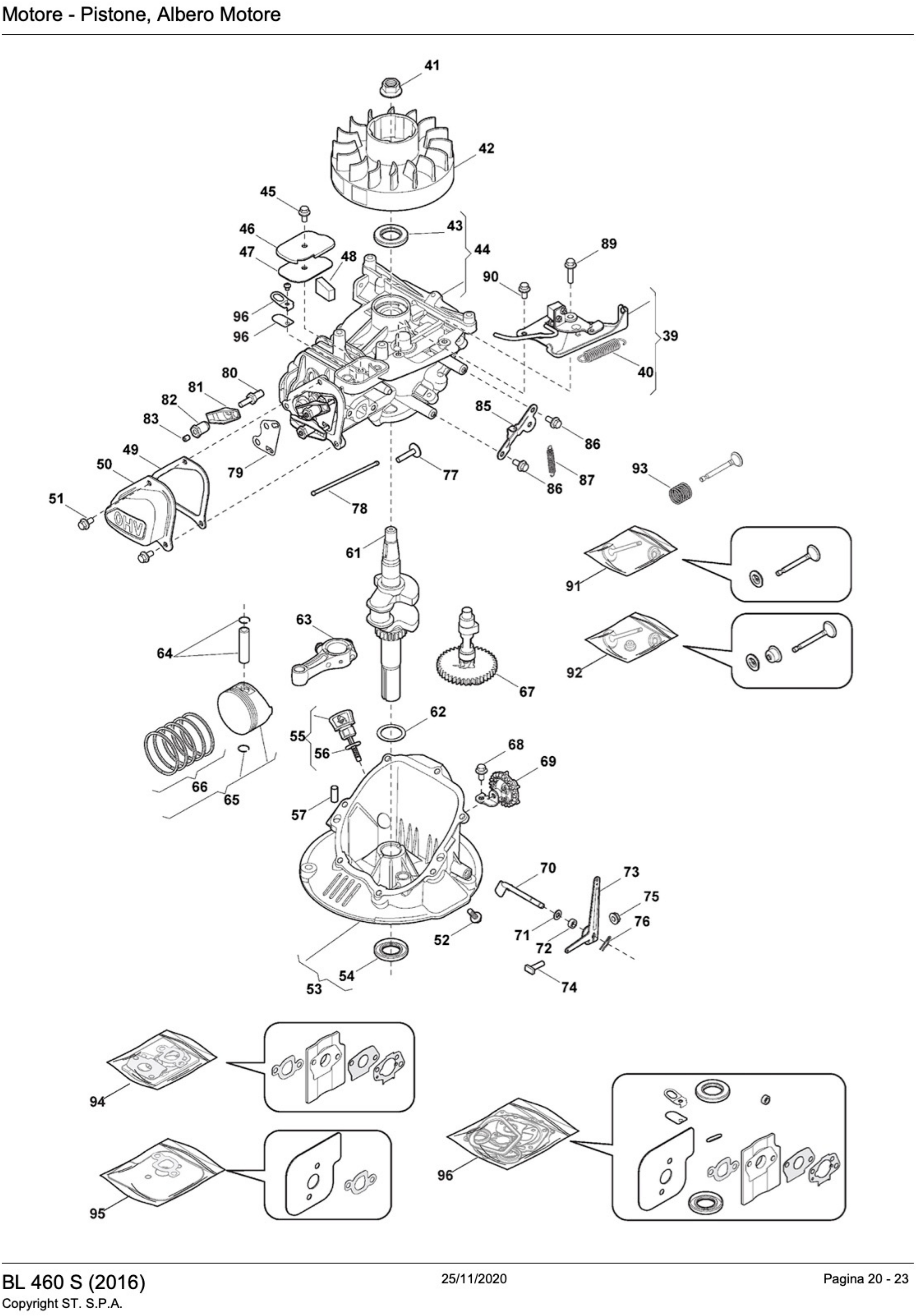

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
39
 photo_cameraImage coming soon 118550728/0 Brake assy €21.36
40
 photo_cameraImage coming soon 118550727/0 Spring €1.96
41
 photo_cameraImage coming soon 118550717/0 Nut €1.65
42
 photo_cameraImage coming soon 118550718/0 Flywheel Ass.Y €55.91
43
 photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
44
 photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
45
 photo_cameraImage coming soon 112735699/0 Screw €1.65
46
 photo_cameraImage coming soon 118550659/0 Cover €2.53
47
 photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
 photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
 photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
51
 photo_cameraImage coming soon 112735699/0 Screw €1.65
52
 photo_cameraImage coming soon 112791500/0 Screw €1.64
53
 photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
 photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
 photo_cameraImage coming soon 118550669/0 Tank Cap €2.28
56
 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
 photo_cameraImage coming soon 118550664/0 Pin €2.96
61
 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
 photo_cameraImage coming soon 118550673/0 Washer €1.65
63
 photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
 photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
 photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
 photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
 photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
68
 photo_cameraImage coming soon 112735699/0 Screw €1.65
69
 photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
 photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
 photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
 photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
 photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
 photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
 photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
 photo_cameraImage coming soon 118550685/0 Plate €1.85
80
 photo_cameraImage coming soon 118550686/0 Screw €3.58
81
 photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
 photo_cameraImage coming soon 118550688/0 Nut €4.05
83
 photo_cameraImage coming soon 118550689/0 Nut €1.65
85
 photo_cameraImage coming soon 118550724/0 Plate €2.26
86
 photo_cameraImage coming soon 112735699/0 Screw €1.65
87
 photo_cameraImage coming soon 118550725/0 Spring €1.73
89
 photo_cameraImage coming soon 112791500/0 Screw €1.64
90
 photo_cameraImage coming soon 112735699/0 Screw €1.65
91
 photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
 photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
 photo_cameraImage coming soon 118550690/0 Spring €3.66
94
 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
 photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
 photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower BL 460 S

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower  BL 460 S (2016) 295496044/A14.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
BL 460 S (2016) - 295496044/A14

ALPINA Petrol Lawnmower BL 460 S (2016) 295496044/A14
Deck Pag.1
# Part Num. Description
1 381004051/0 Black Deck
2 322108301/0 Front Conveyor Assy To 31-August-2011
2 322108301/1 Front Conveyor Assy From 01-September-2011
3 112728699/0 Screw
4 322108302/0 Rear Conveyor Assy
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/0 Belt Protection
11 322140239/0 Mulching Deflector Cruiser 48
12 112728530/0 Screw
Height Adjusting Pag.2
1 322545189/0 Plate
2 322735597/0 Sector, Height Adjustment LeftTo 31-August-2011
2 322735597/1 Sector, Height Adjustment From 01-September-2011 To S / N 20BA2WBH058855
2 322735611/0 Sector, Height Adjustment From S / N 20BA2WBH058856
3 381005141/0 Wheel Support To S / N SK6810777
3 381005159/0 Wheel Support From S / N SK6614968 To S / N 19GA2WBH002978
3 381005253/0 Wheel Support From S / N 20AA2WBH020538 To S / N 20BA2WBH056549
3 381005265/0 Wheel Support From S / N 20BA2WBH056550
4 381003354/0 Height Adjustment Lever
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
9 322735595/0 Sector, Height Adjustment Right To 31-August-2011
9 322735595/1 Sector, Height Adjustment From 01-September-2011 To S / N 20BA2WBH064329
9 322735609/0 Sector, Height Adjustment From S / N 20BA2WBH064330
10 322600247/0 Protection Wheel As Optional
11 112728698/0 Screw
12 322545152/0 Plate
13 381302817/0 Rear Wheel Axle To S / N 20BA2WBH061216
13 381302817/1 Rear Wheel Axle From S / N 20BA2WBH061217
14 122534131/0 Pin
15 381003357/0 Wheels Rear Adj. Lever To S / N 20BA2WBH076280
15 381003357/1 Wheels Rear Adj. Lever From S / N 20BA2WBH076281
16 122446192/0 Spring
17 112154510/0 Nut
18 322600205/0 Wheel Protection To 31-August-2014
18 322600205/1 Wheel Protection From 01-September-2014
21 112521350/0 Washer
22 112155000/0 Nut
Handle, Lower Part Pag.3
1 381006737/0 Handle Lower Part Black
2 112819110/0 Screw
3 122671651/0 Washer
4 322399840/0 Yellow knob
5 112293200/0 Nut
7 112818900/0 Screw
9 322399840/0 Yellow knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Washer
14 112760605/0 Screw
15 381008692/0 Outfit, Screws
Handle, Upper Part Pag.4
1 381006740/0 Handle, Upper Part
2 112727783/0 Screw
3 322551640/0 Cable Fixing Plate To S/N 20AA2WBH066503
3 322551685/0 Cable Fixing Plate ø22 From S/N 20AA2WBH066504
4 381030085/0 Cable Rear Drive
5 181030084/0 Cable, Thread Engine Brake B&S / GGP / Honda
6 112154510/0 Nut
7 112154510/0 Nut Not used on Electric Start Models
8 112521330/0 Washer Not used on Electric Start Models
9 122430313/0 Guide Spring Not used on Electric Start Models
10 381003394/0 Lever, Engine Brake Yellow To 31-August-2019
10 381003394/1 Lever, Engine Brake Yellow From 01-September-2019
11 381003395/0 Lever, Driving Yellow
Transmission Pag.5
1 112608600/0 Seeger
2 122570120/1 Pinion Left
3 122570110/1 Pinion Right
4a 322042066/0 Bushing For wheels ø180 / 200/240
5 112521371/0 Washer
6 181003092/0 Gear Box
7 122601904/0 Pulley To 31-August-2013
7 122601909/0 Pulley From 01-September-2013
8 112645705/0 Elastic pin ø5X32
9 122033283/0 Adjustment Rod
10 1111-9123-01 Belt Stiga Packed into 135063800/0
10 135063800/0 Trapezoidal belt
11 122041957/1 Bushing
12 122450063/0 Spring
13 322680009/0 Washer
14 112154510/0 Nut
15 122110230/0 Hub Cover
16 122753000/0 Pin
Wheel and Hub Cap Pag.6
1 381007442/0 Wheel - Short Hub To 31-August-2012
1 381007442/1 Wheel - Short Hub From 01-September-2012
2 322042064/0 Bushing
3 322110636/0 Hub Cap Grey
5 381007462/0 Wheel To 31-August-2012
5 381007462/1 Wheel From 01-September-2012
6 322042064/0 Bushing
7 112728706/0 Screw
8 322120117/0 Wheels Crown
9 322110637/0 Hub Cap Grey
Blade Pag.7
1 112735109/2 Screw
2 122465607/3 Hub With Pulley, Crankshaft Ø 22.2
3 1111-9278-01 Mulching blade (STIGA Pack) Stiga Packed into 181004460/0
3 181004346/3 Mulching Blade Left To 31-August-2015
3 181004460/0 Mulching blade From 01-September-2015
4 112523080/0 Washer To 31-August-2015
4 322680021/0 Washer From 01-September-2015
5 112508125/0 Elastic Washer
6 112735698/0 Screw
7 112139100/0 Key
8 112154210/0 Nut
Grass-Catcher Pag.8
1 322785331/0 Black Stone Guard Support
2 122450464/0 Spring
3 322109554/0 Stone Guard Supp. Cover Black To 31-August-2018
3 322109557/0 Stone Guard Supp. Cover Grey
4 112728699/0 Screw
5 322600206/1 Stone Guard, Black
5 322600216/0 Gray Parasassi To 31-August-2011
5 322600216/1 Stone Guard, Grey From 01-September-2011
6 181006409/0 Textile Grasscatcher Frame
7 181002319/0 Textile Grasscatcher Black
Engine - Carburator, Tank Pag.9
1 118550693/0 RECOIL ASSEMBLY-100cc
2 118550694/0 Starter handle
4 118550695/0 Starter Pulley
5 118550696/0 STARTER PAWL SET
6 118550713/0 STUD BOLT
7 118550714/0 STUD BOLT
8 112689515/0 Screw
9 118550712/0 Fuel tank
10 118550711/0 Fuel Tank cap
11 118550715/0 Fuel Filter
12 118550716/0 Fuel Pipe
13 118550697/0 Carburetor
14 118550706/0 STUD BOLT
15 112292102/0 FLANGED Nut
16 118550702/0 Air Cleaner Assembly
17 118550704/0 Air filter
18 118550703/0 Air Filter Cover
19 118550698/0 Primer Pump
20 118550705/0 BREATHER FUEL PIPE
21 112292102/0 FLANGED Nut
21 112292102/0 FLANGED Nut
22 118550710/0 STUD BOLT
23 112735699/0 Screw
24 118550709/0 Muffler Guard
25 118550708/0 Muffler Guard
26 118550707/0 Muffler gasket
31 118550719/0 Ignition coil
32 112792099/0 Screw
33 118550658/0 SPARK PLUG-K7RTC
35 118550720/0 THROTTLE SPRING
36 118550721/0 GOVERNOR ROD
38 118550732/0 ENGINE 100cc OHV-RS100 Assembly
98 322055521/0 Cover additional parts not for all models
99 322055518/0 Hood Yellow additional parts not for all models
99 381002079/0 Hood Black Assy (Pos. 98 + 99) additional parts not for all models
Engine - Piston, Cranck Shaft Pag.10
39 118550728/0 Brake Assy
40 118550727/0 Spring
41 118550717/0 Nut
42 118550718/0 Flywheel Ass'y
43 118550661/0 Oil Seal
44 118550729/0 Cylinder Head Ass'y
45 112735699/0 Screw
46 118550659/0 Cover
47 118550733/0 Gasket, Breath Groove
48 118550660/0 Oil filter
49 118550680/0 Gasket
50 118550681/0 Cover Comp. Head
51 112735699/0 Screw
52 112791500/0 Screw
53 118550672/0 Crankcase Cover Ass'y
54 118550668/0 Oil Seal
55 118550669/0 Oil Tank Cap
56 118550670/0 O-Ring
57 118550664/0 Pin
61 118550674/0 Crankshaft
62 118550673/0 Washer
63 118550675/0 Connecting rod Ass'y
64 118550678/0 Circlip + Piston Pin
65 118550677/0 Piston Ass'y
66 118550679/0 Piston Ring Set
67 118550682/0 Camshaft Ass'y
68 112735699/0 Screw
69 118550662/0 Spped Governor Ass'y
70 118550665/0 Shaft, Governor Arm
71 118550666/0 Washer
72 118550671/0 Gasket
73 118550723/0 Support Governor
74 118550726/0 Screw
75 118550722/0 Nut
76 118550667/0 Cotter pin
77 118550683/0 Valve lifters
78 118550684/0 Push Rods
79 118550685/0 Plate
80 118550686/0 Screw
81 118550687/0 Valve Arm
82 118550688/0 Nut
83 118550689/0 Nut
85 118550724/0 Plate
86 112735699/0 Screw
87 118550725/0 Spring
89 112791500/0 Screw
90 112735699/0 Screw
91 118550692/0 Exhaust Valve Ass'y
92 118550691/0 Intake Valve Ass'y
93 118550690/0 Spring
94 118550699/0 Carburetor Gasket Set
95 118550731/0 Cylinder Head Gasket Set
96 118550730/0 Engine Gasket Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BL460S (2016) - 295496044/A14
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Alpina BL 460 S

Drawing Alpina BL 460 S

Download (1.46MB)

You might also like

Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
GGP Italy SKU: 112727801/0
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment Original replacement part Alpina, Screw TCB Torx M6x20 Acc.8.8 ZNN III for Lawnmower Cutting Height Adjustment. Part for the following products: - 148 SP FOUR (2010) - 148...
AVAILABLE €1.74
Details
Four-Stroke Petrol Engine Alpina GGP RS 100 -5%
GGP Italy SKU: 118550732/0
Four-Stroke Petrol Engine Alpina GGP RS100
Four-Stroke Petrol Engine Alpina GGP RS100 Original Alpina Petrol Engine, High Performance Four-stroke petrol engine Alpina GGP RS100. Ricanbio for the following products: - Lawnmower BL 410/295441044 / A12-2017 - Lawnmower...
AVAILABLE €204.51 €215.27
Details
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550705/0
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV- Petrol Tiller TI 36 G - Stiga SRC 36 G. Part for the following products: - Engine RSC...
in stock €2.63
Details
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
GGP Italy SKU: 118550719/0
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G Original part Alpina, Electronic Ignition for Lawnmower BL 410 - AL3 46 G - Rotary Tiller TI 36 G - Engine RS100 BLUE OHV. Part for the following products: - Lawnmower BL 410 -...
Last items in stock €31.54
Details
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S
GGP Italy SKU: 122570120/1
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S
Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S Original replacement part Dolmar, Drive Gear Pinion (Left Side) for Self Propelled Lawnmowers PM480S - PM4850S - PM4855SA - PM48S - PM5150S. Part for the following...
Last items in stock €10.25
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Traction Control Cable for Lawnmower Alpina BL 460 B
GGP Italy SKU: 381030085/0
Traction Control Cable for Lawnmower Alpina BL 460 B
Traction Control Cable for Lawnmower Alpina BL 460 B Original replacement part Alpina, Traction Control Cable for Self Propelled Lawnmower BL 460 SB - BL 510 SB - BL 510 SHQ. Part for...
Last items in stock €19.55
Details
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
GGP Italy SKU: 118550674/0
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following products: -  Petrol Engine...
Last items in stock €75.58
Details
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550670/0
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -  Petrol...
on 7/10 Business Days Approx €1.84
Details
Cable Plate for Lawn Mower DINO 47
GGP Italy SKU: 322551685/0
Cable Plate for Lawn Mower DINO 47
Cable Plate for Lawn Mower DINO 47 Original spare part Alpina, Cable Plate ø22 From S/N 20AA2WBH066504 for Lawn Mower DINO 47 - BL 450. Parts for the following products: -  LAWNMOWER CASTELGARDEN XC 48 GSW4 - L AWNMOWER ALPINA BL 460...
Last items in stock €7.97
Details
Air Filter Ass'y for Petrol Engine Alpina RS100 BLUE OHV
GGP Italy SKU: 118550702/0
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV
Air Cleaner Ass'y for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Air Cleaner Ass'y with Support for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following...
Usually Ships in: 7/10 Business Days Approx. €16.28
Details
Alpina BL 510 SHQ Handle, Upper Part
GGP Italy SKU: 381006740/0
Alpina BL 510 SHQ Handle, Upper Part
Alpina BL 510 SHQ Handle, Upper Part Original spare part Alpina, Handle, Upper Part for Lawnmowers BL 510 SHQ - BL 460 SB - BL410 - BL 510 SB. Part for the following products: -  Lawnmower...
Last items in stock €27.31
Details
Alpina BL 460 SB Mulching Plug [Cruiser]
GGP Italy SKU: 322140239/0
Alpina BL 460 SB Mulching Plug Cruiser 48
Alpina BL 460 SB Mulching Plug [Cruiser 48] Original replacement part Alpina, Mulching Plug [Cruiser] forLawnmowers BL 460 SB - AL3 46 B - G - E - SG. Part for the following products: -  Lawnmower...
on 7/10 Business Days Approx €11.88
Details
Alpina AL3 46 SG Screw
GGP Italy SKU: 112728706/0
Alpina AL3 46 SG Screw
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Comments (0)
