| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381005195/2 RIGHT HANDLE BRACKET Black From 01-September-2018 | €7.25 | |
|
2
|
|
381005197/2 LEFT HANDLE BRACKET Black From 01-September-2018 | €7.25 | |
|
3
|
|
112727802/0 Screw | €1.63 | |
|
4
|
|
322545213/0 Plate | €2.04 | |
|
5
|
|
322600310/0 REAR DOOR (Not For Electric Start Models) | €5.12 | |
|
6
|
|
322108329/0 Rear Conveyor | €20.11 | |
|
7
|
|
112728697/0 Screw | €1.63 | |
|
8
|
|
322060241/1 Belt Carter | €8.70 | |
|
9
|
|
112728903/0 Screw | €1.49 | |
|
10
|
|
322140249/0 Mulching Deflector | €12.32 | |
|
11
|
|
381005026/0 Grey Deck | €127.79 | |
|
12
|
|
322820077/1 Cap From 01-september-2016 | €1.66 | |
|
13
|
|
119035000/0 Ring Or | €5.26 | |
|
14
|
|
112728450/0 Screw | €1.54 | |
|
15
|
|
322034002/0 Washing Connection | €1.76 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381302937/0 Axle, Front Wheels | €27.45 | |
|
1
|
|
381302937/1 Axle, Front Wheels | €63.94 | |
|
2
|
|
322785305/1 Support From 01-September-2015 | €2.74 | |
|
3
|
|
112728697/0 Screw | €1.63 | |
|
4
|
|
322869731/0 Rod, Height Adjustment | €0.10 | Not available for order |
|
4
|
|
322869731/1 Rod, Height Adjustment | €18.01 | |
|
5
|
|
122519823/0 Alpina Rod Pin for BL 510 SHQ | €2.44 | |
|
6
|
|
112436050/0 Plate | €1.91 | |
|
7
|
|
122450494/0 Spring | €4.82 | |
|
8
|
|
381302855/1 Rear Wheel Axle | €45.90 | |
|
8
|
|
381302855/2 Rear Wheel Axle | €45.90 | |
|
9
|
|
381003356/0 Height Adjust Lever To S / N 20BA2WBH076280 | €7.21 | |
|
9
|
|
381003356/1 Height Adjust Lever From S / N 20BA2WBH076281 | €5.60 | |
|
10
|
|
122534131/0 Alpina AL3 46 B Pin | €1.65 | |
|
11
|
|
122446192/0 Spring | €2.20 | |
|
12
|
|
112154510/0 Nut | €1.66 | |
|
13
|
|
322785500/0 Support | €1.91 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
112735410/0 Screw | €1.63 | |
|
2
|
|
322226312/0 Mask, Black | €14.81 | |
|
3
|
|
322393780/0 Front Handle | €5.36 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381006737/0 Handle Lower Part | €26.23 | |
|
2
|
|
112155000/0 Nut | €1.66 | |
|
3
|
|
112521350/0 Washer | €1.74 | |
|
4
|
|
112369500/0 Elastic Washer | €1.67 | |
|
5
|
|
112760605/0 Screw | €3.52 | |
|
6
|
|
381008691/0 Outfit, Screws | €8.86 | |
|
7
|
|
133320504/0 Cable clamp | €2.04 | |
|
8
|
|
118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G | €1.82 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381007571/2 Handle,Black Upper Part with sponge handgrip | €38.60 | |
|
2
|
|
122430313/0 Guide Spring | €4.06 | |
|
3
|
|
112521330/0 Washer | €1.70 | |
|
4
|
|
112154510/0 Nut | €1.66 | |
|
5
|
|
118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G | €1.82 | |
|
6
|
|
181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B | €16.33 | |
|
7
|
|
181030054/0 Engine Brake Cable | €15.36 | |
|
8
|
|
112727783/0 Screw | €1.83 | |
|
9
|
|
112154510/0 Nut | €1.66 | |
|
12
|
|
322551640/0 Plate | €7.99 | |
|
12
|
|
322551685/0 Cable Plate for Lawn Mower DINO 47 | €7.97 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
381007416/3 Wheel Ø 200 | €17.50 | |
|
2
|
|
119216035/0 Bearing | €4.51 | |
|
3
|
|
112521350/0 Washer | €1.74 | |
|
4
|
|
112155000/0 Nut | €1.66 | |
|
5
|
|
322110643/0 Hub Cap Grey | €2.51 | |
|
6
|
|
381007484/2 Wheel Ø 200 | €16.33 | |
|
7
|
|
112728706/0 Alpina AL3 46 SG Screw | €1.65 | |
|
8
|
|
322120114/0 Wheels Crown | €6.91 | |
|
9
|
|
322600145/0 Protection, Wheel | €1.91 | |
|
10
|
|
322600239/0 Protection, Wheel | €3.85 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ | €2.19 | |
|
2
|
|
1111-9168-01 Blade Holder | €20.41 | |
|
2
|
|
122463012/4 Blade Boss Ø 22.2 | €10.31 | |
|
3
|
|
1111-9142-02 Mulching Blade | €20.49 | |
|
3
|
|
181004341/3 Mulching Blade L.409,5 mm for Lawnmower Alpina BL 410 | €17.59 | |
|
4
|
|
122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ | €3.71 | |
|
5
|
|
112523080/0 Alpina Washer M 10 for BL 510 SHQ | €1.59 | |
|
6
|
|
112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga | €1.92 | |
|
7
|
|
112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ | €2.09 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322486497/0 Rear door | €1.63 | |
|
2
|
|
322486496/0 Grass-Box, Upper Part | €30.64 | |
|
3
|
|
181102422/0 Black Fabric Box | €41.74 | |
|
5
|
|
122450479/0 DEFLECTOR SPRING | €3.44 | |
|
6
|
|
122608525/1 Box, Fabric | €13.02 | |
|
6
|
|
122608525/2 Stiffening Lower | €13.02 | |
|
7
|
|
122517884/0 DEFLECTOR ROD | €5.09 | |
|
8
|
|
322109594/0 Stone Guard Support, Black | €6.07 | |
|
9
|
|
112728697/0 Screw | €1.63 | |
|
10
|
|
322600355/1 Stone Guard, Black | €12.17 | |
|
12
|
|
381008735/0 Kit plastic pin | €2.32 | |
|
13
|
|
381008639/0 Outfit, Screws | €2.04 |
| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
1
|
|
322055629/0 Gray Cover | €5.08 | |
|
2
|
|
322055630/0 Yellow Cover | €6.48 | |
|
3
|
|
322055627/0 Gray Cover | €5.09 |
Shipping and delivery information will be available shortly.

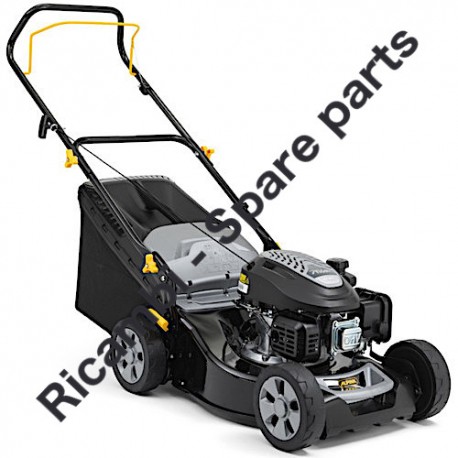

For the maintenance and repair of your Self-propelled Lawnmower AL5 41 A – 2L0431044/A21 - 2022, it is advisable to purchase original spare parts only. Buy Alpina spare parts at best prices with confidence. Open the PDF on the page to see all the components of the lawnmower. Live your garden by taking care of the lawn.
In the following table, look for the model of the Petrol Lawn Mower and the respective parts of the code.![]()
| Lawnmower AL5 41 A – 2L0431044/A21 Deck pag.1 | ||
| # | Part Num. | Description |
| 1 | 381005195/2 | Bracket-Rh |
| 2 | 381005197/2 | Left Bracket |
| 3 | 112727802/0 | Screw |
| 4 | 322545213/0 | Plate |
| 5 | 322600310/0 | Rear door |
| 6 | 322108329/0 | Rear Conveyor |
| 7 | 112728697/0 | Screw |
| 8 | 322060241/1 | Belt Protection |
| 9 | 112728903/0 | Screw |
| 10 | 322140249/0 | Mulching Deflector |
| 11 | 381005026/0 | Grey Deck |
| 12 | 322820077/1 | Cap |
| 13 | 119035000/0 | Or Ring |
| 14 | 112728450/0 | Screw |
| 15 | 322034002/0 | Washing Connection |
| Lawnmower AL5 41 A - 2L0431044/A21 Height Adjusting pag.2 | ||
| 1 | 381302937/0 | Axle, Front Wheels |
| 1 | 381302937/1 | Axle, Front Wheels |
| 2 | 322785305/1 | Support |
| 3 | 112728697/0 | Screw |
| 4 | 322869731/0 | Rod, Height Adjustment |
| 4 | 322869731/1 | Rod, Height Adjustment |
| 5 | 122519823/0 | Pin |
| 6 | 112436050/0 | Plate |
| 7 | 122450494/0 | Spring |
| 8 | 381302855/1 | Rear Wheel Axle |
| 8 | 381302855/2 | Rear Wheel Axle |
| 9 | 381003356/0 | Wheels Rear Adj. Lever |
| 9 | 381003356/1 | Wheels Rear Adj. Lever |
| 10 | 122534131/0 | Pin |
| 11 | 122446192/0 | Spring |
| 12 | 112154510/0 | Nut |
| 13 | 322785500/0 | Support |
| Lawnmower AL5 41 A - 2L0431044/A21 Mask pag.3 | ||
| 1 | 112735410/0 | Screw |
| 2 | 322226312/0 | Mask, Black |
| 3 | 322393780/0 | Front Handle |
| Lawnmower AL5 41 A - 2L0431044/A21 Handle, Lower Part pag.4 | ||
| 1 | 381006737/0 | Handle, Lower Part Black |
| 2 | 112155000/0 | Nut |
| 3 | 112521350/0 | Washer |
| 4 | 112369500/0 | Elastic Washer |
| 5 | 112760605/0 | Screw |
| 6 | 381008691/0 | Outfit, Screws |
| 7 | 133320504/0 | Fairlead |
| 8 | 118390020/0 | Conduit Clip |
| Lawnmower AL5 41 A - 2L0431044/A21 Handle, Upper Part pag.5 | ||
| 1 | 381007571/2 | Handle,Black Upper Part with sponge handgrip |
| 2 | 122430313/0 | Guide Spring |
| 3 | 112521330/0 | Washer |
| 4 | 112154510/0 | Nut |
| 5 | 118390020/0 | Conduit Clip |
| 6 | 181003363/1 | Lever, Engine Brake Black |
| 7 | 181030054/0 | Cable, Thread Engine Brake |
| 8 | 112727783/0 | Screw |
| 9 | 112154510/0 | Nut |
| 12 | 322551640/0 | Cable Holder |
| 12 | 322551685/0 | Cable Holder ø22 |
| Lawnmower AL5 41 A - 2L0431044/A21 Wheel and Hub Cap pag.6 | ||
| 1 | 381007416/3 | Wheel Ø 200 |
| 2 | 119216035/0 | Bearing |
| 3 | 112521350/0 | Washer |
| 4 | 112155000/0 | Nut |
| 5 | 322110643/0 | Hub Cap Grey |
| 6 | 381007484/2 | Wheel Ø 200 |
| 7 | 112728706/0 | Screw |
| 8 | 322120114/0 | Wheels Crown |
| 9 | 322600145/0 | Protection, Wheel |
| 10 | 322600239/0 | Protection, Wheel |
| Lawnmower AL5 41 A - 2L0431044/A21 Blade pag.7 | ||
| 1 | 112735108/1 | Screw |
| 2 | 1111-9168-01 | Blade Holder |
| 2 | 122463012/4 | Hub, Crankshaft Ø 22.2 |
| 3 | 1111-9142-02 | Mulching Blade |
| 3 | 181004341/3 | Mulching Blade |
| 4 | 122160400/0 | Elastic Disc |
| 5 | 112523080/0 | Washer |
| 6 | 112735698/0 | Screw |
| 7 | 112139100/0 | Key |
| Lawnmower AL5 41 A - 2L0431044/A21 Grass-Catcher pag.8 | ||
| 1 | 322486497/0 | Rear door |
| 2 | 322486496/0 | Grass-Box, Upper Part |
| 3 | 181102422/0 | Black Fabric Box |
| 5 | 122450479/0 | Spring |
| 6 | 122608525/1 | Lower Stiffening |
| 6 | 122608525/2 | Lower Stiffening |
| 7 | 122517884/0 | Pin |
| 8 | 322109594/0 | Stone Guard Support, Black |
| 9 | 112728697/0 | Screw |
| 10 | 322600355/1 | Stone Guard, Black |
| 12 | 381008735/0 | Outfit, Plastic Pin |
| 13 | 381008639/0 | Outfit, Screws |
| Lawnmower AL5 41 A - 2L0431044/A21 Engine - Carburettor, Tank pag.9 | ||
| 2 | 112292102/0 | Nut |
| 3 | 118551467/0 | Starter Assy |
| 4 | 118551619/0 | Starter Handle |
| 5 | 118550779/0 | Starting Rope |
| 6 | 118551621/0 | Starter Spring |
| 7 | 118551620/0 | Starter Pulley |
| 8 | 118551626/0 | Spring |
| 9 | 118551622/0 | Ratchet, Starter |
| 10 | 118551625/0 | Spring |
| 11 | 118551623/0 | Cover |
| 13 | 118551624/0 | Stud |
| 14 | 118550908/0 | Air Guide |
| 15 | 118550907/0 | Pin |
| 16 | 118550906/0 | Pin |
| 17 | 112791500/0 | Screw |
| 18 | 118551475/0 | Elettronic Coil |
| 20 | 9400-0244-00 | Spark Plug |
| 21 | 112789000/0 | Screw |
| 22 | 118551456/0 | Choke Control |
| 23 | 118551459/0 | Control Rod |
| 24 | 118551352/0 | Retainer |
| 25 | 118551489/0 | Carburettor |
| 26 | 118550930/0 | Stud Bolt |
| 27 | 118550929/0 | Gasket |
| 28 | 118550928/0 | Insulator, Carburettor |
| 29 | 118550927/0 | Gasket |
| 30 | 118550924/0 | Gasket |
| 31 | 118551461/0 | Air Cleaner Assy |
| 32 | 118550946/0 | Air Filter |
| 33 | 118550945/0 | Air Filter |
| 34 | 118550944/0 | Air Cleaner Cover |
| 35 | 112292102/0 | Nut |
| 36 | 118551481/0 | Fuel Pipe |
| 37 | 118550918/0 | Pipe Clip |
| 38 | 118550314/0 | Fuel Filter |
| 39 | 118551454/0 | Tank |
| 40 | 118550943/0 | Fuel Cap |
| 41 | 112792099/0 | Screw |
| 42 | 118550920/0 | Breather Fuel Pipe |
| 43 | 118550933/0 | Arm Governor |
| 44 | 118550931/0 | Plate |
| 45 | 112789000/0 | Screw |
| 46 | 118550932/0 | Spring |
| 47 | 118550805/0 | Screw |
| 48 | 118550806/0 | Nut |
| 49 | 118550925/0 | Governor Link |
| 50 | 118550898/0 | Gasket, Muffler |
| 51 | 118551464/0 | Muffler |
| 52 | 112792425/0 | Screw |
| 53 | 118550900/0 | Muffler Guard |
| 54 | 118551277/0 | Bolt |
| Lawnmower AL5 41 A - 2L0431044/A21 Engine - Piston, Crankshaft pag.10 | ||
| 1 | 118550336/0 | Nut |
| 2 | 118550905/0 | Flywheel Ass.Y |
| 3 | 118551277/0 | Bolt |
| 4 | 112791500/0 | Screw |
| 5 | 118551483/0 | Flywheel Brake/Stop Switch Assy |
| 6 | 118550911/0 | Spring |
| 7 | 118550300/0 | Oil Seal |
| 9 | 112789000/0 | Screw |
| 10 | 118550904/0 | Cover |
| 11 | 118550903/0 | Gasket, Breath Groove |
| 12 | 118550902/0 | Valve |
| 13 | 118551488/0 | Crankshaft |
| 14 | 118550288/0 | Woodruff Key |
| 15 | 118550283/0 | Washer |
| 16 | 118550890/0 | Camshaft Assy |
| 18 | 112789000/0 | Screw |
| 19 | 118550888/0 | Speed Governor Assy |
| 20 | 118550936/0 | Shaft, Governor Arm |
| 21 | 118550666/0 | Washer |
| 22 | 118550935/0 | Oil Seal |
| 23 | 118550856/0 | Cotter Pin |
| 24 | 118550379/0 | Oil Seal |
| 25 | 118551209/0 | Crankcase Cover |
| 26 | 118550887/0 | Tank Cap |
| 27 | 112791500/0 | Screw |
| 28 | 118551276/0 | Bolt |
| 29 | 118550891/0 | Cover Comp., Head |
| 30 | 118550892/0 | Packing Head Cover |
| 31 | 118550893/0 | Valve Arm Set |
| 32 | 118550894/0 | Plate |
| 33 | 118550895/0 | Retainer |
| 34 | 118550896/0 | Spring |
| 35 | 118550910/0 | Valve Assy, Intake + Exhaust |
| 36 | 118550291/0 | Valve Lifter Assy |
| 37 | 118550912/0 | Push Rod |
| 38 | 118551482/0 | Piston |
| 39 | 118551445/0 | Piston, Ring Set |
| 40 | 118550915/0 | Piston Pin |
| 41 | 118550914/0 | Washer, Piston Pin |
| 42 | 118551487/0 | Connecting Rod Assy |
| 43 | 118551223/0 | Grub Screw |
| 45 | 118550940/0 | Engine Gasket Set |
| Lawnmower AL5 41 A - 2L0431044/A21 Engine Cover pag.11 | ||
| 1 | 322055629/0 | Grey Cover |
| 2 | 322055630/0 | Hood, Yellow |
| 3 | 322055627/0 | Grey Cover |
