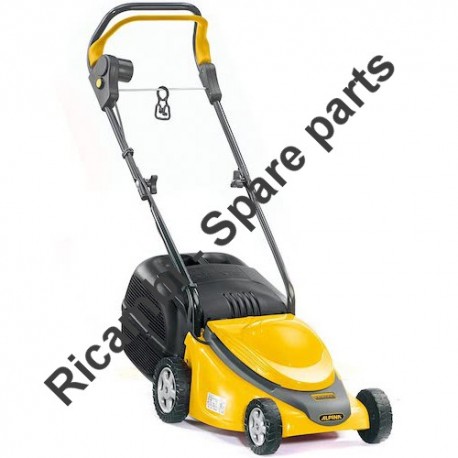

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Electric Lawn Mower FL 40 TE (2008) - 297591751/BL.
In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
| ALPINA FL 40 TE (2008) - 297591751/BL | ||
| # | Part Num. | Description |
| 1 | 322055129/0 | Cover Yellow |
| 2 | 112728124/0 | Screw |
| 3 | 322785254/0 | Grey Support, Cover |
| 5 | 112728701/0 | Screw |
| 6 | 112735410/0 | Screw |
| 7 | 118563660/0 | Electric Motor 1300W Leo - 230-240V (1300W) |
| 7 | 118563680/0 | Electric Motor 1500W Sumec 230V (1500W) |
| 8 | 122167700/0 | Spacer |
| 9 | 322066722/0 | Yellow chassis |
| 10 | 181004142/0 | Standard Blade |
| 11 | 381004352/0 | Screw To 31-August-2011 |
| 11 | 381004352/1 | Screw From 01-September-2011 |
| 12 | 381002855/0 | axle Front wheel |
| 13 | 112523050/0 | Washer |
| 14 | 112728705/0 | Screw |
| 15 | 112728701/0 | Screw |
| 16 | 325547049/0 | plate |
| 17 | 322869669/0 | Height Adjustment Control Rod |
| 18 | 322686094/0 | Wheel |
| 20 | 322600174/0 | Stone-Guard, Grey To 31-August-2011 |
| 20 | 322600174/1 | Stone-Guard, Grey From 01-September-2011 |
| 21 | 122450250/0 | Spring |
| 22 | 122512601/0 | Pin |
| 23 | 322545175/0 | plate |
| 24 | 112728701/0 | Screw |
| 25 | 122465602/0 | Hub To 31-August-2010 |
| 25 | 322465602/1 | Hub From 01-September-2010 |
| 26 | 322686095/0 | Wheel |
| 28 | 122524337/0 | Pin |
| 29 | 322110421/0 | Gray hubcap |
| 30 | 381002857/0 | Axle, Rear Wheels |
| 31 | 322399827/0 | Knob |
| 32 | 322321528/0 | Lever Height Adjustment |
| 33 | 112520033/0 | Washer |
| 34 | 122524338/0 | Pin |
| 35 | 122450425/0 | Spring |
| 36 | 322110420/0 | hubcap Gray |
