GGP Italy

Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ

SKU: AL3 51 SBQ 295546820/A19-2019
€2.08
VAT included

Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Tech Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Petrol Lawn Mower AL3 51 SBQ/295546820/A19-2019.

AL3 51 SBQ 295546820/A19-2019
Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
  • Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ
GGP Italy

Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ

SKU: AL3 51 SBQ 295546820/A19-2019 Condition: New
€2.08
VAT included

Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Tech Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Petrol Lawn Mower AL3 51 SBQ/295546820/A19-2019.

AL3 51 SBQ 295546820/A19-2019
settings 132 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
122 spare parts
Esploso pagina 1
Pos. Item Price Buy
2
 Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ 122465607/4 Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ €9.20
8
 photo_cameraImage coming soon 122608561/0 Grasscatcher Lower Stiffening €11.91
8
 photo_cameraImage coming soon 122608561/1 Lower reinforcement €11.44
9
 photo_cameraImage coming soon 112728692/0 Screw €4.96
10
 photo_cameraImage coming soon 322545159/0 Plate €1.58
11
 photo_cameraImage coming soon 181002318/0 Box, Fabric €34.51
12
 Alpina BL460 Stone Guard Ass'y Black 381008163/0 Alpina BL460 Stone Guard Ass'y Black €25.35
12
 photo_cameraImage coming soon 381008164/0 Yellow Stone guard Assy €26.11
13
 photo_cameraImage coming soon 381008735/0 Kit plastic pin €2.32
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

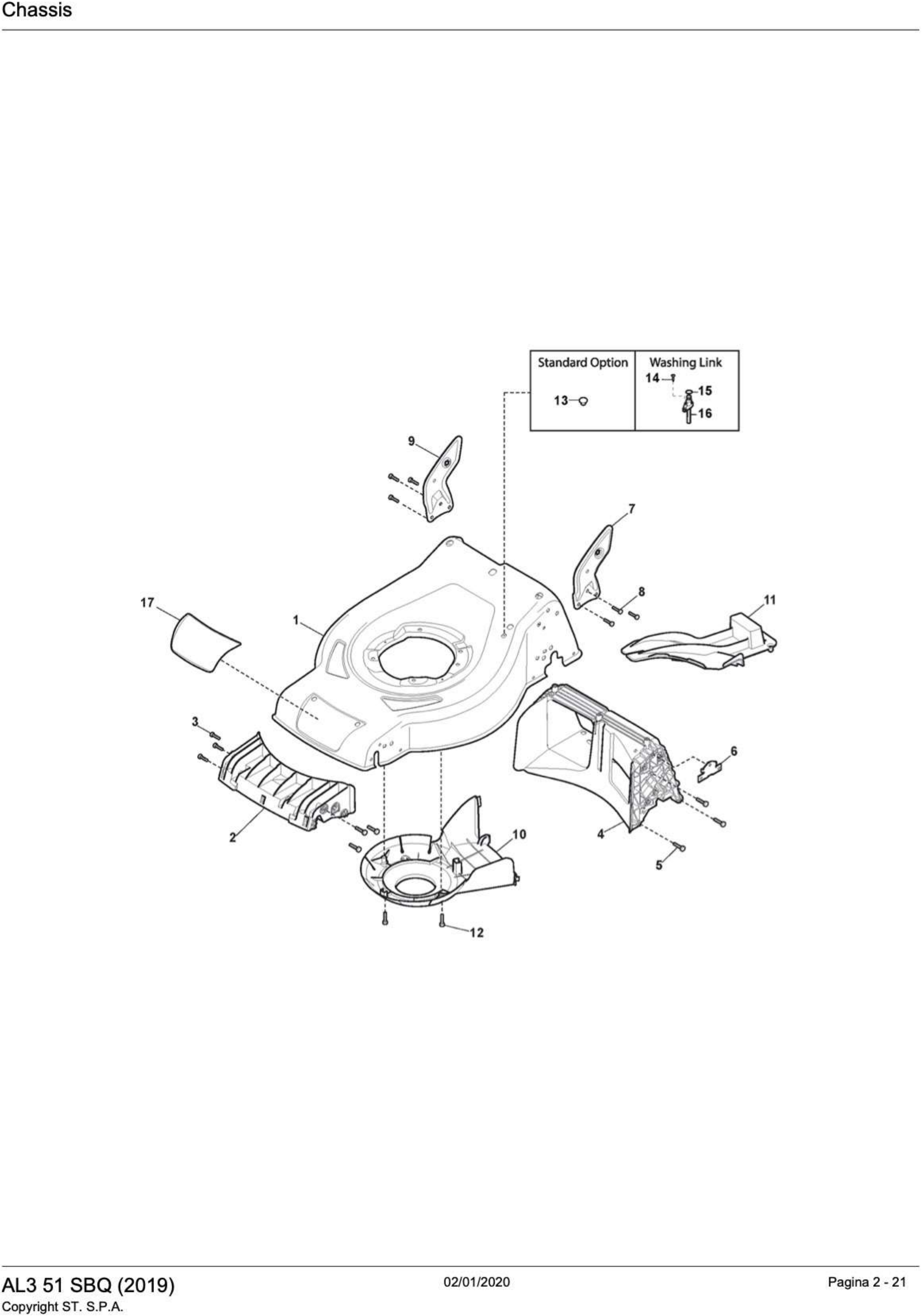

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004941/1 Red Chassis Side Exit €195.22
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
4
 Rear Baffle for Lawnmower Alpina BL 460 322108392/0 Rear Baffle for Lawnmower Alpina BL 460 €22.71
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005167/1 Left Bracket From 01-september-2017 €7.39
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005165/1 Right Bracket From 01-september-2017 €7.39
10
 Belt Protection Guard for Lawnmower Alpina BL 510 SHQ 322060250/1 Belt Protection Guard for Lawnmower Alpina BL 510 SHQ €12.62
11
 Mulching Deflector for Self Propelled Lawnmower Alpina BL 510 SHQ 322140244/1 Mulching Deflector for Self Propelled Lawnmower Alpina BL 510 SHQ €17.33
12
 photo_cameraImage coming soon 112728531/0 Screw €1.54
13
 photo_cameraImage coming soon 322820077/1 Cap From 01-september-2016 €1.66
14
 photo_cameraImage coming soon 112728450/0 Screw €1.72
15
 photo_cameraImage coming soon 119035000/0 Ring Or €5.26
16
 photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
17
 photo_cameraImage coming soon 322055606/0 Insert €3.13
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

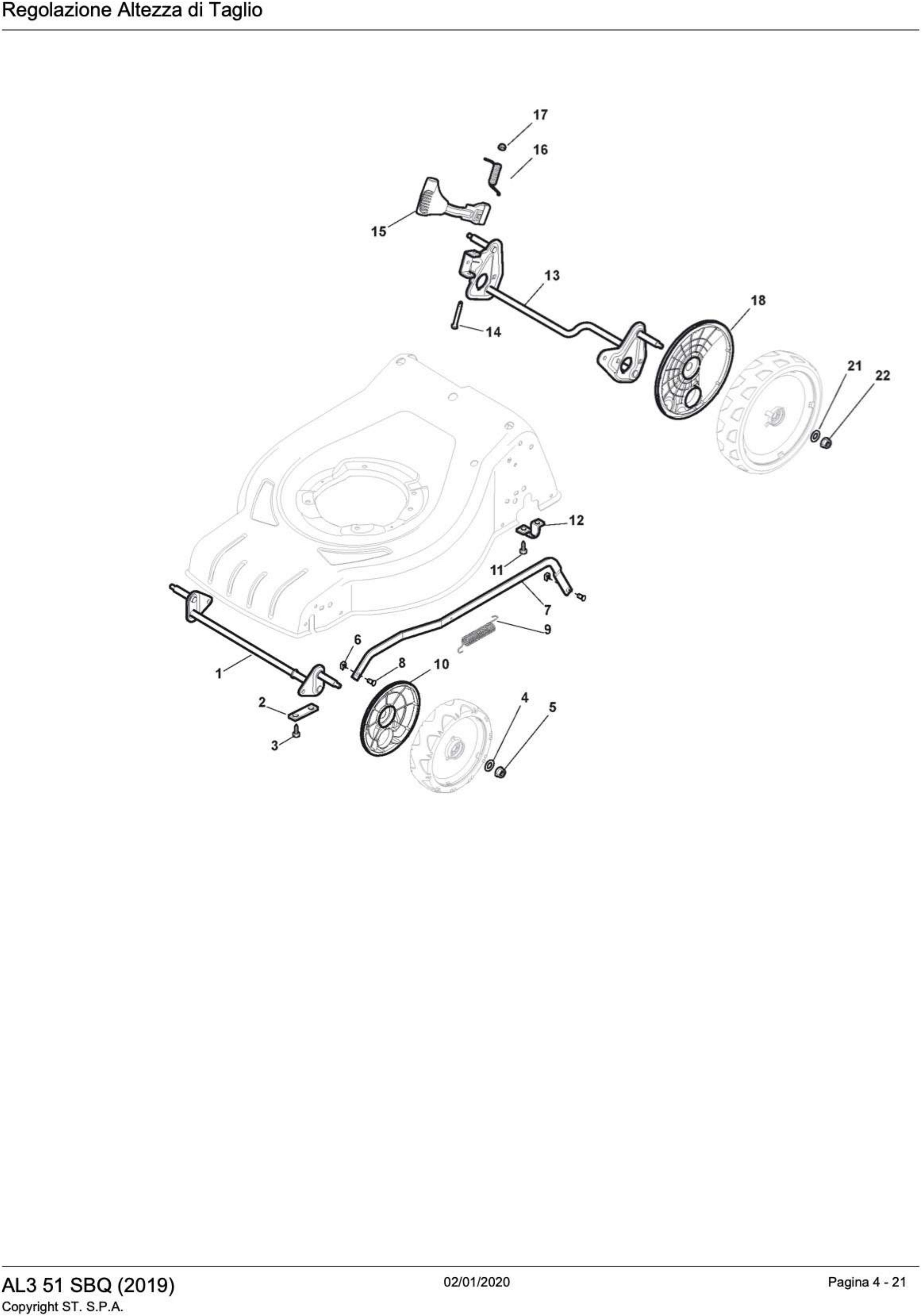

Esploso pagina 2
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381302853/0 Front Wheel Axle €32.35
2
 photo_cameraImage coming soon 322545142/0 Plate €1.66
3
 photo_cameraImage coming soon 112728698/0 Screw €1.66
4
 photo_cameraImage coming soon 112521350/0 Washer €1.74
5
 photo_cameraImage coming soon 112155000/0 Nut €1.66
6
 photo_cameraImage coming soon 112436051/0 Plate €1.78
7
 photo_cameraImage coming soon 322869679/0 Rod, Height Adjustment €24.22
8
 Alpina Rod Pin for BL 510 SHQ 122519823/0 Alpina Rod Pin for BL 510 SHQ €2.44
9
 photo_cameraImage coming soon 122446193/0 Spring €4.66
10
 photo_cameraImage coming soon 322600145/0 Protection, Wheel €1.91
12
 photo_cameraImage coming soon 322545152/0 Plate €1.66
13
 photo_cameraImage coming soon 381302849/0 Rear Wheel Axle €52.41
14
 Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
15
 photo_cameraImage coming soon 381003458/0 Wheels Rear Adj. Lever From 01-september-2017 €10.79
16
 photo_cameraImage coming soon 122446192/0 Spring €2.20
17
 photo_cameraImage coming soon 112154510/0 Nut €1.66
18
 Inner wheel Cover for Lawnmower Alpina BL 510 SHQ 322600240/0 Inner wheel Cover for Lawnmower Alpina BL 510 SHQ €5.77
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

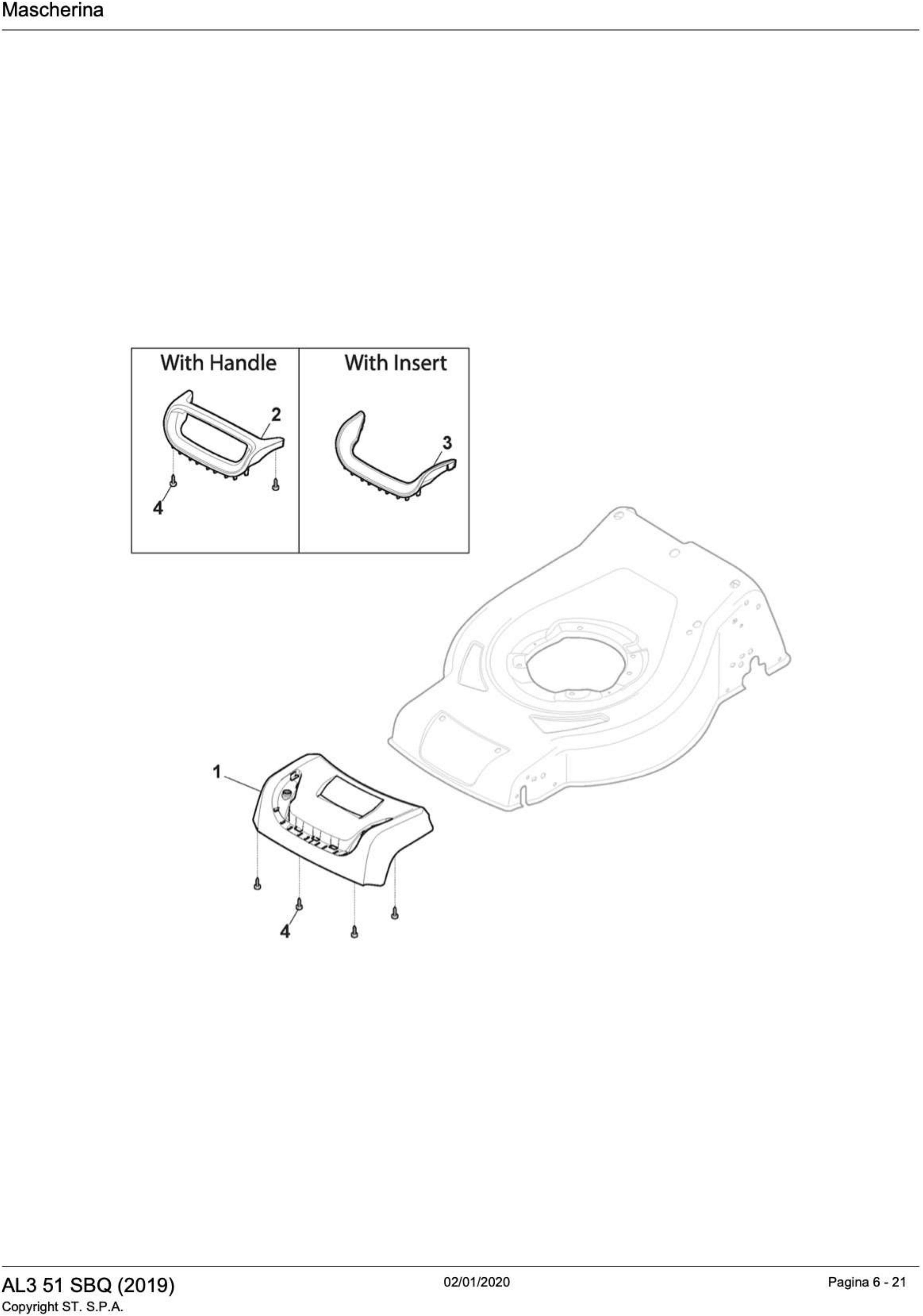

Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

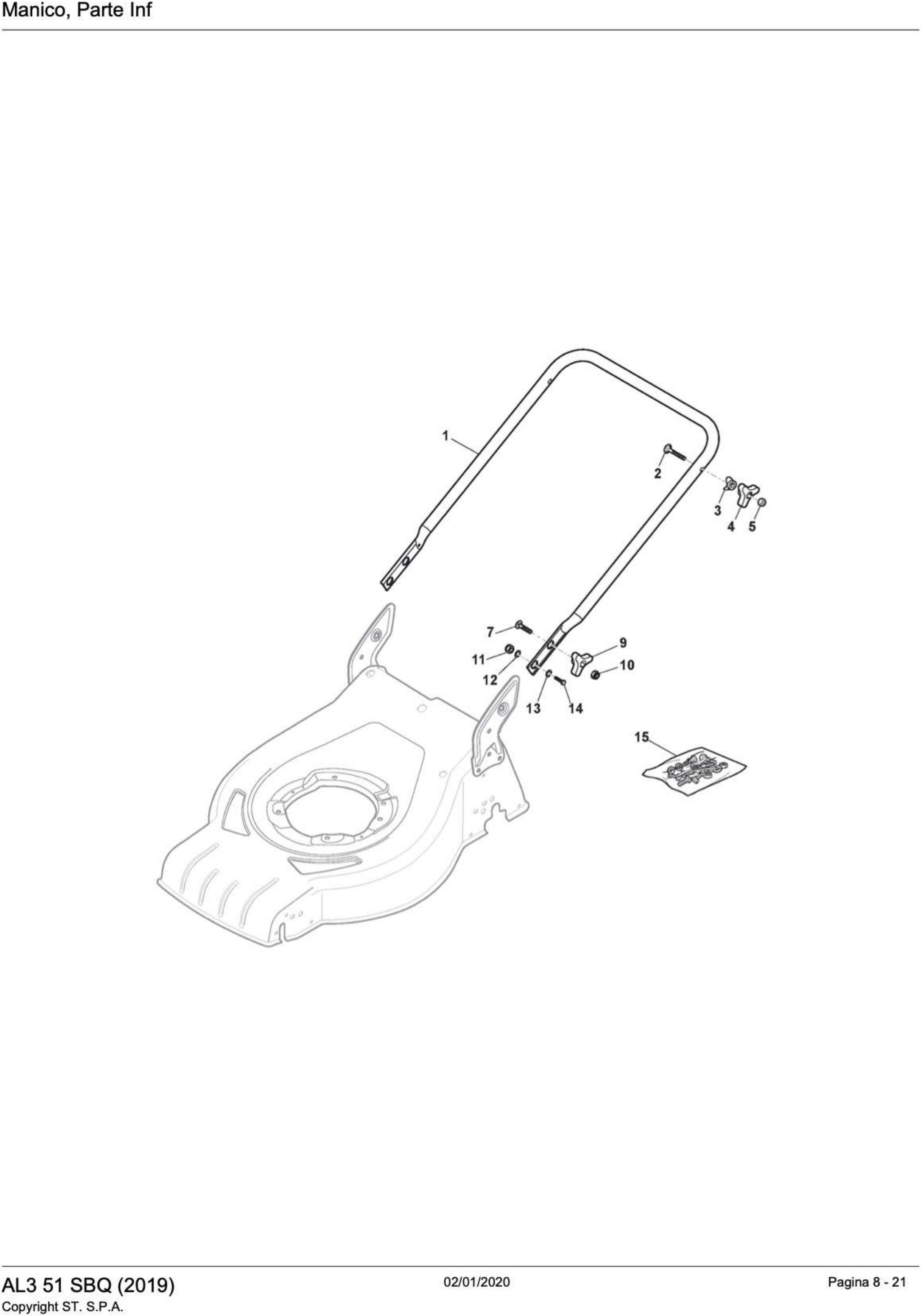

Esploso pagina 4
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006785/0 Handle Lower Part €25.35
2
 photo_cameraImage coming soon 112819110/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
4
 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
5
 photo_cameraImage coming soon 112293200/0 Nut €1.74
7
 photo_cameraImage coming soon 112818900/0 Screw €1.66
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008691/0 Outfit, Screws €8.86
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

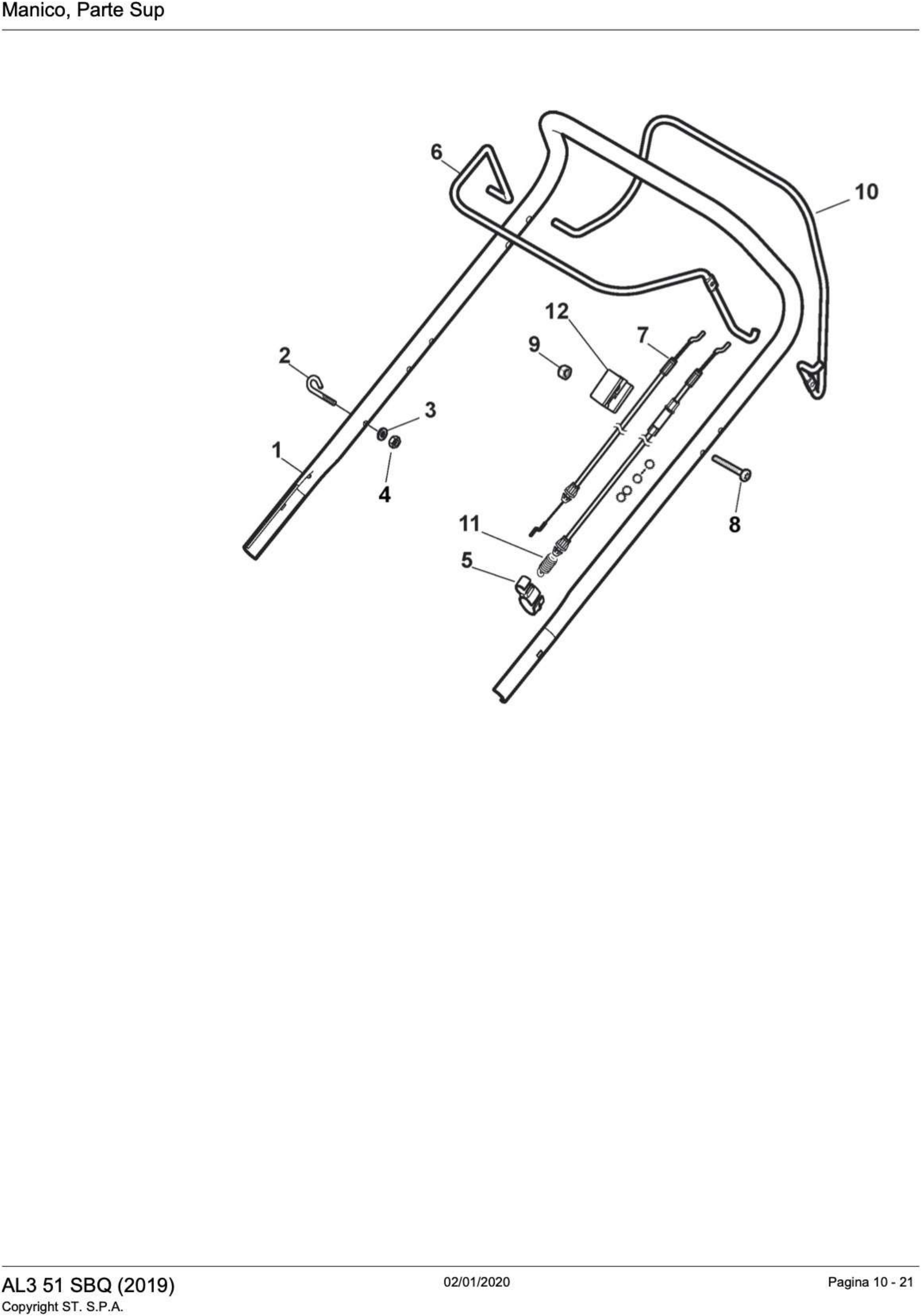

Esploso pagina 5
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006739/0 Handle, Upper Part To 31-August-2011;Black without Sponge €19.67
1
 photo_cameraImage coming soon 381006739/1 Handle, Upper Part €19.67
1
 photo_cameraImage coming soon 381006739/2 Handle, Upper Part Black without Sponge;From 01-September-2011 To 31-August-2017 €24.91
1
 photo_cameraImage coming soon 381006745/0 Handle, Upper Part with Sponge To 31-August-2011;Black with Sponge €27.20
1
 photo_cameraImage coming soon 381006745/1 Handle, Upper Part with sponge handgrip €40.01
1
 photo_cameraImage coming soon 381006745/2 Handle, Upper Part with Sponge Black with Sponge;From 01-September-2017 To 31-August-2018 €37.12
1
 photo_cameraImage coming soon 381006745/3 Handle, Upper Part with Sponge Black with Sponge;From 01-september-2018 €41.74
2
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
 photo_cameraImage coming soon 112521330/0 Washer €1.70
5
 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
 photo_cameraImage coming soon 181030087/0 Motor Brake Cable €13.35
8
 photo_cameraImage coming soon 112727783/0 Screw €1.83
10
 photo_cameraImage coming soon 181003364/0 Cable Rear Drive €15.08
11
 photo_cameraImage coming soon 381030051/0 Cable Rear Drive €20.27
12
 photo_cameraImage coming soon 322551640/0 Plate €7.99
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

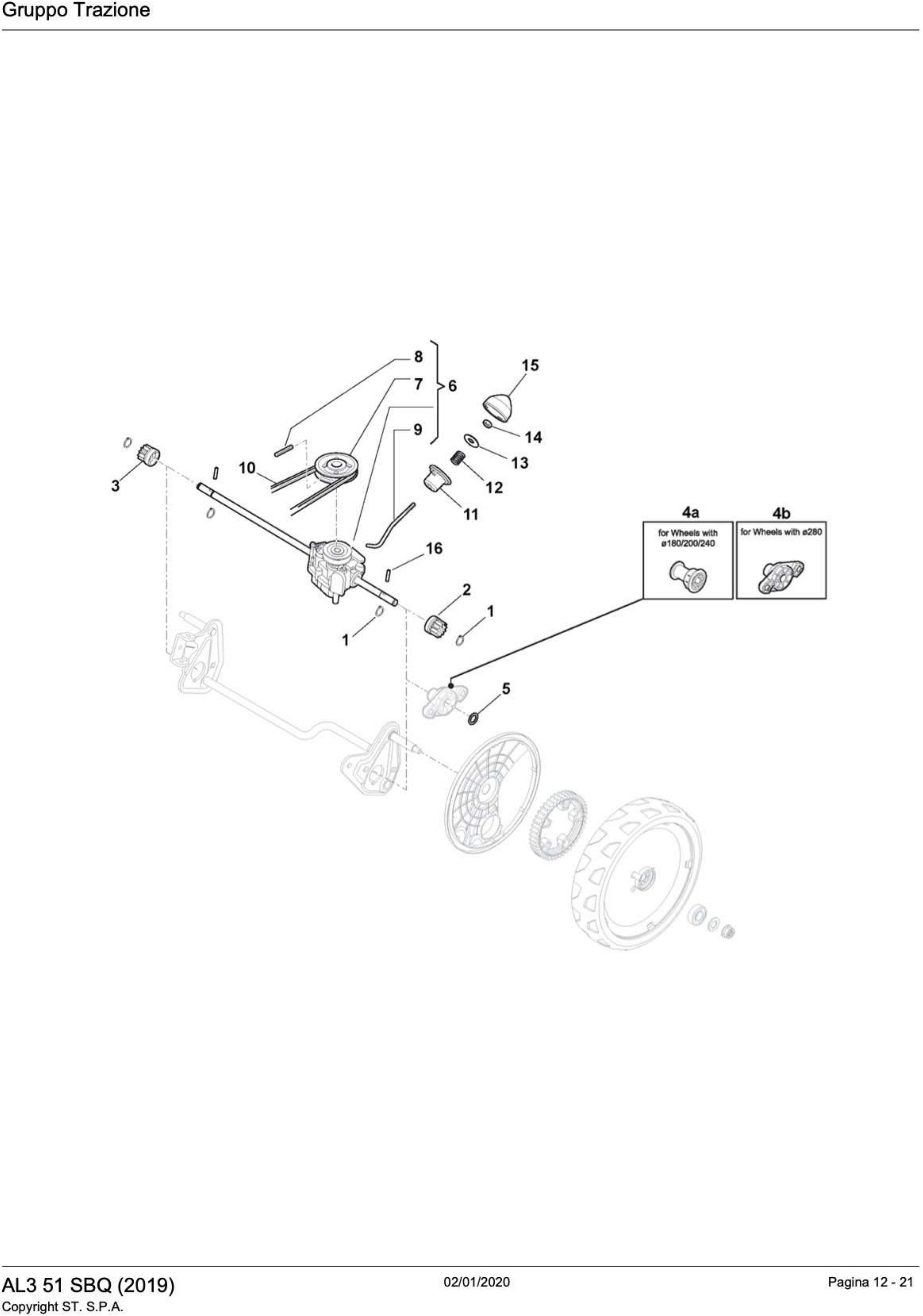

Esploso pagina 6
Pos. Item Price Buy
1
 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
2
 Left Pinion Gear for Self Propelled Lawnmover Alpina BL 510 SHQ 122570134/0 Left Pinion Gear for Self Propelled Lawnmover Alpina BL 510 SHQ €7.53
3
 photo_cameraImage coming soon 122570133/0 Right Pinion €8.09
4b
 Axle Bush for Self Propelled Lawnmower Alpina BL 510 SB 322042067/0 Axle Bush for Self Propelled Lawnmower Alpina BL 510 SB €4.10
5
 photo_cameraImage coming soon 112521371/0 Washer €1.66
6
 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB 181003092/0 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB €114.62
7
 photo_cameraImage coming soon 122601904/0 Pulley To 31-august-2013 €6.79
7
 photo_cameraImage coming soon 122601909/0 Pulley €7.00
8
 photo_cameraImage coming soon 112645705/0 Elastic pin ø5X32 €1.61
9
 photo_cameraImage coming soon 122033283/0 Adjustment Rod €4.77
10
 V-Belt for Self Propelled Lawnmower Alpina BL 510 SB 135064196/0 V-Belt for Self Propelled Lawnmower Alpina BL 510 SB €9.20
11
 photo_cameraImage coming soon 122041957/1 Bushing €1.66
12
 photo_cameraImage coming soon 122450063/0 Spring €1.66
13
 photo_cameraImage coming soon 322680009/0 Washer €1.81
15
 photo_cameraImage coming soon 122110230/0 Hub Cover €1.66
16
 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

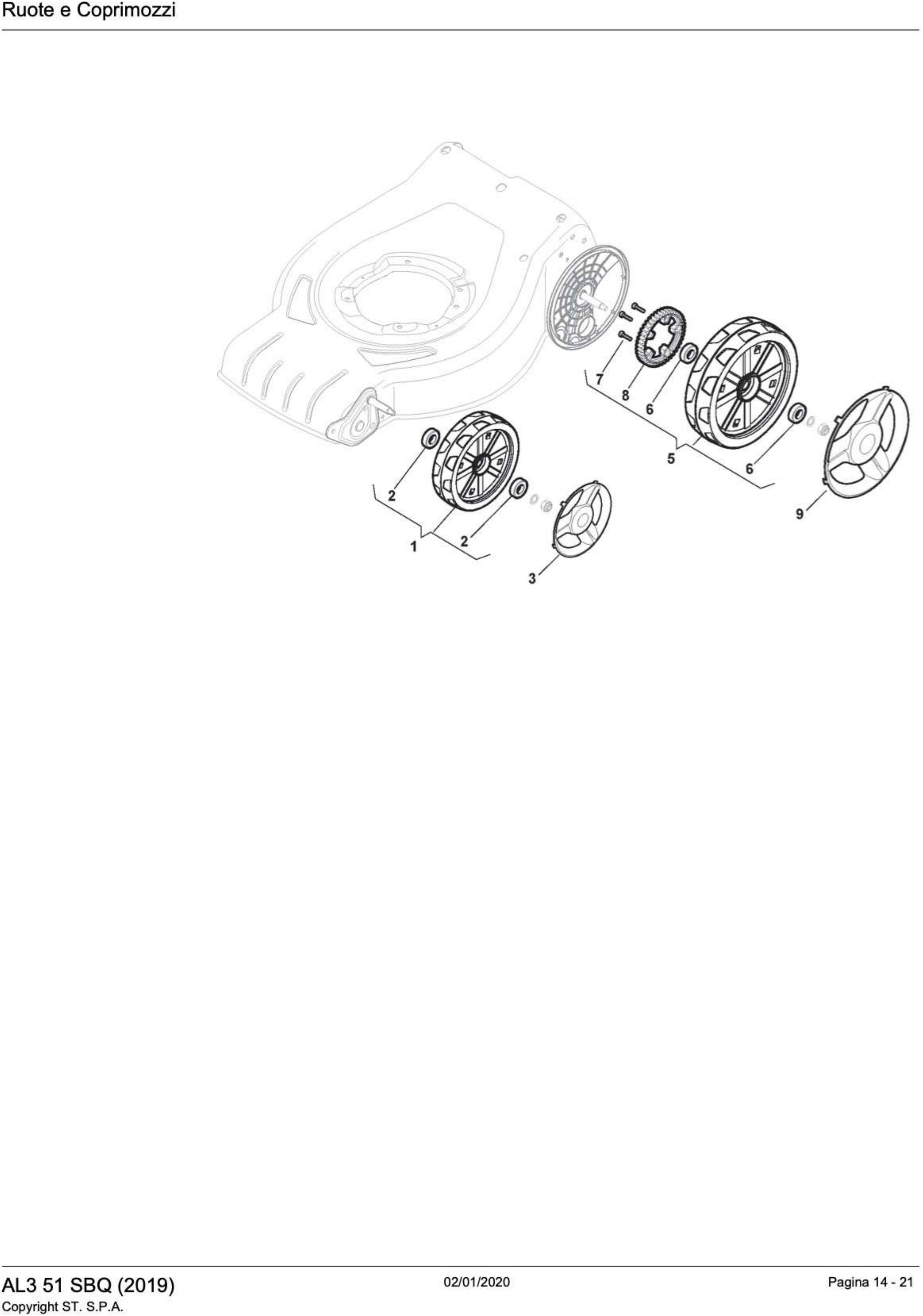

Esploso pagina 7
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007483/1 Wheel Ø 200 €18.28
1
 photo_cameraImage coming soon 381007483/2 Wheel Ø 200 €18.28
2
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
5
 photo_cameraImage coming soon 381007479/1 Wheel Ø 280 €27.69
5
 photo_cameraImage coming soon 381007479/2 Wheel Ø 280 €33.42
7
 Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
9
 photo_cameraImage coming soon 322110641/0 Gray hubcap €3.19
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 8
Pos. Item Price Buy
1
 Alpina Conveyor for BL 510 SHQ 322108309/1 Alpina Conveyor for BL 510 SHQ €11.56
3
 photo_cameraImage coming soon 112727803/0 Screw €1.66
4
 photo_cameraImage coming soon 322806659/0 Pin €5.32
6
 photo_cameraImage coming soon 118203853/0 Hood €2.84
7
 photo_cameraImage coming soon 122450456/0 Spring €3.38
7
 photo_cameraImage coming soon 122450456/1 Spring €3.30
8
 photo_cameraImage coming soon 122517869/1 Pin €3.86
9
 photo_cameraImage coming soon 112604896/0 Crown Fixator €1.66
10
 photo_cameraImage coming soon 122517876/0 Pin €1.61
11
 photo_cameraImage coming soon 322783013/0 Safety €2.20
12
 photo_cameraImage coming soon 122450493/0 Spring €1.42
13
 photo_cameraImage coming soon 381008161/0 Side Discharge Assy €13.91
13
 photo_cameraImage coming soon 381008161/1 Side Discharge Assy €13.91
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
1
 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
3
 photo_cameraImage coming soon 181004462/0 408 A type blade €15.24
4
 photo_cameraImage coming soon 322680021/0 Washer €1.38
4
 photo_cameraImage coming soon 322680021/1 Washer €1.34
5
 photo_cameraImage coming soon 112508128/0 Elastic Disc €1.48
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 10
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
3
 photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
5
 photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
 photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
5
 photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
 photo_cameraImage coming soon 322393644/0 Black Handle €4.64
6
 photo_cameraImage coming soon 322393715/0 Handle, Grey €5.64
7
 photo_cameraImage coming soon 381486018/0 Grass-Box, Upper Part Black €27.21
7
 photo_cameraImage coming soon 381486029/0 Bag, Upper Side Grey €26.91
Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 11
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Petrol Lawn Mower AL3 51 SBQ

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Technical Assistance and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Petrol Lawn Mower AL3 51 SBQ/295546820/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
AL3 51 SBQ 295546820/A19-2019

Petrol Lawn Mower AL3 51 SBQ/295546820/A19-2019
Chassis Pag.1
# Part Num. Description
1 381004941/0 Red chassis
1 381004941/1 Red Chassis Side Exit
2 322108308/1 Rear Baffle
3 112728699/0 Screw
4 322108302/0 Rear Baffle To 31-August-2017
4 322108392/0 Rear Baffle From 01-September-2018
5 112728699/0 Screw
6 322545213/0 Plate
7 381005167/1 Left bracket
8 112727801/0 Screw
9 381005165/1 Right bracket
10 322060250/1 Belt Protection Guard
11 322140244/1 Mulching Deflector
12 112728531/0 Screw
13 322820077/1 Plug
14 112728450/0 Screw
15 119035000/0 Or ring
16 322034002/0 Water washing connection
17 322055606/0 Insert
Height Adjustment Pag.2
1 381302853/0 Front wheel axle
2 322545142/0 Plate
3 112728698/0 Screw
4 112521350/0 Washer
5 112155000/0 Nut
6 112436051/0 plate
7 322869679/0 Height Adjustment Control Rod
8 122519823/0 Pin
9 122446193/0 Spring
10 322600145/0 Wheel protection
11 112728698/0 Screw
12 322545152/0 Plate
13 381302849/0 Rear Wheel Axle
14 122534131/0 Pin
15 381003458/0 Height Adjustment Lever
16 122446192/0 Spring
17 112154510/0 Nut
18 322600240/0 Inner Wheel Wheel
21 112521350/0 Washer
22 112155000/0 Nut
Cover Pag.3
1 322226267/0 Cover, Black
2 322393772/0 Front handle
3 322055603/0 Insert
4 112728698/0 Screw
Handle, Lower Part Pag.4
1 381006785/0 Handle, Lower Part
2 112819110/0 Screw
3 122671651/0 Washer
4 122399900/0 Knob
5 112293200/0 Nut
7 112818900/0 Screw
9 122399900/0 Knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic disc
14 112760605/0 Screw
15 381008691/0 Screws
Handle, Upper Side Pag.5
1 381006739/0 Handle, Upper Side
1 381006739/1 Handle, Upper Side
1 381006739/2 Handle, Upper Side
1 381006745/0 Handle, Upper Side With Sponge Handle
1 381006745/1 Handle, Upper Side With Sponge Handle
1 381006745/2 Handle, Upper Side With Sponge Handle
1 381006745/3 Handle, Upper Side Black with sponge grip
2 122430313/0 Guide spring
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Cable clip
6 181003363/0 Black Motor Brake Lever
6 181003363/1 Black Motor Brake Lever
7 181030087/0 Motor Brake Cable
8 112727783/0 Screw
9 112154510/0 Nut
10 181003364/0 Traction Control Lever
11 381030051/0 Traction Control Cable
12 322551640/0 Plate
Traction Group Pag.6
1 112608600/0 Seeger
2 122570134/0 Left pinion
3 122570133/0 Right pinion
4b 322042067/0 Bush
5 112521371/0 Washer
6 181003092/0 Traction group
7 122601904/0 Pulley
7 122601909/0 Pulley
8 112645705/0 Elastic pin
9 122033283/0 Adjustment rod
10 135064196/0 Belt
11 122041957/1 Bushing
12 122450063/0 Spring
13 322680009/0 Washer
14 112154510/0 Nut
15 122110230/0 Hubcap
16 122753000/0 Pin
Wheel Pag.7
1 381007483/0 Wheel Ø 200
1 381007483/1 Wheel Ø 200
1 381007483/2 Wheel Ø 200
2 119216035/0 Bearing
3 322110687/0 Gray hubcap
5 381007479/0 Wheel Ø 280
5 381007479/1 Wheel Ø 280
5 381007479/2 Wheel Ø 280
6 119216035/0 Bearing
7 112728706/0 Screw
8 322120115/0 Crown
9 322110641/0 Gray hubcap
Rear conveyor Pag.8
1 322108309/1 Rear conveyor
3 112727803/0 Screw
4 322806659/0 Pin
5 112154510/0 Nut
6 118203853/0 Cap
7 122450456/0 Spring
7 122450456/1 Spring
8 122517869/1 Pin
9 112604896/0 Crown Fixator
10 122517876/0 Pin
11 322783013/0 Safety
12 122450493/0 Spring
13 381008161/0 Side Discharge Assy
13 381008161/1 Side Discharge Assy
Blade Pag.9
1 112735108/1 Screw
2 122465607/4 Hub With Pulley, Drive Shaft Ø 22.2
3 181004462/0 Lama
4 322680021/0 Washer
4 322680021/1 Washer
5 112508128/0 Elastic disc
6 112735698/0 Screw
7 112139100/0 Woodruff Key

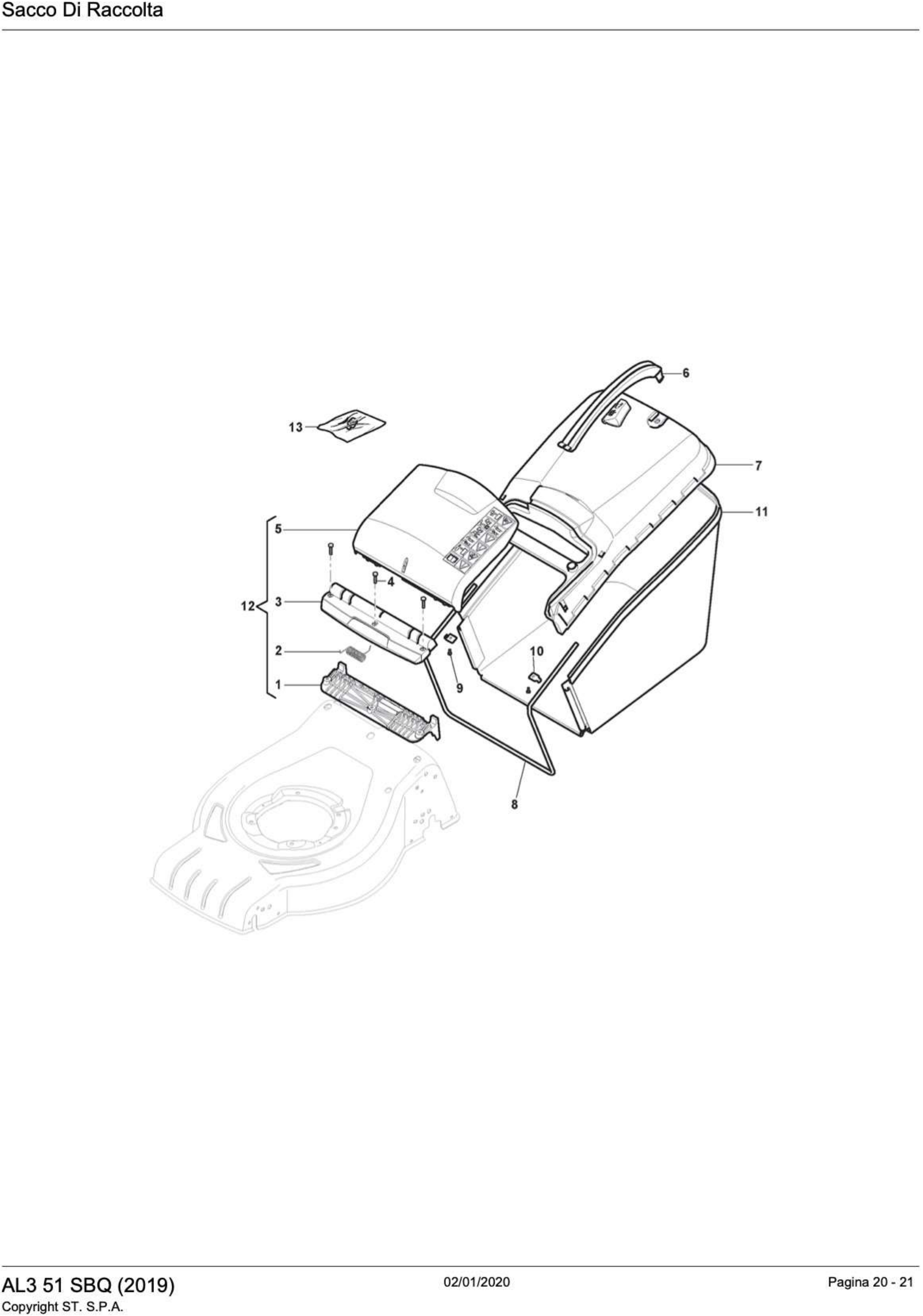

Bag Pag.10
1 322785331/0 Black Stones Guard Support
2 122450464/0 Spring
3 322109556/0 Cover Stone guard, Yellow
3 322109557/0 Cover Stone guard, Grey
4 112728699/0 Screw
5 322600206/1 Black stone guard
5 322600214/1 Yellow stone guard
5 322600216/1 Gray stone guard
6 322393644/0 Black bag handle
6 322393715/0 Gray Bag Handle
7 381486018/0 Bag, Upper Side Black
7 381486029/0 Bag, Upper Side Grey
8 122608561/0 Lower reinforcement
8 122608561/1 Lower reinforcement
9 112728692/0 Screw
10 322545159/0 plate
11 181002318/0 Bag, Canvas
12 381008163/0 Black Stone guard assy
12 381008164/0 Yellow Stone guard assy
12 381008166/0 Grey Stone guard assy
13 381008735/0 Plastic pin
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL3 51 SBQ 295546820/A19-2019
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina AL3 51 SBQ

Diagram Alpina AL3 51 SBQ

Download (459.46KB)

You might also like

Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
GGP Italy SKU: 112727801/0
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment Original replacement part Alpina, Screw TCB Torx M6x20 Acc.8.8 ZNN III for Lawnmower Cutting Height Adjustment. Part for the following products: - 148 SP FOUR (2010) - 148...
AVAILABLE €1.74
Details
V-Belt for Self Propelled Lawnmower Alpina BL 510 SB
GGP Italy SKU: 135064196/0
V-Belt for Self Propelled Lawnmower Alpina BL 510 SB
V-Belt for Self Propelled Lawnmower Alpina BL 510 SB Original replacement part Alpina, V-Belt for Self Propelled Lawnmowers BL 510 SB (2016) 295546024/A12 - BL 510 SHQ - 295546934/A15-2018. Part for the following products: -  Self...
Last items in stock €9.20
Details
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
Details
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 122465607/4
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Blade Boss, Crankshaft Ø 22,2mm for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ. Part...
Last items in stock €9.20
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Inner wheel Cover for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 322600240/0
Inner wheel Cover for Lawnmower Alpina BL 510 SHQ
Inner wheel Cover for Lawnmower Alpina BL 510 SHQ Original part Alpina, Inner wheel Cover d.280MM, for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -  Self-Propelled...
Last items in stock €5.77
Details
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
Details
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
Details
Rear Baffle for Lawnmower Alpina BL 460
GGP Italy SKU: 322108392/0
Rear Baffle for Lawnmower Alpina BL 460
Rear Baffle for Lawnmower Alpina BL 460 Original part Alpina, Plastic Rear Baffle From 01-September-2018 for Lawnmowers BL 460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 510 SHQ. Part for the...
Last items in stock €22.71
Details
Alpina BL460 Stone Guard Ass'y Black
GGP Italy SKU: 381008163/0
Alpina BL460 Stone Guard Ass'y Black
Alpina BL460 Stone Guard Ass'y Black Original replacement part Alpina, Stone Guard Ass'y Black for BL460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 410 LI - Mountfield SP46. Part for the following products: - BL460 -...
Last items in stock €25.35
Details
Alpina Conveyor for BL 510 SHQ
GGP Italy SKU: 322108309/1
Alpina Conveyor for BL 510 SHQ
Alpina Conveyor for Lawnmower BL 510 SHQ Original part Alpina, Black Rear Conveyor for Lawnmowers BL 510 SHQ - AL3 46 SBQ - FL 46 SQH. Part for the following products: -  Lawnmower Alpina BL 510 SHQ - 295546934 - ...
Last items in stock €11.56
Details
Alpina Rod Pin for BL 510 SHQ
GGP Italy SKU: 122519823/0
Alpina Rod Pin for BL 510 SHQ
Alpina Rod Pin for Lawnmower BL 510 SHQ Original part Alpina, Wheel Control Rod Pin for Lawnmowers BL 510 SHQ - AL3 51 SBQ. Part for the following products: -  Lawnmower Alpina BL 510 SHQ - 295546934 -  Lawnmower Alpina...
Last items in stock €2.44
Details
Alpina AL3 46 SG Screw
GGP Italy SKU: 112728706/0
Alpina AL3 46 SG Screw
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Comments (0)
