GGP Italy

Alpina Spare Parts for Lawn Mower AL3 46 SBQ

SKU: Alpina AL3 46 SBQ 295496820/A19 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower AL3 46 SBQ

Alpina Genuine spare parts or replacement parts for to repair Lawn Mower AL3 46 SBQ/295496820/A19-2019.

Fix Your Lawn Mower. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Alpina AL3 46 SBQ 295496820/A19
settings 130 Spare parts
description 10 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
Machine Type: Lawn Mowers
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
130 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

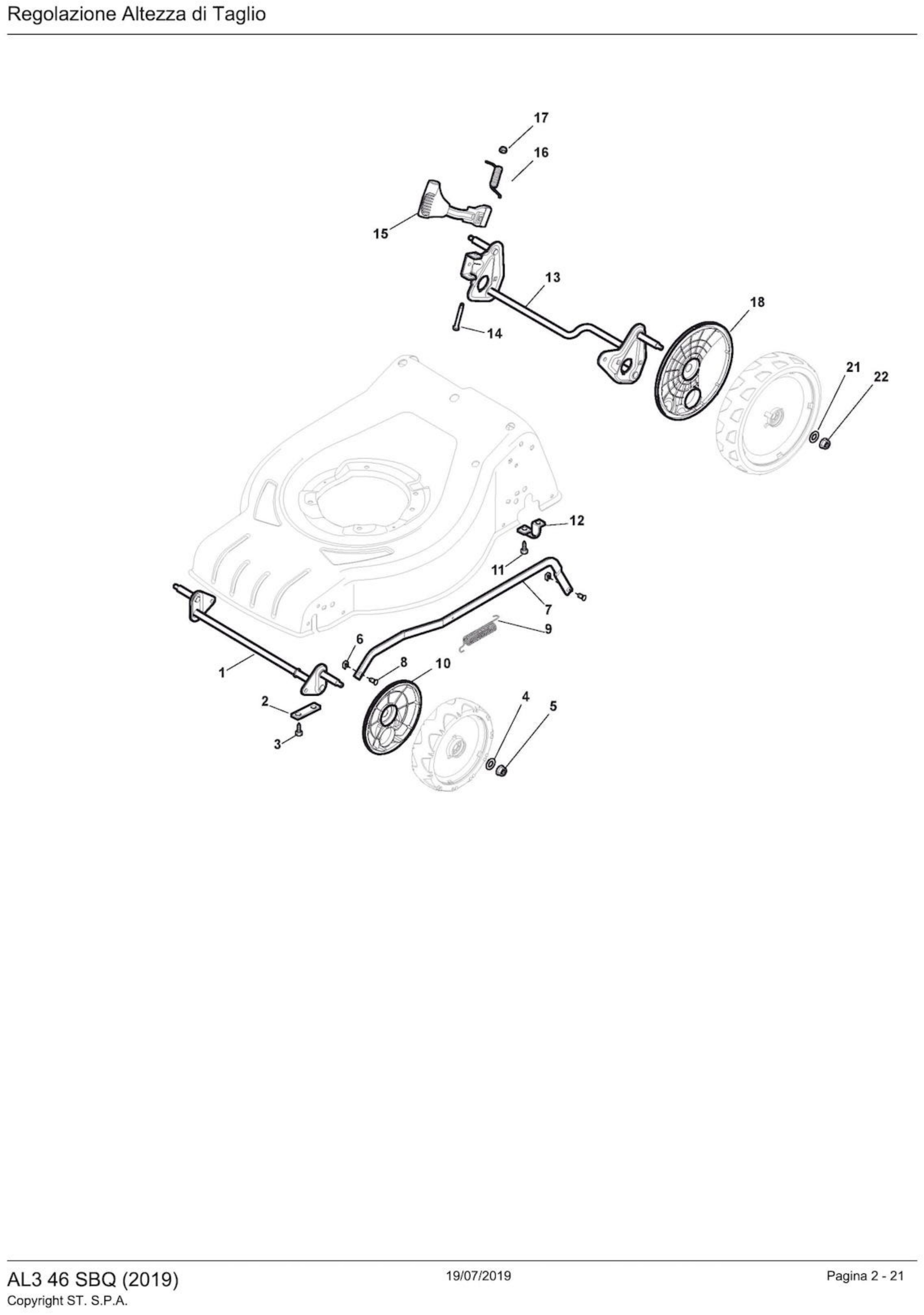

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381302821/0  Asse Ruote Anteriore  €28.25
2
 photo_cameraImage coming soon 322545142/0  Cushion  €1.55
3
 photo_cameraImage coming soon 112728698/0  Bolt M6x16 €1.55
4
 photo_cameraImage coming soon 112521350/0  Washer €1.63
5
 photo_cameraImage coming soon 112155000/0  Nut  €1.55
6
 photo_cameraImage coming soon 112436051/0  Cushion  €1.67
7
 photo_cameraImage coming soon 322869673/0  Asta Comando Regolazione Altezza  €15.36
8
 photo_cameraImage coming soon 122519820/0  Pin  €2.06
9
 photo_cameraImage coming soon 122446193/0  Flywheel Spring €4.55
10
 photo_cameraImage coming soon 322600247/0  Inner Wheel Cover €4.29
11
 photo_cameraImage coming soon 112728698/0  Screw €1.66
12
 photo_cameraImage coming soon 322545152/0  Cushion  €1.55
13
 photo_cameraImage coming soon 381302817/0  Rear Wheel Axle €31.43
14
 photo_cameraImage coming soon 122534131/0  Pin  €1.55
15
 photo_cameraImage coming soon 381003357/0  Leva Regolazione Altezza  €13.40
16
 photo_cameraImage coming soon 122446192/0  Flywheel Spring €2.10
17
 photo_cameraImage coming soon 112154510/0  Nut  €1.55
18
 photo_cameraImage coming soon 322600205/0  Protezione Ruote  €2.88
18
 photo_cameraImage coming soon 322600205/1  Protezione Wheel  €3.61
21
 photo_cameraImage coming soon 112521350/0  Washer €1.74
22
 photo_cameraImage coming soon 112155000/0  Nut €1.66
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

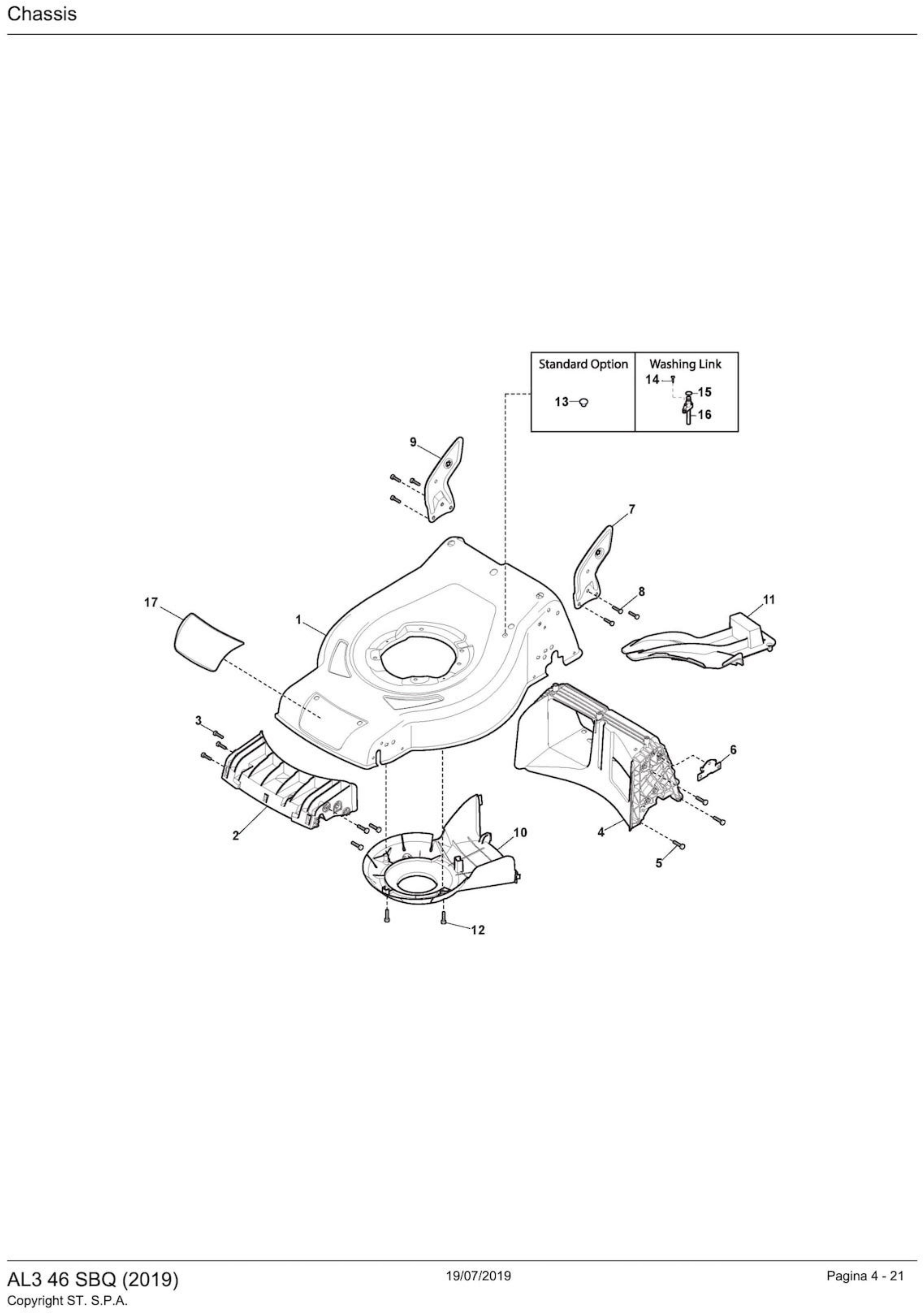

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004939/0  Chassis Rosso  €109.03
3
 photo_cameraImage coming soon 112728699/0  Screw  €1.55
4
 photo_cameraImage coming soon 322108302/0  Convogliatore Posteriore  €21.94
4
 photo_cameraImage coming soon 322108392/0  Convogliatore Posteriore From 01-September-2018 €21.31
5
 photo_cameraImage coming soon 112728699/0  Screw €1.66
6
 photo_cameraImage coming soon 322545213/0  Cushion  €1.94
7
 photo_cameraImage coming soon 381005139/0  Bracket Sinistra  €6.64
8
 photo_cameraImage coming soon 112727801/0  Screw  €1.63
9
 photo_cameraImage coming soon 381005137/0  Bracket Destra  €6.64
10
 photo_cameraImage coming soon 322060242/1  Belt Carter €11.20
10
 photo_cameraImage coming soon 322060242/2  Housing Belt  €12.15
11
 photo_cameraImage coming soon 322140239/1  Mulching Deflector  €11.25
12
 photo_cameraImage coming soon 112728531/0  Screw  €1.43
13
 photo_cameraImage coming soon 322820077/1  Cap €1.55
14
 photo_cameraImage coming soon 112728450/0  Screw  €1.61
15
 Ring Or 119035000/0  Ring Or €5.26
16
 photo_cameraImage coming soon 322034002/0  Attacco Acqua Lavaggio  €1.66
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

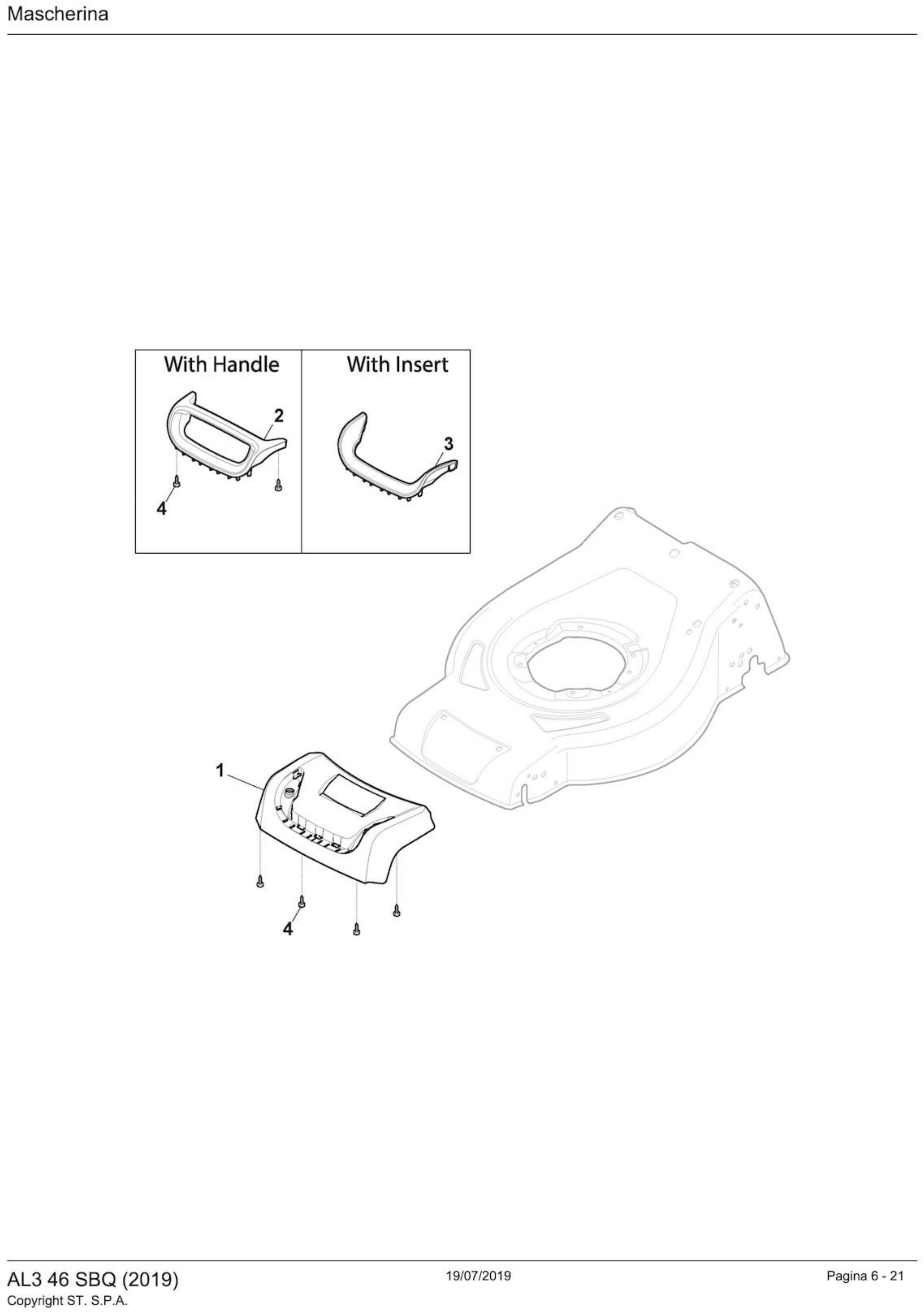

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
4
 photo_cameraImage coming soon 112728698/0  Screw €1.66
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

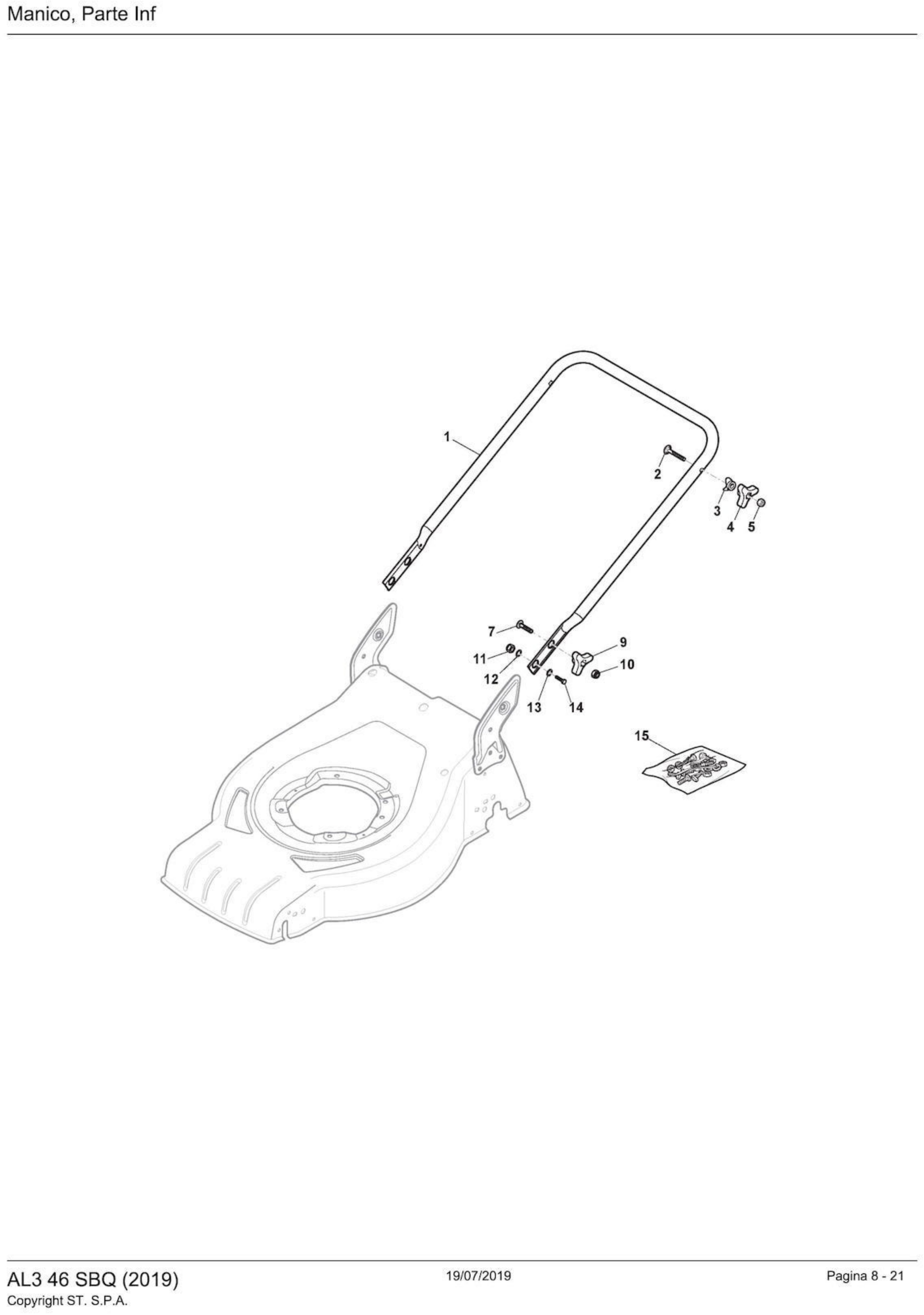

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006737/0  Handle, Parte lower  €26.12
2
 photo_cameraImage coming soon 112819110/0  Screw  €1.55
3
 photo_cameraImage coming soon 122671651/0  Washer €2.00
4
 photo_cameraImage coming soon 122399900/0  Rubber Ringer  €2.64
5
 photo_cameraImage coming soon 112293200/0  Nut  €1.63
7
 photo_cameraImage coming soon 112818900/0  Screw  €1.55
9
 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0  3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
10
 photo_cameraImage coming soon 112293200/0  Nut €1.74
11
 photo_cameraImage coming soon 112155000/0  Nut €1.66
12
 photo_cameraImage coming soon 112521350/0  Washer €1.74
13
 photo_cameraImage coming soon 112369500/0  Disc Elastico  €1.56
14
 photo_cameraImage coming soon 112760605/0  Screw  €3.41
15
 photo_cameraImage coming soon 381008691/0  Dotazione Viteria  €8.75
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

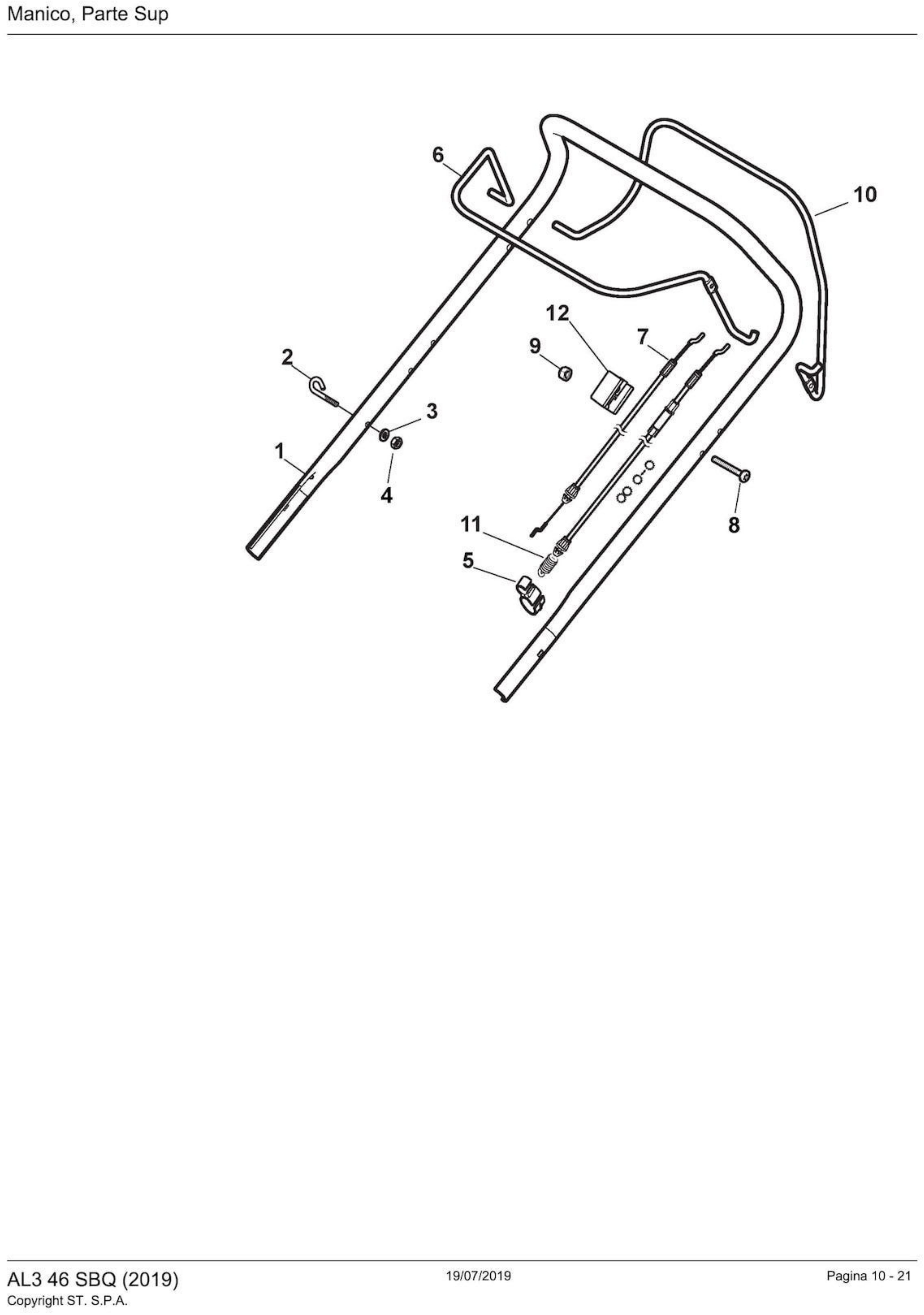

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006739/0  Handle, Parte upper  €19.56
1
 photo_cameraImage coming soon 381006739/1  Handle, Parte upper  €19.56
1
 photo_cameraImage coming soon 381006739/2  Handle, Parte upper  €24.80
1
 photo_cameraImage coming soon 381006745/0  Handle, Parte Sup. with Impugantura In Spugna  €27.09
1
 photo_cameraImage coming soon 381006745/1  Handle, Parte Sup. with impugantura in spugna  €39.90
1
 photo_cameraImage coming soon 381006745/2  Handle, Parte Sup. with impugantura in spugna  €37.01
1
 photo_cameraImage coming soon 381006745/3  Handle, Parte Sup. Nero with impugantura in spugna  €41.64
2
 photo_cameraImage coming soon 122430313/0  Spring Guida  €3.95
3
 photo_cameraImage coming soon 112521330/0  Washer €1.59
4
 photo_cameraImage coming soon 112154510/0  Nut €1.66
5
 photo_cameraImage coming soon 118390020/0  Cablefix  €1.70
6
 photo_cameraImage coming soon 181003363/1  Leva Freno Motor Nera  €15.76
7
 photo_cameraImage coming soon 181030056/0  Cable Freno Motor  €13.66
8
 photo_cameraImage coming soon 112727783/0  Screw  €1.72
9
 photo_cameraImage coming soon 112154510/0  Nut €1.66
10
 photo_cameraImage coming soon 181003364/0  Leva Comando Trazione  €14.98
11
 photo_cameraImage coming soon 381030051/0  Cable Comando Trazione  €20.16
12
 photo_cameraImage coming soon 322551640/0  Cushion  €7.88
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

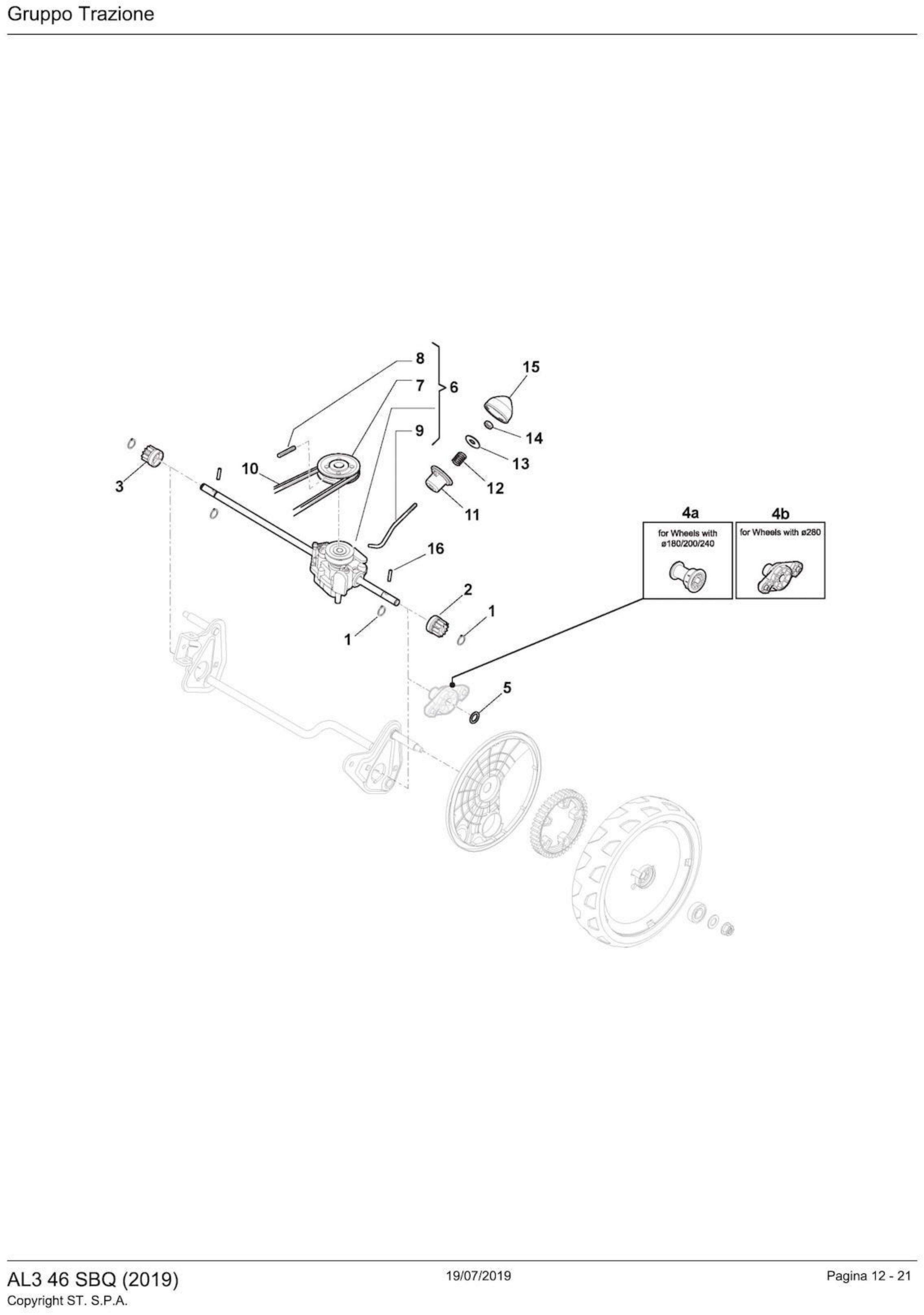

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112608600/0  Seeger  €1.55
2
 photo_cameraImage coming soon 122570120/1  Pignone left €7.30
3
 photo_cameraImage coming soon 122570110/1  Pignone right €7.30
5
 photo_cameraImage coming soon 112521371/0  Washer €1.55
6
 photo_cameraImage coming soon 181003092/0  Gruppo Trazione  €111.18
7
 photo_cameraImage coming soon 122601904/0  Pulley €6.68
7
 photo_cameraImage coming soon 122601909/0  Pulley €6.89
8
 photo_cameraImage coming soon 112645705/0  Spina Elastica  €1.50
9
 photo_cameraImage coming soon 122033283/0  Asta Regolazione  €4.65
10
 photo_cameraImage coming soon 135063800/0  Belt Trapezoidale  €9.62
11
 photo_cameraImage coming soon 122041957/1  Bushing €1.55
12
 photo_cameraImage coming soon 122450063/0  Flywheel Spring €1.55
13
 photo_cameraImage coming soon 322680009/0  Washer €1.70
14
 photo_cameraImage coming soon 112154510/0  Nut €1.66
15
 photo_cameraImage coming soon 122110230/0  Coprimozzo  €1.55
16
 photo_cameraImage coming soon 122753000/0  Elastic Pin €1.57
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

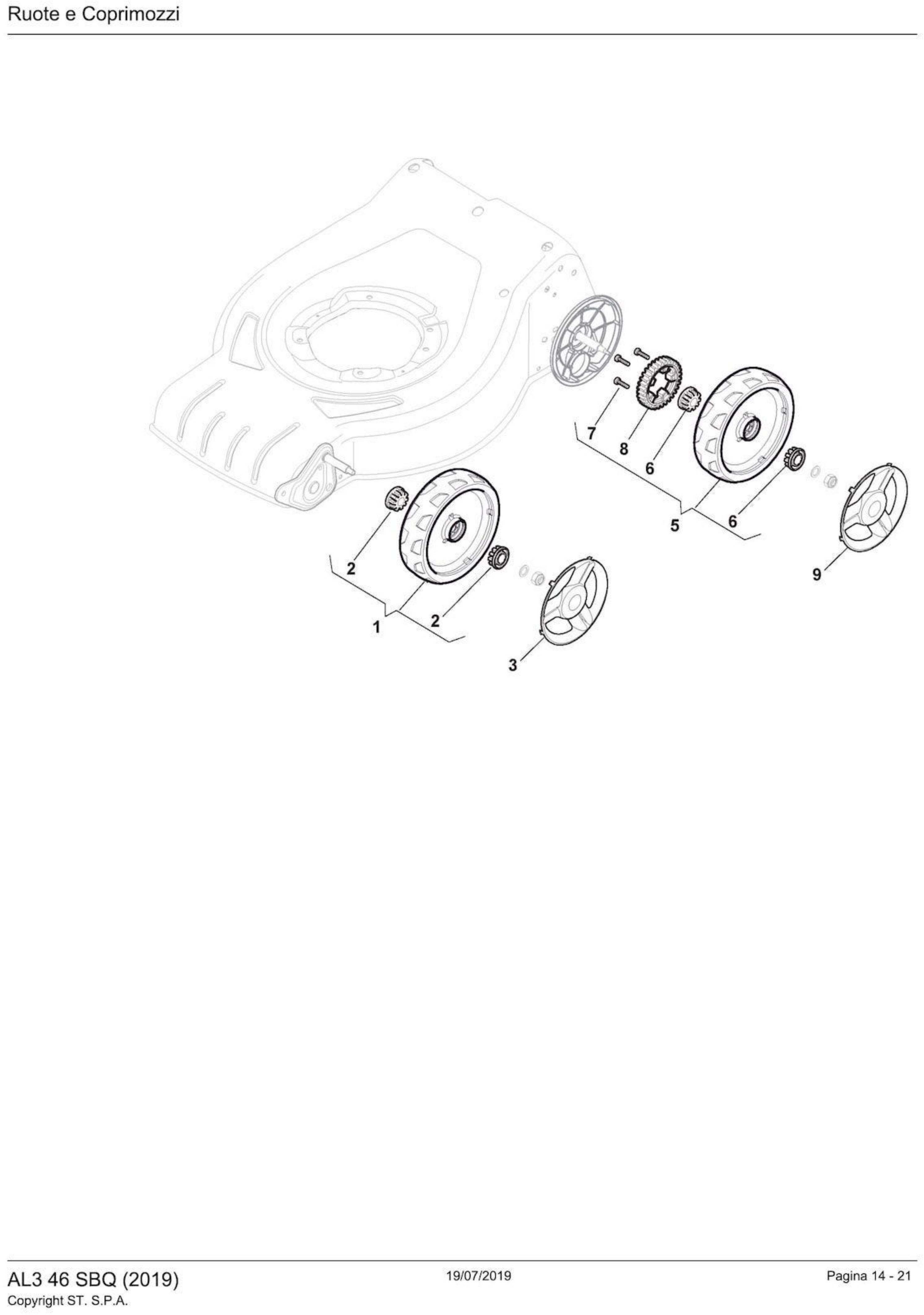

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007448/1  Wheel - Short Lungo  €11.59
2
 photo_cameraImage coming soon 119216035/0  Bearing €4.39
3
 photo_cameraImage coming soon 322110687/0  Coprimozzo Grigio  €2.97
5
 photo_cameraImage coming soon 381007463/0  Wheel  €23.40
5
 photo_cameraImage coming soon 381007463/1  Wheel  €23.40
6
 photo_cameraImage coming soon 119216035/0  Bearing €4.51
7
 photo_cameraImage coming soon 112728706/0  Screw  €1.55
8
 photo_cameraImage coming soon 322120117/0  Corona Trascinamento  €4.80
9
 photo_cameraImage coming soon 322110689/0  COVER GRAY HUB €2.59
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

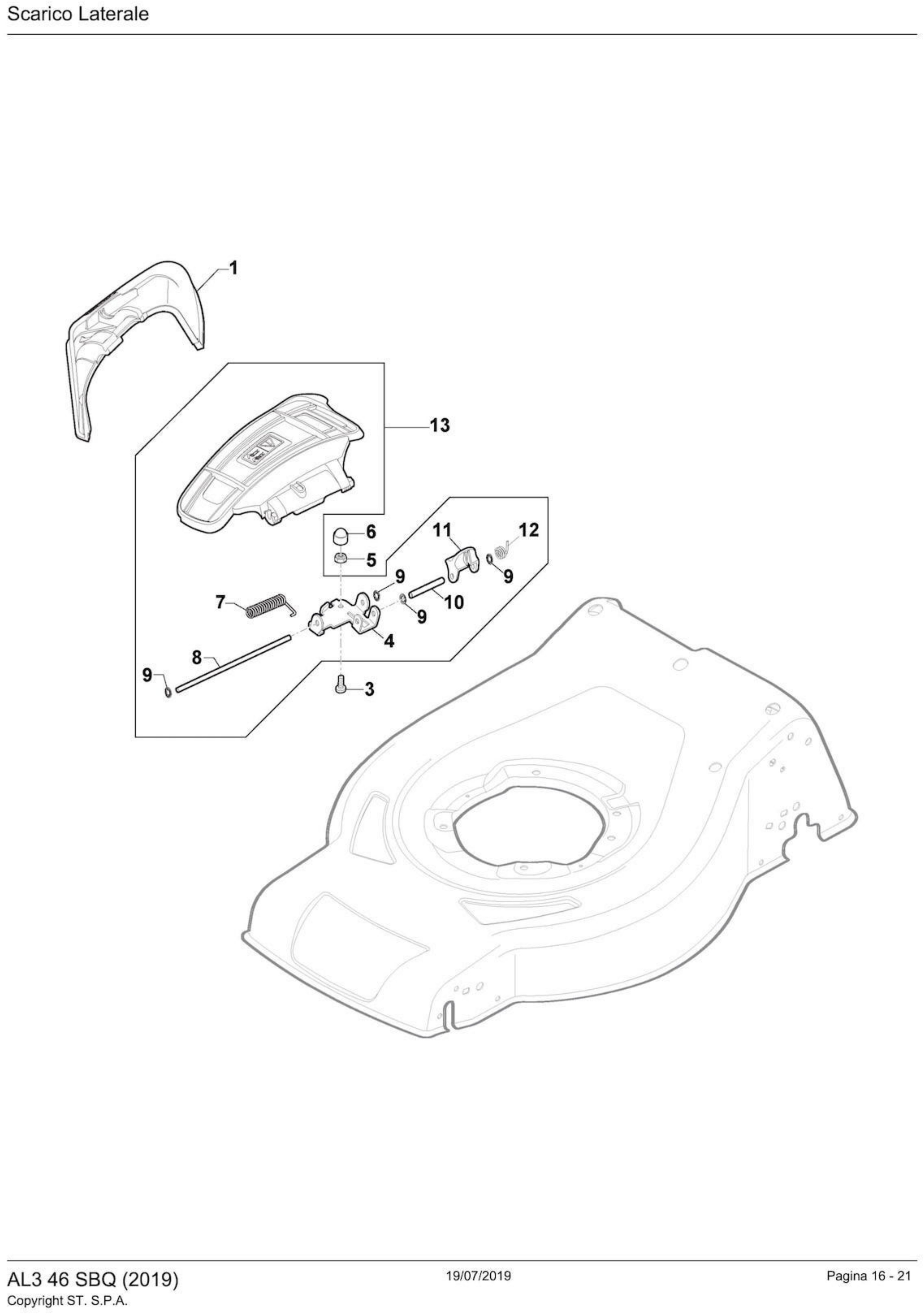

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Alpina Conveyor for BL 510 SHQ 322108309/1 Alpina Conveyor for BL 510 SHQ €11.56
3
 photo_cameraImage coming soon 112727803/0  Screw  €1.55
4
 photo_cameraImage coming soon 322806659/0  Pin Fulcro  €5.21
5
 photo_cameraImage coming soon 112154510/0  Nut €1.66
6
 photo_cameraImage coming soon 118203853/0  Cap €2.73
7
 photo_cameraImage coming soon 122450456/0  Flywheel Spring €3.27
7
 photo_cameraImage coming soon 122450456/1  Flywheel Spring €3.20
8
 photo_cameraImage coming soon 122517869/1  Pin  €3.75
9
 photo_cameraImage coming soon 112604896/0  Fissatore A Corona  €1.55
10
 photo_cameraImage coming soon 122517876/0  Pin  €1.50
11
 photo_cameraImage coming soon 322783013/0  Sicura  €2.10
12
 photo_cameraImage coming soon 122450493/0  Flywheel Spring €1.32
13
 photo_cameraImage coming soon 381008161/0  Ass. Exhaust Laterale Fino al 30 Novembre 2018 €13.80
13
 photo_cameraImage coming soon 381008161/1  Ass. Exhaust Laterale Dal 01 Dicembre 2018 €13.80
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

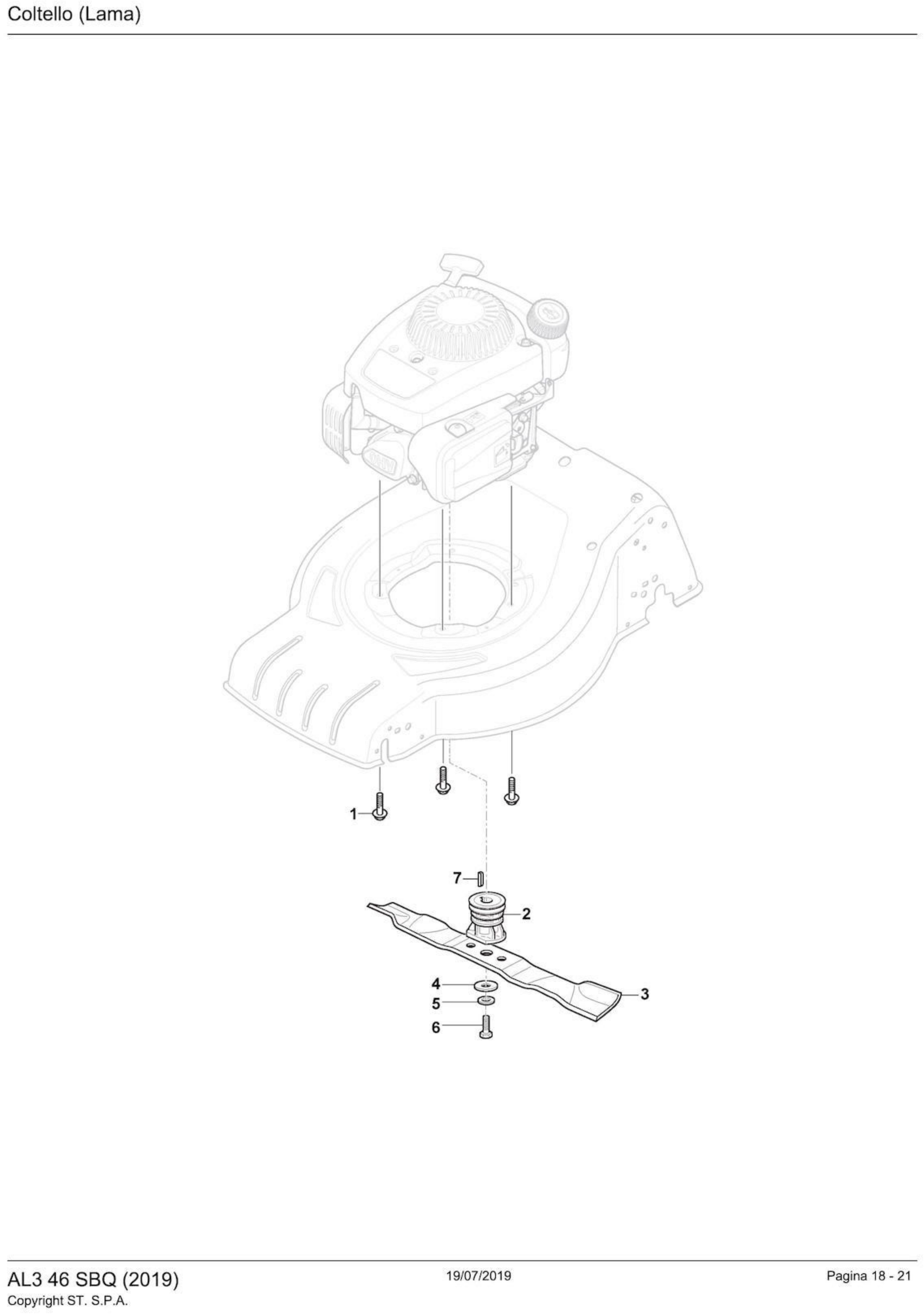

Esploso pagina 9
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112735108/1  Screw  €2.02
2
 photo_cameraImage coming soon 122465607/4  Mozzo with Pulley, Shaft Motor Ø 22.2 €9.20
3
 photo_cameraImage coming soon 181004460/0  Blade Mulching  €13.80
4
 photo_cameraImage coming soon 322680021/0  Washer €1.27
4
 photo_cameraImage coming soon 322680021/1  Washer €1.23
5
 photo_cameraImage coming soon 112508128/0  Disc Elastico  €1.37
6
 photo_cameraImage coming soon 112735698/0  Screw  €1.76
7
 photo_cameraImage coming soon 112139100/0  Linguetta  €1.93

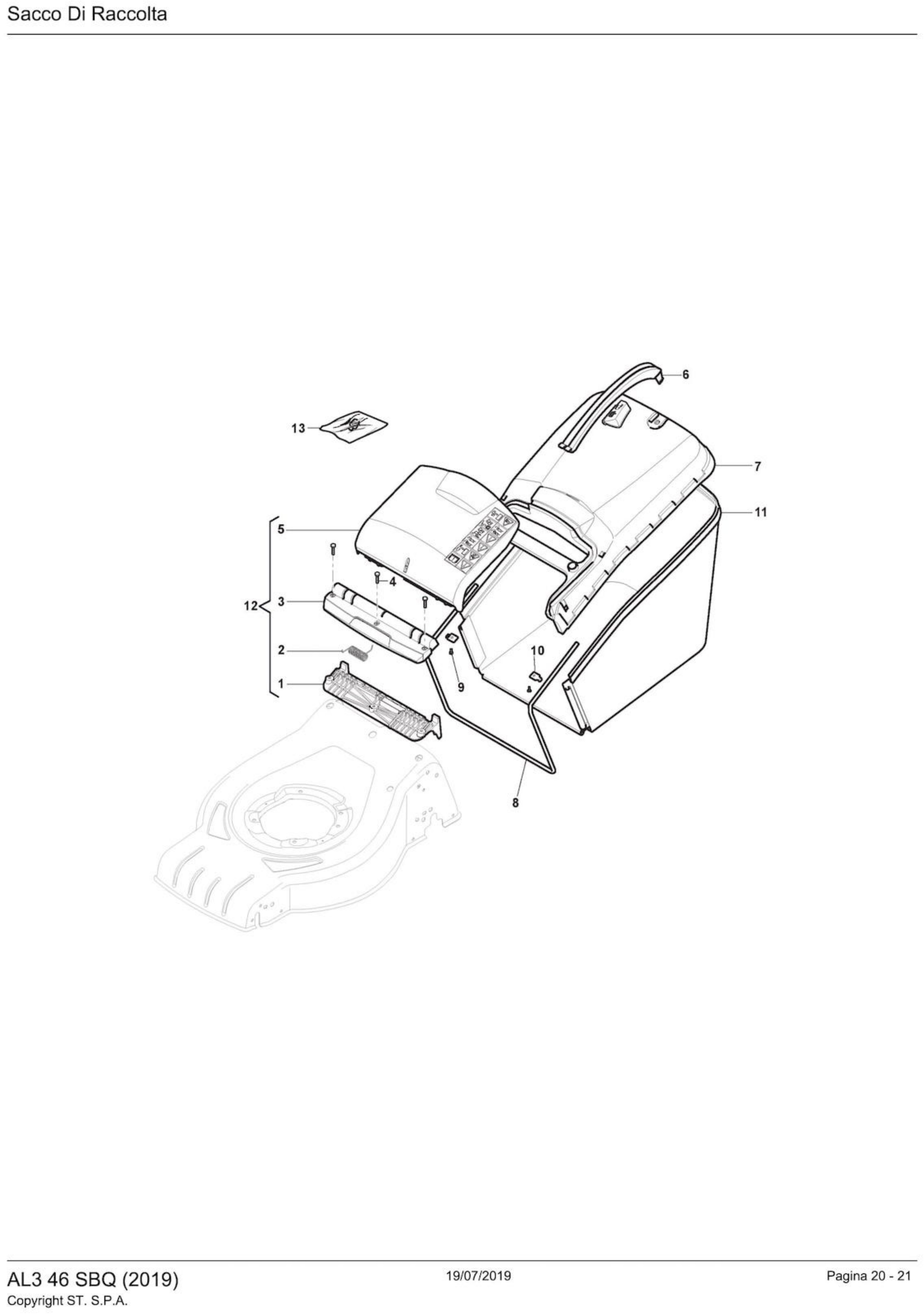

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 10
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0  Support Fulcro Parasassi Nero  €6.99
2
 photo_cameraImage coming soon 122450464/0  Flywheel Spring €1.85
3
 photo_cameraImage coming soon 322109556/0  Copertura Parasassi, Giallo  €4.05
3
 photo_cameraImage coming soon 322109557/0  Copertura Parasassi, Grigio  €24.51
4
 photo_cameraImage coming soon 112728699/0  Screw €1.66
5
 photo_cameraImage coming soon 322600206/1  Parasassi Nero  €23.41
5
 photo_cameraImage coming soon 322600214/1  Parasassi Giallo  €12.80
5
 photo_cameraImage coming soon 322600216/1  Parasassi Grigio  €13.18
6
 photo_cameraImage coming soon 322393644/0  Handle Sacco Nera  €4.53
6
 photo_cameraImage coming soon 322393715/0  Handle Sacco Grigia  €5.53
7
 photo_cameraImage coming soon 381486018/0  Sacco, Parte upper Nero  €27.10
7
 photo_cameraImage coming soon 381486029/0  Sacco, Parte upper Grigio  €26.80
8
 photo_cameraImage coming soon 122608561/0  Rinforzo Inf  €11.80
8
 photo_cameraImage coming soon 122608561/1  Rinforzo lower  €11.33
9
 photo_cameraImage coming soon 112728692/0  Screw  €4.85
10
 photo_cameraImage coming soon 322545159/0  Cushion  €1.48
11
 photo_cameraImage coming soon 181002318/0  Box €34.40
12
 photo_cameraImage coming soon 381008163/0  Ass. Parasassi Nero €23.80
12
 photo_cameraImage coming soon 381008164/0  Ass. Parasassi Giallo  €26.00
13
 photo_cameraImage coming soon 381008735/0  Dotazione Piolino in Plastica  €2.22

Shipping and delivery information will be available shortly.

Alpina Spare Parts for Lawn Mower AL3 46 SBQ

Alpina Genuine spare parts or replacement parts for to repair Lawn Mower AL3 46 SBQ/295496820/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Alpina AL3 46 SBQ 295496820/A19

Lawn Mower AL3 46 SBQ/295496820/A19-2019
Height Adjustment Pag.1
# Part Num. Description
1 381302821/0 Front Wheel Axle
2 322545142/0 Plate
3 112728698/0 Screw
4 112521350/0 Washer
5 112155000/0 Nut
6 112436051/0 Plate
7 322869673/0 Height Adjustment Control Rod
8 122519820/0 Pin
9 122446193/0 Spring
10 322600247/0 Wheel Protection
11 112728698/0 Screw
12 322545152/0 Plate
13 381302817/0 Rear Wheel Axle
14 122534131/0 Pin
15 381003357/0 Height Adjustment Lever
16 122446192/0 Spring
17 112154510/0 Nut
18 322600205/0 Wheel Protection
18 322600205/1 Wheel Protection
21 112521350/0 Washer
22 112155000/0 Nut
Chassis Pag.2
1 381004939/0 Red Chassis
2 322108301/2 Front Baffle
3 112728699/0 Screw
4 322108302/0 Rear Baffle To 31-August-2017
4 322108392/0 Rear Baffle From 01-September-2018
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/1 Belt Cover
10 322060242/2 Belt Cover
11 322140239/1 Mulching Deflector
12 112728531/0 Screw
13 322820077/1 Plug
14 112728450/0 Screw
15 119035000/0 O-R
16 322034002/0 Joint Water
17 322055605/0 Insert
Mask Pag.3
1 322226266/0 Mask, Black
2 322393772/0 Front handle
3 322055603/0 Insert
4 112728698/0 Screw
Handle, Lower Part Pag.4
1 381006737/0 Handle, Lower Part
2 112819110/0 Screw
3 122671651/0 Washer
4 122399900/0 Knob
5 112293200/0 Nut
7 112818900/0 Screw
9 122399900/0 Knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Disc
14 112760605/0 Screw
15 381008691/0 Kit Screw
Manico, Parte Superiore Pag.5
1 381006739/0 Handle, Upper side
1 381006739/1 Handle, Upper side
1 381006739/2 Handle, Upper side
1 381006745/0 Handle, upper side with sponge handle
1 381006745/1 Handle, upper side with sponge handle
1 381006745/2 Handle, upper side with sponge handle
1 381006745/3 Handle, upper side black with sponge handle
2 122430313/0 Guide spring
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Cable clamp
6 181003363/0 Black Engine Brake Lever
6 181003363/1 Black Engine Brake Lever
7 181030056/0 Motor Brake Cable
8 112727783/0 Screw
9 112154510/0 Nut
10 181003364/0 Traction Control Lever
11 381030051/0 Traction Control Cable
12 322551640/0 Plate
Traction Group Pag.6
1 112608600/0 Seeger
2 122570120/1 Left Pinion
3 122570110/1 Right Pinion
5 112521371/0 Washer
6 181003092/0 Traction group
7 122601904/0 Pulley
7 122601909/0 Pulley
8 112645705/0 Pin
9 122033283/0 Adjustment rod
10 135063800/0 Trapezoidal belt
11 122041957/1 Bushing
12 122450063/0 Spring
13 322680009/0 Washer
14 112154510/0 Nut
15 122110230/0 Hubcap
16 122753000/0 Plug
Wheel Pag.7
1 381007448/0 Wheel
1 381007448/1 Wheel - Long Short
2 119216035/0 Bearing
3 322110687/0 Gray hubcap
5 381007463/0 Wheel
5 381007463/1 Wheel
6 119216035/0 Bearing
7 112728706/0 Screw
8 322120117/0 Wheel Crown
9 322110689/0 Gray hubcap
Side Drain Pag.8
1 322108309/1 Rear conveyor
3 112727803/0 Screw
4 322806659/0 Fulcro pin
5 112154510/0 Nut
6 118203853/0 Cover
7 122450456/0 Spring
7 122450456/1 Spring
8 122517869/1 Pin
9 112604896/0 Crown Fixator
10 122517876/0 Pin
11 322783013/0 Safety
12 122450493/0 Spring
13 381008161/0 Side Drain Assy To 30 November 2018
13 381008161/1 Side Drain Assy From 01 December 2018
Blade Pag.9
1 112735108/1 Screw
2 122465607/4 Hub With Pulley, Crankshaft Ø 22.2
3 181004460/0 Mulching blade
4 322680021/0 Washer
4 322680021/1 Washer
5 112508128/0 Elastic Disc
6 112735698/0 Screw
7 112139100/0 Woodruff
Bag Pag.10
1 322785331/0 Support
2 122450464/0 Spring
3 322109556/0 Guard Cover, Yellow
3 322109557/0 Guard Cover, Gray
4 112728699/0 Screw
5 322600206/1 Black Guard
5 322600214/1 Yellow Guard
5 322600216/1 Gray Guard
6 322393644/0 Black Handle
6 322393715/0 Gray Handle
7 381486018/0 Bag, Black Upper Side
7 381486029/0 Bag, Gray Upper Side
8 122608561/0 Lower frame
8 122608561/1 Lower frame
9 112728692/0 Screw
10 322545159/0 Plate
11 181002318/0 Sack, Canvas
12 381008163/0 Black Stone guard assy
12 381008164/0 Yellow guard assy
12 381008166/0 Gray guard assy
13 381008735/0 Plastic pin
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina AL3 46 SBQ 295496820/A19
12 Items

Data sheet

Machine Type
Lawn Mowers
SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina AL3 46 SBQ

Diagram Alpina AL3 46 SBQ

Download (938.29KB)

You might also like

Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
GGP Italy SKU: 112727801/0
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment Original replacement part Alpina, Screw TCB Torx M6x20 Acc.8.8 ZNN III for Lawnmower Cutting Height Adjustment. Part for the following products: - 148 SP FOUR (2010) - 148...
AVAILABLE €1.74
Details
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
Details
Drive Gear Right Side for Self Propelled Lawnmower Alpina BL 460 SB
GGP Italy SKU: 122570110/1
Drive Gear Right Side for Self Propelled Lawnmower Alpina BL 460 SB
Drive Gear Right Side for Self Propelled Lawnmower Alpina BL 460 SB Original replacement part Alpina, Drive Gear Pinion (Right Side) for Self Propelled Lawnmowers BL 460 SB - AL3 46 SG - AL3 46 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €7.30
Details
Drive Gear Left Side for Self Propelled Lawnmower Alpina BL 460 SB
GGP Italy SKU: 122570120/1
Drive Gear Left Side for Self Propelled Lawnmower Alpina BL 460 SB
Drive Gear Left Side for Self Propelled Lawnmower Alpina BL 460 SB Original replacement part Alpina, Drive Gear Pinion (Left Side) for Self Propelled Lawnmowers BL 460 SB - AL3 46 SG - AL3 46 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €7.30
Details
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 122465607/4
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ
Blade Boss for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Blade Boss, Crankshaft Ø 22,2mm for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ. Part for the following products: -  Petrol...
AVAILABLE €9.20
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
Details
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
Details
Rear Baffle for Lawnmower Alpina BL 460
GGP Italy SKU: 322108392/0
Rear Baffle for Lawnmower Alpina BL 460
Rear Baffle for Lawnmower Alpina BL 460 Original part Alpina, Plastic Rear Baffle From 01-September-2018 for Lawnmowers BL 460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 510 SHQ. Part for the...
on 7/10 Business Days Approx. €22.71
Details
Alpina BL 460 Belt Cover
GGP Italy SKU: 322060242/1
Alpina BL 460 Belt Cover
Alpina BL 460 Belt Cover Original replacement part Alpina, Belt Cover for Lawnmowers BL 460 - AL3 46 SBQ. Part for the following products: - Lawnmower ALPINA BL460 - 295491044/A19-2019 - Lawnmower ALPINA BL 460 B - 295491024...
Usually Ships in: 7/10 Business Days Approx. €11.30
Details
Alpina BL460 Stone Guard Ass'y Black
GGP Italy SKU: 381008163/0
Alpina BL460 Stone Guard Ass'y Black
Alpina BL460 Stone Guard Ass'y Black Original replacement part Alpina, Stone Guard Ass'y Black for BL460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 410 LI - Mountfield SP46. Part for the following products: - BL460 -...
AVAILABLE €25.35
Details
Alpina Conveyor for BL 510 SHQ
GGP Italy SKU: 322108309/1
Alpina Conveyor for BL 510 SHQ
Alpina Conveyor for Lawnmower BL 510 SHQ Original part Alpina, Black Rear Conveyor for Lawnmowers BL 510 SHQ - AL3 46 SBQ - FL 46 SQH. Part for the following products: -  Lawnmower Alpina BL 510 SHQ - 295546934 - ...
AVAILABLE €11.56
Details
Alpina AL3 46 SG Screw
GGP Italy SKU: 112728706/0
Alpina AL3 46 SG Screw
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Alpina FL 46 SQH Rear Wheel
GGP Italy SKU: 381007463/1
Alpina FL 46 SQH Rear Wheel
Alpina Lawnower FL 46 SQH Rear Wheel Genuine replacement part Alpina, Rear Delta Whell Assembly D=240 for Lawnower FL 46 SQH - S481 PD ES. Part for the following products: -  Lawnmower Castor FL 46 SQH (2017) - 295496830/CST -...
AVAILABLE €23.40
Details
Alpina BL 460 SB Wheel Crown
GGP Italy SKU: 322120117/0
Alpina BL 460 SB Wheel Crown
Alpina Lawnower BL 460 SB Wheel Crown Genuine replacement part Alpina, Wheel Crown for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnower Alpina BL 460 SB - 295492124 - ...
AVAILABLE €5.04
Details
Comments (0)
No customer reviews for the moment.
