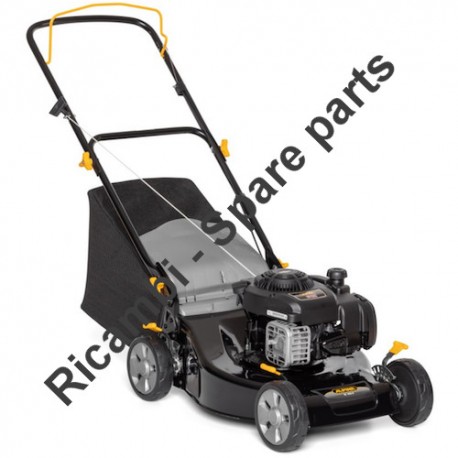

Alpina Spare Parts for Lawn Mower BL 460 B

SKU: Alpina BL 460 B - 295491024
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460 B

Alpina for the replacement of damaged parts or repair of the electrical or mechanical components of the Lawn Mower BL 460 B/295491024/A19-2019.

Alpina BL 460 B - 295491024
Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B
  • Alpina Spare Parts for Lawn Mower BL 460 B

Alpina Spare Parts for Lawn Mower BL 460 B

SKU: Alpina BL 460 B - 295491024 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460 B

Alpina for the replacement of damaged parts or repair of the electrical or mechanical components of the Lawn Mower BL 460 B/295491024/A19-2019.

Alpina BL 460 B - 295491024
settings 89 spare parts
description 7 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

81 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322545189/0 Plate €1.65
2
photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
3
photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
3
photo_cameraImage coming soon 381005253/0 Wheel Support €10.18
4
photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
photo_cameraImage coming soon 122519811/0 Pin €1.65
6
photo_cameraImage coming soon 112521350/0 Washer €1.74
7
photo_cameraImage coming soon 112155000/0 Nut €1.66
8
photo_cameraImage coming soon 322545211/0 Plate €2.43
9
photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
10
photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381004947/0 Black Chassis €144.10
3
photo_cameraImage coming soon 112728699/0 Screw €1.66
4
photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
4
Rear Baffle for Lawnmower Alpina BL 460 322108392/0 Rear Baffle for Lawnmower Alpina BL 460 €22.71
5
photo_cameraImage coming soon 112728699/0 Screw €1.66
6
photo_cameraImage coming soon 322545213/0 Plate €2.04
7
photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
Alpina BL 460 Belt Cover 322060242/1 Alpina BL 460 Belt Cover €11.30
10
photo_cameraImage coming soon 322060242/2 Belt Cover €12.26
11
photo_cameraImage coming soon 322140239/1 Mulching Deflector As Optional €11.35
12
photo_cameraImage coming soon 112728531/0 Screw €1.54
13
photo_cameraImage coming soon 322820077/1 Cap From 01-september-2016 €1.66
14
photo_cameraImage coming soon 112728450/0 Screw €1.72
15
photo_cameraImage coming soon 119035000/0 Ring Or €5.26
16
photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
photo_cameraImage coming soon 112819110/0 Screw €1.66
3
photo_cameraImage coming soon 122671651/0 Washer €2.11
4
Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
5
photo_cameraImage coming soon 112293200/0 Nut €1.74
7
photo_cameraImage coming soon 112818900/0 Screw €1.66
9
Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
10
photo_cameraImage coming soon 112293200/0 Nut €1.74
11
photo_cameraImage coming soon 112155000/0 Nut €1.66
12
photo_cameraImage coming soon 112521350/0 Washer €1.74
13
photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
photo_cameraImage coming soon 112760605/0 Screw €3.52
15
photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Alpina BL 510 SHQ Handle, Upper Part 381006740/0 Alpina BL 510 SHQ Handle, Upper Part €27.31
2
photo_cameraImage coming soon 112727783/0 Screw €1.83
3
photo_cameraImage coming soon 322551640/0 Plate €7.99
4
photo_cameraImage coming soon 112154510/0 Nut €1.66
5
Engine  Brake Cable Ass'y for Lawnmower Alpina BL 460 B 181030084/0 Engine Brake Cable Ass'y for Lawnmower Alpina BL 460 B €13.80
6
photo_cameraImage coming soon 381003394/0 Lever, Engine Brake Yellow €16.57
6
photo_cameraImage coming soon 381003394/1 Yellow Engine Brake Lever €15.36
7
photo_cameraImage coming soon 112154510/0 Nut €1.66
8
photo_cameraImage coming soon 112521330/0 Washer €1.70
9
photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
2
photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
5
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
6
photo_cameraImage coming soon 119216035/0 Bearing €4.51
9
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
photo_cameraImage coming soon 122463012/4 Blade Boss Ø 22.2 €10.31
3
photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
4
photo_cameraImage coming soon 322680021/0 Washer €1.38
4
photo_cameraImage coming soon 322680021/1 Washer €1.34
5
photo_cameraImage coming soon 112508128/0 Elastic Disc €1.48
6
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
photo_cameraImage coming soon 122450464/0 Spring €1.96
3
photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
3
photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
4
photo_cameraImage coming soon 112728699/0 Screw €1.66
5
photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
5
photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
photo_cameraImage coming soon 181006409/0 Textile Grasscatcher Frame €37.51
7
photo_cameraImage coming soon 181002319/0 Textile Grasscatcher Black €54.01
8
Alpina BL460 Stone Guard Ass'y Black 381008163/0 Alpina BL460 Stone Guard Ass'y Black €25.35
8
photo_cameraImage coming soon 381008164/0 Yellow Stone guard Assy €26.11
9
photo_cameraImage coming soon 381008735/0 Kit plastic pin €2.32

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower BL 460 B

Alpina for the replacement of damaged parts or repair of the electrical or mechanical components of the Lawn Mower BL 460 B/295491024/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Alpina BL 460 B - 295491024

Lawn Mower BL 460 B/295491024/A19-2019

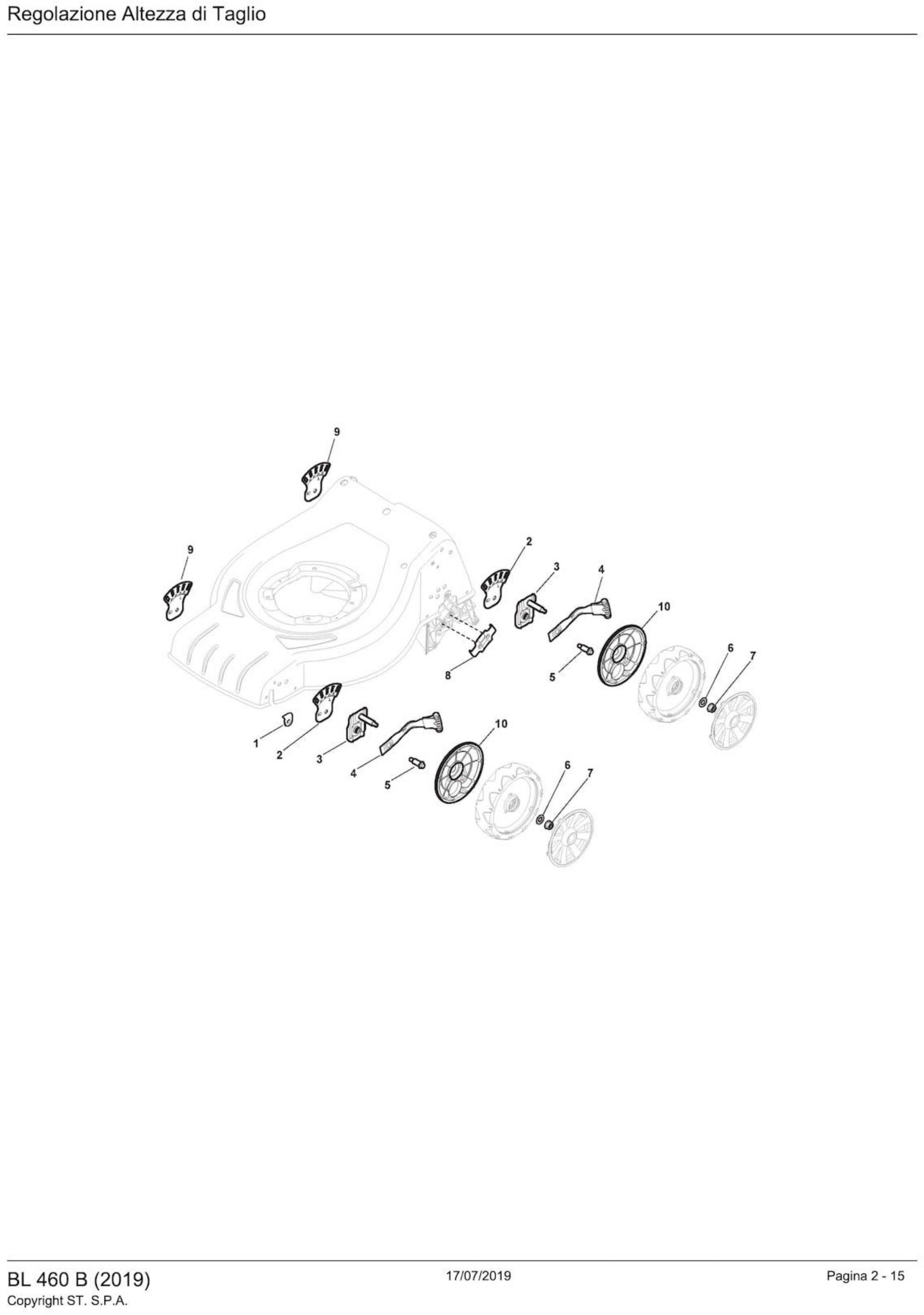

Height Adjustment Pag.1
#
Part Num.
Description
1
322545189/0
Plate
2
322735597/0
Left Height Adjustment Sector
2
322735597/1
Height Adjustment Sector
3
381005141/0
Wheel Support - to 31 August 2016
3
381005159/0
Wheel Support - from 01 September 2016 to 31 March 2018
3
381005253/0
Wheel Support - from 01 April 2019
4
381003354/0
Height Adjustment Lever
5
122519811/0
Pin
6
112521350/0
Washer
7
112155000/0
Nut
8
322545211/0
Plate
9
322735595/0
Right Height Adjustment Sector
9
322735595/1
Height Adjustment Sector
10
322600247/0
Wheel Protection

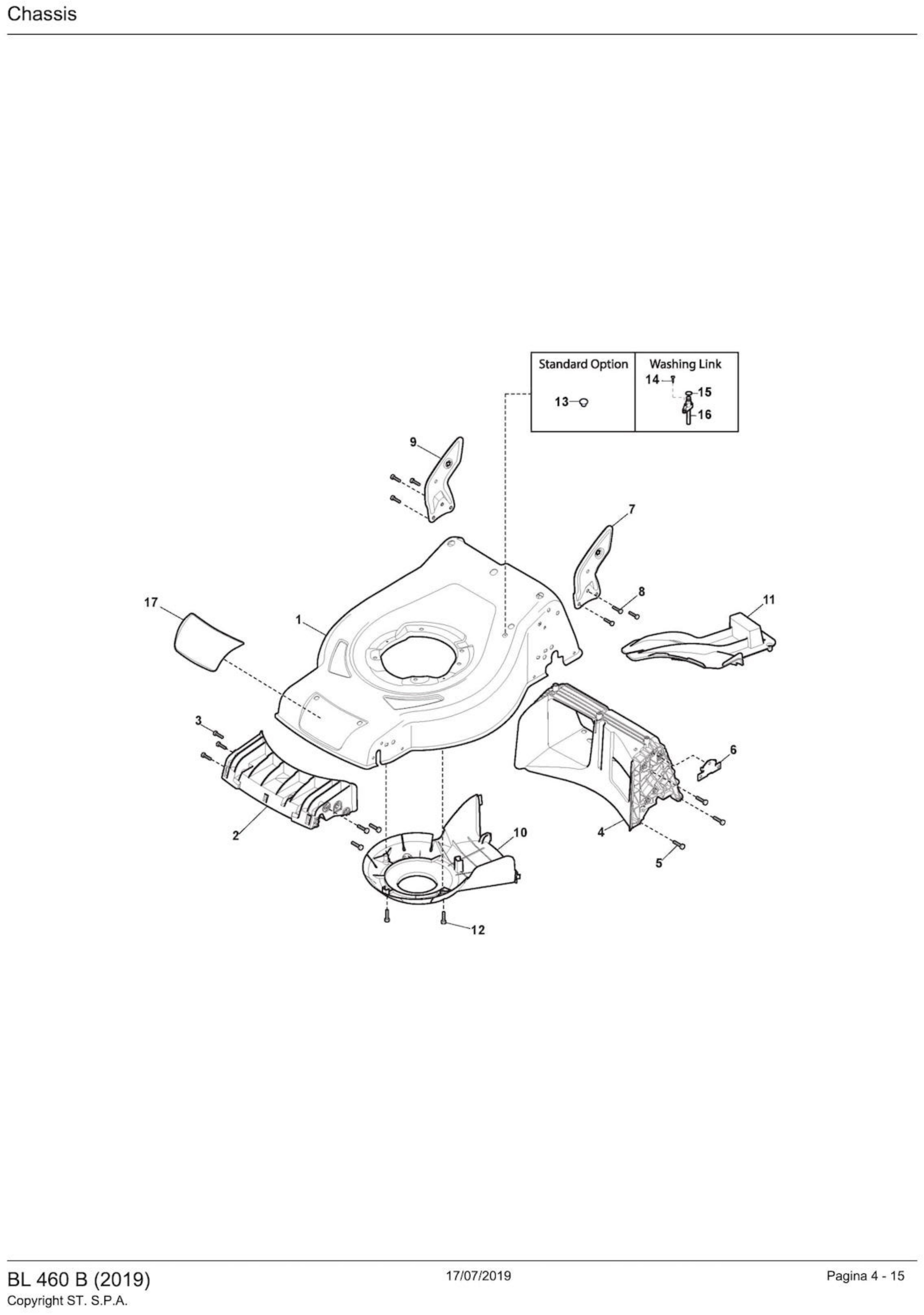

Chassis Pag.2
1
381004947/0
Black Chassis
2
322108301/2
Front Baffle
3
112728699/0
Screw
4
322108302/0
Rear Baffle To 31-August-2017
4
322108392/0 Rear Baffle From 01-September-2018
5
112728699/0
Screw
6
322545213/0
Plate
7
381005139/0
Left Bracket
8
112727801/0 Screw
9
381005137/0
Right Bracket
10
10
11
322140239/1
Mulching Deflector
12
112728531/0
Screw
13
322820077/1
Plug
14
112728450/0
Screw
15
119035000/0
Or Ring
16
322034002/0
Joint Water Washing
17
322055605/0
Insert

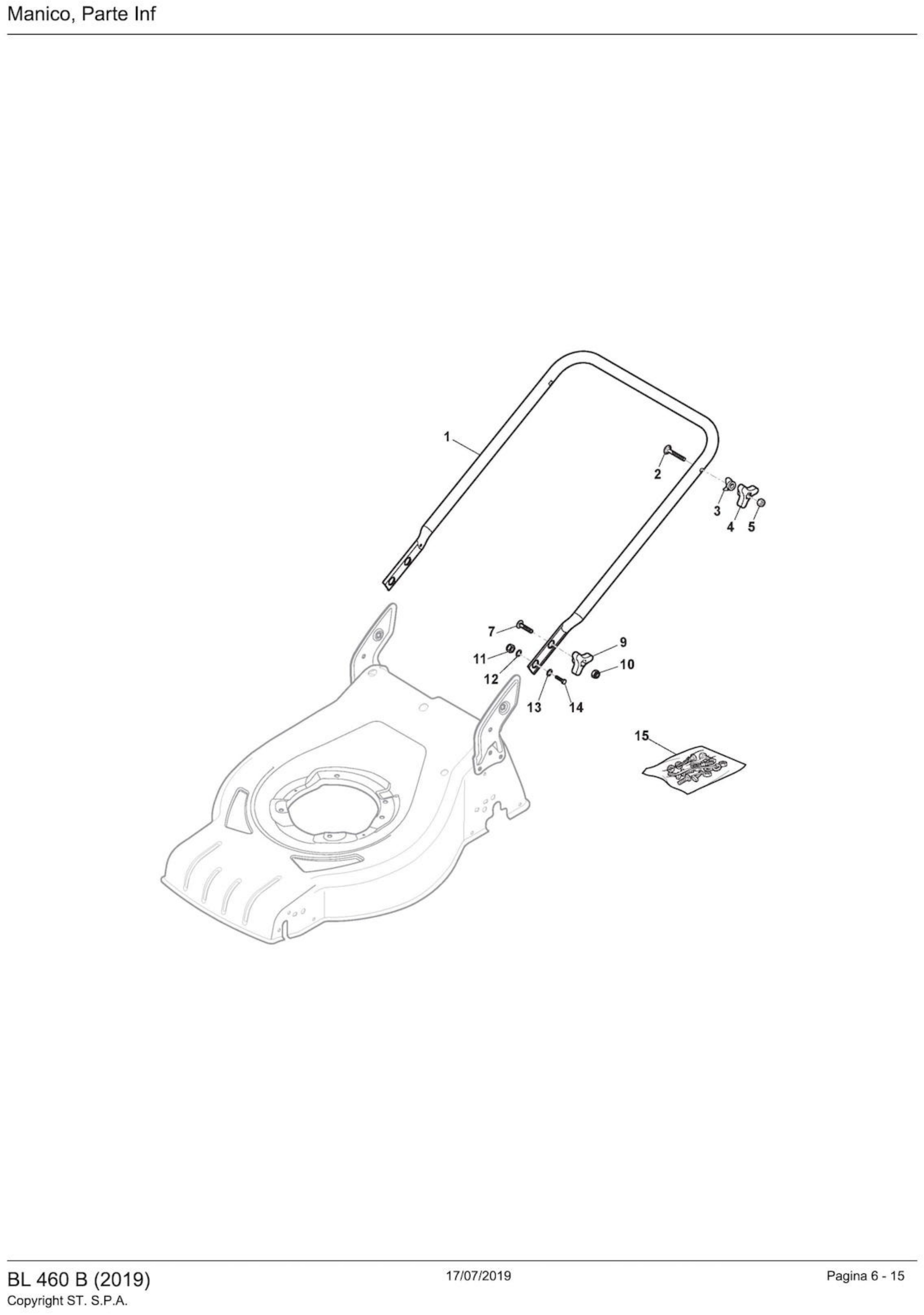

Handle, Lower Part Pag.3
1
381006737/0
Handle, Lower Part
2
112819110/0
Screw
3
122671651/0
Washer
4
5
112293200/0
Nut
7
112818900/0
Screw
9
322399840/0 Yellow knob
10
112293200/0
Nut
11
112155000/0
Nut
12
112521350/0
Washer
13
112369500/0
Elastic Disc
14
112760605/0
Screw
15
381008692/0
kit Screw

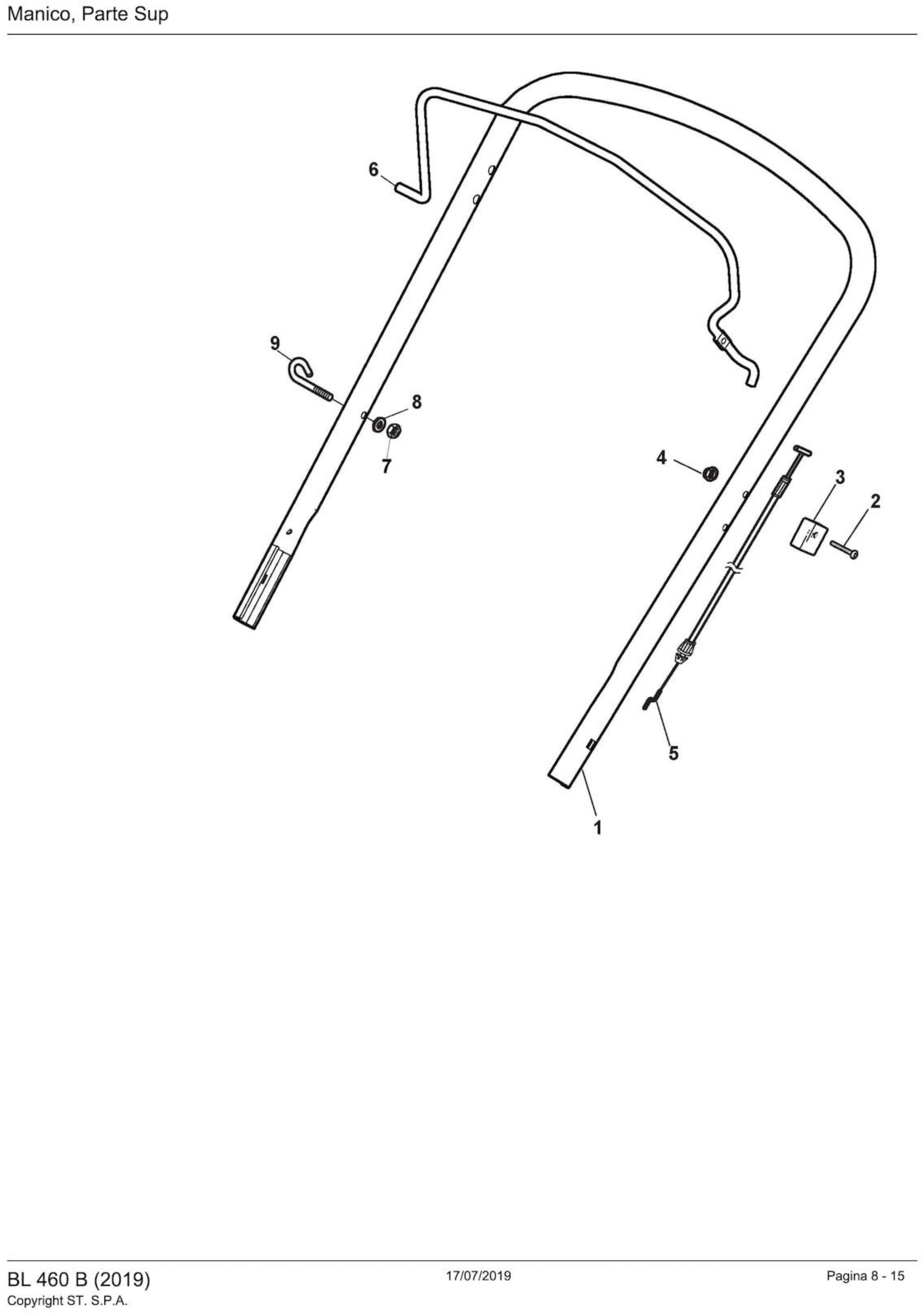

Handle, Upper Part Pag.4
1
381006740/0 Handle, Upper Part
2
112727783/0
Screw
3
322551640/0
Plate
4
112154510/0
Nut
5
181030084/0 Motor Brake Cable
6
381003394/0
Yellow Engine Brake Lever
6
381003394/1
Yellow Engine Brake Lever
7
112154510/0
Nut
8
112521330/0
Washer
9
122430313/0
Guide spring

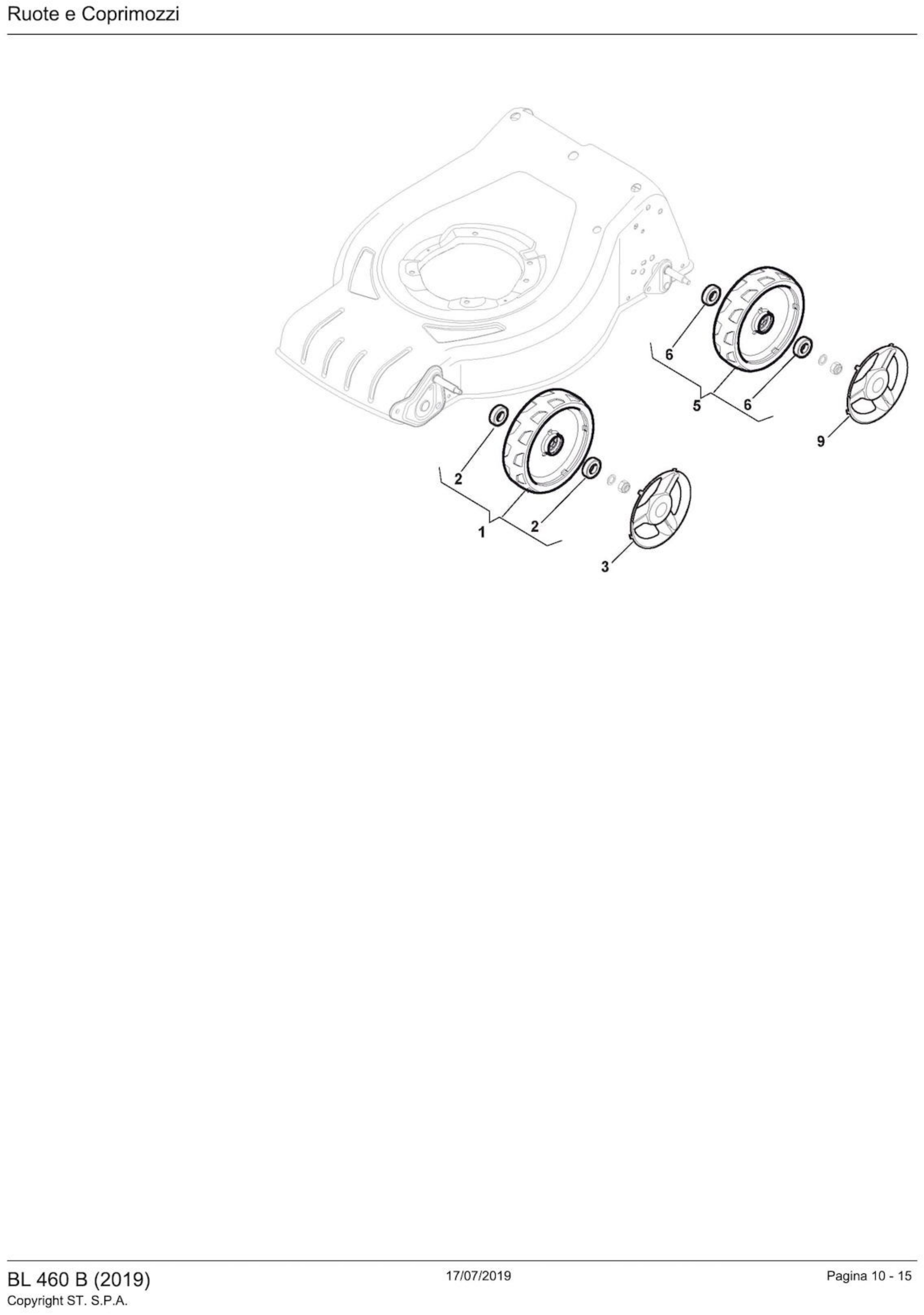

Wheel Pag.5
1
381007447/1
Wheel - Long Hub
1
381007448/0
Wheel
1
381007448/1
Wheel - Long Short
2
119216035/0
Bearing
3
322110687/0 Gray hubcap
5
381007447/1
Wheel - Long Hub
5
381007448/0
Wheel
5
381007448/1
Wheel - Long Short
6
119216035/0
Bearing
9
322110687/0 Gray hubcap

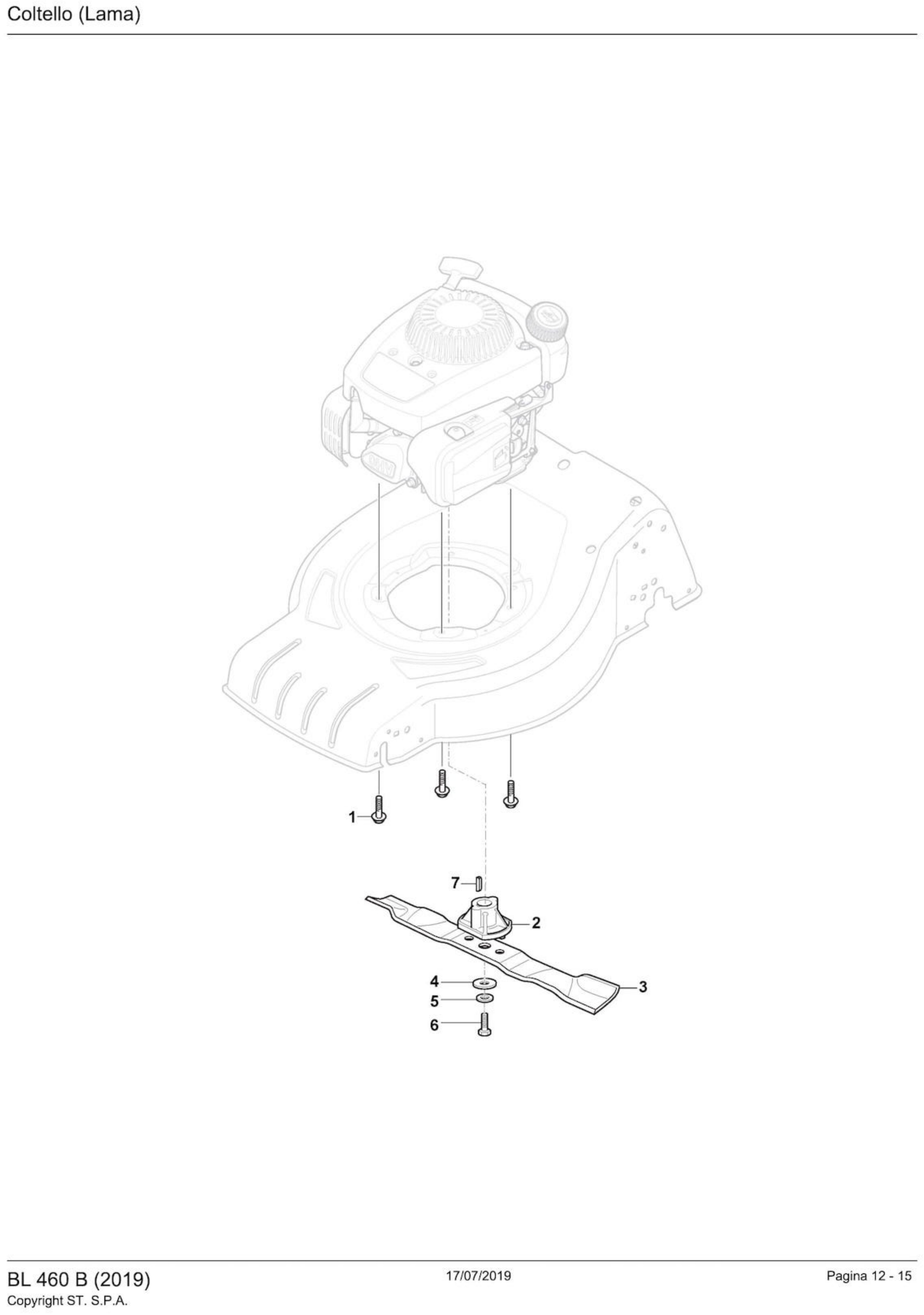

Blade Pag.6
1
112735108/1 Screw
2
122463012/4 Blade Boss Ø 22.2
3
181004460/0
Mulching blade
4
322680021/0
Washer
4
322680021/1
Washer
5
112508128/0
Elastic Disc
6
112735698/0 Screw
7
112139100/0 Woodruff key

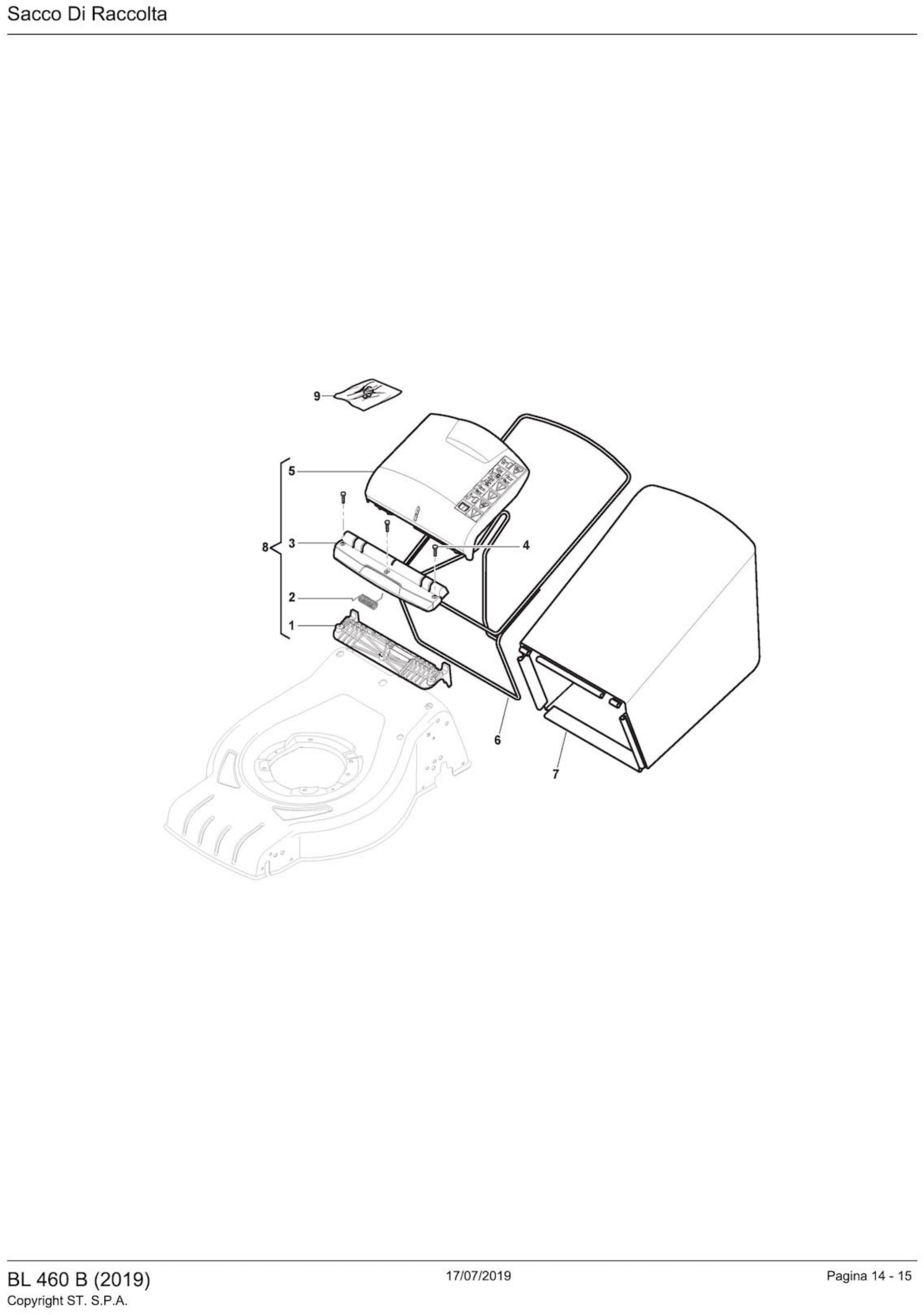

Bag Pag.7
1
322785331/0
Black Support
2
122450464/0
Spring
3
322109556/0
Yellow stoneguard cover
3
322109557/0
Gray stoneguard cover
4
112728699/0
Screw
5
322600206/1
Black Stoneguard
5
322600214/1
Yellow Stoneguard
5
322600216/1
Gray Stoneguard
6
181006409/0
Bag frame
6
181006409/1
Bag frame
7
181002319/0
Cloth Bag
8
8
381008164/0
Yellow Stoneguard Assy
8
381008166/0
Gray Stoneguard Assy
9
381008735/0
Pin
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina BL 460 B - 295491024
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina BL 460 B

Diagram Alpina BL 460 B

Download (624.56KB)

You might also like

GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
GGP Italy SKU: 322108392/0
Rear Baffle for Lawnmower Alpina BL 460 Original part Alpina, Plastic Rear Baffle From 01-September-2018 for Lawnmowers BL 460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 510 SHQ. Part for the...
Last items in stock €22.71
GGP Italy SKU: 381006740/0
Alpina BL 510 SHQ Handle, Upper Part Original spare part Alpina, Handle, Upper Part for Lawnmowers BL 510 SHQ - BL 460 SB - BL410 - BL 510 SB. Part for the following products: -  Lawnmower...
Last items in stock €27.31
GGP Italy SKU: 322060242/1
Alpina BL 460 Belt Cover Original replacement part Alpina, Belt Cover for Lawnmowers BL 460 - AL3 46 SBQ. Part for the following products: - Lawnmower ALPINA BL460 - 295491044/A19-2019 - Lawnmower ALPINA BL 460 B - 295491024...
Usually Ships in: 7/10 Business Days Approx. €11.30
GGP Italy SKU: 381008163/0
Alpina BL460 Stone Guard Ass'y Black Original replacement part Alpina, Stone Guard Ass'y Black for BL460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 410 LI - Mountfield SP46. Part for the following products: - BL460 -...
Last items in stock €25.35
Comments (0)
