Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

SKU: Alpina STAR 41 2007 284120009/M
€1.41
VAT included

Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

ALPINA authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 41 (2007) 284120009/M.

Alpina STAR 41 2007 284120009/M
Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Online only
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M
  • Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

SKU: Alpina STAR 41 2007 284120009/M Condition: New
€1.41
VAT included

Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

ALPINA authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 41 (2007) 284120009/M.

Alpina STAR 41 2007 284120009/M
settings 144 spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

125 spare parts

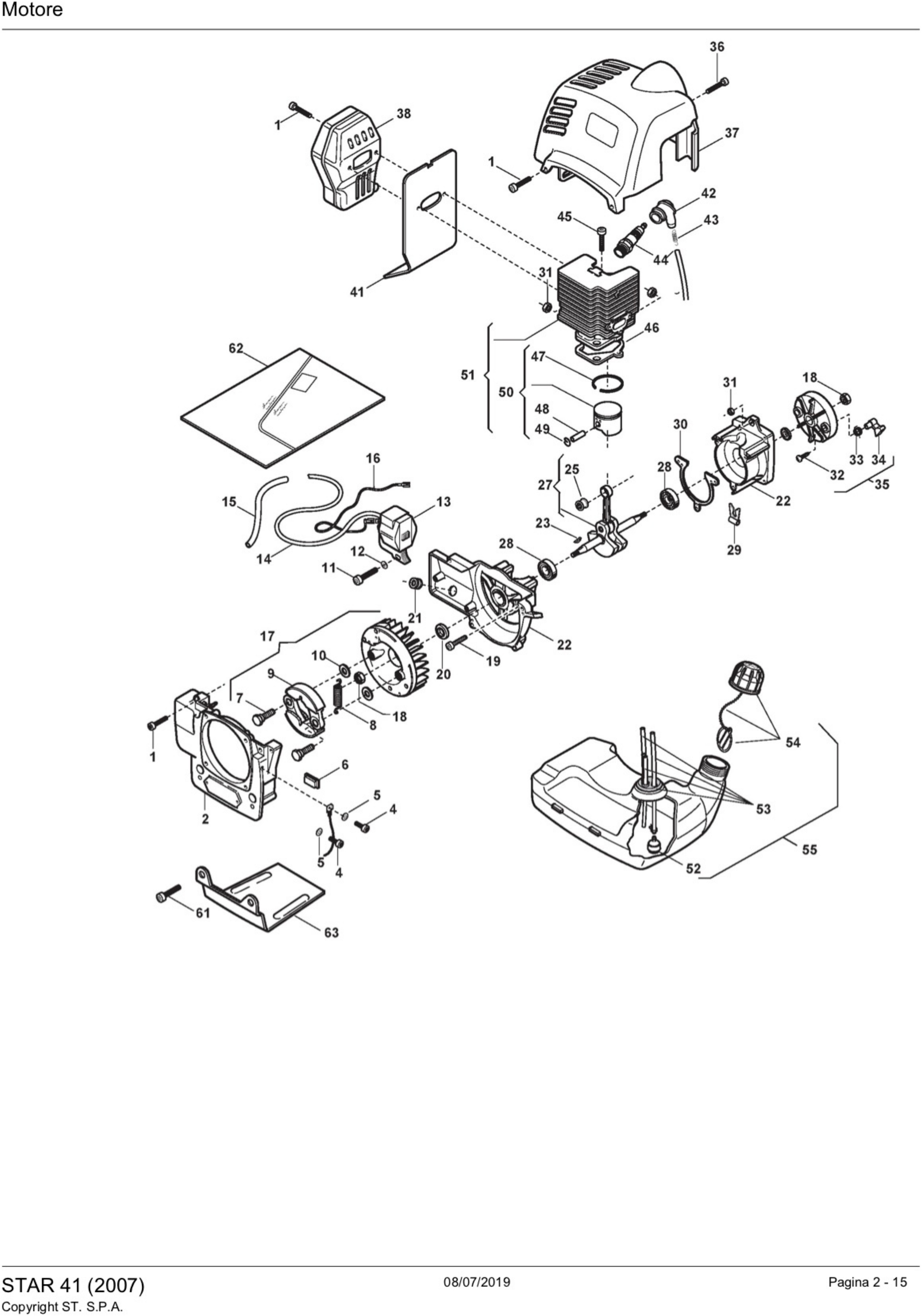

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
2
photo_cameraImage coming soon 4540800 Carter Support Transmission €21.94
5
photo_cameraImage coming soon 2312120 Washer €1.27
6
photo_cameraImage coming soon 3745530 Grommet €3.46
7
photo_cameraImage coming soon 2653210 Screw €3.56
8
photo_cameraImage coming soon 3654040 Clutch Spring €5.41
9
photo_cameraImage coming soon 3L3660430/1 Clutch Arm €11.11
10
photo_cameraImage coming soon 2321230 Washer €1.34
11
photo_cameraImage coming soon 2135060 Screw €1.44
13
photo_cameraImage coming soon 3211015 Electronic Coil €65.14
14
photo_cameraImage coming soon 3211080 Spark Plug cable €11.81
15
photo_cameraImage coming soon 3782040 Cable Sleve €10.57
16
photo_cameraImage coming soon 3211415 Earth Cable €2.90
17
photo_cameraImage coming soon 3L4251480/1 Flywheel €99.47
18
Chain Bar Nut for Chainsaw Castor TR 270 2670120 Chain Bar Nut for Chainsaw Castor TR 270 €1.42
19
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
20
Seal Ring 12x22x4.55 for Chainsaw Alpina P 450 3121070 Seal Ring 12x22x4.55 for Chainsaw Alpina P 450 €5.13
21
photo_cameraImage coming soon 3745130 Grommet €1.37
22
photo_cameraImage coming soon 8521010 Motor Housing €57.62
23
photo_cameraImage coming soon 3151010 Flywheel Key €1.37
25
photo_cameraImage coming soon 3116100 Needle Bearing €11.01
27
photo_cameraImage coming soon 8250840 Crankshaft €200.35
28
photo_cameraImage coming soon 3112240 Needle Bearing €10.11
29
photo_cameraImage coming soon 3750280 Cable guide €1.23
31
photo_cameraImage coming soon 2432040 Nut €1.41
32
photo_cameraImage coming soon 2123100 Screw €1.34
33
photo_cameraImage coming soon 3654050 Spring €1.34
34
photo_cameraImage coming soon 3749570 Starter Link €1.34
35
photo_cameraImage coming soon 8540810 Sterter Cup €36.25
36
photo_cameraImage coming soon 2135180 Screw €1.58
37
photo_cameraImage coming soon 4563660 cylinder cover Yellow €20.72
38
photo_cameraImage coming soon 4122120 Muffler €48.89
41
photo_cameraImage coming soon 3724340 Muffler gasket €9.36
42
photo_cameraImage coming soon 3744850 Spark Plug Cap €2.36
43
Ignition Coil Cable Spring for Brushcutter Castor POWER 41 F 3657530 Ignition Coil Cable Spring for Brushcutter Castor POWER 41 F €1.42
44
photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
45
photo_cameraImage coming soon 2135150 Screw €1.45
46
photo_cameraImage coming soon 3724260 Cylinder gasket €4.91
47
photo_cameraImage coming soon 3123150 Piston Ring €6.19
48
photo_cameraImage coming soon 3158260 Piston pin €7.32
49
Circlip for Chainsaw Alpina P 365 3356050 Circlip for Chainsaw Alpina P 365 €1.42
50
photo_cameraImage coming soon 8541120 Piston assembly Ø 38 €64.09
52
photo_cameraImage coming soon 4253290 Intake Filter Ass.y €13.26
53
photo_cameraImage coming soon 8745541 Hose rubber assembly €10.82
54
photo_cameraImage coming soon 8741370 Fuel Cap Set €7.10
61
photo_cameraImage coming soon 2112310 Screw €1.34
63
photo_cameraImage coming soon 4612587 Engine Support Flange €10.85

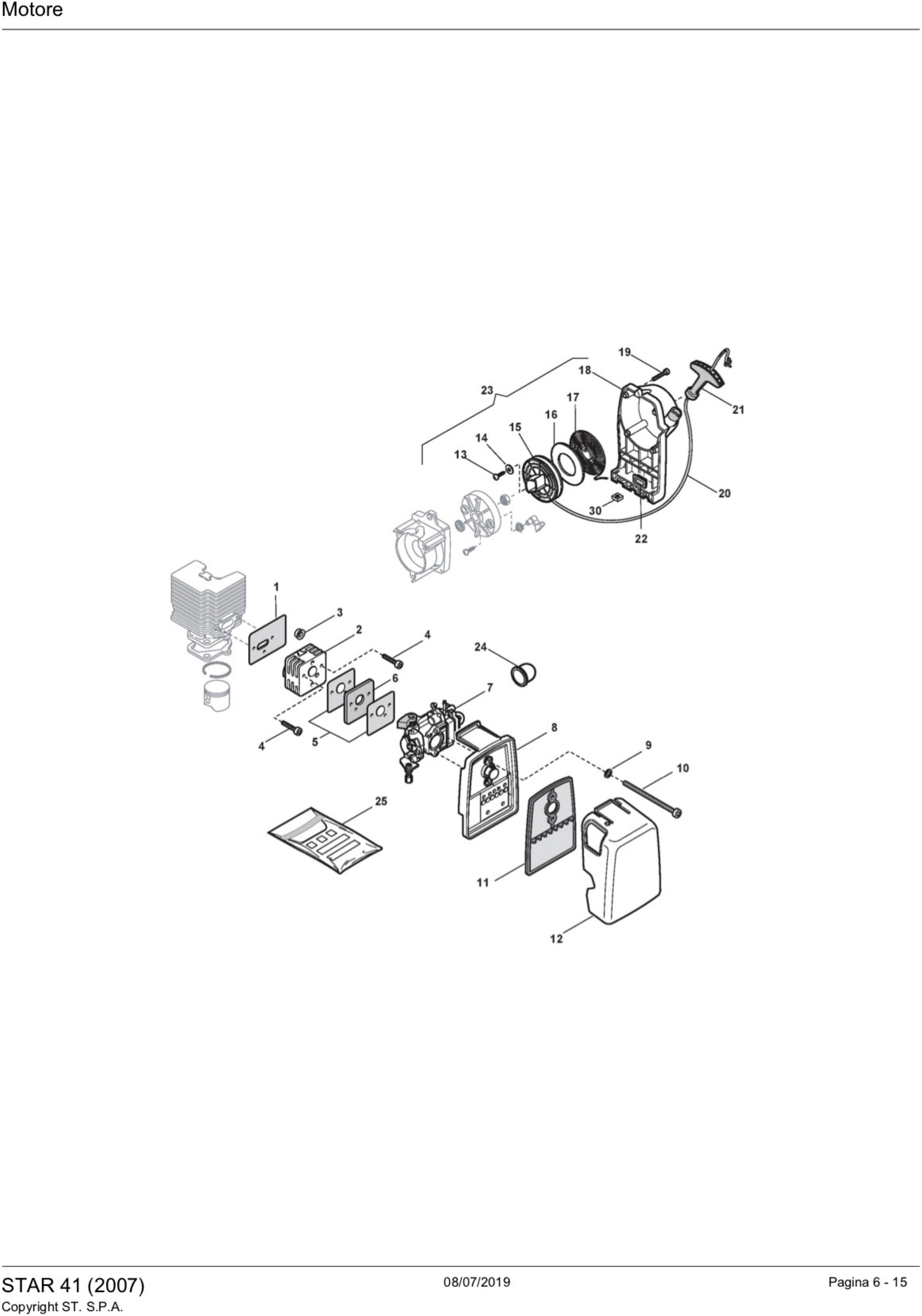

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3724360 Cylinder Manifold Gasket €2.51
4
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
5
photo_cameraImage coming soon 3724400 Carburetor Manifold Gasket €3.72
6
photo_cameraImage coming soon 3785070 Thermal Spacer €3.87
7
photo_cameraImage coming soon 1L4353270/1 Carburetor €122.89
8
photo_cameraImage coming soon 8750390 Air Filter Support €13.13
9
photo_cameraImage coming soon 2312090 Flat washer €1.41
10
Carburator Torx Screw M5x55 Brushcutters Alpina 2135250 Carburator Torx Screw M5x55 Brushcutters Alpina €2.10
11
Air Filter for Brushcutter Alpina STAR 41 3781600 Air Filter for Brushcutter Alpina STAR 41 €8.63
13
photo_cameraImage coming soon 2123100 Screw €1.34
14
photo_cameraImage coming soon 3613420 Washer €1.37
15
photo_cameraImage coming soon 4562220 Starter Pulley €4.35
16
photo_cameraImage coming soon 3723640 Disc €4.01
17
photo_cameraImage coming soon 4611480 Starter Spring €8.86
18
photo_cameraImage coming soon 8563650 Starter Carter €42.48
19
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
20
photo_cameraImage coming soon 3784030 Starter Cord €2.13
21
photo_cameraImage coming soon 3750067 Starter Handle €2.29
22
photo_cameraImage coming soon 3745530 Grommet €3.46
24
photo_cameraImage coming soon 3744870 Air Purge Pump €13.01
25
photo_cameraImage coming soon 4353150 Carburettor Diaphragm-Seal Kit €21.44
30
Square Nut M5X10X6 for Brushcutters Alpina - Stiga 2461030 Square Nut M5X10X6 for Brushcutters Alpina - Stiga €1.40

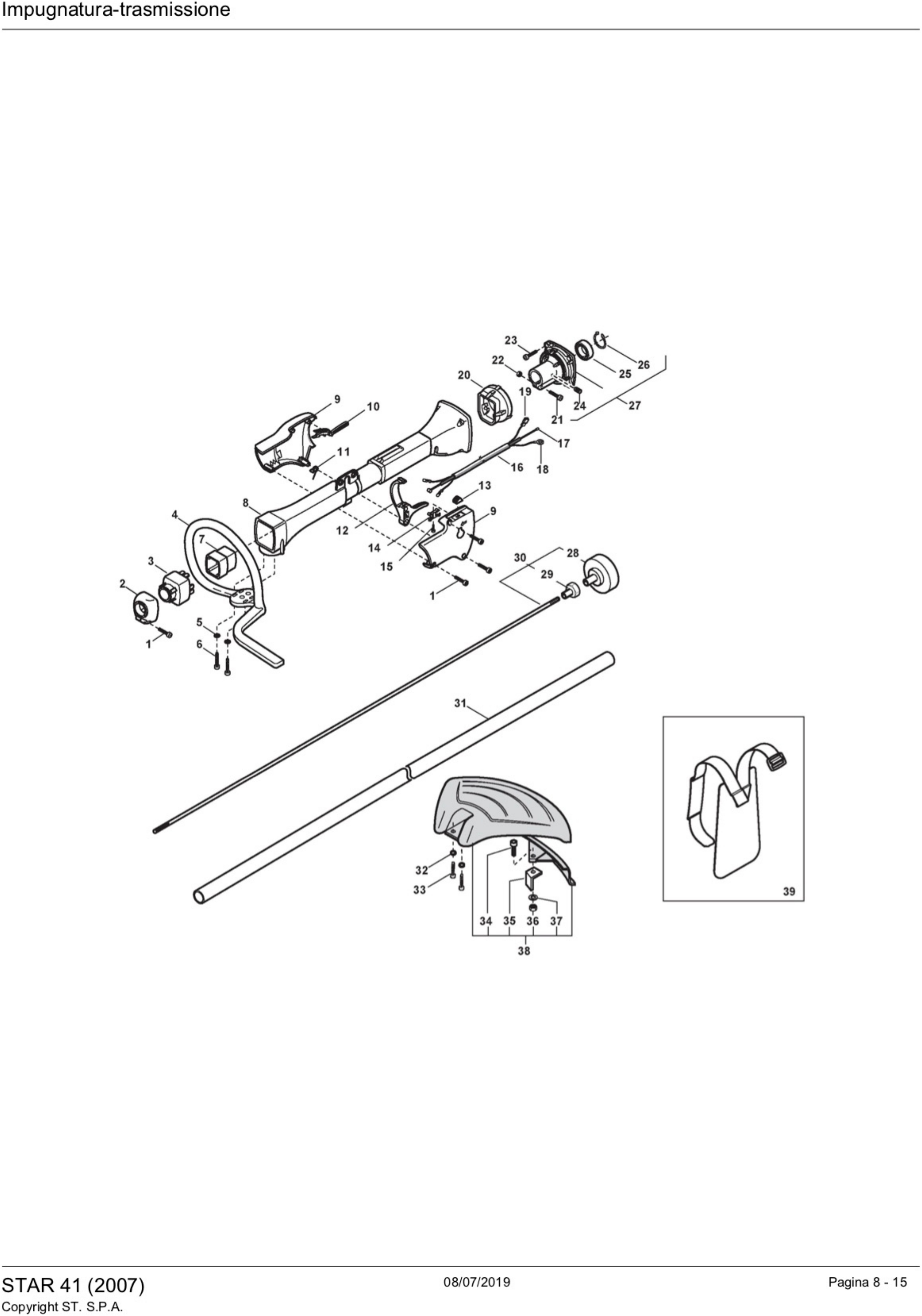

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 2123030 Screw €1.37
2
photo_cameraImage coming soon 3750330 Front Housing Support €3.28
3
photo_cameraImage coming soon 3744290 Front Shock Absorber €4.82
4
photo_cameraImage coming soon 4563560 Front Handle €16.31
5
photo_cameraImage coming soon 2312150 Washer €1.52
8
photo_cameraImage coming soon 4563531 Transmission Housing €12.90
9
photo_cameraImage coming soon 8563540 Handgrip Housing Couple €6.83
10
photo_cameraImage coming soon 3743630 Safety Lever €1.31
11
photo_cameraImage coming soon 3654490 Spring €1.30
13
photo_cameraImage coming soon 3749270 Knob €1.34
15
photo_cameraImage coming soon 2123070 Screw €1.34
16
photo_cameraImage coming soon 3L3786200/1 Cables protection €11.58
17
photo_cameraImage coming soon 4252450 Throttle Cable €7.27
18
photo_cameraImage coming soon 3211120 Earth Cable (Black) €3.06
19
photo_cameraImage coming soon 3211490 Switch Coil Cable (Red) €2.40
21
photo_cameraImage coming soon 2135150 Screw €1.45
22
photo_cameraImage coming soon 2432030 Nut €1.37
23
photo_cameraImage coming soon 2135160 Screw €1.37
25
photo_cameraImage coming soon 3112170 Ball Bearing €2.45
26
photo_cameraImage coming soon 3353080 Seeger Ring €1.37
27
photo_cameraImage coming soon 3L8520990/3 Transmission Hub Ass.Y €34.26
28
photo_cameraImage coming soon 3L4121861/1 Clutch Drum assembly €15.39
29
photo_cameraImage coming soon 3642191 Bearing Hub €1.52
30
photo_cameraImage coming soon 4251400 Trasmission Shaft €46.78
31
photo_cameraImage coming soon 4251204 Trasmission Pipe Ass.Y €65.30
32
photo_cameraImage coming soon 2312150 Washer €1.52
33
photo_cameraImage coming soon 2135060 Screw €1.44
34
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
35
photo_cameraImage coming soon 3615000 Wire Knife €9.02
36
photo_cameraImage coming soon 2432040 Nut €1.41
37
photo_cameraImage coming soon 2312150 Washer €1.52
38
Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP 3L8563570/1 Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP €27.20
39
photo_cameraImage coming soon 4253460 Harness €15.96

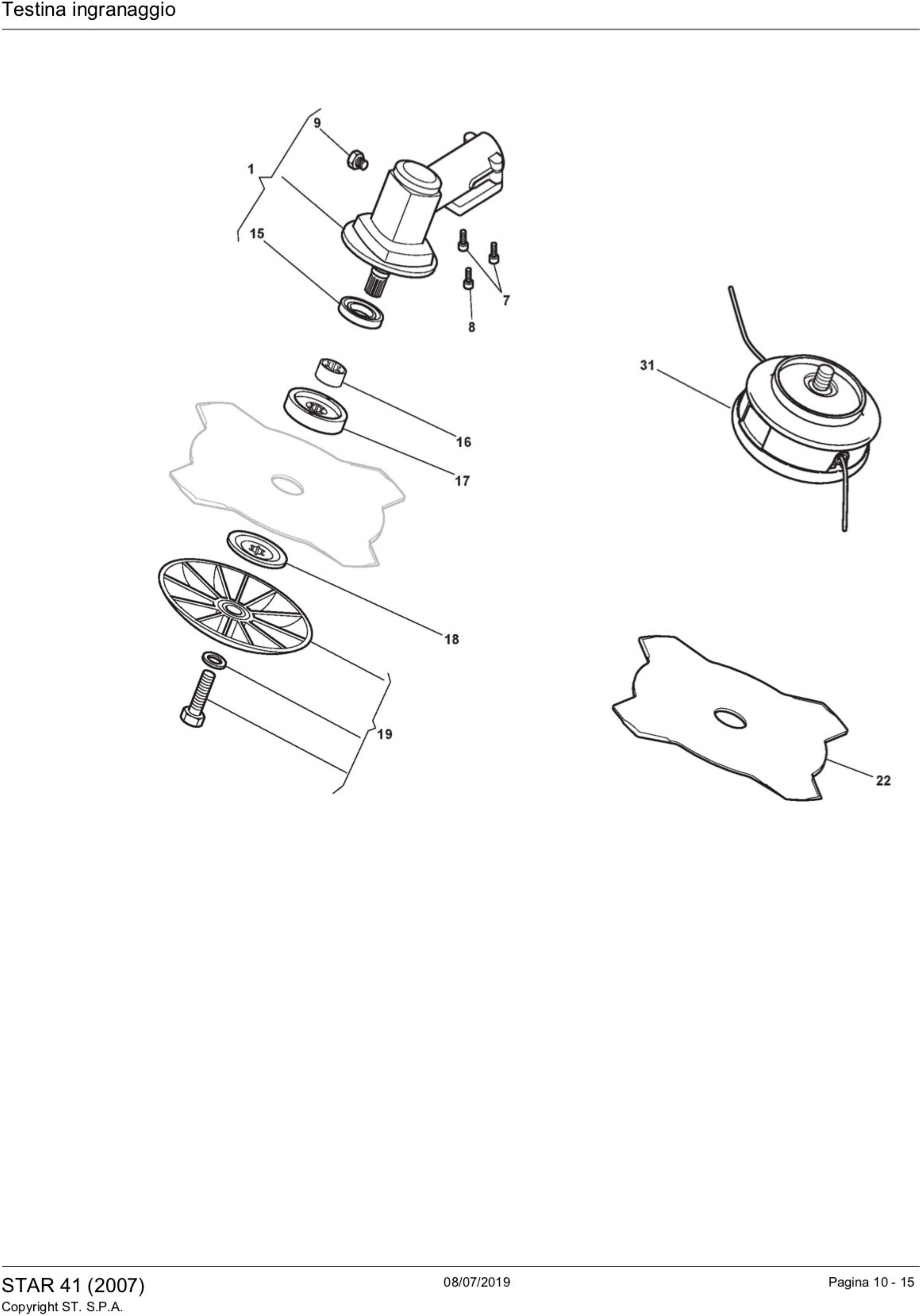

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
7
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
8
photo_cameraImage coming soon 2653090 Screw €1.49
15
photo_cameraImage coming soon 3121170 Oil Seal €10.51
16
photo_cameraImage coming soon 3641700/1 Collar €8.91
17
photo_cameraImage coming soon 3641640 Upper Ring Nut €10.01
18
photo_cameraImage coming soon 3612640 Lower Ring Nut €9.51
19
photo_cameraImage coming soon 4560610 Stabilizer €8.99
22
photo_cameraImage coming soon 4611880 4 Teeth Disc 25 Cm €11.81
31
photo_cameraImage coming soon 4353240/1 2 Hedges Nylon Head €21.01

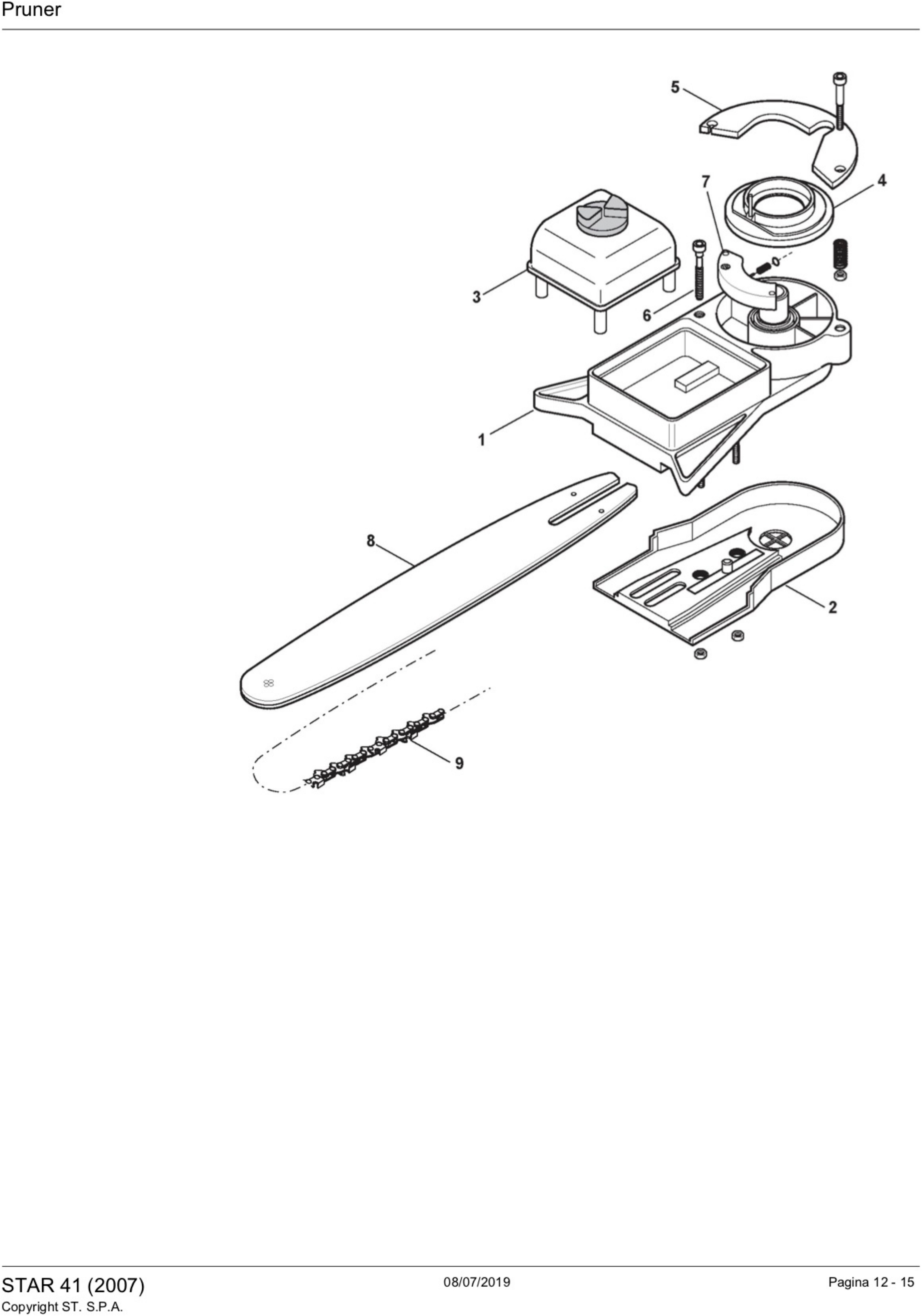

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6910500 Transmission Carter Assembly Ø24 €99.51
2
photo_cameraImage coming soon 6910502 Carter Chain €29.77
3
photo_cameraImage coming soon 6910503 Oil tank €15.15
4
photo_cameraImage coming soon 6910504 Lid Ø24 €9.25
5
photo_cameraImage coming soon 6910506 Flange €38.72
6
photo_cameraImage coming soon 6910507 Screw €3.26
7
photo_cameraImage coming soon 6910508 Oil Pump Assembly €39.65
8
photo_cameraImage coming soon 4112610 Guide bar 10inch €34.49
9
photo_cameraImage coming soon 4113551 10 inch chain €17.08

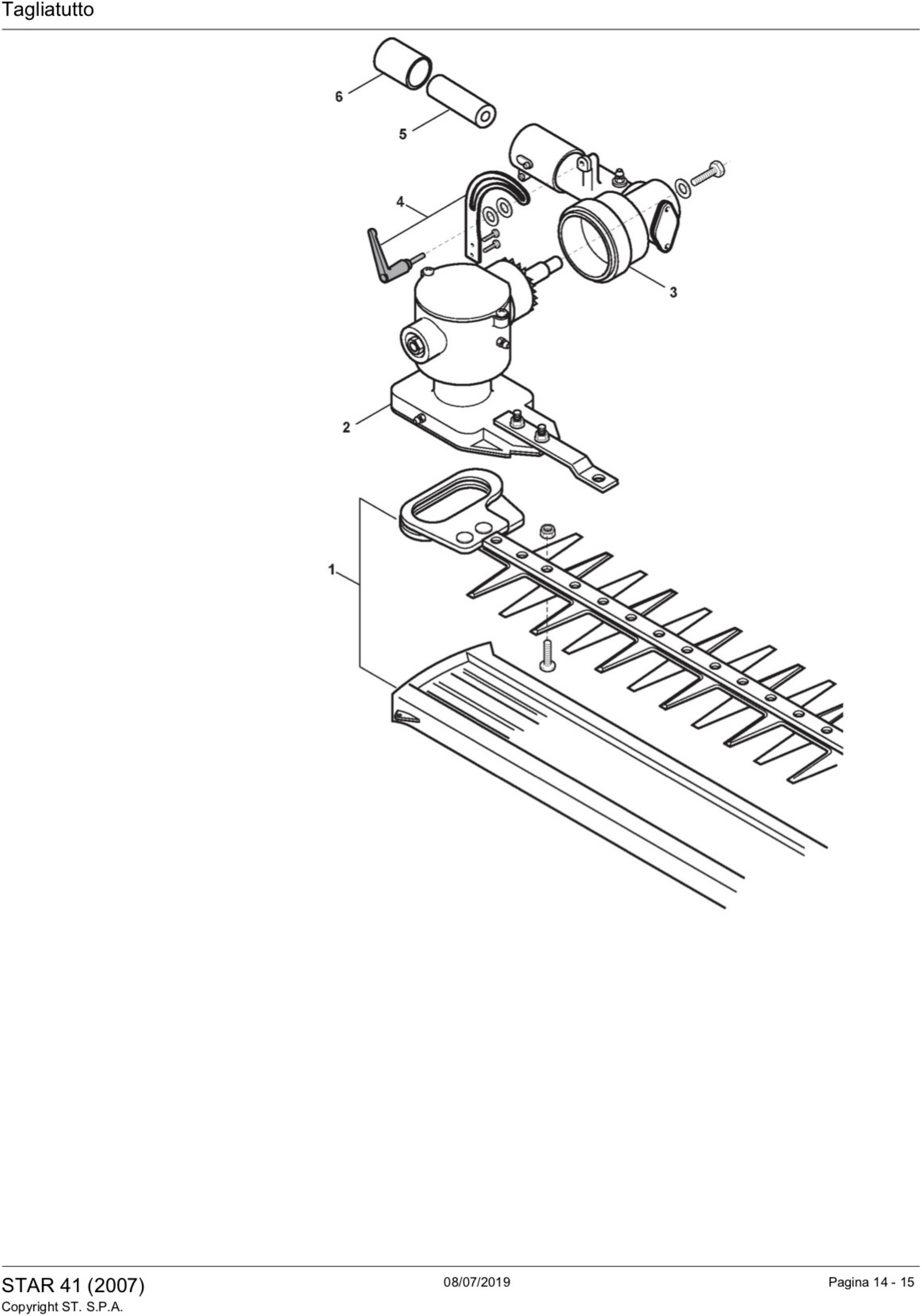

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 6910520 Blades assembly €299.76
2
photo_cameraImage coming soon 6910521 Transmission Carter Assembly €526.31
3
photo_cameraImage coming soon 6910524 Gear Head Assembly €160.55
4
photo_cameraImage coming soon 6910523 Lever + Adjustment Bracket €28.88
6
photo_cameraImage coming soon 2382430 Spacer €8.21

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Brushcutter STAR 41 (2007) 284120009/M

ALPINA

 authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter STAR 41 (2007) 284120009/M.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Alpina STAR 41 2007 284120009/M

ALPINA STAR 41 (2007) 284120009/M- Pag.1
# Part Num. Description
1 2135040 Screw
2 4540800 Transmission Support
4 2132500 Screw
5 2312120 Washer
6 3745530 Grommet
7 2653210 Screw
8 3654040 Clutch Spring
9 3L3660430/1 Clutch Arm
10 2321230 Washer
11 2135060 Screw
12 2321150 Washer
13 3211015 Electronic Coil
14 3211080 Coil Cable
15 3782040 Cables protection
16 3211415 Earth Cable
17 3L4251480/1 Flywheel
18 2670120 Nut
19 2135050 Screw
20 3121070 Seal ring
21 3745130 Cable grommet
22 8521010 Motor Case Assy
23 3151010 Flywheel Kay
25 3116100 Needle Bearing
27 8250840 Crankshaft
28 3112240 Needle Bearing
29 3750280 Cable Guide
30 3724050 Engine Crankcase Gasket
31 2432040 Nut
32 2123100 Screw
33 3654050 Spring
34 3749570 Starter Cup
35 8540810 Starter Cup Assy
36 2135180 Screw
37 4563660 cylinder cover Yellow
38 4122120 Muffler
41 3724340 Muffler gasket
42 3744850 Spark Plug Cap
43 3657530 Spark Plug Cable terminal
44 3210024 Spark Plug
45 2135150 Screw
46 3724260 Cylinder gasket
47 3123150 Piston Ring
48 3158260 Piston pin
49 3356050 Circlip
50 8541120 Piston assembly Ø 38
51 8541110 Cylinder - Piston assembly
52 4253290 Fuel Filter
53 8745541 Hose Grommet
54 8741370 Tank Cap Assy
55 4252470 Fuel Tank assembly
61 2112310 Screw
62 8724340 Gaskets Set
63 4612587 Engine Support Flange
ALPINA STAR 41 (2007) 284120009/M-  Pag.2
1 3724360 Cylinder Manifold Gasket
2 3750410 Intake manifold - DISCONTINUED
3 2670280 Nut
4 2135050 Screw
5 3724400 Carburetor Manifold Gasket
6 3785070 Thermal Spacer
7 1L4353270/1 Carburetor
8 8750390 Air Filter Support
9 2312090 Washer
10 2135250 Screw
11 3781600 Air filter
12 4563670 Air Filter Cover Yellow
13 2123100 Screw
14 3613420 Washer
15 4562220 Starter Pulley
16 3723640 Starter Spring Disc
17 4611480 Starter Spring
18 8563650 Starter Carter
19 2135040 Screw
20 3784030 Starter rope
21 3750067 Starter handle
22 3745530 grommet
23 4252680 Starter assembly
24 3744870 Primer
25 4353150 Carburettor Diaphragm-Seal Kit
30 2461030 Square Nut
ALPINA STAR 41 (2007) 284120009/M- Pag.3
1 2123030 Screw
2 3750330 Front Casing Support
3 3744290 Front anti-vibration rubber
4 4563560 Front handle
5 2312150 Washer
6 2123140 Screw
7 3750340 Ring Reduction - DISCONTINUED
8 4563531 Carter Transmission
9 8563540 Pair of Handle Shells
10 3743630 Safety Lever
11 3654490 Spring
12 3743620 Throttle lever - OBSOLETE - NO LONGER AVALAIBLE
13 3749270 Knob
14 3612710 Stop plate
15 2123070 Screw
16 3L3786200/1 Cables protection
17 4252450 Throttle Cable
18 3211120 Earth wire
19 3211490 Switch Coil Cable (Red)
20 3744300 Rear Anti-vibration Grommet
21 2135150 Screw
22 2432030 Nut
23 2135160 Screw
24 2126050 Screw
25 3112170 Ball bearing
26 3353080 Seeger ring
27 3L8520990/3 Transmission Hub Assembly Ø26
28 3L4121861/1 Clutch Drum assembly
29 3642191 Bearing Hub
30 4251400 Drive Shaft Assembly
31 4251204 Transmission Tube Assembly (Ø26)
32 2312150 Washer
33 2135060 Screw
34 2135030 Screw
35 3615000 Wire Blade
36 2432040 Nut
37 2312150 Washer
38 3L8563570/1 Safety guard assembly
39 4253460 Harness
ALPINA STAR 41 (2007) 284120009/M- Pag.4
1 3L4252780/1 Gears Case Assembly Ø26 - Available in Adaptable Version,
with Universal Head Adapter and Stone Guard Kit
7 2135050 Screw
8 2653090 Screw
9 2653460 Screw
15 3121170 Seal ring
16 3641700/1 Head Collar DC D = 26 05
17 3641640 Upper ring
18 3612640 Lower ring
19 4560610 Fixed Cup
22 4611880 Disc 4 Tips
31 4353240/1 2 Wire Head
ALPINA STAR 41 (2007) 284120009/M- Pag.5
1 6910500 Transmission Carter Assembly Ø24
2 6910502 Carter Chain
3 6910503 Oil tank
4 6910504 Lid Ø24
5 6910506 Flange
6 6910507 Screw
7 6910508 Oil Pump Assembly
8 4112610 Guide bar 10inch
9 4113551 10 inch chain
ALPINA STAR 41 (2007) 284120009/M- Pag.6
1 6910520 Blades assembly
2 6910521 Transmission Carter Assembly
3 6910524 Gear Head Assembly
4 6910523 Lever + Adjustment Bracket
5 4252640 Sleeve
6 2382430 Spacer
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina STAR 41 2007 284120009/M
9 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Alpina STAR 41 2007

Drawing Alpina STAR 41 2007

Download (945.03KB)

You might also like

GGP Italy SKU: 322735152/0
Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Fuel Tank Cap for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products: -...
Last items in stock €3.84
GGP Italy SKU: 118804060/0
Starter Spring for Brushcutters Alpina B 32 - B 42 Original replacement part Alpina, Starter Spring for Brushcutters Alpina B 32 - B 42 - B 42 D - B 52 - B 52 D. Part for the following...
AVAILABLE €6.57
GGP Italy SKU: 118804005/0
Fuel Hose Ass'y for Brushcutters Alpina B 42 - B 52 Original replacement part Alpina, Fuel Hose Ass'y for Brushcutters Alpina B 42 - B 42 D - B 52 - B 52 D. Part for the following products: - Brushcutter...
Last items in stock €3.00
GGP Italy SKU: 118804049/0
Piston Pin Circlip for Brushcutters Alpina B 42 - B 52 Original replacement part Alpina, Piston Pin Circlip for Brushcutters Alpina B 32 - B 42 - B 42 D - B 52 - B 52 D. Part for the following products: - Brushcutter Alpina B 42...
AVAILABLE €1.42
GGP Italy SKU: 118804064/0
Intake Manifold for Brushcutters Alpina B 42 - B 52 Original replacement part Alpina, Intake Manifold for Brushcutters B 42 - B 52 - Stiga SBC 242 - SBC 252. Part for the following...
on 7/10 Business Days Approx €7.31
GGP Italy SKU: 3356050
Circlip for Chainsaw Alpina P 365 Original part Alpina, Piston Pin Circlip for Chainsaws Alpina P 365 - Castor CP 410 - 411 - Castelgarden - XC 41. Part for the following products: -  Chainsaw Alpina P 365 -  Chainsaw Castor CP 410...
on 7 Business Days Approx €1.42
HiKOKI Power Tools Italia S.p.a. SKU: 3L8563570/1
Safety Cover Ass'y for Brushcutter Alpina STAR 55 DP Genuine replacement part Alpina, Safety Cover Assembly for Brushcutters STAR 55 DP - STAR 55 F PROFI - STAR 41 - TB 435 H - Castor POWER 41 F...
Last items in stock €27.20
GGP Italy SKU: 3781600
Air Filter for Brushcutter Alpina STAR 41 Original spare part Alpina, Air Filter for Brushcutters Alpina STAR 41 - STAR 41 D - Castor POWER 41 F. Parts for the following products: - ...
Last items in stock €8.63
Comments (0)
