GGP Italy

Alpina Spare Parts for Lawn Mower BL 460

SKU: BL460 - 295491044/A19-2019
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460

ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 460/295491044/A19-2019.

BL 460 - 295491044/A19-2019
Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
  • Alpina Spare Parts for Lawn Mower BL 460
GGP Italy

Alpina Spare Parts for Lawn Mower BL 460

SKU: BL460 - 295491044/A19-2019 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460

ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 460/295491044/A19-2019.

BL 460 - 295491044/A19-2019
settings 149 spare parts
description 11 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
149 spare parts
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322055629/0 Gray Cover €5.08
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 112292102/0 Nut €1.86
2
 photo_cameraImage coming soon 322055630/0 Yellow Cover €6.48
3
 photo_cameraImage coming soon 118551467/0 Starter Assy €71.57
3
 photo_cameraImage coming soon 322055627/0 Gray Cover €5.09
4
 photo_cameraImage coming soon 112154510/0 Nut €1.66
4
 photo_cameraImage coming soon 118551362/0 Starting handle €8.85
5
 photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
 photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
5
 photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
6
 photo_cameraImage coming soon 181006409/0 Textile Grasscatcher Frame €37.51
7
 photo_cameraImage coming soon 181002319/0 Textile Grasscatcher Black €54.01
8
 photo_cameraImage coming soon 112521330/0 Washer €1.70
8
 photo_cameraImage coming soon 112789000/0 Screw €1.77
8
 photo_cameraImage coming soon 322545211/0 Plate €2.43
9
 photo_cameraImage coming soon 118551456/0 Starter control €23.41
10
 photo_cameraImage coming soon 118550908/0 Air conveyor €37.58
11
 photo_cameraImage coming soon 118550907/0 Pin €5.22
12
 photo_cameraImage coming soon 118550906/0 Pin €4.82
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
13
 photo_cameraImage coming soon 112791500/0 Screw €1.64
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
14
 photo_cameraImage coming soon 118551475/0 Electronic Coil €51.95
15
 photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
16
 Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
17
 photo_cameraImage coming soon 118550930/0 Stud Bolt €5.79
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

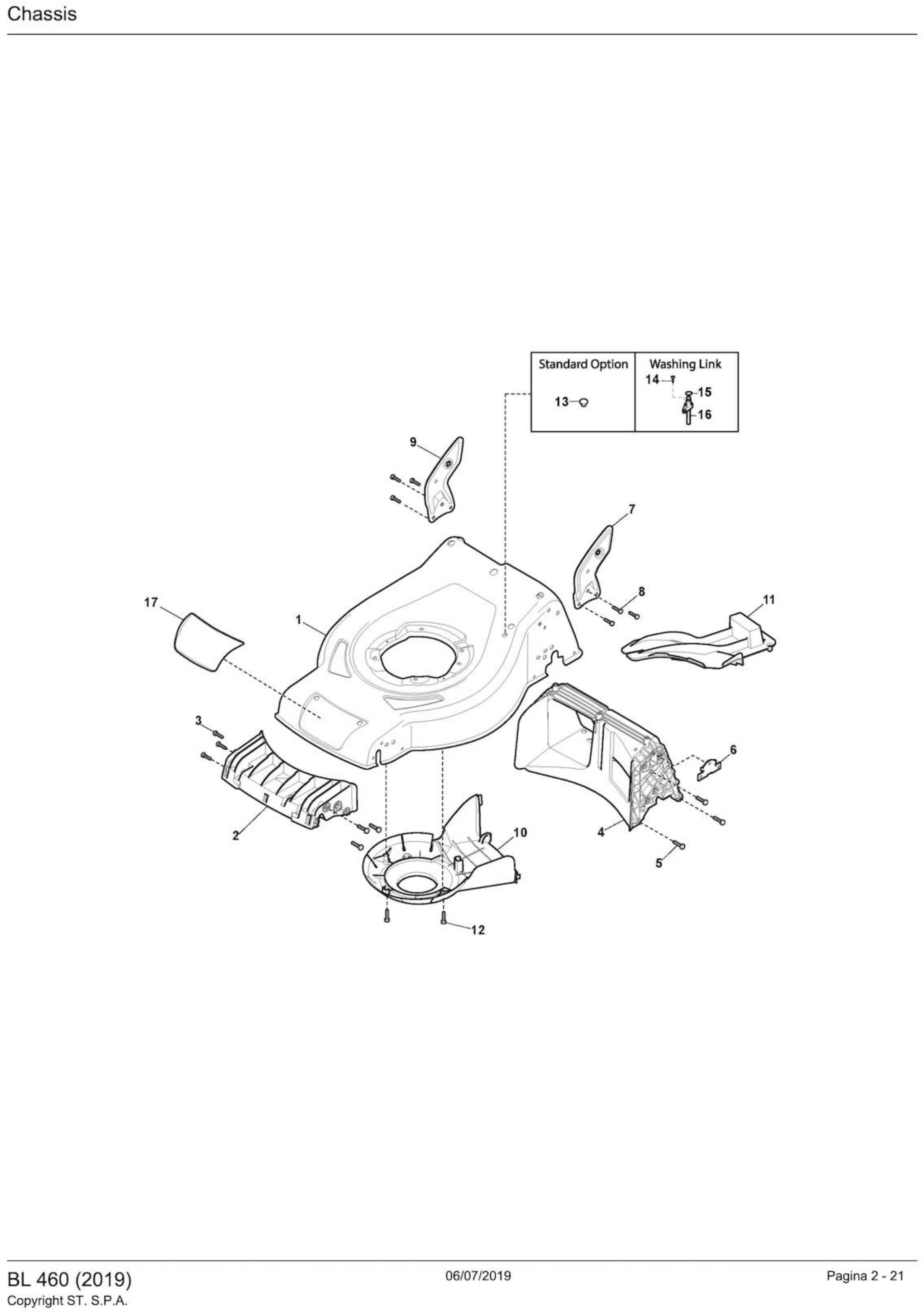

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004947/0 Black Chassis €144.10
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
4
 Rear Baffle for Lawnmower Alpina BL 460 322108392/0 Rear Baffle for Lawnmower Alpina BL 460 €22.71
5
 photo_cameraImage coming soon 112728699/0 Screw €1.66
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
 Alpina BL 460 Belt Cover 322060242/1 Alpina BL 460 Belt Cover €11.30
10
 photo_cameraImage coming soon 322060242/2 Belt Cover €12.26
11
 photo_cameraImage coming soon 322140239/1 Mulching Deflector As Optional €11.35
12
 photo_cameraImage coming soon 112728531/0 Screw €1.54
13
 photo_cameraImage coming soon 322820077/1 Cap From 01-september-2016 €1.66
14
 photo_cameraImage coming soon 112728450/0 Screw €1.54
15
 photo_cameraImage coming soon 119035000/0 Ring Or €5.26
16
 photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0 Plate €1.65
2
 photo_cameraImage coming soon 322735597/0 Left Height Adjustment €2.20
2
 photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
3
 photo_cameraImage coming soon 381005141/0 Wheel Support €9.84
3
 photo_cameraImage coming soon 381005159/0 Wheel Support €12.01
3
 photo_cameraImage coming soon 381005253/0 Wheel Support €10.18
4
 photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
 photo_cameraImage coming soon 122519811/0 Pin €1.65
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
8
 photo_cameraImage coming soon 322545211/0 Plate €2.43
9
 photo_cameraImage coming soon 322735595/0 Sector, Height Adjustment L. €2.81
9
 photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
10
 photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
 photo_cameraImage coming soon 112819110/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
4
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
5
 photo_cameraImage coming soon 112293200/0 Nut €1.74
7
 photo_cameraImage coming soon 112818900/0 Screw €1.66
9
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
10
 photo_cameraImage coming soon 112293200/0 Nut €1.74
11
 photo_cameraImage coming soon 112155000/0 Nut €1.66
12
 photo_cameraImage coming soon 112521350/0 Washer €1.74
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

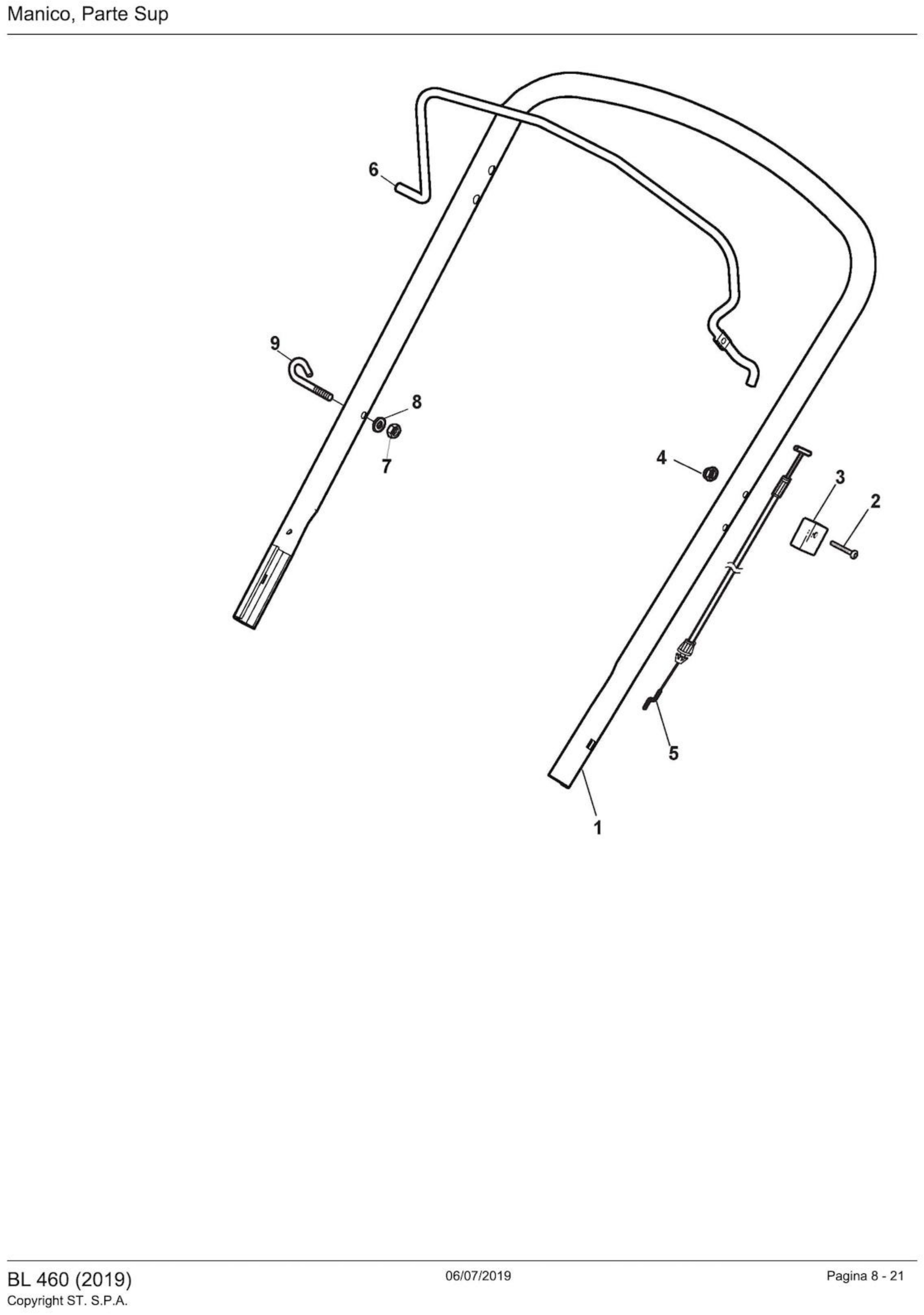

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Alpina BL 510 SHQ Handle, Upper Part 381006740/0 Alpina BL 510 SHQ Handle, Upper Part €27.31
2
 photo_cameraImage coming soon 112727783/0 Screw €1.83
3
 photo_cameraImage coming soon 322551640/0 Plate €7.99
4
 photo_cameraImage coming soon 112154510/0 Nut €1.66
5
 photo_cameraImage coming soon 181030053/0 Cable, Thread Engine Brake €14.99
6
 photo_cameraImage coming soon 381003394/0 Lever, Engine Brake Yellow €16.57
6
 photo_cameraImage coming soon 381003394/1 Yellow Engine Brake Lever €15.36
7
 photo_cameraImage coming soon 112154510/0 Nut €1.66
8
 photo_cameraImage coming soon 112521330/0 Washer €1.70
9
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
2
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
5
 photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
6
 photo_cameraImage coming soon 119216035/0 Bearing €4.51
9
 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
 photo_cameraImage coming soon 122463012/4 Blade Boss Ø 22.2 €10.31
3
 photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
4
 photo_cameraImage coming soon 322680021/0 Washer €1.38
5
 photo_cameraImage coming soon 112508128/0 Elastic Disc €1.48
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
3
 photo_cameraImage coming soon 322109557/0 Stone Guard Supp. Cover Grey €24.62
4
 photo_cameraImage coming soon 112728699/0 Screw €1.66
5
 photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
 photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
5
 photo_cameraImage coming soon 322600216/1 Stone Guard, Grey €13.29
6
 photo_cameraImage coming soon 181006409/0 Textile Grasscatcher Frame €37.51
7
 photo_cameraImage coming soon 181002319/0 Textile Grasscatcher Black €54.01
8
 Alpina BL460 Stone Guard Ass'y Black 381008163/0 Alpina BL460 Stone Guard Ass'y Black €25.35
8
 photo_cameraImage coming soon 381008164/0 Yellow Stone guard Assy €26.11
9
 photo_cameraImage coming soon 381008735/0 Kit plastic pin €2.32
21
 photo_cameraImage coming soon 118551489/0 Carburetor €62.01
23
 photo_cameraImage coming soon 118551461/0 Air Filter Assy €30.64
24
 photo_cameraImage coming soon 118551459/0 Rod €8.36
25
 photo_cameraImage coming soon 118551352/0 Stopper €3.72
26
 photo_cameraImage coming soon 118550946/0 Filter €3.30
27
 photo_cameraImage coming soon 118550945/0 Filter €3.16
28
 photo_cameraImage coming soon 118550944/0 Air Filter Cover €8.91
30
 Fuel Pipe for Lawnmower Alpina BL 460 118551481/0 Fuel Pipe for Lawnmower Alpina BL 460 €7.32
31
 photo_cameraImage coming soon 118550918/0 Clamp €1.64
32
 photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
33
 photo_cameraImage coming soon 118551454/0 Tank €40.34
34
 Tank Cap for Engine Lawnmower Alpina AL5 51 G 118550943/0 Tank Cap for Engine Lawnmower Alpina AL5 51 G €16.78
35
 photo_cameraImage coming soon 112792099/0 Screw €1.63
36
 photo_cameraImage coming soon 118550920/0 Breather Fuel Pipe €4.26
37
 photo_cameraImage coming soon 118550933/0 Throttle Lever €6.21
38
 photo_cameraImage coming soon 118550931/0 Plate €4.18
40
 photo_cameraImage coming soon 118550932/0 Spring €1.64
41
 photo_cameraImage coming soon 118550805/0 Screw €1.63
42
 photo_cameraImage coming soon 118550806/0 Nut €1.63
43
 photo_cameraImage coming soon 118550925/0 Throttle rod €1.64
45
 photo_cameraImage coming soon 118551464/0 Muffler €33.42
46
 photo_cameraImage coming soon 112792425/0 Screw €1.83
47
 photo_cameraImage coming soon 118550900/0 Muffler protection €20.91
48
 photo_cameraImage coming soon 118551277/0 Bolt €1.42
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

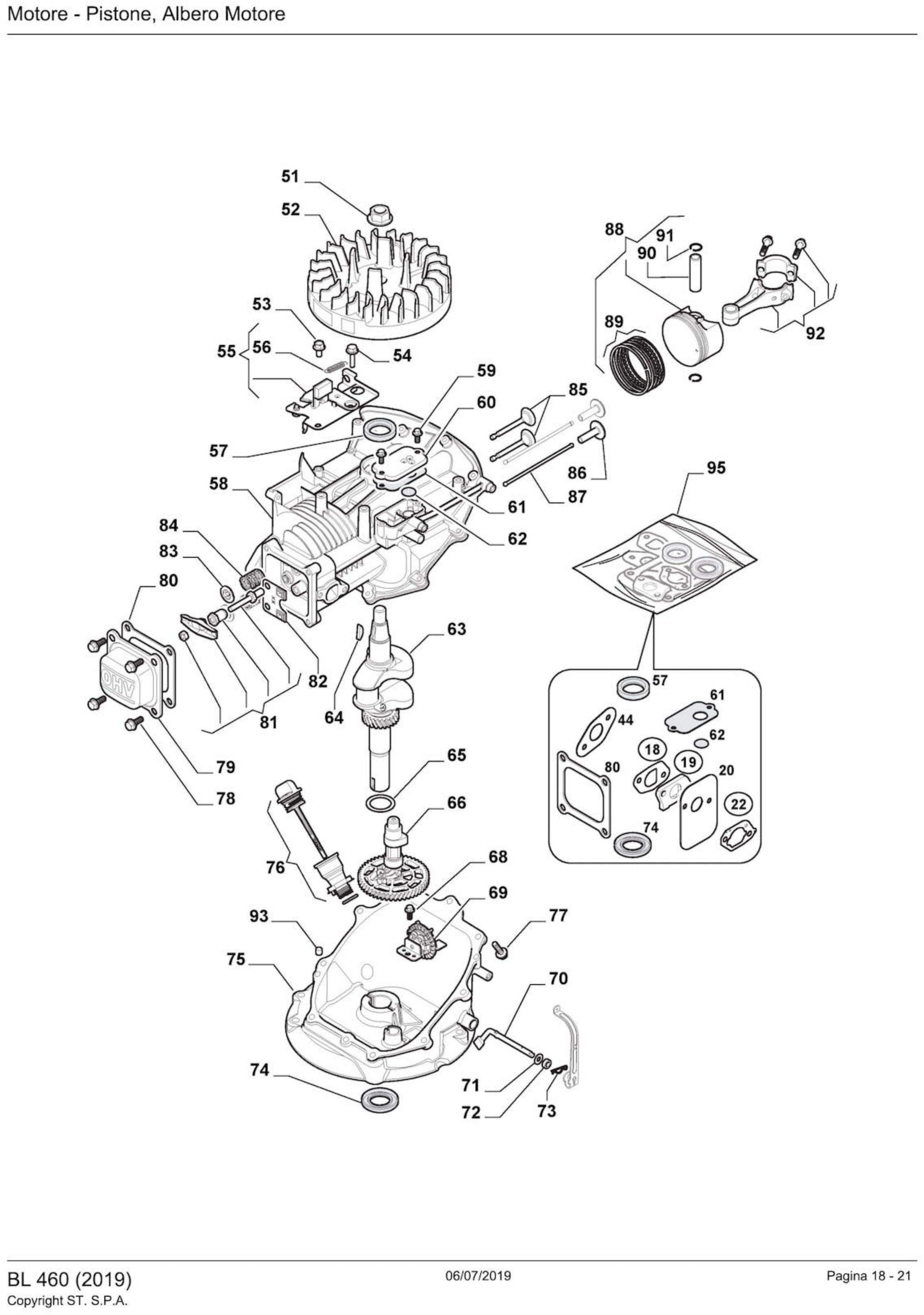

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 112292102/0 Nut €1.86
3
 photo_cameraImage coming soon 118551467/0 Starter Assy €71.57
4
 photo_cameraImage coming soon 118551362/0 Starting handle €8.85
8
 photo_cameraImage coming soon 112789000/0 Screw €1.77
9
 photo_cameraImage coming soon 118551456/0 Starter control €23.41
10
 photo_cameraImage coming soon 118550908/0 Air conveyor €37.58
11
 photo_cameraImage coming soon 118550907/0 Pin €5.22
12
 photo_cameraImage coming soon 118550906/0 Pin €4.82
13
 photo_cameraImage coming soon 112791500/0 Screw €1.64
14
 photo_cameraImage coming soon 118551475/0 Electronic Coil €51.95
16
 Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
17
 photo_cameraImage coming soon 118550930/0 Stud Bolt €5.79
18
 photo_cameraImage coming soon 118550929/0 Gasket €1.64
19
 photo_cameraImage coming soon 118550928/0 Insulator, Carburettor €3.02
20
 photo_cameraImage coming soon 118550927/0 Gasket €4.82
21
 photo_cameraImage coming soon 118551489/0 Carburetor €62.01
22
 photo_cameraImage coming soon 118550924/0 Gasket €1.78
23
 photo_cameraImage coming soon 118551461/0 Air Filter Assy €30.64
24
 photo_cameraImage coming soon 118551459/0 Rod €8.36
25
 photo_cameraImage coming soon 118551352/0 Stopper €3.72
26
 photo_cameraImage coming soon 118550946/0 Filter €3.30
27
 photo_cameraImage coming soon 118550945/0 Filter €3.16
28
 photo_cameraImage coming soon 118550944/0 Air Filter Cover €8.91
29
 photo_cameraImage coming soon 112292102/0 Nut €1.86
30
 Fuel Pipe for Lawnmower Alpina BL 460 118551481/0 Fuel Pipe for Lawnmower Alpina BL 460 €7.32
31
 photo_cameraImage coming soon 118550918/0 Clamp €1.64
32
 photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
33
 photo_cameraImage coming soon 118551454/0 Tank €40.34
34
 Tank Cap for Engine Lawnmower Alpina AL5 51 G 118550943/0 Tank Cap for Engine Lawnmower Alpina AL5 51 G €16.78
35
 photo_cameraImage coming soon 112792099/0 Screw €1.63
36
 photo_cameraImage coming soon 118550920/0 Breather Fuel Pipe €4.26
37
 photo_cameraImage coming soon 118550933/0 Throttle Lever €6.21
38
 photo_cameraImage coming soon 118550931/0 Plate €4.18
39
 photo_cameraImage coming soon 112789000/0 Screw €1.77
40
 photo_cameraImage coming soon 118550932/0 Spring €1.64
41
 photo_cameraImage coming soon 118550805/0 Screw €1.63
42
 photo_cameraImage coming soon 118550806/0 Nut €1.63
43
 photo_cameraImage coming soon 118550925/0 Throttle rod €1.64
44
 photo_cameraImage coming soon 118550898/0 Muffler gasket €2.47
45
 photo_cameraImage coming soon 118551464/0 Muffler €33.42
46
 photo_cameraImage coming soon 112792425/0 Screw €1.83
47
 photo_cameraImage coming soon 118550900/0 Muffler protection €20.91
48
 photo_cameraImage coming soon 118551277/0 Bolt €1.42
51
 photo_cameraImage coming soon 118550336/0 Nut €6.07
52
 photo_cameraImage coming soon 118550905/0 Flywheel Assy €82.72
55
 photo_cameraImage coming soon 118551483/0 Flywheel Brake Assy €38.97
56
 photo_cameraImage coming soon 118550911/0 Spring €38.97
57
 photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
60
 photo_cameraImage coming soon 118550904/0 Cover €4.30
61
 photo_cameraImage coming soon 118550903/0 Gasket €3.30
62
 photo_cameraImage coming soon 118550902/0 Valve €2.05
63
 photo_cameraImage coming soon 118551488/0 Crankshaft Assy €105.58
64
 photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
65
 photo_cameraImage coming soon 118550283/0 Washer €3.44
66
 photo_cameraImage coming soon 118550890/0 Shaft Camm €30.64
69
 photo_cameraImage coming soon 118550888/0 Control €16.49
70
 photo_cameraImage coming soon 118550936/0 Shaft, Governor Arm €6.49
72
 photo_cameraImage coming soon 118550935/0 Oil Seal €4.57
73
 photo_cameraImage coming soon 118550856/0 Cotter Pin €1.55
74
 photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
75
 photo_cameraImage coming soon 118551209/0 Engine crankcase €77.83
76
 photo_cameraImage coming soon 118550887/0 Oil cap Assy €10.93
78
 photo_cameraImage coming soon 118551276/0 Bolt €3.44
79
 photo_cameraImage coming soon 118550891/0 Valve Cover €13.35
80
 photo_cameraImage coming soon 118550892/0 Screw €3.30
81
 photo_cameraImage coming soon 118550893/0 Rocker Valve Arm €13.08
82
 photo_cameraImage coming soon 118550894/0 Plate €4.13
83
 photo_cameraImage coming soon 118550895/0 Retainer €4.57
84
 photo_cameraImage coming soon 118550896/0 Spring €2.87
85
 photo_cameraImage coming soon 118550910/0 Valve Assy, Intake + Exhaust €21.34
86
 photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
87
 photo_cameraImage coming soon 118550912/0 Push Rod €7.61
88
 photo_cameraImage coming soon 118551482/0 Piston €64.47
89
 photo_cameraImage coming soon 118551445/0 Piston Ring Assy €26.75
90
 photo_cameraImage coming soon 118550915/0 Piston Pin €5.38
91
 photo_cameraImage coming soon 118550914/0 Washer, Piston Pin €1.63
92
 photo_cameraImage coming soon 118551487/0 Conrod Assy €38.97
95
 photo_cameraImage coming soon 118550940/0 Engine Gasket Assy €25.09
Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 9
Pos. Item Price Buy
18
 photo_cameraImage coming soon 118550929/0 Gasket €1.64
19
 photo_cameraImage coming soon 118550928/0 Insulator, Carburettor €3.02
20
 photo_cameraImage coming soon 118550927/0 Gasket €4.82
44
 photo_cameraImage coming soon 118550898/0 Muffler gasket €2.47
51
 photo_cameraImage coming soon 118550336/0 Nut €6.07
52
 photo_cameraImage coming soon 118550905/0 Flywheel Assy €82.72
53
 photo_cameraImage coming soon 118551277/0 Bolt €1.42
54
 photo_cameraImage coming soon 112791500/0 Screw €1.64
55
 photo_cameraImage coming soon 118551483/0 Flywheel Brake Assy €38.97
56
 photo_cameraImage coming soon 118550911/0 Spring €38.97
57
 photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
59
 photo_cameraImage coming soon 112789000/0 Screw €1.77
60
 photo_cameraImage coming soon 118550904/0 Cover €4.30
61
 photo_cameraImage coming soon 118550903/0 Gasket €3.30
62
 photo_cameraImage coming soon 118550902/0 Valve €2.05
63
 photo_cameraImage coming soon 118551488/0 Crankshaft Assy €105.58
64
 photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
65
 photo_cameraImage coming soon 118550283/0 Washer €3.44
66
 photo_cameraImage coming soon 118550890/0 Shaft Camm €30.64
68
 photo_cameraImage coming soon 112789000/0 Screw €1.77
69
 photo_cameraImage coming soon 118550888/0 Control €16.49
70
 photo_cameraImage coming soon 118550936/0 Shaft, Governor Arm €6.49
72
 photo_cameraImage coming soon 118550935/0 Oil Seal €4.57
73
 photo_cameraImage coming soon 118550856/0 Cotter Pin €1.55
74
 photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
75
 photo_cameraImage coming soon 118551209/0 Engine crankcase €77.83
76
 photo_cameraImage coming soon 118550887/0 Oil cap Assy €10.93
77
 photo_cameraImage coming soon 112791500/0 Screw €1.64
78
 photo_cameraImage coming soon 118551276/0 Bolt €3.44
79
 photo_cameraImage coming soon 118550891/0 Valve Cover €13.35
80
 photo_cameraImage coming soon 118550892/0 Screw €3.30
81
 photo_cameraImage coming soon 118550893/0 Rocker Valve Arm €13.08
82
 photo_cameraImage coming soon 118550894/0 Plate €4.13
83
 photo_cameraImage coming soon 118550895/0 Retainer €4.57
84
 photo_cameraImage coming soon 118550896/0 Spring €2.87
85
 photo_cameraImage coming soon 118550910/0 Valve Assy, Intake + Exhaust €21.34
86
 photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
87
 photo_cameraImage coming soon 118550912/0 Push Rod €7.61
88
 photo_cameraImage coming soon 118551482/0 Piston €64.47
89
 photo_cameraImage coming soon 118551445/0 Piston Ring Assy €26.75
90
 photo_cameraImage coming soon 118550915/0 Piston Pin €5.38
91
 photo_cameraImage coming soon 118550914/0 Washer, Piston Pin €1.63
92
 photo_cameraImage coming soon 118551487/0 Conrod Assy €38.97
95
 photo_cameraImage coming soon 118550940/0 Engine Gasket Assy €25.09
Page 10 local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322055629/0 Gray Cover €5.08
2
 photo_cameraImage coming soon 322055630/0 Yellow Cover €6.48
3
 photo_cameraImage coming soon 322055627/0 Gray Cover €5.09

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower BL 460

ALPINA authorized service center

 and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 460/295491044/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
BL 460 - 295491044/A19-2019

Lawn Mower BL 460/295491044/A19-2019
Chassis Pag.1
# Part Num. Description
1 381004947/0 Black Chassis
2 322108301/2 Front Baffle
3 112728699/0 Screw
4 322108302/0 Rear Baffle To 31-August-2017
4 322108392/0 Rear Baffle From 01-September-2018
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/1 Belt Cover
10 322060242/2 Belt Cover
11 322140239/1 Mulching Deflector
12 112728531/0 Screw
13 322820077/1 Cap
14 112728450/0 Screw
15 119035000/0 O-R
16 322034002/0 Water Joint
17 322055605/0 Insert
Cutting Height Adjustment Pag.2
1 322545189/0 Plate
2 322735597/0 Left Height Adjustment Sector
2 322735597/1 Height Adjustment Sector
3 381005141/0 Wheel Support
3 381005159/0 Wheel Support
3 381005253/0 Wheel Support
4 381003354/0 Height Adjustment Lever
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
8 322545211/0 Plate
9 322735595/0 Right Height Adjustment Sector
9 322735595/1 Height Adjustment Sector
10 322600247/0 Wheel Protection
Handle, Lower Side Pag.3
1 381006737/0 Handle, Lower Side
2 112819110/0 Screw
3 122671651/0 Washer
4 322399840/0 Yellow knob
5 112293200/0 Nut
7 112818900/0 Screw
9 322399840/0 Yellow knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Disc
14 112760605/0 Screw
15 381008692/0 Screw Kit
Handle, Upper Side Pag.4
1 381006740/0 Handle, Upper Side
2 112727783/0 Screw
3 322551640/0 Plate
4 112154510/0 Nut
5 181030053/0 Motor Brake Cable
6 381003394/0 Yellow Engine Brake Lever
6 381003394/1 Yellow Engine Brake Lever
7 112154510/0 Nut
8 112521330/0 Washer
9 122430313/0 Guide spring
Wheel Pag.5
1 381007447/1 Wheel - Long Hub
1 381007448/0 Wheel
1 381007448/1 Wheel - Long Short
2 119216035/0 Bearing
3 322110687/0 Gray hubcap
5 381007447/1 Wheel - Long Hub
5 381007448/0 Wheel
5 381007448/1 Wheel - Long Short
6 119216035/0 Bearing
9 322110687/0 Gray hubcap
Blade Pag.6
1 112735108/1 Screw
2 122463012/4 Blade Boss Ø 22.2
3 181004460/0 Mulching blade
4 322680021/0 Washer
5 112508128/0 Elastic Disc
6 112735698/0 Screw
7 112139100/0 Woodruff Key
Grass Bag Pag.7
1 322785331/0 Support
2 122450464/0 Spring
3 322109556/0 Cover, Yellow
3 322109557/0 Cover, Gray
4 112728699/0 Screw
5 322600206/1 Black Stone Guard
5 322600214/1 Yellow Stone Guard
5 322600216/1 Grey Stone Guard
6 181006409/0 Frame bag
6 181006409/1 Frame bag
7 181002319/0 Bag
8 381008163/0 Black Stone guard Assy
8 381008164/0 Yellow Stone guard Assy
8 381008166/0 Grey Stone guard Assy
9 381008735/0 Kit plastic pin
Engine - Carburator, Fuel Tank Pag.8
2 112292102/0 Nut
3 118551467/0 Starter Assy
4 118551362/0 Starting handle
8 112789000/0 Screw
9 118551456/0 Starter control
10 118550908/0 Air conveyor
11 118550907/0 Pin
12 118550906/0 Pin
13 112791500/0 Screw
14 118551475/0 Electronic Coil
16 9400-0244-00 Spark Plug
17 118550930/0 Prisoner
18 118550929/0 Gasket
19 118550928/0 Spacer
20 118550927/0 Gasket
21 118551489/0 Carburetor
22 118550924/0 Gasket
23 118551461/0 Air Filter Assy
24 118551459/0 Rod
25 118551352/0 Stopper
26 118550946/0 Filter
27 118550945/0 Filter
28 118550944/0 Air Filter Cover
29 112292102/0 Nut
30 118551481/0 Fuel Pipe
31 118550918/0 Hose clamp
32 118550314/0 Fuel Filter
33 118551454/0 Tank
34 118550943/0 Tank cap
35 112792099/0 Screw
36 118550920/0 Breather Fuel Pipe
37 118550933/0 Throttle Lever
38 118550931/0 Plate
39 112789000/0 Screw
40 118550932/0 Spring
41 118550805/0 Screw
42 118550806/0 Nut
43 118550925/0 Throttle rod
44 118550898/0 Muffler gasket
45 118551464/0 Muffler
46 112792425/0 Screw
47 118550900/0 Muffler protection
48 118551277/0 Bolt
Engine - Piston, Crankshaft Pag.9
18 118550929/0 Gasket
19 118550928/0 Spacer
20 118550927/0 Gasket
44 118550898/0 Muffler gasket
51 118550336/0 Nut
52 118550905/0 Flywheel Assy
53 118551277/0 Bolt
54 112791500/0 Screw
55 118551483/0 Flywheel Brake Assy
56 118550911/0 Spring
57 118550300/0 Seal ring
58 118550897/0 Cylinder Assy
59 112789000/0 Screw
60 118550904/0 Cover
61 118550903/0 Gasket
62 118550902/0 Valve
63 118551488/0 Crankshaft Assy
64 118550288/0 Woodruff
65 118550283/0 Washer
66 118550890/0 Shaft Camm
68 112789000/0 Screw
69 118550888/0 Control
70 118550936/0 Regulator shaft
71 118550666/0 Washer
72 118550935/0 Seal ring
73 118550856/0 Pin
74 118550379/0 Seal ring
75 118551209/0 Engine crankcase
76 118550887/0 Oil cap Assy
77 112791500/0 Screw
78 118551276/0 Bolt
79 118550891/0 Valve Cover
80 118550892/0 Screw
81 118550893/0 Rocker Valve Arm
82 118550894/0 Plate
83 118550895/0 Stopper
84 118550896/0 Spring
85 118550910/0 Valve Assy
86 118550291/0 Valve Lifter
87 118550912/0 Push Rod
88 118551482/0 Piston
89 118551445/0 Piston Ring Assy
90 118550915/0 Piston pin
91 118550914/0 Circlip
92 118551487/0 Conrod Assy
93 118551223/0 Wheat
95 118550940/0 Engine Gasket Assy
Cover Engine Pag.10
1 322055629/0 Gray Cover
2 322055630/0 Yellow Cover
3 322055627/0 Gray Cover
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BL460 - 295491044/A19-2019
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina BL 460

Diagram Alpina BL 460

Download (965.36KB)

You might also like

Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
GGP Italy SKU: 112727801/0
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment Original replacement part Alpina, Screw TCB Torx M6x20 Acc.8.8 ZNN III for Lawnmower Cutting Height Adjustment. Part for the following products: - 148 SP FOUR (2010) - 148...
AVAILABLE €1.74
Details
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
Details
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
Details
Tank Cap for Engine Lawnmower Alpina AL5 51 G
GGP Italy SKU: 118550943/0
Tank Cap for Engine Lawnmower Alpina AL5 51 G
Tank Cap for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Tank Cap for Engine Lawnmower Alpina AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the following products: -  Lawnmower AL5 51 G -  Lawnmower BL...
AVAILABLE €16.78
Details
Rear Baffle for Lawnmower Alpina BL 460
GGP Italy SKU: 322108392/0
Rear Baffle for Lawnmower Alpina BL 460
Rear Baffle for Lawnmower Alpina BL 460 Original part Alpina, Plastic Rear Baffle From 01-September-2018 for Lawnmowers BL 460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 510 SHQ. Part for the...
on 7/10 Business Days Approx. €22.71
Details
Rear Baffle for Lawnmower Alpina BL 460
GGP Italy SKU: 118551481/0
Fuel Pipe for Lawnmower Alpina BL 460
Fuel Pipe for Lawnmower Alpina BL 460 Original part Alpina, Fuel Pipe for Lawnmowers BL 460 - BL 460 S - BL 510 SQ - AL3 45. Part for the following products: -  Lawnmower ALPINA BL...
on 7/10 Business Days Approx. €7.32
Details
Alpina BL 510 SHQ Handle, Upper Part
GGP Italy SKU: 381006740/0
Alpina BL 510 SHQ Handle, Upper Part
Alpina BL 510 SHQ Handle, Upper Part Original spare part Alpina, Handle, Upper Part for Lawnmowers BL 510 SHQ - BL 460 SB - BL410 - BL 510 SB. Part for the following products: -  Lawnmower...
Last items in stock €27.31
Details
Alpina BL 460 Belt Cover
GGP Italy SKU: 322060242/1
Alpina BL 460 Belt Cover
Alpina BL 460 Belt Cover Original replacement part Alpina, Belt Cover for Lawnmowers BL 460 - AL3 46 SBQ. Part for the following products: - Lawnmower ALPINA BL460 - 295491044/A19-2019 - Lawnmower ALPINA BL 460 B - 295491024...
Usually Ships in: 7/10 Business Days Approx. €11.30
Details
Alpina BL460 Stone Guard Ass'y Black
GGP Italy SKU: 381008163/0
Alpina BL460 Stone Guard Ass'y Black
Alpina BL460 Stone Guard Ass'y Black Original replacement part Alpina, Stone Guard Ass'y Black for BL460 - BL 460 B - AL3 46 SBQ - AL3 51 SBQ - BL 410 LI - Mountfield SP46. Part for the following products: - BL460 -...
AVAILABLE €25.35
Details
Comments (0)
