Alpina Spare Parts for Lawn Mower BL 380 EP

SKU: BL 380 EP - 294380064/A19-2019
€1.70
VAT included

Alpina Spare Parts for Lawn Mower BL 380 EP

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 380 EP/294380064/A19-2019.

Alpina Spare Parts for Lawn Mower BL 380 EP
  • Alpina Spare Parts for Lawn Mower BL 380 EP
  • Alpina Spare Parts for Lawn Mower BL 380 EP
  • Alpina Spare Parts for Lawn Mower BL 380 EP
  • Alpina Spare Parts for Lawn Mower BL 380 EP
  • Alpina Spare Parts for Lawn Mower BL 380 EP

Alpina Spare Parts for Lawn Mower BL 380 EP

SKU: BL 380 EP - 294380064/A19-2019 Condition: New
€1.70
VAT included

Alpina Spare Parts for Lawn Mower BL 380 EP

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 380 EP/294380064/A19-2019.

settings 91 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

84 spare parts
Pos. Item Price Buy
13
photo_cameraImage coming soon 322785415/0 Plate €1.37
14
photo_cameraImage coming soon 122033424/0 Rear Wheel Axle €8.44
15
photo_cameraImage coming soon 322785386/0 Support, Wheel to 31-August 2014 €3.17
15
photo_cameraImage coming soon 322785438/0 Support, Wheel from 01-September-2014 €2.97
19
photo_cameraImage coming soon 322393671/0 Left Engine Cover €4.02
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

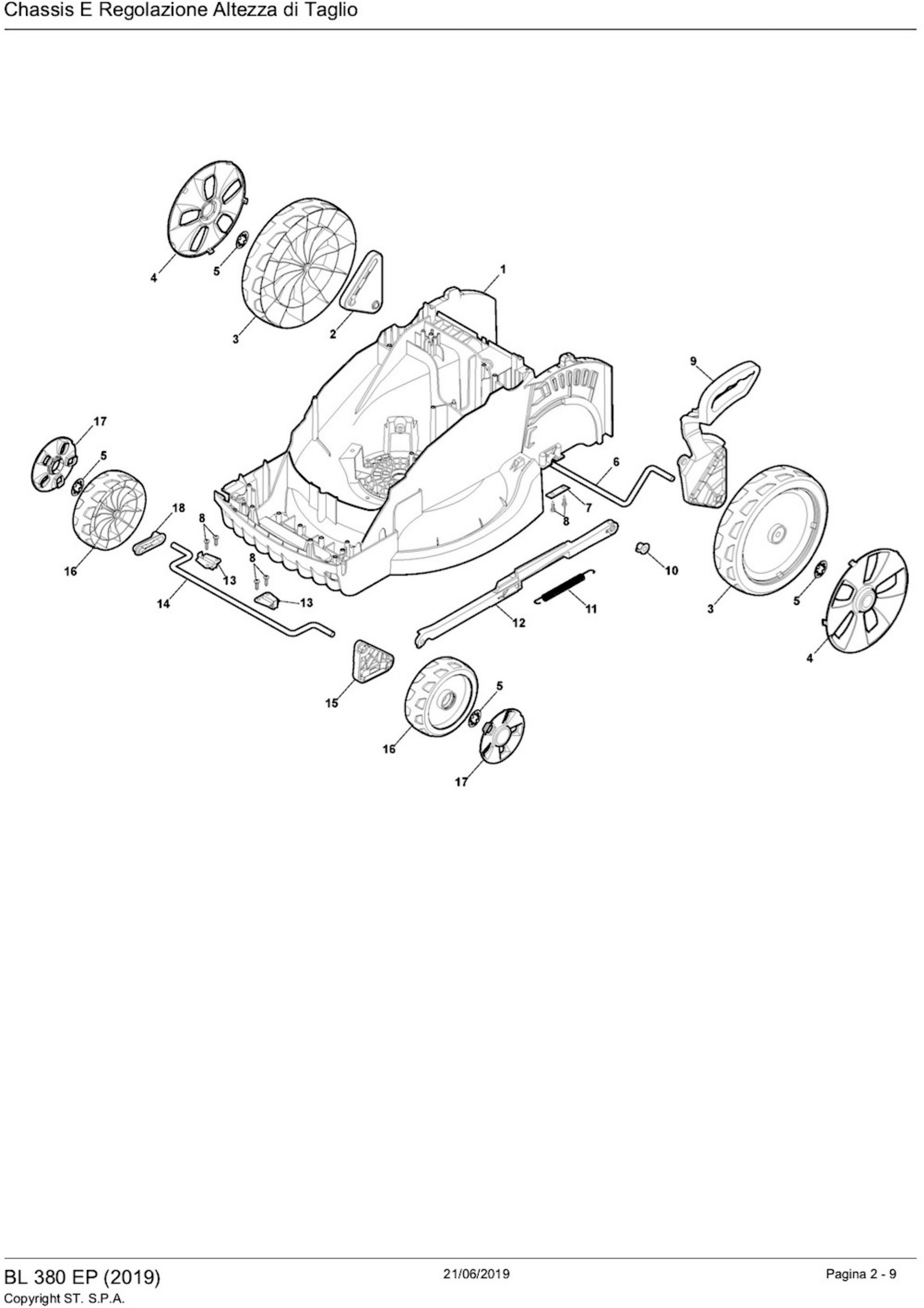

Pos. Item Price Buy
2
photo_cameraImage coming soon 322785387/0 Wheel Support €1.90
2
photo_cameraImage coming soon 322785450/0 Support, Wheel €1.99
3
photo_cameraImage coming soon 322686105/0 Wheel €8.33
4
Alpina BL 460 SB Hub Cap Grey 322110637/0 Alpina BL 460 SB Hub Cap Grey €3.60
5
photo_cameraImage coming soon 112604903/0 Washer €1.54
6
photo_cameraImage coming soon 122033425/0 Rear Wheel Axle €8.44
7
photo_cameraImage coming soon 322545142/0 Plate €1.66
8
photo_cameraImage coming soon 112728714/0 Screw €1.37
9
photo_cameraImage coming soon 322785388/0 Height Adjustment Lever €13.54
9
photo_cameraImage coming soon 322785388/1 Height Adjustment Lever €13.54
9
photo_cameraImage coming soon 322785443/0 Height Adjustment Lever €12.51
10
Alpina Lawnmower AL1 34 E Pin 322524354/0 Alpina Lawnmower AL1 34 E Pin €1.59
11
photo_cameraImage coming soon 122446195/0 Spring €2.76
12
photo_cameraImage coming soon 322869680/0 Height Adjustment Control Rod €8.28
12
Alpina AL1 38 E Height Adjust Rod [Grey] 322869690/0 Alpina AL1 38 E Height Adjust Rod [Grey] €8.85
13
photo_cameraImage coming soon 322785415/0 Plate €1.37
14
photo_cameraImage coming soon 122033424/0 Rear Wheel Axle €8.44
15
photo_cameraImage coming soon 322785386/0 Support, Wheel to 31-August 2014 €3.17
15
photo_cameraImage coming soon 322785438/0 Support, Wheel from 01-September-2014 €2.97
16
photo_cameraImage coming soon 322686104/0 Wheel €5.33
17
photo_cameraImage coming soon 322110685/0 Gray hubcap €1.37
18
photo_cameraImage coming soon 322785385/0 Wheel Support €1.64
18
photo_cameraImage coming soon 322785449/0 Support, Wheel €1.58
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

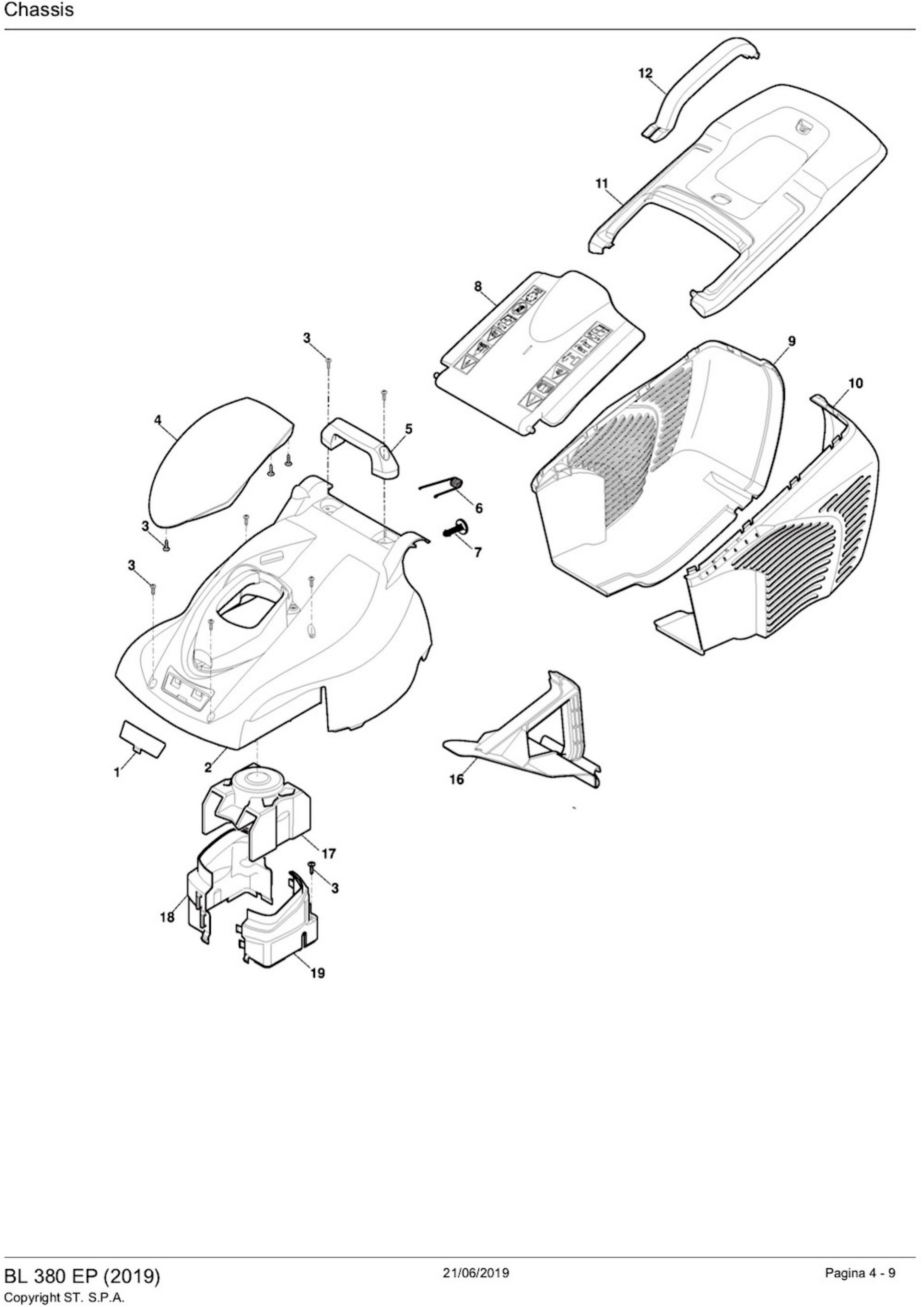

Pos. Item Price Buy
1
photo_cameraImage coming soon 322055168/0 Front Plate €1.64
1
photo_cameraImage coming soon 322055252/0 Front Plate €1.74
2
photo_cameraImage coming soon 322055161/0 Red hood €25.62
2
photo_cameraImage coming soon 322055208/0 Red hood €24.63
3
photo_cameraImage coming soon 112728714/0 Screw €1.37
4
photo_cameraImage coming soon 322393661/0 Hood €6.29
4
photo_cameraImage coming soon 322393661/1 Hood €6.29
4
photo_cameraImage coming soon 322393726/0 Hood €6.29
5
photo_cameraImage coming soon 322393668/0 Handle €2.76
5
photo_cameraImage coming soon 322393725/0 Handle €1.94
6
photo_cameraImage coming soon 122450470/0 Spring €2.00
7
photo_cameraImage coming soon 322524356/0 Pin €1.66
8
photo_cameraImage coming soon 322600235/0 Stone guard €7.74
8
photo_cameraImage coming soon 322600291/0 Stone guard €7.74
9
photo_cameraImage coming soon 322486299/0 Bag Lower Side Right €16.75
9
photo_cameraImage coming soon 322486404/0 Bag Lower Side Right €16.75
10
photo_cameraImage coming soon 322486300/0 Bag Lower Side Left €16.75
11
photo_cameraImage coming soon 322486330/0 Black Side Upper bag €11.83
16
photo_cameraImage coming soon 322140242/0 Mulching Plug €12.91
17
photo_cameraImage coming soon 322393676/0 Motor Protection €2.06
18
photo_cameraImage coming soon 322393670/0 Right Engine Cover €4.27
19
photo_cameraImage coming soon 322393671/0 Left Engine Cover €4.02
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

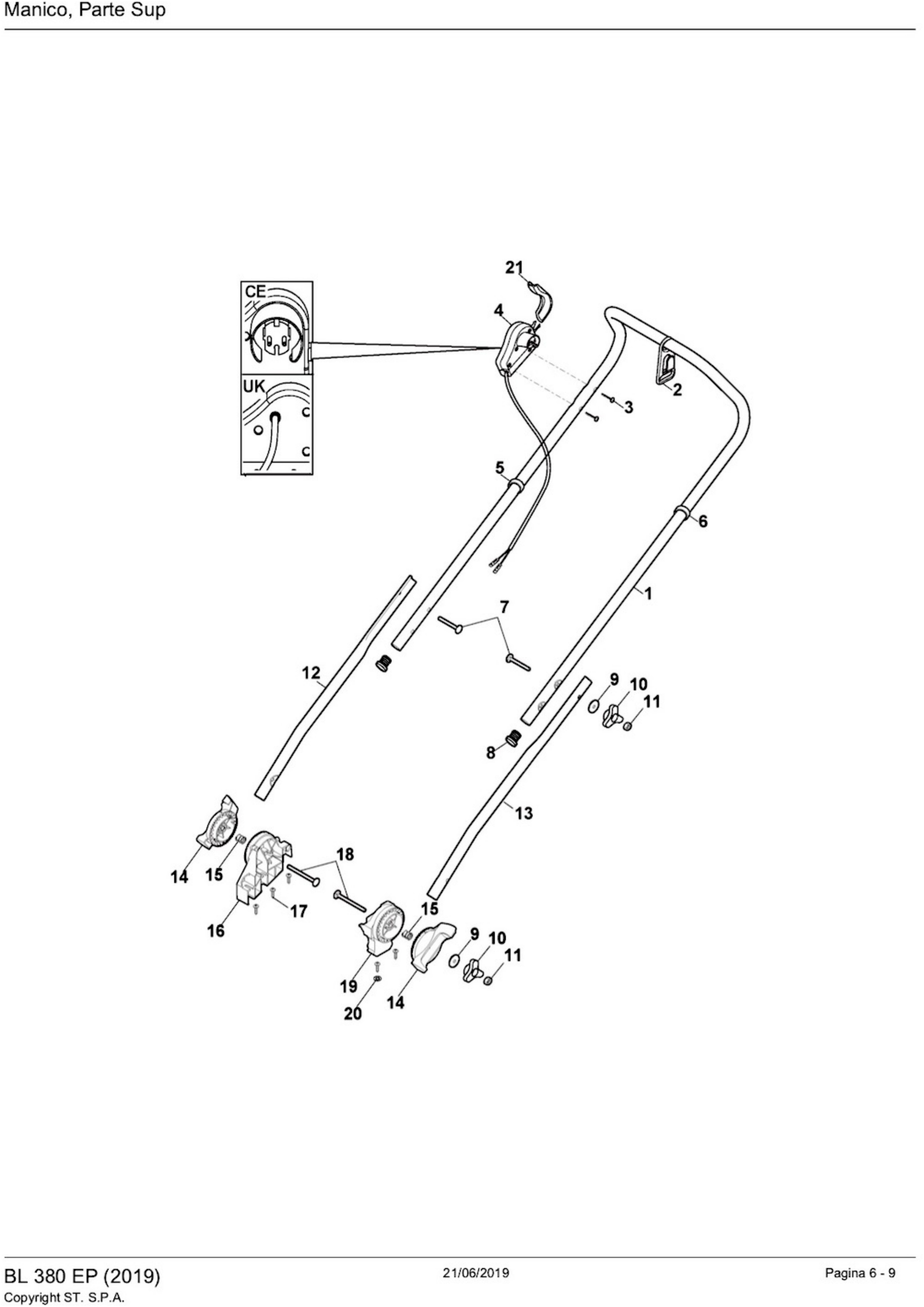

Pos. Item Price Buy
CE
photo_cameraImage coming soon 381600547/2 EC motor protector €27.91
1
photo_cameraImage coming soon 381007516/0 Handle, Upper Part €22.42
2
photo_cameraImage coming soon 322195101/4 Fairlead €1.53
3
photo_cameraImage coming soon 112728701/0 Screw €1.47
4
photo_cameraImage coming soon 381600547/0 EM3511 MOTOR SAFETY €36.82
4
photo_cameraImage coming soon 381600547/1 EC motor protector €18.83
4
photo_cameraImage coming soon 381600547/2 Salvamotore CE  €27.80
5
photo_cameraImage coming soon 122192000/1 Clamp €1.62
6
photo_cameraImage coming soon 122192151/0 Clamp €1.45
7
photo_cameraImage coming soon 122943016/0 Screw €1.49
8
photo_cameraImage coming soon 118566112/0 Polyethylene Push Road €1.62
9
photo_cameraImage coming soon 112523050/0 Washer €2.05
10
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
11
photo_cameraImage coming soon 112154521/0 Nut €1.37
12
photo_cameraImage coming soon 381007517/0 Handle, Lower righr side €6.67
13
photo_cameraImage coming soon 381007518/0 Handle, Lower left side €6.67
14
photo_cameraImage coming soon 322246102/0 Handle Joint €3.57
15
photo_cameraImage coming soon 122430210/0 Bearing €1.52
16
photo_cameraImage coming soon 322745055/0 Right Joint €6.67
17
photo_cameraImage coming soon 112728714/0 Screw €1.37
18
photo_cameraImage coming soon 122943017/0 Screw €1.38
19
photo_cameraImage coming soon 322745056/0 Left Joint €7.32
20
photo_cameraImage coming soon 112521320/0 Washer €1.74
21
photo_cameraImage coming soon 322319529/0 Motor Protection Lever €6.73
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

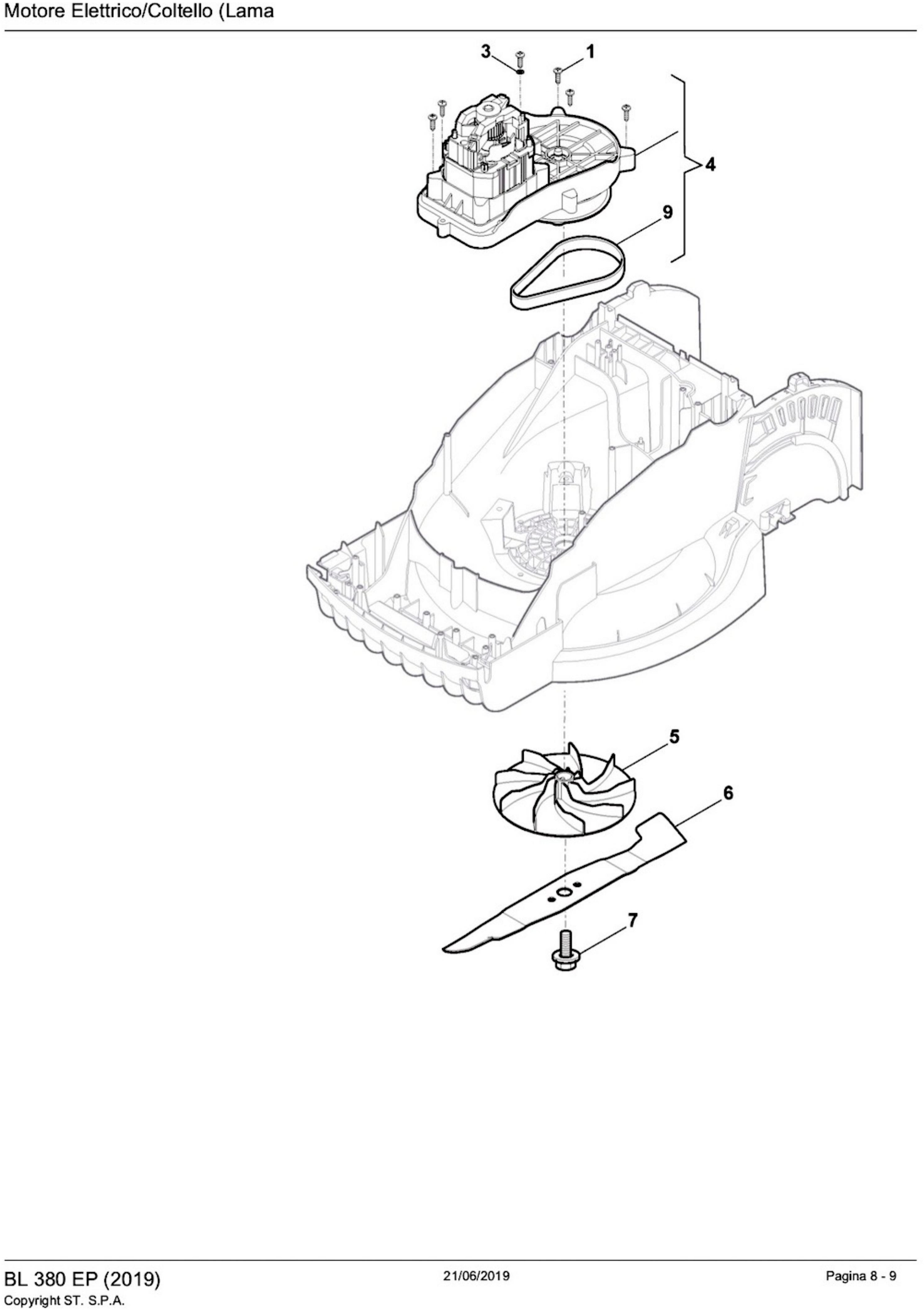

Pos. Item Price Buy
1
photo_cameraImage coming soon 112728699/0 Screw €1.66
3
photo_cameraImage coming soon 112523020/0 Washer €1.74
4
photo_cameraImage coming soon 118563696/1 Electric Motor 1600W From 01-September 2012 To 31-August 2017 €174.38
4
photo_cameraImage coming soon 118563696/2 1600W Electric Motor €109.78
5
photo_cameraImage coming soon 322465644/0 Hub €5.15
5
photo_cameraImage coming soon 322465644/1 Blade Hub €6.65
6
photo_cameraImage coming soon 181004154/0 Finned blade €17.89
6
photo_cameraImage coming soon 181004160/0 Blade €17.78
7
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E 381004352/1 Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E €3.90
9
Belt for Electric Lawnmower Alpina BL 380 E 118810092/0 Belt for Electric Lawnmower Alpina BL 380 E €22.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower BL 380 EP

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower BL 380 EP/294380064/A19-2019.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.


Lawn Mower BL 380 EP/294380064/A19-2019
Chassis Pag.1
2 322785387/0 Wheel Support
2 322785450/0 Wheel Support
3 322686105/0 Wheel
4 322110637/0 Gray hubcap
5 112604903/0 Washer
6 122033425/0 Rear Wheel Axle
7 322545142/0 Plate
8 112728714/0 Screw
9 322785388/0 Height Adjustment Lever
9 322785388/1 Height Adjustment Lever
9 322785443/0 Height Adjustment Lever
9 322785443/1 Height Adjustment Lever
10 322524354/0 Pin
11 122446195/0 Spring
12 322869680/0 Height Adjustment Control Rod
12 322869690/0 Height Adjustment Control Rod from 01-September-2014
13 322785415/0 Plate
14 122033424/0 Rear Wheel Axle
15 322785386/0 Wheel Support
15 322785438/0 Wheel Support
16 322686104/0 Wheel
17 322110685/0 Gray hubcap
18 322785385/0 Wheel Support
18 322785449/0 Wheel Support
Chassis Pag.2
1 322055168/0 Front plate
1 322055252/0 Front plate
2 322055161/0 Red hood
2 322055208/0 Red hood
2 322055210/0 Black Hood
2 322055212/0 Red hood
3 112728714/0 Screw
4 322393661/0 Hood
4 322393661/1 Hood
4 322393726/0 Hood
5 322393668/0 Handle
5 322393725/0 Handle
6 122450470/0 Spring
7 322524356/0 Pin
8 322600235/0 Stone guard
8 322600291/0 Stone guard
9 322486299/0 Bag Lower Side Right
9 322486404/0 Bag Lower Side Right
10 322486300/0 Bag Lower Side Left
10 322486403/0 Bag Lower Side Left
11 322486330/0 Black Side Upper bag
16 322140242/0 Mulching cap
17 322393676/0 Motor Protection
17 322393774/0 Motor Protection
18 322393670/0 Right Engine Cover
19 322393671/0 Left Engine Cover
Handle Upper Side Pag.3
CE 381600547/2 EC motor protector
UK 381600548/2 UK motor protection
1 381007516/0 Handle, Upper Part
2 322195101/4 Cable Clamb
3 112728701/0 Screw
4 381600547/0 EC motor protector
4 381600547/1 EC motor protector
4 381600547/2 EC motor protector
5 122192000/1 Clamp
6 122192151/0 Clamp
7 122943016/0 Screw
8 118566112/0 Polyethylene pin
9 112523050/0 Washer
10 122399900/0 Knob
11 112154521/0 Nut
12 381007517/0 Handle, Lower righr side
13 381007518/0 Handle, Lower left side
14 322246102/0 Joint
15 122430210/0 Bearing
16 322745055/0 Right Joint
17 112728714/0 Screw
18 122943017/0 Screw
19 322745056/0 Left Joint
20 112521320/0 Washer
21 322319529/0 Motor Protection Lever
Motor Blade Pag.4
1 112728699/0 Screw
3 112523020/0 Washer
4 118563696/0 1600W Electric Motor
4 118563696/1 1600W Electric Motor
4 118563696/2 1600W Electric Motor
5 322465644/0 Hub
5 322465644/1 Hub
6 181004154/0 Blade
6 181004160/0 Blade
7 381004352/1 Screw
9 118810092/0 Belt

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
BL 380 EP - 294380064/A19-2019
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina BL 380 EP

Diagram Alpina BL 380 EP

Download (579.3KB)

You might also like

GGP Italy SKU: 381004352/1
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E Original replacement part Alpina, Blade Boss Hub Bolt for Electric Lawnmower AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE. Part for the following...
Last items in stock €3.90
GGP Italy SKU: 118810092/0
Belt for Electric Lawnmower Alpina BL 380 E Original replacement part Alpina, Belt 7PJ451 for Electric Lawnmowers AL1 34 E - AL1 38 E + AL1 42 E - BL 380 E - E 380. Part for the following products: - Electric Lawnmower AL1 34 E -...
Last items in stock €22.15
GGP Italy SKU: 322869690/0
Alpina AL1 38 E Height Adjust Rod [Grey] Original replacement part Alpina, Height Adjust Rod [Grey] for Electric Lawnmower from 01-September-2014 AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE....
Last items in stock €8.85
GGP Italy SKU: 322524354/0
Alpina Lawnmower AL1 34 E Pin Genuine replacement part Alpina, Wheel adjustment rod fixing Pin for Electric Lawnmower AL1 38 E - BL 380 EP - BL 420 EP. Part for the following products: -  Lawnmower AL1...
Last items in stock €1.59
GGP Italy SKU: 322110637/0
Alpina Lawnower BL 460 SB Hub Cap Grey Genuine replacement part Alpina, Avio Hub Cap Grey D=240 for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnmower Alpina BL 460 SB -...
Last items in stock €3.60
Comments (0)
