Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04

SKU: TB 23 (2005) 282010014/04
€1.95
VAT included

Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Technical Assistance and original spares Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Brushcutter TB 23 (2005) 282010014/04.

Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04
  • Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04
  • Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04
  • Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04
GGP Italy

Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04

SKU: TB 23 (2005) 282010014/04 Condition: New
€1.95
VAT included

Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Technical Assistance and original spares Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to solve any maintenance and repair issues for Brushcutter TB 23 (2005) 282010014/04.

settings 37 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
37 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

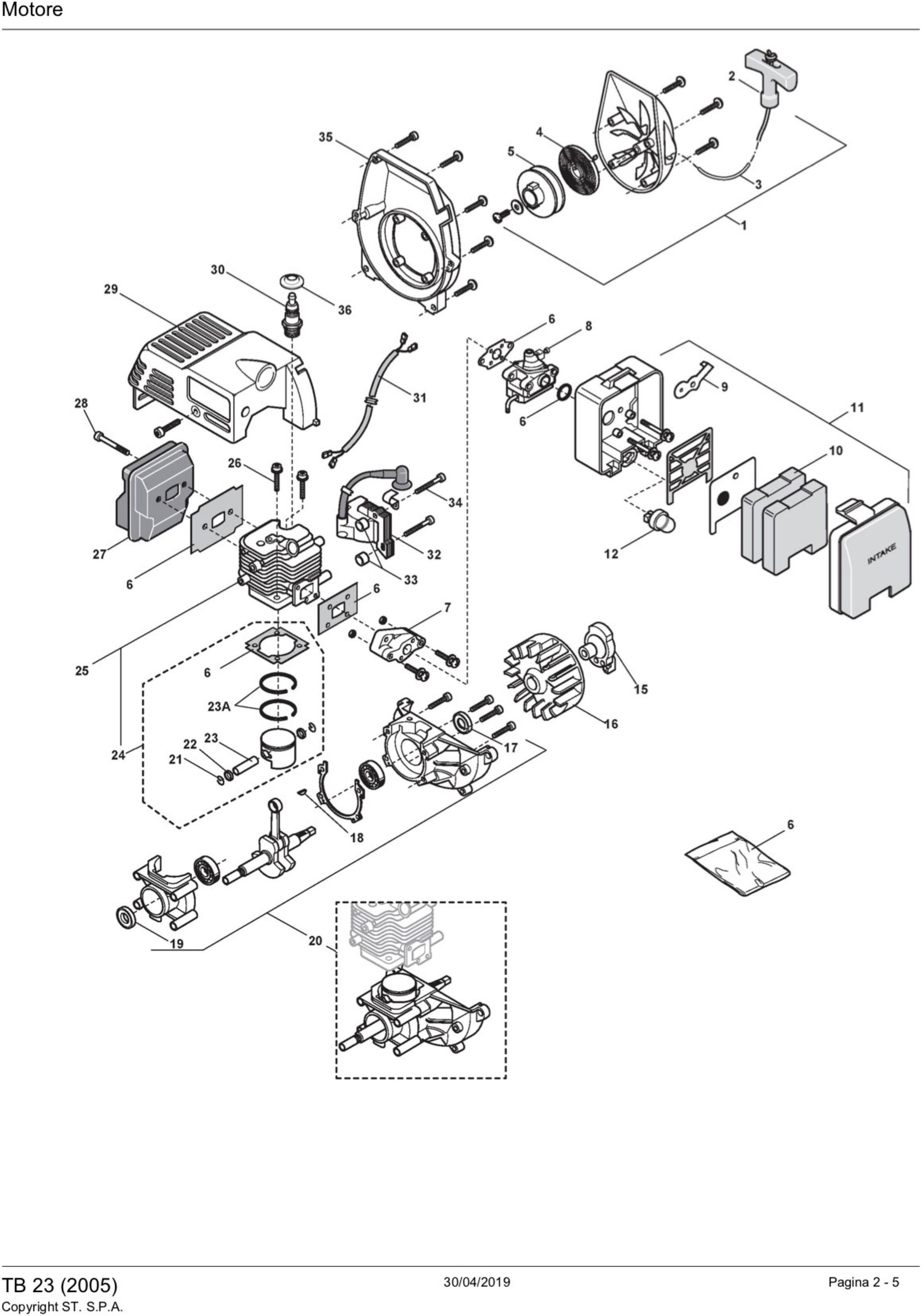

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6980232 Starter handle €2.03
3
 photo_cameraImage coming soon 6980233 Starter cord €6.43
4
 photo_cameraImage coming soon 6980234 Starter Spring €8.91
5
 photo_cameraImage coming soon 6980235 Starter Pulley €3.89
6
 photo_cameraImage coming soon 6980236 Gaskets series €9.01
7
 photo_cameraImage coming soon 6980237 Intake Manifold €5.12
8
 photo_cameraImage coming soon 6980238 Carburetor €105.73
9
 photo_cameraImage coming soon 6980239 Air Lever €1.50
10
 photo_cameraImage coming soon 6980240 Filter €2.64
12
 photo_cameraImage coming soon 6980242 Air Purge Pump €6.11
15
 photo_cameraImage coming soon 6980270 Ass. Starting Cup €10.30
16
 photo_cameraImage coming soon 6980246 Magneto flywheel €45.26
17
 photo_cameraImage coming soon 6980247 Sealing ring €9.03
18
 photo_cameraImage coming soon 6980248 Flywheel key €1.73
23
 photo_cameraImage coming soon 6980253 Piston pin €2.09
23
 photo_cameraImage coming soon 6980266 Piston Ring €7.59
24
 photo_cameraImage coming soon 6980254 Ass. Piston €41.67
25
 photo_cameraImage coming soon 6980255 Ass. Cylinder - Piston €82.65
26
 photo_cameraImage coming soon 6980256 Screw €1.23
27
 photo_cameraImage coming soon 6980257 Muffler €14.26
28
 photo_cameraImage coming soon 6980258 Srew €1.57
29
 photo_cameraImage coming soon 6980259/1 Cylinder head cover €15.00
30
 Spark Plug CJ7Y 3210024 Spark Plug CJ7Y €4.32
31
 photo_cameraImage coming soon 6980260 Ground cables €1.69
32
 photo_cameraImage coming soon 6980261 Ass. Electronic Coil €51.86
35
 photo_cameraImage coming soon 6980264 Fan cover €14.14
36
 photo_cameraImage coming soon 6980265 Spark Plug protection €1.26
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

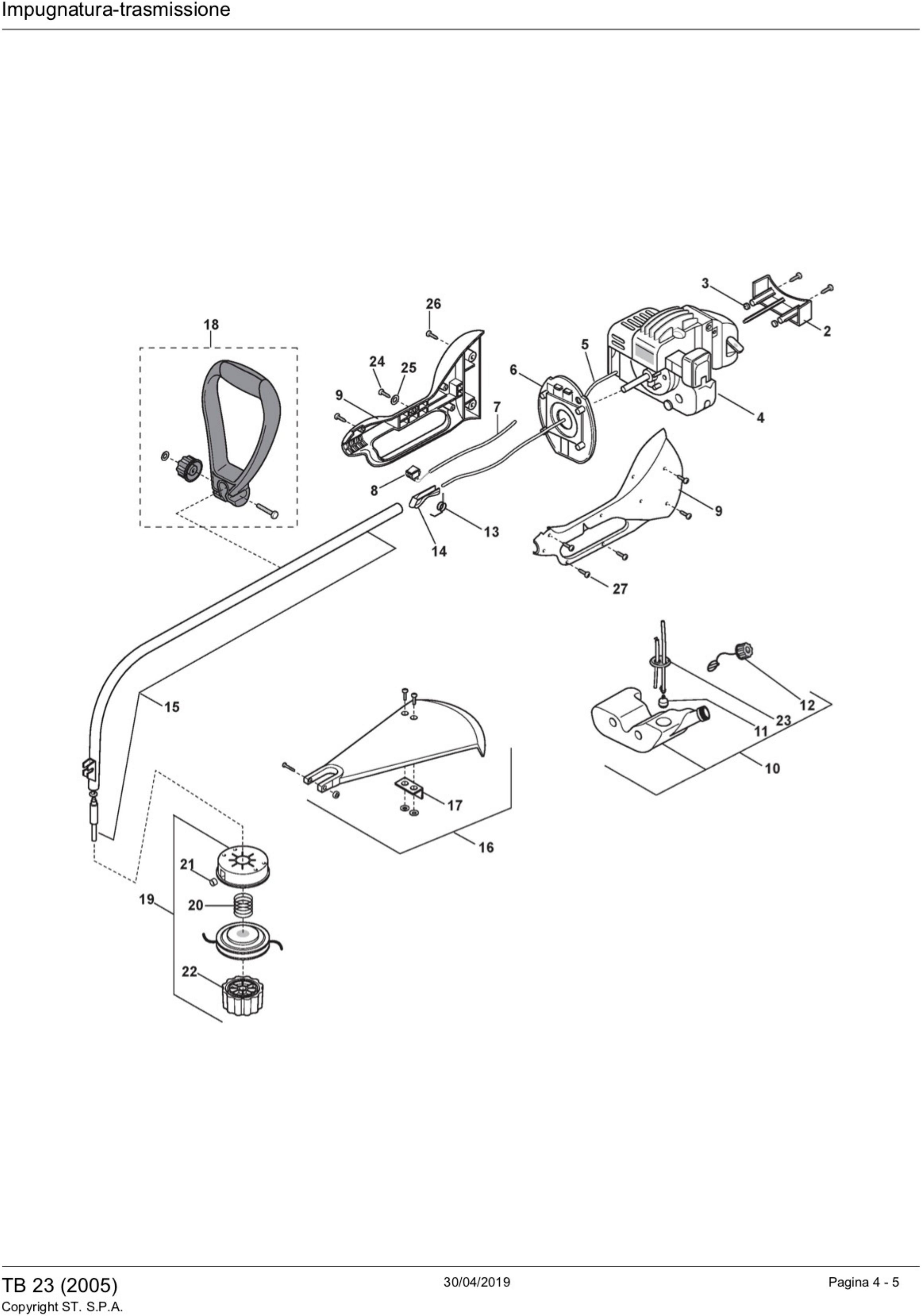

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6980200 Fixing Plate €5.39
6
 photo_cameraImage coming soon 6980204 Support €19.60
7
 photo_cameraImage coming soon 6980205 Ground cable €1.30
8
 photo_cameraImage coming soon 6980206 Stop Switch €2.54
11
 photo_cameraImage coming soon 6980209 Mixture Filter €5.14
12
 photo_cameraImage coming soon 6980320 Ass. Tank Cap €4.28
17
 Line Cutting Knife for Grass Trimmer Alpina TR 27 J 6980215 Line Cutting Knife for Grass Trimmer Alpina TR 27 J €5.05
24
 photo_cameraImage coming soon 6980333 Screw €1.66
26
 photo_cameraImage coming soon 6980335 Screw €1.66
27
 photo_cameraImage coming soon 6980336 Screw €1.69

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Brushcutter TB 23 (2005) 282010014/04

Alpina-Stiga-Castor-Castelgarden-Mountfield Authorized Technical Assistance

and original spare parts Worldwide Distributors and wholesalers. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TB 23 (2005) 282010014/04.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
TB 23 (2005) 282010014/04

ALPINA TB 23 (2005) 282010014/04 pag.1
1 6980231 Starter Assembly Gray
2 6980232 Starter Lever
3 6980233 Starter rope
4 6980234 Starter Spring
5 6980235 Starter Pulley
6 6980236 Gasket Set
7 6980237 Intake manifold
8 6980238 Carburetor
9 6980239 Air Lever
10 6980240 Filter
11 6980241 Air Filter Assembly
12 6980242 Primer
15 6980270 Sterter Cup
16 6980246 Flywheel
17 6980247 Oli Seal
18 6980248 Flywheel key
19 6980247 Oli Seal
20 6980250/1 Short Block Engine
21 6980251 Washer
22 6980252 Locking Gasket
23 6980253 Piston pin
23 6980266 Piston Ring
24 6980254 Piston assembly
25 6980255 Cylinder - Piston assembly
26 6980256 Screw
27 6980257 Muffler
28 6980258 Screw
29 6980259/1 Cylinder cover
30 3210024 Spark Plug
31 6980260 Earth cables
32 6980261 Electronic coil assembly
33 6980262 Insulator Spacer
34 6980263 Screw
35 6980264 Fan Cover
36 6980265 Spark Plug protection
ALPINA TB 23 (2005) 282010014/04 pag.2
2 6980200 Fixing Plate
3 6980201 Insulators
4 6980230 Complete Engine
5 6980203 Throttle Cable
6 6980204 Support
7 6980205 Earth Cable
8 6980206 Switch
10 6980208/1 Tank assembly
11 6980209 Fuel Filter
12 6980320 Fuel Cap Set
13 6980211 Spring
14 6980212 Throttle lever
15 6980213 Tube and Rod Flex Assembly
16 6980214 Stone guard assembly
17 6980215 Wire Blade
18 6980112 Front Handle Set
19 6980120 Tap & Go Head Assembly
20 6980118 Spring
21 6980119 Wire bushing Jf
22 6980117 Knob
23 6980331 Grommet
24 6980333 Screw
25 6980334 Washer
26 6980335 Screw
27 6980336 Screw

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
TB 23 (2005) 282010014/04
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Alpina TB 23 2005-2820

Drawing Alpina TB 23 2005-2820

Download (445.9KB)
