GGP Italy

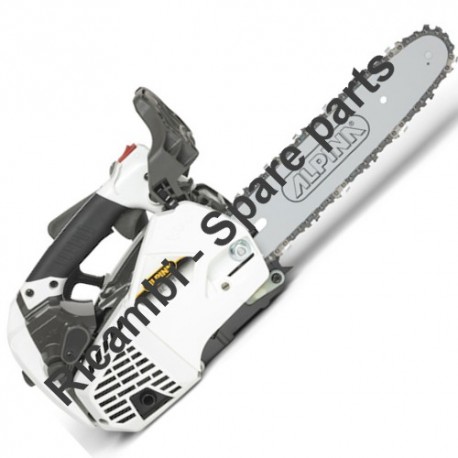

Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18

SKU: Alpina AC27T (2019) 240271000
€1.52
VAT included

Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18

Alpina genuine spare parts or replacement parts for to repair Chain Saw AC 27 T (2019) 240271000/A18.

Alpina AC 27 T (2019) 240271000
Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
  • Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18
GGP Italy

Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18

SKU: Alpina AC27T (2019) 240271000 Condition: New
€1.52
VAT included

Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18

Alpina genuine spare parts or replacement parts for to repair Chain Saw AC 27 T (2019) 240271000/A18.

Alpina AC 27 T (2019) 240271000
settings 140 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
140 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

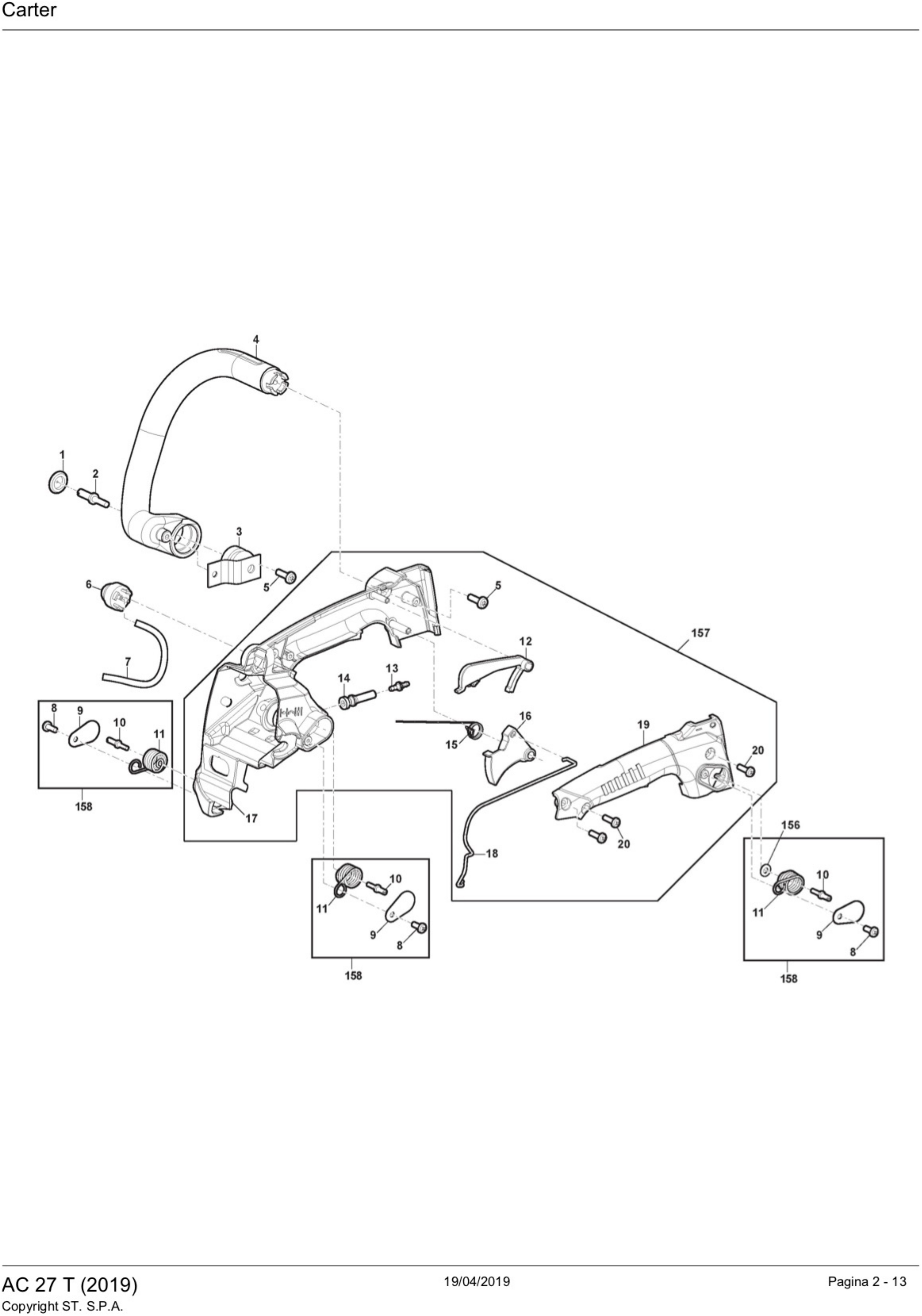

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 123790022/0 Cap €1.47
2
 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500 123878093/0 Screw 06.06.105 - RDC for Chainsaws Alpina A 305-C 25-A 2500 €1.92
3
 Damper for Chainsaw Alpina A 305-C 25-A 2500 123275027/0 Damper for Chainsaw Alpina A 305-C 25-A 2500 €2.98
4
 photo_cameraImage coming soon 118804780/0 Handle €18.02
5
 photo_cameraImage coming soon 118800189/0 Screw €1.82
6
 Primer Pump for Chainsaw Alpina AC 27 T 118804231/0 Primer Pump for Chainsaw Alpina AC 27 T €6.47
7
 photo_cameraImage coming soon 118804781/0 Fuel Pipe for Primer €3.72
8
 Screw Tx M5x25 for Chainsaw Alpina AC 27 T 123878121/0 Screw Tx M5x25 for Chainsaw Alpina AC 27 T €1.70
9
 photo_cameraImage coming soon 118804683/0 Spring Cover €1.43
10
 photo_cameraImage coming soon 118804851/0 Screw For Spring €1.64
11
 photo_cameraImage coming soon 118804685/0 Spring €1.77
12
 photo_cameraImage coming soon 118804782/0 Safety Lever €1.84
13
 Oil Tube Tie-In for Chainsaws Alpina A 3700-C 38 118800256/0 Oil Tube Tie-In for Chainsaws Alpina A 3700-C 38 €1.42
14
 Fuel Pipe for Chainsaw Alpina AC 27T 118804694/0 Fuel Pipe for Chainsaw Alpina AC 27T €1.87
15
 photo_cameraImage coming soon 118804783/0 Throttle Spring €1.50
16
 photo_cameraImage coming soon 118804784/0 Throttle Lever €1.77
17
 photo_cameraImage coming soon 118804785/0 Handle €45.91
18
 photo_cameraImage coming soon 118804786/0 Throttle Rod €3.86
19
 photo_cameraImage coming soon 118804842/0 Handle Cover, White €9.14
20
 photo_cameraImage coming soon 112728124/0 Screw €1.68
156
 photo_cameraImage coming soon 2312020 Washer €1.43
157
 photo_cameraImage coming soon 118805121/0 Handle Assy Yellow €35.09
158
 photo_cameraImage coming soon 118805122/0 Spring Assy €20.09
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

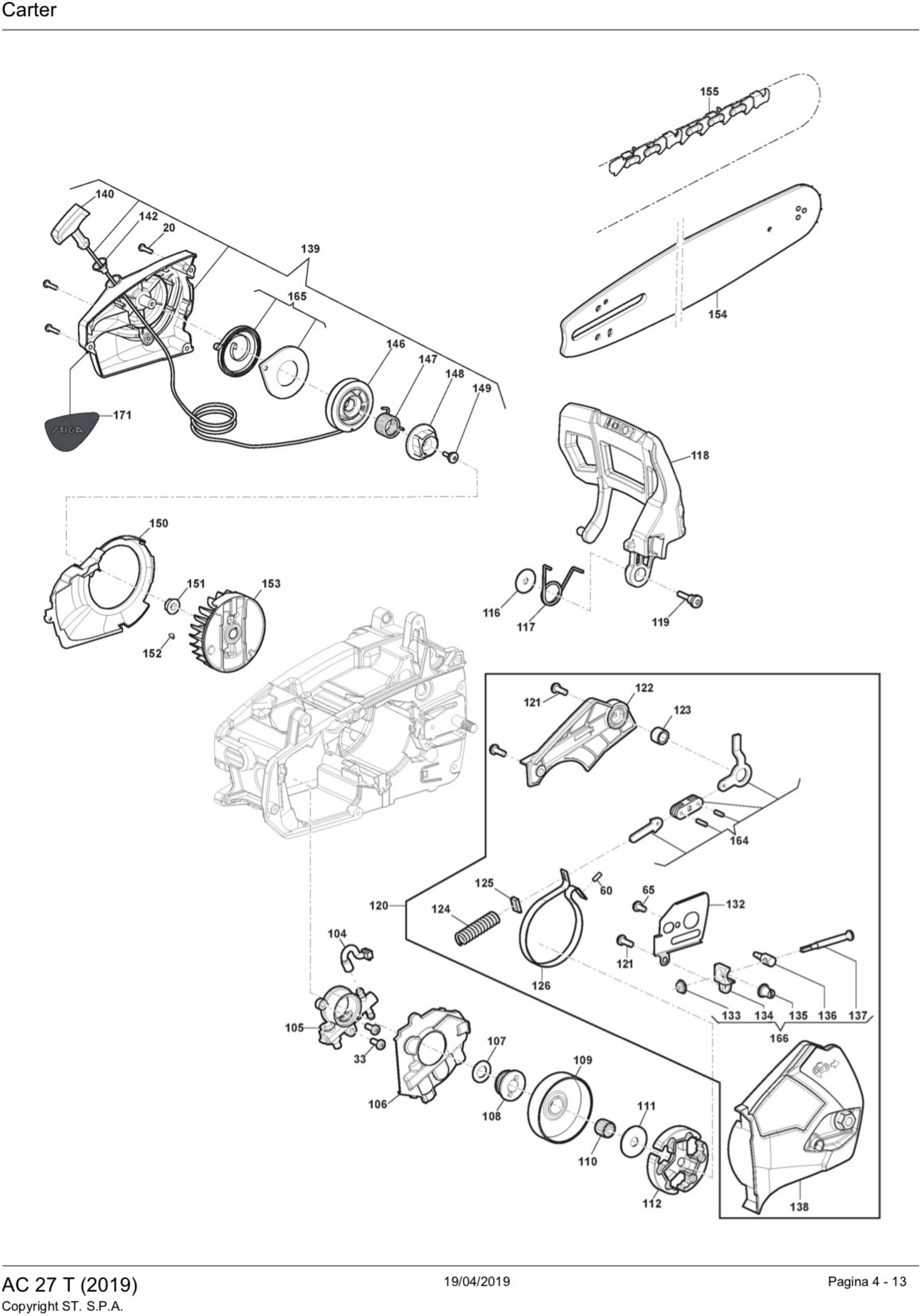

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
20
 photo_cameraImage coming soon 112728124/0 Screw €1.68
33
 photo_cameraImage coming soon 123878021/0 Screw €1.52
60
 Brake Band Needle for Chainsaws Alpina C 38 - C 41 123753000/0 Brake Band Needle for Chainsaws Alpina C 38 - C 41 €1.74
65
 photo_cameraImage coming soon 112727815/0 Screw €1.66
104
 Spary Nozzle for Chainsaw Alpina AC 27 T 118804749/0 Spary Nozzle for Chainsaw Alpina AC 27 T €4.37
105
 Oil Pump for Chainsaw Alpina AC 27 T 118804750/0 Oil Pump for Chainsaw Alpina AC 27 T €19.50
106
 photo_cameraImage coming soon 118804751/0 Oil Pump Cover €1.50
107
 Worm Screw Washer for Chainsaw Alpina C 41-CP 40 118550608/0 Worm Screw Washer for Chainsaw Alpina C 41-CP 40 €1.70
108
 Worm Screw for Chainsaw Alpina AC 27 T 118804752/0 Worm Screw for Chainsaw Alpina AC 27 T €3.02
109
 3/8" Clutch Drum for Chainsaw Alpina AC 27 T 118804753/0 3/8" Clutch Drum for Chainsaw Alpina AC 27 T €16.54
110
 photo_cameraImage coming soon 123235001/0 NEEDLE BEARING €4.83
111
 photo_cameraImage coming soon 118804818/0 Washer €2.21
112
 Clutch Ass'y for Chainsaw Alpina AC 27 T 118804758/0 Clutch Ass'y for Chainsaw Alpina AC 27 T €16.54
116
 photo_cameraImage coming soon 118804806/0 Washer €1.64
117
 photo_cameraImage coming soon 118804755/0 Spring for Hand Guard €1.77
118
 photo_cameraImage coming soon 118804798/0 Hand Guard €13.42
119
 photo_cameraImage coming soon 118804757/0 Hand Guard Screw €1.50
120
 Clutch Cover Assy for Petrol Chainsaw AC 27 T - AC 27 TC 118805040/0 Clutch Cover Assy for Petrol Chainsaw AC 27 T - AC 27 TC €49.49
121
 Screw Tx M5x25 for Chainsaw Alpina AC 27 T 123878121/0 Screw Tx M5x25 for Chainsaw Alpina AC 27 T €1.70
123
 photo_cameraImage coming soon 118804760/0 Bushing €1.43
124
 photo_cameraImage coming soon 118804761/0 Chain Brake Spring €1.50
125
 photo_cameraImage coming soon 118804762/0 Spring Base €1.43
126
 photo_cameraImage coming soon 118804763/0 Break Strap €3.99
132
 photo_cameraImage coming soon 118804764/0 Tensioner Cover Plate €3.03
133
 photo_cameraImage coming soon 118804765/0 Passive Tensioner Gear €3.03
134
 Gear Base for Chainsaw Alpina AC 27 T 118804766/0 Gear Base for Chainsaw Alpina AC 27 T €1.49
135
 photo_cameraImage coming soon 118804767/0 Tensioner Gear €3.16
136
 Chain Tensioner Pin for Chainsaw Alpina AC 27 T 118804768/0 Chain Tensioner Pin for Chainsaw Alpina AC 27 T €2.90
137
 photo_cameraImage coming soon 118804769/0 Tensioner Screw €1.92
138
 Sprocket Cover for Chainsaw Alpina AC 27 T 118804840/0 Sprocket Cover for Chainsaw Alpina AC 27 T €21.68
139
 photo_cameraImage coming soon 118804841/0 Starter Assy, White €35.91
140
 photo_cameraImage coming soon 118804772/0 Starter Handle €3.31
142
 photo_cameraImage coming soon 118804773/0 Grommet €2.33
146
 photo_cameraImage coming soon 118804775/0 Starter Pulley €3.31
147
 photo_cameraImage coming soon 118804776/0 Spring €3.03
148
 Starter Ratchet for Chainsaw Alpina AC 27 T 118804777/0 Starter Ratchet for Chainsaw Alpina AC 27 T €3.41
149
 photo_cameraImage coming soon 118804807/0 Screw €3.03
150
 photo_cameraImage coming soon 118804778/0 Air Conveyor €2.46
151
 photo_cameraImage coming soon 112154220/0 Nut €1.74
152
 Flywheel Semicircular Woodruf for Chainsaw Alpina A 305-C 25-A 2500 118800959/0 Flywheel Semicircular Woodruf for Chainsaw Alpina A 305-C 25-A 2500 €1.76
153
 Flywheel Assy for Chainsaw Alpina AC 27 T 118804779/0 Flywheel Assy for Chainsaw Alpina AC 27 T €32.52
154
 Bar 10” (25 cm) 3/8” .050” (1.3 mm) for Chainsaw Alpina A 305 123900360/0 Bar 10” (25 cm) 3/8” .050” (1.3 mm) for Chainsaw Alpina A 305 €16.90
155
 photo_cameraImage coming soon 1519-9110-02 CHAIN LOOP 10"-3/8"-0,050"-40E (ALPINA) €17.27
164
 photo_cameraImage coming soon 118804810/0 Break Control Assy €4.27
165
 photo_cameraImage coming soon 118804811/0 Starter Spring Assy €4.27
166
 Tensioner Gear Assy for Petrol Chainsaw AC 27 T - AC 27 TC 118805124/0 Tensioner Gear Assy for Petrol Chainsaw AC 27 T - AC 27 TC €11.50
171
 photo_cameraImage coming soon 114370309/0 Label €2.32
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

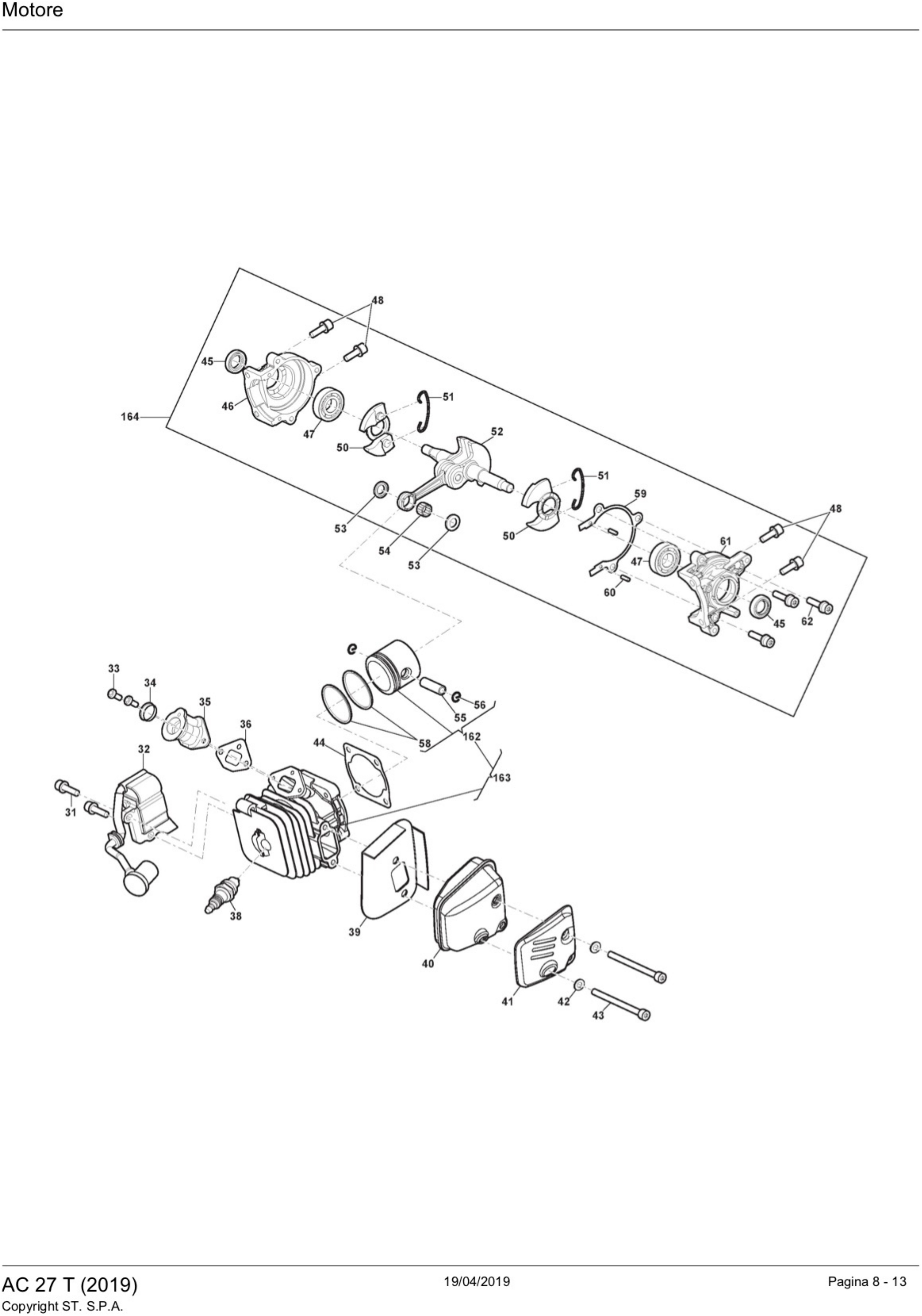

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
31
 photo_cameraImage coming soon 2132510 Screw €1.48
32
 Ignition Coil Ass'y for Chainsaw Alpina AC 27 T 118804708/0 Ignition Coil Ass'y for Chainsaw Alpina AC 27 T €18.86
33
 photo_cameraImage coming soon 123878021/0 Screw €1.52
34
 Support Ring for Chainsaw Alpina AC27T 118804709/0 Support Ring for Chainsaw Alpina AC27T €1.57
35
 Intake Manifold for Chainsaw Alpina AC 27 T 118804710/0 Intake Manifold for Chainsaw Alpina AC 27 T €9.83
36
 Intake Manifold Gasket for Chainsaw Alpina AC27T 118804711/0 Intake Manifold Gasket for Chainsaw Alpina AC27T €1.69
38
 Champion Spark Plug RY4C for Chainsaw Alpina AC 27 T 1911-9221-01 Champion Spark Plug RY4C for Chainsaw Alpina AC 27 T €10.01
39
 photo_cameraImage coming soon 118805034/0 Muffler gasket €3.02
40
 photo_cameraImage coming soon 118805035/0 Muffler €29.25
41
 photo_cameraImage coming soon 118805036/0 Muffler cover €6.91
42
 photo_cameraImage coming soon 112581500/0 Grower €1.74
43
 photo_cameraImage coming soon 118805037/0 Screw €1.42
44
 photo_cameraImage coming soon 118804717/0 Cylinder Sealing Gasket €1.77
45
 photo_cameraImage coming soon 118804350/0 Oil Seal €6.37
46
 photo_cameraImage coming soon 118804718/0 Left Crankcase €26.76
47
 photo_cameraImage coming soon 3112240 Needle Bearing €10.11
48
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
50
 photo_cameraImage coming soon 118805043/0 Crankshaft Counterweight €4.96
51
 photo_cameraImage coming soon 118805044/0 Counterweight spring €1.49
52
 photo_cameraImage coming soon 118804719/0 Crankshaft €47.31
53
 Piston Pin Needle Bearing Washer for Chainsaw Alpina A 305-C 25-A 2500 123652505/0 Piston Pin Needle Bearing Washer for Chainsaw Alpina A 305-C 25-A 2500 €2.98
54
 Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500 123235008/0 Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500 €5.71
55
 photo_cameraImage coming soon 118804722/0 Circlip €1.43
56
 photo_cameraImage coming soon 118804723/0 Piston Pin €2.37
58
 photo_cameraImage coming soon 118805038/0 Piston Ring €18.84
59
 photo_cameraImage coming soon 118804726/0 Crankcase Gasket €1.77
60
 Brake Band Needle for Chainsaws Alpina C 38 - C 41 123753000/0 Brake Band Needle for Chainsaws Alpina C 38 - C 41 €1.74
61
 photo_cameraImage coming soon 118804729/0 Right Crankcase €25.93
62
 photo_cameraImage coming soon 112727795/0 Screw €1.46
162
 photo_cameraImage coming soon 118804816/1 Piston assembly €18.84
163
 photo_cameraImage coming soon 118804817/1 Cylinder-Piston Assembly €76.45
164
 photo_cameraImage coming soon 118805053/0 Short Block Engine €145.83
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

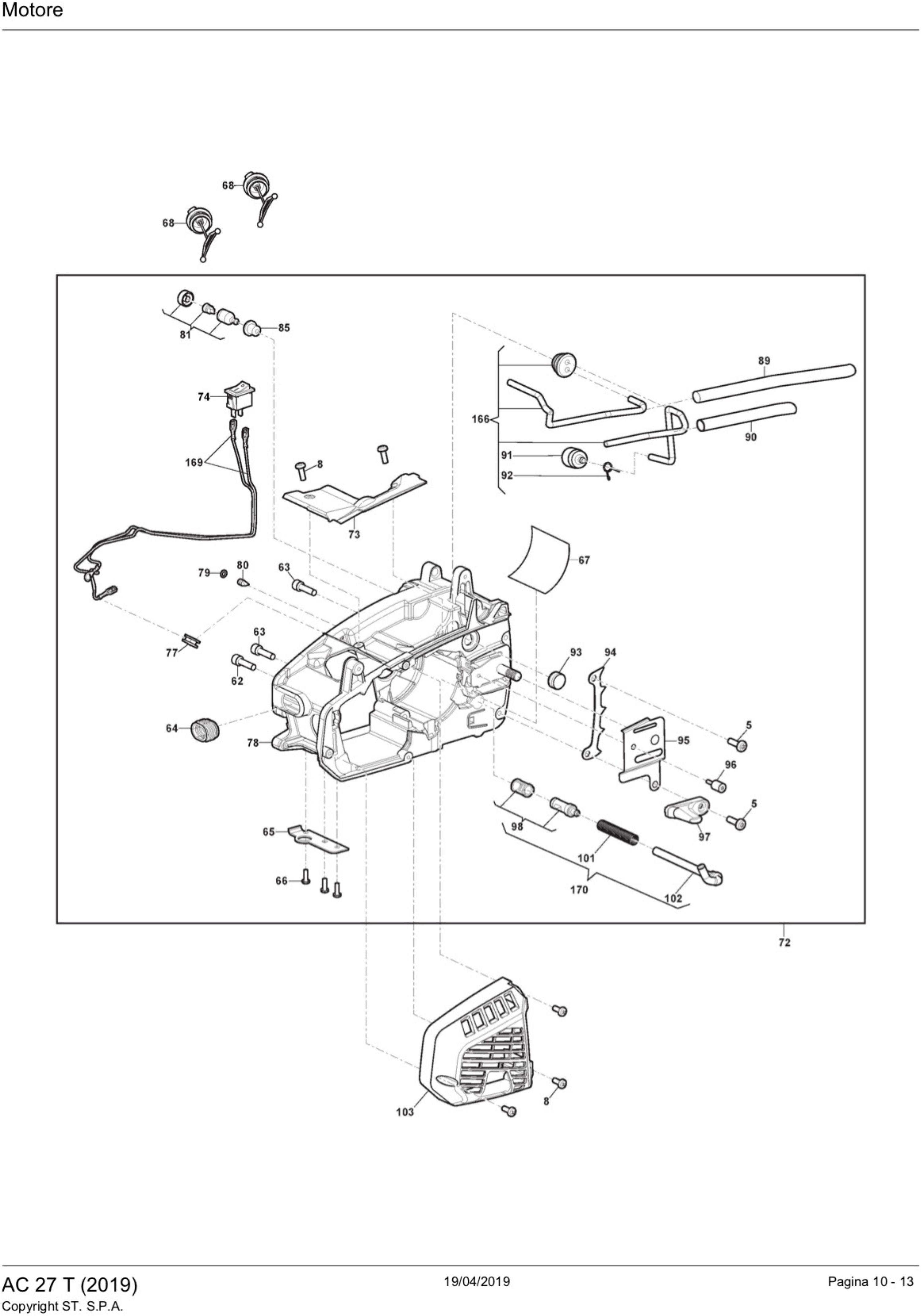

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 photo_cameraImage coming soon 118800189/0 Screw €1.82
8
 Screw Tx M5x25 for Chainsaw Alpina AC 27 T 123878121/0 Screw Tx M5x25 for Chainsaw Alpina AC 27 T €1.70
62
 photo_cameraImage coming soon 112735654/0 Screw €1.36
63
 photo_cameraImage coming soon 112727795/0 Screw €1.46
64
 photo_cameraImage coming soon 118804796/0 Air Conveyor €3.31
65
 photo_cameraImage coming soon 118804797/0 Support Plate €2.21
66
 photo_cameraImage coming soon 112727815/0 Screw €1.66
67
 photo_cameraImage coming soon 118804730/0 Heat Protection €2.88
68
 photo_cameraImage coming soon 118804252/0 Oil Tank Cap Assy €5.39
72
 photo_cameraImage coming soon 118805039/0 Base Assy €88.11
73
 photo_cameraImage coming soon 118804813/0 Cable Cover €2.46
74
 Stop Switch for Chainsaw Alpina AC27T 118804802/0 Stop Switch for Chainsaw Alpina AC27T €5.30
77
 photo_cameraImage coming soon 118804733/0 Wire Clip €1.29
78
 photo_cameraImage coming soon 118804734/0 Chassis €44.52
79
 photo_cameraImage coming soon 118804735/0 LOWER MOTOR SEALING €1.50
80
 photo_cameraImage coming soon 118804736/0 Nozzle €2.61
81
 photo_cameraImage coming soon 118804801/0 Breather Valve Assy €4.83
85
 photo_cameraImage coming soon 118804737/0 Grommet €1.43
89
 photo_cameraImage coming soon 118804815/0 Insulated Pipe €1.77
90
 photo_cameraImage coming soon 118804741/0 Corrugated Pipe €1.64
91
 photo_cameraImage coming soon 118804740/0 Fuel Filter €4.83
92
 photo_cameraImage coming soon 118804234/0 Clip €13.24
93
 photo_cameraImage coming soon 118804742/0 Cap €1.50
94
 Spiked Bumper for Chainsaw Alpina AC 27 T 118804743/0 Spiked Bumper for Chainsaw Alpina AC 27 T €5.04
95
 Internal Plate for Chainsaw Alpina AC 27 T 118804744/0 Internal Plate for Chainsaw Alpina AC 27 T €3.50
96
 photo_cameraImage coming soon 118804745/0 Lead Screw €1.43
97
 photo_cameraImage coming soon 118804746/0 Chain Stopper €1.77
98
 photo_cameraImage coming soon 118804800/0 Oil Filter Assy €2.61
101
 photo_cameraImage coming soon 118804853/0 Oil pipe Spring €2.21
102
 Oil Intake Pipe for Chainsaw Alpina AC 27 T 118804747/0 Oil Intake Pipe for Chainsaw Alpina AC 27 T €3.84
103
 photo_cameraImage coming soon 118804839/0 Muffler Cover, White €9.14
166
 photo_cameraImage coming soon 118804820/0 Fuel Tube Assy €13.24
169
 photo_cameraImage coming soon 118804966/0 Assembly of electric cables €2.46
170
 photo_cameraImage coming soon 118805123/0 Oil Filter Assembly €8.01

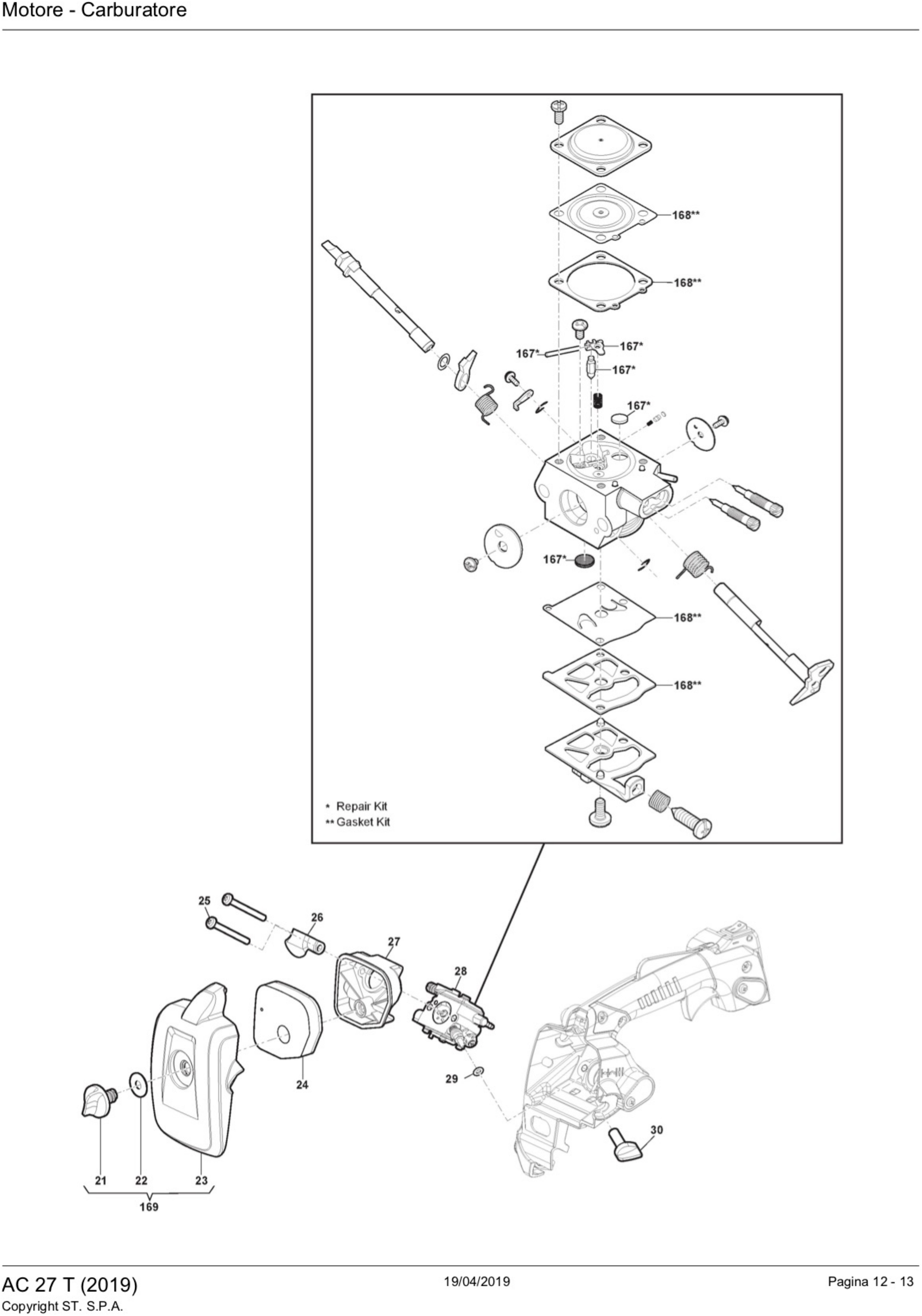

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
21
 photo_cameraImage coming soon 118804700/0 Air Filter Lock Nut €2.75
22
 photo_cameraImage coming soon 118800258/0 Nut €1.47
23
 Air Cleaner Cover (White) for Chainsaw Alpina AC 27 T 118804843/0 Air Cleaner Cover (White) for Chainsaw Alpina AC 27 T €9.70
24
 Air Filter Element for Chainsaw Alpina AC27T 118804789/0 Air Filter Element for Chainsaw Alpina AC27T €4.26
25
 photo_cameraImage coming soon 2135110 Screw €1.50
26
 photo_cameraImage coming soon 118804790/0 Air Conveyor €3.45
27
 photo_cameraImage coming soon 118804791/0 Air Filter Base €8.65
28
 photo_cameraImage coming soon 118804792/0 Carburetor €113.92
29
 photo_cameraImage coming soon 2312100 Washer €1.50
30
 photo_cameraImage coming soon 118804707/0 Choke Knob €1.50
167
 photo_cameraImage coming soon 118804835/0 Carburetor Repair Kit €19.54
168
 photo_cameraImage coming soon 118804836/0 Carburetor Gaskets Kit €26.89

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Chain Saw AC 27 T (2019) 240271000/A18

Alpina genuine spare parts or replacement parts for to repair Chain Saw AC 27 T (2019) 240271000/A18.

In the following table, look for the model of the Chain Saw and the respective parts of the code.
Alpina AC 27 T (2019) 240271000

ALPINA AC 27 T (2019) 240271000/A18 pag.1
# Part Num. Description
1 123790022/0 Cao
2 123878093/0 Screw
3 123275027/0 Anti-vibration Rubber
4 118804780/0 Handle
5 118800189/0 Screw
6 118804231/0 Primer
7 118804781/0 Fuel Tube for Primer
8 123878121/0 Screw
9 118804683/0 Spring Cover
10 118804851/0 Screw
11 118804685/0 Spring
12 118804782/0 Safety Lever
13 118800256/0 Jointing
14 118804694/0 Fuel Tube
15 118804783/0 Throttle Spring
16 118804784/0 Throttle lever
17 118804785/0 Handle
18 118804786/0 Throttle rod
19 118804842/0 White Handle Cover
20 112728124/0 Screw
156 2312020 Washer
157 118805121/0 Handle Assy Yellow
158 118805122/0 Spring Assy Kit of 3 pcs
ALPINA AC 27 T (2019) 240271000/A18 pag.2
20 112728124/0 Screw
33 123878021/0 Screw
60 123753000/0 Pin
65 112727815/0 Screw
104 118804749/0 Spray Nozzle
105 118804750/0 Oil pump
106 118804751/0 Oil Pump Cover
107 118550608/0 Washer
108 118804752/0 Worm Screw
109 118804753/0 3/8 Clutch Drum
110 123235001/0 Needlke Bearing
111 118804818/0 Washer
112 118804758/0 Clutch
116 118804806/0 Washer
117 118804755/0 Handle Guard pring
118 118804798/0 Handle Guard
119 118804757/0 Handle Guard screw
120 118805040/0 Clutch Housing Assembly Yellow
121 123878121/0 Screw
122 118804880/0 Brake Spring Cover
123 118804760/0 Bushing
124 118804761/0 Chain Brake Spring
125 118804762/0 Spring Base Plate
126 118804763/0 Brake Band
132 118804764/0 Metal Plate
133 118804765/0 Chain Tensioner Gear
134 118804766/0 Gear Base
135 118804767/0 Chain Tensioner Adjustment Gear
136 118804768/0 Chain Tensioner Pin
137 118804769/0 Chain Tensioner Screw
138 118804840/0 Clutch Cover Assembly White
139 118804841/0 Starter Assembly White Rope 2.6x840mm
140 118804772/0 Starter handle
142 118804773/0 grommet
146 118804775/0 Starter Pulley
147 118804776/0 Starter Coupling Spring
148 118804777/0 Starter Ratchet
149 118804807/0 Screw
150 118804778/0 Air conveyor
151 112154220/0 Nut
152 118800959/0 Key
153 118804779/0 Flywheel assembly
154 123900360/0 Bar 10 "-3/8" -0.050 "
155 1519-9110-02 Chain 10 "-3/8" -0.050 "-40E
164 118804810/0 Brake Release Lever Assembly
165 118804811/0 Starter Spring Assembly
166 118805124/0 Tensioner Gear Assy
171 114370309/0 Label
ALPINA AC 27 T (2019) 240271000/A18 pag.3
31 2132510 Screw
32 118804708/0 Electronic Coil
33 123878021/0 Screw
34 118804709/0 Support Ring
35 118804710/0 Intake manifold
36 118804711/0 Intake Manifold Gasket
38 1911-9221-01 Saprk Plug
39 118805034/0 Muffler gasket
40 118805035/0 Muffler
41 118805036/0 Muffler cover
42 112581500/0 Grower
43 118805037/0 Screw
44 118804717/0 Cylinder gasket
45 118804350/0 Seal ring
46 118804718/0 Crankshaft Carter Left side
47 3112240 Needle Bearing
48 2135040 Screw
50 118805043/0 Crankshaft Counterweight
51 118805044/0 Counterweight spring
52 118804719/0 Crankshaft
53 123652505/0 Washer
54 123235008/0 Needle Bearing
55 118804722/0 Circlip
56 118804723/0 Piston pin
58 118805038/0 Piston Ring
59 118804726/0 Crankshaft Crankcase Gasket
60 123753000/0 Pin
61 118804729/0 Crankcase Right Carter
62 112727795/0 Screw
162 118804816/1 Piston assembly
163 118804817/1 Cylinder-Piston Assembly
164 118805053/0 Short Block Engine
ALPINA AC 27 T (2019) 240271000/A18 pag.4
5 118800189/0 Screw
8 123878121/0 Screw
62 112735654/0 Screw
63 112727795/0 Screw
64 118804796/0 Air conveyor
65 118804797/0 Support Plate
66 112727815/0 Screw
67 118804730/0 Heat shield protection
68 118804252/0 Oil tank cap assembly
72 118805039/0 Base Assembly
73 118804813/0 Cable Cover
74 118804802/0 Switch
77 118804733/0 Cable clip
78 118804734/0 Carter
79 118804735/0 O-Ring
80 118804736/0 Nozzle
81 118804801/0 Breath Valve Assembly
85 118804737/0 Bellow Base Valve Vent
89 118804815/0 Insulating Tube
90 118804741/0 Corrugated pipe
91 118804740/0 Fuel Filter
92 118804234/0 Clip
93 118804742/0 Plug
94 118804743/0 Spiked Bumper
95 118804744/0 Internal Plate
96 118804745/0 Guide screw
97 118804746/0 Chain catcher
98 118804800/0 Oil Filter Assembly
101 118804853/0 Oil pipe spring
102 118804747/0 Oil Tube
103 118804839/0 Muffler Protection White
166 118804820/0 Fuel Tube Assembly
169 118804966/0 Electric Cable Assembly
170 118805123/0 Oil Filter Assembly
ALPINA AC 27 T (2019) 240271000/A18 pag.5
21 118804700/0 Knob
22 118800258/0 Washer
23 118804843/0 Air Filter Cover White
24 118804789/0 Air filter
25 2135110 Screw
26 118804790/0 Air conveyor
27 118804791/0 Air Filter Base
28 118804792/0 Carburetor
29 2312100 Washer
30 118804707/0 Choke knob
167 118804835/0 Carburetor Repair Kit
168 118804836/0 Carburetor Gasket Kit
169 118805052/0 yellow
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina AC27T (2019) 240271000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing AC 27 T (2019)

Drawing AC 27 T (2019)

Download (940.89KB)

You might also like

Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500
HiKOKI Power Tools Italia S.p.a. SKU: 123235008/0
Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500
Piston Pin Needle Bearing for Chainsaw Alpina A 305-C 25-A 2500 Original parts Alpina, Piston Pin Needle Bearing for Chainsaw Alpina A 305 - C 25 - A 2500 - Castor CJ 300. Part for the following products: - Alpina A 305/202510020-2017...
AVAILABLE €5.71
Details
Damper for Chainsaw Alpina A 305-C 25-A 2500
HiKOKI Power Tools Italia S.p.a. SKU: 123275027/0
Damper for Chainsaw Alpina A 305-C 25-A 2500
Damper for Chainsaw Alpina A 305-C 25-A 2500 Original parts Alpina, Damper for Chainsaw Alpina A 305 - C 25 - A 2500 - Castor CJ 300. Part for the following products: - Alpina A 305/202510020-2017 - Alpina C 25/228010000-14-2017 -...
AVAILABLE €2.98
Details
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135030
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X20 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135040
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X18 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Oil Tube Tie-In for Chainsaws Alpina A 3700-C 38
HiKOKI Power Tools Italia S.p.a. SKU: 118800256/0
Oil Tube Tie-In for Chainsaws Alpina A 3700-C 38
Oil Tube Tie-In for Chainsaws Alpina A 3700-C 38 Original part Alpina, Oil Tube Tie-In for Chainsaws Alpina A 3700 - C 38 - C 41 - Castor - CP 3740 - CP 40 Part for the following products: - Chainsaw Alpina A 3700/228114000-10-2017 -...
AVAILABLE €1.42
Details
Chainsaw Alpina AC 27 T -15% Sale
GGP Italy SKU: AC27T
Chainsaw Alpina AC 27 T
Chainsaw Alpina AC 27 T Quick Overview A small chainsaw has to be compact and easy to manage, exactly like the Alpina AC27T chainsaw for a light-duty cutting. A light and well balanced machine, full comfort and maneuverability. The AC...
Last items in stock €214.70 €252.59
Details
Primer Pump for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804231/0
Primer Pump for Chainsaw Alpina AC 27 T
Primer Pump for Chainsaw Alpina AC 27 T Original replacement part Alpina, Primer Pump for Chainsaws Alpina AC 27 T - Brushcutter Alpina TB 23 CX - 2005. Part for the following products: - Chainsaw Alpina AC 27 T/240271000-A17-2017 -...
AVAILABLE €6.47
Details
Chain Loop 10"-3/8"-0,050"-40E for Chainsaw Alpina A 305
A.M.A. S.p.A. SKU: 1519-9110
Chain Loop 10"-3/8"-0,050"-40E for Chainsaw Alpina A 305
Chain Loop 10"-3/8"-0,050"-40E for Chainsaw Alpina A 305 Original replacement part Alpina, Chain Loop 10"-3/8"-0,050"-40E for Chainsaws A 305 - AC 27 T - SPR 276 - Castor CJ 300. Part for the following products: - Chainsaw Alpina A...
AVAILABLE €18.32
Details
Worm Screw Washer for Chainsaw Alpina C 41-CP 40
HiKOKI Power Tools Italia S.p.a. SKU: 118550608/0
Worm Screw Washer for Chainsaw Alpina C 41-CP 40
Worm Screw Washer for Chainsaw Alpina C 41-CP 40 Original part Alpina, Worm Screw Washer for Chainsaws Alpina C 41/204016000-11-2017 - Castor CP 40/204016001. Part for the following products: - Chainsaw...
AVAILABLE €1.70
Details
Brake Band Needle for Chainsaws Alpina C 38 - C 41
HiKOKI Power Tools Italia S.p.a. SKU: 123753000/0
Brake Band Needle for Chainsaws Alpina C 38 - C 41
Brake Band Needle for Chainsaws Alpina C 38 - C 41 Genuine part Alpina, Brake Band Needle mm 3X9 MS 402-442 2009 for Chainsaws Alpina C 38/203714000-11-2017 - C 41/204016000-11-2017 - A 3700/228114000-10-2017. Part for the following...
AVAILABLE €1.74
Details
Spiked Bumper for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804743/0
Spiked Bumper for Chainsaw Alpina AC 27 T
Spiked Bumper for Chainsaw Alpina AC 27 T Original replacement part Alpina, Spiked Bumper for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31  - Stiga SPR 276. Part for the following products: - Chainsaw AC 27 T/240271000-A17-2017 -...
AVAILABLE €5.04
Details
Flywheel Assy for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804779/0
Flywheel Assy for Chainsaw Alpina AC 27 T
Flywheel Assy for Chainsaw Alpina AC 27 T Original replacement part Alpina, Flywheel Assy for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC 27...
Last items in stock €32.52
Details
Oil Pump for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804750/0
Oil Pump for Chainsaw Alpina AC 27 T
Oil Pump for Chainsaw Alpina AC 27 T Original replacement part Alpina, Oil Pump for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products:...
AVAILABLE €19.50
Details
Ignition Coil Ass'y for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804708/0
Ignition Coil Ass'y for Chainsaw Alpina AC 27 T
Ignition Coil Ass'y for Chainsaw Alpina AC 27 T Original replacement part Alpina, Ignition Coil Ass'y for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part...
Last items in stock €18.86
Details
Gear Base for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804766/0
Gear Base for Chainsaw Alpina AC 27 T
Gear Base for Chainsaw Alpina AC 27 T Original replacement part Alpina, Gear Base for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC 27 T/240271000-A17-2017 -...
Last items in stock €1.49
Details
Oil Intake Pipe for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804747/0
Oil Intake Pipe for Chainsaw Alpina AC 27 T
Oil Intake Pipe for Chainsaw Alpina AC 27 T Original replacement part Alpina, Oil Intake Pipe for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC 27...
AVAILABLE €3.84
Details
Spary Nozzle for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804749/0
Spary Nozzle for Chainsaw Alpina AC 27 T
Spary Nozzle for Chainsaw Alpina AC 27 T Original replacement part Alpina, Oil Infeed Pipe (Spary Nozzle) for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC 27 T...
Last items in stock €4.37
Details
Worm Screw for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804752/0
Worm Screw for Chainsaw Alpina AC 27 T
Worm Screw for Chainsaw Alpina AC 27 T Original replacement part Alpina, Worm Screw for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following...
on 7/10 Business Days Approx €3.02
Details
3/8" Clutch Drum for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804753/0
3/8" Clutch Drum for Chainsaw Alpina AC 27 T
3/8" Clutch Drum for Chainsaw Alpina AC 27 T Original replacement part Alpina, 3/8" Clutch Drum for Chainsaws Alpina AC 27 T - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following...
Last items in stock €16.54
Details
Internal Plate for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804744/0
Internal Plate for Chainsaw Alpina AC 27 T
Internal Plate for Chainsaw Alpina AC 27 T Original replacement part Alpina, Internal Plate for Chainsaws Alpina AC 27 T - AC 27 TC - AC 31 - Stiga SPR 276 - SPR 276C. Part for the...
on 7/10 Business Days Approx €3.50
Details
Clutch Ass'y for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804758/0
Clutch Ass'y for Chainsaw Alpina AC 27 T
Clutch Ass'y for Chainsaw Alpina AC 27 T Original replacement part Alpina, Clutch Assembly for Chainsaws Alpina AC 27 T - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following...
on 7/10 Business Days Approx €16.54
Details
Sprocket Cover for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804840/0
Sprocket Cover for Chainsaw Alpina AC 27 T
Sprocket Cover for Chainsaw Alpina AC 27 T Original replacement part Alpina, Sprocket Cover for Chainsaws Alpina AC 27 T - AC 31 Part for the following products: -  Chainsaw AC 27...
on 7/10 Business Days Approx €21.68
Details
Starter Ratchet for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804777/0
Starter Ratchet for Chainsaw Alpina AC 27 T
Starter Ratchet for Chainsaw Alpina AC 27 T Original replacement part Alpina, Starter Ratchet for Chainsaws Alpina AC 27 T - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products:...
on 7/10 Business Days Approx €3.41
Details
Air Cleaner Cover (White) for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804843/0
Air Cleaner Cover (White) for Chainsaw Alpina AC 27 T
Air Cleaner Cover (White) for Chainsaw Alpina AC 27 T Original replacement part Alpina, Air Cleaner Cover (White) for Chainsaws Alpina AC 27 T - AC 31 Part for the following products: -  Chainsaw AC 27 T/240271000-A17-2017 -...
Last items in stock €9.70
Details
Chain Tensioner Pin for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804768/0
Chain Tensioner Pin for Chainsaw Alpina AC 27 T
Chain Tensioner Pin for Chainsaw Alpina AC 27 T Original replacement part Alpina, Chain Tensioner Pin for Chainsaws Alpina AC 27 T - AC 31 - Stiga SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC 27 T -  Chainsaw...
AVAILABLE €2.90
Details
Intake Manifold for Chainsaw Alpina AC 27 T
GGP Italy SKU: 118804710/0
Intake Manifold for Chainsaw Alpina AC 27 T
Intake Manifold for Chainsaw Alpina AC 27 T Original replacement part Alpina, Intake Manifold for Chainsaws Alpina AC 27 T - AC 31 - Stiga SPR 276 - SPR 276C.  Part for the following...
AVAILABLE €9.83
Details
Fuel Pipe for Chainsaw Alpina AC 27T
HiKOKI Power Tools Italia S.p.a. SKU: 118804694/0
Fuel Pipe for Chainsaw Alpina AC 27T
Fuel Pipe for Chainsaw Alpina AC 27T Original parts Alpina, Fuel Pipe for Chainsaw Alpina AC 27T - AC 27 TC - SPR 276 - SPR 276C. Part for the following products: -  Chainsaw AC27T/240271000-A17-2017 -  Chainsaw AC 27 T (2019)...
AVAILABLE €1.87
Details
Stop Switch for Chainsaw Alpina AC27T
HiKOKI Power Tools Italia S.p.a. SKU: 118804802/0
Stop Switch for Chainsaw Alpina AC27T
Stop Switch for Chainsaw Alpina AC27T Original parts Alpina, Stop Switch for Chainsaws Alpina AC27T - AC 31 - SPR 276. Part for the following products: - ...
AVAILABLE €5.30
Details
Support Ring for Chainsaw Alpina AC27T
HiKOKI Power Tools Italia S.p.a. SKU: 118804709/0
Support Ring for Chainsaw Alpina AC27T
Support Ring for Chainsaw Alpina AC27T Original parts Alpina, Carburator Support Ring for Chainsaws Alpina AC27T - AC 31 - SPR 276. Part for the following products: -  Chainsaw AC27T/240271000-A17-2017 -  Chainsaw AC 27 T (2019)...
AVAILABLE €1.57
Details
Air Filter Element for Chainsaw Alpina AC27T
HiKOKI Power Tools Italia S.p.a. SKU: 118804789/0
Air Filter Element for Chainsaw Alpina AC27T
Air Filter Element for Chainsaw Alpina AC27T Original parts Alpina, Air Filter Element for Chainsaws Alpina AC27T - AC 31 - SPR 276. Part for the following products: - ...
Last items in stock €4.26
Details
Intake Manifold Gasket for Chainsaw Alpina AC27T
GGP Italy SKU: 118804711/0
Intake Manifold Gasket for Chainsaw Alpina AC27T
Intake Manifold Gasket for Chainsaw Alpina AC27T Original replacement part Stiga, Intake Manifold Gasket for Chainsaws AC27T - AC27TC. Part For the following products: -  Chainsaw ALPINA AC27T - ...
on 7/10 Business Days Approx €1.69
Details
Comments (0)
