GGP Italy

Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12

SKU: B28J (2015) 280120100/12
€2.19
VAT included

Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter B 28 J (2015) 280120100/12.
Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12
  • Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12
  • Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12
  • Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12
  • Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12
GGP Italy

Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12

SKU: B28J (2015) 280120100/12 Condition: New
€2.19
VAT included

Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter B 28 J (2015) 280120100/12.
settings 125 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
122 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

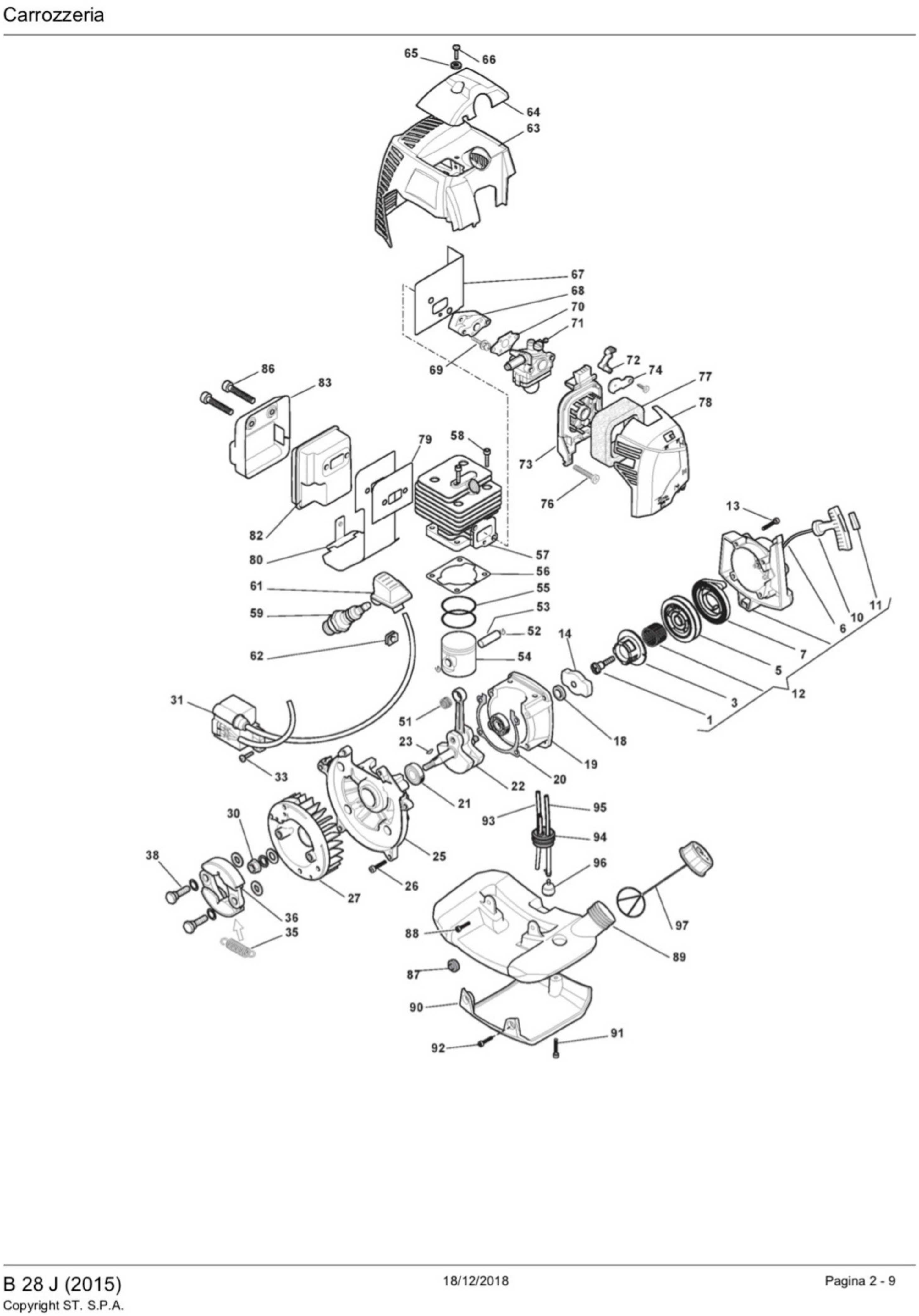

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112789000/0 Screw €1.77
3
 photo_cameraImage coming soon 118801241/0 Hub €2.38
5
 photo_cameraImage coming soon 118801240/0 Starter Pulley €3.32
6
 Starter Rope for Brushcutters Alpina BJ 326 - B 28 J 118801225/0 Starter Rope for Brushcutters Alpina BJ 326 - B 28 J €3.65
7
 photo_cameraImage coming soon 118801242/0 Spring €5.60
10
 photo_cameraImage coming soon 118801238/0 Starter Handle €2.36
11
 photo_cameraImage coming soon 118801239/0 Retainer €1.37
12
 Recoil Satrter Assy for Brushcutters Alpina BJ 326 - B 28 J 118801237/0 Recoil Satrter Assy for Brushcutters Alpina BJ 326 - B 28 J €31.54
13
 photo_cameraImage coming soon 2132450 Screw €1.24
14
 Starter Cup Ass'y for Brushcutters Alpina BJ 326 118801226/0 Starter Cup Ass'y for Brushcutters Alpina BJ 326 €6.51
18
 Seal Ring 12X22X7 for Brushcutter Alpina B33 119035159/0 Seal Ring 12X22X7 for Brushcutter Alpina B33 €1.57
19
 photo_cameraImage coming soon 123685024/0 Crank Case €17.52
20
 photo_cameraImage coming soon 123280046/0 Gasket €1.37
21
 photo_cameraImage coming soon 114215218/0 Ball Bearing €9.79
22
 Crank Shaft for Brushcutter Alpina TB 26 123020024/0 Crank Shaft for Brushcutter Alpina TB 26 €56.71
23
 Flywheel Woodruf for Brushcutters Alpina B 26 J-TB 250 J-T 26 J 123072002/0 Flywheel Woodruf for Brushcutters Alpina B 26 J-TB 250 J-T 26 J €1.50
25
 photo_cameraImage coming soon 123685025/0 Crank Case €16.96
26
 photo_cameraImage coming soon 2135060 Screw €1.44
27
 photo_cameraImage coming soon 123880010/0 Flywheel €30.74
30
 photo_cameraImage coming soon 112154200/0 NUT €1.37
31
 Ignition Coil for Brushcutters Alpina BJ 326 - B 28 J 118801231/0 Ignition Coil for Brushcutters Alpina BJ 326 - B 28 J €31.54
33
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
35
 Clutch Unit Spring for Brushcutter Alpina TB 26 123430582/0 Clutch Unit Spring for Brushcutter Alpina TB 26 €1.42
36
 Clutch Unit for Brushcutter Alpina TB 26 123400002/0 Clutch Unit for Brushcutter Alpina TB 26 €8.10
38
 photo_cameraImage coming soon 123878057/0 Screw €1.37
51
 photo_cameraImage coming soon 123235006/0 Needle Bearing €2.84
52
 photo_cameraImage coming soon 123202005/0 Washer, Piston Pin €1.37
53
 photo_cameraImage coming soon 123760005/0 Piston Pin €1.74
54
 Piston for Brushcutter Alpina TB 26 123590007/0 Piston for Brushcutter Alpina TB 26 €8.94
55
 Piston Ring for Brushcutters Alpina TB 26 123204009/0 Piston Ring for Brushcutters Alpina TB 26 €3.06
56
 photo_cameraImage coming soon 123280044/0 Cylinder Gasket €1.37
57
 photo_cameraImage coming soon 123071013/0 Cylinder €37.15
58
 photo_cameraImage coming soon 112760475/0 Screw €2.18
59
 photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
61
 photo_cameraImage coming soon 118801232/0 Spark Plug Cover €3.98
62
 photo_cameraImage coming soon 123275023/0 Grommet €1.37
63
 photo_cameraImage coming soon 118801233/0 White Cylinder Cover €18.56
64
 photo_cameraImage coming soon 118801245/0 White Cover €5.91
65
 photo_cameraImage coming soon 118801255/0 Gasket €1.55
66
 photo_cameraImage coming soon 112760475/0 Screw €2.18
67
 photo_cameraImage coming soon 123280040/0 Iniake Manifold Gasket €6.40
68
 photo_cameraImage coming soon 123073508/0 Inlake Manifold €3.69
69
 photo_cameraImage coming soon 2135060 Screw €1.44
70
 Intake Manifold Gasket for Brushcutter Alpina B33 118801227/0 Intake Manifold Gasket for Brushcutter Alpina B33 €1.42
71
 photo_cameraImage coming soon 123054025/0 Carburetor €42.33
72
 photo_cameraImage coming soon 118801229/0 Lever €1.37
74
 photo_cameraImage coming soon 123190000/0 Shutter €1.37
76
 photo_cameraImage coming soon 2132160 Screw €2.13
77
 Air Filter for Brushcutter Alpina B33 123220011/0 Air Filter for Brushcutter Alpina B33 €3.82
78
 photo_cameraImage coming soon 118801230/0 Filter Cover White €8.84
79
 photo_cameraImage coming soon 118801320/0 Gasket €5.77
80
 photo_cameraImage coming soon 118801247/0 Muffler Gasket €19.47
82
 photo_cameraImage coming soon 183740021/0 Muffler €56.45
83
 photo_cameraImage coming soon 118801248/0 Muffler Guard €11.03
86
 photo_cameraImage coming soon 6981104 Screw €1.50
87
 Rubber Gasket for Brushcutter Alpina B33 123280060/0 Rubber Gasket for Brushcutter Alpina B33 €1.44
88
 photo_cameraImage coming soon 112788910/0 Screw €1.65
89
 photo_cameraImage coming soon 118801244/0 Tank €37.09
90
 photo_cameraImage coming soon 118801246/0 Lower Guard €8.80
91
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.57
92
 photo_cameraImage coming soon 2135200 Screw €1.42
93
 Fuel Pipe mm 3X1X90 for Brushcutter Alpina B33 118801319/0 Fuel Pipe mm 3X1X90 for Brushcutter Alpina B33 €5.53
94
 Fuel Pipe Grommet for Brushcutter Alpina B33 118801318/0 Fuel Pipe Grommet for Brushcutter Alpina B33 €1.44
95
 Fuel Pipe mm 3X1X160 for Brushcutter Alpina B33 118801313/0 Fuel Pipe mm 3X1X160 for Brushcutter Alpina B33 €3.80
96
 Fuel Filter Ass'y for Brushcutter Alpina TB 26 183520005/0 Fuel Filter Ass'y for Brushcutter Alpina TB 26 €3.84
97
 Fuel Tank Cap Ass'y for Brushcutter Alpina B33 118801243/0 Fuel Tank Cap Ass'y for Brushcutter Alpina B33 €3.84
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

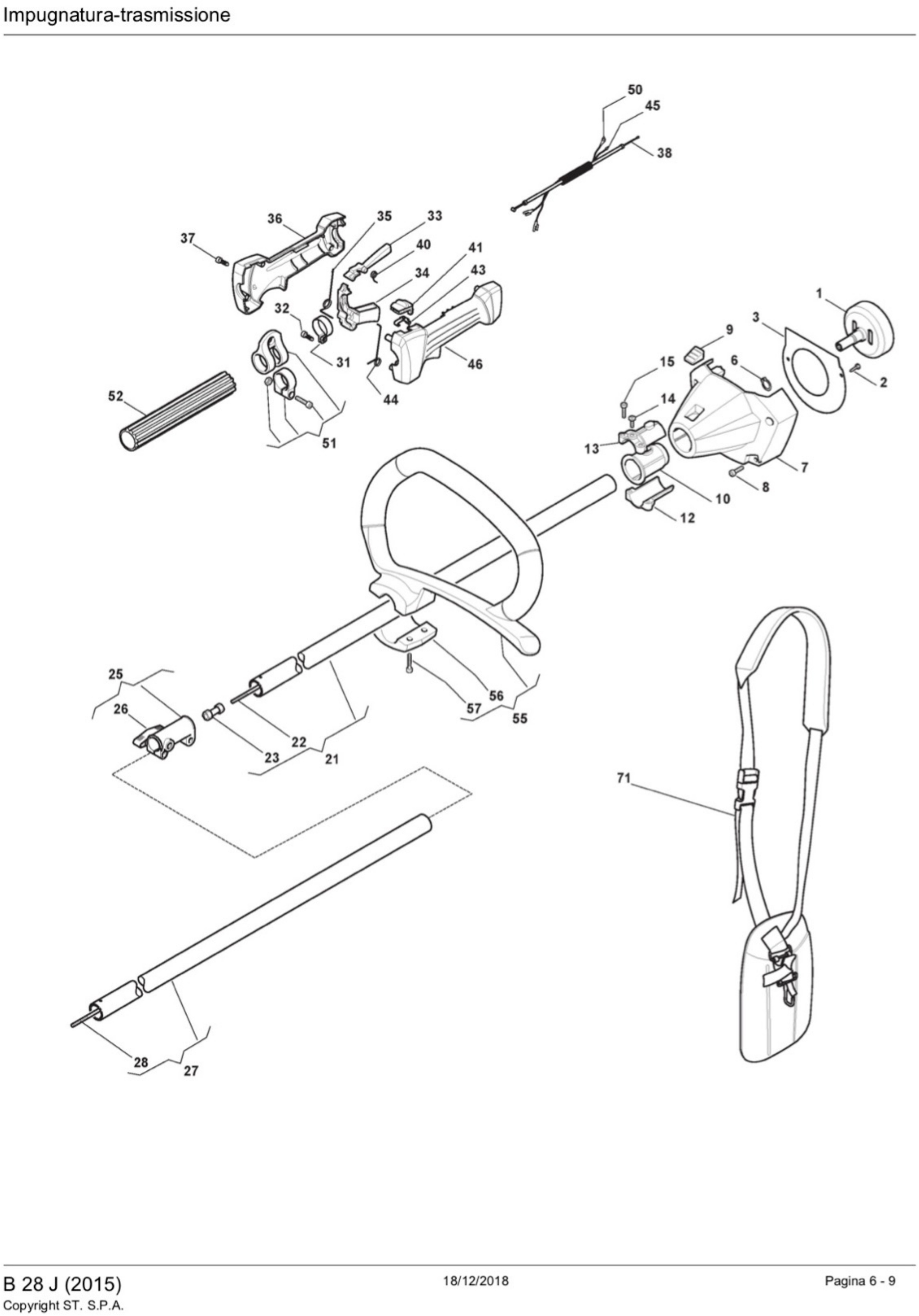

Esploso pagina 2
Pos. Item Price Buy
1
 Clutch Drum for Brushcutter Alpina TB 26 123050011/0 Clutch Drum for Brushcutter Alpina TB 26 €15.19
2
 photo_cameraImage coming soon 112727815/0 Screw €1.66
3
 photo_cameraImage coming soon 118801235/0 Guard €6.01
6
 photo_cameraImage coming soon 112609200/0 Seeger €1.65
7
 Clutch Carter White Assy for Brushcutter Alpina TB 28 J 118801234/0 Clutch Carter White Assy for Brushcutter Alpina TB 28 J €41.67
9
 photo_cameraImage coming soon 118801236/0 Button €1.37
10
 Alpina B 28 J Rubber Sleeve 118801308/0 Alpina B 28 J Rubber Sleeve €3.15
12
 Alpina B 28 J Bottom Clamp 118801307/0 Alpina B 28 J Bottom Clamp €9.37
13
 Alpina B 28 J Upper Clamp 118801306/0 Alpina B 28 J Upper Clamp €12.17
14
 photo_cameraImage coming soon 112788910/0 Screw €1.65
15
 photo_cameraImage coming soon 2135060 Screw €1.44
21
 photo_cameraImage coming soon 183869072/0 Assy Transm. Tube+Flex €26.83
22
 photo_cameraImage coming soon 118801343/0 Trasmission Shaft €10.64
23
 photo_cameraImage coming soon 118801344/0 Joint Chair Assy €2.82
25
 photo_cameraImage coming soon 183260002/0 Connecting Head Assy €19.23
26
 photo_cameraImage coming soon 123593510/0 Knob €1.34
27
 photo_cameraImage coming soon 183869074/0 Assy Transm. Tube+Flex €26.83
28
 photo_cameraImage coming soon 123020035/0 Trasmission Shaft €15.23
31
 photo_cameraImage coming soon 118801337/0 Clamp €2.28
32
 photo_cameraImage coming soon 112789000/0 Screw €1.77
33
 photo_cameraImage coming soon 118801335/0 Safety Lever, Red €1.37
34
 photo_cameraImage coming soon 118801336/0 Throttle Lever, Red €2.19
35
 photo_cameraImage coming soon 118801334/0 Spring €1.37
36
 photo_cameraImage coming soon 118801332/0 Right Handgrip,White €7.19
37
 photo_cameraImage coming soon 112735105/0 Screw €1.67
38
 photo_cameraImage coming soon 118801354/0 Throttle Cable €8.94
40
 photo_cameraImage coming soon 118801333/0 Spring €1.37
41
 photo_cameraImage coming soon 118801329/0 Stop Knob,Red €1.37
43
 photo_cameraImage coming soon 118801330/0 Stop Plate €1.37
44
 photo_cameraImage coming soon 118801338/0 Spring €1.37
45
 photo_cameraImage coming soon 118801328/0 Stop Wire €6.62
46
 photo_cameraImage coming soon 118801331/0 Left Handgrip,White €7.19
50
 photo_cameraImage coming soon 118801322/0 Earth Cable €1.37
51
 photo_cameraImage coming soon 183780002/0 Harness Support €3.61
52
 photo_cameraImage coming soon 123170004/0 Spacer €2.84
55
 photo_cameraImage coming soon 118801339/0 Front Handle Assy, White €23.51
56
 photo_cameraImage coming soon 118801340/0 Lower Support €5.54
57
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
71
 photo_cameraImage coming soon 118801327/0 Harness €13.22
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

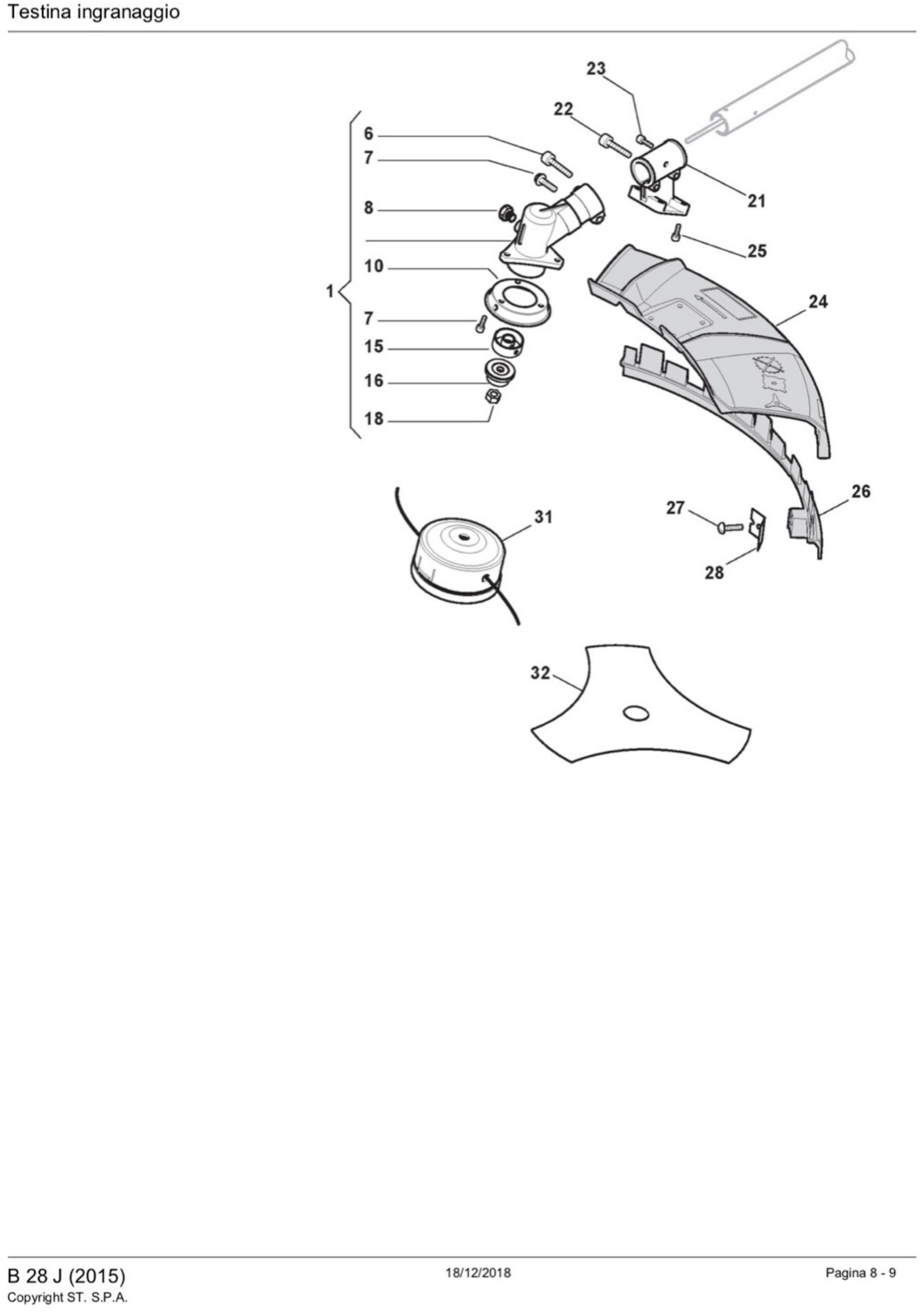

Esploso pagina 3
Pos. Item Price Buy
1
 photo_cameraImage coming soon 183820507/0 Gears Head Assembly €85.50
6
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
7
 photo_cameraImage coming soon 112789000/0 Screw €1.77
8
 photo_cameraImage coming soon 112727794/0 Screw €1.65
10
 photo_cameraImage coming soon 123670002/0 Guard €3.55
15
 Upper Ring Nut for Brushcutter Alpina B33 123250002/0 Upper Ring Nut for Brushcutter Alpina B33 €5.97
16
 Lower Ring Nut for Brushcutter Alpina B33 123250003/0 Lower Ring Nut for Brushcutter Alpina B33 €5.97
18
 photo_cameraImage coming soon 123120015/0 Nut €1.37
21
 Safety Guard Support for Brushcutter Alpina TB 26 123784012/0 Safety Guard Support for Brushcutter Alpina TB 26 €8.32
22
 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.57
23
 photo_cameraImage coming soon 2135180 Screw €1.58
24
 Safety Guard for Brushcutter Alpina B33 118801341/0 Safety Guard for Brushcutter Alpina B33 €20.21
25
 photo_cameraImage coming soon 112735654/0 Screw €1.36
27
 photo_cameraImage coming soon 112728099/1 Screw €1.65
28
 Safety Guard Line Cutter Blade for Brushcutter Alpina B33 123311013/0 Safety Guard Line Cutter Blade for Brushcutter Alpina B33 €3.84
31
 Head Tap & Go M10X1,25 for Brushcutters ALPINA 123155009/0 Head Tap & Go M10X1,25 for Brushcutters ALPINA €20.66
32
 photo_cameraImage coming soon 123155010/0 3 Teeth Disc €8.71

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Brushcutter B 28 J (2015) 280120100/12

STIGA-ALPINA-CASTOR-CASTELGARDEN-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter B 28 J (2015) 280120100/12.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Brushcutter B 28 J (2015) 280120100/12

ALPINA B 28 J (2015) 280120100/12 pag.1
1 112789000/0 Screw
3 118801241/0 Hub
5 118801240/0 Starter Pulley
6 118801225/0 Starter cable
7 118801242/0 Spring
10 118801238/0 Starter handle
11 118801239/0 Locking
12 118801237/0 Starter Black Ass.y
13 2132450 Screw
14 118801226/0 Starter Cup Assy
18 119035159/0 Sealing ring
19 123685024/0 Engine casing, starter side
20 123280046/0 Crankcase Gasket
21 114215218/0 Ball bearing
22 123020024/0 Crankshaft
23 123072002/0 Flywheel Key
25 123685025/0 Crankcase, Clutch Side
26 2135060 Screw
27 123880010/0 Flywheel Assy
30 112154200/0 Nut
31 118801231/0 Electronic Ignition coil
33 2135030 Screw
35 123430582/0 Spring
36 123400002/0 Clutch Unit
38 123878057/0 Screw
51 123235006/0 Needle bearing
52 123202005/0 Circlip
53 123760005/0 Piston pin
54 123590007/0 Piston
55 123204009/0 Piston Ring
56 123280044/0 Cylinder Gasket
57 123071013/0 Cylinder Assy
58 112760475/0 Screw
59 3210024 Spark Plug
61 118801232/0 Spark Plug cap
62 123275023/0 Grommet
63 118801233/0 Cylinder Cover White
64 118801245/0 Cover White
65 118801255/0 seal
66 112760475/0 Screw
67 123280040/0 Cylinder Manifold Gasket
68 123073508/0 Intake Manifold
69 2135060 Screw
70 118801227/0 Carburetor-Manifold Gasket
71 123054025/0 Carburetor
72 118801229/0 Shutter Lever
73 118801228/0 Base + Air Filter Cover
74 123190000/0 Air Shutter
76 2132160 Screw
77 123220011/0 Air filter
78 118801230/0 White filter cover
79 118801320/0 seal
80 118801247/0 Muffler gasket
82 183740021/0 Muffler
83 118801248/0 Muffler protection
86 6981104 Outfit, Screws
87 123280060/0 seal
88 112788910/0 Screw
89 118801244/0 Fuel Tank
90 118801246/0 Lower Protection
91 2135030 Screw
92 2135200 Screw
93 118801319/0 Fuel Tube
94 118801318/0 Grommet
95 118801313/0 Fuel Intake hose
96 183520005/0 Fuel Filter
97 118801243/0 Assembly Fuel Cap
ALPINA B 28 J (2015) 280120100/12 pag.2
1 123050011/0 Clutch Drum assembly
2 112727815/0 Screw
3 118801235/0 Protection
6 112609200/0 Seeger
7 118801234/0 Clutch Carter White
8 2135131 Screw
9 118801236/0 Button
10 118801308/0 Rubber Sleeve
12 118801307/0 Bottom Clamp
13 118801306/0 Upper Clamp
14 112788910/0 Screw
15 2135060 Screw
21 183869072/0 Ass. Transmission Tube
22 118801343/0 Transmission shaft
23 118801344/0 Joint
25 183260002/0 Transmission Shaft Coupling
26 123593510/0 Knob
27 183869074/0 Transmission Tube
28 123020035/0 Transmission shaft
31 118801337/0 bracket
32 112789000/0 Screw
33 118801335/0 Safety Lever, Red
34 118801336/0 Throttle Lever, Red
35 118801334/0 Spring
36 118801332/0 Right Handgrip, White
37 112735105/0 Screw
38 118801354/0 Throttle cable
40 118801333/0 Spring
41 118801329/0 Red Knob
43 118801330/0 Stop Plate
44 118801338/0 Spring
45 118801328/0 Stop Cable
46 118801331/0 Left Handgrip, White
50 118801322/0 Stop Cable Adapter
51 183780002/0 Harness support
52 123170004/0 Spacer
55 118801339/0 Ass. Handle Ant., White
56 118801340/0 Lower Support
57 2135040 Screw
71 118801327/0 Harness
ALPINA B 28 J (2015) 280120100/12 pag.3
1 183820507/0 Gears Head Assembly
6 112727801/0 Screw
7 112789000/0 Screw
8 112727794/0 Screw
10 123670002/0 Protection
15 123250002/0 Upper ring
16 123250003/0 Lower Ring
18 123120015/0 Nut
21 123784012/0 Support
22 2135050 Screw
23 2135180 Screw
24 118801341/0 Safety guard, Black
25 112735654/0 Screw
26 118801342/0 Guard, Black
27 112728099/1 Screw
28 123311013/0 Line cutter
31 123155009/0 2-Line head
32 123155010/0 Disk 3 Tips
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
B28J (2015) 280120100/12
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Alpina B 28 J (2015)

Drawing Alpina B 28 J (2015)

Download (472.58KB)

You might also like

Piston Ring for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118802077/0
Piston Ring for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Piston Ring for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Piston Ring for Brushcutters Alpina B 26 J-TB 250 J-T 26 J. Part for the following products: - Brushcutter B 26 J/287120100-15-2017 - Brushcutter TB...
AVAILABLE €2.51
Details
Upper Gear Box Washer for Brushcutter Alpina TB 250 J
HiKOKI Power Tools Italia S.p.a. SKU: 118803204/0
Upper Gear Box Washer for Brushcutter Alpina TB 250 J
Upper Gear Box Washer for Brushcutter Alpina TB 250 J Original parts Alpina, Upper Gear Box Washer for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for...
Last items in stock €5.97
Details
Lower Gear Box Washer for Brushcutter Alpina TB 250 J
GGP Italy SKU: 118803205/0
Lower Gear Box Washer for Brushcutter Alpina TB 250 J
Lower Gear Box Washer for Brushcutter Alpina TB 250 J Original parts Alpina, Lower Gear Box Washer for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the...
Last items in stock €5.67
Details
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135030
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X20 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135040
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X18 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135050
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X30 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.57
Details
Piston for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118802076/0
Piston for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Piston for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Piston for Brushcutters Alpina B 26 J-TB 250 J-T 26 J. Part for the following products: - Brushcutter B 26 J/287120100-15-2017 - Brushcutter TB 250...
Last items in stock €13.16
Details
Gear Box for Brushcutter Alpina TB 250 J
GGP Italy SKU: 118801184/0
Gear Box for Brushcutter Alpina TB 250 J
Gear Box for Brushcutter Alpina TB 250 J Original parts Alpina, Gear Box for Brushcutters Alpina B 26 J/287120100-15-2017 - TB 250 J/286120100-13-2017 Part for the following products: -  Brushcutter B 26...
Last items in stock €67.41
Details
Crankshaft for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118802066/0
Crankshaft for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Crankshaft for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Crankshaft for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Part for the following products: - Brushcutter B 26 J/287120100-15-2017 -...
Last items in stock €38.08
Details
Cylinder for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118802074/0
Cylinder for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Cylinder for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Cylinder for Brushcutters Alpina B 26 J-TB 250 J-T 26 J. Part for the following products: - Brushcutter B 26 J/287120100-15-2017 -...
Last items in stock €44.80
Details
Cylinder Gasket for Brushcutters Alpina B 26 J - T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118803165/0
Cylinder Gasket for Brushcutters Alpina B 26 J - T 26 J
Cylinder Gasket for Brushcutters Alpina B 26 J - T 26 J Original parts Alpina, Cylinder Gasket for Brushcutters Alpina B 26 J - T 26 J Part for the following products: - Brushcutter B 26 J/287120100-15-2017 - Brushcutter T 26...
Last items in stock €1.63
Details
Intake Manifold for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Sale
HiKOKI Power Tools Italia S.p.a. SKU: 118802086/0
Intake Manifold for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Intake Manifold for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Intake Manifold for Brushcutters Alpina B 26 J-TB 250 J-T 26 J. Part for the following products: - Brushcutter B 26 J/287120100-15-2017 -...
AVAILABLE €6.50
Details
Piston Pin for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
HiKOKI Power Tools Italia S.p.a. SKU: 118802081/0
Piston Pin for Brushcutters Alpina B 26 J-TB 250 J-T 26 J
Piston Pin for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Original parts Alpina, Piston Pin for Brushcutters Alpina B 26 J-TB 250 J-T 26 J Part for the following products: - Brushcutter B 26 J/287120100-15-2017 - Brushcutter TB...
AVAILABLE €1.98
Details
Fuel Tank Complete for Brushcutters Alpina B 26 J-T 26 J
GGP Italy SKU: 118803189/0
Fuel Tank Complete for Brushcutters Alpina B 26 J-T 26 J
Fuel Tank Complete for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Fuel Tank Complete for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products:...
Last items in stock €19.81
Details
Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J
GGP Italy SKU: 322735152/0
Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J
Fuel Tank Cap for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Fuel Tank Cap for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products: -...
Last items in stock €3.84
Details
Head Spacer for Brushcutters Alpina B 26 J-TB 250 J
GGP Italy SKU: 118803203/0
Head Spacer for Brushcutters Alpina B 26 J-TB 250 J
Head Spacer for Brushcutters Alpina B 26 J-TB 250 J Original replacement part Alpina, Head Spacer for Brushcutters Alpina B 26 J - TB 250 J - T 26 J. Part for the following products: - Brushcutter Alpina B 26 J -...
AVAILABLE €5.98
Details
Fuel Pipe Ass'y for Brushcutters Alpina B 26 J-T 26 J
GGP Italy SKU: 118803190/0
Fuel Pipe Ass'y for Brushcutters Alpina B 26 J-T 26 J
Fuel Pipe Ass'y for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Fuel Pipe Ass'y for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products:...
Last items in stock €11.82
Details
Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J
GGP Italy SKU: 2122210
Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J
Muffler Screw M5x62 for Brushcutters Alpina B 26 J-T 26 J Original replacement part Alpina, Muffler Screw M5x62 for Brushcutters Alpina B 26 J - T 26 J - Stiga SBC 226 J/287120102-2017. Part for the following products: - Brushcutter...
AVAILABLE €2.43
Details
Intake Manifold Gasket for Brushcutter Alpina B33
GGP Italy SKU: 118801227/0
Intake Manifold Gasket for Brushcutter Alpina B33
Intake Manifold Gasket for Brushcutter Alpina B33 Original replacement part Alpina, Intake Manifold Gasket for Brushcutters B 28 J - B 28 JD - B33 - BJ 326 - BJ 336. Part for the following products: - Brushcutter B 28 JD - Brushcutter...
AVAILABLE €1.42
Details
Starter Rope for Brushcutters Alpina BJ 326 - B 28 J
GGP Italy SKU: 118801225/0
Starter Rope for Brushcutters Alpina BJ 326 - B 28 J
Starter Rope for Brushcutters Alpina BJ 326 - B 28 J Original replacement part Alpina, Starter Rope for Brushcutters BJ 326 - B 28 J - B 28 JD - BJC 326 - B 28. Part for the following products: - Brushcutter Alpina BJ 326 -...
AVAILABLE €3.65
Details
Crank Shaft for Brushcutter Alpina TB 26
HiKOKI Power Tools Italia S.p.a. SKU: 123020024/0
Crank Shaft for Brushcutter Alpina TB 26
Crank Shaft for Brushcutter Alpina TB 26 Original replacement part Alpina, Crank Shaft for Brushcutters TB 26 - TB 26 J - BJ 326 -  B 28  B 28 J - B 28 JD - BJC 326....
Last items in stock €56.71
Details
Clutch Unit Spring for Brushcutter Alpina TB 26
HiKOKI Power Tools Italia S.p.a. SKU: 123430582/0
Clutch Unit Spring for Brushcutter Alpina TB 26
Clutch Unit Spring for Brushcutter Alpina TB 26 Original replacement part Alpina, Clutch Unit Spring for Brushcutters TB 26 - Year 2011 - TB 26 J - Year 2011 - BJ 326...
Last items in stock €1.42
Details
Piston for Brushcutter Alpina TB 26
GGP Italy SKU: 123590007/0
Piston for Brushcutter Alpina TB 26
Piston for Brushcutter Alpina TB 26 Original replacement part Alpina, Piston E2 for Brushcutters TB 26 - TB 26 J - TR 26 J - B 28 - B 28 J - BJ 326 - B 28 J - B 28 JD...
on 7/10 Business Days Approx €8.94
Details
Piston Ring for Brushcutters Alpina TB 26
HiKOKI Power Tools Italia S.p.a. SKU: 123204009/0
Piston Ring for Brushcutters Alpina TB 26
Piston Ring for Brushcutters Alpina TB 26 Original parts Alpina, Piston Ring for Brushcutters Alpina TB 26 - XB 26 - BJ 326 - BJC 325 - BJC 326 - B 28 J - TR 26 J Part for the following products: -  Brushcutter TB 26 -  Brushcutter...
AVAILABLE €3.06
Details
Head Tap & Go M10X1,25 for Brushcutters ALPINA
GGP Italy SKU: 123155009/0
Head Tap & Go M10X1,25 for Brushcutters ALPINA
Nylon Head Tap & Go M10X1,25 for Brushcutters ALPINA - STIGA Original replacement part Alpina, Nylon Head Tap & Go M10X1,25 L. FDC26"HUA"-RDC D.115MM for Brushcutters ALPINA - STIGA - CASTELGARDEN. Part for...
Last items in stock €20.66
Details
Alpina B 28 J Upper Clamp
GGP Italy SKU: 118801306/0
Alpina B 28 J Upper Clamp
Alpina Brushcutter B 28 J Upper Clamp Original replacement part Alpina, Upper Clamp for Brushcutters BJ 326 - B 28 J - B 28 JD - BJC 326 - B 28. Part for the following products: - ...
AVAILABLE €12.17
Details
Alpina B 28 J Bottom Clamp
GGP Italy SKU: 118801307/0
Alpina B 28 J Bottom Clamp
Alpina Brushcutter B 28 J Bottom Clamp Original replacement part Alpina, Bottom Clamp for Brushcutters BJ 326 - B 28 J - B 28 JD - BJC 326 - B 28. Part for the following products: - ...
AVAILABLE €9.37
Details
Alpina B 28 J Bottom Clamp
GGP Italy SKU: 118801308/0
Alpina B 28 J Rubber Sleeve
Alpina Brushcutter B 28 J Rubber Sleeve Original replacement part Alpina, Rubber Sleeve for Brushcutters BJ 326 - B 28 J - B 28 JD - BJC 326 - B 28. Part for the following products: - ...
AVAILABLE €3.15
Details
Comments (0)
