Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011

SKU: Alpina P700 S B/C 2005 1268011
€1.41
VAT included

Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011

We are ALPINA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chain Saw P 700 S B/C (2005) 1268011.

Alpina P 700 S B/C 2005 1268011
Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011
  • Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011
  • Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011
  • Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011
GGP Italy

Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011

SKU: Alpina P700 S B/C 2005 1268011 Condition: New
€1.41
VAT included

Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011

We are ALPINA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chain Saw P 700 S B/C (2005) 1268011.

Alpina P 700 S B/C 2005 1268011
settings 193 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN: Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
Machine Type: Chain Saw
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
193 spare parts

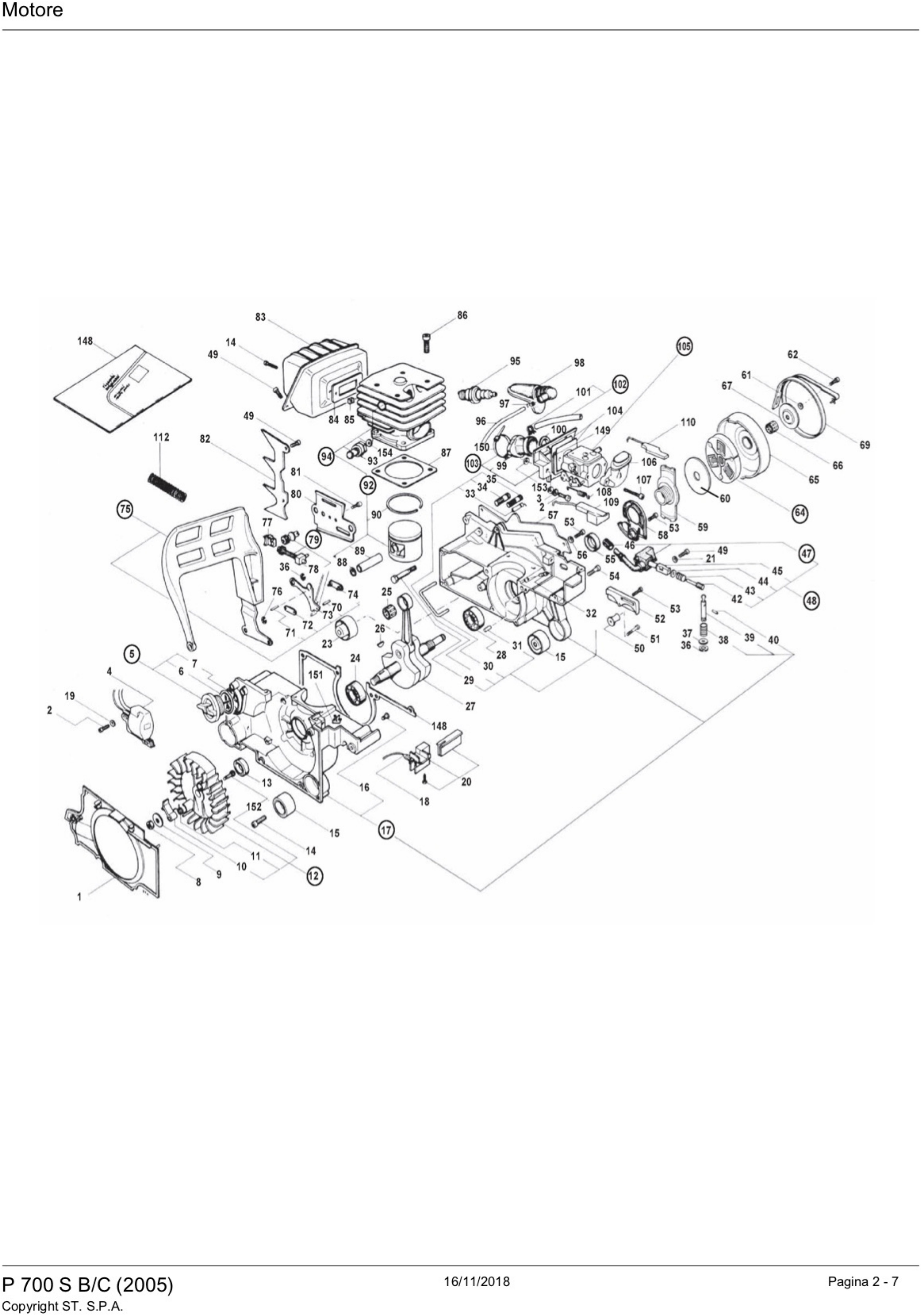

Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 4561730 Air Conveyor €0.11 Not available for order
2
 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J 2135030 Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J €1.40
3
 photo_cameraImage coming soon 2312090 Flat washer €1.41
4
 photo_cameraImage coming soon 3210640 Electronic coil 3210670 €42.83
5
 photo_cameraImage coming soon 4250960 Oil Cap assy €14.01
6
 photo_cameraImage coming soon 3721330 OR RING €1.37
7
 photo_cameraImage coming soon 3748910 Oil Cap Retention €0.11 Not available for order
8
 photo_cameraImage coming soon 2412100 Nut €2.72
9
 photo_cameraImage coming soon 2350040 Washer €0.00 Not available for order
10
 photo_cameraImage coming soon 3749990 Starter POWL - DISCONTINUED €0.11 Not available for order
11
 photo_cameraImage coming soon 3653790 Spring €1.35
12
 photo_cameraImage coming soon 4250040 Ass. Flywheel - DISCONTINUED €0.11 Not available for order
13
 photo_cameraImage coming soon 3121190 Seal ring €4.83
14
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
15
 photo_cameraImage coming soon 3744130 Anti-vibration rubber €7.99
16
 photo_cameraImage coming soon 2950040 Rivet €0.00 Not available for order
17
 photo_cameraImage coming soon 8520800 Engine Carter €183.35
18
 photo_cameraImage coming soon 3210830 Ground cable €3.62
19
 photo_cameraImage coming soon 2321150 Washer €0.00 Not available for order
20
 photo_cameraImage coming soon 8749380 Ass. Stop switch €14.15
21
 photo_cameraImage coming soon 2312280 Washer €0.00 Not available for order
23
 photo_cameraImage coming soon 3744190 Anti-vibration rubber €8.24
24
 photo_cameraImage coming soon 3112260 Ball bearing €9.85
25
 photo_cameraImage coming soon 3114160 Needle Bearing €12.15
26
 photo_cameraImage coming soon 3151050 Key €6.73
27
 photo_cameraImage coming soon 8152990 Crankshaft Kit €161.65
28
 photo_cameraImage coming soon 3112040 Ball Bearing €14.54
29
 photo_cameraImage coming soon 2653140 Screw €4.21
30
 photo_cameraImage coming soon 3624220 Oil Delivery Tube €2.82
31
 photo_cameraImage coming soon 3180060 Plug €0.00 Not available for order
32
 photo_cameraImage coming soon 3640090 Tube €1.61
33
 photo_cameraImage coming soon 4253720 Ass. Oil Vent Pipe €5.81
34
 photo_cameraImage coming soon 3641740 Pin €2.94
35
 photo_cameraImage coming soon 3641750 Pin €7.93
36
 photo_cameraImage coming soon 3351050 clip €1.34
37
 photo_cameraImage coming soon 2312010 Flat washer €1.45
38
 photo_cameraImage coming soon 3653710 Spring €1.76
39
 photo_cameraImage coming soon 3642230 Pin €9.53
40
 photo_cameraImage coming soon 3314150 Plug €0.00 Not available for order
42
 photo_cameraImage coming soon 3170060 Plunger P.O. Adjustable €28.90
43
 photo_cameraImage coming soon 3654160 Plunger spring €2.38
44
 photo_cameraImage coming soon 3612340 Washer €0.00 Not available for order
45
 photo_cameraImage coming soon 3630380 Cylinder Oil Pump Adjustable €20.52
46
 photo_cameraImage coming soon 3781330 Oil filter €7.67
47
 Oil Pump Grommet Ass'y for Chainsaw Alpina P 700 4251250 Oil Pump Grommet Ass'y for Chainsaw Alpina P 700 €0.00 Not available for order
48
 photo_cameraImage coming soon 8630381 Ass. Adjustable Oil Pump €0.11 Not available for order
49
 photo_cameraImage coming soon 2135180 Screw €1.40
50
 Chain Catcher for Chainsaw Alpina P 450 3749400 Chain Catcher for Chainsaw Alpina P 450 €1.42
51
 photo_cameraImage coming soon 2135060 Screw €1.44
52
 photo_cameraImage coming soon 3749410 Lower Chain Shoe €15.24
53
 photo_cameraImage coming soon 2132470 Screw €0.00 Not available for order
54
 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J 2135050 Srew TX M5X30 2009 for Brushcutter Alpina TB 250 J €1.33
55
 Seal Ring 15x27x55.5 for Chainsaw Alpina P 450 3121120 Seal Ring 15x27x55.5 for Chainsaw Alpina P 450 €14.53
56
 photo_cameraImage coming soon 2312120 Washer €1.27
57
 photo_cameraImage coming soon 3L3749500/1 Brake Protection €42.97
58
 photo_cameraImage coming soon 3749640 Oil Pump Protection €0.11 Not available for order
59
 photo_cameraImage coming soon 3749121 Screw €8.81
60
 photo_cameraImage coming soon 3612630 Washer €2.15
61
 photo_cameraImage coming soon 2370030 Washer €0.00 Not available for order
62
 photo_cameraImage coming soon 2112570 Screw €0.11 Not available for order
64
 photo_cameraImage coming soon 4251020 Clutch Assy €0.11 Not available for order
65
 photo_cameraImage coming soon 4121460 Clutch Drum €0.11 Not available for order
66
 photo_cameraImage coming soon 3114150 Needle Bearing €12.15
67
 photo_cameraImage coming soon 3615040 Washer €8.92
69
 photo_cameraImage coming soon 3613130 Brake band €4.33
70
 photo_cameraImage coming soon 3314070 Plug €0.00 Not available for order
71
 photo_cameraImage coming soon 3314090 Plug €0.00 Not available for order
72
 photo_cameraImage coming soon 3612930 Brake Mesh €1.46
73
 photo_cameraImage coming soon 3612920 Brake Band Lever €6.28
74
 photo_cameraImage coming soon 8612930 Brake Mesh With Rivets €15.68
75
 photo_cameraImage coming soon 4251267 Ass. Handle Guard Brake Lever €51.79
76
 photo_cameraImage coming soon 3351010 Washer €0.00 Not available for order
77
 photo_cameraImage coming soon 3749420 Chain tensioner brake €2.54
78
 photo_cameraImage coming soon 3630480 Tensioner block €12.13
79
 photo_cameraImage coming soon 8652211 Assy Chain tensioner €15.24
80
 photo_cameraImage coming soon 3612940 Inner Bar Base Plate €2.46
81
 photo_cameraImage coming soon 2135020 Screw €1.45
82
 photo_cameraImage coming soon 3L4611910/1 Spiked Bumper - DISCONTINUED €0.11 Not available for order
83
 photo_cameraImage coming soon 4121840 Muffler €46.49
84
 photo_cameraImage coming soon 3723900 Muffler gasket €0.11 Not available for order
85
 Square Nut M5X10X6 for Brushcutters Alpina - Stiga 2461030 Square Nut M5X10X6 for Brushcutters Alpina - Stiga €1.40
86
 photo_cameraImage coming soon 2135150 Screw €1.45
87
 photo_cameraImage coming soon 3723880 Cylinder gasket - DISCONTINUED €0.11 Not available for order
88
 photo_cameraImage coming soon 3356070 Circlip €0.00 Not available for order
89
 photo_cameraImage coming soon 3158170 Piston pin €3.51
90
 photo_cameraImage coming soon 3123120 Piston Ring  - DISCONTINUED €10.88
92
 photo_cameraImage coming soon 8541410 Ass.y Piston €63.77
93
 photo_cameraImage coming soon 3L4252080/2 decompressor €27.21
94
 photo_cameraImage coming soon 8541400 Ass.y Cylinder - Piston €183.35
95
 Spark Plug CJ7Y 3210024 Spark Plug CJ7Y €4.32
96
 photo_cameraImage coming soon 3211080 Spark Plug cable €11.81
97
 photo_cameraImage coming soon 3657050 Spark Plug Spring €3.92
98
 photo_cameraImage coming soon 4251160 Ass. Spark Plug Cap €8.69
99
 photo_cameraImage coming soon 3744570 Intake Manifold €11.40
100
 photo_cameraImage coming soon 3613270 Bushing €1.57
101
 photo_cameraImage coming soon 3657140 Clamp €0.00 Not available for order
102
 photo_cameraImage coming soon 8782590 Ass. Pulse tube €8.56
103
 photo_cameraImage coming soon 8251240 Carburetor Support €48.11
104
 photo_cameraImage coming soon 3723910 Carburetor Seal €8.92
105
 photo_cameraImage coming soon 4253980 Carburetor €100.92
106
 photo_cameraImage coming soon 3660590 Intake manifold €17.06
107
 Carburator Torx Screw M5x55 Brushcutters Alpina 2135250 Carburator Torx Screw M5x55 Brushcutters Alpina €2.10
108
 photo_cameraImage coming soon 3654020 Spring €3.14
109
 photo_cameraImage coming soon 3743367 Lever €0.11 Not available for order
110
 photo_cameraImage coming soon 4251100 Throttle tie rod €10.65
112
 photo_cameraImage coming soon 3653970 Brake Spring €4.78
148
 photo_cameraImage coming soon 8723890 Gaskets series €44.23
149
 photo_cameraImage coming soon 3785030 Thermal spacer €5.03
150
 photo_cameraImage coming soon 3320180 Cable tie €0.11 Not available for order
151
 photo_cameraImage coming soon 3320197 Stop clamp €1.29
152
 photo_cameraImage coming soon 2123030 Screw €1.37
153
 photo_cameraImage coming soon 2317130 Washer €6.32
154
 photo_cameraImage coming soon 2360060 Washer €0.00 Not available for order

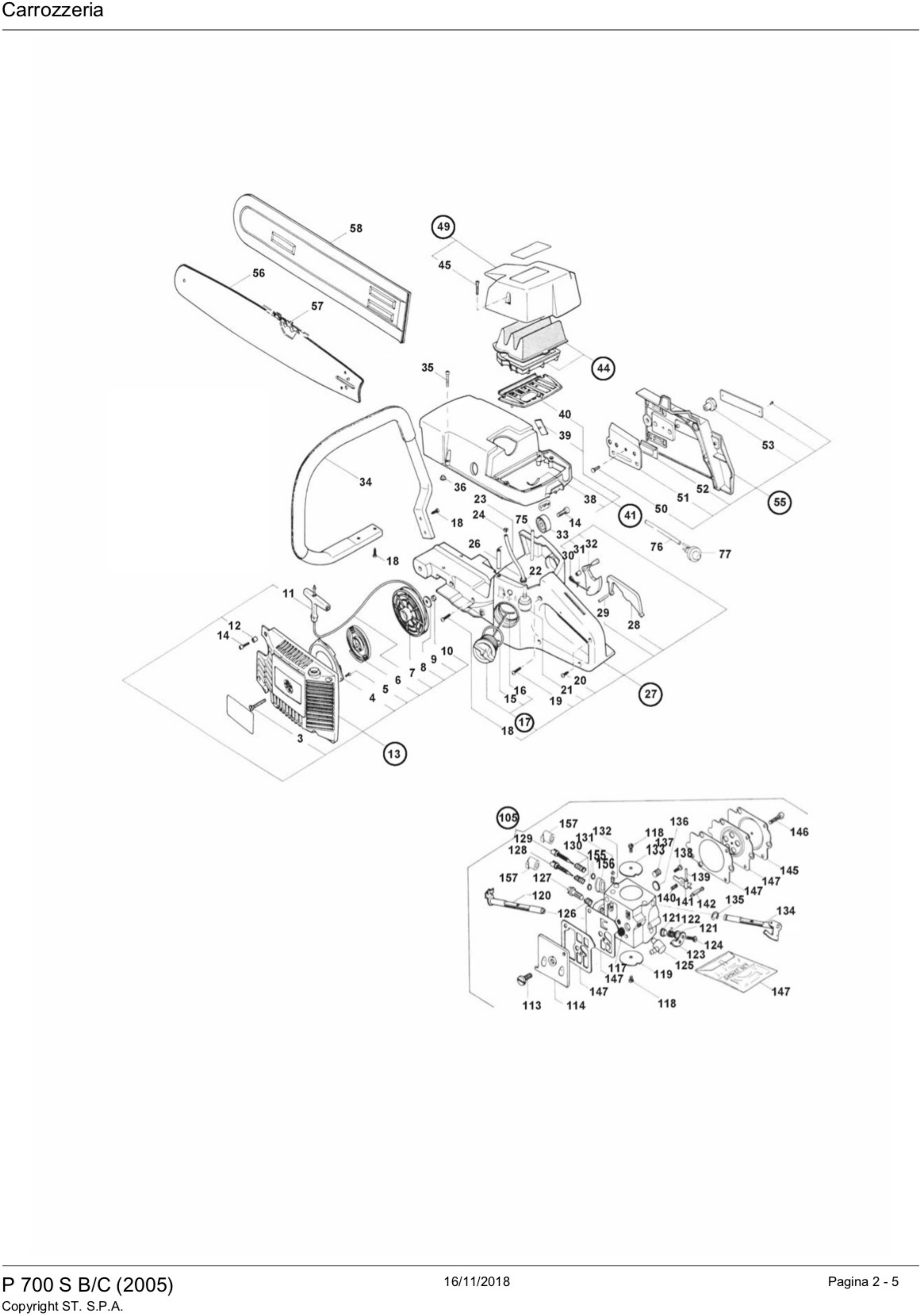

Page 2 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 2172100 Screw €0.00 Not available for order
4
 photo_cameraImage coming soon 3749370 Pulley Protection €1.85
5
 photo_cameraImage coming soon 2123090 Screw €0.00 Not available for order
6
 photo_cameraImage coming soon 4610390 Starter Spring €9.85
7
 photo_cameraImage coming soon 3784020 Starter cable €1.85
8
 photo_cameraImage coming soon 4561380 Starter Pulley €13.79
9
 photo_cameraImage coming soon 2312300 Washer €0.11 Not available for order
10
 photo_cameraImage coming soon 2412170 Nut €0.00 Not available for order
11
 photo_cameraImage coming soon 3749437 STARTER HANDLE €2.52
12
 photo_cameraImage coming soon 2382250 Bushing €2.55
13
 photo_cameraImage coming soon 4251137 Yellow Starter Ass €0.11 Not available for order
14
 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J 2135040 Srew TX M5X18 2009 for Brushcutter Alpina TB 250 J €1.57
15
 photo_cameraImage coming soon 3721300 OR RING €3.38
16
 photo_cameraImage coming soon 3748910 Oil Cap Retention €0.11 Not available for order
17
 photo_cameraImage coming soon 4250950 Fuel cap assy €8.49
18
 photo_cameraImage coming soon 2123030 Screw €1.37
19
 photo_cameraImage coming soon 2123140 Screw €0.00 Not available for order
20
 photo_cameraImage coming soon 2123150 Screw €2.64
21
 photo_cameraImage coming soon 4251040 Ass.y Oil Filter €6.66
22
 photo_cameraImage coming soon 3745590 Grommet €7.67
23
 photo_cameraImage coming soon 3782700 Tube Mix €2.54
24
 photo_cameraImage coming soon 3320170 Clamp €2.95
26
 photo_cameraImage coming soon 4253580 Venting Tube Blend €8.81
27
 photo_cameraImage coming soon 383300005/0 Ass.y Gray Handle €0.11 Not available for order
28
 photo_cameraImage coming soon 3743327 Safety Lever €1.46
29
 photo_cameraImage coming soon 3314140 Spring band pin €0.00 Not available for order
30
 photo_cameraImage coming soon 3653890 Spring €5.19
31
 photo_cameraImage coming soon 2382100 Bushing €1.22
32
 photo_cameraImage coming soon 3743317 Throttle lever €1.46
33
 photo_cameraImage coming soon 3744130 Anti-vibration rubber €7.99
34
 photo_cameraImage coming soon 4251017 Handrail €36.66
35
 photo_cameraImage coming soon 2135060 Screw €1.44
36
 photo_cameraImage coming soon 3745490 Grommet €2.64
38
 photo_cameraImage coming soon 3613360 Spring €2.70
39
 photo_cameraImage coming soon 3749527 Heating Controller €0.00 Not available for order
40
 photo_cameraImage coming soon 3744770 Membrane €0.11 Not available for order
41
 photo_cameraImage coming soon 8252750 Cylinder Cover Yellow €29.13
44
 photo_cameraImage coming soon 8781520 Ass. Air Filter €0.11 Not available for order
45
 photo_cameraImage coming soon 2653190 Screw €3.42
49
 photo_cameraImage coming soon 8564070 filter cover Yellow €14.27
50
 photo_cameraImage coming soon 2950010 Rivet €0.00 Not available for order
51
 photo_cameraImage coming soon 3613290 External Bar Base Sheet €2.78
52
 photo_cameraImage coming soon 3749650 External Skid Chain €1.76
53
 photo_cameraImage coming soon 2670270 Nut €2.81
55
 photo_cameraImage coming soon 4154580 Ass.y Clutch Carter Yellow €0.11 Not available for order
56
 photo_cameraImage coming soon 4112390 20inch guide bar €808.11
57
 photo_cameraImage coming soon 4113383 20inch chain €37.80
58
 photo_cameraImage coming soon 4181497 18inch cover €0.11 Not available for order
75
 photo_cameraImage coming soon 3786180 Air Purge Return Tube €0.00 Not available for order
76
 photo_cameraImage coming soon 3786170 Air Purge Return Tube €1.31
77
 Primer Pump for Chainsaw Alpina P 660 4253880 Primer Pump for Chainsaw Alpina P 660 €19.69
105
 photo_cameraImage coming soon 4253980 Carburetor €100.92
113
 photo_cameraImage coming soon 2652440 Screw €4.93
114
 photo_cameraImage coming soon 3660440 Pump Cover €15.24
117
 photo_cameraImage coming soon 3781210 Fuel Filter €7.67
118
 photo_cameraImage coming soon 2653250 Screw €3.62
119
 photo_cameraImage coming soon 3613480 Throttle shutter €3.62
120
 photo_cameraImage coming soon 3642260 Throttle shutter rod €17.68
121
 photo_cameraImage coming soon 3748620 Plastic Bushing €2.55
122
 photo_cameraImage coming soon 3653430 Spring €15.24
123
 photo_cameraImage coming soon 3613510 Throttle shutter Shaft Lever €0.11 Not available for order
124
 photo_cameraImage coming soon 2652540 Screw €0.11 Not available for order
125
 photo_cameraImage coming soon 3748600 Fitting €6.42
126
 photo_cameraImage coming soon 3653360 Screw €4.21
127
 photo_cameraImage coming soon 2653240 Screw €0.11 Not available for order
128
 photo_cameraImage coming soon 2653500 Screw €7.15
129
 photo_cameraImage coming soon 2653510 Screw €17.13
130
 photo_cameraImage coming soon 3654470 Spring €4.16
131
 photo_cameraImage coming soon 3180130 Ball €0.11 Not available for order
132
 photo_cameraImage coming soon 3653380 Spring €0.11 Not available for order
133
 photo_cameraImage coming soon 3613500 Air shutter €0.11 Not available for order
134
 photo_cameraImage coming soon 3642270 shutter rod Air €17.74
135
 photo_cameraImage coming soon 3351060 clip €1.62
136
 photo_cameraImage coming soon 3611410 Anti-vibration Spring Cap €2.23
137
 photo_cameraImage coming soon 3643260 Valve €15.56
138
 photo_cameraImage coming soon 2652400 Screw €0.00 Not available for order
139
 photo_cameraImage coming soon 3640820 Pin balance €10.20
140
 photo_cameraImage coming soon 3654060 Spring €4.78
141
 photo_cameraImage coming soon 3611370 Barbell €0.00 Not available for order
142
 photo_cameraImage coming soon 3630470 Needle Valve €10.96
145
 photo_cameraImage coming soon 3611380 Cover €36.42
146
 photo_cameraImage coming soon 2653260 Screw €4.95
147
 photo_cameraImage coming soon 8723340 Kit Membrane-Gaskets Carb. €0.11 Not available for order
155
 photo_cameraImage coming soon 3721570 Ring Or €0.11 Not available for order
156
 photo_cameraImage coming soon 3750350 limiter €17.75
157
 photo_cameraImage coming soon 3750360 Limit caps €4.95

Shipping and delivery information will be available shortly.

Alpina Spare Parts for Chain Saw P 700 S B/C (2005) 1268011

We are ALPINA original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Chain Saw P 700 S B/C (2005) 1268011.

In the following table, look for the model of the Chain Saw and the respective parts of the code.
Alpina P 700 S B/C 2005 1268011

ALPINA P 700 S B/C (2005) 1268011 Pag.1
# Part Num. Description
1 4561730 Air Conveyor
2 2135030 Screw
3 2312090 Washer
4 3210640 Electronic coil -> 3210670
5 4250960 Ass. Oil Cap
6 3721330 O-Ring
7 3748910 Oil Cap Retention
8 2412100 Nut
9 2350040 Washer
10 3749990 Starter POWL - DISCONTINUED
11 3653790 Spring
12 4250040 Ass. Flywheel - DISCONTINUED
13 3121190 Seal ring
14 2135040 Screw
15 3744130 Anti-vibration rubber
16 2950040 Rivet
17 8520800 Engine Carter
18 3210830 Ground cable
19 2321150 Washer
20 8749380 Ass. Stop switch
21 2312280 Washer
23 3744190 Anti-vibration rubber
24 3112260 Ball bearing
25 3114160 Needle Bearing
26 3151050 Flywheel Tab
27 8152990 Crankshaft Kit
28 3112040 Ball bearing
29 2653140 Screw
30 3624220 Oil Delivery Tube
31 3180060 Plug
32 3640090 Tube
33 4253720 Ass. Oil Vent Pipe
34 3641740 Pin
35 3641750 Pin
36 3351050 clip
37 2312010 Washer
38 3653710 Spring
39 3642230 Pin
40 3314150 Plug
42 3170060 Plunger P.O. Adjustable
43 3654160 Plunger spring
44 3612340 Washer
45 3630380 Cylinder Oil Pump Adjustable
46 3781330 Oil filter
47 4251250 Ass. Pump Grommet
48 8630381 Ass. Adjustable Oil Pump
49 2135180 Screw
50 3749400 Chain catcher
51 2135060 Screw
52 3749410 Lower Chain Shoe
53 2132470 Screw
54 2135050 Screw
55 3121120 Seal ring
56 2312120 Washer
57 3L3749500/1 Brake Protection
58 3749640 Oil Pump Protection
59 3749121 Screw
60 3612630 Washer
61 2370030 Washer
62 2112570 Screw
64 4251020 Clutch Assy
65 4121460 Clutch Drum
66 3114150 Needle Bearing
67 3615040 Washer
69 3613130 Brake band
70 3314070 Plug
71 3314090 Plug
72 3612930 Brake Mesh
73 3612920 Brake Band Lever
74 8612930 Brake Mesh With Rivets
75 4251267 Ass. Handle Guard Brake Lever
76 3351010 Washer
77 3749420 Chain tensioner brake
78 3630480 Tensioner block
79 8652211 Assy Chain tensioner
80 3612940 Inner Bar Base Plate
81 2135020 Screw
82 3L4611910/1 Spiked Bumper - DISCONTINUED
83 4121840 Muffler
84 3723900 Muffler gasket
85 2461030 Square Nut
86 2135150 Screw
87 3723880 Cylinder gasket - DISCONTINUED
88 3356070 Circlip
89 3158170 Piston pin
90 3123120 Piston Ring  - DISCONTINUED
92 8541410 Ass.y Piston
93 3L4252080/2 decompressor
94 8541400 Ass.y Cylinder - Piston
95 3210024 Spark Plug
96 3211080 Coil cable
97 3657050 Spark Plug Spring
98 4251160 Ass. Spark Plug Cap
99 3744570 Intake Manifold
100 3613270 Bushing
101 3657140 Cable tie
102 8782590 Ass. Pulse tube
103 8251240 Carburetor Support
104 3723910 Carburetor Seal
105 4253980 Carburetor
106 3660590 Intake manifold
107 2135250 Screw
108 3654020 Spring
109 3743367 Lever
110 4251100 Throttle tie rod
112 3653970 Brake Spring
148 8723890 Gaskets series
149 3785030 Thermal spacer
150 3320180 Cable tie
151 3320197 Stop clamp
152 2123030 Screw
153 2317130 Washer
154 2360060 Washer
ALPINA P 700 S B/C (2005) 1268011 pag.2
3 2172100 Screw
4 3749370 Pulley Protection
5 2123090 Screw
6 4610390 Starter Spring
7 3784020 Starter cable
8 4561380 Starter Pulley
9 2312300 Washer
10 2412170 Nut
11 3749437 Starter handle
12 2382250 Bushing
13 4251137 Yellow Starter Ass
14 2135040 Screw
15 3721300 O-Ring
16 3748910 Oil Cap Retention
17 4250950 Ass.y Tank Cap
18 2123030 Screw
19 2123140 Screw
20 2123150 Screw
21 4251040 Ass.y Oil Filter
22 3745590 Grommet
23 3782700 Tube Mix
24 3320170 Clamp
26 4253580 Fuel Venting Tube
27 383300005/0 Ass.y Gray Handle
28 3743327 Safety Lever
29 3314140 Plug
30 3653890 Spring
31 2382100 Bushing
32 3743317 Throttle lever
33 3744130 Anti-vibration rubber
34 4251017 Handrail
35 2135060 Screw
36 3745490 Grommet
38 3613360 Spring
39 3749527 Heating Controller
40 3744770 Membrane
41 8252750 Cylinder Cover Yellow
44 8781520 Ass. Air Filter
45 2653190 Screw
49 8564070 filter cover Yellow
50 2950010 Rivet
51 3613290 External Bar Base Sheet
52 3749650 External Skid Chain
53 2670270 Nut
55 4154580 Ass.y Clutch Carter Yellow
56 4112390 20inch guide bar
57 4113383 20inch chain
58 4181497 18inch cover
75 3786180 Air Purge Return Tube
76 3786170 Air Purge Return Tube
77 4253880 Bulb
105 4253980 Carburetor
113 2652440 Screw
114 3660440 Pump Cover
117 3781210 Fuel Filter
118 2653250 Screw
119 3613480 Throttle shutter
120 3642260 Throttle shutter rod
121 3748620 Plastic Bushing
122 3653430 Spring
123 3613510 Throttle shutter Shaft Lever
124 2652540 Screw
125 3748600 Fuel Outlet Socket
126 3653360 Screw
127 2653240 Screw
128 2653500 Screw
129 2653510 Screw
130 3654470 Spring
131 3180130 Ball
132 3653380 Spring
133 3613500 Air shutter
134 3642270 shutter rod Air
135 3351060 clip
136 3611410 Anti-vibration Spring Cap
137 3643260 Valve
138 2652400 Screw
139 3640820 Pin
140 3654060 Spring
141 3611370 Barbell
142 3630470 Needle Valve
145 3611380 Cover
146 2653260 Screw
147 8723340 Kit Membrane-Gaskets Carb.
155 3721570 Ring Or
156 3750350 limiter
157 3750360 Limit caps
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina P700 S B/C 2005 1268011
12 Items

Data sheet

SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Chain Saw
CHECK S/N ALPINA
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Drawing Alpina P 700

Drawing Alpina P 700

Download (417.56KB)

You might also like

Stop Switch for Chainsaws Alpina A 3700-C 38
HiKOKI Power Tools Italia S.p.a. SKU: 118800202/0
Stop Switch for Chainsaws Alpina A 3700-C 38
Stop Switch for Chainsaws Alpina A 3700-C 38 Original parts Alpina, Stop Switch 02.05.16 - RDC for Chainsaws Alpina A 3700 - C 38 - C 41 - Castor CP 3740 - CP 40 Part for the following products: - Chainsaw Alpina A...
AVAILABLE €1.82
Details
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
GGP Italy SKU: 2135030
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J
Srew TX M5X20 2009 for Brushcutter Alpina TB 250 J Original parts Alpina, Srew TX M5X20 2009 for Brushcutters Alpina TB 250 J/286120100-13-2017 - B 26 J/287120100-15-2017 Part for the following products: - Brushcutter Alpina TB 250...
AVAILABLE €1.40
Details
Tightener Screw for Chainsaws Alpina C 38 - C 41
GGP Italy SKU: 118801067/0
Tightener Screw for Chainsaws Alpina C 38 - C 41
Tightener Screw for Chainsaws Alpina C 38 - C 41 Original part Alpina, Tightener Screw for Chainsaws Alpina C 38/203714000-11-2017 - C 41/204016000-11-2017 - Castor CP 40/204016001/ALP-2012 Part for the following products: - Chainsaw...
AVAILABLE €1.67
Details
Tension Gear for Chainsaws Alpina C 38 - C 41
GGP Italy SKU: 118801066/0
Tension Gear for Chainsaws Alpina C 38 - C 41
Tension Gear for Chainsaws Alpina C 38 - C 41 Original part Alpina, Tension Gear for Chainsaws Alpina C 38/203714000-11-2017 - C 41/204016000-11-2017 - Castor CP 40/204016001/ALP-2012 - Castor CP 40/204016001/ALP-2012 Part for the...
AVAILABLE €5.19
Details
Tension Block for Chainsaws Alpina C 38 - C 41
GGP Italy SKU: 118801065/0
Tension Block for Chainsaws Alpina C 38 - C 41
Tension Block for Chainsaws Alpina C 38 - C 41 Original part Alpina, Tension Block for Chainsaws Alpina C 38/203714000-11-2017 - C 41/204016000-11-2017 - Castor CP 40/204016001/ALP-2012 Part for the following products: - Chainsaw...
AVAILABLE €1.33
Details
Oil Pump for Chainsaw Alpina C 50
GGP Italy SKU: 118550560/0
Oil Pump for Chainsaw Alpina C 50
Oil Pump for Chainsaw Alpina C 50 Genuine part Alpina, Oil Pump for Chainsaw Alpina C 50/205020000-11-2017 Part for the following products: -  Chainsaw Alpina C 50/205020000-11-2017 -  Motosega A 455 (2018)...
AVAILABLE €23.80
Details
Oil Tube for Chainsaw Alpina C 50
GGP Italy SKU: 118550559/0
Oil Tube for Chainsaw Alpina C 50
Oil Tube for Chainsaw Alpina C 50 Genuine part Alpina, Oil Tube for Chainsaw Alpina C 50/205020000-11-2017 Part for the following products: - Chainsaw Alpina C 50/205020000-11-2017 - Code: 118550559/0
AVAILABLE €5.11
Details
Oil Pump Nozzle for Chainsaw Alpina C 50
GGP Italy SKU: 118550561/0
Oil Pump Nozzle for Chainsaw Alpina C 50
Oil Pump Nozzle for Chainsaw Alpina C 50 Genuine part Alpina, Oil Pump Nozzle for Chainsaw Alpina C 50/205020000-11-2017 Part for the following products: - Chainsaw Alpina C 50/205020000-11-2017 - Code: 118550561/0
AVAILABLE €3.84
Details
Spiked Bumper for Chainsaws Alpina - castor - Stiga
GGP Italy SKU: 118550596/0
Spiked Bumper for Chainsaws Alpina - castor - Stiga
Spiked Bumper for Chainsaws Alpina - castor - Stiga Genuine part Alpina, Spiked Bumper for Chainsaws Alpina A 305 - C 25 - A 2500 - A 3700 - C 38 - C 41 - C 50 Part for the following products: - Chainsaw Alpina A 305/202510020-2017 -...
AVAILABLE €2.94
Details
Oil Tank Cap Ass'y for Chainsaw Alpina C 38
HiKOKI Power Tools Italia S.p.a. SKU: 118800762/0
Oil Tank Cap Ass'y for Chainsaw Alpina C 38
Oil Tank Cap Ass'y for Chainsaw Alpina C 38 Original part Alpina, Oil Tank Cap Ass'y for Chainsaws Alpina C 38/203714000-11-2017 - C 41/204016000-11-2017 - C 50/205020000-11-2017 - Stiga SP 375/203714002-11-2017 Part for the following...
AVAILABLE €3.38
Details
Mix Cap Ass'y for Chainsaws Alpina C 38 - C 41 - C 50
GGP Italy SKU: 118800761/0
Mix Cap Ass'y for Chainsaws Alpina C 38 - C 41 - C 50
Mix Cap Ass'y for Chainsaws Alpina C 38 - C 41 - C 50 Genuine part Alpina, Cap Ass'Y Mix for Chainsaws Alpina C 38 - C 41 - C 50 - Castor CP 40 - Stiga SP 375 - SP 405 Part for the following products: - Chainsaw Alpina C...
AVAILABLE €3.78
Details
Worm Screw for Chainsaw Alpina C 50
GGP Italy SKU: 118550567/0
Worm Screw for Chainsaw Alpina C 50
Worm Screw for Chainsaw Alpina C 50 Genuine part Alpina, Worm Screw for Chainsaw Alpina C 50/205020000-11-2017 Part for the following products: -  CHAINSAW ALPINA C 50/205020000-11-2017 -...
AVAILABLE €2.73
Details
Tank Balancer Grommet for Chainsaws Alpina C 38 - C 41 - C 50
GGP Italy SKU: 118800744/0
Tank Balancer Grommet for Chainsaws Alpina C 38 - C 41 - C 50
Tank Balancer Grommet for Chainsaws Alpina C 38 - C 41 - C 50 Genuine part Alpina, Tank Balancer Grommet for Chainsaws Alpina C 38 - C 41 - C 50 - Castor CP 40 - Stiga SP 375 - SP 405 Part for the following products: -- Chainsaw...
AVAILABLE €1.67
Details
Stud Guide for Chainsaw Alpina C 50
GGP Italy SKU: 118801154/0
Stud Guide for Chainsaw Alpina C 50
Stud Guide for Chainsaw Alpina C 50 Genuine part Alpina, Stud Guide for Chainsaw Alpina C 50/205020000-11-2017. Part for the following products: - Chainsaw Alpina C 50/205020000-11-2017 - Code: 118801154/0
AVAILABLE €1.42
Details
Dust Shield for Chainsaw Alpina C 50
GGP Italy SKU: 118801136/0
Dust Shield for Chainsaw Alpina C 50
Dust Shield for Chainsaw Alpina C 50 Genuine part Alpina, Dust Shield for Chainsaw Alpina C 50/205020000-11-2017. Part for the following products: - Chainsaw Alpina C 50/205020000-11-2017 - Code: 118801136/0
AVAILABLE €1.42
Details
M8 Chain Bar Stud for Chainsaw Alpina
GGP Italy SKU: 118550593/0
M8 Chain Bar Stud for Chainsaw Alpina
M8 Chain Bar Stud for Chainsaw Alpina Original part Alpina, M8 Chain Bar Stud for Chainsaws C 38 - C 41 - C 50 - A 3700 - Castor CP 3740 - CP 40 - Stiga SP 375 - SP 405. Part for the following products: - Chainsaw Alpina C 41 -...
AVAILABLE €1.40
Details
Brake Band for Chainsaw Alpina C 50
GGP Italy SKU: 118800165/0
Brake Band for Chainsaw Alpina C 50
Brake Band for Chainsaw Alpina C 50 Genuine part Alpina, Brake Band for Chainsaw Alpina C 50/205020000-11-2017. Part for the following products: - Chainsaw Alpina C 50/205020000-11-2017 -...
AVAILABLE €5.17
Details
Air Filter Knob for Chainsaw Alpina C 50
GGP Italy SKU: 118801156/0
Air Filter Knob for Chainsaw Alpina C 50
Air Filter Knob for Chainsaw Alpina C 50 Genuine part Alpina, Air Filter Knob for Chainsaw Alpina C 50/205020000-11-2017. Part for the following products: -  Chainsaw Alpina C 50/205020000-11-2017 -  Chainsaw Alpina A 455 - 204518000...
AVAILABLE €2.66
Details
Air Filter Ass'y for Chainsaw Alpina C 50
GGP Italy SKU: 118550574/0
Air Filter Ass'y for Chainsaw Alpina C 50
Air Filter Ass'y for Chainsaw Alpina C 50 Genuine part Alpina, Air Filter Ass'y for Chainsaw Alpina C 50/205020000-11-2017. Part for the following products: -  Chainsaw Alpina C 50/205020000-11-2017...
AVAILABLE €7.30
Details
Cylinder Gasket for Chainsaw Alpina C 50
GGP Italy SKU: 118550551/0
Cylinder Gasket for Chainsaw Alpina C 50
Cylinder Gasket for Chainsaw Alpina C 50 Genuine replacement part Alpina, Cylinder Gasket for Chainsaw Alpina C 50/205020000-11-2017 - A 505 (2018) 205020000. Part for the following products: - Chainsaw...
AVAILABLE €1.42
Details
Needle Bearing Washer for Chainsaw Alpina C 50
GGP Italy SKU: 118550555/0
Needle Bearing Washer for Chainsaw Alpina C 50
Needle Bearing Washer for Chainsaw Alpina C 50 Genuine replacement part Alpina, Needle Bearing Washer for Chainsaw Alpina C 50/205020000-11-2017 - A 505 (2018) 205020000. Part for the following products: - Chainsaw Alpina A 455 (2018)...
AVAILABLE €2.35
Details
Chain Bar Nut for Chainsaws Alpina A 3700-C 38-C 41
HiKOKI Power Tools Italia S.p.a. SKU: 118800186/0
Chain Bar Nut for Chainsaws Alpina A 3700-C 38-C 41
Chain Bar Nut for Chainsaws Alpina A 3700-C 38-C 41 Original part Alpina, Chain Bar Nut for Chainsaws Alpina A 3700 - C 38 - C 41 - Castor CP 3740 - CP 40. Part for the following products: - Chainsaw Alpina A 3700/228114000-10-2017 -...
AVAILABLE €1.54
Details
Muffler Sealing Plate for Chainsaws Alpina C 46 - C 50
HiKOKI Power Tools Italia S.p.a. SKU: 118550547/0
Muffler Sealing Plate for Chainsaws Alpina C 46 - C 50
Muffler Sealing Plate for Chainsaws Alpina C 46 - C 50 Original part Alpina, Muffler Sealing Plate for Chainsaws Alpina C 46 - C 50 - A 455 - A 505. Part for the following products: -  Chainsaw Alpina C 46 -  Chainsaw Alpina C 50 -...
AVAILABLE €1.42
Details
Electronic Coil for Chainsaws Alpina C 46 - C 50
HiKOKI Power Tools Italia S.p.a. SKU: 118550579/0
Electronic Coil for Chainsaws Alpina C 46 - C 50
Electronic Coil for Chainsaws Alpina C 46 - C 50 Original part Alpina, Electronic Coil for Chainsaws Alpina C 46 - C 50 - A 455 - A 505. Part for the following products: - Chain Saw Alpina C 46 - Chain Saw Alpina C...
on 7/10 Business Days Approx €33.91
Details
Piston for Chainsaw Alpina A 4500
HiKOKI Power Tools Italia S.p.a. SKU: 118800218/0
Piston for Chainsaw Alpina A 4500
Piston for Chainsaw Alpina A 4500 Original replacement part Alpina, Piston for Chainsaws Alpina A 4500 - C 46 - A 455. Part for the following products: -  Chain Saw Alpina A 4500 (2012) 228318000 - Chain Saw Alpina C 46 - Chain Saw...
AVAILABLE €20.61
Details
Screw TX 5X18 TB Flanged for Chainsaws Alpina
GGP Italy SKU: 123878024/0
Screw TX 5X18 TB Flanged for Chainsaws Alpina
Screw TX 5X18 TB Flanged for Chainsaws Alpina Original replacement part Alpina, Screw TX 5X18 Self Tapping TB Flanged MS 4022009 for Chainsaws C 38 - C 41 - C 50 - A 405 - A 455 - A 505 - C 46. Part for the following products: -...
AVAILABLE €1.40
Details
Clutch Drum Assy for Chainsaw Alpina A 4500
HiKOKI Power Tools Italia S.p.a. SKU: 118550565/0
Clutch Drum Assy for Chainsaw Alpina A 4500
Clutch Drum Assy for Chainsaw Alpina A 4500 Original replacement part Alpina, Clutch Drum Assy for Chainsaws Alpina A 4500 - A 455 - A 505 - C 50. Part for the following products: - Chain Saw Alpina A 4500 (2012) 228318000/RU - Chain...
AVAILABLE €24.15
Details
Sprocket 325" for Chainsaw Alpina A 4500
HiKOKI Power Tools Italia S.p.a. SKU: 118550566/0
Sprocket 325" for Chainsaw Alpina A 4500
Sprocket 325" for Chainsaw Alpina A 4500 Original replacement part Alpina, Sprocket 325" for Chainsaws Alpina A 4500 - A 455 - A 505 - C 50. Part for the following products: - Chain Saw Alpina A 4500 (2012) 228318000/RU - Chain Saw...
AVAILABLE €12.57
Details
Elastic Ring mm 35 for Chainsaws Alpina P 402 - P 420
GGP Italy SKU: 6995255
Elastic Ring mm 35 for Chainsaws Alpina P 402 - P 420
Elastic Ring mm 35 for Chainsaws Alpina P 402 - P 420 Original replacement part Alpina, Elastic Ring mm 35 for Chainsaws P 402 - P 420.  Part for the following products: - Chainsaw ALPINA P 402 S (2010) 223614000/08 -  Chainsaw ALPINA...
AVAILABLE €1.42
Details
Chain Catcher for Chainsaw Alpina P 450
GGP Italy SKU: 3749400
Chain Catcher for Chainsaw Alpina P 450
Chain Catcher for Chainsaw Alpina P 450 Original replacement part Alpina, Chain Catcher for Chainsaws P 450 - P 460 - P 500 - P 700 S B/C. Part for the following products: - Chainsaw Alpina P 450 (2004) 224618000/04 - Chainsaw Alpina...
AVAILABLE €1.42
Details
Oil Pump Grommet Ass'y for Chainsaw Alpina P 700
GGP Italy SKU: 4251250
Oil Pump Grommet Ass'y for Chainsaw Alpina P 700
Oil Pump Grommet Ass'y for Chainsaw Alpina P 700 Genuine part Alpina, Oil Pump Grommet Ass'y for Chainsaw Alpina P 700 S B/C (2005) 1268011. Part for the following products: - Chainsaw Alpina P 700 S B/C (2005) 1268011 - P 700 20...
Out-of-Stock €0.00
Details
Primer Pump for Chainsaw Alpina P 660
GGP Italy SKU: 4253880
Primer Pump for Chainsaw Alpina P 660
Primer Pump for Chainsaw Alpina P 660 Original replacement part Alpina, Primer Pump (Air Purge) for Chainsaws P 660 - P 700 S B/C - Castor CP 660. Part for the following products: -  Motosega P 660 (2006) 126220000 -  Motosega P 700...
on 7/10 Business Days Approx. €19.69
Details
Seal Ring 15x27x55.5 for Chainsaw Alpina P 450
GGP Italy SKU: 3121120
Seal Ring 15x27x55.5 for Chainsaw Alpina P 450
Seal Ring 15x27x55.5 for Chainsaw Alpina P 450 Original spare part Alpina, Seal Ring 15x27x55.5 for Chainsaws Alpina P 450 - P 460 - P 500 - P 522 S. Part for the following products:...
on 7/10 Business Days Approx €14.53
Details
Comments (0)
No customer reviews for the moment.
