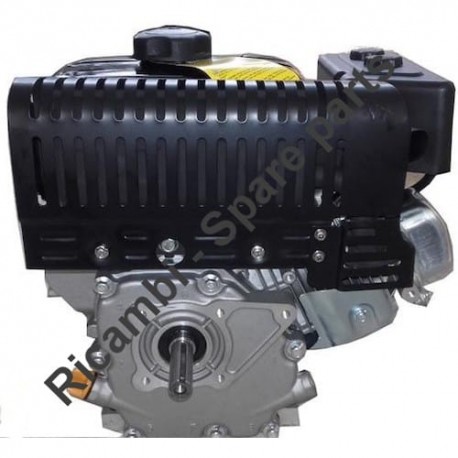

ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

SKU: TM 60 - LC165F - 118551353/0
€1.83
VAT included

ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

ALPINA ST. S.P.A. authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine ST. S.P.A. TM 60 - LC165F (2016) 118551353/0.
ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0
  • ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0
  • ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0
  • ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

SKU: TM 60 - LC165F - 118551353/0 Condition: New
€1.83
VAT included

ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

ALPINA ST. S.P.A. authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine ST. S.P.A. TM 60 - LC165F (2016) 118551353/0.
settings 88 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

70 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
3
photo_cameraImage coming soon 112154210/0 Nut €1.78
4
photo_cameraImage coming soon 118551190/0 Muffler gasket €2.46
5
photo_cameraImage coming soon 112793102/0 Screw €1.64
13
photo_cameraImage coming soon 118550456/0 Vent pipe €3.51
14
photo_cameraImage coming soon 118550806/0 Nut €1.63
16
photo_cameraImage coming soon 118550861/0 Screw €1.48
21
photo_cameraImage coming soon 118551193/0 Starter Ass €47.17
24
photo_cameraImage coming soon 118551171/0 Cover €35.40
26
photo_cameraImage coming soon 118550336/0 Nut €6.07
27
photo_cameraImage coming soon 118551194/0 Starter Cup €9.13
28
photo_cameraImage coming soon 118551169/0 Starter Cup €8.41
29
photo_cameraImage coming soon 118550489/0 Flywheel Ass.Y €79.91
30
Ignition Coil for Engine ST. S.P.A. TM 60 - LC165F 118551195/0 Ignition Coil for Engine ST. S.P.A. TM 60 - LC165F €41.74
32
photo_cameraImage coming soon 9400-0289-01 Spark Plug (Rn9Yc) €5.37
35
photo_cameraImage coming soon 118550810/0 Spring €1.41
36
photo_cameraImage coming soon 118550811/0 Screw €1.41
37
photo_cameraImage coming soon 118550808/0 Spring €1.42
38
photo_cameraImage coming soon 118550807/0 Lever Command Acc. €3.97
39
photo_cameraImage coming soon 118550805/0 Screw €1.63
41
photo_cameraImage coming soon 118551178/0 Throttle rod €2.20
42
photo_cameraImage coming soon 118550492/0 Spring €2.20
43
photo_cameraImage coming soon 112791500/0 Screw €1.64
44
photo_cameraImage coming soon 118551183/0 Tank Support €13.25
46
photo_cameraImage coming soon 118550504/0 Fuel pipe €7.04
47
photo_cameraImage coming soon 118550872/0 Hose clamp €1.55
48
photo_cameraImage coming soon 118550500/0 Fuel Tank Hose Connection €7.30
49
photo_cameraImage coming soon 118550501/0 Tank €76.58
50
photo_cameraImage coming soon 118551176/0 Fuel Filter €3.25
51
photo_cameraImage coming soon 118551177/0 Tank cap €8.41
52
photo_cameraImage coming soon 112790781/0 Screw €1.59
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 118550816/0 Screw €1.41
3
photo_cameraImage coming soon 118551163/0 Gasket €4.16
4
photo_cameraImage coming soon 118550273/0 Valve Arm Set €12.92
5
photo_cameraImage coming soon 118550475/0 lifters €3.99
6
photo_cameraImage coming soon 118550474/0 Push Rod €7.56
7
photo_cameraImage coming soon 118550623/0 Valve Lifter €13.32
8
photo_cameraImage coming soon 118551166/0 Valve stop €2.07
9
photo_cameraImage coming soon 118551167/0 Lock €3.25
11
photo_cameraImage coming soon 118551303/0 gasket €5.60
13
photo_cameraImage coming soon 118550798/0 Cylinder head €44.87
15
photo_cameraImage coming soon 118551294/0 seal €12.42
17
photo_cameraImage coming soon 118550460/0 Bolt €3.38
18
photo_cameraImage coming soon 118550793/0 Washer €1.48
21
photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
22
photo_cameraImage coming soon 118550280/0 Ball Bearing €22.85
23
photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
24
photo_cameraImage coming soon 118550617/0 Crankshaft €102.07
25
photo_cameraImage coming soon 118550470/0 Ass. Rod Connection €40.63
26
photo_cameraImage coming soon 118551213/0 Piston €23.01
27
photo_cameraImage coming soon 118550915/0 Piston Pin €5.38
28
photo_cameraImage coming soon 118550914/0 Washer, Piston Pin €1.63
29
Piston Rings Ass'y for Engine Alpina TM 60 118550286/0 Piston Rings Ass'y for Engine Alpina TM 60 €28.71
30
photo_cameraImage coming soon 118550782/0 Crankcase Gasket €9.65
31
photo_cameraImage coming soon 118551161/0 Crankcase Engine €45.86
33
photo_cameraImage coming soon 118551160/0 Oil cap €4.82
34
photo_cameraImage coming soon 118550624/0 Camshaft assy €43.37
35
photo_cameraImage coming soon 118550787/0 Speed Governor Assy €13.97
36
photo_cameraImage coming soon 118550459/0 Shaft, Governor Arm €5.86
38
photo_cameraImage coming soon 118550856/0 Cotter Pin €1.55
41
photo_cameraImage coming soon 118550299/0 Stud €6.20
42
photo_cameraImage coming soon 118551174/0 Carburetor Gasket €1.35
43
photo_cameraImage coming soon 118551175/0 Intake Manifold €3.51
44
photo_cameraImage coming soon 118551173/0 Carburetor Gasket €1.35
45
photo_cameraImage coming soon 118550877/0 Carburetor €72.00
47
photo_cameraImage coming soon 118550482/0 Spacer €12.98
48
photo_cameraImage coming soon 118550454/0 Stud €2.12
51
photo_cameraImage coming soon 118551353/0 Complete Engine €426.18
52
photo_cameraImage coming soon 118550486/0 Valve Float Assy €12.25
53
photo_cameraImage coming soon 118550485/0 Carburator Gaskets Kit €5.08
54
photo_cameraImage coming soon 118550481/0 Air Lever €5.60

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

ST. S.P.A. Spare Parts for Engine TM 60 - LC165F (2016) 118551353/0

ALPINA ST. S.P.A. authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Engine ST. S.P.A. TM 60 - LC165F (2016) 118551353/0.

In the following table, look for the model of the Engine and the respective parts of the code.
TM 60 - LC165F (2016) 118551353/0
ST. S.P.A. TM 60 - LC165F (2016) 118551353/0

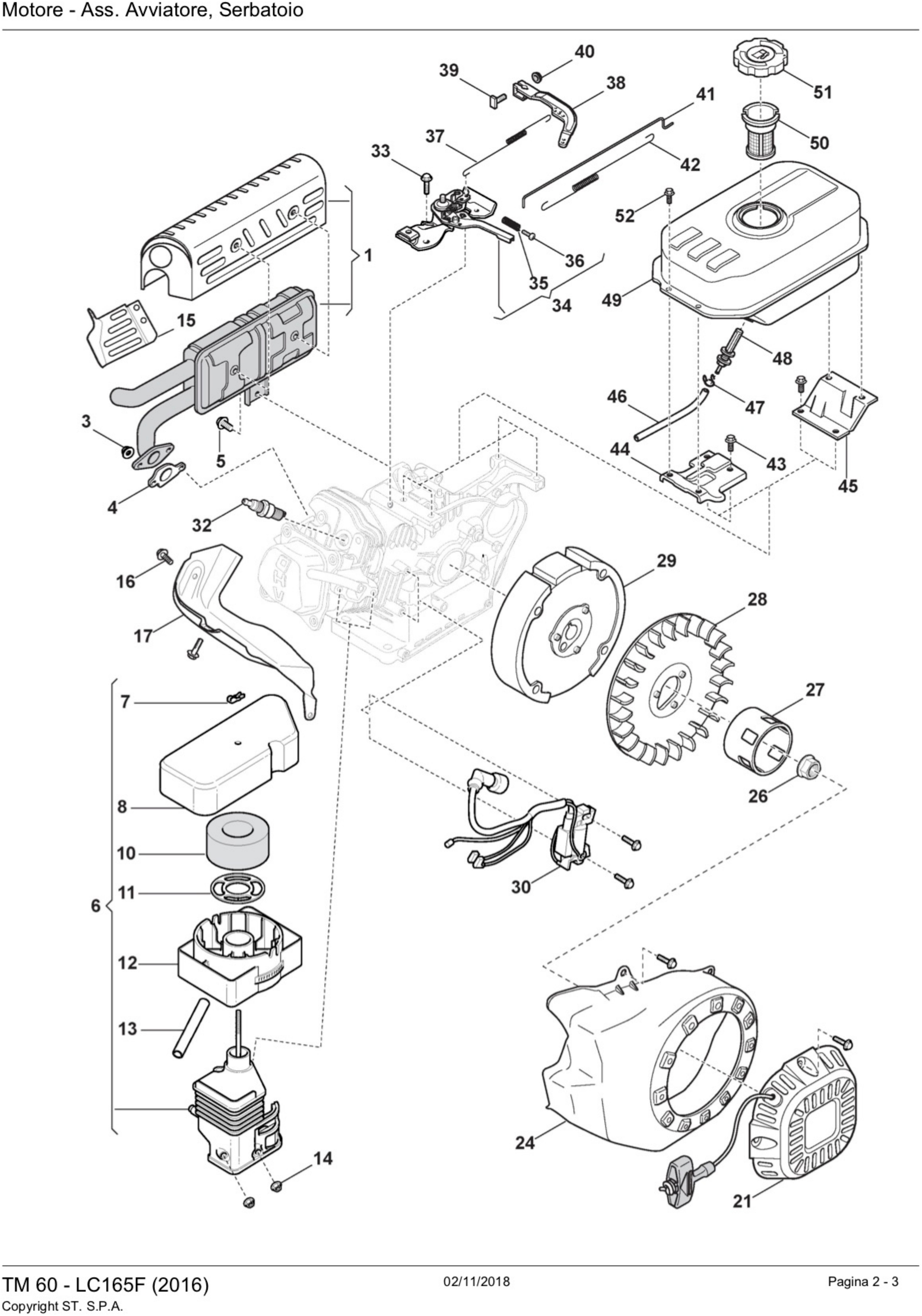

Avviatore Serbatoio Pag.1
# Part Num. Description
1 118550880/0 Muffler
3 112154210/0 Nut
4 118551190/0 Muffler gasket
5 112793102/0 Screw
6 118550879/0 Ass. Air Filter
7 118551281/0 Wing nut
8 118550881/0 Air filter cover
10 118550882/0 Filter Element
11 118550884/0 Air Filter Support
12 118551349/0 Air Filter Base
13 118550456/0 Vent pipe
14 118550806/0 Nut
15 118551191/0 Muffler protection
16 118550861/0 Screw
17 118551170/0 Protection
21 118551193/0 Starter Ass
24 118551171/0 Cover
26 118550336/0 Nut
27 118551194/0 Starter Cup
28 118551169/0 Starter Cup
29 118550489/0 Ass. Flywheel
30 118551195/0 Electronic coil
32 9400-0289-01 Spark Plug (Rn9Yc)
33 118550869/0 Screw
34 118550878/0 Throttle Lever
35 118550810/0 Spring
36 118550811/0 Screw
37 118550808/0 Spring
38 118550807/0 Lever Command Acc.
39 118550805/0 Screw
40 118550806/0 Nut
41 118551178/0 Throttle rod
42 118550492/0 Spring
43 112791500/0 Screw
44 118551183/0 Tank Support
45 118551182/0 Tank Support
46 118550504/0 Fuel pipe
47 118550872/0 Hose clamp
48 118550500/0 Tank Joint
49 118550501/0 Tank
50 118551176/0 Fuel Filter
51 118551177/0 Tank cap
52 112790781/0 Screw
ST. S.P.A. TM 60 - LC165F (2016) 118551353/0 PIstone

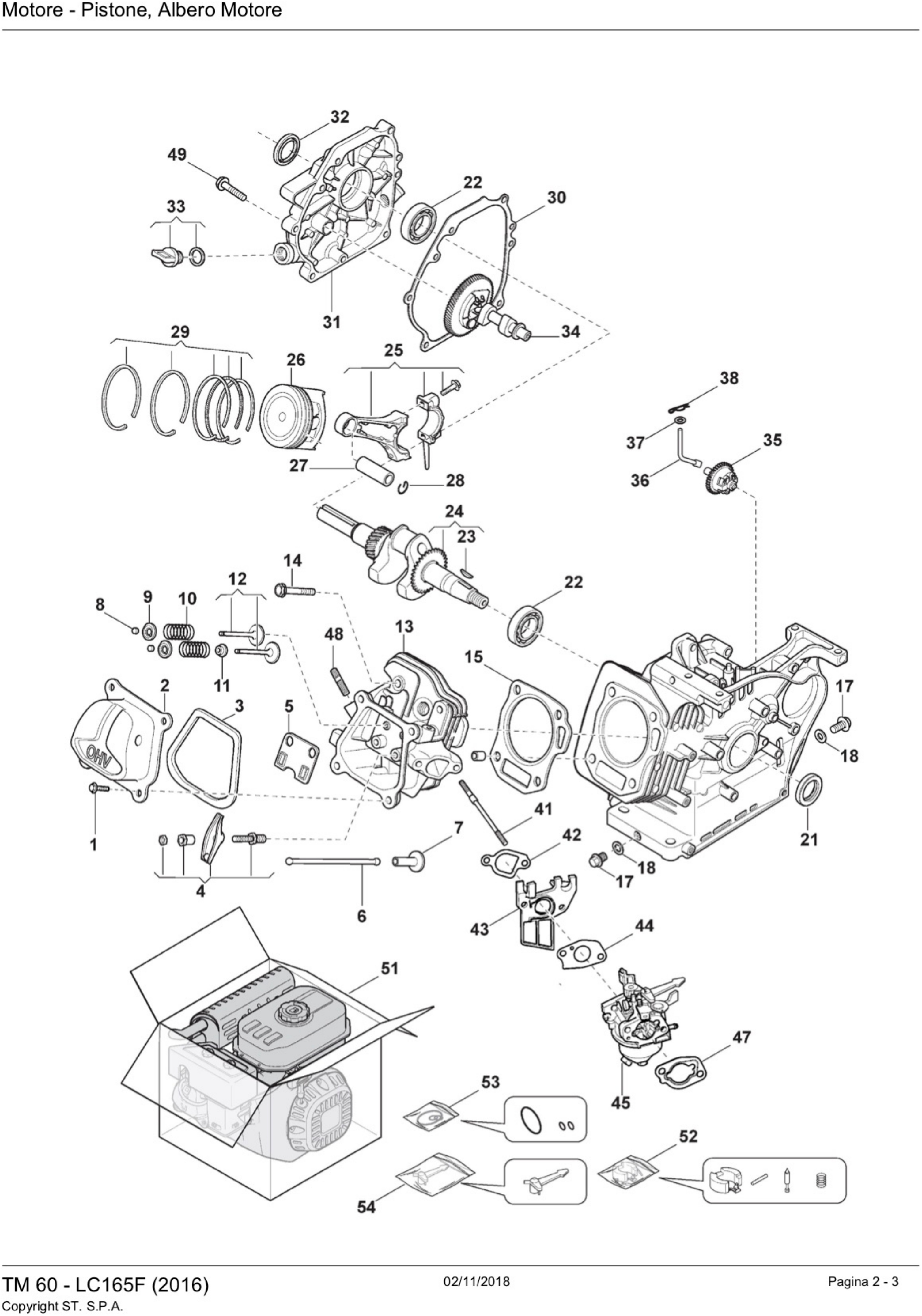

Albero Motore Pag.2
1 118550816/0 Screw
2 118550784/0 Cover
3 118551163/0 Gasket
4 118550273/0 Valve Rocker Set
5 118550475/0 lifters
6 118550474/0 Rod
7 118550623/0 lifters
8 118551166/0 Valve stop
9 118551167/0 Lock
10 118551300/0 Spring
11 118551303/0 gasket
12 118551348/0 Ass. Inlet + Drain Valve
13 118550798/0 Cylinder head
14 118551200/0 Screw
15 118551294/0 seal
17 118550460/0 Bolt
18 118550793/0 Washer
21 118550379/0 Sealing ring
22 118550280/0 Ball bearing
23 118550288/0 Flywheel key
24 118550617/0 Crankshaft
25 118550470/0 Ass. Rod Connection
26 118551213/0 Piston
27 118550915/0 Piston pin
28 118550914/0 Circlip
29 118550286/0 Ass. Piston Ring
30 118550782/0 Crankcase Gasket
31 118551161/0 Crankcase Engine
32 118550379/0 Seal ring
33 118551160/0 Oil cap
34 118550624/0 Cams shaft
35 118550787/0 Regulator Ass
36 118550459/0 Regulator Shaft
37 118550858/0 Washer
38 118550856/0 Pin
41 118550299/0 Stud
42 118551174/0 Carburetor Gasket
43 118551175/0 Intake Manifold
44 118551173/0 Carburetor Gasket
45 118550877/0 Carburetor
47 118550482/0 Spacer
48 118550454/0 Stud
49 118551199/0 Screw
51 118551353/0 Complete Engine
52 118550486/0 Valve Float Assy
53 118550485/0 Carburator Gaskets Kit
54 118550481/0 Air Lever
