GGP Italy

Alpina Spare Parts for Electric Saw C 1.8 E

SKU: C 1.8 E - 292714020-11-2017
€4.71
VAT included

Alpina Spare Parts for Electric Saw C 1.8 E

Fix Your Electric Saw C 1.8 E/292714020-11-2017. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Electric Saw C 1.8 E/292714020-11-2017
Alpina Spare Parts for Electric Saw C 1.8 E
  • Alpina Spare Parts for Electric Saw C 1.8 E
  • Alpina Spare Parts for Electric Saw C 1.8 E
GGP Italy

Alpina Spare Parts for Electric Saw C 1.8 E

SKU: C 1.8 E - 292714020-11-2017 Condition: New
€4.71
VAT included

Alpina Spare Parts for Electric Saw C 1.8 E

Fix Your Electric Saw C 1.8 E/292714020-11-2017. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Electric Saw C 1.8 E/292714020-11-2017
settings 44 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
44 spare parts

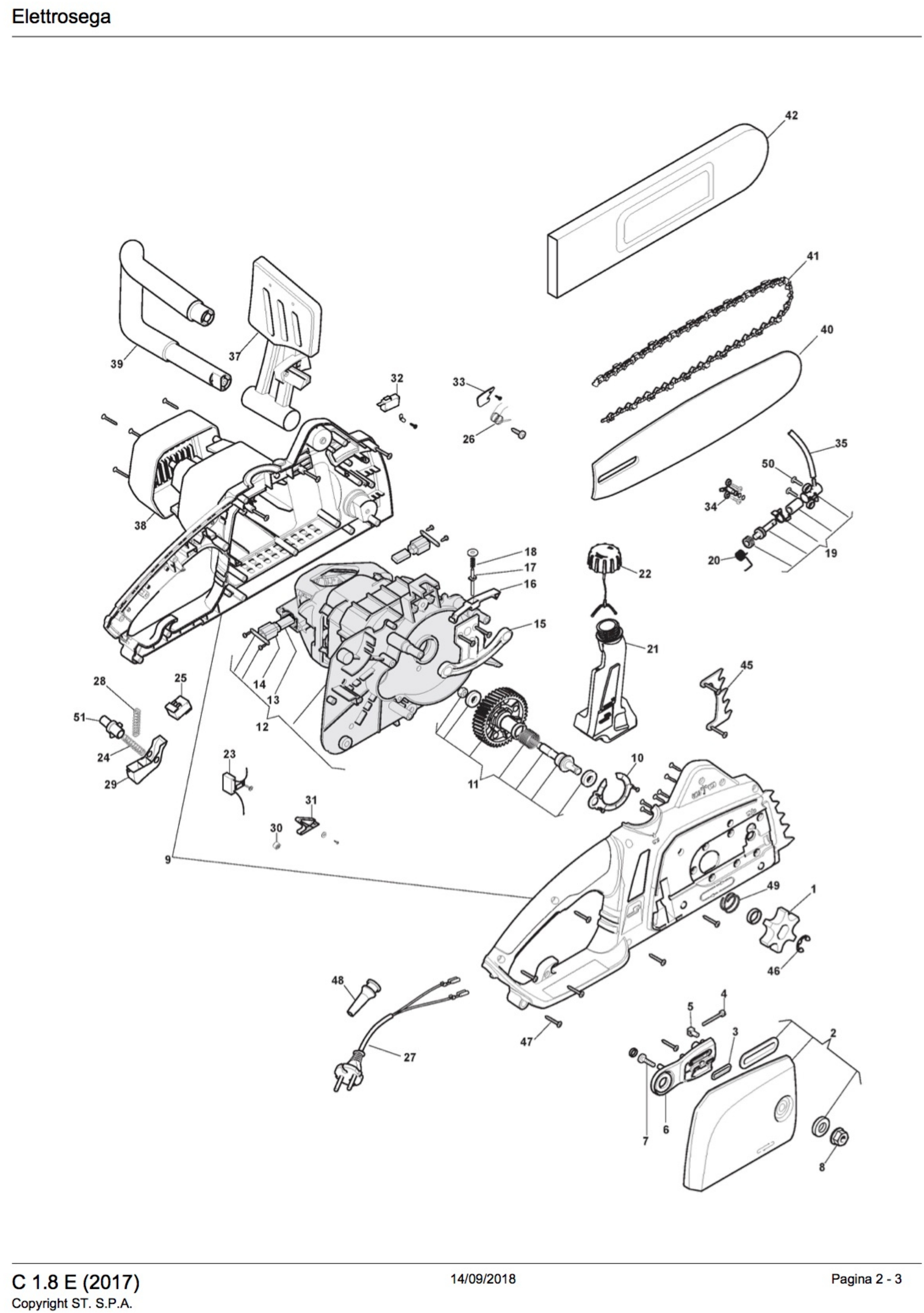

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 118801073/0 Chain Pinion €6.64
2
 photo_cameraImage coming soon 118801116/0 Bar Holder €9.91
3
 photo_cameraImage coming soon 118800809/0 Seal Ring €1.64
4
 photo_cameraImage coming soon 118801118/0 Screw €1.71
5
 photo_cameraImage coming soon 118801119/0 Nut €2.01
6
 photo_cameraImage coming soon 118801076/0 Bar Reinforcement €6.26
7
 photo_cameraImage coming soon 118801077/0 Screw €1.42
8
 photo_cameraImage coming soon 118800468/0 Nut €1.24
10
 photo_cameraImage coming soon 118801072/0 Dust Cover €2.68
11
 Drive Gear Ass'y for Electric Chainsaws Alpina C 1.8 E 118801083/0 Drive Gear Ass'y for Electric Chainsaws Alpina C 1.8 E €24.60
13
 Carbon Brush Set for Electric Chainsaw Alpina C 2.0 ET 118801086/0 Carbon Brush Set for Electric Chainsaw Alpina C 2.0 ET €13.16
14
 photo_cameraImage coming soon 118801088/0 Support €8.60
16
 photo_cameraImage coming soon 118801091/0 Rod €1.68
17
 photo_cameraImage coming soon 118801092/0 Rod €1.91
18
 photo_cameraImage coming soon 118801093/0 Spring €1.91
19
 Oil Pump for Electric Chainsaw Stiga SE 2216 Q 118801070/0 Oil Pump for Electric Chainsaw Stiga SE 2216 Q €17.15
20
 Pump Extension Spring for Electric Chainsaws Alpina C 1.8 E 118801094/0 Pump Extension Spring for Electric Chainsaws Alpina C 1.8 E €1.49
21
 photo_cameraImage coming soon 118801095/0 Fuel Tank €6.09
22
 photo_cameraImage coming soon 118801096/0 Tank Cap €2.33
23
 photo_cameraImage coming soon 118801097/0 Capacitor €4.08
24
 photo_cameraImage coming soon 118801098/0 Spring €1.91
25
 Switch for Electric Chainsaws Alpina C 1.8 E - C 2.0 ET 118801099/0 Switch for Electric Chainsaws Alpina C 1.8 E - C 2.0 ET €13.64
26
 photo_cameraImage coming soon 118801100/0 Spring €1.35
27
 photo_cameraImage coming soon 118801101/0 Cable €7.92
28
 photo_cameraImage coming soon 118801098/0 Spring €1.91
29
 photo_cameraImage coming soon 118801103/0 Switch Lever €1.35
30
 photo_cameraImage coming soon 118801104/0 Pulley €1.35
31
 photo_cameraImage coming soon 118801105/0 Switch Lever €1.35
32
 photo_cameraImage coming soon 118801108/0 Microswitch €6.23
33
 photo_cameraImage coming soon 118801109/0 Plate €1.35
34
 photo_cameraImage coming soon 118801071/0 Pipe Connection €2.02
35
 photo_cameraImage coming soon 118801110/0 Pipe €3.90
37
 photo_cameraImage coming soon 118801113/0 Hand Guard €14.24
38
 photo_cameraImage coming soon 118801114/0 End Cover €4.81
39
 photo_cameraImage coming soon 118801115/0 Handle €7.82
40
 photo_cameraImage coming soon 118800127/0 Chain Bar 14"-3/8"-0,050" €51.14
41
 photo_cameraImage coming soon 1430152-01A Chain 14inch €19.20
42
 photo_cameraImage coming soon 4181297 Chain Cover €3.78
45
 photo_cameraImage coming soon 118801080/0 Spike €1.71
46
 photo_cameraImage coming soon 118800466/0 Snap Ring €1.45
47
 photo_cameraImage coming soon 118800476/0 Screw €1.40
48
 photo_cameraImage coming soon 118800443/0 Cord Protector €1.45
49
 Take-Up Spring for Electric Chainsaws Alpina C 1.8 E 118800819/0 Take-Up Spring for Electric Chainsaws Alpina C 1.8 E €1.75
50
 photo_cameraImage coming soon 118800477/0 Screw €3.75
51
 photo_cameraImage coming soon 118804586/0 Button €1.35

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Electric Saw C 1.8 E

Fix Your Electric Saw C 1.8 E/292714020-11-2017. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Electric Saw and the respective parts of the code.
Electric Saw C 1.8 E/292714020-11-2017

Electric Saw C 1.8 E/292714020-11-2017
# Part Num. Description
1 118801073/0 Chain Pinion
2 118801116/0 Bar Holder
3 118800809/0 Grommet
4 118801118/0 Screw
5 118801119/0 Nut
6 118801076/0 Bar Reinforcement
7 118801077/0 Screw
8 118800468/0 Nut
9 118804934/0 Right Handgrip,Yellow
10 118801072/0 Dust Cover
11 118801083/0 Shaft
12 118800850/1 Electric Engine 2000W
13 118801086/0 Carbon Brush,2000W
14 118801088/0 Support
15 118801090/0 Brake Lever
16 118801091/0 Rod
17 118801092/0 Rod
18 118801093/0 Spring
19 118801070/0 Oil Pump Assy
20 118801094/0 Pump Extension Spring
21 118801095/0 Fuel Tank
22 118801096/0 Tank Cap
23 118801097/0 Capacitor
24 118801098/0 Spring
25 118801099/0 Switch
26 118801100/0 Spring
27 118801101/0 Cable
28 118801098/0 Spring
29 118801103/0 Switch Lever
30 118801104/0 Pulley
31 118801105/0 Switch Lever
32 118801108/0 Microswitch
33 118801109/0 Plate
34 118801071/0 Pipe Connection
35 118801110/0 Pipe
37 118801113/0 Hand Guard
38 118801114/0 End Cover
39 118801115/0 Handle
40 118800127/0 Guide Bar 14inch
41 1430152-01A Chain 14inch
42 4181297 Chain Cover 14inch
45 118801080/0 Spike
46 118800466/0 Snap Ring
47 118800476/0 Screw
48 118800443/0 Cord Protector
49 118800819/0 Take-Up Spring
50 118800477/0 Screw
51 118804586/0 Button
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
C 1.8 E - 292714020-11-2017
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina C 1.8 E

Diagram Alpina C 1.8 E

Download (267.41KB)
