Alpina Spare Parts for Lawn Mower AL5 51 G

SKU: AL5 51 G/299531040-A17-2017
€2.08
VAT included

Alpina Spare Parts for Lawn Mower AL5 51 G

Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower AL5 51 G/299531040-A17-2017.

AL5 51 G/299531040-A17-2017
Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G
  • Alpina Spare Parts for Lawn Mower AL5 51 G

Alpina Spare Parts for Lawn Mower AL5 51 G

SKU: AL5 51 G/299531040-A17-2017 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower AL5 51 G

Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower AL5 51 G/299531040-A17-2017.

AL5 51 G/299531040-A17-2017
settings 214 spare parts
description 12 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

195 spare parts

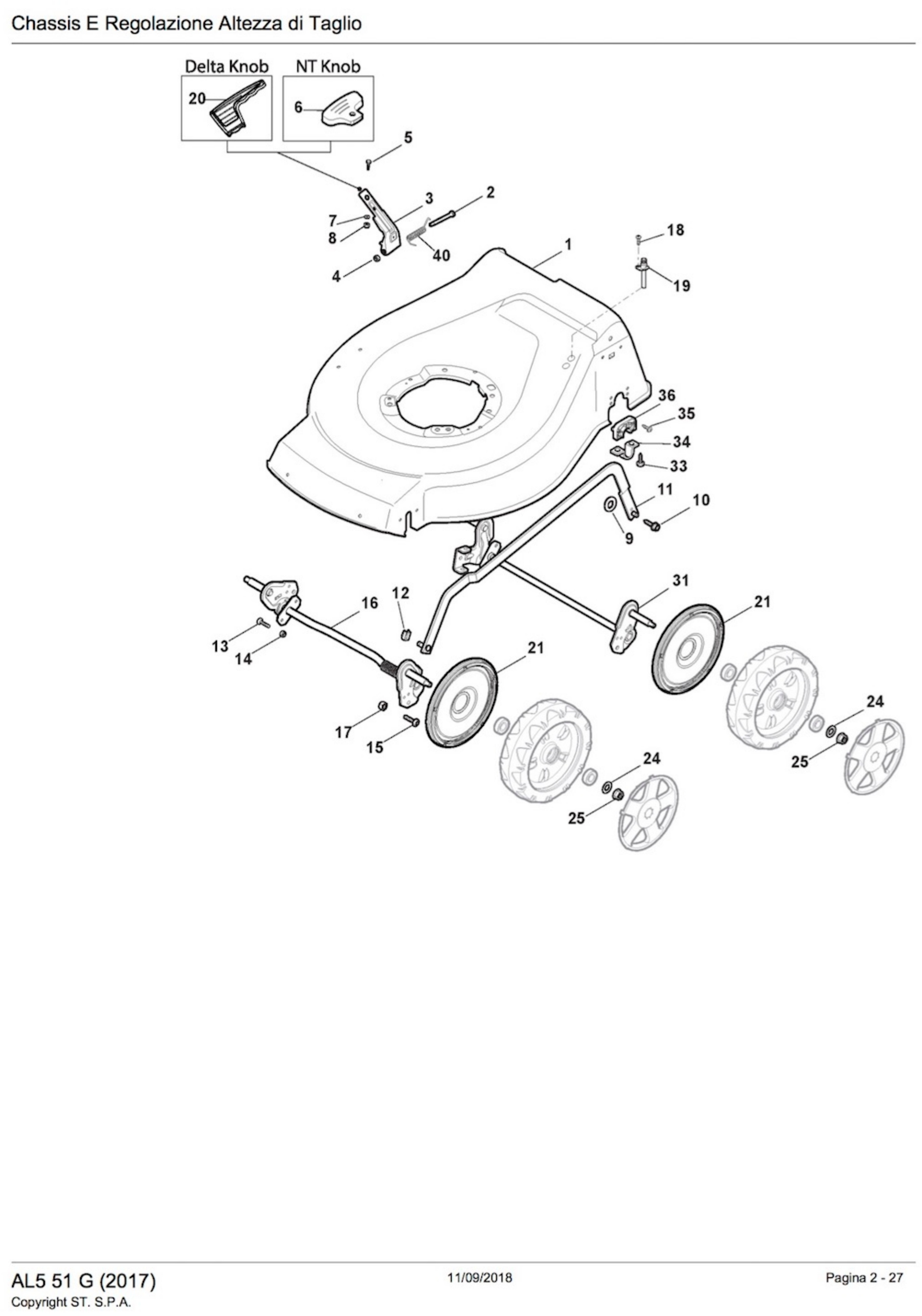

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381003909/0 Red Deck €155.40
1
photo_cameraImage coming soon 381004540/0 Red Deck €155.77
2
Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
3
photo_cameraImage coming soon 322322851/0 Lever, Height Adjustment €4.65
3
photo_cameraImage coming soon 322322857/0 Lever, Height Adjustment €4.52
4
photo_cameraImage coming soon 112154510/0 Nut €1.66
5
photo_cameraImage coming soon 112788512/0 Screw €1.37
6
photo_cameraImage coming soon 322394503/0 Knob €1.62
7
photo_cameraImage coming soon 112521310/0 Washer €1.61
8
photo_cameraImage coming soon 112150000/0 Nut €1.37
9
photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
10
photo_cameraImage coming soon 122943013/0 Screw €3.95
11
photo_cameraImage coming soon 381002031/0 Rod, Height Adjustment €31.87
12
photo_cameraImage coming soon 112436051/0 Plate €1.78
13
photo_cameraImage coming soon 112727803/0 Screw €1.66
14
photo_cameraImage coming soon 112154510/0 Nut €1.66
15
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
16
photo_cameraImage coming soon 381002887/1 Front Wheel Axle €28.64
17
photo_cameraImage coming soon 112154510/0 Nut €1.66
18
photo_cameraImage coming soon 112728450/0 Screw €1.72
19
photo_cameraImage coming soon 322034002/0 Washing Connection €1.76
20
photo_cameraImage coming soon 322394522/0 Knob €7.23
21
photo_cameraImage coming soon 322600145/0 Protection, Wheel €1.91
24
photo_cameraImage coming soon 112521350/0 Washer €1.74
25
photo_cameraImage coming soon 112155000/0 Nut €1.66
31
photo_cameraImage coming soon 381302823/0 Axle, Rear Wheels €57.34
33
photo_cameraImage coming soon 112728697/0 Screw €1.63
34
photo_cameraImage coming soon 322545152/0 Plate €1.66
35
photo_cameraImage coming soon 112728697/0 Screw €1.63
36
photo_cameraImage coming soon 322785304/1 Support €2.00
40
photo_cameraImage coming soon 122446192/0 Spring €2.20
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322226158/0 Mask, Black €4.47
2
photo_cameraImage coming soon 322393642/0 Bumper Handle €3.98
3
photo_cameraImage coming soon 112727799/0 Screw €1.85
4
photo_cameraImage coming soon 112154510/0 Nut €1.66

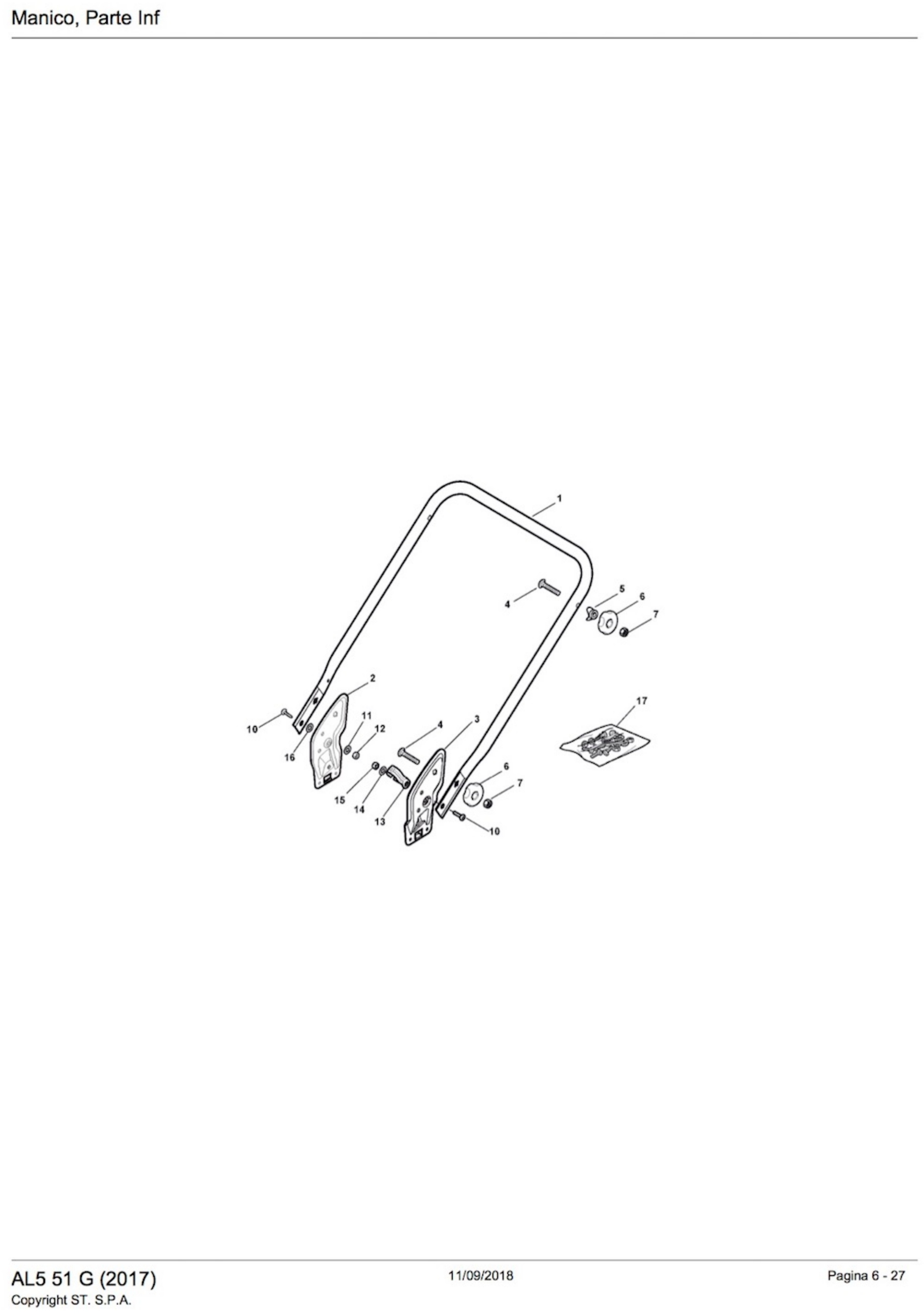

Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006889/0 Handle Lower Part €20.34
1
photo_cameraImage coming soon 381007043/0 Handle Lower Part €21.60
2
photo_cameraImage coming soon 381005125/0 Right Bracket €7.35
2
photo_cameraImage coming soon 381005133/0 Right Bracket €5.66
3
photo_cameraImage coming soon 381005127/0 Left Bracket €8.93
3
photo_cameraImage coming soon 381005135/0 Left Bracket €5.66
4
photo_cameraImage coming soon 112819120/0 Screw €1.47
4
photo_cameraImage coming soon 112819121/0 Screw €2.04
5
photo_cameraImage coming soon 122680006/1 Washer €1.62
6
photo_cameraImage coming soon 322399804/1 Nut From 01-september-2007 €3.28
7
photo_cameraImage coming soon 112293200/0 Nut €1.74
10
photo_cameraImage coming soon 112760605/0 Screw €3.52
11
photo_cameraImage coming soon 112521350/0 Washer €1.74
11
photo_cameraImage coming soon 125038002/1 Bushing €2.10
12
photo_cameraImage coming soon 112155000/0 Nut €1.66
13
photo_cameraImage coming soon 322192156/0 Clip €1.37
14
photo_cameraImage coming soon 112523040/0 Washer €1.63
15
photo_cameraImage coming soon 112154510/0 Nut €1.66
16
photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
17
photo_cameraImage coming soon 381008686/0 Screw €7.23

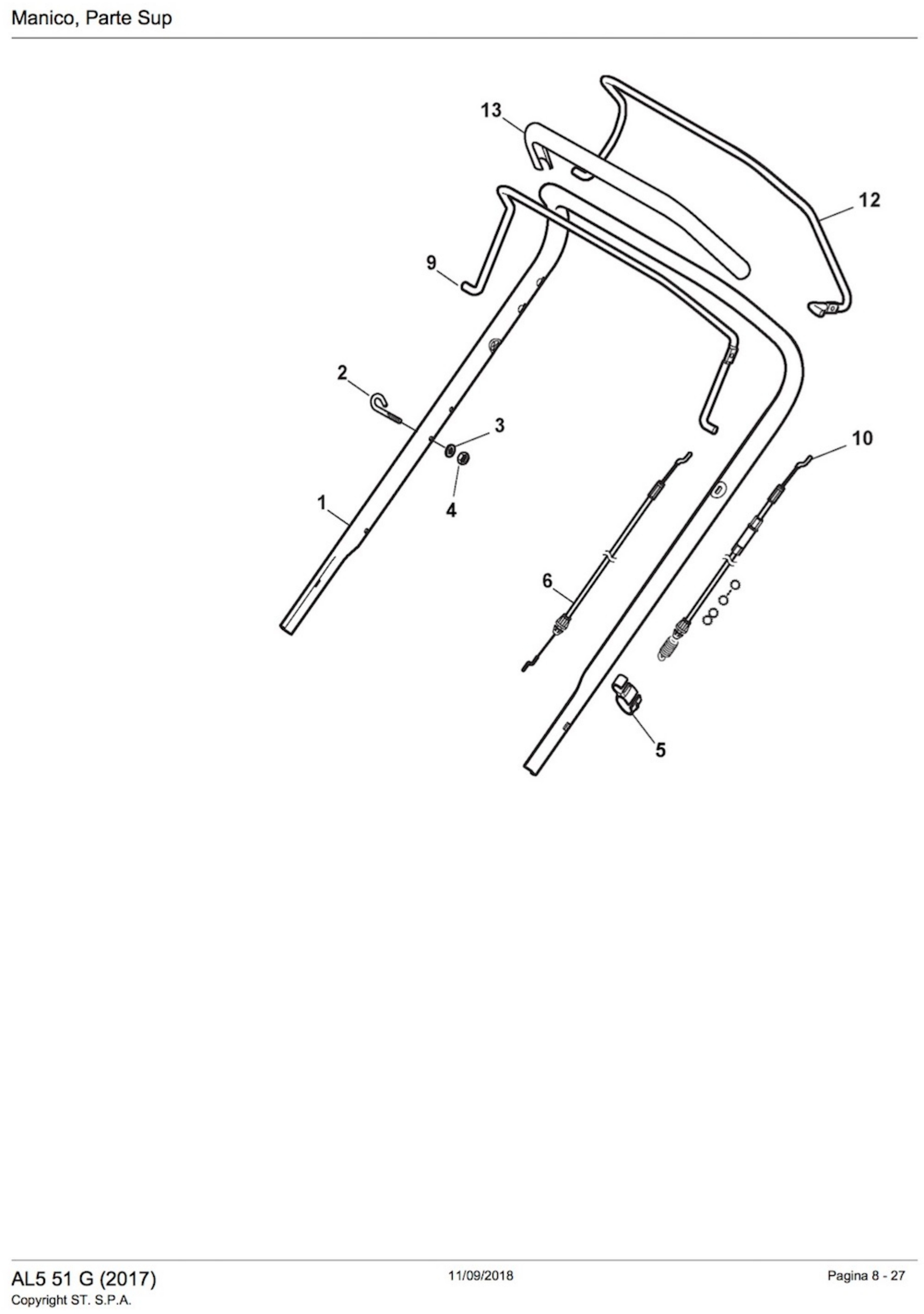

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006840/0 Handle, Upper Part €35.72
2
photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
photo_cameraImage coming soon 112521330/0 Washer €1.70
4
photo_cameraImage coming soon 112154510/0 Nut €1.66
5
Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
photo_cameraImage coming soon 181030053/0 Cable, Thread Engine Brake €14.99
9
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
10
photo_cameraImage coming soon 381030051/0 Cable Rear Drive €20.27
10
photo_cameraImage coming soon 381030092/0 Cable Rear Drive €14.22
10
photo_cameraImage coming soon 381030092/1 Cable Rear Drive €15.32
12
photo_cameraImage coming soon 181003364/0 Cable Rear Drive €15.08
13
photo_cameraImage coming soon 122291050/0 Handgrip Black €12.16

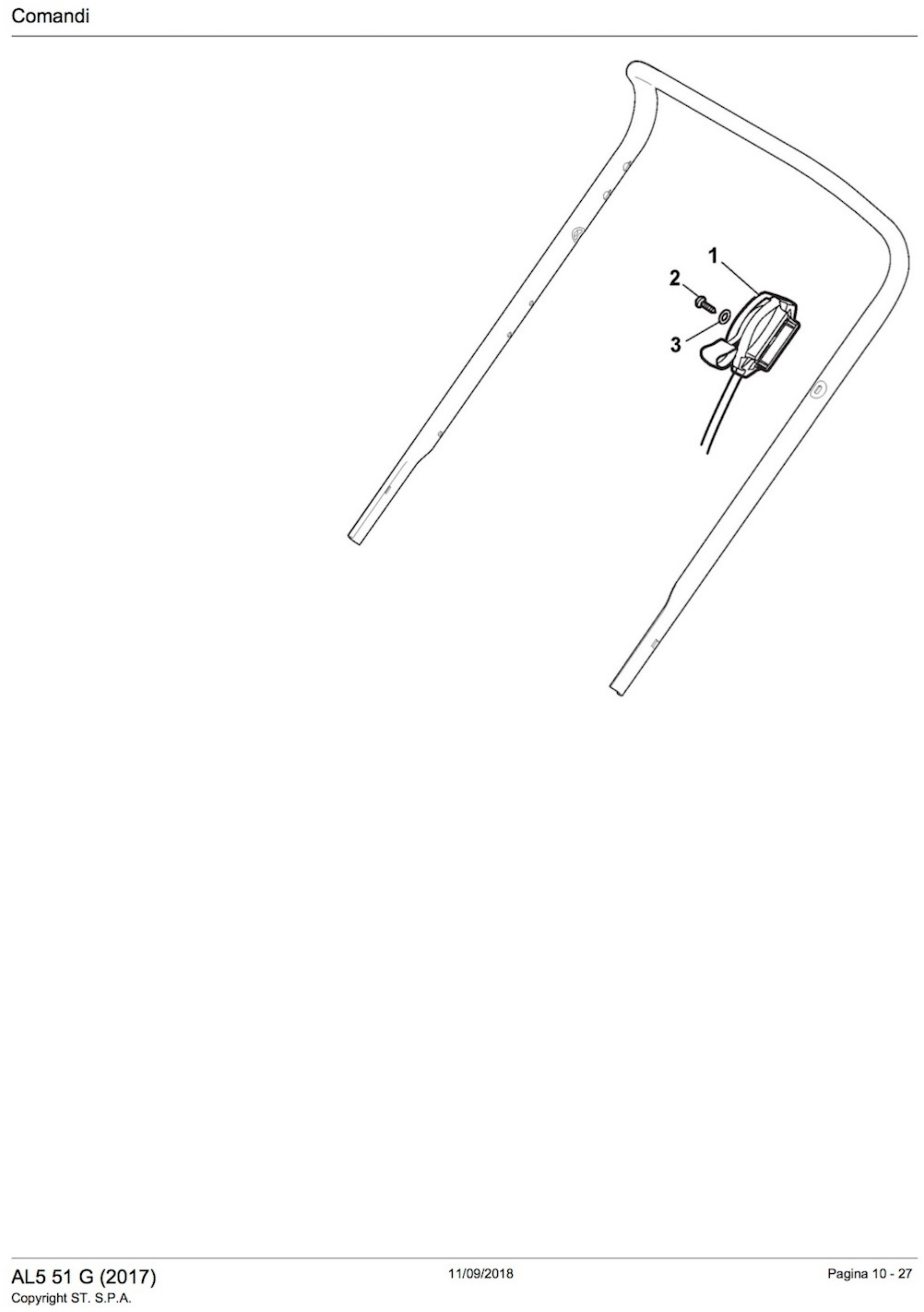

Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Throttle Cable Assy for Engine Lawnmower Alpina AL5 51 G 181005501/1 Throttle Cable Assy for Engine Lawnmower Alpina AL5 51 G €24.29
2
photo_cameraImage coming soon 112735103/0 Screw €1.75
3
photo_cameraImage coming soon 112523040/0 Washer €1.63

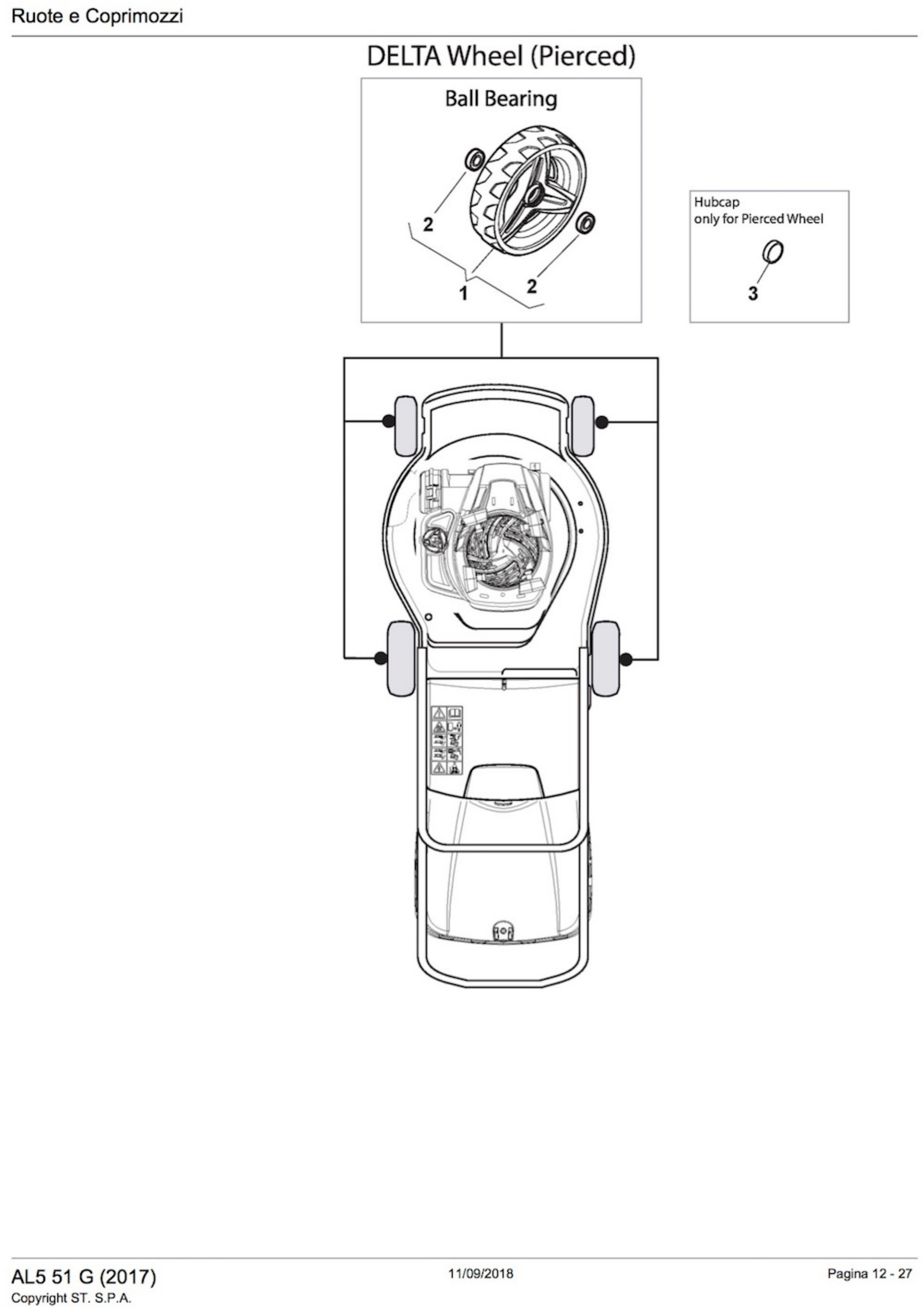

Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 119216035/0 Bearing €4.51
2
photo_cameraImage coming soon 381007477/0 Whel €17.47
3
photo_cameraImage coming soon 322110640/0 Hub Cap Grey €2.31

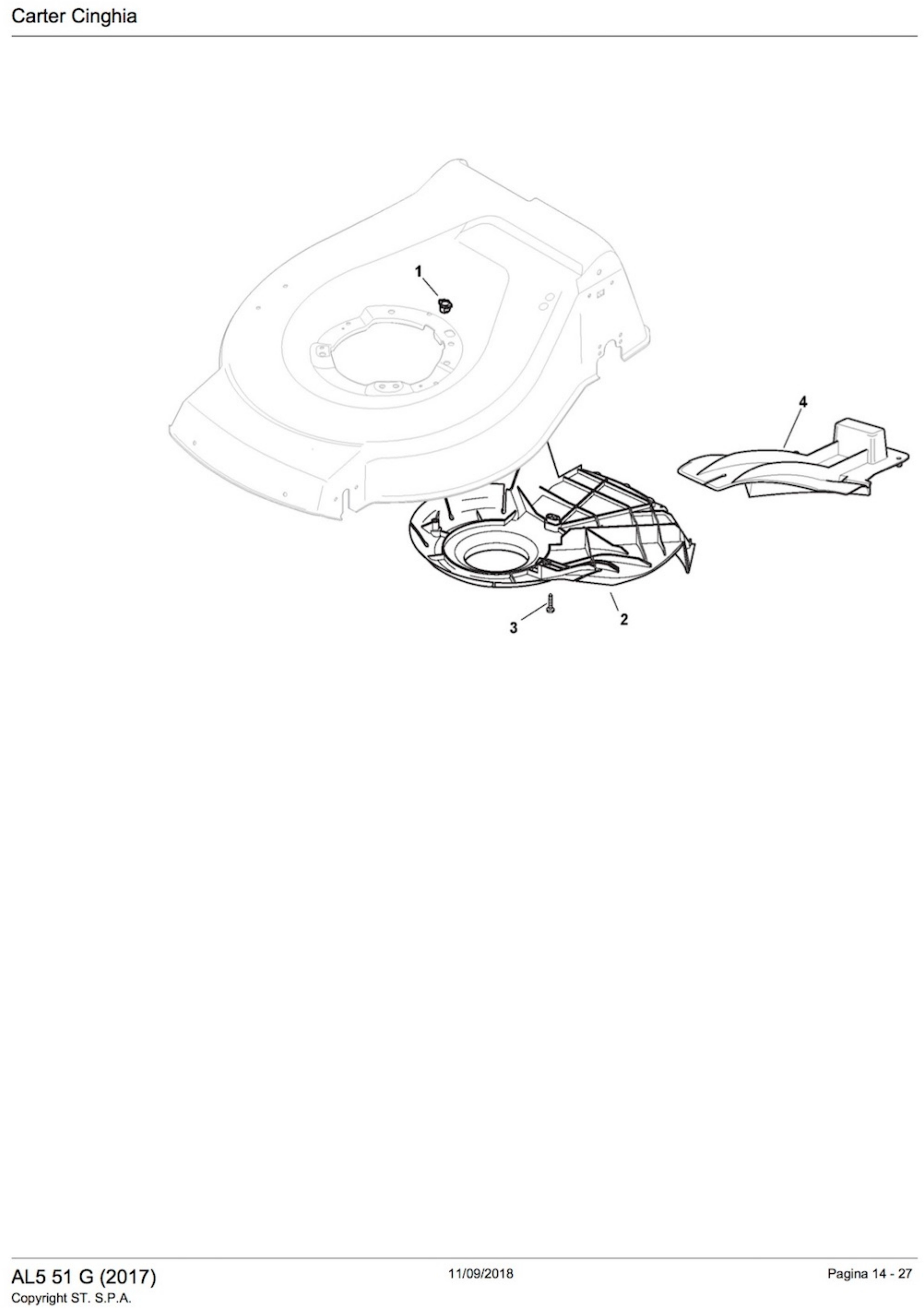

Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322291150/0 Rubber Insert €1.58
2
photo_cameraImage coming soon 322060197/2 Belt Protection €14.91
2
photo_cameraImage coming soon 322060197/3 Belt Protection €6.86
3
photo_cameraImage coming soon 112728530/0 Screw €1.60
3
photo_cameraImage coming soon 112728531/0 Screw €1.54
4
photo_cameraImage coming soon 122140222/0 Mulching Deflector As Optional €14.50

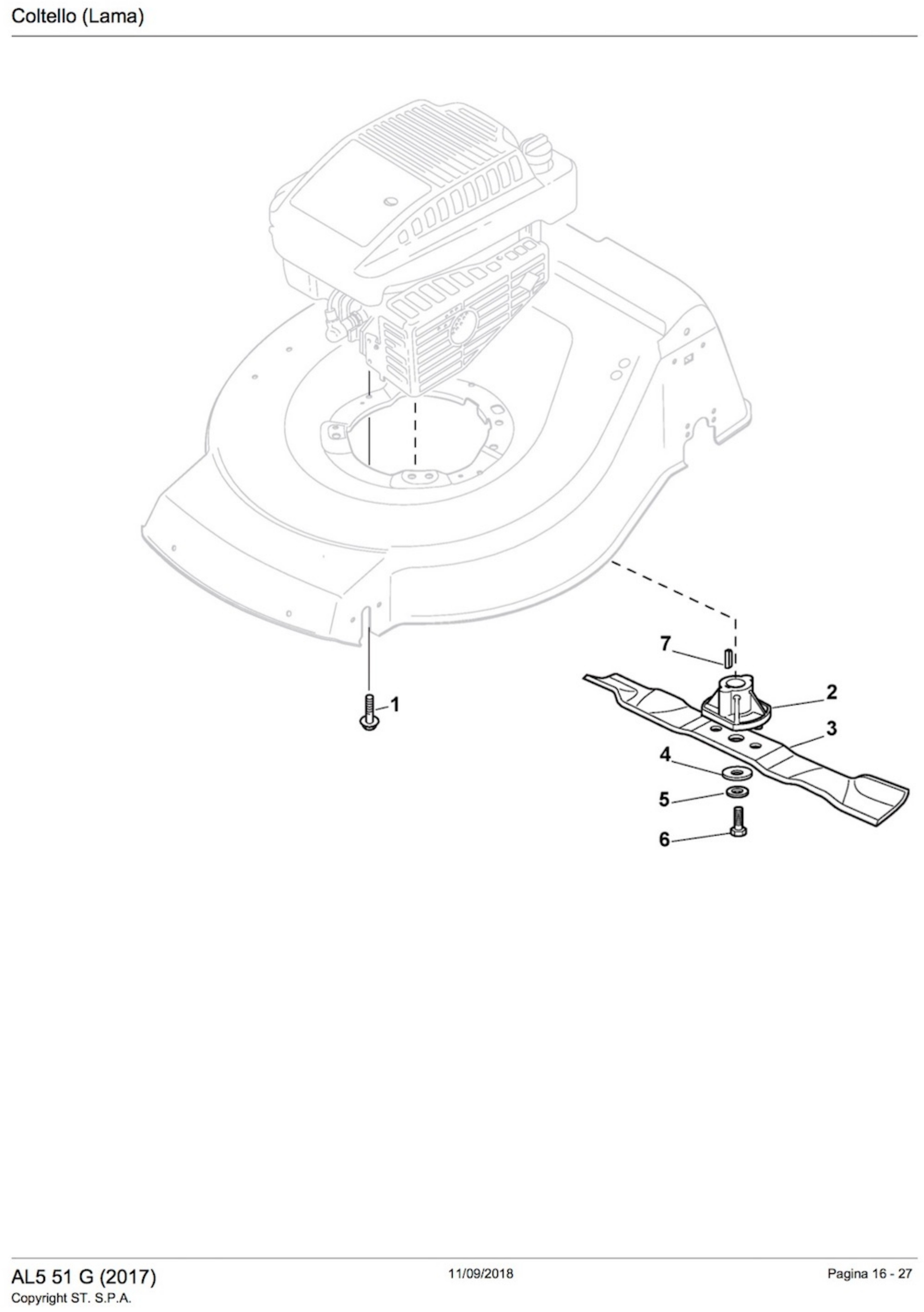

Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B 122463012/2 Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B €8.74
3
photo_cameraImage coming soon 181004381/1 Blade Standard €20.31
4
Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ 122160400/0 Spring Washer 50x2x10.2 for Lawnmover Alpina BL 510 SHQ €3.71
5
Alpina Washer M 10 for BL 510 SHQ 112523080/0 Alpina Washer M 10 for BL 510 SHQ €1.59
6
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09

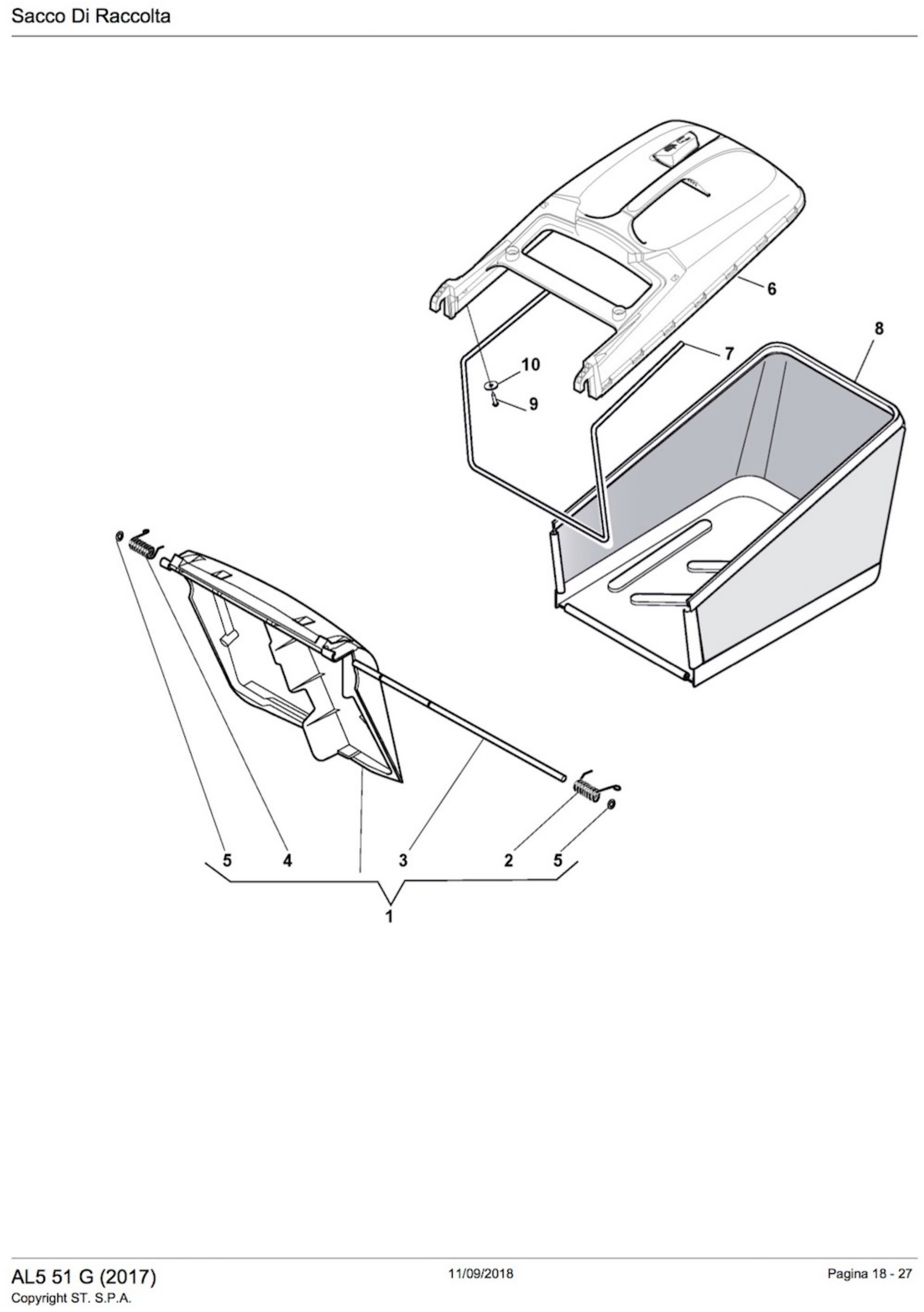

Page 9 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381008081/1 Stone Guard, Black €15.99
1
photo_cameraImage coming soon 381008081/2 Stone Guard, Black €21.43
1
photo_cameraImage coming soon 381008082/2 Stone Guard, Yellow €17.82
2
photo_cameraImage coming soon 122450466/0 Left Spring €15.24
3
photo_cameraImage coming soon 122517882/0 Pin €6.41
4
photo_cameraImage coming soon 122450465/0 Right Spring €1.85
5
photo_cameraImage coming soon 112604899/0 Crown Fastener €1.62
6
photo_cameraImage coming soon 322486101/0 Grass-Box, Upper Part €20.36
6
photo_cameraImage coming soon 381486008/0 Grass-Box, Upper Part €18.51
6
photo_cameraImage coming soon 381486013/0 Grass-Box, Upper Part €18.66
7
photo_cameraImage coming soon 122608525/0 Stiffening Lower €15.01
7
photo_cameraImage coming soon 122608525/1 Box, Fabric €13.02
8
photo_cameraImage coming soon 181002211/0 Box €50.05
9
photo_cameraImage coming soon 112728680/0 Screw €1.62
10
photo_cameraImage coming soon 112523050/0 Washer €2.05

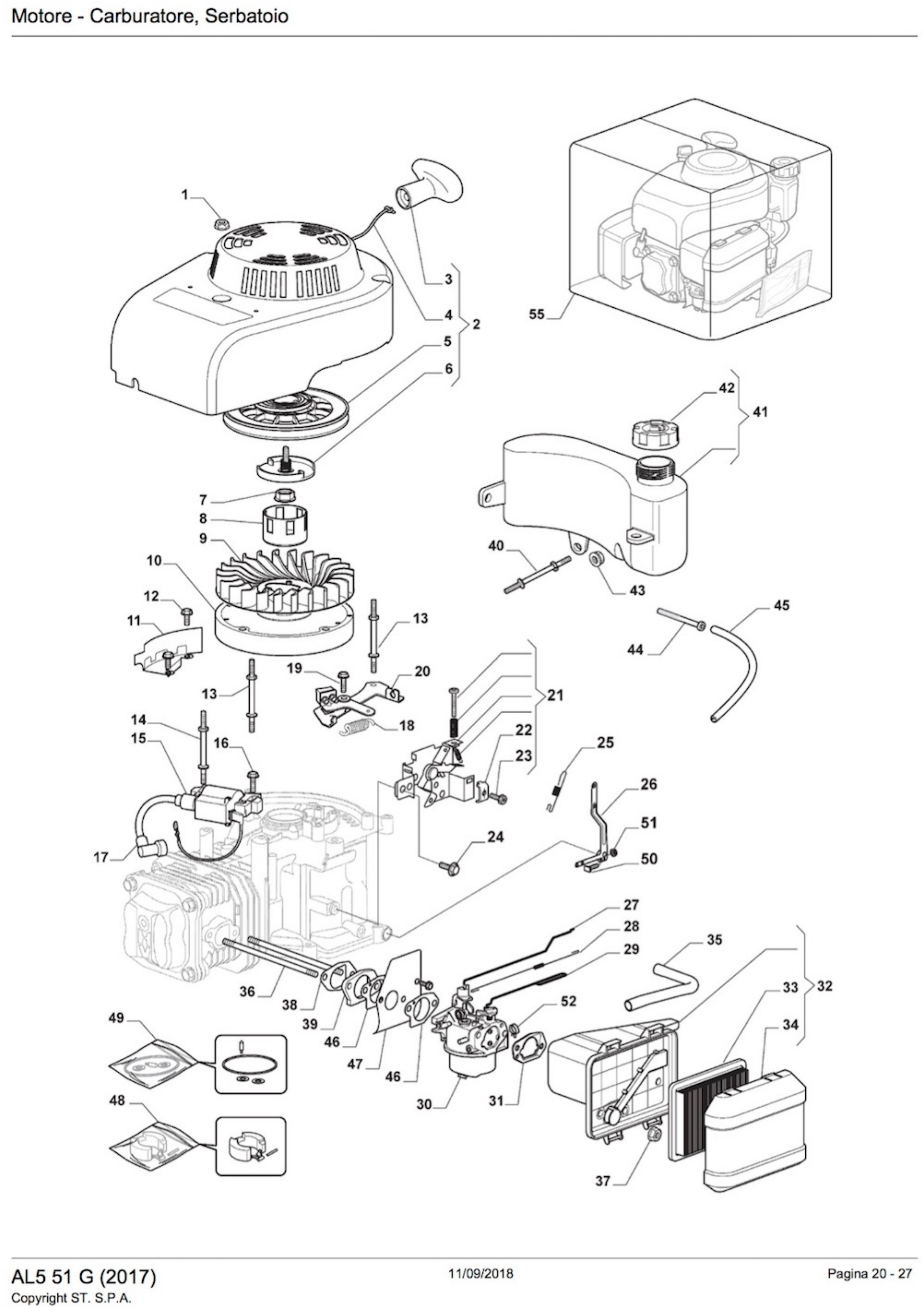

Page 10 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112292102/0 Nut €1.86
2
photo_cameraImage coming soon 118550276/1 Starter Assy €51.51
3
photo_cameraImage coming soon 118550274/0 Starter Handle €15.05
4
photo_cameraImage coming soon 118550779/0 Starting Rope €7.18
5
photo_cameraImage coming soon 118550778/0 Starter Pulley €27.11
6
photo_cameraImage coming soon 118550275/0 Starter Pawl Set €12.03
7
photo_cameraImage coming soon 118550336/0 Nut €6.07
8
photo_cameraImage coming soon 118550335/0 Starter Cup €19.67
9
photo_cameraImage coming soon 118550254/0 Flywheel Fan €20.20
10
photo_cameraImage coming soon 118550253/0 Flywheel Ass.Y €80.31
11
photo_cameraImage coming soon 118550774/0 Guard €7.39
12
photo_cameraImage coming soon 112791213/1 Screw €1.62
13
photo_cameraImage coming soon 118550907/0 Pin €5.22
14
photo_cameraImage coming soon 118550301/0 Stud Bolt €6.43
15
photo_cameraImage coming soon 118550255/1 Electronic Coil €50.43
16
photo_cameraImage coming soon 112791500/0 Screw €1.64
19
photo_cameraImage coming soon 112791500/0 Screw €1.64
21
photo_cameraImage coming soon 118550259/0 Remote Control Assy €20.96
22
photo_cameraImage coming soon 118550337/0 Casing Clamp €10.63
23
photo_cameraImage coming soon 118550338/0 Screw €6.87
24
photo_cameraImage coming soon 112791213/1 Screw €1.62
25
photo_cameraImage coming soon 118550260/0 Spring €3.86
26
photo_cameraImage coming soon 118550266/0 Arm Governor Assy €12.77
27
photo_cameraImage coming soon 118550397/0 Governor Link €2.81
28
photo_cameraImage coming soon 118550263/0 Spring €2.82
29
photo_cameraImage coming soon 118550264/0 Choke Control Rod €3.35
30
Carburator for Engine Lawnmower Alpina AL5 51 G 118550390/0 Carburator for Engine Lawnmower Alpina AL5 51 G €82.22
31
photo_cameraImage coming soon 118550738/0 Air Filter Gasket €6.13
32
photo_cameraImage coming soon 118550737/0 Air Cleaner Assy €22.40
33
photo_cameraImage coming soon 118550257/0 Air Filter €11.58
34
photo_cameraImage coming soon 118550739/0 Air Cleaner Cover €7.39
35
photo_cameraImage coming soon 118550377/0 Breather Fule Pipe €4.30
36
photo_cameraImage coming soon 118550930/0 Stud Bolt €5.79
37
photo_cameraImage coming soon 112292102/0 Nut €1.86
38
photo_cameraImage coming soon 118550929/0 Gasket €1.64
39
photo_cameraImage coming soon 118550928/0 Insulator, Carburettor €3.02
40
photo_cameraImage coming soon 118550315/0 Stud Bolt €7.53
41
photo_cameraImage coming soon 118550316/1 Fuel Tank €39.39
42
Tank Cap for Engine Lawnmower Alpina AL5 51 G 118550943/0 Tank Cap for Engine Lawnmower Alpina AL5 51 G €16.78
43
photo_cameraImage coming soon 118550806/0 Nut €1.63
44
photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
45
Fuel Pipe for Engine GGP WBE0701 118550340/0 Fuel Pipe for Engine GGP WBE0701 €8.23
48
photo_cameraImage coming soon 118550388/0 Kit Repair, Carburettor €12.84
49
photo_cameraImage coming soon 118550389/0 Kit Repair €9.37
50
photo_cameraImage coming soon 118550805/0 Screw €1.63
51
photo_cameraImage coming soon 118550806/0 Nut €1.63
52
photo_cameraImage coming soon 118550918/0 Clamp €1.64
55
photo_cameraImage coming soon 118550408/0 Engine Assembled €256.16
Page 11 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112674550/0 Screw €1.58
2
photo_cameraImage coming soon 118551208/0 Crankcase Cover €78.84
3
photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
4
photo_cameraImage coming soon 118550775/0 Grommet €2.09
6
photo_cameraImage coming soon 118550380/1 Crankcase Gasket €16.29
8
photo_cameraImage coming soon 118550283/0 Washer €3.44
9
photo_cameraImage coming soon 118550271/0 Camshaft assy €31.68
10
photo_cameraImage coming soon 118550385/0 Crankshaft €90.61
11
photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
12
photo_cameraImage coming soon 118550284/0 Connecting Rod Assy €39.11
13
photo_cameraImage coming soon 118551213/0 Piston €23.01
14
Piston Rings Ass'y for Engine Alpina TM 60 118550286/0 Piston Rings Ass'y for Engine Alpina TM 60 €28.71
15
photo_cameraImage coming soon 118550280/0 Ball Bearing €22.85
16
photo_cameraImage coming soon 118550936/0 Shaft, Governor Arm €6.49
17
photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
18
photo_cameraImage coming soon 118551251/0 Push Rod €4.13
21
photo_cameraImage coming soon 118551277/0 Bolt €1.42
22
Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
23
photo_cameraImage coming soon 118550297/0 Screw €6.13
24
photo_cameraImage coming soon 118550298/0 Stud Bolt €5.92
25
photo_cameraImage coming soon 118550270/0 Muffler Gasket €11.58
26
photo_cameraImage coming soon 118550269/0 Muffler €33.78
27
photo_cameraImage coming soon 118550268/1 Muffler Guard €30.72
28
photo_cameraImage coming soon 118550806/0 Nut €1.63
29
photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
30
photo_cameraImage coming soon 112674550/0 Screw €1.58
34
photo_cameraImage coming soon 118550303/0 Plate €13.60
35
photo_cameraImage coming soon 118550273/0 Valve Arm Set €12.92
36
photo_cameraImage coming soon 118550910/0 Valve Assy, Intake + Exhaust €21.34
38
photo_cameraImage coming soon 118550895/0 Retainer €4.57
43
photo_cameraImage coming soon 112790500/0 Screw €1.58
44
photo_cameraImage coming soon 118550935/0 Oil Seal €4.57
45
photo_cameraImage coming soon 118550856/0 Cotter Pin €1.55
49
photo_cameraImage coming soon 118550915/0 Piston Pin €5.38
50
photo_cameraImage coming soon 118550914/0 Washer, Piston Pin €1.63
Page 12 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322055463/1 Cover €20.60
3
photo_cameraImage coming soon 322055452/0 Capottina Nera €15.52
4
photo_cameraImage coming soon 322055450/0 Cover, Black €17.52
5
photo_cameraImage coming soon 322055439/0 Capottina Nera €15.52
6
photo_cameraImage coming soon 381002068/0 Cover €24.98
7
photo_cameraImage coming soon 381002067/0 Cover €23.88
8
photo_cameraImage coming soon 112728680/0 Screw  €1.51
10
photo_cameraImage coming soon 322055516/0 Cover €17.59
11
photo_cameraImage coming soon 112728099/1 Screw €1.65
12
photo_cameraImage coming soon 322055517/0 Base Cover Yellow €17.10
12
photo_cameraImage coming soon 322055552/0 Base Cover Black €6.86

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower AL5 51 G

Alpina-Stiga-Castelgarden-Castor-Mountfield authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Lawn Mower AL5 51 G/299531040-A17-2017.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
AL5 51 G/299531040-A17-2017

Lawn Mower AL5 51 G/299531040-A17-2017
Deck And Height Adjusting Pag.1
# Part Num. Description
1 381003909/0 Red Deck
1 381004540/0 Red Deck
2 122534131/0 Pin
3 322322851/0 Lever, Height Adjustment
3 322322857/0 Lever, Height Adjustment
4 112154510/0 Nut
5 112788512/0 Screw
6 322394503/0 Knob
7 112521310/0 Washer
8 112150000/0 Nut
9 112369500/0 Elastic Washer
10 122943013/0 Screw
11 381002031/0 Rod, Height Adjustment
11 381002050/0 Rod, Height Adjustment
12 112436051/0 Plate
13 112727803/0 Screw
14 112154510/0 Nut
15 112727801/0 Screw
16 381002887/1 Front Wheel Axle
16 381302923/0 Front Wheel Axle
17 112154510/0 Nut
18 112728450/0 Screw
19 322034002/0 Washing Connection
20 322394522/0 Knob
21 322600145/0 Protection, Wheel
24 112521350/0 Washer
25 112155000/0 Nut
31 381302823/0 Axle, Rear Wheels
31 381302825/0 Axle, Rear Wheels
33 112728697/0 Screw
34 322545152/0 Plate
35 112728697/0 Screw
36 322785304/1 Support
40 122446192/0 Spring
Mask Pag.2
1 322226158/0 Mask, Black
2 322393642/0 Bumper Handle
3 112727799/0 Screw
4 112154510/0 Nut
Handle, Lower Part Pag.3
1 381006889/0 Handle Lower Part
1 381007043/0 Handle Lower Part
2 381005125/0 Right Bracket
2 381005133/0 Right Bracket
3 381005127/0 Left Bracket
3 381005135/0 Left Bracket
4 112819120/0 Screw
4 112819121/0 Screw
5 122680006/1 Washer
6 322399804/1 Nut
7 112293200/0 Nut
10 112760605/0 Screw
11 112521350/0 Washer
11 125038002/1 Bushing
12 112155000/0 Nut
13 322192156/0 Clip
14 112523040/0 Washer
15 112154510/0 Nut
16 112369500/0 Elastic Washer
17 381008686/0 Screw
Handle, Upper Part Pag.4
1 381006840/0 Handle, Upper Part
2 122430313/0 Guide Spring
3 112521330/0 Washer
4 112154510/0 Nut
5 118390020/0 Conduit Clip
6 181030053/0 Cable, Thread Engine Brake
9 181003363/1 Lever, Engine Brake Black
10 381030051/0 Cable Rear Drive
10 381030092/0 Cable Rear Drive
10 381030092/1 Cable Rear Drive
12 181003364/0 Cable Rear Drive
13 122291050/0 Handgrip Black
Controls Pag.5
1 181005501/1 Throttle cable
2 112735103/0 Screw
3 112523040/0 Washer
Wheels and Hub Caps Pag.6
1 119216035/0 Bearing
2 381007477/0 Whel
3 322110640/0 Hub Cap Grey
Protection, Belt Pag.7
1 322291150/0 Rubber Insert
2 322060197/2 Belt Protection
2 322060197/3 Belt Protection
3 112728530/0 Screw
3 112728531/0 Screw
4 122140222/0 Mulching Deflector
Blade Pag.8
1 112735108/1 Screw
2 122463012/2 Blade Boss Ø 22.2
3 181004381/1 Blade Standard
4 122160400/0 Elastic Disc
5 112523080/0 Washer M 10
6 112735698/0 Screw
7 112139100/0 Woodruff Key
Grass-Catcher Pag.9
1 381008081/1 Stone Guard, Black
1 381008081/2 Stone Guard, Black
1 381008082/2 Stone Guard, Yellow
2 122450466/0 Left Spring
3 122517882/0 Pin
4 122450465/0 Right Spring
5 112604899/0 Crown Fastener
6 322486101/0 Grass-Box, Upper Part
6 381486008/0 Grass-Box, Upper Part
6 381486013/0 Grass-Box, Upper Part
7 122608525/0 Stiffening Lower
7 122608525/1 Box, Fabric
8 181002211/0 Box
9 112728680/0 Screw
10 112523050/0 Washer
Engine - Carburettor, Tank Pag.10
1 112292102/0 Nut
2 118550276/1 Starter Assy
3 118550274/0 Starter Handle
4 118550779/0 Starting Rope
5 118550778/0 Starter Pulley
6 118550275/0 Starter Pawl Set
7 118550336/0 Nut
8 118550335/0 Starter Cup
9 118550254/0 Flywheel Fan
10 118550253/0 Flywheel Ass.Y
11 118550774/0 Guard
12 112791213/1 Screw
13 118550907/0 Pin
14 118550301/0 Stud Bolt
15 118550255/1 Electronic Coil
16 112791500/0 Screw
17 118551274/0 Spark Plug Cap
18 118551288/0 Spring
19 112791500/0 Screw
20 118551205/0 Flywheel Brake
21 118550259/0 Remote Control Assy
22 118550337/0 Casing Clamp
23 118550338/0 Screw
24 112791213/1 Screw
25 118550260/0 Spring
26 118550266/0 Arm Governor Assy
27 118550397/0 Governor Link
28 118550263/0 Spring
29 118550264/0 Choke Control Rod
30 118550390/0 Carburetor
31 118550738/0 Air Filter Gasket
32 118550737/0 Air Cleaner Assy
33 118550257/0 Air Filter
34 118550739/0 Air Cleaner Cover
35 118550377/0 Breather Fule Pipe
36 118550930/0 Stud Bolt
37 112292102/0 Nut
38 118550929/0 Gasket
39 118550928/0 Insulator, Carburettor
40 118550315/0 Stud Bolt
41 118550316/1 Fuel Tank
42 118550943/0 Fuel Tank Cap
43 118550806/0 Nut
44 118550314/0 Fuel Filter
45 118550340/0 Fuel Pipe
46 118551264/0 Carburetor Gasket
47 118551266/0 Carburetor Gasket
48 118550388/0 Kit Repair, Carburettor
49 118550389/0 Kit Repair
50 118550805/0 Screw
51 118550806/0 Nut
52 118550918/0 Clamp
55 118550408/0 Engine Cpl

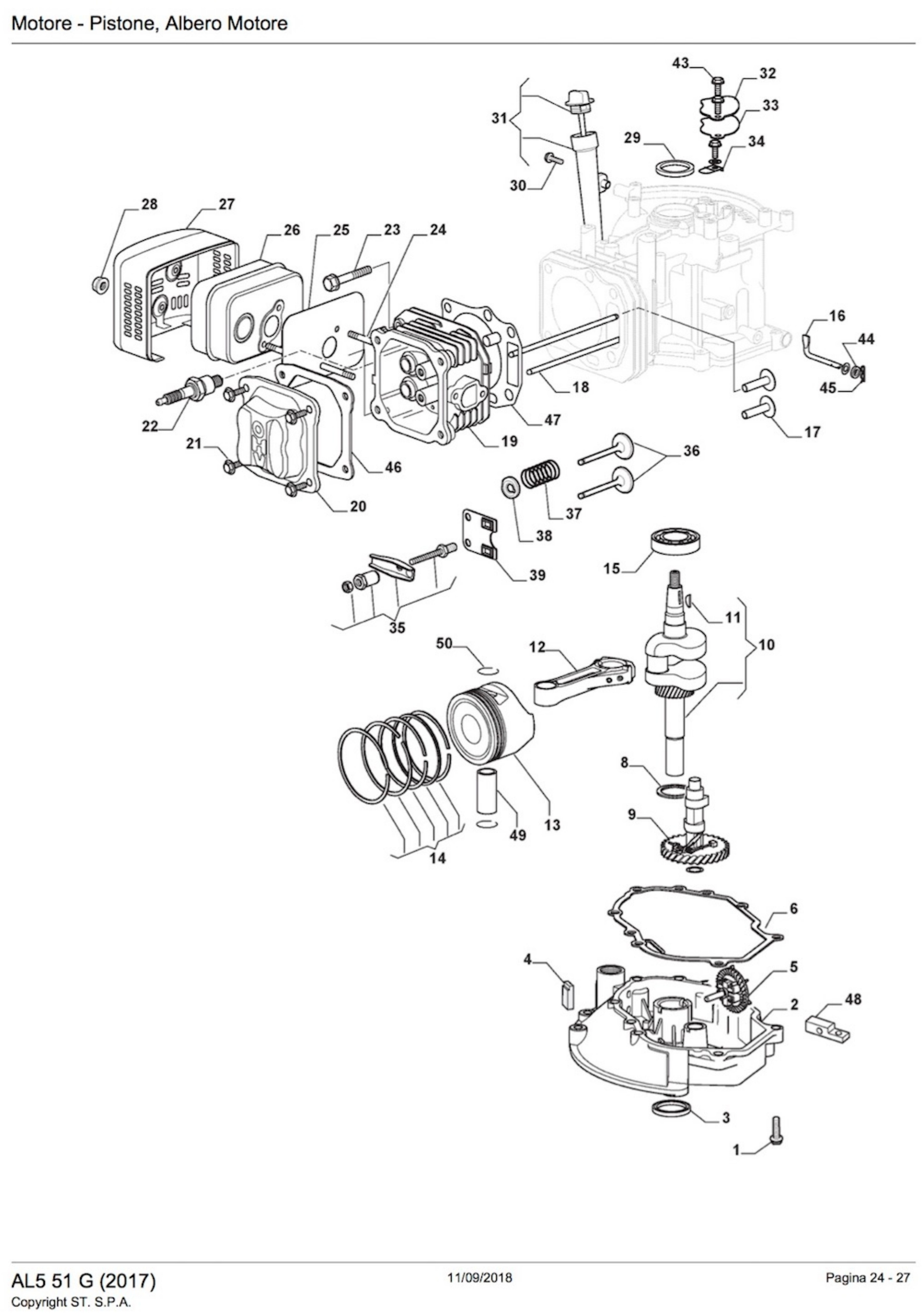

Engine - Piston, Crankshaft Pag.11
1 112674550/0 Screw
2 118551208/0 Crankcase Cover
3 118550379/0 Oil Seal
4 118550775/0 Grommet
5 118550312/1 Speed Governor Assy
6 118550380/1 Crankcase Gasket
8 118550283/0 Washer
9 118550271/0 Camshaft assy
10 118550385/0 Crankshaft
11 118550288/0 Woodruff Key
12 118550284/0 Connecting Rod Assy
13 118551213/0 Piston
14 118550286/0 Piston, Ring Set
15 118550280/0 Ball Bearing
16 118550936/0 Shaft, Governor Arm
17 118550291/0 Valve Lifter Assy
18 118551251/0 Push Rod
19 118551212/0 Cylinder Head
20 118550296/2 Cover Comp., Head
21 118551277/0 Bolt
22 9400-0244-00 Spark Plug RC12YC
23 118550297/0 Screw
24 118550298/0 Stud Bolt
25 118550270/0 Muffler Gasket
26 118550269/0 Muffler
27 118550268/1 Muffler Guard
28 118550806/0 Nut
29 118550300/0 Oil Seal
30 112674550/0 Screw
31 118550311/1 Oil Filler Assy
32 118551210/0 Cap,Breather Chamber
33 118551211/0 Breather Chamber Gasket
34 118550303/0 Plate
35 118550273/0 Valve Arm Set
36 118550910/0 Valve Assy, Intake + Exhaust
37 118551300/0 Spring
38 118550895/0 Retainer
39 118551253/0 Plate
43 112790500/0 Screw
44 118550935/0 Oil Seal
45 118550856/0 Cotter Pin
46 118551237/0 Cylinder head gasket
47 118551233/0 Cylinder Gasket
48 118551269/0 Plate,Governor Holder
49 118550915/0 Piston Pin
50 118550914/0 Washer, Piston Pin

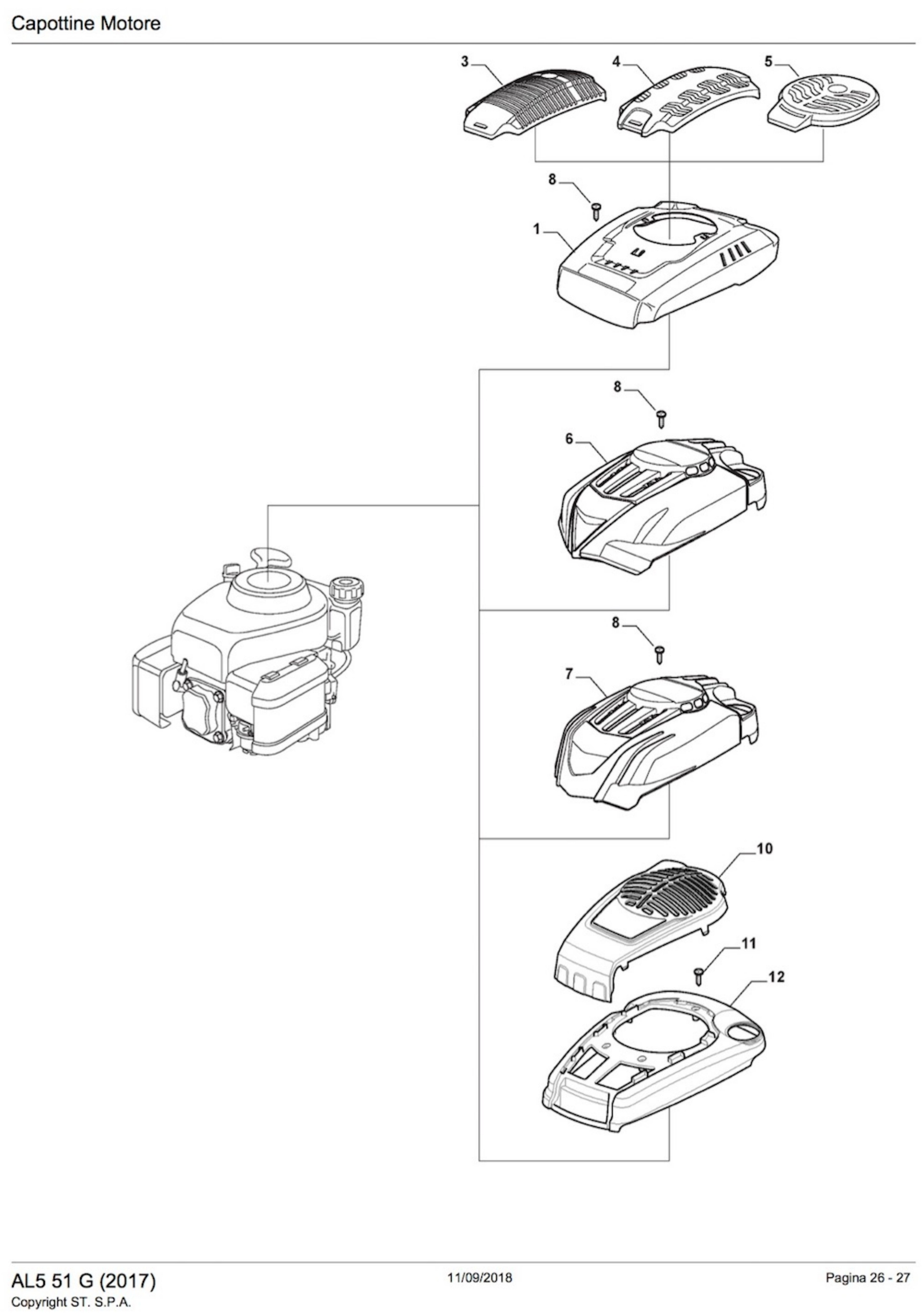

Cover Engine Pag.12
1 322055463/1 Cover
3 322055452/0 Cover, Black
4 322055450/0 Cover, Black
5 322055439/0 Cover, Black
6 381002068/0 Cover
7 381002067/0 Cover
8 112728680/0 Screw
10 322055516/0 Engine Cover
11 112728099/1 Screw
12 322055517/0 Engine Base Cover, Yellow
12 322055552/0 Engine Base Cover, Black
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL5 51 G/299531040-A17-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina AL5 51 G

Diagram Alpina AL5 51 G

Download (1.45MB)

You might also like

GGP Italy SKU: 118550390/0
Carburator for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Carburator for Engine Lawnmower Alpina AL5 51 G. Part for the following products: - ...
Last items in stock €82.22
GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
GGP Italy SKU: 118550286/0
Piston Rings Ass'y for Engine Alpina TM 60 Original replacement part Alpina, Piston Rings Ass'y for Engine TM 60 - LC165F (2016) - Lawnmower AL5 51 G - NTL 534 WTR/Q - Spazzaneve ST 3255 P/18. Part for the following products: -  ST....
Last items in stock €28.71
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
GGP Italy SKU: 118550340/0
Fuel Pipe for Engine GGP WBE0701 Original spare part Alpina, Fuel Pipe for Engine GGP WBE0701 - ST. S.P.A. OM55 (2008) Part for the following products: -  Engine GGP WBE0701 118550408/0_110004WBE0701 - Code : 118550340/0
on 7/10 Business Days Approx €8.23
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
GGP Italy SKU: 118550943/0
Tank Cap for Engine Lawnmower Alpina AL5 51 G Original replacement part Alpina, Tank Cap for Engine Lawnmower Alpina AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the following products: -  Lawnmower AL5 51 G -  Lawnmower BL...
Last items in stock €16.78
GGP Italy SKU: 122534131/0
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Comments (0)
