Alpina Spare Parts for Engine GGP WBE0701

SKU: GGP WBE0701 (2015) 118550408/0
€1.88
VAT included

Alpina Spare Parts for Engine GGP WBE0701

Alpina original spare parts for to replace broken parts for to fix Engine GGP WBE0701 (2015) 118550408/0_110004WBE0701.

Fix Your Alpina Engine. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Motore GGP WBE0701 (2015) 118550408/0
Alpina Spare Parts for Engine GGP WBE0701
  • Alpina Spare Parts for Engine GGP WBE0701
  • Alpina Spare Parts for Engine GGP WBE0701
  • Alpina Spare Parts for Engine GGP WBE0701
  • Alpina Spare Parts for Engine GGP WBE0701

Alpina Spare Parts for Engine GGP WBE0701

SKU: GGP WBE0701 (2015) 118550408/0 Condition: New
€1.88
VAT included

Alpina Spare Parts for Engine GGP WBE0701

Alpina original spare parts for to replace broken parts for to fix Engine GGP WBE0701 (2015) 118550408/0_110004WBE0701.

Fix Your Alpina Engine. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Motore GGP WBE0701 (2015) 118550408/0
settings 85 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

85 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 112292102/0 Nut €1.86
2
photo_cameraImage coming soon 118550276/1 Starter Assy €51.51
3
photo_cameraImage coming soon 118550274/0 Starter Handle €15.05
4
photo_cameraImage coming soon 118550779/0 Starting Rope €7.18
5
photo_cameraImage coming soon 118550778/0 Starter Pulley €27.11
6
photo_cameraImage coming soon 118550275/0 Starter Pawl Set €12.03
7
photo_cameraImage coming soon 118550336/0 Nut €6.07
8
photo_cameraImage coming soon 118550335/0 Starter Cup €19.67
9
photo_cameraImage coming soon 118550254/0 Flywheel Fan €20.20
10
photo_cameraImage coming soon 118550253/0 Flywheel Ass.Y €80.31
11
photo_cameraImage coming soon 118550774/0 Guard €7.39
12
photo_cameraImage coming soon 112791213/1 Screw €1.62
13
photo_cameraImage coming soon 118550302/0 Stud Bolt €5.76
14
photo_cameraImage coming soon 118550301/0 Stud Bolt €6.43
15
photo_cameraImage coming soon 118550255/0 Electronic Coil €43.51
16
photo_cameraImage coming soon 112791500/0 Screw €1.64
17
photo_cameraImage coming soon 112790500/0 Screw €1.58
18
photo_cameraImage coming soon 118550378/0 Gasket Assy €19.28
20
photo_cameraImage coming soon 118550376/0 Flywheel Brake Assy €30.37
21
photo_cameraImage coming soon 118550259/0 Remote Control Assy €20.96
22
photo_cameraImage coming soon 118550337/0 Casing Clamp €10.63
23
photo_cameraImage coming soon 118550338/0 Screw €6.87
25
photo_cameraImage coming soon 118550260/0 Spring €3.86
26
photo_cameraImage coming soon 118550266/0 Arm Governor Assy €12.77
27
photo_cameraImage coming soon 118550397/0 Governor Link €2.81
28
photo_cameraImage coming soon 118550263/0 Spring €2.82
29
photo_cameraImage coming soon 118550264/0 Choke Control Rod €3.35
30
Carburator for Engine GGP WBE0701 118550251/0 Carburator for Engine GGP WBE0701 €59.41
31
photo_cameraImage coming soon 118550738/0 Air Filter Gasket €6.13
32
photo_cameraImage coming soon 118550737/0 Air Cleaner Assy €22.40
33
photo_cameraImage coming soon 118550257/0 Air Filter €11.58
34
photo_cameraImage coming soon 118550739/0 Air Cleaner Cover €7.39
35
photo_cameraImage coming soon 118550377/0 Breather Fule Pipe €4.30
36
photo_cameraImage coming soon 118550298/0 Stud Bolt €5.92
40
photo_cameraImage coming soon 118550315/0 Stud Bolt €7.53
41
photo_cameraImage coming soon 118550316/0 Fuel Tank €43.64
42
Tank Cap for Engine Alpina WBE0701 118550339/1 Tank Cap for Engine Alpina WBE0701 €14.82
44
photo_cameraImage coming soon 118550314/0 Fuel Filter €4.41
45
Fuel Pipe for Engine GGP WBE0701 118550340/0 Fuel Pipe for Engine GGP WBE0701 €8.23
50
photo_cameraImage coming soon 118550408/0 Engine Assembled €256.16
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
51
photo_cameraImage coming soon 112674550/0 Screw €1.58
52
photo_cameraImage coming soon 118550383/0 Crankase Cover Assy €92.11
53
photo_cameraImage coming soon 118550379/0 Oil Seal €6.76
54
photo_cameraImage coming soon 118550775/0 Grommet €2.09
55
photo_cameraImage coming soon 118550312/0 Speed Governor Assy €14.52
56
photo_cameraImage coming soon 118550380/1 Crankcase Gasket €16.29
58
photo_cameraImage coming soon 118550271/0 Camshaft assy €31.68
59
photo_cameraImage coming soon 118550283/0 Washer €3.44
60
photo_cameraImage coming soon 118550281/0 Crankshaft €107.91
61
photo_cameraImage coming soon 118550288/0 Woodruff Key €6.20
62
photo_cameraImage coming soon 118550284/0 Connecting Rod Assy €39.11
63
photo_cameraImage coming soon 118550278/0 Piston Assy €40.52
64
Piston Rings Ass'y for Engine Alpina TM 60 118550286/0 Piston Rings Ass'y for Engine Alpina TM 60 €28.71
65
photo_cameraImage coming soon 118550280/0 Ball Bearing €22.85
66
photo_cameraImage coming soon 118550308/0 Shaft, Governor Arm Assy €7.11
67
photo_cameraImage coming soon 118550291/0 Valve Lifter Assy €9.73
68
photo_cameraImage coming soon 118550289/0 Push Rods Assy €7.22
69
photo_cameraImage coming soon 118550244/0 Cylinder Head Assy €109.89
70
photo_cameraImage coming soon 118550296/1 Cover Comp., Head €12.22
72
Spark Plug Champion RC12YC 9400-0244-00 Spark Plug Champion RC12YC €6.06
73
photo_cameraImage coming soon 118550297/0 Screw €6.13
75
photo_cameraImage coming soon 118550270/0 Muffler Gasket €11.58
76
photo_cameraImage coming soon 118550269/0 Muffler €33.78
77
photo_cameraImage coming soon 118550268/1 Muffler Guard €30.72
79
photo_cameraImage coming soon 118550300/0 Oil Seal €7.25
81
photo_cameraImage coming soon 118550311/0 Oil Filler Assy €20.98
85
photo_cameraImage coming soon 118550273/0 Valve Arm Set €12.92
86
photo_cameraImage coming soon 118550294/0 Exhaust Valve Assy €21.62
87
photo_cameraImage coming soon 118550292/0 Intake Valve Assy €20.67
88
photo_cameraImage coming soon 118550389/0 Kit Repair €9.37
89
photo_cameraImage coming soon 118550388/0 Kit Repair, Carburettor €12.84
90
photo_cameraImage coming soon 118550743/0 Gasket Carburettor Assy €17.30
91
photo_cameraImage coming soon 118550406/0 Cylinder Head Gasket Set €22.45
92
photo_cameraImage coming soon 118550740/0 Engine Gasket Set €35.91
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
101
photo_cameraImage coming soon 322055463/1 Cover €20.60
103
photo_cameraImage coming soon 322055452/0 Capottina Nera €15.52
104
photo_cameraImage coming soon 322055450/0 Cover, Black €17.52
105
photo_cameraImage coming soon 322055439/0 Capottina Nera €15.52
106
photo_cameraImage coming soon 381002068/0 Cover €24.98
107
photo_cameraImage coming soon 381002067/0 Cover €23.88
108
photo_cameraImage coming soon 112728680/0 Screw €1.62
110
photo_cameraImage coming soon 322055516/0 Cover €17.59
111
photo_cameraImage coming soon 112728099/1 Screw €1.65
112
photo_cameraImage coming soon 322055517/0 Base Cover Yellow €17.10
112
photo_cameraImage coming soon 322055552/0 Base Cover Black €6.86

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Engine GGP WBE0701

Alpina original spare parts for to replace broken parts for to fix Engine GGP WBE0701 (2015) 118550408/0_110004WBE0701.

In the following table, look for the model of the Engine and the respective parts of the code.
GGP WBE0701 (2015) 118550408/0

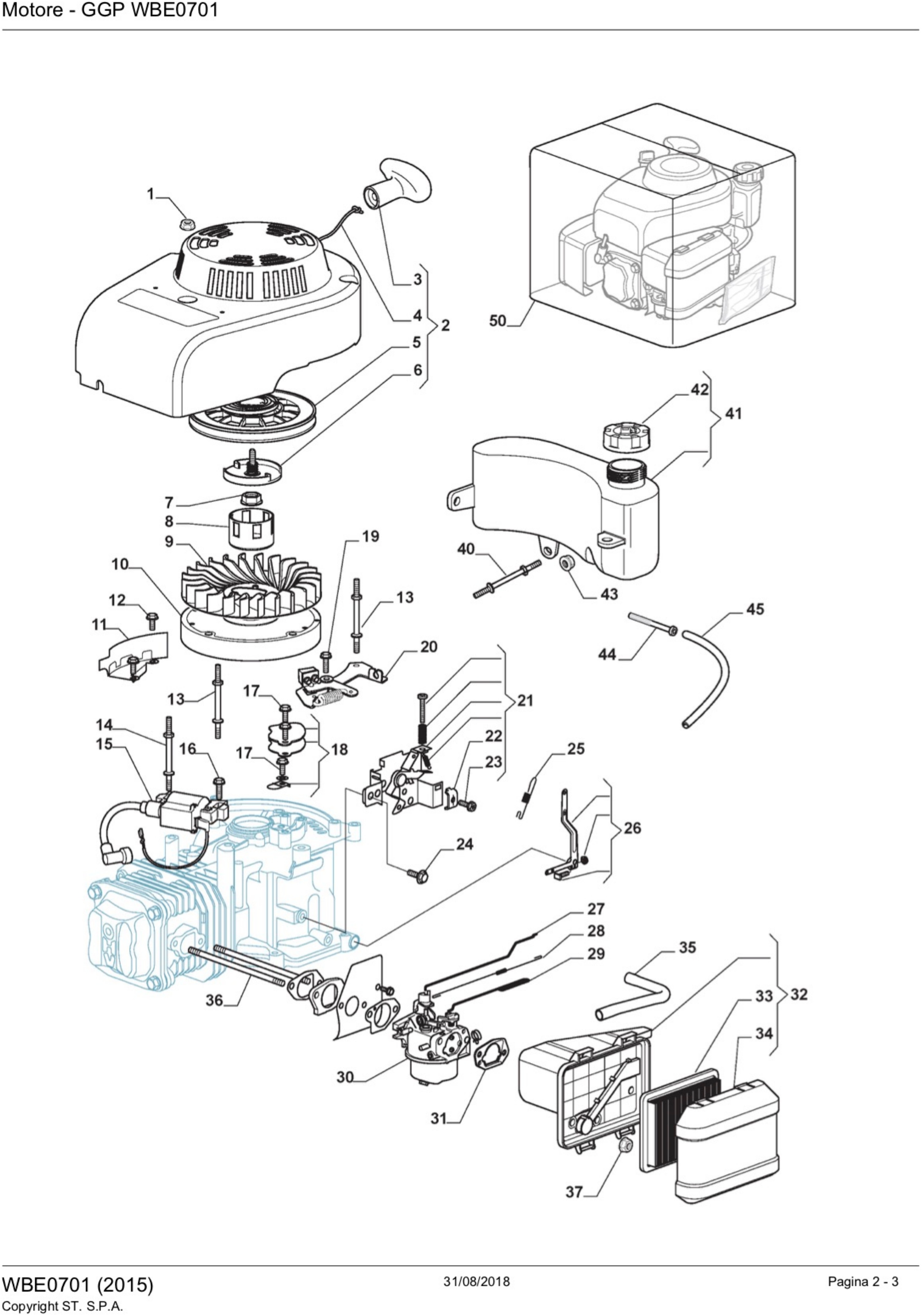

CASTELGARDEN Engine GGP WBE0701 (2015) Pag.1
Flywheel - Carburator 118550408/0_110004WBE0701
# Part Num. Description
1 112292102/0 Nut
2 118550276/1 Starter Assy
3 118550274/0 Starter Handle
4 118550779/0 Starting Rope
5 118550778/0 Starter Pulley
6 118550275/0 Starter Pawl Set
7 118550336/0 Nut
8 118550335/0 Starter Cup
9 118550254/0 Flywheel Fan
10 118550253/0 Flywheel Ass.Y
11 118550774/0 Guard
12 112791213/1 Screw
13 118550302/0 Stud Bolt
14 118550301/0 Stud Bolt
15 118550255/0 Electronic Coil
16 112791500/0 Screw
17 112790500/0 Screw
18 118550378/0 Gasket Assy
19 112791500/0 Screw
20 118550376/0 Flywheel Brake Assy
21 118550259/0 Remote Control Assy
22 118550337/0 Casing Clamp
23 118550338/0 Screw
24 112791213/1 Screw
25 118550260/0 Spring
26 118550266/0 Arm Governor Assy
27 118550397/0 Governor Link
28 118550263/0 Spring
29 118550264/0 Choke Control Rod
30 118550251/0 Carburetor
31 118550738/0 Air Filter Gasket
32 118550737/0 Air Cleaner Assy
33 118550257/0 Air Filter
34 118550739/0 Air Cleaner Cover
35 118550377/0 Breather Fule Pipe
36 118550298/0 Stud Bolt
37 112292102/0 Nut
40 118550315/0 Stud Bolt
41 118550316/0 Fuel Tank
42 118550339/1 Fuel Cap
43 112292102/0 Nut
44 118550314/0 Fuel Filter
45 118550340/0 Fuel Pipe
50 118550408/0 Engine Assembled

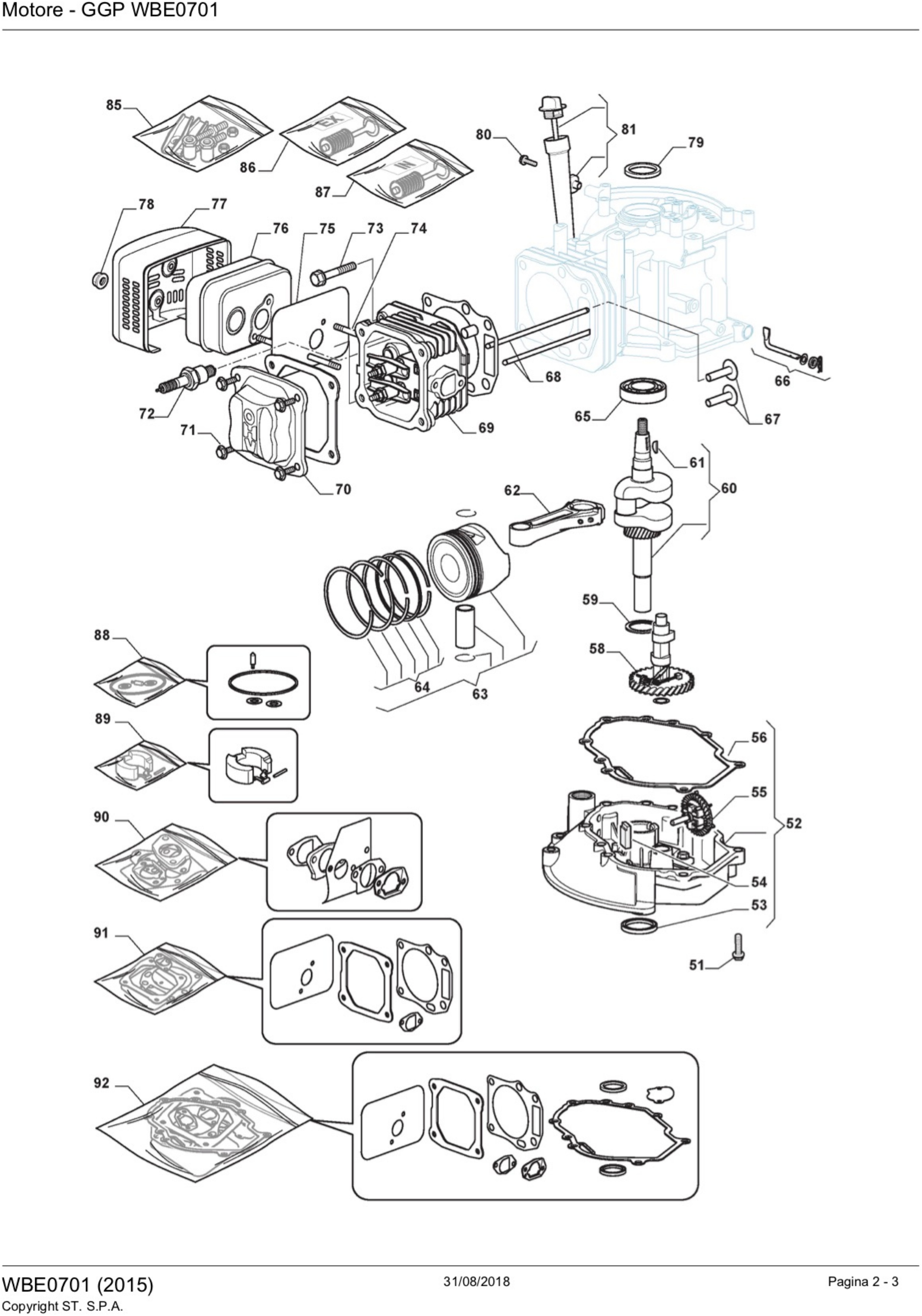

CASTELGARDEN Engine GGP WBE0701 (2015 Pag.2
Engine Cylinder - Crankshaft
51 112674550/0 Screw
52 118550383/0 Crankase Cover Assy
53 118550379/0 Oil Seal
54 118550775/0 Grommet
55 118550312/0 Speed Governor Assy
56 118550380/1 Crankcase Gasket
58 118550271/0 Camshaft assy
59 118550283/0 Washer
60 118550281/0 Crankshaft
61 118550288/0 Woodruff Key
62 118550284/0 Connecting Rod Assy
63 118550278/0 Piston Assy
64 118550286/0 Piston, Ring Set
65 118550280/0 Ball Bearing
66 118550308/0 Shaft, Governor Arm Assy
67 118550291/0 Valve Lifter Assy
68 118550289/0 Push Rods Assy
69 118550244/0 Cylinder Head Assy
70 118550296/1 Cover Comp., Head
71 112791213/1 Screw
72 9400-0244-00 Spark Plug RC12YC
73 118550297/0 Screw
74 118550298/0 Stud Bolt
75 118550270/0 Muffler Gasket
76 118550269/0 Muffler
77 118550268/1 Muffler Guard
78 112292102/0 Nut
79 118550300/0 Oil Seal
80 112674550/0 Screw
81 118550311/0 Oil Filler Assy
85 118550273/0 Valve Arm Set
86 118550294/0 Exhaust Valve Assy
87 118550292/0 Intake Valve Assy
88 118550389/0 Kit Repair
89 118550388/0 Kit Repair, Carburettor
90 118550743/0 Gasket Carburettor Assy
91 118550406/0 Cylinder Head Gasket Set
92 118550740/0 Engine Gasket Set

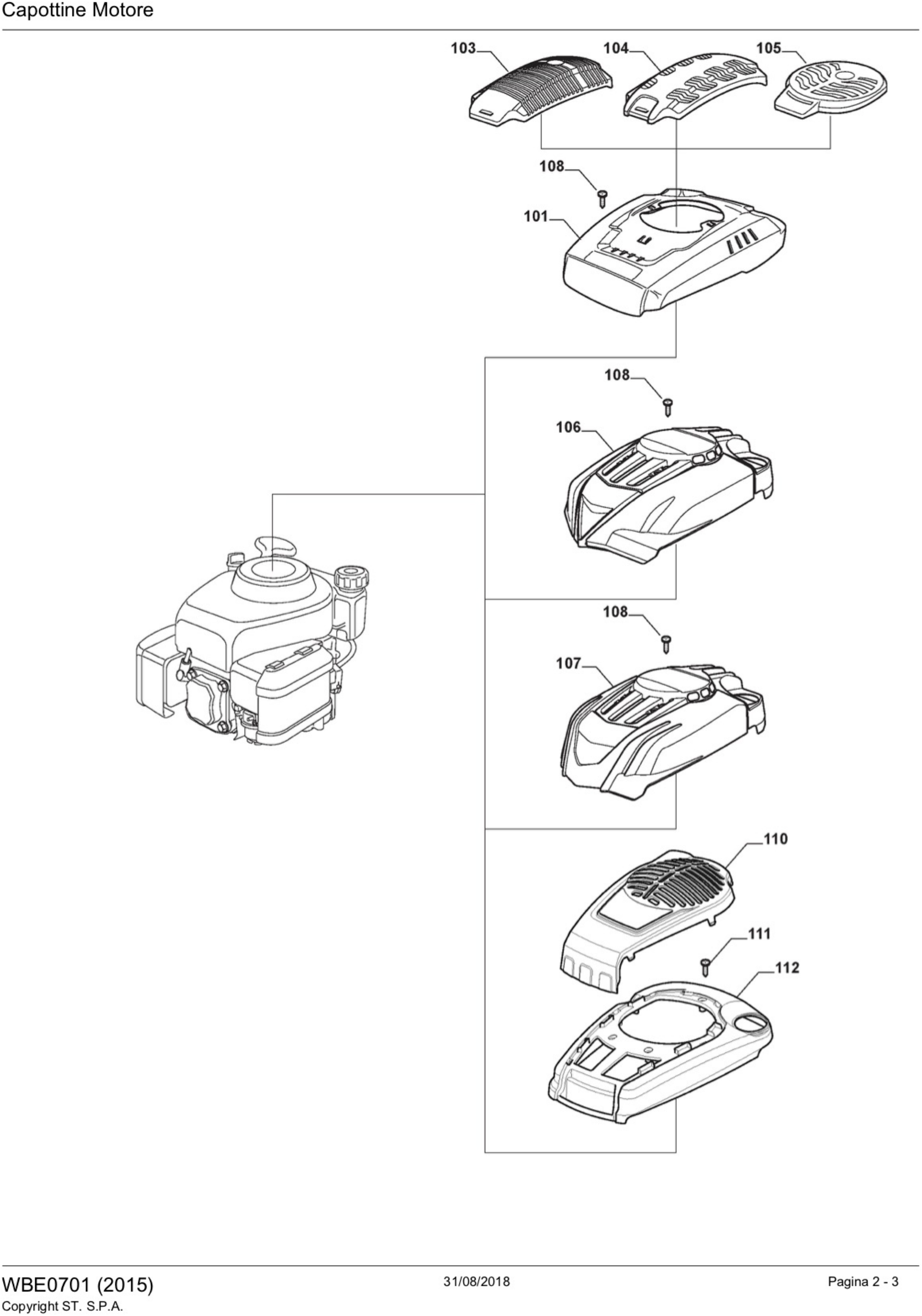

CASTELGARDEN Engine GGP WBE0701 (2015) Pag.3
Engine Covers
101 322055463/1 Cover
103 322055452/0 Cover, Black
104 322055450/0 Cover, Black
105 322055439/0 Cover, Black
106 381002068/0 Cover
107 381002067/0 Cover
108 112728680/0 Screw
110 322055516/0 Cover
111 112728099/1 Screw
112 322055517/0 Base Cover Yellow
112 322055552/0 Base Cover Black
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GGP WBE0701 (2015) 118550408/0
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Engine GGP WBE0701

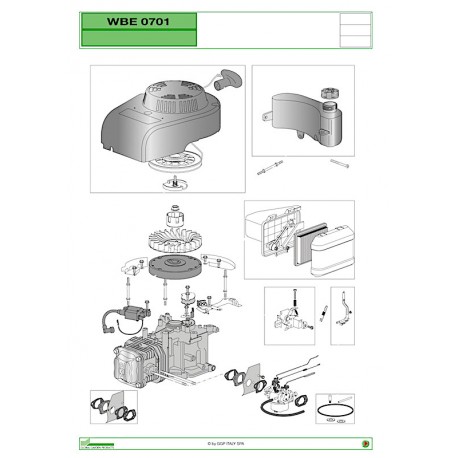

Diagram Engine GGP WBE0701

Download (778.06KB)

You might also like

GGP Italy SKU: 118550251/0
Carburator for Engine GGP WBE0701 Original spare part Alpina, Carburator for Engine GGP WBE0701 118550408/0_110004WBE0701. Part for the following products: -  Engine GGP WBE0701...
Last items in stock €59.41
A.M.A. S.p.A. SKU: 9400-0244-00
Spark Plug Champion RC12YC Original replacement part CHAMPION, Spark Plug RC12YC - T10 - Original Quality - Copper Plus - Spark Plug Copper Plus - Code : 9400-0244-00
AVAILABLE €6.06
GGP Italy SKU: 118550286/0
Piston Rings Ass'y for Engine Alpina TM 60 Original replacement part Alpina, Piston Rings Ass'y for Engine TM 60 - LC165F (2016) - Lawnmower AL5 51 G - NTL 534 WTR/Q - Spazzaneve ST 3255 P/18. Part for the following products: -  ST....
Last items in stock €28.71
GGP Italy SKU: 118550340/0
Fuel Pipe for Engine GGP WBE0701 Original spare part Alpina, Fuel Pipe for Engine GGP WBE0701 - ST. S.P.A. OM55 (2008) Part for the following products: -  Engine GGP WBE0701 118550408/0_110004WBE0701 - Code : 118550340/0
on 7/10 Business Days Approx €8.23
GGP Italy SKU: 118550339/1
Tank Cap for Engine Alpina WBE0701 Original replacement part Alpina, Tank Cap for Engine GGP WBE0701 - Lawnmower XC 48 GSW4 - AL5 51 G - BL 460 - HW531 PD - S481 PD ES. Part for the...
Last items in stock €14.82
Comments (0)
