Alpina Spare Parts for Electric Lawn Mower AL3 46 E

SKU: AL3 46 E 295487060/A12-2017
€1.49
VAT included

Alpina Spare Parts for Electric Lawn Mower AL3 46 E

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Electric Lawn Mower AL3 46 E/295487060/A12-2017.

AL3 46 E 295487060/A12-2017
Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
  • Alpina Spare Parts for Electric Lawn Mower AL3 46 E
GGP Italy

Alpina Spare Parts for Electric Lawn Mower AL3 46 E

SKU: AL3 46 E 295487060/A12-2017 Condition: New
€1.49
VAT included

Alpina Spare Parts for Electric Lawn Mower AL3 46 E

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Electric Lawn Mower AL3 46 E/295487060/A12-2017.

AL3 46 E 295487060/A12-2017
settings 96 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
96 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

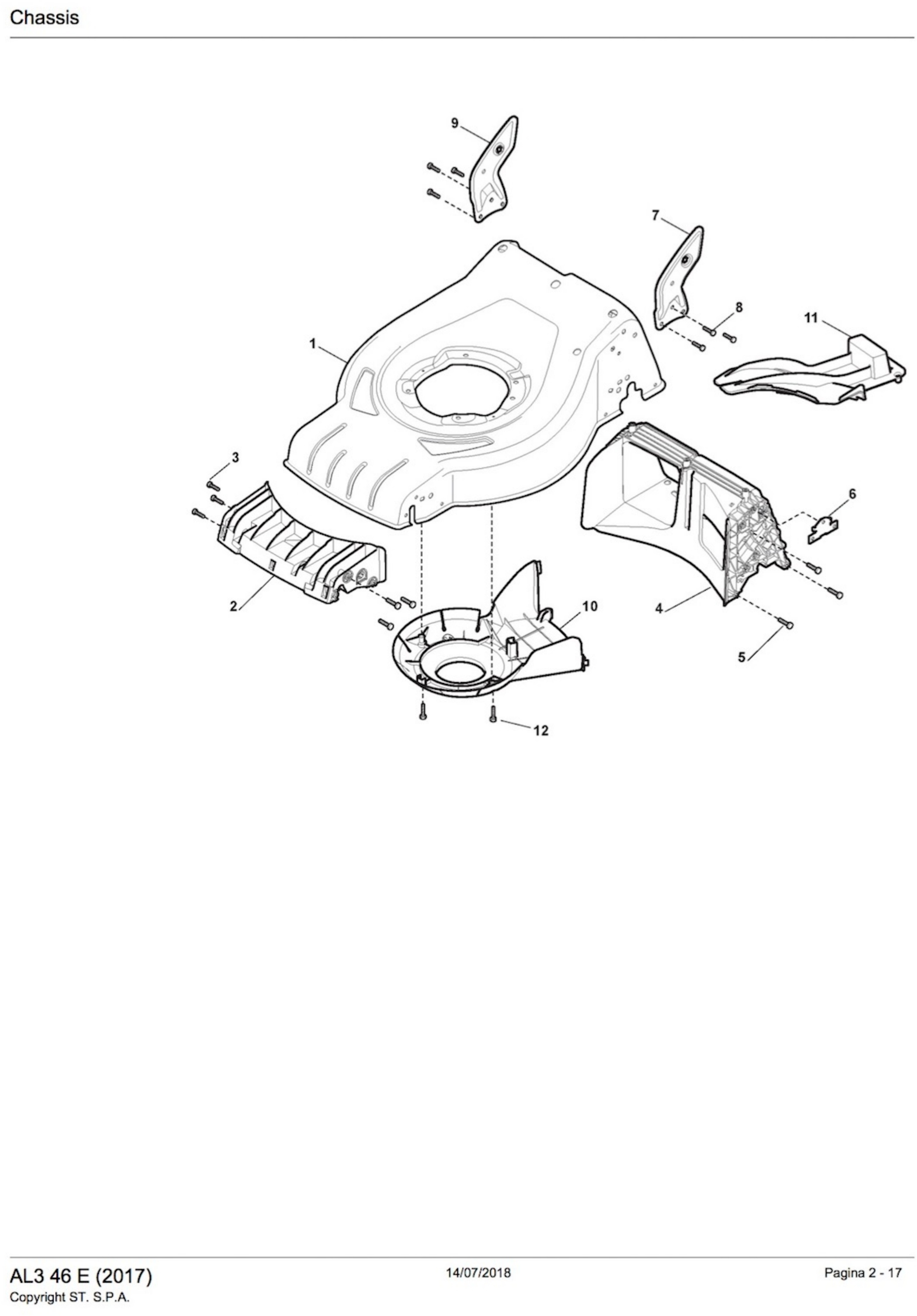

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004018/0  Chassis Rosso  €97.18
1
 photo_cameraImage coming soon 381004024/0  Chassis Nero  €124.80
1
 photo_cameraImage coming soon 381004729/0  Chassis Grigio  €132.66
2
 photo_cameraImage coming soon 322108301/0  Convogliatore Anteriore  €13.20
2
 photo_cameraImage coming soon 322108301/1  Convogliatore Anteriore  €14.85
3
 photo_cameraImage coming soon 112728699/0  Screw  €1.55
4
 photo_cameraImage coming soon 322108302/0  Convogliatore Posteriore  €21.94
5
 photo_cameraImage coming soon 112728699/0  Screw €1.66
6
 photo_cameraImage coming soon 322545213/0  Cushion  €1.94
7
 photo_cameraImage coming soon 381005139/0  Bracket Sinistra  €6.64
8
 photo_cameraImage coming soon 112727801/0  Screw  €1.63
9
 photo_cameraImage coming soon 381005137/0  Bracket Destra  €6.64
10
 photo_cameraImage coming soon 322060242/0  Housing Belt  €14.02
11
 photo_cameraImage coming soon 322140239/0  Mulching Deflector Cruiser €11.11
12
 photo_cameraImage coming soon 112728530/0  Bolt M6x16 €1.49
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

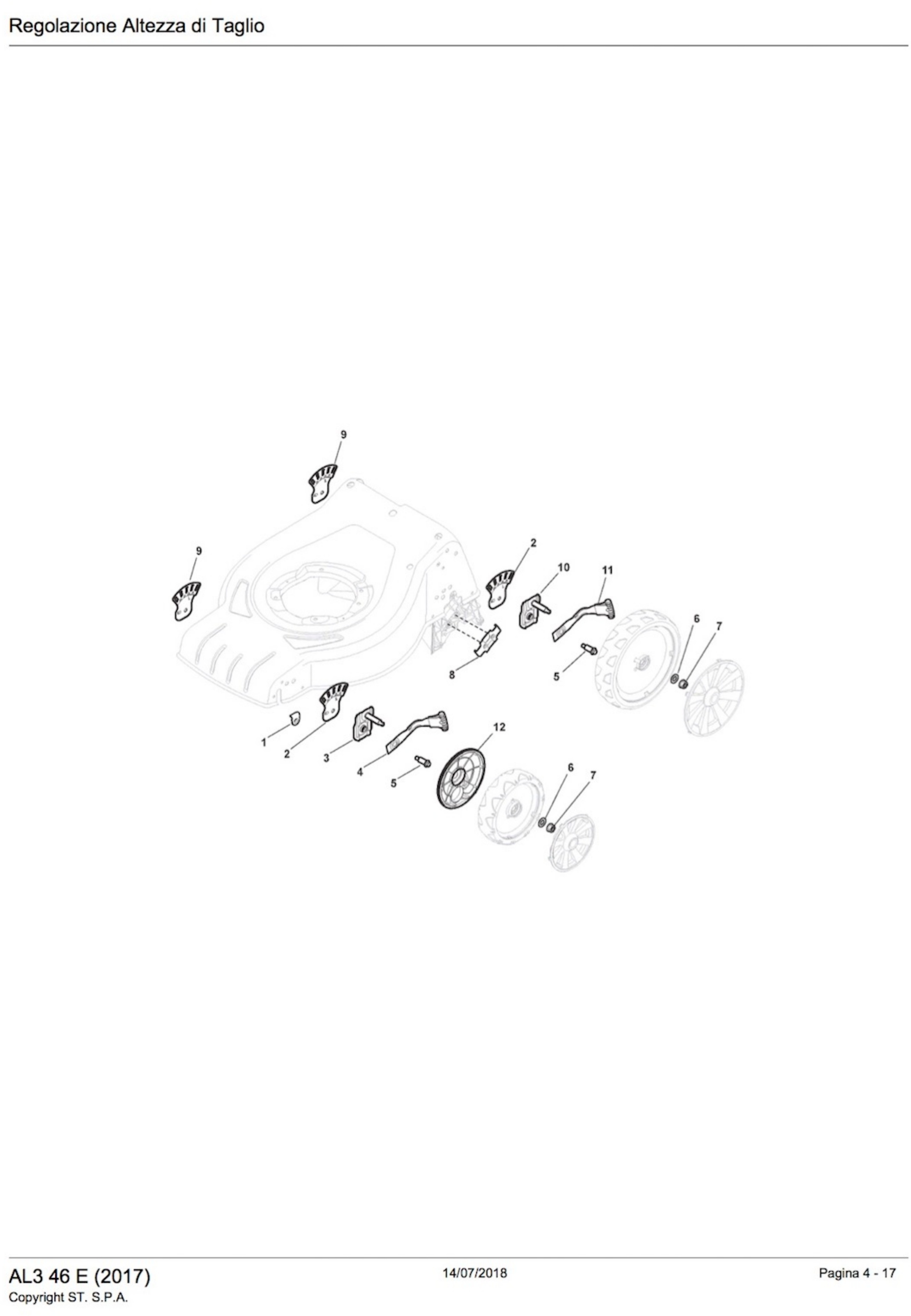

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0  Cushion  €1.54
2
 photo_cameraImage coming soon 322735597/0  Settore Regolazione Altezza left  €2.09
2
 photo_cameraImage coming soon 322735597/1  Settore Regolazione Altezza  €2.47
3
 photo_cameraImage coming soon 381005141/0  Support Wheel  €9.73
3
 photo_cameraImage coming soon 381005159/0  Support Wheel  €11.90
4
 photo_cameraImage coming soon 381003354/0  Leva Regolazione Altezza  €6.99
5
 photo_cameraImage coming soon 122519811/0  Pin  €1.54
6
 photo_cameraImage coming soon 112521350/0  Washer €1.63
7
 photo_cameraImage coming soon 112155000/0  Nut  €1.55
8
 photo_cameraImage coming soon 322545211/0  Cushion  €2.32
9
 photo_cameraImage coming soon 322735595/0  Settore Regolazione Altezza right  €2.69
9
 photo_cameraImage coming soon 322735595/1  Settore Regolazione Altezza  €2.78
10
 photo_cameraImage coming soon 381005143/0  Support Wheel  €9.40
11
 photo_cameraImage coming soon 381003442/0  Leva Regolazione Altezza  €4.45
12
 photo_cameraImage coming soon 322600247/0  Inner Wheel Cover €4.29
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

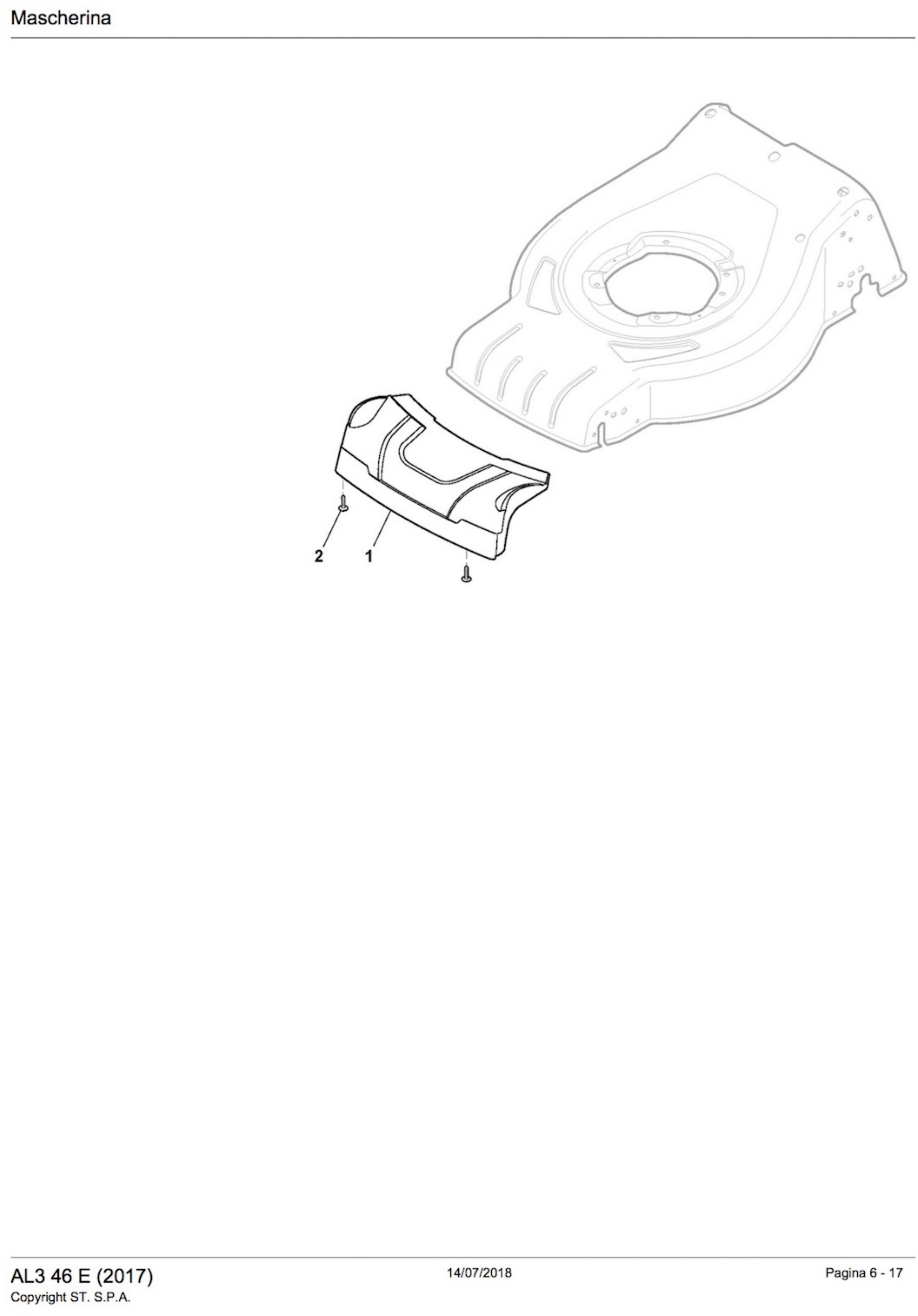

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322226170/0  Mascherina, Nero  €6.30
2
 photo_cameraImage coming soon 112728698/0  Bolt M6x16 €1.55
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

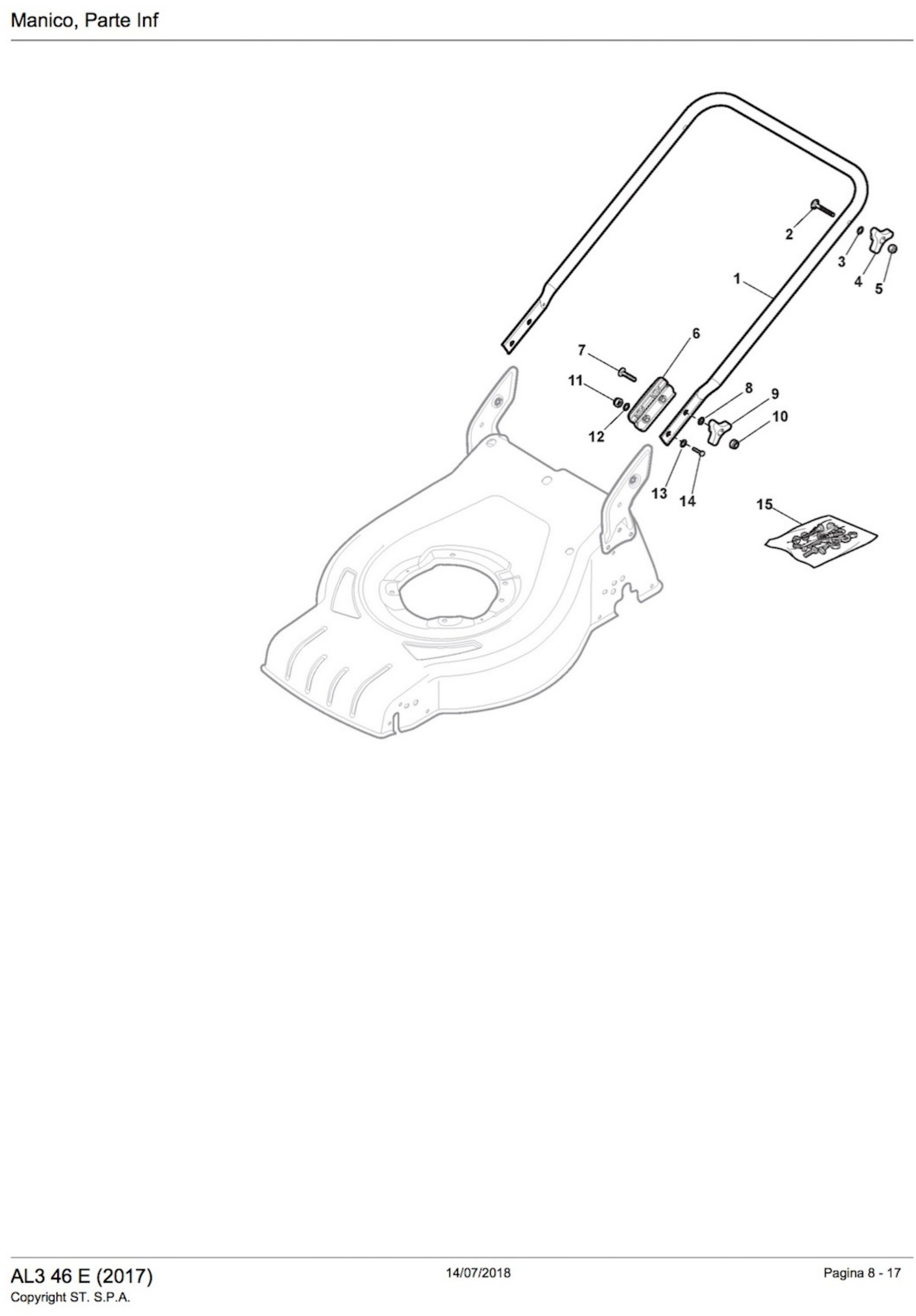

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006735/0  Handle, Parte lower  €9.45
2
 photo_cameraImage coming soon 112819110/0  Screw  €1.55
2
 photo_cameraImage coming soon 112819120/0  Screw  €1.36
3
 photo_cameraImage coming soon 112523060/0  Washer €1.53
4
 photo_cameraImage coming soon 122399900/0  Rubber Ringer  €2.64
5
 photo_cameraImage coming soon 112293200/0  Nut  €1.63
6
 photo_cameraImage coming soon 322551582/0  Piastrina Isolamento  €1.42
7
 photo_cameraImage coming soon 112819110/0  Screw €1.66
8
 photo_cameraImage coming soon 112523060/0  Washer €1.53
9
 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0  3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
10
 photo_cameraImage coming soon 112293200/0  Nut €1.74
11
 photo_cameraImage coming soon 112155000/0  Nut €1.66
12
 photo_cameraImage coming soon 112521350/0  Washer €1.74
13
 photo_cameraImage coming soon 112521350/0  Washer €1.74
14
 photo_cameraImage coming soon 112793701/0  Screw  €1.53
15
 photo_cameraImage coming soon 381008698/0  Deflector Screw Kit €8.74
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

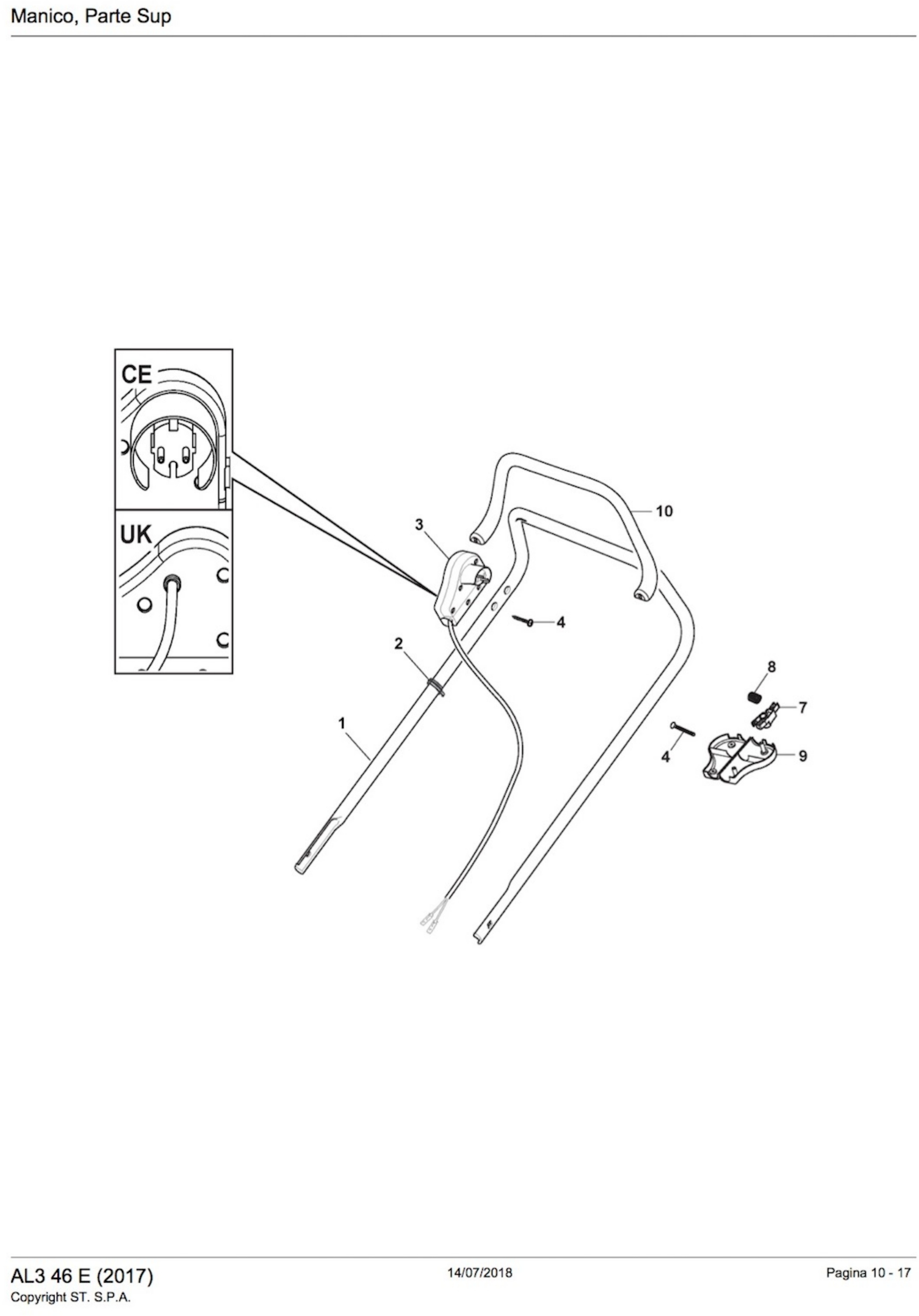

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
CE
 photo_cameraImage coming soon 381600547/2  Salvamotore CE  €27.80
1
 photo_cameraImage coming soon 381007017/2  Handle, Parte upper  €25.80
2
 photo_cameraImage coming soon 122192000/1  band €1.51
3
 photo_cameraImage coming soon 381600547/2  Salvamotore CE  €27.80
4
 photo_cameraImage coming soon 112728701/0  Screw  €1.36
7
 photo_cameraImage coming soon 322230350/2  Fulcro  €1.70
8
 photo_cameraImage coming soon 122450115/0  Flywheel Spring €1.36
9
 photo_cameraImage coming soon 322785144/1  Holder  €2.59
10
 photo_cameraImage coming soon 322322881/1  Leva Freno Motor, Nero €10.09
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

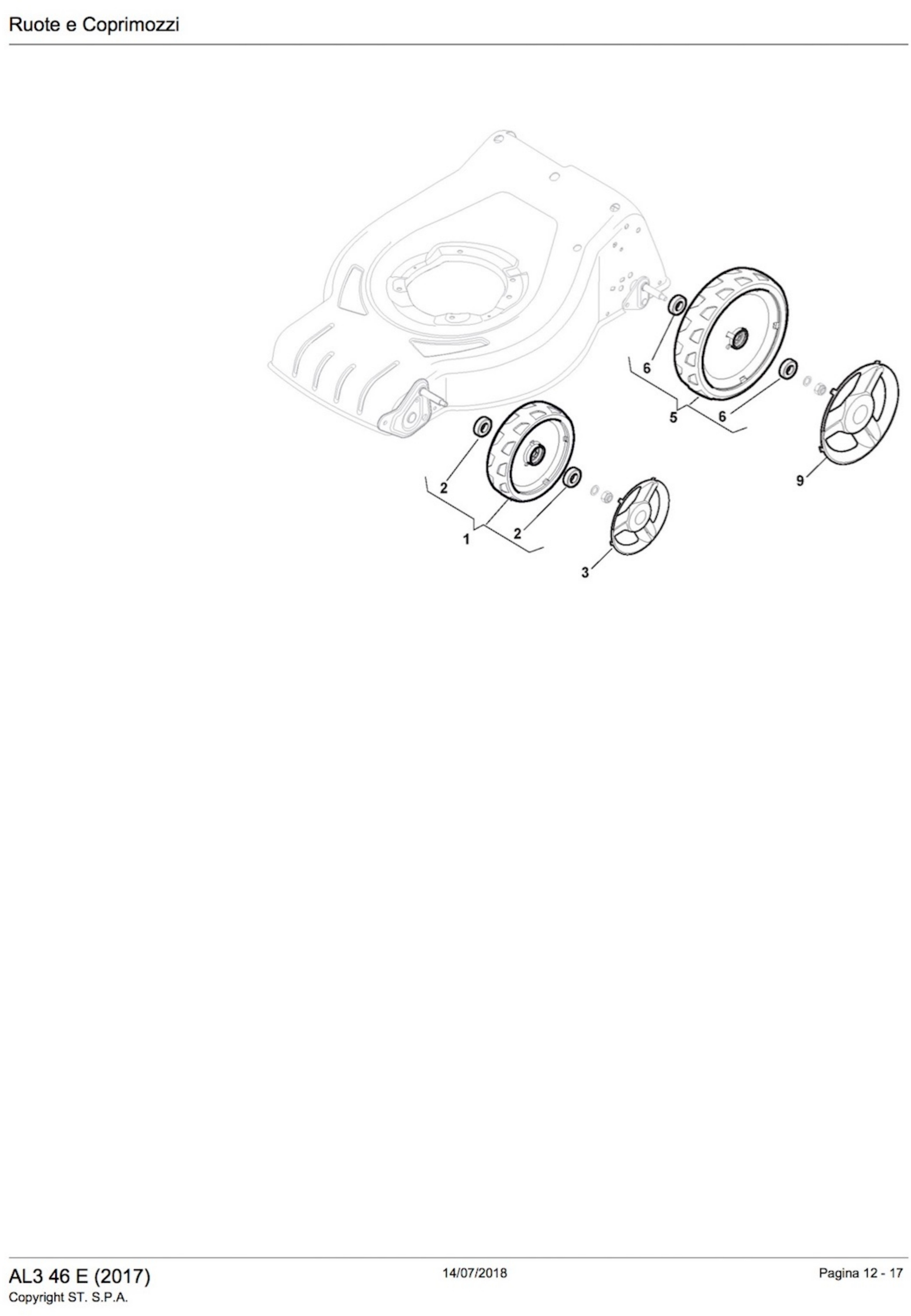

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007448/1  Wheel - Short Lungo  €11.59
2
 photo_cameraImage coming soon 119216035/0  Bearing €4.39
3
 photo_cameraImage coming soon 322110687/0  Coprimozzo Grigio  €2.97
5
 photo_cameraImage coming soon 381007449/0  Wheel  €15.96
5
 photo_cameraImage coming soon 381007449/1  Wheel  €16.78
6
 photo_cameraImage coming soon 119216035/0  Bearing €4.51
9
 photo_cameraImage coming soon 322110689/0  COVER GRAY HUB €2.59
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

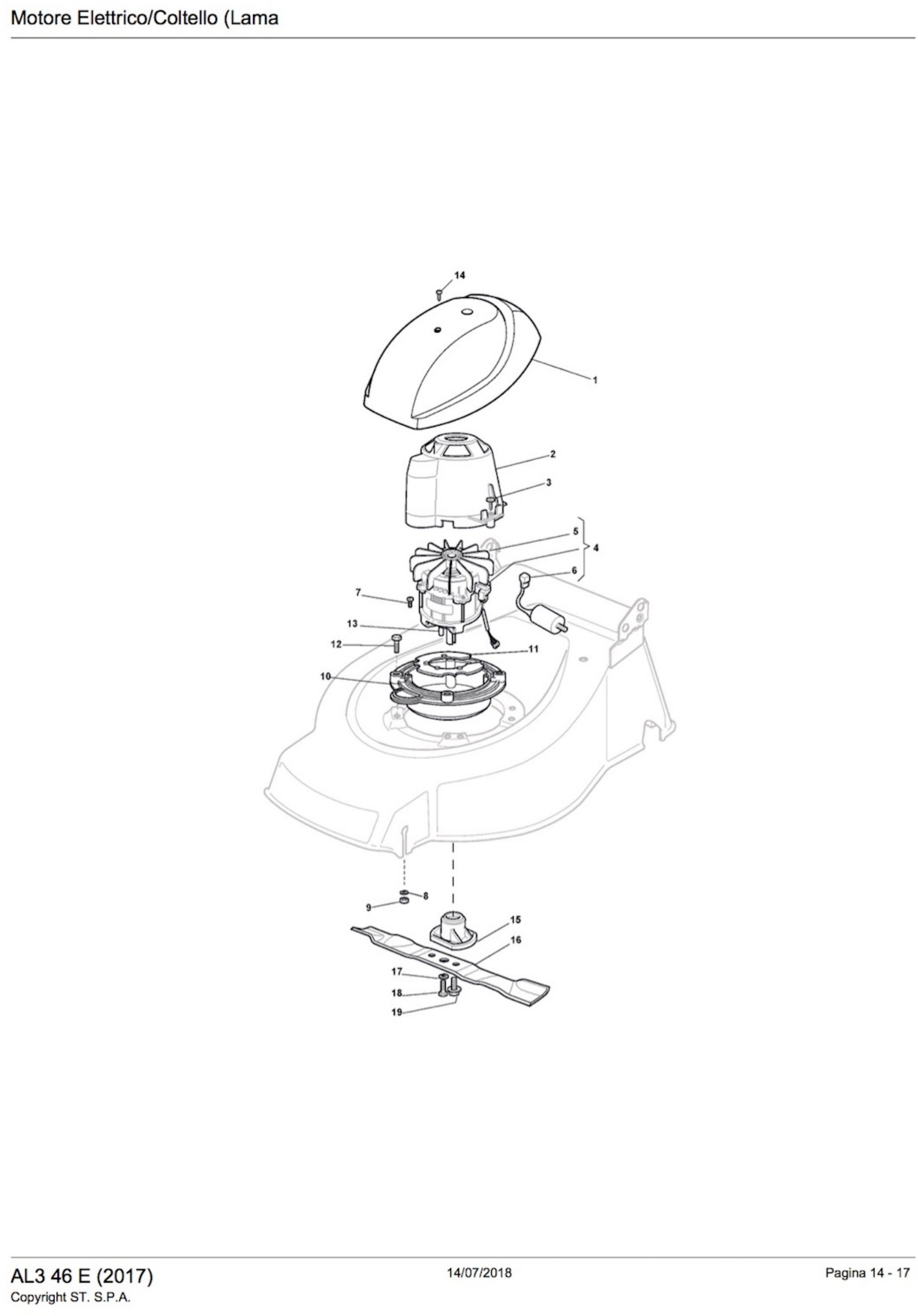

Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 122055058/0  Capottina Nera €10.48
2
 photo_cameraImage coming soon 122785061/0  Support Capottina  €8.06
2
 photo_cameraImage coming soon 322785061/1  Support Capottina  €8.06
3
 photo_cameraImage coming soon 112728710/0  Screw  €1.33
4
 photo_cameraImage coming soon 118563009/0  Motor Rst 1600W 220/230V 50Hz  €154.57
4
 photo_cameraImage coming soon 118563047/2  Motor Elettrico 1600W  €292.36
4
 photo_cameraImage coming soon 118563605/0  1600W Electric Motor €154.57
4
 photo_cameraImage coming soon 118563665/0  Motor Elettrico 1600W  €154.57
5
 photo_cameraImage coming soon 118740049/0  Fan  €6.62
5
 photo_cameraImage coming soon 118740051/0  Fan  €4.26
6
 photo_cameraImage coming soon 118222038/0  Capacitor  €26.03
6
 photo_cameraImage coming soon 118222045/0  Capacitor 16 μf  €16.16
7
 photo_cameraImage coming soon 112735410/0  Screw  €1.53
8
 photo_cameraImage coming soon 112583500/0  Grower  €1.53
9
 photo_cameraImage coming soon 112293200/0  Nut €1.74
10
 photo_cameraImage coming soon 322207211/4  Flange Motor  €5.06
11
 photo_cameraImage coming soon 322720360/2  Baffle €2.30
12
 photo_cameraImage coming soon 112793701/0  Screw  €1.53
13
 photo_cameraImage coming soon 112139440/0  Linguetta  €1.16
14
 photo_cameraImage coming soon 112728680/0  Screw  €1.51
15
 photo_cameraImage coming soon 322463186/3  Knife Hub €8.88
16
 photo_cameraImage coming soon 181004346/3  Blade €14.00
16
 photo_cameraImage coming soon 181004397/0  Coltello Alettato  €21.40
16
 photo_cameraImage coming soon 181004460/0  Blade Mulching  €13.80
17
 photo_cameraImage coming soon 112583500/0  Grower €1.64
18
 photo_cameraImage coming soon 112793101/0  Screw  €1.51
19
 photo_cameraImage coming soon 381004352/0  Screw  €3.90
19
 photo_cameraImage coming soon 381004352/1  Bolt M6x16 €3.80
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

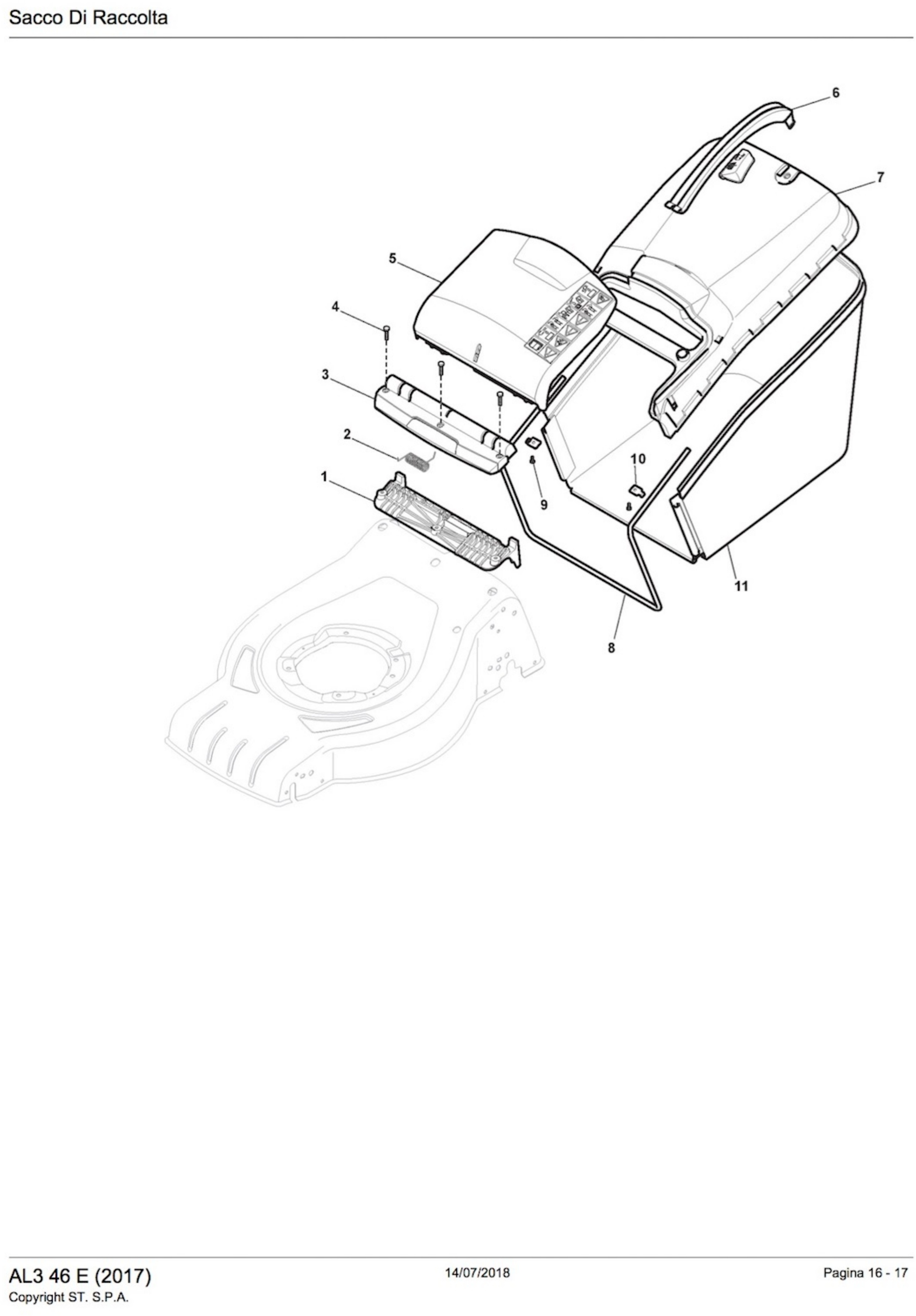

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0  Support Fulcro Parasassi Nero  €6.99
2
 photo_cameraImage coming soon 122450464/0  Flywheel Spring €1.85
4
 photo_cameraImage coming soon 112728699/0  Screw €1.66
5
 photo_cameraImage coming soon 322600206/1  Parasassi Nero  €23.41
6
 photo_cameraImage coming soon 322393644/0  Handle Sacco Nera  €4.53
7
 photo_cameraImage coming soon 381486018/0  Sacco, Parte upper Nero  €27.10
8
 photo_cameraImage coming soon 122608561/0  Rinforzo Inf  €11.80
9
 photo_cameraImage coming soon 112728692/0  Screw  €4.85
10
 photo_cameraImage coming soon 322545159/0  Cushion  €1.48
11
 photo_cameraImage coming soon 181002318/0  Box €34.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Electric Lawn Mower AL3 46 E

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair problem for Electric Lawn Mower AL3 46 E/295487060/A12-2017.

In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
AL3 46 E 295487060/A12-2017

Electric Lawn Mower AL3 46 E/295487060/A12-2017
Deck Pag.1
# Part Num. Description
1 381004018/0 Red Deck
1 381004024/0 Black Deck
1 381004729/0 Grey Deck
2 322108301/1 Front Conveyor Assy
3 112728699/0 Screw
4 322108302/0 Rear Conveyor Assy
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/0 Belt Protection
11 322140239/0 Mulching Deflector Cruiser 48
12 112728530/0 Screw
Height Adjusting Pag.2
1 322545189/0 Plate
2 322735597/1 Sector, Height Adjustment
3 381005159/0 Wheel Support
4 381003354/0 Lever, Height Adjustment
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
8 322545211/0 Plate
9 322735595/1 Sector, Height Adjustment
10 381005161/0 Wheel Support
11 381003442/0 Lever, Height Adjustment
12 322600247/0 Protection, Wheel
Mask Pag.3
1 322226170/0 Mask, Black
2 112728698/0 Screw
Handle, Lower Part Pag.4
1 381006735/0 Handle Lower Part
2 112819110/0 Screw
3 112523060/0 Washer
4 122399900/0 Knob
5 112293200/0 Nut
6 322551582/0 Inside Plaque Insulation
7 112819110/0 Screw
8 112523060/0 Washer
9 122399900/0 Knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112521350/0 Washer
14 112793701/0 Screw
15 381008698/0 Outfit, Screws
Handle, Upper Part Pag.5
1 381007017/2 Handle, Upper Part
2 122192000/1 Clamp
3 381600547/2 Dead Hand Switch CE
4 112728701/0 Screw
5 322195101/4 Fairlead
6 122010251/0 Hook
7 322230350/1 Left Fulcrum
8 122450115/0 Spring
9 322785144/1 Support
10 322322881/1 Lever, Engine Brake Black
Wheels and Hub Caps Pag.6
1 381007448/1 Wheel - Short Hub
2 119216035/0 Bearing
3 322110687/0 Hub Cap Grey
5 381007449/1 Wheel
6 119216035/0 Bearing
9 322110689/0 Hub Cap Grey
Electric Motor/Blade Pag.7
1 122055058/0 Electric Motor, Cover
2 322785061/1 Electric Motor, Cover
3 112728710/0 Screw
4 118563605/0 Electric Motor 1600W
5 118740054/0 Fan Motor Atb
6 118222045/0 Condenser 16 µf
7 112735410/0 Screw
8 112583500/0 Grower
9 112293200/0 Nut
10 322207211/4 Electrical Motor Flange
11 322720360/2 Ventilation Screen
12 112793701/0 Screw
13 112139440/0 Key
14 112728680/0 Screw
15 322463186/3 Blade Boss Hub
16 181004397/0 Winged Blade
16 181004460/0 Mulching Blade
17 112583500/0 Grower
18 112793101/0 Screw
19 381004352/1 Screw
Grass-Catcher Pag.8
1 322785331/0 Black Stone Guard Support
2 122450464/0 Spring
3 322109554/0 Stone Guard Supp. Cover Black
4 112728699/0 Screw
5 322600206/1 Stone Guard, Black
7 381486018/0 Grass-Box, Upper Part Black
8 122608561/0 Grasscatcher Lower Stiffening
9 112728692/0 Screw
10 322545159/0 Plate
11 181002318/0 Box, Fabric
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL3 46 E 295487060/A12-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina Alpina AL3 46 E

Diagram Alpina Alpina AL3 46 E

Download (857.92KB)

You might also like

Blade Boss Hub for Lawnmower Alpina AL3 46 E
GGP Italy SKU: 322463186/3
Blade Boss Hub for Lawnmower Alpina AL3 46 E
Blade Boss Hub for Lawnmower Alpina AL3 46 E Original replacement part Alpina, Blade Boss Hub D=17 (M9x1) for Electric Lawnmower AL3 46 E - FL 41 LE. Part for the following products: - Electric Lawnmower AL3 46 E/295487060/A12-2017...
build View Spare Parts
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E
GGP Italy SKU: 381004352/1
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E
Blade Boss Hub Bolt for Lawnmower Alpina AL1 38 E Original replacement part Alpina, Blade Boss Hub Bolt for Electric Lawnmower AL1 38 E - AL1 42 E - AL3 46 E - FL 41 LE. Part for the following products: - Electric Lawnmower AL1 38 E...
Last items in stock €4.00
Details
Capacitor 16 μf for Lawnmower Alpina AL3 46 E
GGP Italy SKU: 118222045/0
Capacitor 16 μf for Lawnmower Alpina AL3 46 E
Capacitor 16 μf for Lawnmower Alpina AL3 46 E Original replacement part Alpina, Capacitor 16 μf for Electric Lawnmower AL3 46 E - FL 41 LE. Part for the following products: - Rasaerba Eletrrico AL3 46 E/295487060/A12-2017 - Rasaerba...
Last items in stock €20.13
Details
Electric Motor for Lawnmower Alpina AL3 46 E
GGP Italy SKU: 118563605/0
Electric Motor for Lawnmower Alpina AL3 46 E
Electric Motor for Lawnmower Alpina AL3 46 E Original replacement part Alpina, Electric Motor 230-240V 50Hz 20μf 450V 7.35 AP 1600W 2800 RPM IP0051 for Electric Lawnmower AL3 46 E - FL 41 LE....
Last items in stock €182.88
Details
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
Details
Electric Motor Cover for Lawnmower Alpina AL3 46 E
GGP Italy SKU: 322785061/1
Electric Motor Cover for Lawnmower Alpina AL3 46 E
Electric Motor Cover for Lawnmower Alpina AL3 46 E Original replacement part Alpina, WBH 1800W 13/14 Electric Motor Cover for Electric Lawnmower AL3 46 E - FL 41 LE. Part for the following products: - ...
on 10 Business Days Approx €8.91
Details
Alpina BL 460 SB Mulching Plug [Cruiser]
GGP Italy SKU: 322140239/0
Alpina BL 460 SB Mulching Plug Cruiser 48
Alpina BL 460 SB Mulching Plug [Cruiser 48] Original replacement part Alpina, Mulching Plug [Cruiser] forLawnmowers BL 460 SB - AL3 46 B - G - E - SG. Part for the following products: -  Lawnmower...
on 7/10 Business Days Approx €11.88
Details
Comments (0)
