GGP Italy

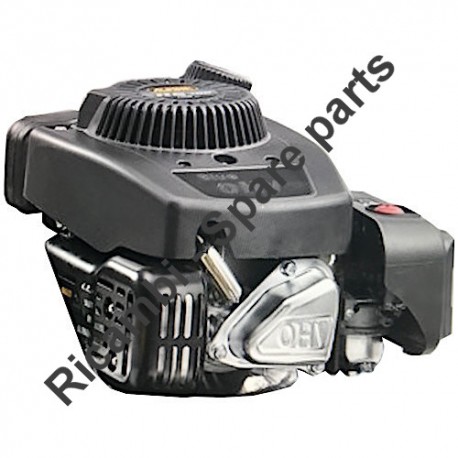

Alpina Spare Parts for Engine RSCT 100 OHV

SKU: RSCT 100 OHV 118550761/0 - 2014
€1.88
VAT included

Alpina Spare Parts for Engine RSCT 100 OHV

Alpina original spare parts to replace worn components or repair damaged parts of the Engine RSCT 100 OHV 118550761/0_110003RSCT100 OHV - 2014.

RSCT 100 OHV 118550761/0 - 2014
Alpina Spare Parts for Engine RSCT 100 OHV
  • Alpina Spare Parts for Engine RSCT 100 OHV
  • Alpina Spare Parts for Engine RSCT 100 OHV
  • Alpina Spare Parts for Engine RSCT 100 OHV
GGP Italy

Alpina Spare Parts for Engine RSCT 100 OHV

SKU: RSCT 100 OHV 118550761/0 - 2014 Condition: New
€1.88
VAT included

Alpina Spare Parts for Engine RSCT 100 OHV

Alpina original spare parts to replace worn components or repair damaged parts of the Engine RSCT 100 OHV 118550761/0_110003RSCT100 OHV - 2014.

RSCT 100 OHV 118550761/0 - 2014
settings 136 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
130 spare parts

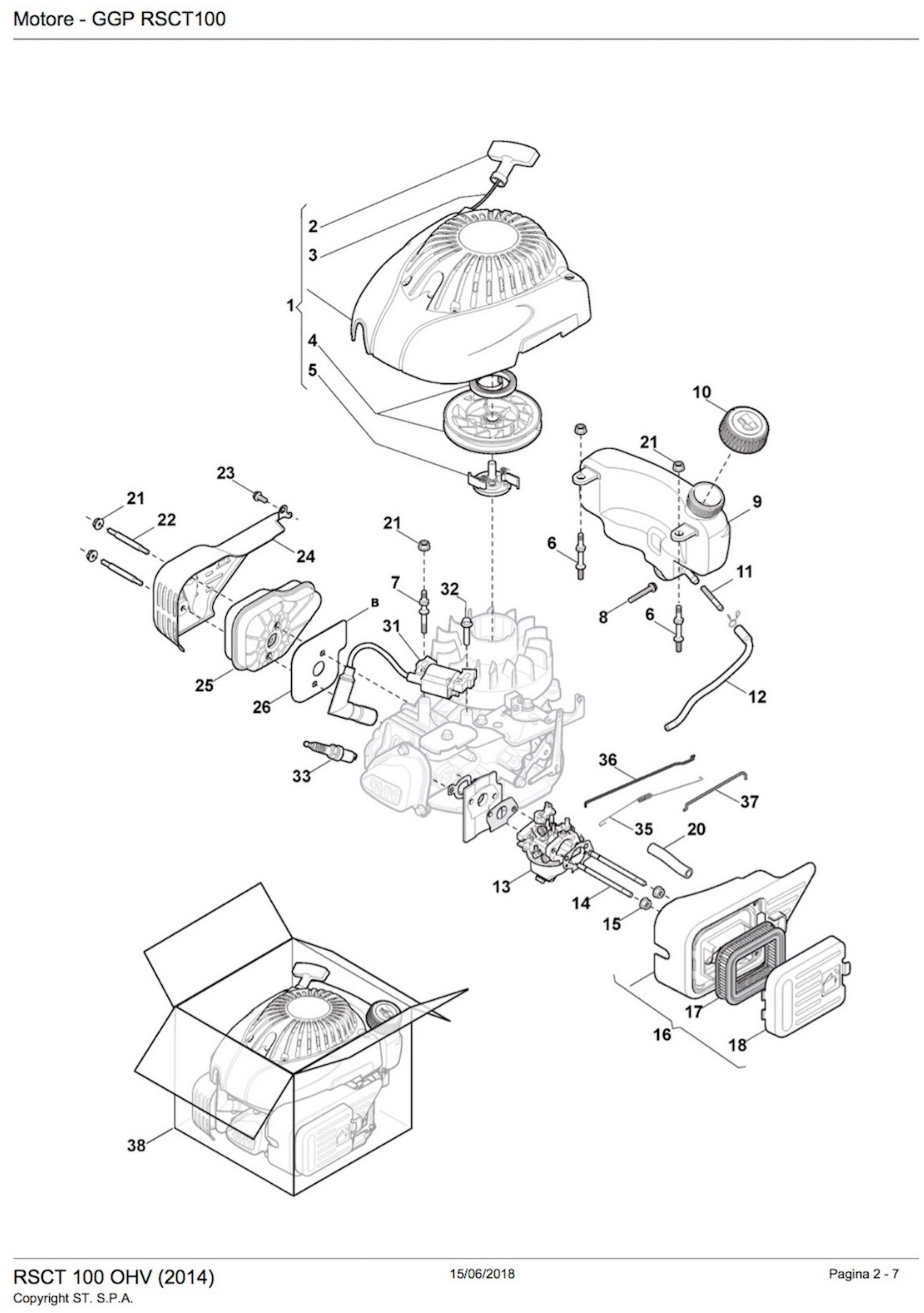

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1
 Recoil Starter Ass'y for Petrol Engine Alpina RSC 100 OHV 118550750/0 Recoil Starter Ass'y for Petrol Engine Alpina RSC 100 OHV €44.21
2
 photo_cameraImage coming soon 118550768/0 Starter Handle €7.65
3
 photo_cameraImage coming soon 118550766/0 Starting Rope €7.73
4
 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV 118550695/0 Spring and Reel Recoil Starter Set for Petrol Engine Alpina RSC 100 OHV €13.50
5
 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV 118550696/0 Starter Pawl Set for Petrol Engine Alpina RSC 100 OHV €7.46
6
 photo_cameraImage coming soon 118550713/0 Screw €5.37
7
 photo_cameraImage coming soon 118550714/0 Screw €2.96
8
 photo_cameraImage coming soon 112689515/0 Screw €1.65
9
 photo_cameraImage coming soon 118550712/0 Fuel Tank €16.88
10
 photo_cameraImage coming soon 118550747/0 Fuel Cap €5.67
11
 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G 118550715/0 Fuel Filter for Petrol Lawnmower Alpina BL 410 - AL3 46 G €2.43
12
 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV 118550716/0 Fuel Pipe for Petrol Engine Alpina RS100 BLUE OHV - RSC 100 OHV €4.51
13
 Carburator for Petrol Engine Alpina RSC 100 OHV 118550753/0 Carburator for Petrol Engine Alpina RSC 100 OHV €50.54
14
 photo_cameraImage coming soon 118550706/0 Screw €3.58
15
 photo_cameraImage coming soon 112292102/0 Nut €1.86
16
 Air Filter Assembly for Petrol Engine Alpina RSC 100 OHV 118550771/0 Air Filter Assembly for Petrol Engine Alpina RSC 100 OHV €29.00
17
 Air Filter for Petrol Engine Alpina RSC 100 OHV 118550748/0 Air Filter for Petrol Engine Alpina RSC 100 OHV €7.46
18
 photo_cameraImage coming soon 118550772/0 Air Cleaner Cover €21.33
20
 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV 118550705/0 Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV €2.63
21
 photo_cameraImage coming soon 112292102/0 Nut €1.86
22
 photo_cameraImage coming soon 118550710/0 Screw €3.58
23
 photo_cameraImage coming soon 112735699/0 Screw €1.65
24
 photo_cameraImage coming soon 118550709/0 Muffler Guard €20.36
25
 photo_cameraImage coming soon 118550749/0 Muffler €14.18
26
 photo_cameraImage coming soon 118550707/0 Muffler Gasket €2.96
31
 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G 118550719/0 Electronic Ignition Coil for Lawnmower Alpina AL3 46 G €31.54
32
 photo_cameraImage coming soon 112792099/0 Screw €1.63
33
 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G 118550658/0 NGK Spark Plug K7RTC for Petrol Tiller Alpina TI 36 G €8.89
35
 photo_cameraImage coming soon 118550720/0 Spring €1.65
36
 photo_cameraImage coming soon 118550721/0 Governor Link €1.73
37
 photo_cameraImage coming soon 118550751/0 Spring €1.34
38
 photo_cameraImage coming soon 118550761/0 Engine €213.91
41
 photo_cameraImage coming soon 118550717/0 Nut €1.65
42
 photo_cameraImage coming soon 118550757/0 Starter Cup €4.38
43
 photo_cameraImage coming soon 118550756/0 Flywheel Fan €4.38
44
 photo_cameraImage coming soon 118550754/0 Flywheel Ass.Y €48.44
45
 photo_cameraImage coming soon 112735699/0 Screw €1.65
46
 photo_cameraImage coming soon 118550659/0 Cover €2.53
47
 photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
 photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
 photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
51
 photo_cameraImage coming soon 112735699/0 Screw €1.65
52
 photo_cameraImage coming soon 112791500/0 Screw €1.64
53
 photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
 photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
 Oil Dipstick for Petrol Engine Alpina RSC 100 OHV 118550745/0 Oil Dipstick for Petrol Engine Alpina RSC 100 OHV €7.99
56
 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
 photo_cameraImage coming soon 118550664/0 Pin €2.96
58
 photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
59
 photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
60
 photo_cameraImage coming soon 118550760/0 Plate €9.63
61
 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
 photo_cameraImage coming soon 118550673/0 Washer €1.65
63
 photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
 photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
 photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
 photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
 photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
68
 photo_cameraImage coming soon 112735699/0 Screw €1.65
69
 photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
 photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
 photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
 photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
 photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
 photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
 photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
 photo_cameraImage coming soon 118550685/0 Plate €1.85
80
 photo_cameraImage coming soon 118550686/0 Screw €3.58
81
 photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
 photo_cameraImage coming soon 118550688/0 Nut €4.05
83
 photo_cameraImage coming soon 118550689/0 Nut €1.65
84
 photo_cameraImage coming soon 118550758/0 Switch €4.38
85
 photo_cameraImage coming soon 118550755/0 Throttle Cable €10.47
86
 photo_cameraImage coming soon 112735699/0 Screw €1.65
87
 photo_cameraImage coming soon 118550759/0 Spring €1.51
89
 photo_cameraImage coming soon 112791500/0 Screw €1.64
90
 photo_cameraImage coming soon 112735699/0 Screw €1.65
91
 photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
 photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
 photo_cameraImage coming soon 118550690/0 Spring €3.66
94
 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
 photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
 photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

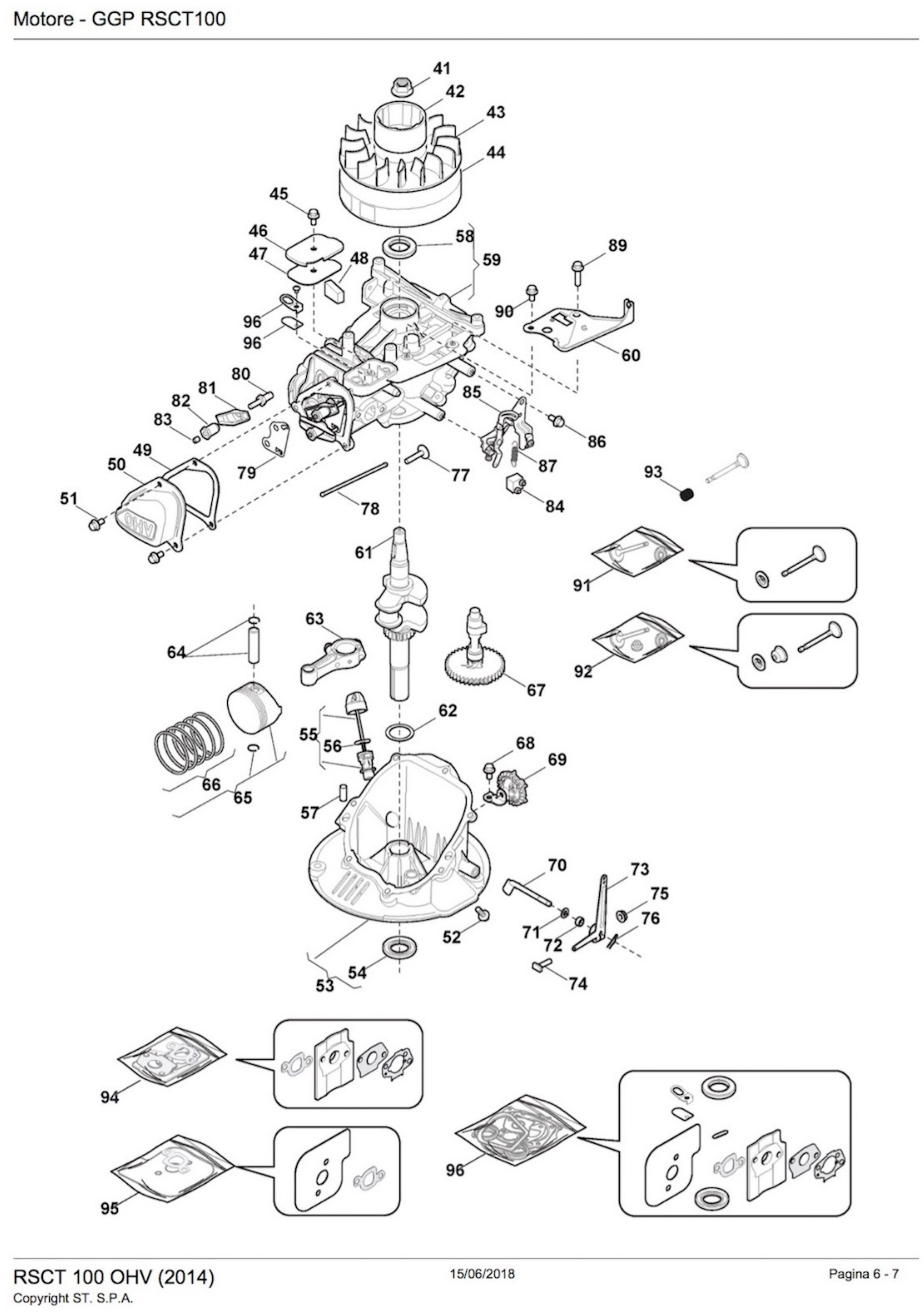

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
Pos. Item Price Buy
41
 photo_cameraImage coming soon 118550717/0 Nut €1.65
42
 photo_cameraImage coming soon 118550757/0 Starter Cup €4.38
43
 photo_cameraImage coming soon 118550756/0 Flywheel Fan €4.38
44
 photo_cameraImage coming soon 118550754/0 Flywheel Ass.Y €48.44
46
 photo_cameraImage coming soon 118550659/0 Cover €2.53
47
 photo_cameraImage coming soon 118550733/0 Gasket, Breath Groove €16.11
48
 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G 118550660/0 Oil Filter for Petrol Lawnmower Alpina BL 460 S - AL3 46 G €3.35
49
 photo_cameraImage coming soon 118550680/0 Gasket €2.34
50
 photo_cameraImage coming soon 118550681/0 Cover Comp., Head €8.77
52
 photo_cameraImage coming soon 112791500/0 Screw €1.64
53
 photo_cameraImage coming soon 118550672/0 Crankase Cover Assy €64.56
54
 photo_cameraImage coming soon 118550668/0 Oil Seal €4.14
55
 Oil Dipstick for Petrol Engine Alpina RSC 100 OHV 118550745/0 Oil Dipstick for Petrol Engine Alpina RSC 100 OHV €7.99
56
 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV 118550670/0 Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV €1.84
57
 photo_cameraImage coming soon 118550664/0 Pin €2.96
58
 photo_cameraImage coming soon 118550661/0 Oil Seal €3.58
59
 photo_cameraImage coming soon 118550729/0 Cylinder Head Assy €153.12
60
 photo_cameraImage coming soon 118550760/0 Plate €9.63
61
 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV 118550674/0 Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV €75.58
62
 photo_cameraImage coming soon 118550673/0 Washer €1.65
63
 photo_cameraImage coming soon 118550675/0 Connecting Rod Assy €16.11
64
 photo_cameraImage coming soon 118550678/0 Circlip + Piston Pin €4.21
65
 photo_cameraImage coming soon 118550677/0 Piston Assy €37.67
66
 photo_cameraImage coming soon 118550679/0 Piston, Ring Set €12.40
67
 photo_cameraImage coming soon 118550682/0 Camshaft assy €18.50
69
 photo_cameraImage coming soon 118550662/0 Speed Governor Assy €7.83
70
 photo_cameraImage coming soon 118550665/0 Shaft, Governor Arm €3.51
72
 photo_cameraImage coming soon 118550671/0 Gasket €2.35
73
 photo_cameraImage coming soon 118550723/0 Support Governor €2.95
76
 photo_cameraImage coming soon 118550667/0 Cotter Pin €1.65
77
 photo_cameraImage coming soon 118550683/0 Valve Lifter €5.13
78
 photo_cameraImage coming soon 118550684/0 Push Rods €8.61
79
 photo_cameraImage coming soon 118550685/0 Plate €1.85
80
 photo_cameraImage coming soon 118550686/0 Screw €3.58
81
 photo_cameraImage coming soon 118550687/0 Valve Arm €4.51
82
 photo_cameraImage coming soon 118550688/0 Nut €4.05
83
 photo_cameraImage coming soon 118550689/0 Nut €1.65
84
 photo_cameraImage coming soon 118550758/0 Switch €4.38
85
 photo_cameraImage coming soon 118550755/0 Throttle Cable €10.47
87
 photo_cameraImage coming soon 118550759/0 Spring €1.51
91
 photo_cameraImage coming soon 118550692/0 Exhaust Valve Assy €19.04
92
 photo_cameraImage coming soon 118550691/0 Intake Valve Assy €21.01
93
 photo_cameraImage coming soon 118550690/0 Spring €3.66
94
 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV 118550699/0 Carburator Gasket Set for Petrol Engine Alpina RSC 100 OHV €12.52
95
 photo_cameraImage coming soon 118550731/0 Cylinder Head Gasket Set €5.83
96
 photo_cameraImage coming soon 118550730/0 Engine Gasket Set €17.30

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Engine RSCT 100 OHV

Alpina original spare parts to replace worn components or repair damaged parts of the Engine RSCT 100 OHV 118550761/0_110003RSCT100 OHV - 2014.

In the following table, look for the model of the Engine and the respective parts of the code.
RSCT 100 OHV 118550761/0 - 2014

Engine RSCT 100 OHV
# Part Num. Description
1 118550750/0 Ass. Capottina Avviamento
2 118550768/0 Maniglia Avviatore
3 118550766/0 Fune avviamento
4 118550695/0 Puleggia Avviamento
5 118550696/0 Starter Pawl Set
6 118550713/0 Screw
7 118550714/0 Screw
8 112689515/0 Screw
9 118550712/0 Fuel Tank
10 118550747/0 Tappo Serbatoio
11 118550715/0 Filtro Carburante
12 118550716/0 Tubo Carburante
13 118550753/0 Carburator
14 118550706/0 Screw
15 112292102/0 Nut
16 118550771/0 Air Cleaner Ass'y
17 118550748/0 Air Filter
18 118550772/0 Coperchio Filtro Aria
20 118550705/0 Tubo Sfiato
21 112292102/0 Nut
22 118550710/0 Screw
23 112735699/0 Screw
24 118550709/0 Protezione Silenziatore
25 118550749/0 Muffler
26 118550707/0 Gasket Silenziatore
31 118550719/0 Bobina Elettronica
32 112792099/0 Screw
33 118550658/0 Spark Plug K7RTC
35 118550720/0 Spring
36 118550721/0 Asta Regolatore
37 118550751/0 Spring
38 118550761/0 Motore
41 118550717/0 Nut
42 118550757/0 Coppa Avviamento
43 118550756/0 Ventola Volano
44 118550754/0 Ass. Volano
45 112735699/0 Screw
46 118550659/0 Cap
47 118550733/0 Gasket Sfiato Olio
48 118550660/0 Oil Filter
49 118550680/0 Gasket
50 118550681/0 Coperchio Valvole
51 112735699/0 Screw
52 112791500/0 Screw
53 118550672/0 Ass. Carter Motore
54 118550668/0 Anello Di Tenuta
55 118550745/0 Oil Dipstick
56 118550670/0 Oil Cap O-Ring
57 118550664/0 Perno
58 118550661/0 Anello Di Tenuta
59 118550729/0 Ass. Testa Cilindro
60 118550760/0 Piastrina
61 118550674/0 CRANCKSHAFT
62 118550673/0 Washer
63 118550675/0 Asta Collegamento
64 118550678/0 Fermo + Spinotto Pistone
65 118550677/0 Ass. Pistone
66 118550679/0 Ass. Fasce Elastiche
67 118550682/0 Albero Camme
68 112735699/0 Screw
69 118550662/0 Ass. Regolatore
70 118550665/0 Albero Regolatore
71 118550666/0 Washer
72 118550671/0 Gasket
73 118550723/0 Supporto Regolazione
74 118550726/0 Screw
75 118550722/0 Nut
76 118550667/0 Coppiglia
77 118550683/0 Alzavalvole
78 118550684/0 Aste Di Punteria
79 118550685/0 Piastrina
80 118550686/0 Screw
81 118550687/0 Bilanciere Valvole
82 118550688/0 Nut
83 118550689/0 Nut
84 118550758/0 Micro Interruttore
85 118550755/0 Acceleratore
86 112735699/0 Screw
87 118550759/0 Spring
89 112791500/0 Screw
90 112735699/0 Screw
91 118550692/0 Ass. Valvola Scarico
92 118550691/0 Ass. Valvola Aspirazione
93 118550690/0 Spring
94 118550699/0 Kit Guarnizioni Carburatore
95 118550731/0 Ass. Guarnizioni Testa Cilindro
96 118550730/0 Ass. Guarnizioni Motore
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
RSCT 100 OHV 118550761/0 - 2014
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina RSCT 100 OHV

Diagram Alpina RSCT 100 OHV

Download (468.84KB)

You might also like

Recoil Starter Ass'y for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550750/0
Recoil Starter Ass'y for Petrol Engine Alpina RSC 100 OHV
Recoil Starter Ass'y for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Recoil Starter Ass'y with Support for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine...
on 10 Business Days Approx €44.21
Details
Air Filter for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550748/0
Air Filter for Petrol Engine Alpina RSC 100 OHV
Air Filter for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Air Filter for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV- Motozappa TI 36 G - Stiga SRC...
Usually Ships in: 7/10 Business Days Approx. €7.46
Details
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550705/0
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV
Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Breather Fuel Pipe for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV- Petrol Tiller TI 36 G - Stiga SRC 36 G. Part for the following products: - Engine RSC...
in stock €2.63
Details
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
GGP Italy SKU: 118550719/0
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G
Electronic Ignition Coil for Lawnmower Alpina AL3 46 G Original part Alpina, Electronic Ignition for Lawnmower BL 410 - AL3 46 G - Rotary Tiller TI 36 G - Engine RS100 BLUE OHV. Part for the following products: - Lawnmower BL 410 -...
Last items in stock €31.54
Details
Carburator for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550753/0
Carburator for Petrol Engine Alpina RSC 100 OHV
Carburator for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Carburator for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV - Motozappa TI 36 G - SRC 36 G. Part for the...
Last items in stock €50.54
Details
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
GGP Italy SKU: 118550674/0
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV
Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV Genuine part Alpina, Cranck Shaf for Petrol Engine Alpina RS100 BLUE OHV - Petrol Lawnmower AL3 46 G - BL 410 - Stiga Collector 43. Part for the following products: -  Petrol Engine...
Last items in stock €75.58
Details
Oil Dipstick for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550745/0
Oil Dipstick for Petrol Engine Alpina RSC 100 OHV
Oil Dipstick Assy for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Dipstick Assembly for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -...
Last items in stock €7.99
Details
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
GGP Italy SKU: 118550670/0
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV
Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV Genuine part Alpina, Oil Cap O-Ring for Petrol Engine Alpina RSC 100 OHV - RSCT 100 OHV. Part for the following products: -  Engine RSC 100 OHV -  Engine RSCT 100 OHV -  Petrol...
on 7/10 Business Days Approx €1.84
Details
Comments (0)
