Alpina Spare Parts for Lawn Mower AL3 46 B

SKU: AL3 46 B/295485020-A13-2017
€2.08
VAT included

Alpina Spare Parts for Lawn Mower AL3 46 B

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forr Lawn Mower AL3 46 B/295485020-A13-2017.

AL3 46 B/295485020-A13-2017
Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B
  • Alpina Spare Parts for Lawn Mower AL3 46 B

Alpina Spare Parts for Lawn Mower AL3 46 B

SKU: AL3 46 B/295485020-A13-2017 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower AL3 46 B

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forr Lawn Mower AL3 46 B/295485020-A13-2017.

AL3 46 B/295485020-A13-2017
settings 90 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381004024/0 Black Deck €124.91
2
photo_cameraImage coming soon 322108301/0 Front Conveyor Assy €13.31
3
photo_cameraImage coming soon 112728699/0 Screw €1.66
4
photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
5
photo_cameraImage coming soon 112728699/0 Screw €1.66
6
photo_cameraImage coming soon 322545213/0 Plate €2.04
7
photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
photo_cameraImage coming soon 322060242/0 Belt Protection €14.13
11
Alpina BL 460 SB Mulching Plug Cruiser 48 322140239/0 Alpina BL 460 SB Mulching Plug Cruiser 48 €11.88
12
photo_cameraImage coming soon 112728530/0 Screw €1.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381302821/0 Front Wheel Axle €28.36
2
photo_cameraImage coming soon 322545142/0 Plate €1.66
3
photo_cameraImage coming soon 112728698/0 Screw €1.66
4
photo_cameraImage coming soon 112521350/0 Washer €1.74
5
photo_cameraImage coming soon 112155000/0 Nut €1.66
6
photo_cameraImage coming soon 112436051/0 Plate €1.78
7
photo_cameraImage coming soon 322869673/0 Rod, Height Adjustment €15.47
8
photo_cameraImage coming soon 122519820/0 Pin €2.17
9
photo_cameraImage coming soon 122446193/0 Spring €4.66
10
photo_cameraImage coming soon 322600247/0 Protection, Wheel €4.40
11
photo_cameraImage coming soon 112728698/0 Screw €1.66
12
photo_cameraImage coming soon 322545152/0 Plate €1.66
13
photo_cameraImage coming soon 381302815/0 Rear Wheel Axle €33.97
14
Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
15
photo_cameraImage coming soon 381003357/0 Wheels Rear Adj. Lever €13.51
16
photo_cameraImage coming soon 122446192/0 Spring €2.20
17
photo_cameraImage coming soon 112154510/0 Nut €1.66
21
photo_cameraImage coming soon 112521350/0 Washer €1.74
22
photo_cameraImage coming soon 112155000/0 Nut €1.66
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322226170/0 Mask, Black €6.41
2
photo_cameraImage coming soon 112728698/0 Screw €1.66
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
photo_cameraImage coming soon 112819110/0 Screw €1.66
2
photo_cameraImage coming soon 112819120/0 Screw €1.47
3
photo_cameraImage coming soon 122671651/0 Washer €2.11
3
photo_cameraImage coming soon 122680006/1 Washer €1.62
4
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
5
photo_cameraImage coming soon 112293200/0 Nut €1.74
7
photo_cameraImage coming soon 112818900/0 Screw €1.66
9
3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG 122399900/0 3 Spoke Handwheel for Lawnmower Alpina FL 46 LMG €2.82
10
photo_cameraImage coming soon 112293200/0 Nut €1.74
11
photo_cameraImage coming soon 112155000/0 Nut €1.66
12
photo_cameraImage coming soon 112521350/0 Washer €1.74
13
photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
photo_cameraImage coming soon 112760605/0 Screw €3.52
15
photo_cameraImage coming soon 381008691/0 Outfit, Screws €8.86
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381006739/0 Handle, Upper Part To 31-August-2011;Black without Sponge €19.67
1
photo_cameraImage coming soon 381006739/1 Handle, Upper Part €19.67
1
photo_cameraImage coming soon 381006739/2 Handle, Upper Part Black without Sponge;From 01-September-2011 To 31-August-2017 €24.91
1
photo_cameraImage coming soon 381006745/0 Handle, Upper Part with Sponge To 31-August-2011;Black with Sponge €27.20
1
photo_cameraImage coming soon 381006745/1 Handle, Upper Part with sponge handgrip €40.01
1
photo_cameraImage coming soon 381006745/2 Handle, Upper Part with Sponge Black with Sponge;From 01-September-2017 To 31-August-2018 €37.12
2
photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
3
photo_cameraImage coming soon 112521330/0 Washer €1.70
4
photo_cameraImage coming soon 112154510/0 Nut €1.66
5
Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G 118390020/0 Cable Clip for Petrol Lawnmower Alpina AL3 46 B - AL5 51 G €1.85
6
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B 181003363/1 Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B €16.33
7
photo_cameraImage coming soon 181030056/0 Cable, Thread Engine Brake €13.77
8
photo_cameraImage coming soon 112727783/0 Screw €1.83
9
photo_cameraImage coming soon 112154510/0 Nut €1.66
12
photo_cameraImage coming soon 322551640/0 Plate €7.99
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 381007448/1 Wheel - Short Hub €11.70
2
photo_cameraImage coming soon 119216035/0 Bearing €4.51
3
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B 322110687/0 Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B €3.26
5
photo_cameraImage coming soon 381007449/0 Wheel €16.07
5
photo_cameraImage coming soon 381007449/1 Wheel €16.89
6
photo_cameraImage coming soon 119216035/0 Bearing €4.51
9
photo_cameraImage coming soon 322110689/0 Hub Cap Grey €2.70
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B 122463012/2 Blade Boss for Self Propelled Lawnmower Alpina AL3 46 B €8.74
3
photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
4
photo_cameraImage coming soon 322680021/0 Washer €1.38
5
Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B 112508125/0 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B €1.72
6
Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
photo_cameraImage coming soon 122450464/0 Spring €1.96
4
photo_cameraImage coming soon 112728699/0 Screw €1.66
5
photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
6
photo_cameraImage coming soon 322393644/0 Black Handle €4.64
7
photo_cameraImage coming soon 381486018/0 Grass-Box, Upper Part Black €27.21
8
photo_cameraImage coming soon 122608561/0 Grasscatcher Lower Stiffening €11.91
9
photo_cameraImage coming soon 112728692/0 Screw €4.96
10
photo_cameraImage coming soon 322545159/0 Plate €1.58
11
photo_cameraImage coming soon 181002318/0 Box, Fabric €34.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower AL3 46 B

We are ALPINA authorized service center and original spare parts Distributors. We offer low prices and a professional repair service able to advise you for to purchase the most suitable spare part to quickly solve any maintenance and repair issues forr Lawn Mower AL3 46 B/295485020-A13-2017.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
AL3 46 B/295485020-A13-2017

Lawn Mower AL3 46 B/295485020-A13-2017

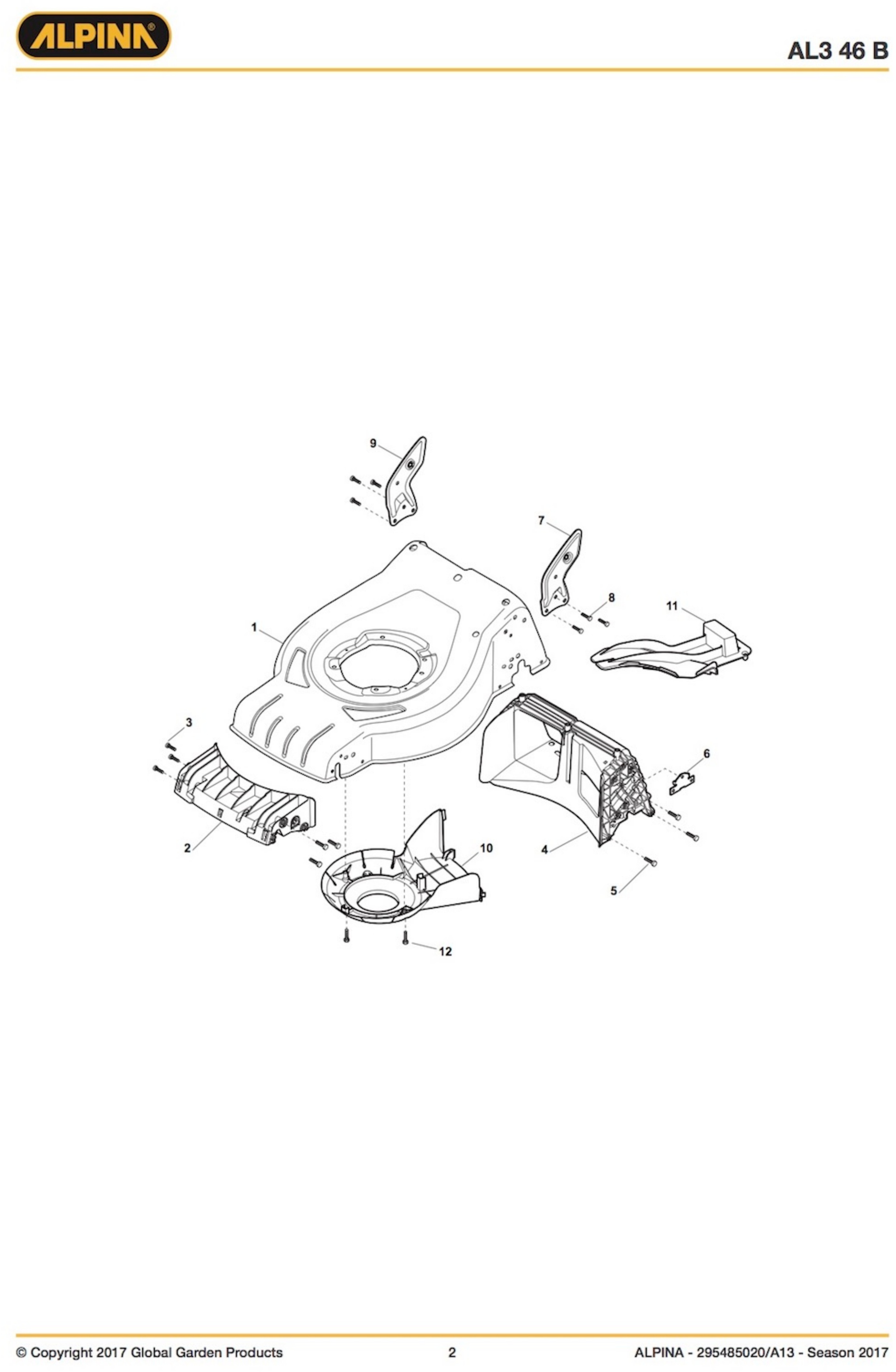

Deck Pag.1
# Part Num. Description
1 381004024/0 Black Deck
2 322108301/0 Front Conveyor Assy
3 112728699/0 Screw
4 322108302/0 Rear Conveyor Assy
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/0 Belt Protection
11 322140239/0 Mulching Deflector
12 112728530/0 Screw

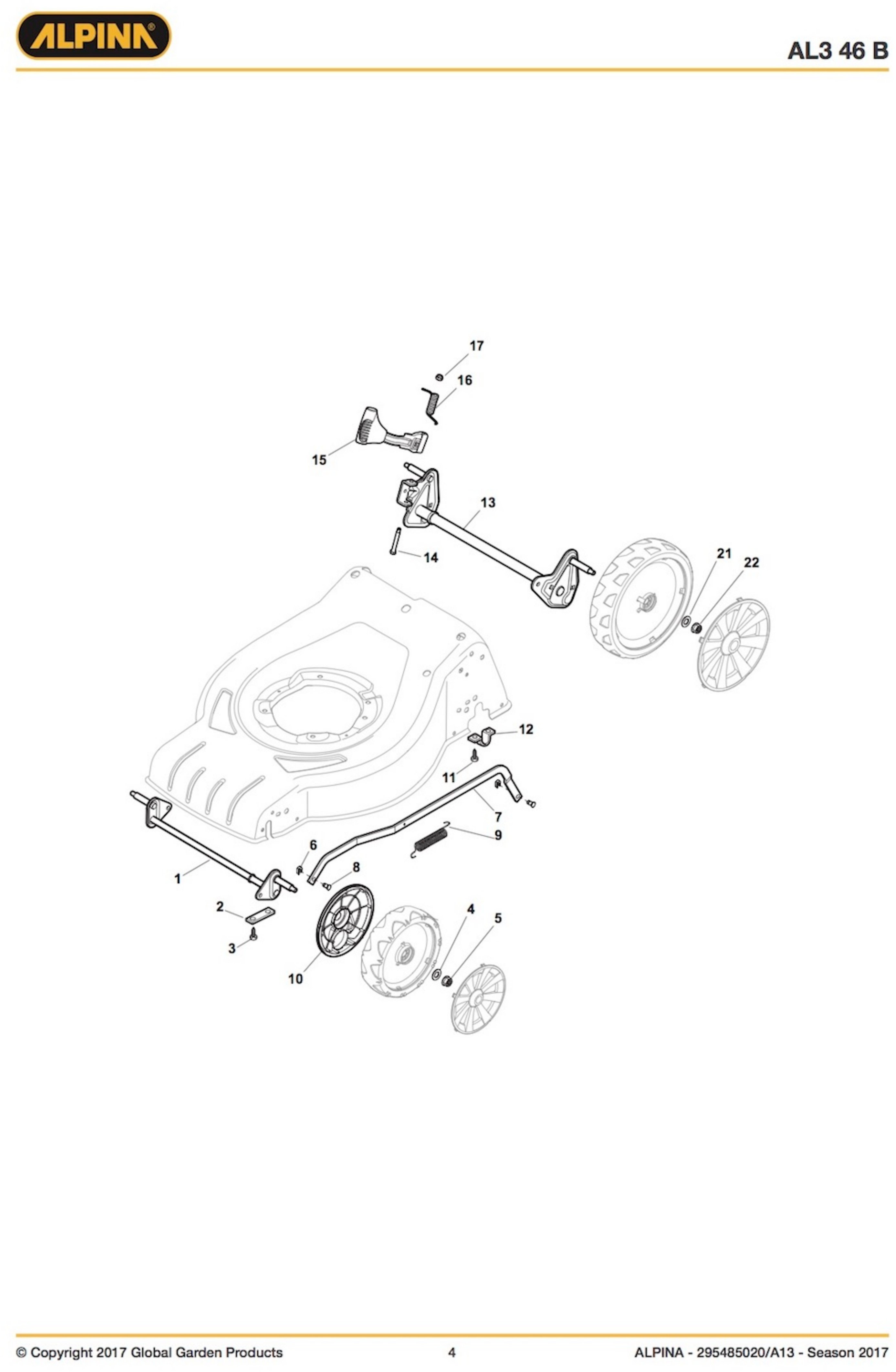

Height Adjusting Pag.2
1 381302821/0 Front Wheel Axle
2 322545142/0 Plate
3 112728698/0 Screw
4 112521350/0 Washer
5 112155000/0 Nut
6 112436051/0 Plate
7 322869673/0 Rod, Height Adjustment
8 122519820/0 Pin
9 122446193/0 Spring
10 322600247/0 Protection, Wheel
11 112728698/0 Screw
12 322545152/0 Plate
13 381302815/0 Rear Wheel Axle
14 122534131/0 Pin
15 381003357/0 Wheels Rear Adj. Lever
16 122446192/0 Spring
17 112154510/0 Nut
21 112521350/0 Washer
22 112155000/0 Nut

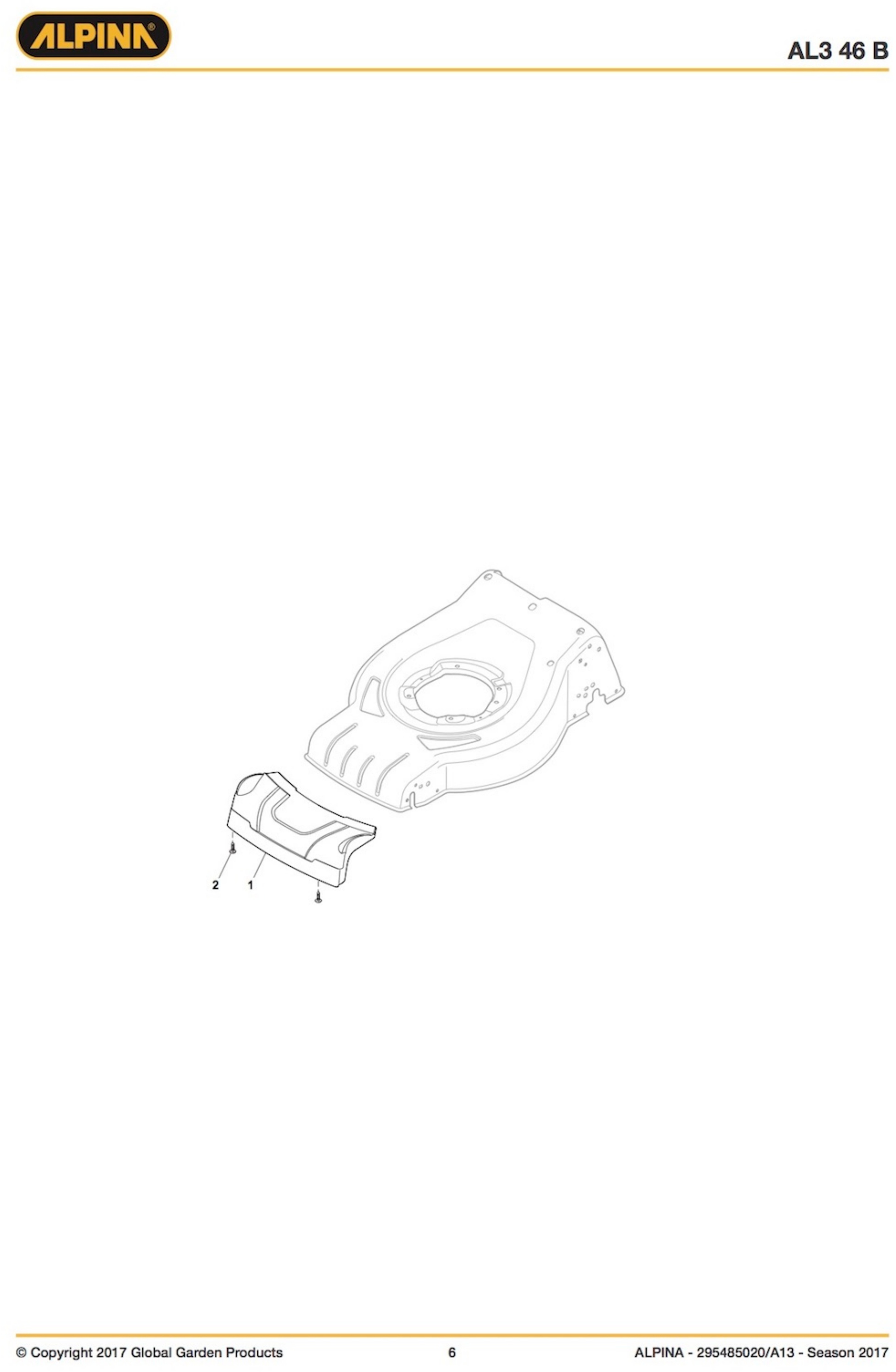

Mask Pag.3
1 322226170/0 Mask, Black
2 112728698/0 Screw

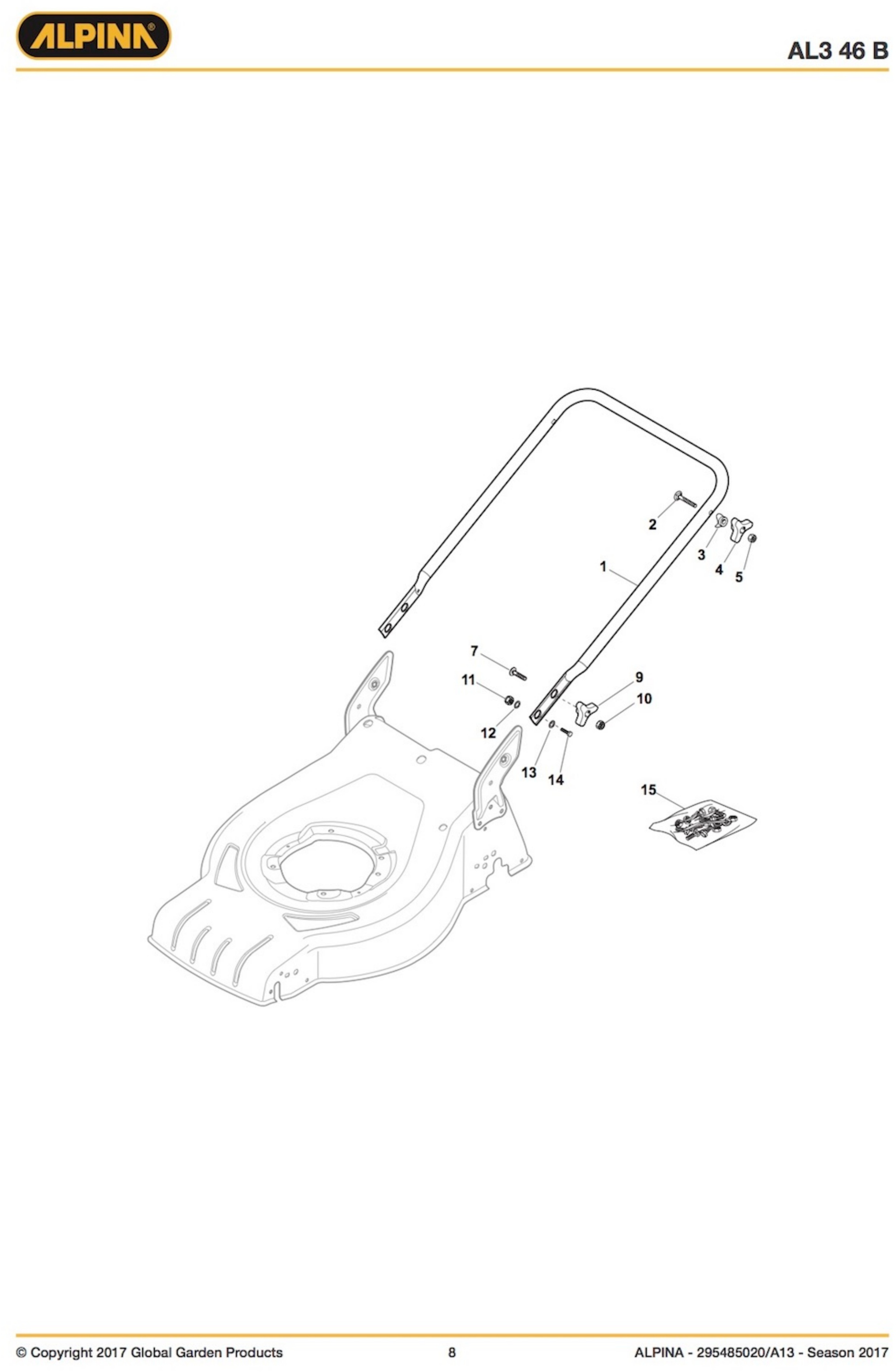

Handle, Lower Part Pag.4
1 381006737/0 Handle Lower Part
2 112819110/0 Screw
2 112819120/0 Screw
3 122671651/0 Washer
3 122680006/1 Washer
4 122399900/0 Knob
5 112293200/0 Nut
7 112818900/0 Screw
9 122399900/0 Knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Washer
14 112760605/0 Screw
15 381008691/0 Outfit, Screws

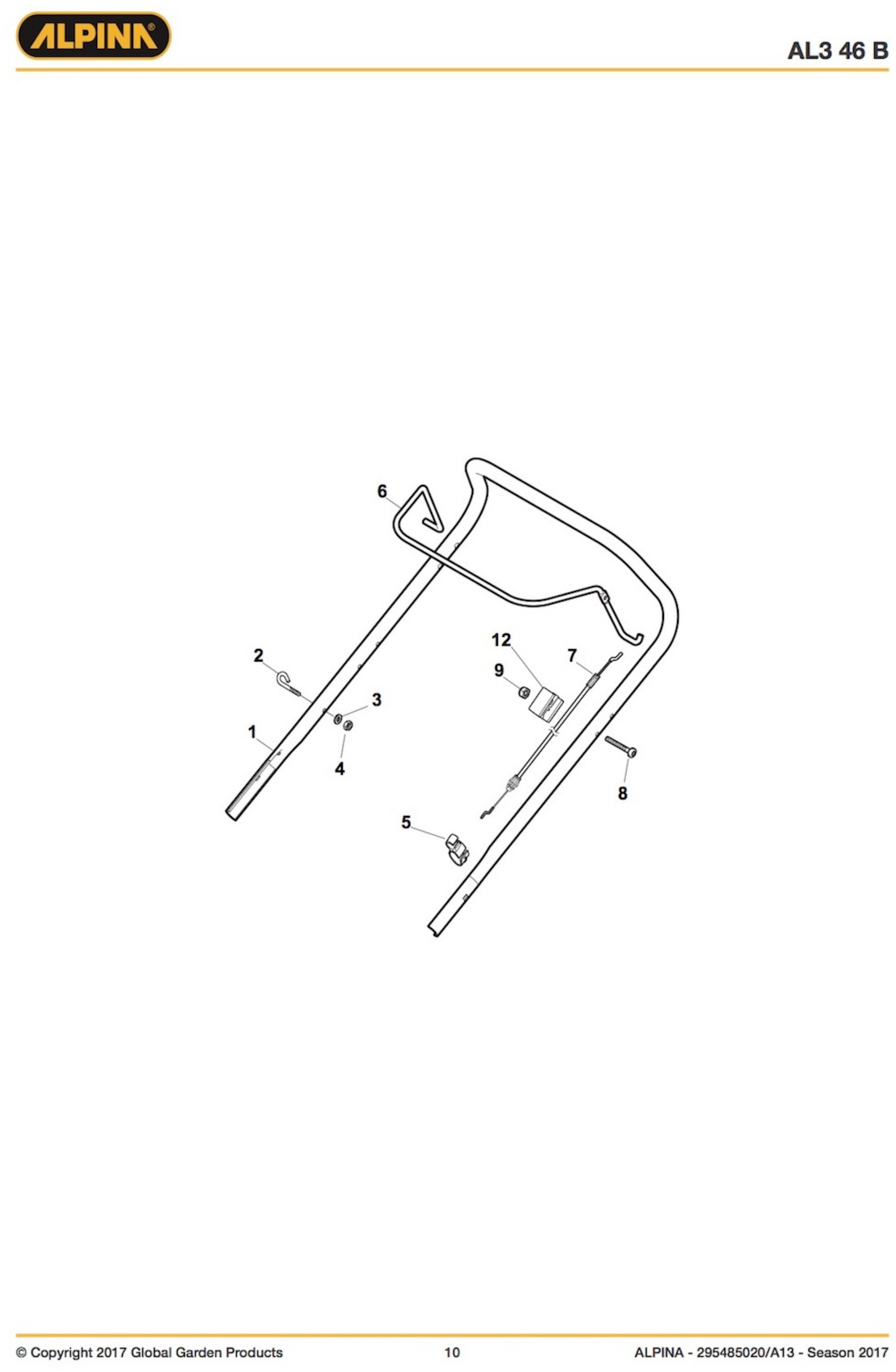

Handle, Upper Part Pag.5
1 381006739/0 Manico, Parte Superiore
1 381006739/1 Manico, Parte Superiore
1 381006739/2 Manico, Parte Superiore
1 381006745/0 Manico, Parte Sup. Con Impugantura In Spugna
1 381006745/1 Manico, Parte Sup. con impugantura in spugna
1 381006745/2 Manico, Parte Sup. con impugantura in spugna
2 122430313/0 Molla Guida
3 112521330/0 Rondella
4 112154510/0 Dado
5 118390020/0 Cable Clip
6 181003363/0 Leva Freno Motore Nero
6 181003363/1 Leva Freno Motore Nero
7 181030056/0 Cavo Freno Motore
8 112727783/0 Vite
9 112154510/0 Dado
12 322551640/0 Piastrina

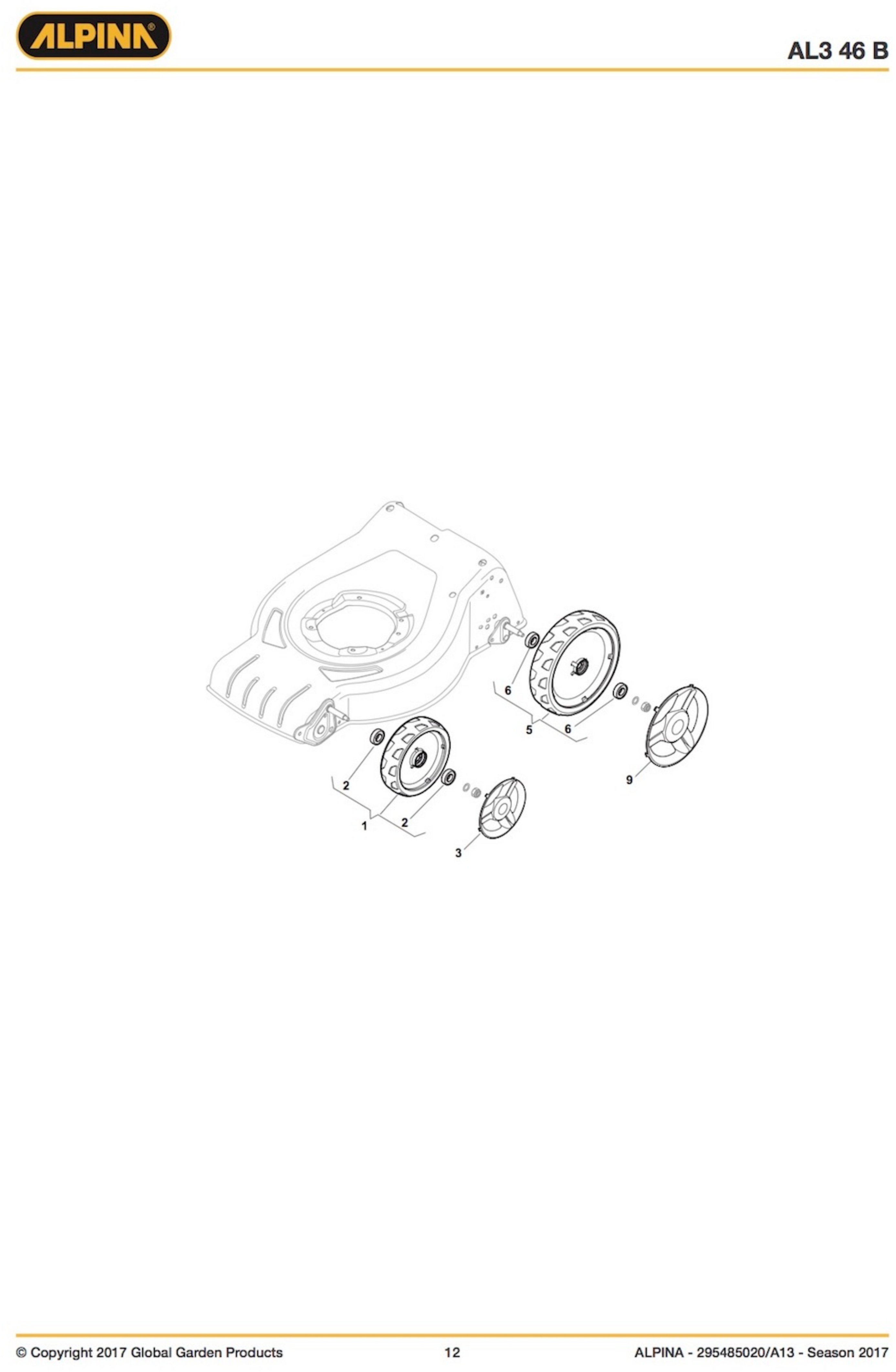

Wheels and Hub Caps Pag.6
1 381007448/0 Wheel
1 381007448/1 Wheel - Short Hub
2 119216035/0 Bearing
3 322110687/0 Hub Cap Grey
5 381007449/0 Wheel
5 381007449/1 Wheel
6 119216035/0 Bearing
9 322110689/0 Hub Cap Grey

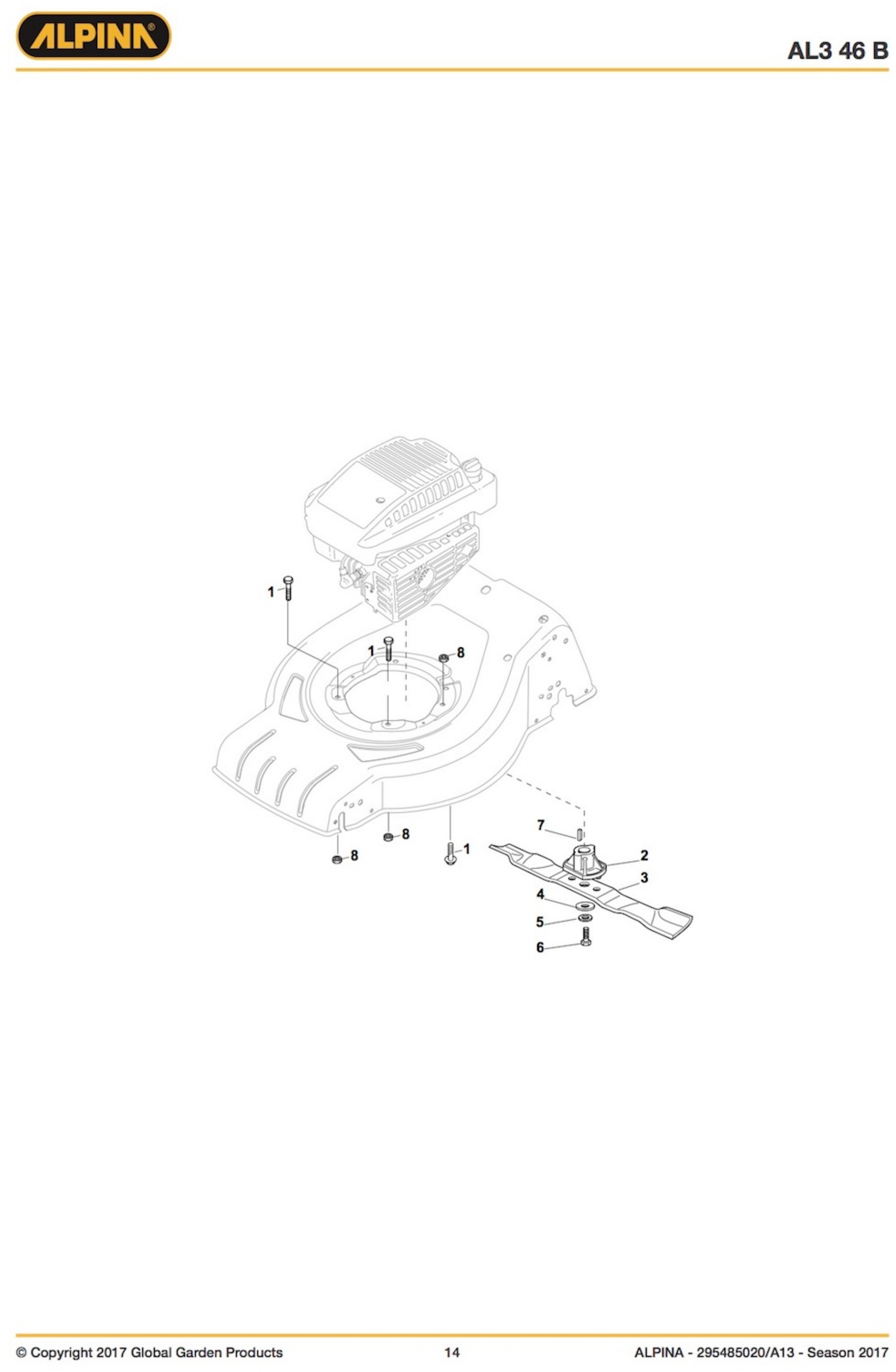

Blade Pag.7
1 112735108/1 Screw
2 122463012/2 Blade Boss Ø 22.2
3 181004460/0 Blade
4 322680021/0 Washer
4 322680021/0 Washer
5 112508125/0 Spring Washer
5 112508125/0 Spring Washer
6 112735698/0 Screw
7 112139100/0 Key

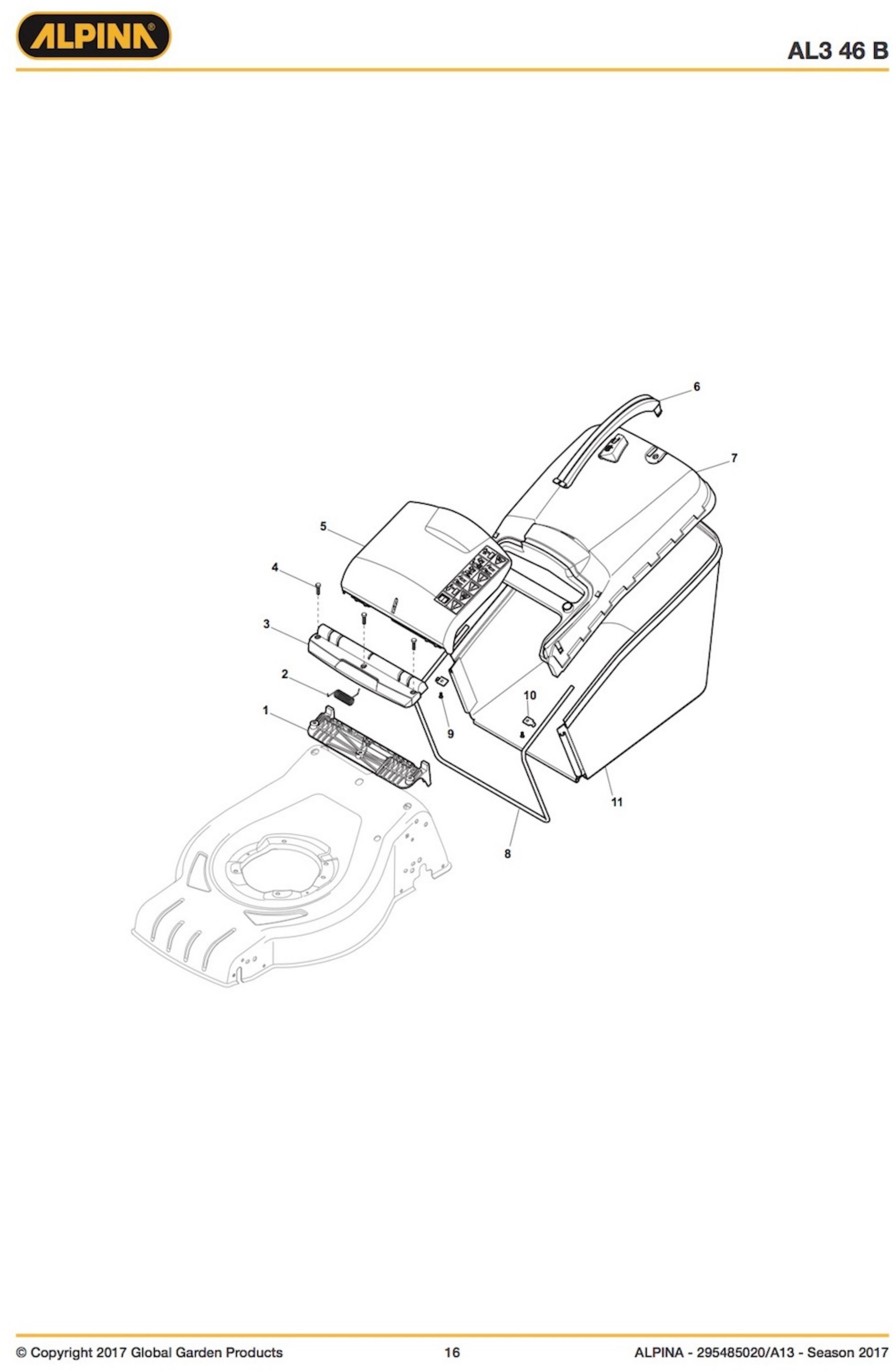

Grass-Catcher Pag.8
1 322785331/0 Black Stone Guard Support
2 122450464/0 Spring
3 322109554/0 Stone Guard Supp. Cover Black
4 112728699/0 Screw
5 322600206/1 Stone Guard, Black
6 322393644/0 Black Handle
7 381486018/0 Grass-Box, Upper Part Black
8 122608561/0 Grasscatcher Lower Stiffening
9 112728692/0 Screw
10 322545159/0 Plate
11 181002318/0 Box, Fabric
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL3 46 B/295485020-A13-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina AL3 46 B

Diagram Alpina AL3 46 B

Download (830.55KB)

You might also like

GGP Italy SKU: 181003363/1
Engine Brake Lever for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Engine Brake Lever Black From 01-september-2010 for Self Propelled Lawnmower AL3 46 B - AL3 46 G - AL3 46 SG. Part for the following...
AVAILABLE €16.33
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
GGP Italy SKU: 322110687/0
Hub Cap for Self Propelled Lawnmower Alpina AL3 46 B Original replacement part Alpina, Delta Hub Cap D.200 Grey Self Propelled Lawnmower AL3 46 B - AL3 46 G -  AL3 46 E - AL5 51 SBQ. Part for the following products: -  LAWNMOWER...
AVAILABLE €3.26
GGP Italy SKU: 322140239/0
Alpina BL 460 SB Mulching Plug [Cruiser 48] Original replacement part Alpina, Mulching Plug [Cruiser] forLawnmowers BL 460 SB - AL3 46 B - G - E - SG. Part for the following products: -  Lawnmower...
on 7/10 Business Days Approx €11.88
GGP Italy SKU: 122534131/0
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Comments (0)
