GGP Italy

Alpina Spare Parts for Electric Lawn Mower AL1 34 E

SKU: AL1 34 E/294340060-A15-2017
€1.60
VAT included

Alpina Spare Parts for Electric Lawn Mower AL1 34 E

We are Alpina-Stiga-Castor-Castelgarden-Mountfield original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase of the most suitable spare part to solve any maintenance or repair issues for Electric Lawn Mower AL1 34 E/294340060-A15-2017.

AL1 34 E/294340060-A15-2017
Alpina Spare Parts for Electric Lawn Mower AL1 34 E
  • Alpina Spare Parts for Electric Lawn Mower AL1 34 E
  • Alpina Spare Parts for Electric Lawn Mower AL1 34 E
  • Alpina Spare Parts for Electric Lawn Mower AL1 34 E
  • Alpina Spare Parts for Electric Lawn Mower AL1 34 E
  • Alpina Spare Parts for Electric Lawn Mower AL1 34 E
GGP Italy

Alpina Spare Parts for Electric Lawn Mower AL1 34 E

SKU: AL1 34 E/294340060-A15-2017 Condition: New
€1.60
VAT included

Alpina Spare Parts for Electric Lawn Mower AL1 34 E

We are Alpina-Stiga-Castor-Castelgarden-Mountfield original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you to purchase of the most suitable spare part to solve any maintenance or repair issues for Electric Lawn Mower AL1 34 E/294340060-A15-2017.

AL1 34 E/294340060-A15-2017
settings 53 spare parts
description 4 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

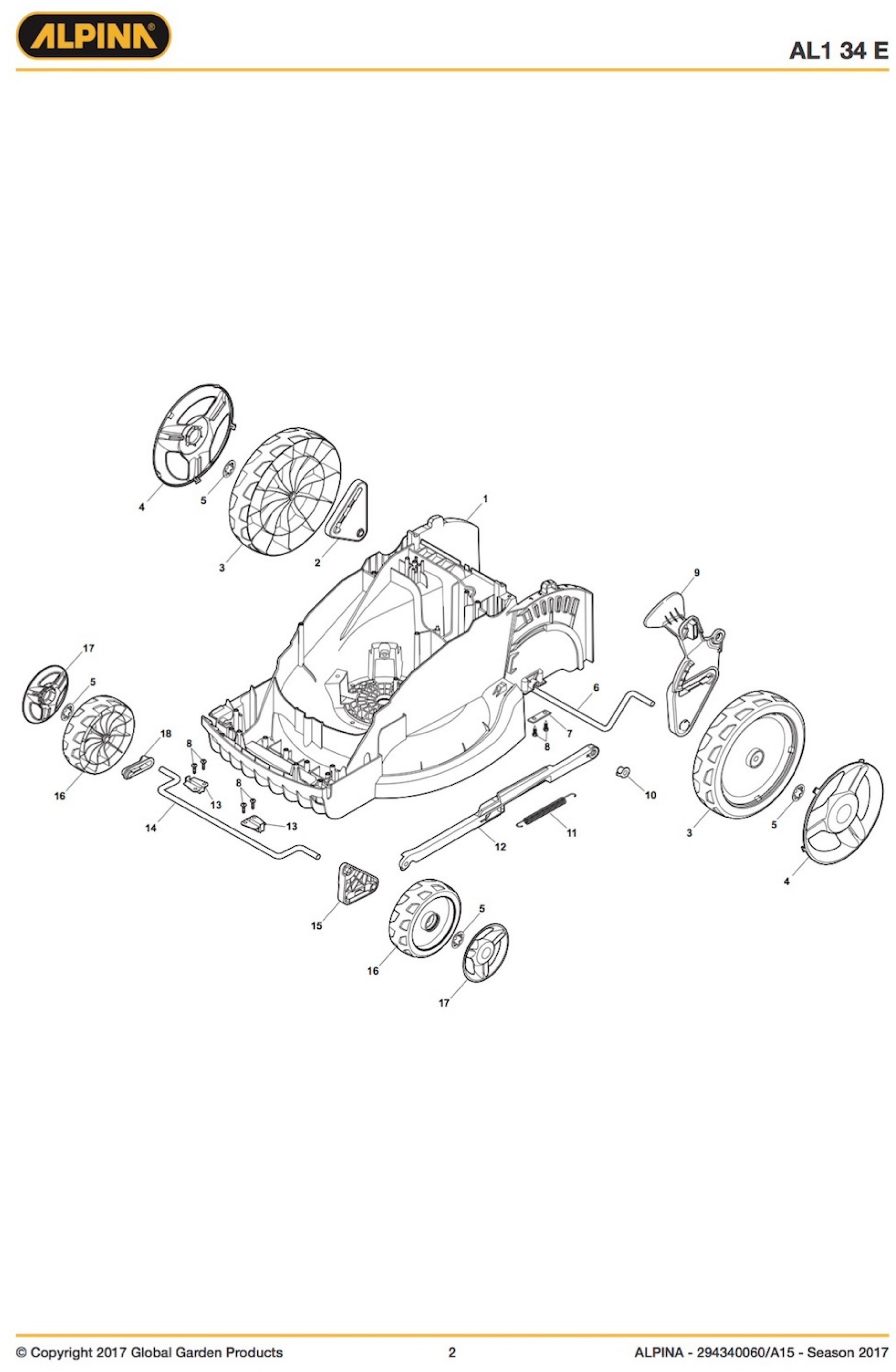

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322066782/0 Deck STIGA Grey €50.53
2
 photo_cameraImage coming soon 322785448/0 Support, Wheel €2.88
3
 photo_cameraImage coming soon 322686107/0 Wheel €5.15
5
 photo_cameraImage coming soon 112604903/0 Washer €1.54
6
 photo_cameraImage coming soon 122033422/0 Axle, Wheels €6.22
7
 photo_cameraImage coming soon 322545142/0 Plate €1.66
8
 photo_cameraImage coming soon 112728714/0 Screw €1.37
9
 Alpina AL1 34 E Height Adjust Lever 322785430/0 Alpina AL1 34 E Height Adjust Lever €5.66
10
 Alpina Lawnmower AL1 34 E Pin 322524354/0 Alpina Lawnmower AL1 34 E Pin €1.59
11
 photo_cameraImage coming soon 122450425/0 Spring €2.81
12
 photo_cameraImage coming soon 322869689/0 Rod, Height Adjustment €5.66
13
 photo_cameraImage coming soon 322785415/0 Plate €1.37
14
 photo_cameraImage coming soon 122033422/0 Axle, Wheels €6.22
15
 Alpina AL1 34 E Wheel Support 322785437/0 Alpina AL1 34 E Wheel Support €2.26
16
 photo_cameraImage coming soon 322686106/0 Wheel €4.52
17
 photo_cameraImage coming soon 322110683/0 Hub Cap Grey €1.44
18
 photo_cameraImage coming soon 322785447/0 Support, Wheel €1.34
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

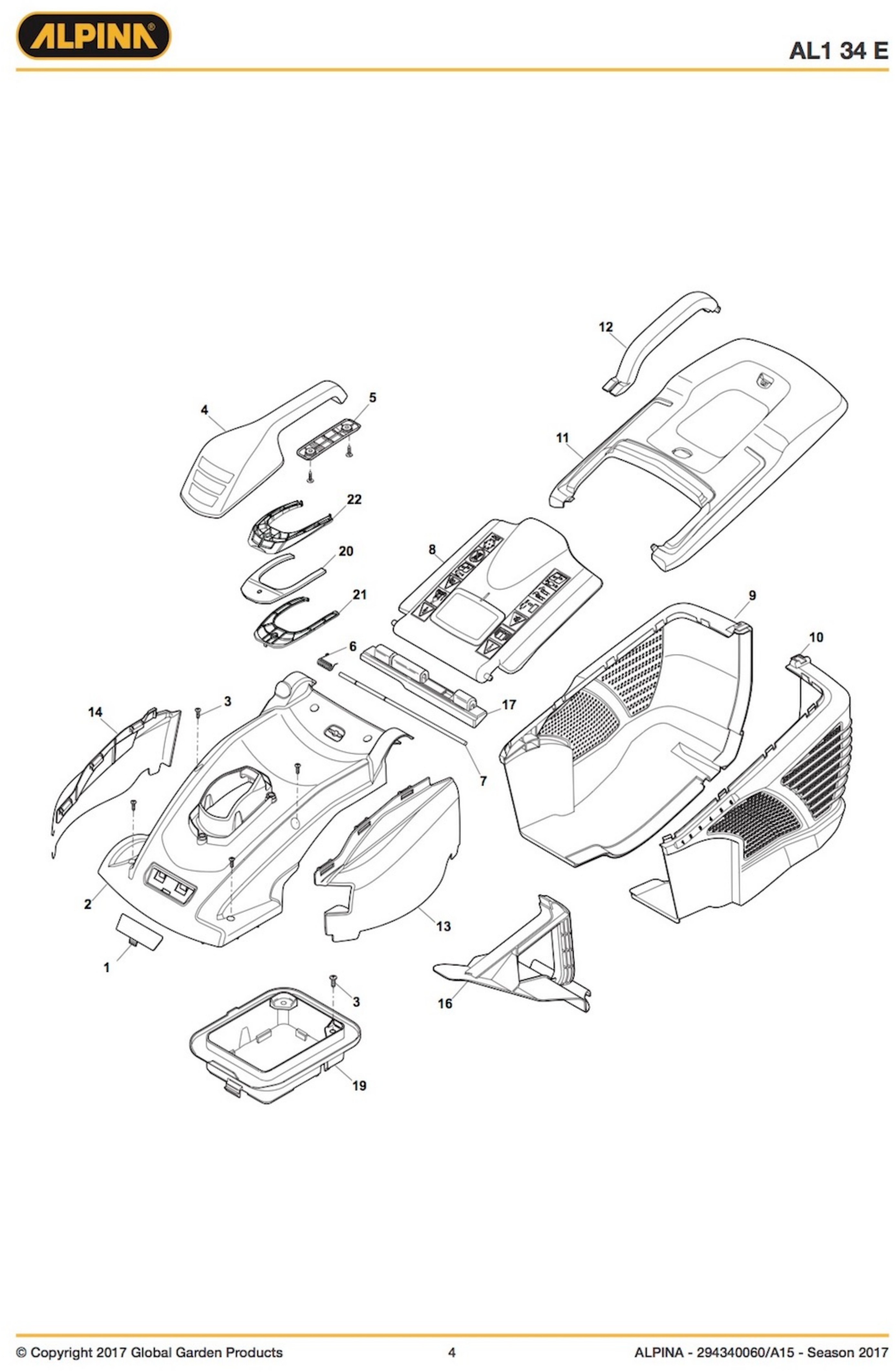

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322055252/0 Front Plate €1.74
3
 photo_cameraImage coming soon 112728714/0 Screw €1.37
5
 photo_cameraImage coming soon 322393659/0 Handle, Lower Part €6.61
6
 photo_cameraImage coming soon 122450250/0 Spring €1.38
7
 photo_cameraImage coming soon 122512603/0 Pin €1.75
8
 photo_cameraImage coming soon 322600286/0 Stone Guard, Grey €7.02
9
 photo_cameraImage coming soon 322486392/0 Grass-Box, R Lower €13.54
10
 photo_cameraImage coming soon 322486391/0 Grass-Box, L Lower €13.54
11
 photo_cameraImage coming soon 322486377/0 Grass-Box, Upper €10.07
12
 photo_cameraImage coming soon 322393656/0 Handle €3.05
13
 photo_cameraImage coming soon 322109897/0 Right Side Cover €6.02
14
 photo_cameraImage coming soon 322109898/0 Left Side Cover €6.02
16
 photo_cameraImage coming soon 322140241/0 Mulching Plug €7.17
17
 photo_cameraImage coming soon 322600287/0 Support €3.14
19
 photo_cameraImage coming soon 322393700/0 Engine Protection €4.84
20
 photo_cameraImage coming soon 118401005/0 Filter €2.77
21
 photo_cameraImage coming soon 322055201/0 Filter Frame Upper Part €1.23
22
 photo_cameraImage coming soon 322055202/0 Filter Frame Lower Part €1.23
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

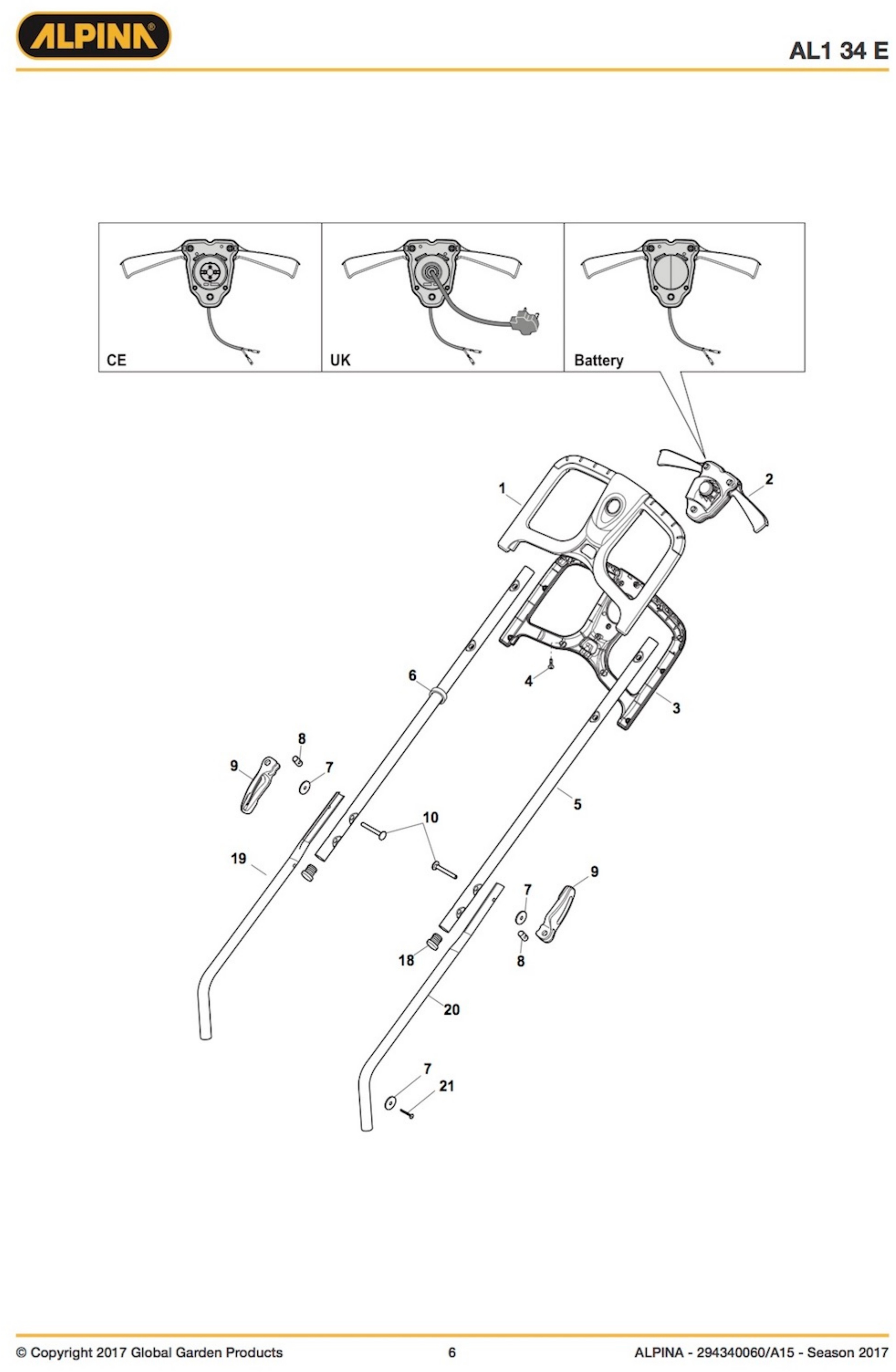

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322291068/0 Upper Half Handgrip Switch €10.45
2
 photo_cameraImage coming soon 381600539/1 Dead Hand Switch €23.70
3
 photo_cameraImage coming soon 322291069/0 Lower Half Handgrip Switch €10.13
4
 photo_cameraImage coming soon 112728713/0 Screw €1.37
5
 photo_cameraImage coming soon 381007532/0 Handle, Upper Part €5.66
6
 photo_cameraImage coming soon 122192000/1 Clamp €1.62
7
 photo_cameraImage coming soon 112523050/0 Washer €2.05
8
 photo_cameraImage coming soon 122524352/0 Pin €3.41
9
 photo_cameraImage coming soon 322319519/0 Fixing Lever Handle €2.37
10
 photo_cameraImage coming soon 122943016/0 Screw €1.49
18
 photo_cameraImage coming soon 118566116/0 Cap €2.07
19
 photo_cameraImage coming soon 381007529/0 Right Handle, Lower Part €6.60
20
 photo_cameraImage coming soon 381007530/0 Left Handle, Lower Part €6.48
21
 photo_cameraImage coming soon 112728450/0 Screw €1.54
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

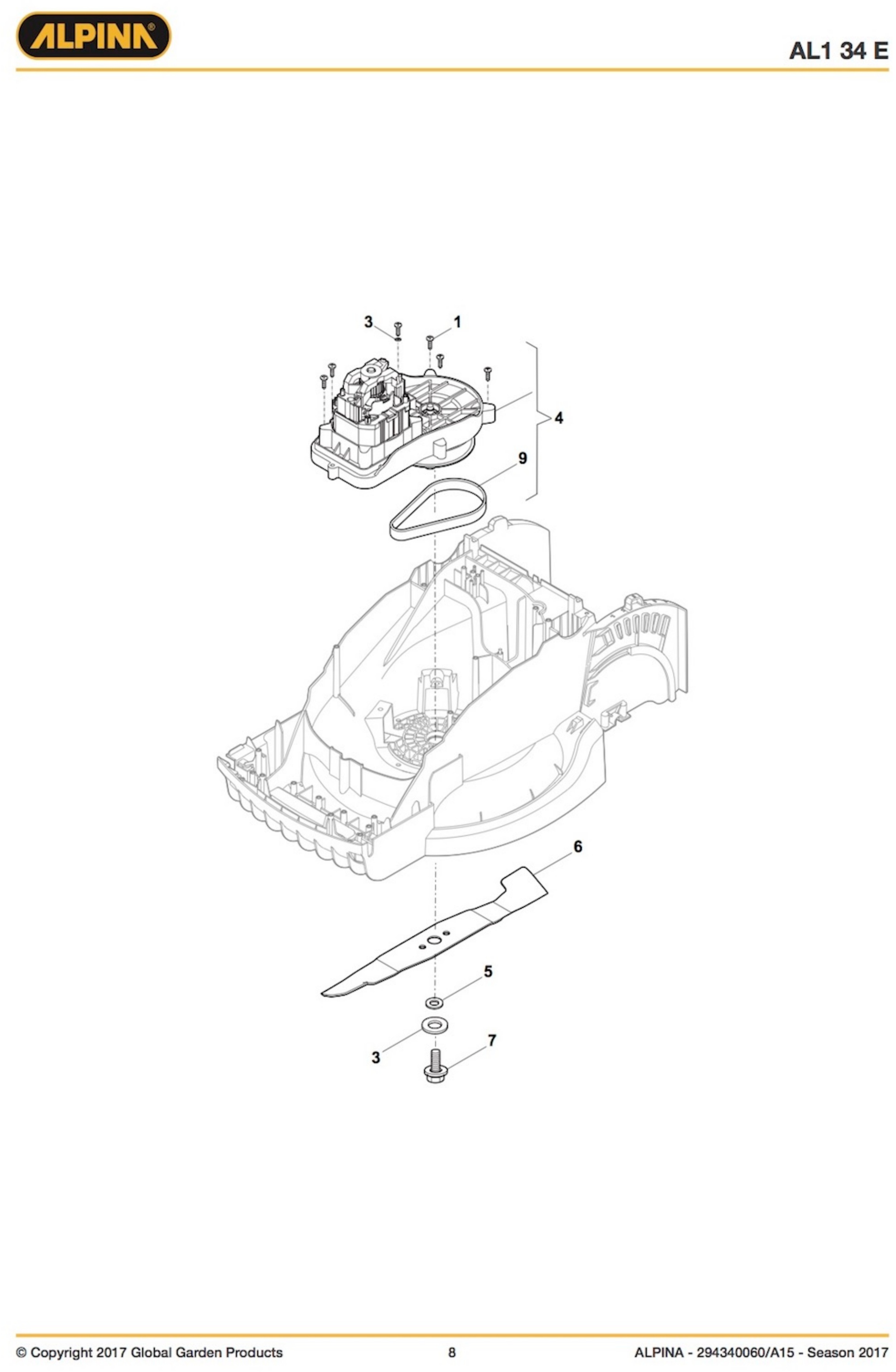

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 112728699/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
5
 Alpina Lawnmower AL1 34 E Washer 112508122/0 Alpina Lawnmower AL1 34 E Washer €1.59
6
 photo_cameraImage coming soon 181004157/0 Blade €15.91
7
 Blade Galvanized Screw TE M8X1X25 for Lawnmower AL1 34 E 112793312/0 Blade Galvanized Screw TE M8X1X25 for Lawnmower AL1 34 E €2.07
9
 Belt for Electric Lawnmower Alpina BL 380 E 118810092/0 Belt for Electric Lawnmower Alpina BL 380 E €14.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Electric Lawn Mower AL1 34 E

We are Alpina-Stiga-Castor-Castelgarden-Mountfield original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Electric Lawn Mower AL1 34 E/294340060-A15-2017.

In the following table, look for the model of the Electric Lawn Mower and the respective parts of the code.
AL1 34 E/294340060-A15-2017

Electric Lawn Mower AL1 34 E/294340060-A15-2017
Chassis Pag.1
# Part Num. Description
1 322066782/0 Deck STIGA Grey
2 322785448/0 Support, Wheel
3 322686107/0 Wheel
5 112604903/0 Washer
6 122033422/0 Axle, Wheels
7 322545142/0 Plate
8 112728714/0 Screw
9 322785430/0 Lever, Height Adjustment
10 322524354/0 Pin
11 122450425/0 Spring
12 322869689/0 Rod, Height Adjustment
13 322785415/0 Plate
14 122033422/0 Axle, Wheels
15 322785437/0 Support, Wheel
16 322686106/0 Wheel
17 322110683/0 Hub Cap Grey
18 322785447/0 Support, Wheel
Chassis Pag.2
1 322055252/0 Front Plate
3 112728714/0 Screw
5 322393659/0 Handle, Lower Part
6 122450250/0 Spring
7 122512603/0 Pin
8 322600286/0 Stone Guard, Grey
9 322486392/0 Grass-Box, R Lower
10 322486391/0 Grass-Box, L Lower
11 322486377/0 Grass-Box, Upper
12 322393656/0 Handle
13 322109897/0 Right Side Cover
14 322109898/0 Left Side Cover
16 322140241/0 Mulching Plug
17 322600287/0 Support
19 322393700/0 Engine Protection
20 118401005/0 Filter
21 322055201/0 Filter Frame Upper Part
22 322055202/0 Filter Frame Lower Part
Handle Pag.3
1 322291068/0 Upper Half Handgrip Switch
2 381600539/1 Dead Hand Switch
3 322291069/0 Lower Half Handgrip Switch
4 112728713/0 Screw
5 381007532/0 Handle, Upper Part
6 122192000/1 Clamp
7 112523050/0 Washer
8 122524352/0 Pin
9 322319519/0 Fixing Lever Handle
10 122943016/0 Screw
18 118566116/0 Cap
19 381007529/0 Right Handle, Lower Part
20 381007530/0 Left Handle, Lower Part
21 112728450/0 Screw
Blade Pag.4
1 112728699/0 Screw
3 122671651/0 Washer
5 112508122/0 Washer
6 181004157/0 Blade
7 112793312/0 Screw
9 118810092/0 Belt
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AL1 34 E/294340060-A15-2017
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina AL1 34 E

Diagram Alpina AL1 34 E

Download (650.82KB)
