GGP Italy

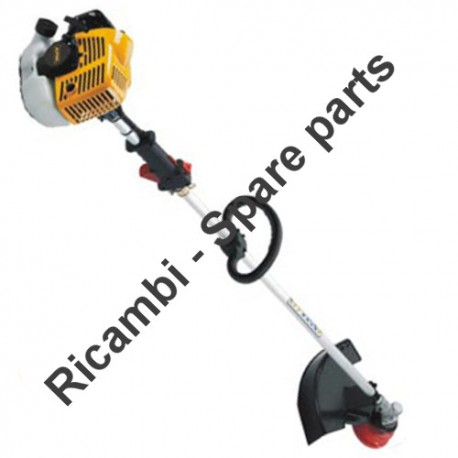

Alpina Spare Parts for Brushcutter TB 23 CX

SKU: Alpina TB 23 CX Anno 2005
€1.38
VAT included

Alpina Spare Parts for Brushcutter TB 23 CX

STIGA-ALPINA-CASTOR-CASTELGARDEN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TB 23 CX Model Year 2005.

Alpina TB 23 CX Anno 2005
Alpina Spare Parts for Brushcutter TB 23 CX
  • Alpina Spare Parts for Brushcutter TB 23 CX
  • Alpina Spare Parts for Brushcutter TB 23 CX
  • Alpina Spare Parts for Brushcutter TB 23 CX
GGP Italy

Alpina Spare Parts for Brushcutter TB 23 CX

SKU: Alpina TB 23 CX Anno 2005 Condition: New
€1.38
VAT included

Alpina Spare Parts for Brushcutter TB 23 CX

STIGA-ALPINA-CASTOR-CASTELGARDEN authorized service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TB 23 CX Model Year 2005.

Alpina TB 23 CX Anno 2005
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

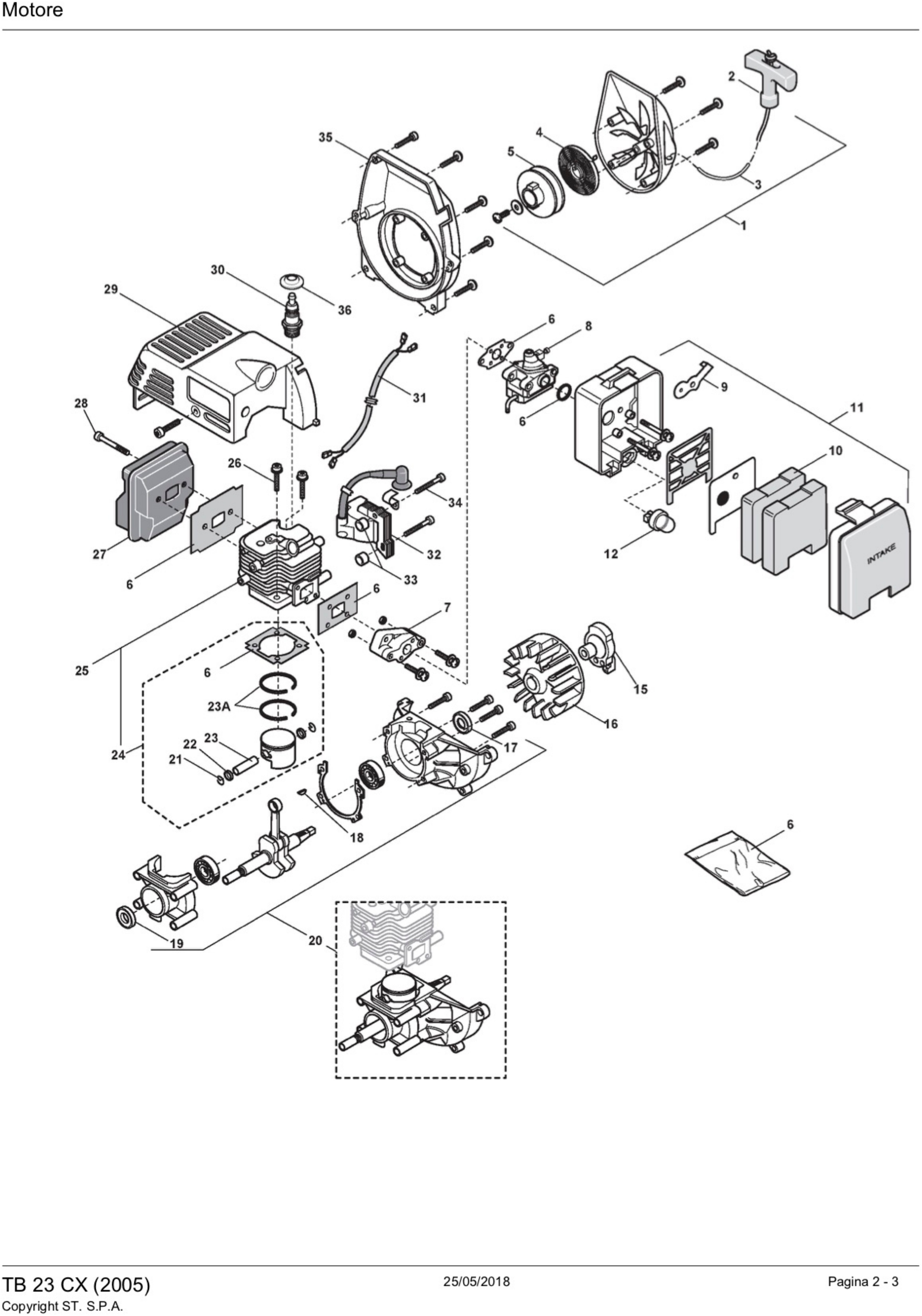

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6980232 Starter handle €2.03
3
 photo_cameraImage coming soon 6980233 Starter cord €6.43
4
 photo_cameraImage coming soon 6980234 Starter Spring €8.91
5
 photo_cameraImage coming soon 6980235 Starter Pulley €3.89
6
 photo_cameraImage coming soon 6980236 Gaskets series €9.01
7
 photo_cameraImage coming soon 6980237 Intake Manifold €5.12
8
 photo_cameraImage coming soon 6980238 Carburetor €105.73
9
 photo_cameraImage coming soon 6980239 Air Lever €1.50
10
 photo_cameraImage coming soon 6980240 Filter €2.64
12
 Primer Pump for Chainsaw Alpina AC 27 T 118804231/0 Primer Pump for Chainsaw Alpina AC 27 T €6.47
15
 photo_cameraImage coming soon 6980270 Ass. Starting Cup €10.30
16
 photo_cameraImage coming soon 6980246 Magneto flywheel €45.26
17
 photo_cameraImage coming soon 6980247 Sealing ring €9.03
18
 photo_cameraImage coming soon 6980248 Flywheel key €1.73
19
 photo_cameraImage coming soon 6980247 Sealing ring €9.03
23
 photo_cameraImage coming soon 6980253 Piston pin €2.09
23
 photo_cameraImage coming soon 6980266 Piston Ring €7.59
24
 photo_cameraImage coming soon 6980254 Ass. Piston €41.67
25
 photo_cameraImage coming soon 6980255 Ass. Cylinder - Piston €82.65
26
 photo_cameraImage coming soon 6980256 Screw €1.23
27
 photo_cameraImage coming soon 6980257 Muffler €14.26
28
 photo_cameraImage coming soon 6980258 Srew €1.57
29
 photo_cameraImage coming soon 6980259/1 Cylinder head cover €15.00
30
 photo_cameraImage coming soon 3210024 Spark Plug CJ7Y €6.54
31
 photo_cameraImage coming soon 6980260 Ground cables €1.69
32
 photo_cameraImage coming soon 6980261 Ass. Electronic Coil €51.86
35
 photo_cameraImage coming soon 6980264 Fan cover €14.14
36
 photo_cameraImage coming soon 6980265 Spark Plug protection €1.26
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

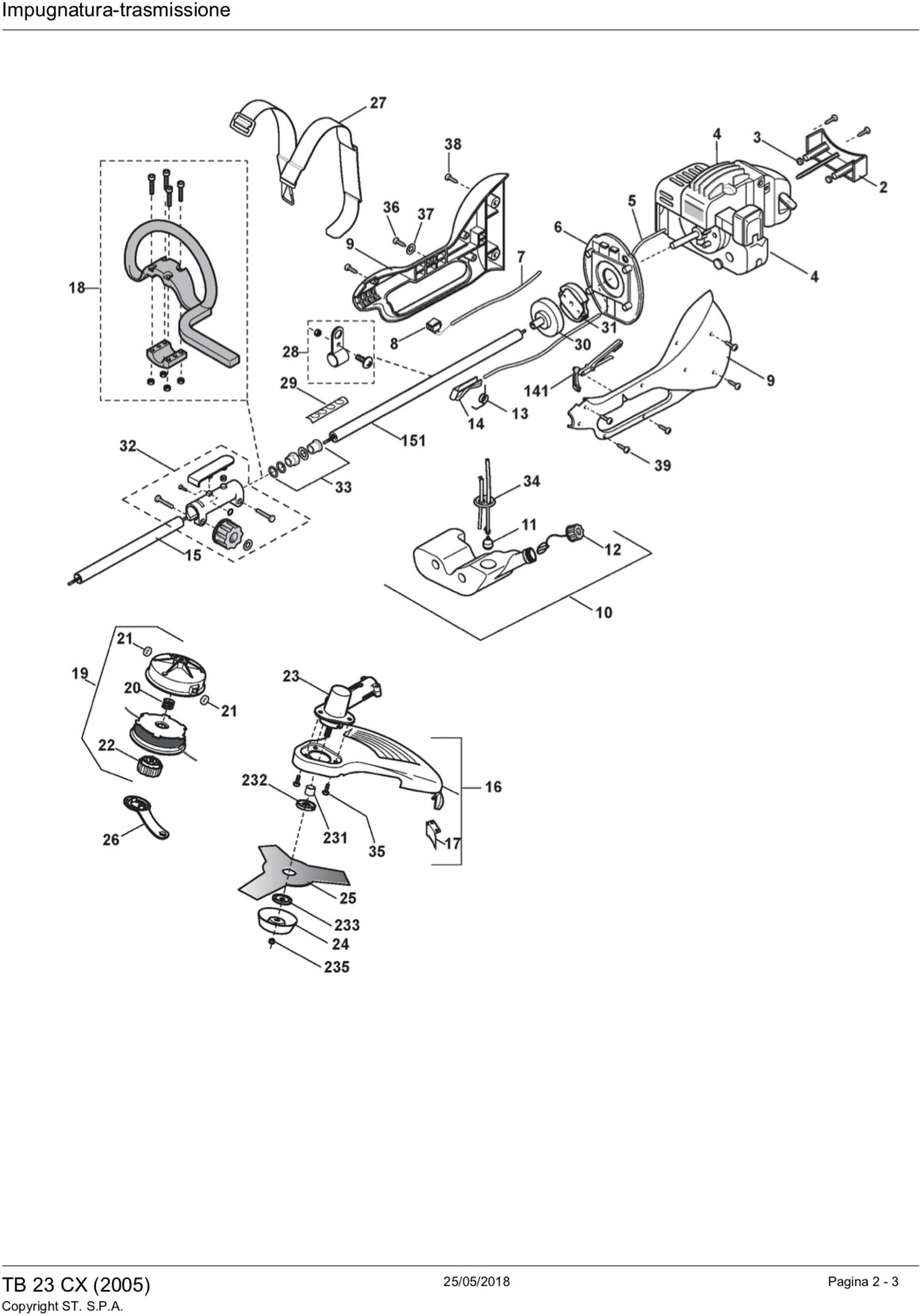

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 6980200 Fixing Plate €5.39
6
 photo_cameraImage coming soon 6980204 Support €19.60
7
 photo_cameraImage coming soon 6980205 Ground cable €1.30
8
 photo_cameraImage coming soon 6980328 Switch €3.43
11
 photo_cameraImage coming soon 6980209 Mixture Filter €5.14
12
 photo_cameraImage coming soon 6980320 Ass. Tank Cap €4.28
14
 photo_cameraImage coming soon 6980322 Throttle lever €2.14
15
 Hose and Lower Shaft Ass'y for Brushcutter Alpina TB 23 CX 6980326 Hose and Lower Shaft Ass'y for Brushcutter Alpina TB 23 CX €39.77
16
 photo_cameraImage coming soon 6980302 Ass. Splash guard €33.53
17
 Line Cutting Knife for Grass Trimmer Alpina TR 27 J 6980215 Line Cutting Knife for Grass Trimmer Alpina TR 27 J €5.05
18
 photo_cameraImage coming soon 6980303 Front Handle Ass €20.16
19
 photo_cameraImage coming soon 6980300 Ass. Tap & Go head €17.58
20
 photo_cameraImage coming soon 6980304 Head spring €1.70
21
 photo_cameraImage coming soon 6980305 Jf thread bushing €1.70
22
 photo_cameraImage coming soon 6980332 Ass. Knob €4.61
23
 photo_cameraImage coming soon 6980306 Ass.Garden Gear €118.30
24
 photo_cameraImage coming soon 6980312 Fixed Cup €5.38
25
 photo_cameraImage coming soon 6980330 Disk 3 Tips €7.53
26
 photo_cameraImage coming soon 6980314 Head Key €2.39
27
 photo_cameraImage coming soon 6980315 Harness €9.51
28
 photo_cameraImage coming soon 6980316 Harness support €3.61
30
 Clutch Drum Ass'y for Brushcutter Alpina TB 23 CX 6980225 Clutch Drum Ass'y for Brushcutter Alpina TB 23 CX €21.85
33
 photo_cameraImage coming soon 6980220 Flex shaft fitting €11.89
35
 photo_cameraImage coming soon 2135180 Screw €1.58
36
 photo_cameraImage coming soon 6980333 Screw €1.66
38
 photo_cameraImage coming soon 6980335 Screw €1.66
39
 photo_cameraImage coming soon 6980336 Screw €1.69
141
 photo_cameraImage coming soon 6980324 Safety Lever €2.46
232
 photo_cameraImage coming soon 6980308 Upper ring €9.34
233
 photo_cameraImage coming soon 6980309 Lower Ring €8.32
235
 photo_cameraImage coming soon 6980311 Nut €9.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Brushcutter TB 23 CX

STIGA-ALPINA-CASTOR-CASTELGARDEN authorized service center

 and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for Brushcutter TB 23 CX Model Year 2005.

In the following table, look for the model of the Brushcutter and the respective parts of the code.
Alpina TB 23 CX Anno 2005

Brushcutter TB 23 CX - 2005 - Engine Pag.1
# Part Num. Description
1 6980231 Gray Starter Ass
2 6980232 Starter handle
3 6980233 Starter cord
4 6980234 Starter Spring
5 6980235 Starter Pulley
6 6980236 Gaskets series
7 6980237 Intake Manifold
8 6980238 Carburetor
9 6980239 Air Lever
10 6980240 Filter
11 6980241 Ass. Air Filter
12 118804231/0 Primer
15 6980270 Ass. Starting Cup
16 6980246 Magneto flywheel
17 6980247 Sealing ring
18 6980248 Flywheel key
19 6980247 Sealing ring
20 6980250/1 Short Block Engine
21 6980251 Washer
22 6980252 Stop seal
23 6980253 Piston pin
23 6980266 Piston Ring
24 6980254 Ass. Piston
25 6980255 Ass. Cylinder - Piston
26 6980256 Screw
27 6980257 Muffler
28 6980258 Srew
29 6980259/1 Cylinder head cover
30 3210024 Spark Plug
31 6980260 Ground cables
32 6980261 Ass. Electronic Coil
33 6980262 Isolator spacer
34 6980263 Screw
35 6980264 Fan cover
36 6980265 Spark Plug protection
Brushcutter TB 23 CX - 2005 - Handle Pag.2
2 6980200 Fixing Plate
3 6980201 Insulators
4 6980230 Complete Engine
5 6980318 Throttle cable - DISCONTINUED
6 6980204 Support
7 6980205 Ground cable
8 6980328 Switch
10 6980208/1 Ass. Tank
11 6980209 Mixture Filter
12 6980320 Ass. Tank Cap
13 6980211 Spring
14 6980322 Throttle lever
15 6980326 Ass. Hose And Lower Shaft
16 6980302 Ass. Splash guard
17 6980215 Line Wire cutter
18 6980303 Front Handle Ass
19 6980300 Ass. Tap & Go head
20 6980304 Head spring
21 6980305 Jf thread bushing
22 6980332 Ass. Knob
23 6980306 Ass.Garden Gear
24 6980312 Fixed Cup
25 6980330 Disk 3 Tips
26 6980314 Head Key
27 6980315 Harness
28 6980316 Harness support
29 6980317 Label
30 6980225 Clutch Drum Ass
31 6980224 Clutch Kit
32 6980221 Joint Of Conexion
33 6980220 Flex shaft fitting
34 6980331 Ass. Gommino Passatubi
35 2135180 Screw
36 6980333 Screw
37 6980334 Washer
38 6980335 Screw
39 6980336 Screw
141 6980324 Safety Lever
151 6980327 Ass. Hose And Upper Shaft
231 6980307 Collar
232 6980308 Upper ring
233 6980309 Lower Ring
235 6980311 Nut
