GGP Italy

Alpina Spare Parts for Lawn Mower BL 460 SB

SKU: Alpina BL 460 SB - 295492124
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460 SB

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower BL 460 SB /295492124/A16-2017.

Alpina BL 460 SB - 295492124
Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
  • Alpina Spare Parts for Lawn Mower BL 460 SB
GGP Italy

Alpina Spare Parts for Lawn Mower BL 460 SB

SKU: Alpina BL 460 SB - 295492124 Condition: New
€2.08
VAT included

Alpina Spare Parts for Lawn Mower BL 460 SB

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower BL 460 SB /295492124/A16-2017.

Alpina BL 460 SB - 295492124
settings 84 spare parts
description 8 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:: STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
84 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

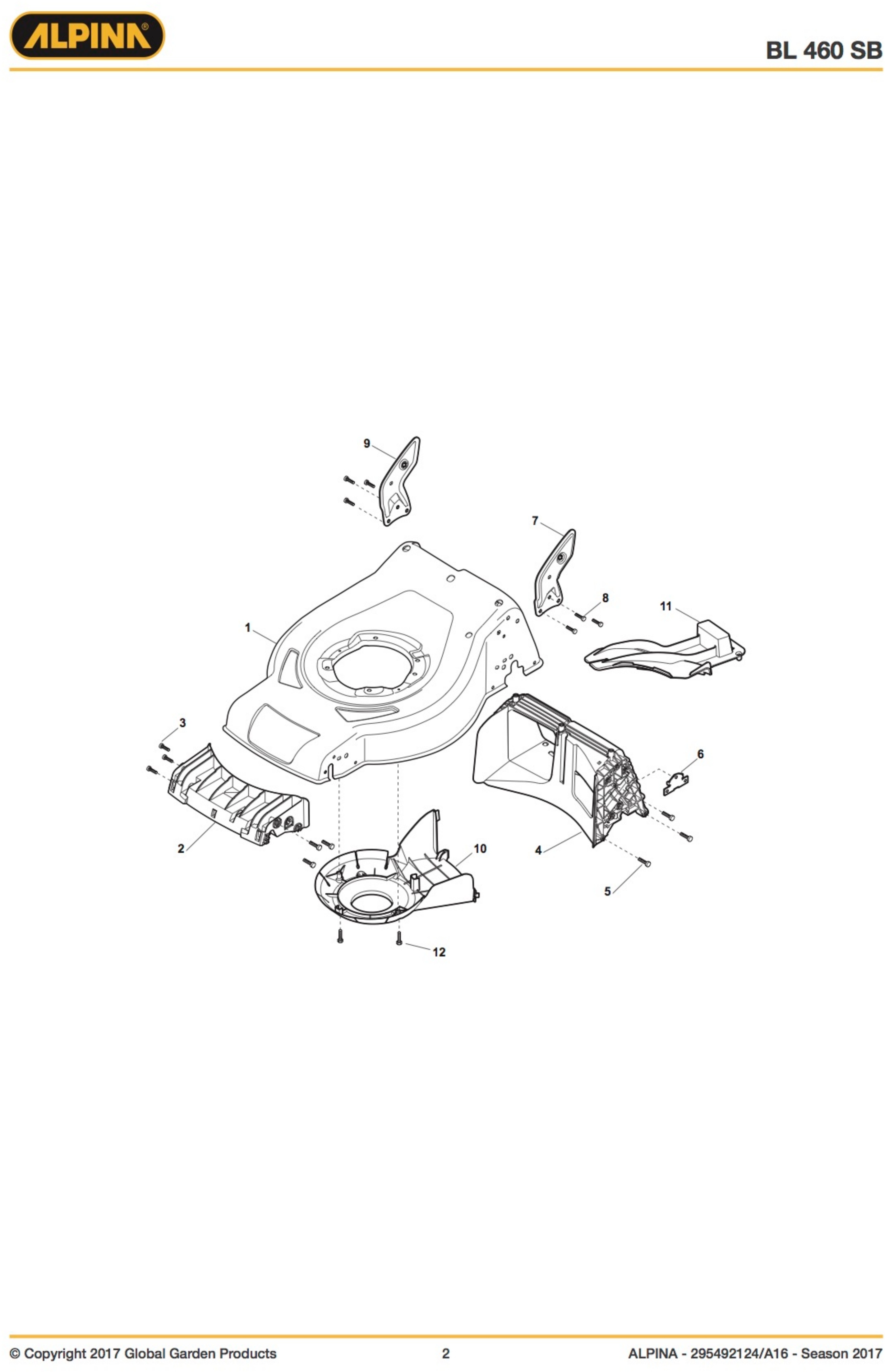

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381004051/0 Black Deck €135.01
2
 photo_cameraImage coming soon 322108301/1 Front Conveyor Assy €14.96
3
 photo_cameraImage coming soon 112728699/0 Screw €1.66
4
 photo_cameraImage coming soon 322108302/0 Rear Conveyor Assy €22.05
5
 photo_cameraImage coming soon 112728699/0 Screw €1.66
6
 photo_cameraImage coming soon 322545213/0 Plate €2.04
7
 photo_cameraImage coming soon 381005139/0 Left Bracket €6.75
8
 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment 112727801/0 Screw TCB Torx M6x20 for Lawnmower Cutting Height Adjustment €1.74
9
 photo_cameraImage coming soon 381005137/0 Right Bracket €6.75
10
 photo_cameraImage coming soon 322060242/0 Belt Protection €14.13
11
 Alpina BL 460 SB Mulching Plug Cruiser 48 322140239/0 Alpina BL 460 SB Mulching Plug Cruiser 48 €11.88
12
 photo_cameraImage coming soon 112728530/0 Screw €1.60
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

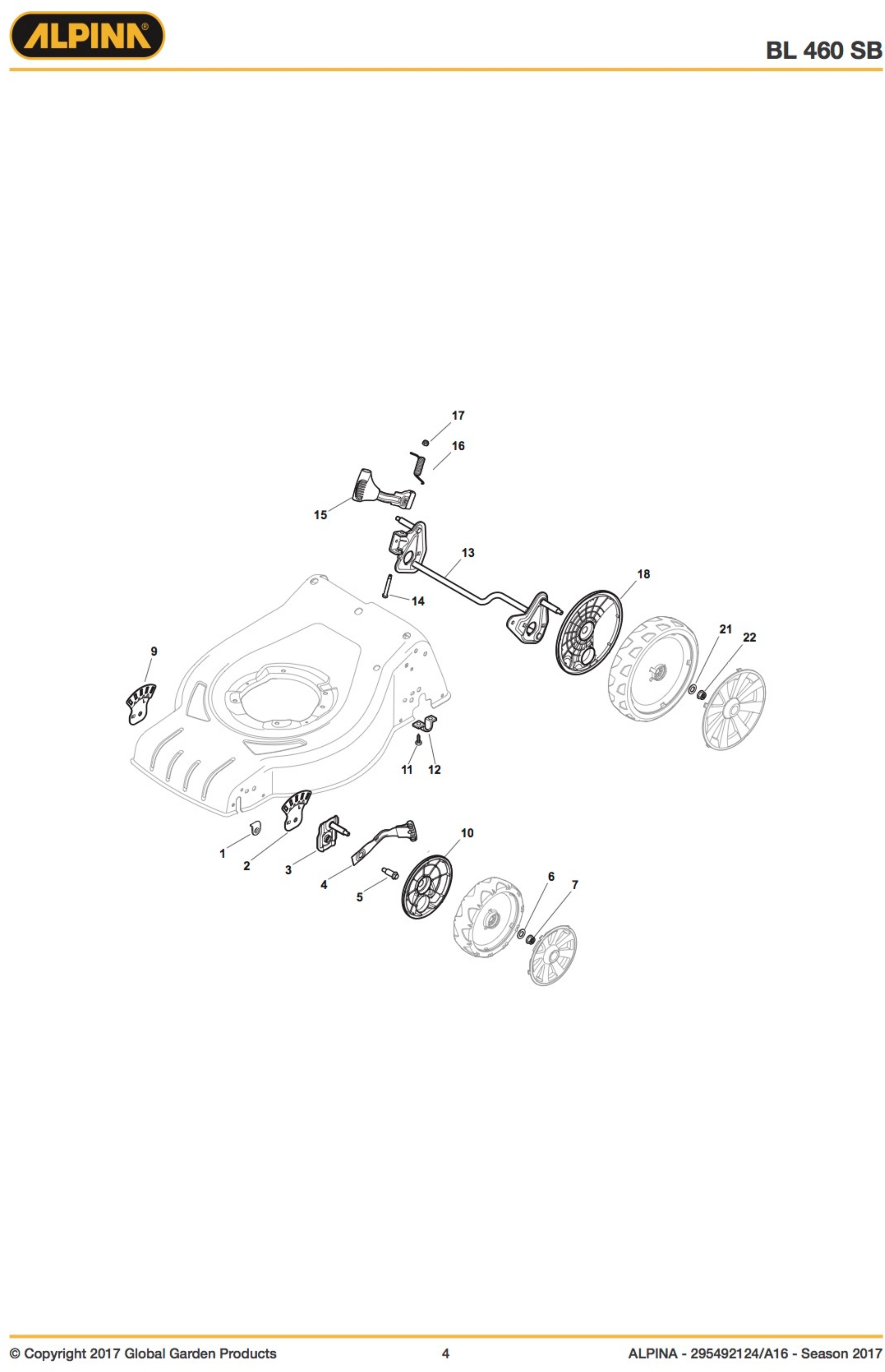

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322545189/0 Plate €1.65
2
 photo_cameraImage coming soon 322735597/1 Sector, Height Adjustment €2.58
4
 photo_cameraImage coming soon 381003354/0 Lever, Height Adjustment €7.10
5
 photo_cameraImage coming soon 122519811/0 Pin €1.65
6
 photo_cameraImage coming soon 112521350/0 Washer €1.74
7
 photo_cameraImage coming soon 112155000/0 Nut €1.66
9
 photo_cameraImage coming soon 322735595/1 Sector, Height Adjustment €2.89
11
 photo_cameraImage coming soon 112728698/0 Screw €1.66
12
 photo_cameraImage coming soon 322545152/0 Plate €1.66
13
 photo_cameraImage coming soon 381302817/0 Rear Wheel Axle €31.54
14
 Alpina AL3 46 B Pin 122534131/0 Alpina AL3 46 B Pin €1.65
15
 photo_cameraImage coming soon 381003357/0 Wheels Rear Adj. Lever €13.51
16
 photo_cameraImage coming soon 122446192/0 Spring €2.20
17
 photo_cameraImage coming soon 112154510/0 Nut €1.66
18
 photo_cameraImage coming soon 322600205/1 Protection, Wheel €3.72
21
 photo_cameraImage coming soon 112521350/0 Washer €1.74
22
 photo_cameraImage coming soon 112155000/0 Nut €1.66
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

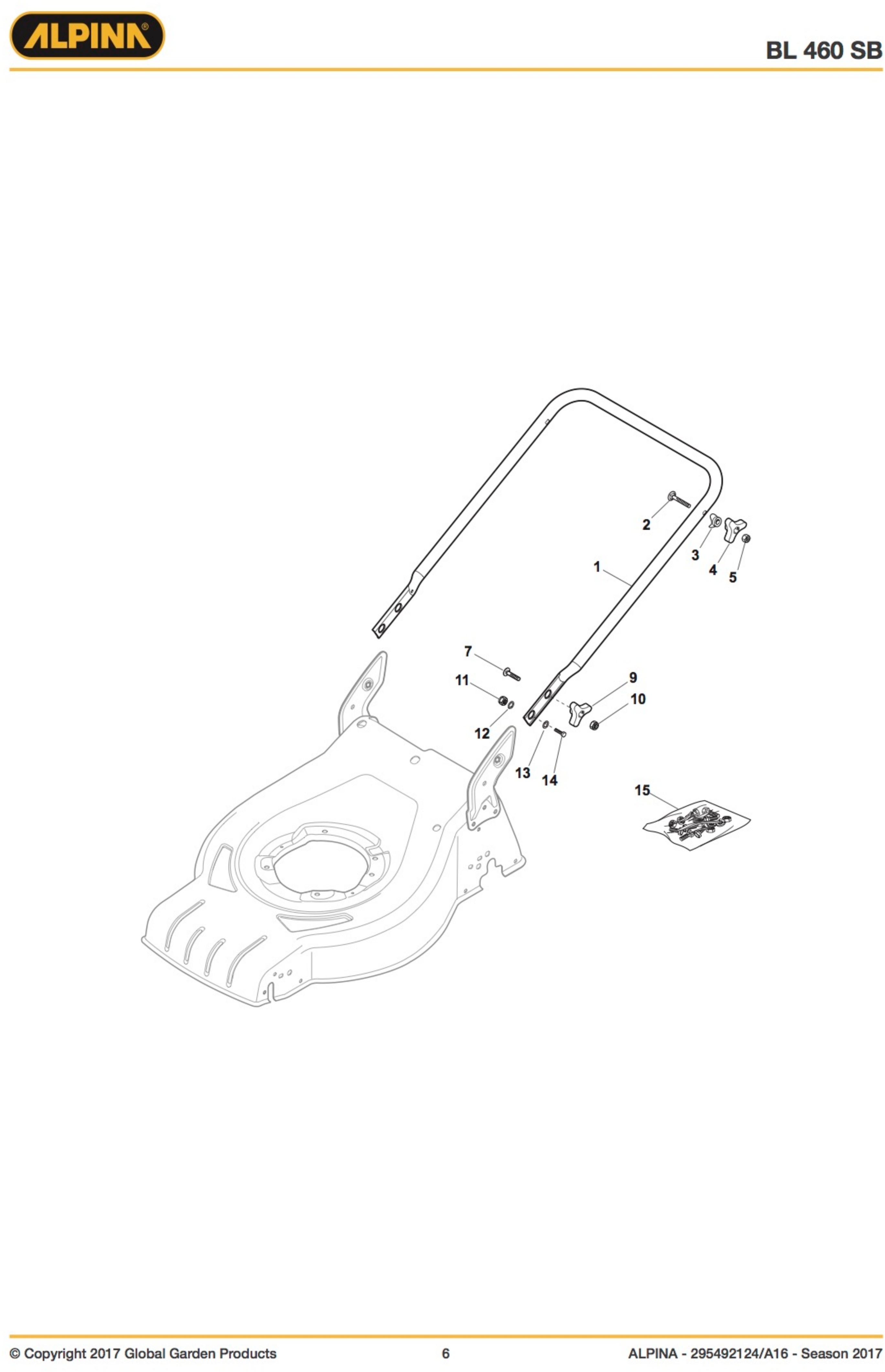

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381006737/0 Handle Lower Part €26.23
2
 photo_cameraImage coming soon 112819110/0 Screw €1.66
3
 photo_cameraImage coming soon 122671651/0 Washer €2.11
4
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
5
 photo_cameraImage coming soon 112293200/0 Nut €1.74
7
 photo_cameraImage coming soon 112818900/0 Screw €1.66
9
 Alpina BL 510 SHQ Yellow Knob 322399840/0 Alpina BL 510 SHQ Yellow Knob €2.07
10
 photo_cameraImage coming soon 112293200/0 Nut €1.74
11
 photo_cameraImage coming soon 112155000/0 Nut €1.66
12
 photo_cameraImage coming soon 112521350/0 Washer €1.74
13
 photo_cameraImage coming soon 112369500/0 Elastic Washer €1.67
14
 photo_cameraImage coming soon 112760605/0 Screw €3.52
15
 photo_cameraImage coming soon 381008692/0 Outfit, Screws €8.87
Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

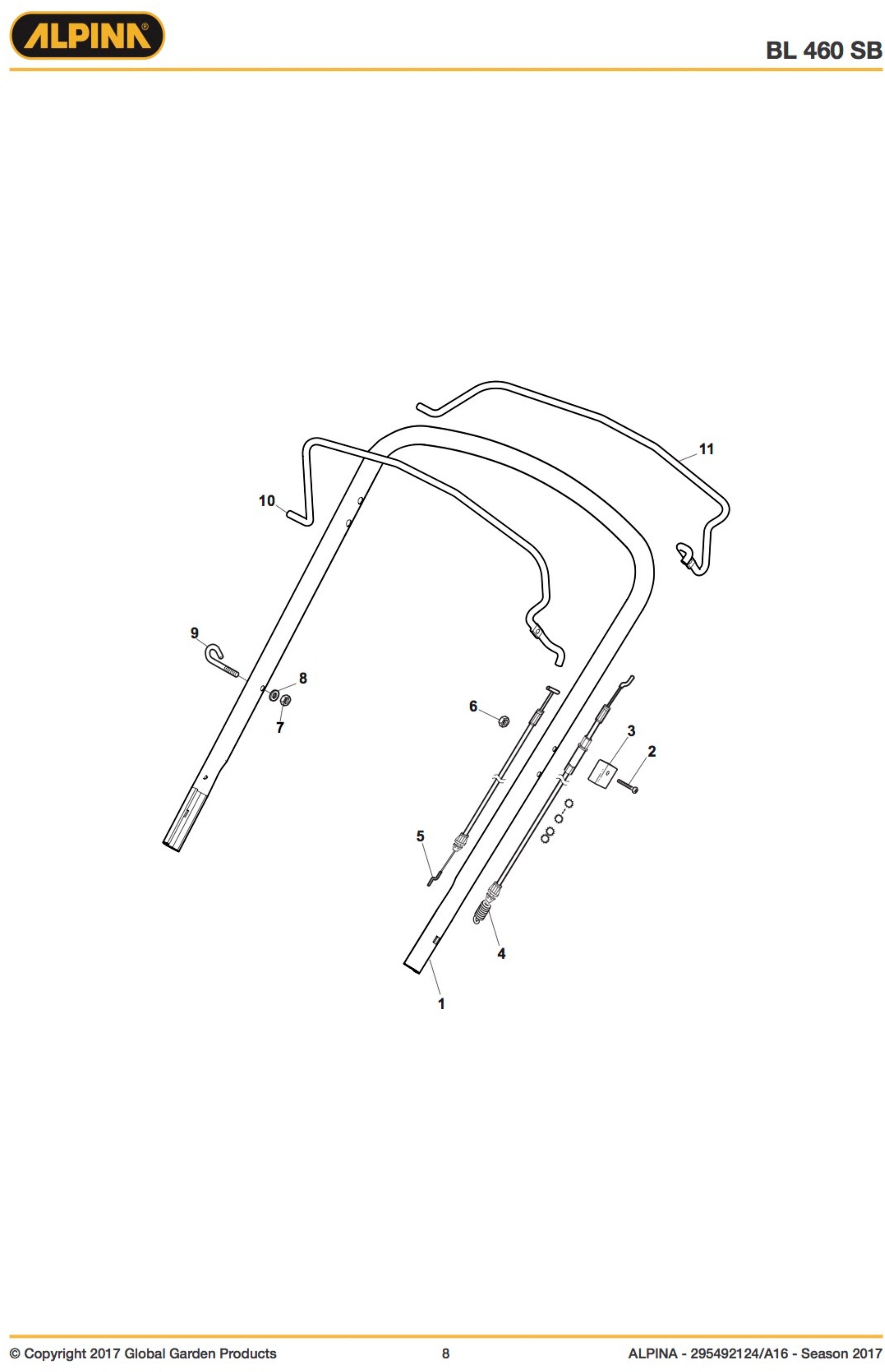

Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Alpina BL 510 SHQ Handle, Upper Part 381006740/0 Alpina BL 510 SHQ Handle, Upper Part €27.31
2
 photo_cameraImage coming soon 112727783/0 Screw €1.83
3
 photo_cameraImage coming soon 322551640/0 Plate €7.99
4
 Traction Control Cable for Lawnmower Alpina BL 460 B 381030085/0 Traction Control Cable for Lawnmower Alpina BL 460 B €18.70
5
 Engine Brake Cable Ass'y for Lawnmower Alpina BL 460 B 181030084/0 Engine Brake Cable Ass'y for Lawnmower Alpina BL 460 B €13.80
6
 photo_cameraImage coming soon 112154510/0 Nut €1.66
7
 photo_cameraImage coming soon 112154510/0 Nut €1.66
8
 photo_cameraImage coming soon 112521330/0 Washer €1.70
9
 photo_cameraImage coming soon 122430313/0 Guide Spring €4.06
10
 photo_cameraImage coming soon 381003394/0 Lever, Engine Brake Yellow €16.57
11
 photo_cameraImage coming soon 381003395/0 Lever, Driving Yellow €16.57
Page 5 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

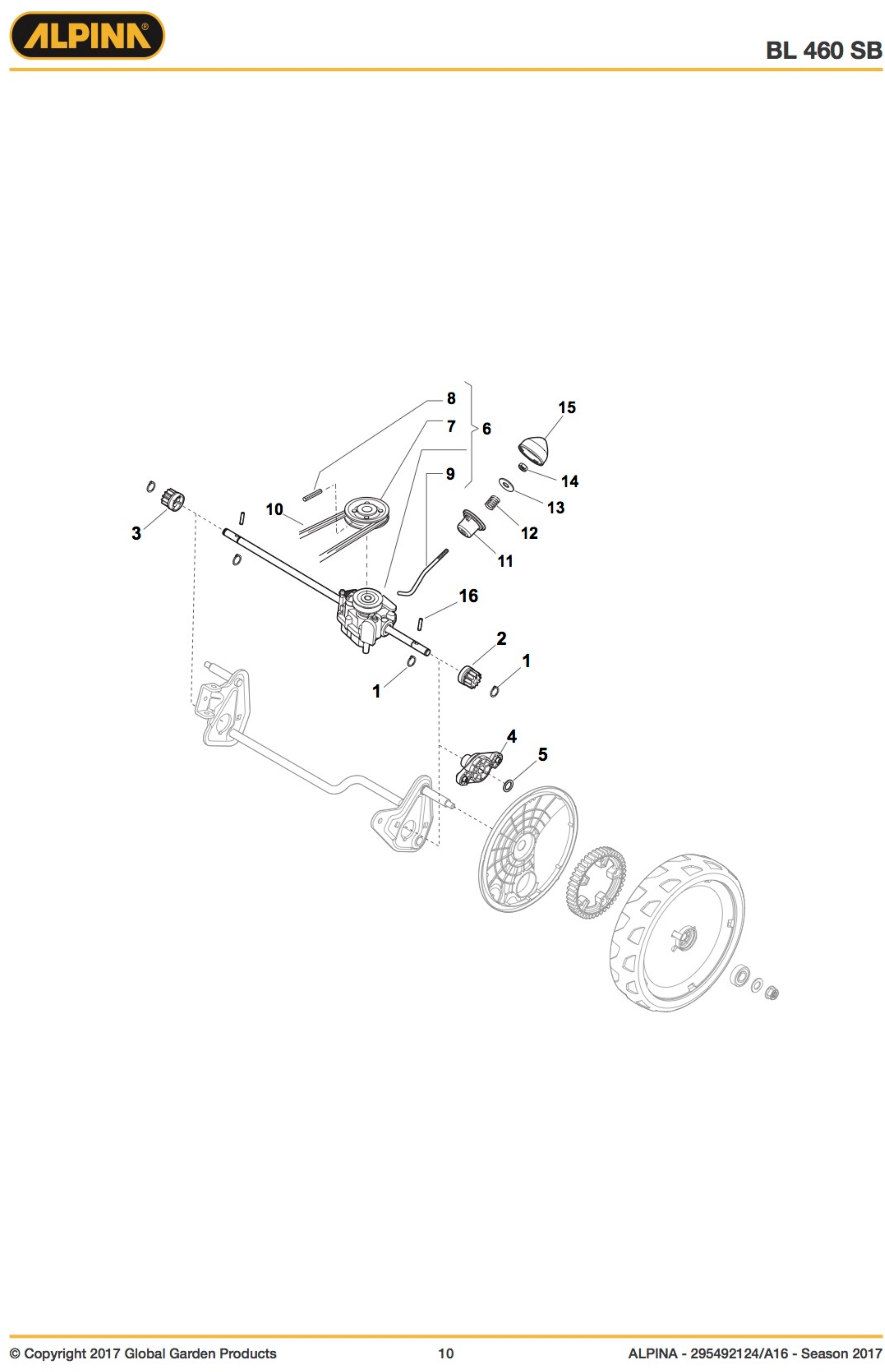

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ 112608600/0 Seeger D.12 for Self Propelled Lawnmower Alpina BL 510 SHQ €1.58
2
 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S 122570120/1 Drive Gear Left Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
3
 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S 122570110/1 Drive Gear Right Side for Self Propelled Lawnmower Dolmar PM5150S €10.25
4
 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB 322042066/0 Axle Bush for Self Propelled Lawnmower Alpina BL 460 SB €3.66
5
 photo_cameraImage coming soon 112521371/0 Washer €1.66
6
 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB 181003092/0 Trasmission Gear Box for Self Propelled Lawnmower Alpina BL 460 SB €114.62
7
 photo_cameraImage coming soon 122601909/0 Pulley €7.00
8
 photo_cameraImage coming soon 112645700/0 Elastic Pin €1.66
9
 photo_cameraImage coming soon 122033283/0 Adjustment Rod €4.77
10
 photo_cameraImage coming soon 135063800/0 Trapezoidal Belt €9.73
11
 photo_cameraImage coming soon 122041957/1 Bushing €1.66
12
 photo_cameraImage coming soon 122450063/0 Spring €1.66
13
 photo_cameraImage coming soon 322680009/0 Washer €1.81
14
 photo_cameraImage coming soon 112154510/0 Nut €1.66
15
 photo_cameraImage coming soon 122110230/0 Hub Cover €1.66
16
 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ 122753000/0 Gear Box Pin for Self Propelled Lawnmover Alpina BL 510 SHQ €1.72
Page 6 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

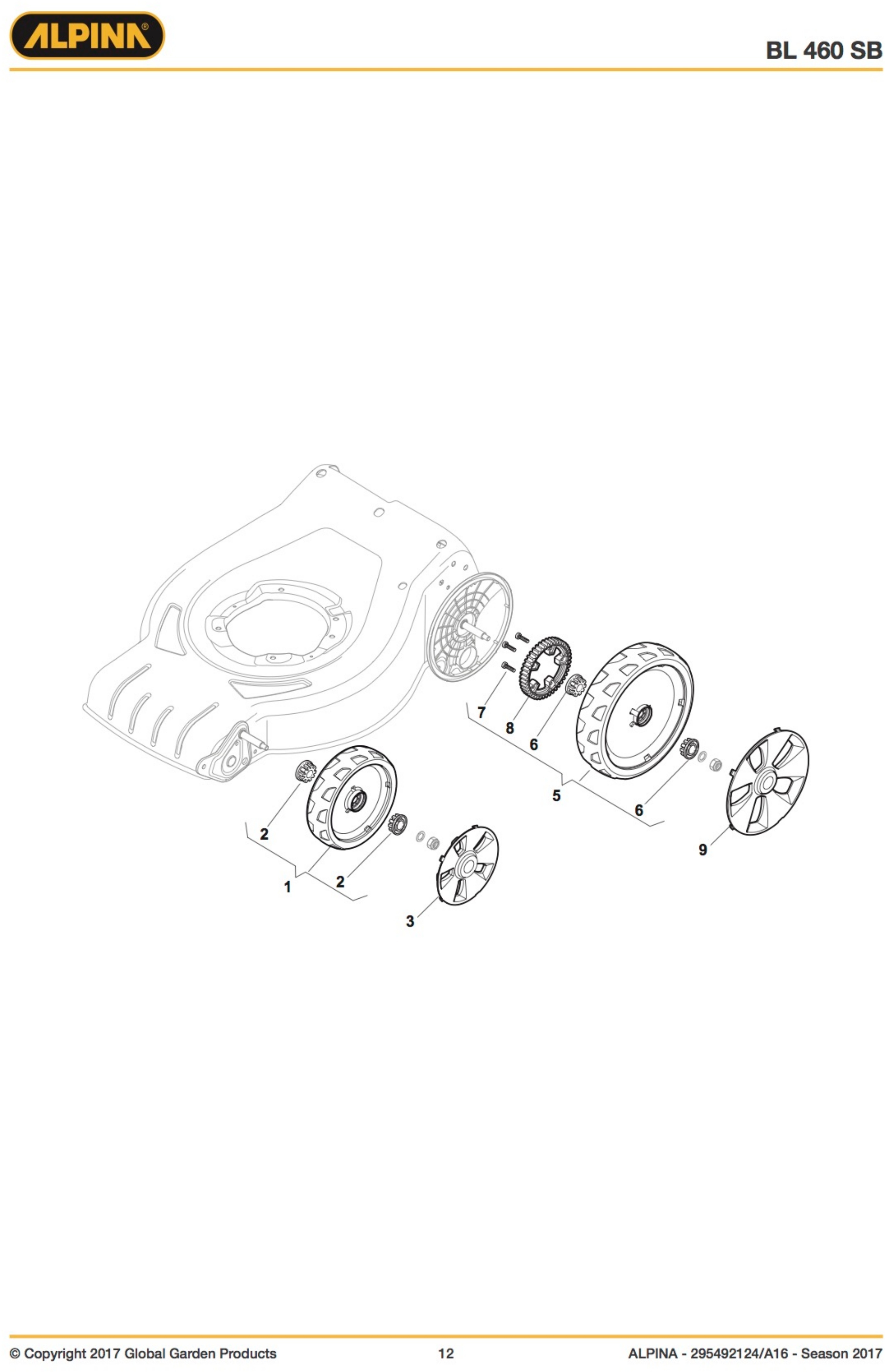

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 381007442/1 Wheel - Short Hub €12.40
2
 photo_cameraImage coming soon 322042064/0 Bushing €1.66
3
 photo_cameraImage coming soon 322110636/0 Hub Cap Grey €2.73
6
 photo_cameraImage coming soon 322042064/0 Bushing €1.66
7
 Alpina AL3 46 SG Screw 112728706/0 Alpina AL3 46 SG Screw €1.65
8
 Alpina BL 460 SB Wheel Crown 322120117/0 Alpina BL 460 SB Wheel Crown €5.04
9
 Alpina BL 460 SB Hub Cap Grey 322110637/0 Alpina BL 460 SB Hub Cap Grey €3.60
Page 7 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 7
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ 112735108/1 Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ €2.19
2
 photo_cameraImage coming soon 122465607/3 Hub With Pulley, Crankshaft Ø 22.2 €13.91
3
 photo_cameraImage coming soon 181004460/0 MULCHING BLADE L=459.5 €13.91
5
 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B 112508125/0 Spring Washe for Self Propelled Lawnmower Alpina AL3 46 B €1.72
6
 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga 112735698/0 Hex-Head Screw 3/8" X 2" for Lawnmowers Alpina - Stiga €1.92
7
 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ 112139100/0 Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ €2.09
8
 photo_cameraImage coming soon 112154210/0 Nut €1.78
Page 8 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

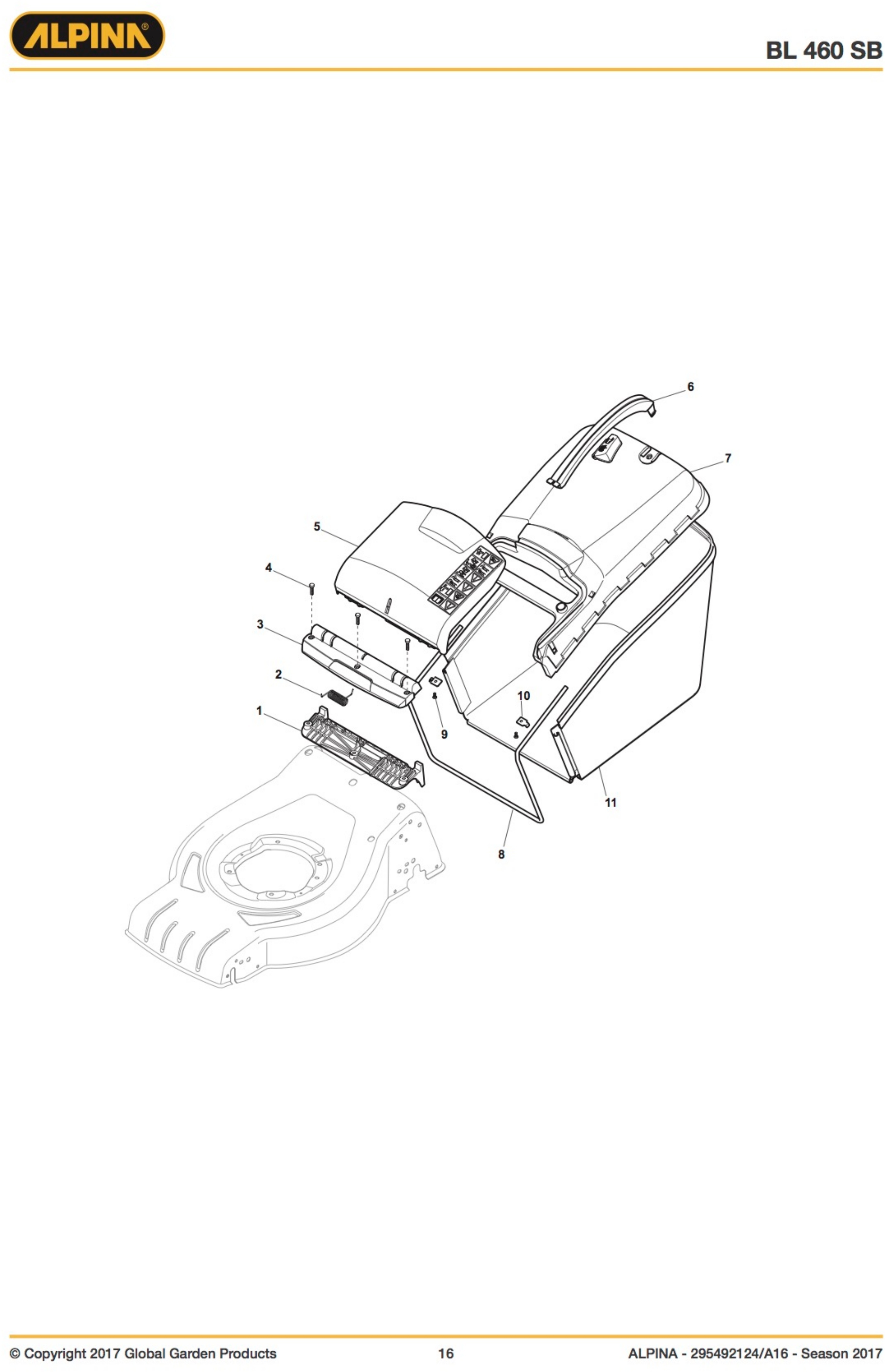

Esploso pagina 8
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 322785331/0 Black Stone Guard Support €7.10
2
 photo_cameraImage coming soon 122450464/0 Spring €1.96
3
 photo_cameraImage coming soon 322109556/0 Stone Guard Supp. Cover Yellow €4.16
4
 photo_cameraImage coming soon 112728699/0 Screw €1.66
5
 photo_cameraImage coming soon 322600206/1 Stone Guard, Black €23.52
5
 photo_cameraImage coming soon 322600214/1 Stone Guard, Yellow €12.91
6
 photo_cameraImage coming soon 322393715/0 Handle, Grey €5.64
7
 photo_cameraImage coming soon 381486016/0A Grass-Box, Upper Part Yellow €26.91
7
 photo_cameraImage coming soon 381486018/0 Grass-Box, Upper Part Black €27.21
8
 photo_cameraImage coming soon 122608561/0 Grasscatcher Lower Stiffening €11.91
9
 photo_cameraImage coming soon 112728692/0 Screw €4.96
10
 photo_cameraImage coming soon 322545159/0 Plate €1.58
11
 photo_cameraImage coming soon 181002318/0 Box, Fabric €34.51

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Alpina Spare Parts for Lawn Mower BL 460 SB

We supply ALPINA original spare parts on offer at unbeatable prices, we are an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Lawn Mower BL 460 SB /295492124/A16-2017.

In the following table, look for the model of the Lawn Mower and the respective parts of the code.
Alpina BL 460 SB - 295492124

Lawn Mower BL 460 SB /295492124/A16-2017 Pag.1
# Part Num. Description
1 381004051/0 Black Deck
2 322108301/1 Front Conveyor Assy
3 112728699/0 Screw
4 322108302/0 Rear Conveyor Assy
5 112728699/0 Screw
6 322545213/0 Plate
7 381005139/0 Left Bracket
8 112727801/0 Screw
9 381005137/0 Right Bracket
10 322060242/0 Belt Protection
11 322140239/0 Mulching Deflector
12 112728530/0 Screw
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.2
1 322545189/0 Plate
2 322735597/1 Sector, Height Adjustment
4 381003354/0 Lever, Height Adjustment
5 122519811/0 Pin
6 112521350/0 Washer
7 112155000/0 Nut
9 322735595/1 Sector, Height Adjustment
11 112728698/0 Screw
12 322545152/0 Plate
13 381302817/0 Rear Wheel Axle
14 122534131/0 Pin
15 381003357/0 Wheels Rear Adj. Lever
16 122446192/0 Spring
17 112154510/0 Nut
18 322600205/1 Protection, Wheel
21 112521350/0 Washer
22 112155000/0 Nut
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.3
1 381006737/0 Handle Lower Part
2 112819110/0 Screw
3 122671651/0 Washer
4 322399840/0 Yellow Knob
5 112293200/0 Nut
7 112818900/0 Screw
9 322399840/0 Yellow Knob
10 112293200/0 Nut
11 112155000/0 Nut
12 112521350/0 Washer
13 112369500/0 Elastic Washer
14 112760605/0 Screw
15 381008692/0 Outfit, Screws
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.4
1 381006740/0 Handle, Upper Part
2 112727783/0 Screw
3 322551640/0 Plate
4 381030085/0 Traction Control Cable
5 181030084/0 Cable, Thread Engine Brake
6 112154510/0 Nut
7 112154510/0 Nut
8 112521330/0 Washer
9 122430313/0 Guide Spring
10 381003394/0 Lever, Engine Brake Yellow
11 381003395/0 Lever, Driving Yellow
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.5
1 112608600/0 Seeger
2 122570120/1 Pinion Left
3 122570110/1 Pinion Right
4 322042066/0 Axle Bushing
5 112521371/0 Washer
6 181003092/0 Gear Box Assy
7 122601909/0 Pulley
8 112645700/0 Elastic Pin
9 122033283/0 Adjustment Rod
10 135063800/0 Trapezoidal Belt
11 122041957/1 Bushing
12 122450063/0 Spring
13 322680009/0 Washer
14 112154510/0 Nut
15 122110230/0 Hub Cover
16 122753000/0 Pin
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.6
1 381007442/1 Wheel - Short Hub
2 322042064/0 Bushing
3 322110636/0 Hub Cap Grey
6 322042064/0 Bushing
7 112728706/0 Screw
8 322120117/0 Wheels Crown
9 322110637/0 Hub Cap Grey
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.7
1 112735108/1 Screw
2 122465607/3 Hub With Pulley, Crankshaft Ø 22.2
3 181004460/0 MULCHING BLADE L=459.5
5 112508125/0 Spring Washer
6 112735698/0 Head-Hex Screw 3/8"x2"
7 112139100/0 Woodruff Key
8 112154210/0 Nut
Lawn Mower BL 460 SB /295492124/A16-2017 Pag.8
1 322785331/0 Black Stone Guard Support
2 122450464/0 Spring
3 322109556/0 Stone Guard Supp. Cover Yellow
4 112728699/0 Screw
5 322600206/1 Stone Guard, Black
5 322600214/1 Stone Guard, Yellow
6 322393715/0 Handle, Grey
7 381486016/0A Grass-Box, Upper Part Yellow
7 381486018/0 Grass-Box, Upper Part Black
8 122608561/0 Grasscatcher Lower Stiffening
9 112728692/0 Screw
10 322545159/0 Plate
11 181002318/0 Box, Fabric
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Alpina websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Alpina brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Alpina BL 460 SB - 295492124
11 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N ALPINA:
STIGA GROUP S/N START WITH (1 or 2) and have 9 DIGITS

Specific References

New

Download

Diagram Alpina BL 460 SB

Diagram Alpina BL 460 SB

Download (1.08MB)

You might also like

Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
GGP Italy SKU: 112139100/0
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ
Woodruff Key for Petrol Lawnmower Alpina AL3 46 SBQ Original replacement part Alpina, Woodruff Key 4x6,5 D.16 UNI6606 C40 for Petrol Lawnmowers AL3 46 SBQ - NTL 534 WTR/Q - BL 460 SB - AL3 51 SBQ....
on 7/10 Business Days Approx. €2.09
Details
Traction Control Cable for Lawnmower Alpina BL 460 B
GGP Italy SKU: 381030085/0
Traction Control Cable for Lawnmower Alpina BL 460 B
Traction Control Cable for Lawnmower Alpina BL 460 B Original replacement part Alpina, Traction Control Cable for Self Propelled Lawnmower BL 460 SB - BL 510 SB - BL 510 SHQ. Part for the following products: -  Lawnmower BL 460SB -...
AVAILABLE €18.70
Details
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
GGP Italy SKU: 112735108/1
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ
Telf-Form Screw 3/8"x 1"1/4 for Lawnmower Alpina BL 510 SHQ Original part Alpina, Telf-Form Screw 3/8"x 1"1/4 UNC I.F., for Self-Propelled Lawnmower BL 510 SHQ - AL3 51 SBQ - AL4 51 SBQ - BL 510 SBQ. Part for the following products: -...
on 7/10 Business Days Approx €2.19
Details
Alpina BL 510 SHQ Handle, Upper Part
GGP Italy SKU: 381006740/0
Alpina BL 510 SHQ Handle, Upper Part
Alpina BL 510 SHQ Handle, Upper Part Original spare part Alpina, Handle, Upper Part for Lawnmowers BL 510 SHQ - BL 460 SB - BL410 - BL 510 SB. Part for the following products: -  Lawnmower...
Last items in stock €27.31
Details
Alpina BL 460 SB Mulching Plug [Cruiser]
GGP Italy SKU: 322140239/0
Alpina BL 460 SB Mulching Plug Cruiser 48
Alpina BL 460 SB Mulching Plug [Cruiser 48] Original replacement part Alpina, Mulching Plug [Cruiser] forLawnmowers BL 460 SB - AL3 46 B - G - E - SG. Part for the following products: -  Lawnmower...
on 7/10 Business Days Approx €11.88
Details
Alpina AL3 46 SG Screw
GGP Italy SKU: 112728706/0
Alpina AL3 46 SG Screw
Alpina Lawnower AL3 46 SG Screw Genuine replacement part Alpina, Screw Torx Wn1451 K40X16 for Lawnower AL3 46 SG - AL3 46 SBQ. Part for the following products: -  Lawnower Mountfield S481...
AVAILABLE €1.65
Details
Alpina AL3 46 B Pin
GGP Italy SKU: 122534131/0
Alpina AL3 46 B Pin
Alpina Lawnower AL3 46 B Pin Genuine replacement part Alpina, Rear Rod lever Pin for Lawnower AL3 46 B - AL5 51 G. Part for the following products: -  Lawnmower Alpina AL3 46...
AVAILABLE €1.65
Details
Alpina BL 460 SB Hub Cap Grey
GGP Italy SKU: 322110637/0
Alpina BL 460 SB Hub Cap Grey
Alpina Lawnower BL 460 SB Hub Cap Grey Genuine replacement part Alpina, Avio Hub Cap Grey D=240 for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnmower Alpina BL 460 SB -...
Last items in stock €3.60
Details
Alpina BL 460 SB Wheel Crown
GGP Italy SKU: 322120117/0
Alpina BL 460 SB Wheel Crown
Alpina Lawnower BL 460 SB Wheel Crown Genuine replacement part Alpina, Wheel Crown for Lawnower BL 460 SB - AL3 46 SG. Part for the following products: -  Lawnower Alpina BL 460 SB - 295492124 - ...
Last items in stock €5.04
Details
Comments (0)
