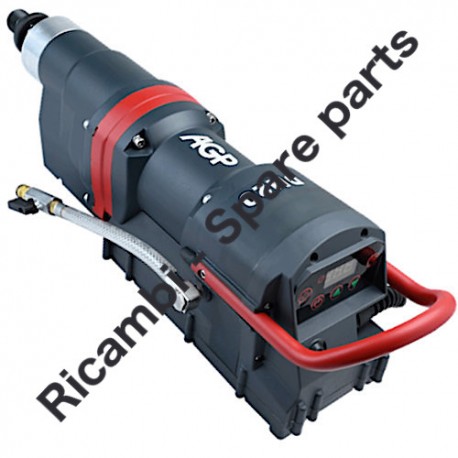

AGP Diamond Core Drill DM20 Spare Parts
AGP original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Diamond Core Drill DM20.In the following table, look position number and code spare part for Diamond Core Drill.
| Diamond Core Drill DM20 | ||
| # | Part Num. | Description |
| 1 | 303-02009-004-119 | O-RING (Ø45x1.5) |
| 2 | 302-04226-907-001 | ANTI-SEIZE RING |
| 3 | 303-02009-004-071 | O-RING (Ø32x1.5) |
| 4 | 302-05404-000-001 | THRUST RING (3252) |
| 5 | 302-04225-907-001 | ANTI-SEIZE CUP |
| 6 | 470-0 | DOWEL PIN (Ø4x11.8) |
| 7 | 406-M05055080-000 | SOCKET CAP SCREW (M5-0.8 x 55) |
| 8 | 301-03044-000-001 | WATER FEED HOUSING |
| 9 | 305-00029-000-004 | ELBOW FITTING (PT1/4" x 3/8"U) |
| 10 | 303-02002-004-037 | OIL SEAL (Ø40xØ52x7) |
| 11 | 303-02002-004-025 | OIL SEAL (Ø40xØ50x7) |
| 12 | 302-04498-000-002 | STAINLESS BUSHING |
| 13 | 302-04003-000-206 | OUTPUT SPINDLE |
| 14 | 421-06020-10 | PARALLEL KEY (6x6x20) |
| 15 | 302-05520-000-003 | BALL BEARING (6206) |
| 16 | 422-S30-0 | EXTERNAL CIRCLIP (S-30) |
| 17 | 303-02002-004-068 | OIL SEAL (Ø30xØ55x7) |
| 18 | 302-06008-000-073 | OUTPUT GEAR (M1.75x40T) |
| 19 | 418-M20000150-080 | NYLOOK NUT (M20xP1.5) |
| 20 | 421-04030-00 | PARALLEL KEY (4x4x30) |
| 21 | 203-0161-00000-001 | OIL IMPELLER |
| 22 | 422-S18-0 | EXTERNAL CIRCLIP (S-18) |
| 23 | 302-05128-000-001 | NEEDLE BEARING (TA1815) |
| 24 | 406-M06030100-050 | SOCKET CAP SCREW (M6-1.0 x 30) |
| 25 | 425-060000-50 | SPRING WASHER (M6) |
| 26 | 0205-0007-00000-036 | FLEXIBLE COOLANT NOZZLE (Ø6.4xØ10x0.1M)(GRAY) |
| 27 | 305-00070-000-018 | FITTING (1/4"M x Ø10) |
| 28 | 201-0002-00026-012 | GEAR HOUSING (GRAY-RAL7016) |
| 29 | 302-05515-000-001 | BALL BEARING (6201) |
| 30 | 302-06004-000-083 | CLUTCH PINION(M1.5x20T) |
| 31 | 302-03220-000-002 | PRESSURE DISC (Ø20.1xØ43x3) |
| 32 | 302-03280-000-001 | BELLEVILLE SPRING |
| 33 | 307-02007-000-007 | CLUTCH BRASS DISC (Ø20.1xØ41x2) |
| 34 | 302-03108-000-003 | CLUTCH STEEL PLATE |
| 35 | 302-06005-000-047 | INPUT GEAR (M1.25x51T) |
| 36 | 302-04207-000-003 | HEX NUT (M16) |
| 37 | 302-05517-000-001 | BALL BEARING (6203) |
| 38 | 302-06001-000-037 | COUNTERSHAFT (M1.75x14T) |
| 39 | 421-06015-10 | PARALLEL KEY (6x6x15) |
| 40 | 302-06002-000-052 | LAY GEAR (M1.5x40T) |
| 41 | 422-S20-0 | EXTERNAL CIRCLIP (S-20) |
| 42 | 303-02054-000-010 | GEAR CASE GASKET |
| 43 | 0299-0125-00164-008 | GEAR PLATE (RED-187C) |
| 44 | 404-M08007125-030 | SOCKET SET SCREW (M8-1.25 x 7) |
| 45 | 303-02009-004-122 | O-RING (Ø105xØ109x2) |
| 46 | 303-02009-004-123 | O-RING (Ø84xØ88x2) |
| 47 | 303-02009-004-124 | O-RING (Ø76xØ80x2) |
| 48 | 0201-0020-00026-041 | MOTOR HOUSING (GRAY-RAL7016) |
| 49 | 0299-0127-00000-003 | STATOR ASSEMBLY |
| 50 | 303-02002-004-066 | OIL SEAL (Ø15xØ25.5x4.6) |
| 51 | 0299-0136-00000-027 | ARMATURE ASSY. |
| 52 | 0299-0134-00026-001 | MOTOR END CASTING (GRAY-RAL7016) |
| 53 | 0299-0018-00000-065 | WATER FEED CONNECTOR KIT |
| 54 | 404-M07000000-080 | SOCKET SET SCREW-SUS (PT1/4") |
| 55 | 303-02009-004-125 | O-RING (Ø8x1) |
| 56 | 303-02009-004-126 | O-RING (Ø4.5x1) |
| 57 | 0299-0128-00000-001 | ELECTRONICS COVER (GRAY-RAL7016) |
| 58 | 406-M04016070-080 | SOCKET CAP SCREW (M4-0.7 x 16) |
| 59 | 204-0021-00000-091 | ELECTRONICS UNIT ( ON DEMAND ) |
| 60 | 403-M04030001-080 | PANHEAD TAPPING SCREW-A (M4x20) |
| 61 | 424-041010-20 | FLAT WASHER (Ø4xØ10x1) |
| 62 | 406-M04040070-030 | SOCKET CAP SCREW (M4-0.7 x 40) |
| 63 | 403-M04008003-160 | PANHEAD TAPPING SCREW-B (M4x8) |
| 64 | 0299-0119-00000-007 | LCD DISPLAY |
| 65 | 206-031503350-02 | POWER SUPPLY CABLE (VDE-1.5x3Cx3.5M-H07RNF) |
| 66 | 305-00007-000-011 | STRAIN RELIEF GLAND |
| 67 | 0299-0325-00000-001 | TAIL COVER (GRAY-RAL7016) |
| 68 | 304-04012-000-013 | LED OVERLOAD LAMP (110V&220V) |
| 69 | 303-02050-000-001 | PROTECTION FRAME |
| 70 | 302-04570-000-001 | HANDLE |
| 71 | 303-01420-004-001 | HANDLE RETAINER |
| 72 | 406-M05020080-160 | SOCKET CAP SCREW (M5-0.8 x 20) |
| 73 | 301-04010-000-001 | EARTHING MARKING |
| 74 | 426-050000-00 | EXTERNAL STAR WASHER (M5) |
