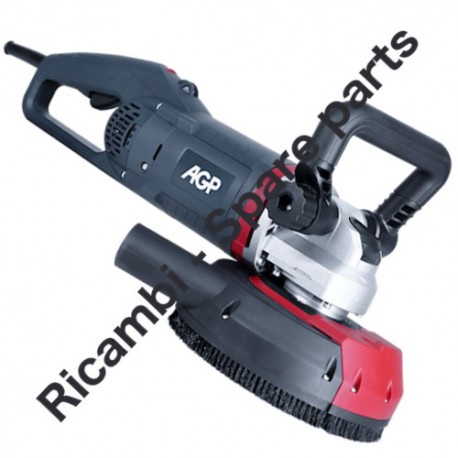

AGP Grinder G180 Spare Parts
€51.65
VAT included
AGP Concrete Grinder G180 Spare Parts
Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Concrete Grinder G180.
AGP Grinder G180 Spare Parts
€51.65
VAT included
AGP Concrete Grinder G180 Spare Parts
Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Concrete Grinder G180.
settings
79 Spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
79 spare parts
Page 1
zoom_in View exploded
local_shipping Usually Ships in 7/10 BUSINESS DAYS
Shipping and delivery information will be available shortly.
AGP Concrete Grinder G180 Spare Parts
Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Concrete Grinder G180.
In the following table, look for the model of the Concrete Grinder and the respective parts of the code.
| CONCRETE GRINDER G180 | ||
| # | Part Num. | Description |
| 01 | 206-031002300-03 | POWER SUPPLY CABLE (VDE-1.0x2Cx3M-H07RNF) |
| 02 | 203-0004-00000-001 | CORD ARMOR |
| 03 | 403-M04014003-020 | PANHEAD TAPPING SCREW-B (M4x14) |
| 04 | 303-01003-004-004 | CABLE CLIP |
| 05 | 303-01065-004-012 | HANDLE HALF-RIGHT (BLACK) |
| 06 | 303-01340-004-002 | CARBON CAP (BLACK) |
| 07 | 403-M04012003-080 | PANHEAD TAPPING SCREW-B (M4x12) |
| 08 | 303-01066-004-012 | HANDLE HALF-LEFT (BLACK) |
| 09 | 403-M05045003-021 | PANHEAD TAPPING SCREW-B-W/WASHER (M5x45) |
| 10 | 403-M04020001-080 | PANHEAD TAPPING SCREW-A (M4x20) |
| 11 | 203-0010-00100-006 | THUMB WHEEL (ORANGE-021C) |
| 12 | 304-04004-000-025 | RHEOSTAT |
| 13 | 402-M04030003-020 | PANHEAD TAPPING SCREW-B-W/WASHER (M4x30) |
| 14 | 204-0021-20000-033 | ELECTRONICS UNIT (220V) |
| 15 | 302-04009-000-004 | BRUSH SPRING (0.4x4x3T) |
| 16 | 307-02004-000-004 | CARBON BRUSH HOLDER (7x17) |
| 17 | 305-00001-000-035 | CARBON BRUSH (7x17x19)(220V) |
| 18 | 407-M04006070-050 | PANHEAD MACHINE SCREW (M4-0.7 x 6) |
| 19 | 303-01303-005-002 | INSULATION PLATE (10x38x1) |
| 20 | 403-M04010003-020 | PANHEAD TAPPING SCREW-B (M4x10) |
| 21 | 0299-0014-00004-019 | SWITCH ACTUATOR (BLACK)(LOCK-ON) |
| 22 | 302-04171-000-001 | SPRING (Ø0.8 x Ø6.4 x Ø8 x 9T x 26L) |
| 23 | 0299-0135-00000-003 | LED INDICATOR LIGHT |
| 24 | 304-02025-000-001 | HALL EFFECT SWITCH |
| 25 | 303-01251-026-044 | MOTOR HOUSING (GRAY-RAL7016) |
| 26 | 299-0002-20000-168 | STATOR (220V-81x46.4x55) |
| 27 | 402-M05070003-020 | PANHEAD TAPPING SCREW-B-W/WASHER (M5x70) |
| 28 | 407-M04010070-050 | PANHEAD MACHINE SCREW (M4-0.7 x 10) |
| 29 | 424-041010-10 | FLAT WASHER (Ø4xØ10x1) |
| 30 | 432-M04000-00 | RUBBER WASHER (Ø4xØ11x1) |
| 31 | 302-01007-000-002 | PICKUP MAGNET (Ø8xØ15x5) |
| 32 | 302-04018-901-001 | SPACER (Ø8xØ12x10.5) |
| 33 | 302-05514-000-008 | BALL BEARING (6200) |
| 34 | 299-0001-23000-171 | ARMATURE (220V-81x46.4x55) |
| 35 | 303-01057-004-031 | FAN BAFFLE (BLACK) |
| 36 | 302-05515-000-002 | BALL BEARING (6201) |
| 37 | 303-02009-004-071 | O-RING (Ø32x1.5) |
| 38 | 303-02002-004-035 | OIL SEAL (Ø12xØ22x7) |
| 39 | 302-06018-000-018 | BEVEL PINION GEAR (M1.5x10T) |
| 40 | 201-0002-00001-108 | GEAR HOUSING (SILVER) |
| 41 | 203-0018-00004-002 | SPINDLE LOCK BUTTON (BLACK) |
| 42 | 302-04026-901-082 | SPRING (Ø0.9xØ7.4xØ9.2x5Tx16L) |
| 43 | 302-04119-907-003 | ARBOR LOCK |
| 44 | 303-02009-004-099 | O-RING (Ø5x1) |
| 45 | 425-050000-00 | SPRING WASHER (M5) |
| 46 | 403-M05030003-080 | PANHEAD TAPPING SCREW-B (M5x30) |
| 47 | 302-05107-000-003 | NEEDLE BEARING (HK 1010) |
| 48 | 302-06015-000-030 | BEVEL GEAR (M1.5x43T) |
| 49 | 303-02009-004-098 | O-RING (Ø72x2) |
| 50 | 303-02002-004-045 | OIL SEAL (Ø15xØ24x5) |
| 51 | 201-0003-00001-070 | GEAR PLATE (SILVER) |
| 52 | 422-S17-0 | EXTERNAL CIRCLIP (S-17) |
| 53 | 302-05523-000-002 | BALL BEARING (6303) |
| 54 | 425-040000-00 | SPRING WASHER (M4) |
| 55 | 406-M04020070-080 | SOCKET CAP SCREW (M4-0.7 x 20) |
| 56 | 421-05015-00 | PARALLEL KEY (5x5x15) |
| 57 | 302-04003-000-203 | SPINDLE (M14xP2.0-124.1MM) |
| 58 | 303-02002-004-053 | OIL SEAL (Ø24xØ32x4) |
| 59 | 302-03182-903-005 | BEARING PLATE |
| 60 | 406-M04010070-160 | SOCKET CAP SCREW (M4-0.7 x 10) |
| 61 | 413-M04010003-020 | FLAT HEAD TAPPING SCREW-B (M4x10) |
| 62 | 303-01300-004-002 | COVER PANEL (BLACK) |
| 63 | 303-01331-164-003 | HALF-MOON DOOR (RED-187C) |
| 64 | 203-0112-00004-009 | SKIRT BRUSH-SMALL (BLACK) |
| 65 | 302-04026-000-010 | SPRING (Ø0.55xØ4.9xØ6x15Lx6T) |
| 67 | 303-01081-004-009 | DUST COVER (BLACK) |
| 68 | 203-0112-00004-010 | SKIRT BRUSH-LARGE (BLACK) |
| 69 | 302-04127-901-006 | SHOULDER BOLT (M4-0.7 x 26) |
| 70 | 307-01004-004-001 | INNER FLANGE (Ø22.2-12.4mm) |
| 71 | 307-01005-004-001 | OUTER FLANGE (M14) |
| 72 | 401-M08130125-080 | HEX BOLT (M8-1.25 x 130) |
| 73 | 303-01393-004-001 | CLAMPING KNOB (BLACK) |
| 74 | 303-01392-004-001 | CLAMPING SLEEVE (BLACK) |
| 75 | 303-01391-004-001 | FRONT HANDLE (BLACK) |
| 76 | 410-M08000125-080 | HEX NUT (M8) |
| 77 | 305-00039-901-001 | LOCK NUT WRENCH (30MM) |
| 79 | 403-M04016003-160 | PANHEAD TAPPING SCREW-B (M4x16) |
| 80 | 302-02024-000-001 | SPACER |
| 81 | 302-04179-901-001 | FACE SPANNER WRENCH (93MM) |
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Rurmec websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Makita brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
