AGP Wall Sander SB9 Spare Parts

SKU: AGP SB9
€71.99
VAT included

AGP Wall Sander SB9 Spare Parts

Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Wall Sander SB9.

AGP Wall Sander SB9 Spare Parts
  • AGP Wall Sander SB9 Spare Parts
  • AGP Wall Sander SB9 Spare Parts Drawing
Rurmec

AGP Wall Sander SB9 Spare Parts

SKU: AGP SB9 Condition: New
€71.99
VAT included

AGP Wall Sander SB9 Spare Parts

Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Wall Sander SB9.

settings 48 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type: Sander
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

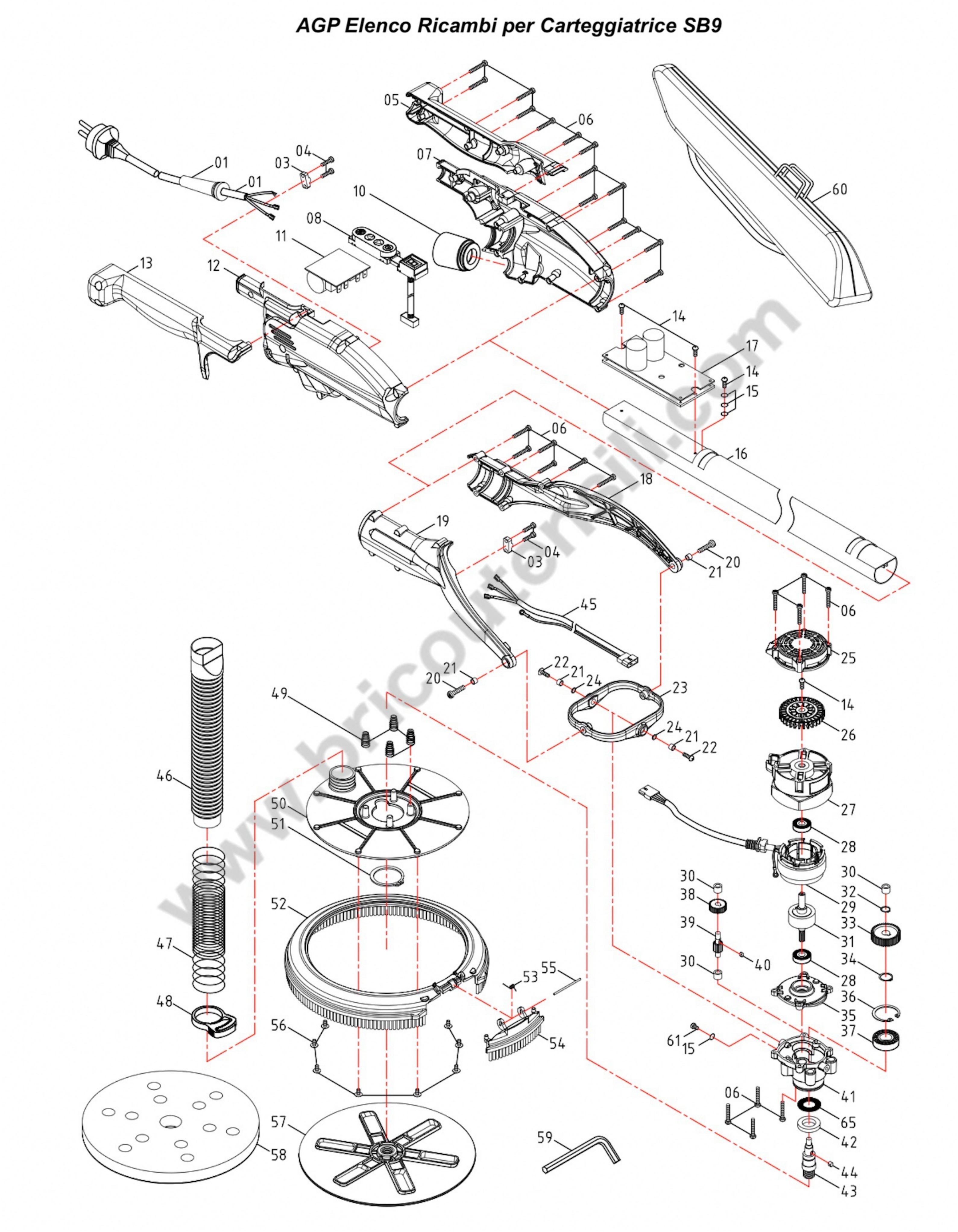

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
01
 photo_cameraImage coming soon 0299-0165-00000-017 CABLE SET €71.99
03
 photo_cameraImage coming soon 303-01003-004-004 CABLE CLIP €1.50
04
 photo_cameraImage coming soon 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14) €1.60
05
 photo_cameraImage coming soon 303-01411-026-001 HANDLE HALF-LEFT (GRAY-RAL7016) €10.37
07
 photo_cameraImage coming soon 0299-0298-00164-002 MAIN HOUSING-LEFT (RED-187C) €21.26
08
 photo_cameraImage coming soon 0299-0300-00026-004 SWITCH PANEL (GRAY-RAL7016) €85.37
10
 photo_cameraImage coming soon 303-01051-004-001 BAYONET HOSE CONNECTOR (BLACK) €4.08
11
 photo_cameraImage coming soon 304-04001-000-008 EMI UNIT €62.35
12
 photo_cameraImage coming soon 0299-0299-00164-002 MAIN HOUSING-RIGHT (RED-187C) €18.15
13
 photo_cameraImage coming soon 303-01412-026-001 HANDLE HALF-RIGHT (GRAY-RAL7016) €9.75
16
 photo_cameraImage coming soon 201-0008-00906-013 EXTENSION COLUMN (L800MM) €90.98
17
 photo_cameraImage coming soon 0204-0033-00000-002 DRIVE ELECTRONICS BOARD €540.90
18
 photo_cameraImage coming soon 303-01100-026-001 SUPPORT ARM-LEFT €9.75
19
 photo_cameraImage coming soon 303-01100-026-002 SUPPORT ARM-RIGHT €9.75
21
 photo_cameraImage coming soon 307-03007-000-008 BUSHING (Ø5xØ7x7) €1.66
23
 photo_cameraImage coming soon 303-01416-026-002 PIVOT BRACKET (GRAY-RAL7016) €9.75
24
 photo_cameraImage coming soon 303-02009-004-109 O-RING (Ø7x2) €1.34
25
 photo_cameraImage coming soon 303-01312-026-003 MOTOR END CASTING (GRAY-RAL7016) €5.39
26
 photo_cameraImage coming soon 303-01111-000-004 FAN €3.83
27
 photo_cameraImage coming soon 303-01251-026-049 MOTOR HOUSING (GRAY-RAL7016) €6.63
28
 photo_cameraImage coming soon 302-05502-000-004 BALL BEARING (608) €9.91
29
 photo_cameraImage coming soon 299-0002-00000-192 STATOR (60x34.8x15) €171.89
30
 photo_cameraImage coming soon 307-01003-000-001 BUSHING (Ø6xØ10x8) €1.52
31
 photo_cameraImage coming soon 299-0001-00000-022 ROTOR €145.44
33
 photo_cameraImage coming soon 302-06008-000-071 OUTPUT GEAR (M0.8x39T) €29.35
35
 photo_cameraImage coming soon 201-0003-00001-083 GEAR PLATE (SILVER) €33.09
37
 photo_cameraImage coming soon 302-05508-000-006 BALL BEARING (6002) €23.18
38
 photo_cameraImage coming soon 302-06005-000-045 INPUT GEAR (M0.7x30T) €23.13
39
 photo_cameraImage coming soon 302-06004-000-080 INPUT SHAFT (M0.8x17T) €28.42
40
 photo_cameraImage coming soon 421-03006-10 PARALLEL KEY (3x3x6) €1.52
41
 photo_cameraImage coming soon 0201-0002-00001-147 GEAR HOUSING (MATTE SILVER) €53.02
42
 photo_cameraImage coming soon 303-02002-004-063 OIL SEAL (Ø17xØ28x4.5) €1.66
43
 photo_cameraImage coming soon 302-04003-000-192 SPINDLE €24.38
44
 photo_cameraImage coming soon 421-04006-10 PARALLEL KEY (4x4x6) €1.34
45
 photo_cameraImage coming soon 306-15101518A735-01 CONNECTION CABLE €19.09
46
 photo_cameraImage coming soon 303-02015-004-003 VACCUM HOSE €18.15
47
 photo_cameraImage coming soon 302-04027-901-005 SPRING (Ø0.8xØ29.4xØ31x288.8Lx46T) €4.78
48
 Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE 303-01019-004-001 Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE €3.69
50
 photo_cameraImage coming soon 203-0152-00026-002 SANDING COVER BASE (GRAY-RAL7016) €12.87
51
 photo_cameraImage coming soon 422-S38-0 EXTERNAL CIRCLIP (S-38) €1.66
52
 photo_cameraImage coming soon 203-0008-00026-002 DUST COVER (GRAY-RAL7016) €27.18
54
 photo_cameraImage coming soon 203-0140-00164-002 HALF-MOON DOOR (RED-187C) €10.00
55
 photo_cameraImage coming soon 302-04193-901-003 PIVOT PIN (Ø2x48) €4.78
57
 photo_cameraImage coming soon 203-0009-00004-006 SANDING PLATE BASE (BLACK) €44.30
58
 photo_cameraImage coming soon 303-02008-004-015 VELCRO SPONGE PAD (9') €60.88
59
 photo_cameraImage coming soon 305-00010-901-003 HEX KEY (M6) €1.99
60
 photo_cameraImage coming soon 308-01001-021-001 CARRY BAG (GRAY) €146.38
65
 photo_cameraImage coming soon 308-03001-000-018 FELT OILER (Ø16.5xØ28x1) €1.34

Shipping and delivery information will be available shortly.

AGP Wall Sander SB9 Spare Parts

Rurmec original spare parts for to make maintenance, replacement of damaged parts or repair electrical or mechanical components of the Wall Sander SB9.

In the following table, look for the model of the Wall Sander and the respective parts of the code.
AGP Wall Sander SB9 Spare Parts

WALL SANDER SB9
# Part Num. Description
01 0299-0165-00000-017 CABLE SET
03 303-01003-004-004 CABLE CLIP
04 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14)
05 303-01411-026-001 HANDLE HALF-LEFT (GRAY-RAL7016)
06 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25)
07 0299-0298-00164-002 MAIN HOUSING-LEFT (RED-187C)
08 0299-0300-00026-004 SWITCH PANEL (GRAY-RAL7016)
10 303-01051-004-001 BAYONET HOSE CONNECTOR (BLACK)
11 304-04001-000-008 EMI UNIT
12 0299-0299-00164-002 MAIN HOUSING-RIGHT (RED-187C)
13 303-01412-026-001 HANDLE HALF-RIGHT (GRAY-RAL7016)
14 405-M04008070-110 TRUSS HEAD MACHINE SCREW (M4-0.7 x 8)
15 426-040000-00 EXTERNAL STAR WASHER (M4)
16 201-0008-00906-013 EXTENSION COLUMN (L800MM)
17 0204-0033-00000-002 DRIVE ELECTRONICS BOARD
18 303-01100-026-001 SUPPORT ARM-LEFT
19 303-01100-026-002 SUPPORT ARM-RIGHT
20 403-M05016002-050 PANHEAD TAPPING SCREW-B (M5x16)
21 307-03007-000-008 BUSHING (Ø5xØ7x7)
22 405-M05012080-041 TRUSS HEAD MACHINE SCREW (M5-0.8 x 12)
23 303-01416-026-002 PIVOT BRACKET (GRAY-RAL7016)
24 303-02009-004-109 O-RING (Ø7x2)
25 303-01312-026-003 MOTOR END CASTING (GRAY-RAL7016)
26 303-01111-000-004 FAN
27 303-01251-026-049 MOTOR HOUSING (GRAY-RAL7016)
28 302-05502-000-004 BALL BEARING (608)
29 299-0002-00000-192 STATOR (60x34.8x15)
30 307-01003-000-001 BUSHING (Ø6xØ10x8)
31 299-0001-00000-022 ROTOR
32 422-S10-0 EXTERNAL CIRCLIP (S10)
33 302-06008-000-071 OUTPUT GEAR (M0.8x39T)
34 422-S15-0 EXTERNAL CIRCLIP (S-15)
35 201-0003-00001-083 GEAR PLATE (SILVER)
36 422-R32-0 INTERNAL CIRCLIP (R-32)
37 302-05508-000-006 BALL BEARING (6002)
38 302-06005-000-045 INPUT GEAR (M0.7x30T)
39 302-06004-000-080 INPUT SHAFT (M0.8x17T)
40 421-03006-10 PARALLEL KEY (3x3x6)
41 0201-0002-00001-147 GEAR HOUSING (MATTE SILVER)
42 303-02002-004-063 OIL SEAL (Ø17xØ28x4.5)
43 302-04003-000-192 SPINDLE
44 421-04006-10 PARALLEL KEY (4x4x6)
45 306-15101518A735-01 CONNECTION CABLE
46 303-02015-004-003 VACCUM HOSE
47 302-04027-901-005 SPRING (Ø0.8xØ29.4xØ31x288.8Lx46T)
48 303-01019-004-001 PLASTIC CLIP (BLACK)
49 302-04093-000-002 SPRING (Ø0.7x6Tx20L)
50 203-0152-00026-002 SANDING COVER BASE (GRAY-RAL7016)
51 422-S38-0 EXTERNAL CIRCLIP (S-38)
52 203-0008-00026-002 DUST COVER (GRAY-RAL7016)
53 302-04166-901-002 TORSION SPRING
54 203-0140-00164-002 HALF-MOON DOOR (RED-187C)
55 302-04193-901-003 PIVOT PIN (Ø2x48)
56 496-M04006001-040 TRUSS HEAD TAPPING SCREW-A (M4x6)
57 203-0009-00004-006 SANDING PLATE BASE (BLACK)
58 303-02008-004-015 VELCRO SPONGE PAD (9')
59 305-00010-901-003 HEX KEY (M6)
60 308-01001-021-001 CARRY BAG (GRAY)
61 405-M04006070-070 TRUSS HEAD MACHINE SCREW (M4-0.7 x 6)
65 308-03001-000-018 FELT OILER (Ø16.5xØ28x1)
