AGP Europe Spare Parts for AS200 Drill Stand

SKU: AS200 Version 2.2
€23.96
VAT included

AGP Europe Spare Parts for AS200 Drill Stand

We have the original Spares AGP Europe Spare Parts for AS200 Drill Stand the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your AS200 Drill Stand. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AGP Europe Spare Parts for AS200 Drill Stand
  • Online only
  • AGP Europe Spare Parts for AS200 Drill Stand
  • AGP Europe Spare Parts for AS200 Drill Stand
AGP EUROPE

AGP Europe Spare Parts for AS200 Drill Stand

SKU: AS200 Version 2.2 Condition: New
€23.96
VAT included

AGP Europe Spare Parts for AS200 Drill Stand

We have the original Spares AGP Europe Spare Parts for AS200 Drill Stand the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your AS200 Drill Stand. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

settings 66 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Core Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
66 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

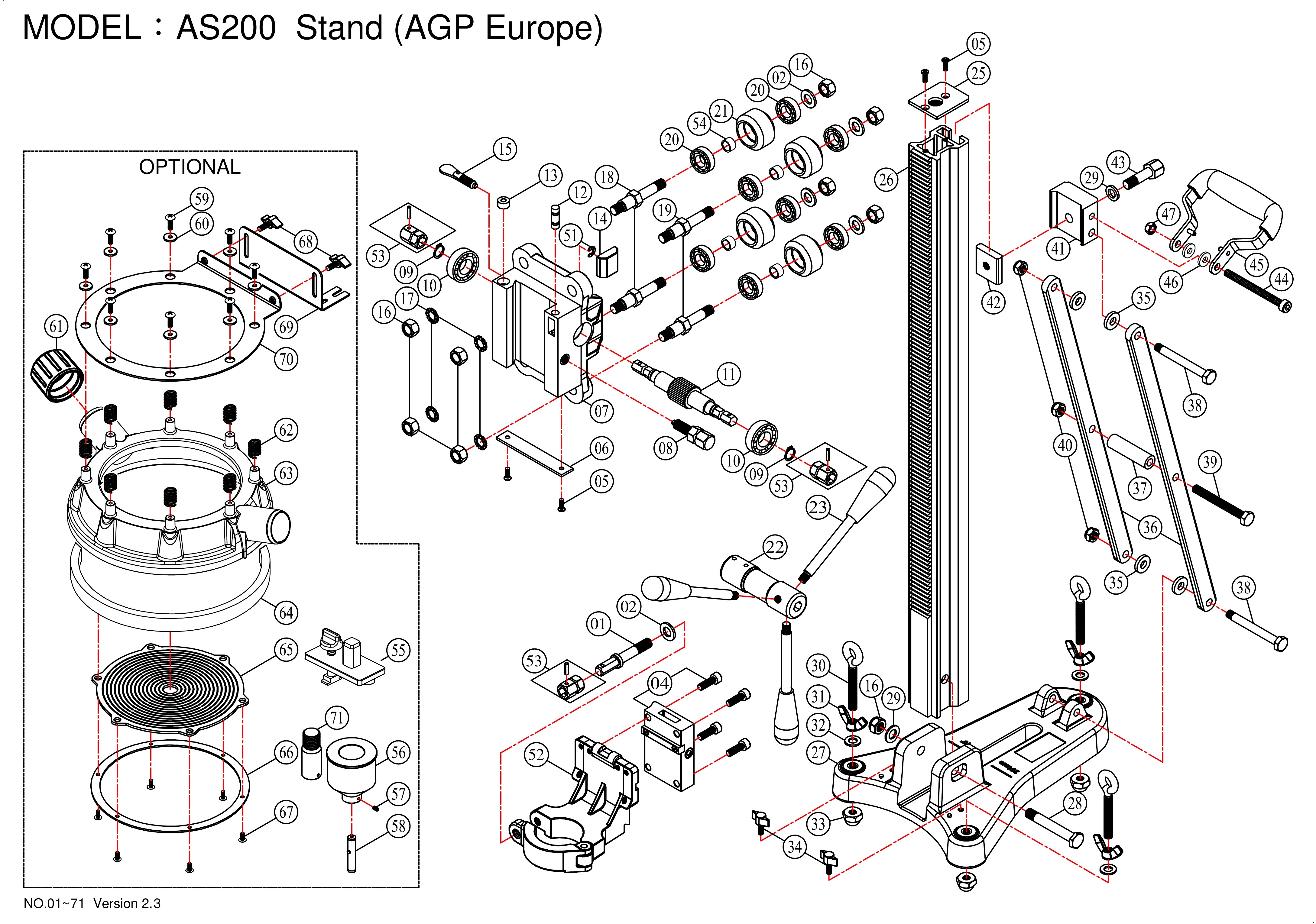

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
A18
 Image coming soon 0202-0132-00914-001 RING BRACKET €48.85
A12
 Image coming soon 0203-0131-00000-006 Gasket (760 MM) €1.86
A2
 Image coming soon 0299-0251-0000-001 EXTENSION MAST BRACKET €269.89
A16
 Image coming soon 203-0064-00903-002 THUMB SCREW (M6x16xP1.0) €4.47
A3
 Image coming soon 301-03038-906-001 LASER CONNECTOR €118.90
A19
 Image coming soon 301-03038-906-002 LASER CONNECTOR €30.57
A17
 Image coming soon 302-03243-914-002 ANGLE BRACKET €17.09
A14
 Image coming soon 302-03244-914-001 MOUNTING RING €25.79
A10
 Image coming soon 302-04026-000-013 SPRING (Ø0.7xØ12xØ15x5Tx21L) €0.00 Not available for order
OP1
 Image coming soon 302-04464-903-001 ANCHORING PLATE €109.76
A11
 Image coming soon 303-01366-004-001 WATER COLLECTOR BODY €53.64
A9
 Image coming soon 303-02013-004-004 END CAP €4.90
A13
 Image coming soon 303-02073-000-001 CRANK CASE PACKING €23.18
A5
 Image coming soon 305-00378-000-001 LASER POINTER UNIT €45.81
A4
 Image coming soon 404-M04006070-050 SOCKET SET SCREW (M4x6xP0.7) €0.00 Not available for order
A7
 Image coming soon 424-051912-20 FLAT WASHER (Ø5xØ19x1.2) €0.00 Not available for order
A15
 Image coming soon 496-M04008001-080 TRUSS HEAD TAPPING SCREW-A (M4x8) €0.00 Not available for order
A6
 Image coming soon 496-M05012001-080 SOCKET CAP SCREW (M5x12xP0.8) €0.00 Not available for order
01
 Image coming soon 302-04331-907-001 CLAMP SCREW (M12) €18.39
02
 Image coming soon 424-132320-00 FLAT WASHER (1/2"xØ23x2) €0.00 Not available for order
04
 Image coming soon 0299-0036-00000-005 MOUNTING SPACER €79.96
05
 Image coming soon 415-M05012080-080 FLAT HEAD MACHINE SCREW (M5x12xP0.8) €0.00 Not available for order
06
 Image coming soon 302-03135-901-001 CRADLE PLATE €6.21
07
 Image coming soon 0201-0073-00003-002 CARRIAGE (GRAY-RAL7016) €346.03
08
 Image coming soon 302-04233-914-001 LOCK SCREW €15.34
09
 Image coming soon 422-S15-0 EXTERNAL CIRCLIP (S-15) €0.00 Not available for order
10
 Image coming soon 302-05508-000-006 BALL BEARING (6002) €23.18
11
 Image coming soon 302-04012-903-005 CRANK SPINDLE €79.31
12
 Image coming soon 305-00095-000-001 BUBBLE LEVEL €1.42
13
 Image coming soon 305-00093-000-001 BULLS-EYE LEVEL €9.76
14
 Image coming soon 303-01176-004-001 PLASTIC PAD €1.86
15
 Image coming soon 302-04475-901-001 SWIVEL LOCK TAB (M10xP1.5) €13.61
16
 Image coming soon 418-M12000175-080 NYLOCK NUT (M12xP1.75) €0.00 Not available for order
17
 Image coming soon 426-120000-00 EXTERNAL STAR WASHER (M12) €0.00 Not available for order
18
 Image coming soon 302-04230-903-001 ECCENTRIC SHAFT €21.44
19
 Image coming soon 302-04145-907-002 ROLLER AXLE €21.44
20
 Image coming soon 302-05515-000-003 BALL BEARING (6201) €9.90
21
 Image coming soon 302-04229-004-001 GUIDE ROLLER €27.53
22
 Image coming soon 0299-0035-00000-003 CRANK BOSS €71.48
23
 Image coming soon 299-0068-00004-001 CRANK HANDLE (BLACK) €13.61
25
 Image coming soon 302-03218-901-001 COLUMN CAP PLATE €15.34
26
 Image coming soon 201-0070-00913-009 COLUMN €514.69
27
 Image coming soon 0299-0011-00026-001 BASE (GRAY-RAL7016) €372.83
28
 Image coming soon 302-04177-903-003 PIVOT BOLT €15.34
29
 Image coming soon 424-122320-20 FLAT WASHER (Ø12xØ23x2.0) €0.00 Not available for order
30
 Image coming soon 302-04267-903-003 EYE BOLT €12.31
31
 Image coming soon 305-00376-005-001 WING NUT (M10xP1.5) €3.82
32
 Image coming soon 424-102320-20 FLAT WASHER (Ø10xØ23x2) €0.00 Not available for order
33
 Image coming soon 4105-M10000150-080 ACORN NUT (M10xP1.5) €1.42
34
 Image coming soon 203-0064-00903-002 THUMB SCREW (M6x16xP1.0) €4.47
35
 Image coming soon 303-01322-000-003 FLAT WASHER €3.17
36
 Image coming soon 201-0042-00906-005 BUTTRESS BAR €55.59
37
 Image coming soon 302-04295-914-003 BARREL €11.00
38
 Image coming soon 302-04177-903-002 PIVOT BOLT €13.61
39
 Image coming soon 401-M10095150-080 HEX BOLT (M10x95LxP1.5) €4.90
40
 Image coming soon 418-M10000150-080 NYLOCK NUT (M10xP1.5) €0.00 Not available for order
41
 Image coming soon 201-0071-00906-003 BUTTRESS LOCK €32.97
42
 Image coming soon 302-03133-912-001 LOCK PLATE €24.48
43
 Image coming soon 302-04153-914-001 ANGLE LOCK CLAMP €12.31
44
 Image coming soon 406-M08085125-080 SOCKET CAP SCREW (M8x85xP1.25) €7.51
45
 Image coming soon 202-0036-00902-002 FRONT HANDLE €32.31
46
 Image coming soon 424-082030-20 FLAT WASHER (Ø8xØ20x3) €0.00 Not available for order
47
 Image coming soon 418-M08000125-080 NYLOCK NUT (M8xP1.25) €0.00 Not available for order
51
 Image coming soon 422-E07-0 E-CLIP (E-7) €0.00 Not available for order
52
 Image coming soon 0299-0279-00164-001 CLAMP BRACKET (Ø60)(RED-187C) €250.02
53
 Image coming soon 0202-0144-00914-001 HEX ADAPTOR €12.31
54
 Image coming soon 302-04051-901-022 HEAD LOCKING KNOB (Ø12xØ16x9.1) €3.82

Shipping and delivery information will be available shortly.

AGP Europe Spare Parts for AS200 Drill Stand

We have the original Spares AGP Europe Spare Parts for AS200 Drill Stand the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your AS200 Drill Stand. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

AS200 Drill Stand
A versatile drill stand for hand-held drilling motors. Drilling capacity up to Ø202 mm

In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.

MODEL：AS200 Drill Stand (AGP Europe) Version 2.2
NO. Code Parts Name
01 302-04331-907-001 CLAMP SCREW (M12)
02 424-132320-00 FLAT WASHER (1/2"xØ23x2)
03 N/A
04 0299-0036-00000-005 MOUNTING SPACER
05 415-M05012080-080 FLAT HEAD MACHINE SCREW (M5x12xP0.8)
06 302-03135-901-001 CRADLE PLATE
07 0201-0073-00003-002 CARRIAGE (GRAY-RAL7016)
08 302-04233-914-001 LOCK SCREW
09 422-S15-0 EXTERNAL CIRCLIP (S-15)
10 302-05508-000-006 BALL BEARING (6002)
11 302-04012-903-005 CRANK SPINDLE
12 305-00095-000-001 BUBBLE LEVEL
13 305-00093-000-001 BULLS-EYE LEVEL
14 303-01176-004-001 PLASTIC PAD
15 302-04475-901-001 SWIVEL LOCK TAB (M10xP1.5)
16 418-M12000175-080 NYLOCK NUT (M12xP1.75)
17 426-120000-00 EXTERNAL STAR WASHER (M12)
18 302-04230-903-001 ECCENTRIC SHAFT
19 302-04145-907-002 ROLLER AXLE
20 302-05515-000-003 BALL BEARING (6201)
21 302-04229-004-001 GUIDE ROLLER
22 0299-0035-00000-003 CRANK BOSS
23 299-0068-00004-001 CRANK HANDLE (BLACK)
24 N/A
25 302-03218-901-001 COLUMN CAP PLATE
26 201-0070-00913-009 COLUMN
27 0299-0011-00026-001 BASE (GRAY-RAL7016)
28 302-04177-903-003 PIVOT BOLT
29 424-122320-20 FLAT WASHER (Ø12xØ23x2.0)
30 302-04267-903-003 EYE BOLT
31 305-00376-005-001 WING NUT (M10xP1.5)
32 424-102320-20 FLAT WASHER (Ø10xØ23x2)
33 4105-M10000150-080 ACORN NUT (M10xP1.5)
34 203-0064-00903-002 THUMB SCREW (M6x16xP1.0)
35 303-01322-000-003 FLAT WASHER
36 201-0042-00906-005 BUTTRESS BAR
37 302-04295-914-003 SPACER
38 302-04177-903-002 PIVOT BOLT
39 401-M10095150-080 HEX BOLT (M10x95LxP1.5)
40 418-M10000150-080 NYLOCK NUT (M10xP1.5)
41 201-0071-00906-003 BUTTRESS LOCK
42 302-03133-912-001 LOCK PLATE
43 302-04153-914-001 ANGLE LOCK CLAMP
44 406-M08085125-080 SOCKET CAP SCREW (M8x85xP1.25)
45 202-0036-00902-002 FRONT HANDLE
46 424-082030-20 FLAT WASHER (Ø8xØ20x3)
47 418-M08000125-080 NYLOCK NUT (M8xP1.25)
48 N/A
49 N/A
50 N/A
51 422-E07-0 E-CLIP (E-7)
52 0299-0279-00164-001 CLAMP BRACKET (Ø60)(RED-187C)
53 0202-0144-00914-001 HEX ADAPTOR
54 302-04051-901-022 HEAD LOCKING KNOB (Ø12xØ16x9.1)
A1 N/A
A2 0299-0251-0000-001 EXTENSION MAST BRACKET
A3 301-03038-906-001 LASER CONNECTOR
A4 404-M04006070-050 SOCKET SET SCREW (M4x6xP0.7)
A5 305-00378-000-001 LASER POINTER UNIT
A6 496-M05012001-080 SOCKET CAP SCREW (M5x12xP0.8)
A7 424-051912-20 FLAT WASHER (Ø5xØ19x1.2)
A8 N/A
A9 303-02013-004-004 END CAP
A10 302-04026-000-013 SPRING (Ø0.7xØ12xØ15x5Tx21L)
A11 303-01366-004-001 WATER COLLECTOR BODY
A12 0203-0131-00000-006 SEAL(760MM)
A13 303-02073-000-001 MEMBRANE
A14 302-03244-914-001 MOUNTING RING
A15 496-M04008001-080 TRUSS HEAD TAPPING SCREW-A (M4x8)
A16 203-0064-00903-002 THUMB SCREW (M6x16xP1.0)
A17 302-03243-914-002 ANGLE BRACKET
A18 0202-0132-00914-001 RING BRACKET
A19 301-03038-906-002 LASER CONNECTOR
Optional
OP1 302-04464-903-001 ANCHORING PLATE

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
