85 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10/15 BUSINESS DAYS

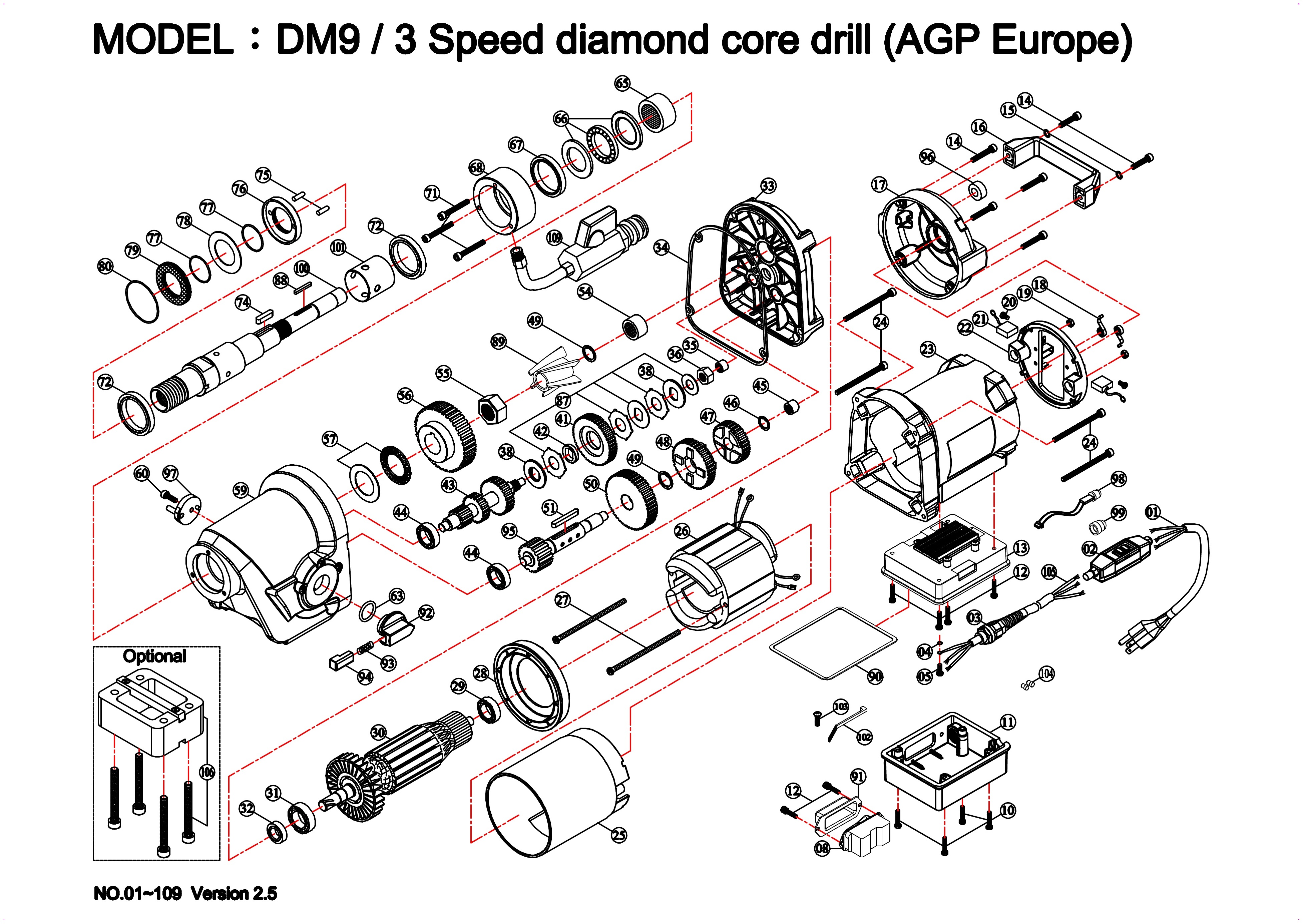

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
＊
 Image coming soon 4111-2 GEAR OIL (625cc) €1,037.56
01
 Image coming soon 206-031503014-01 POWER SUPPLY CABLE (VDE-1.5x3Cx1.4M-H07RNF) €55.74
02
 Image coming soon 304-03013-004-008 PRCD INTERRUPTER PROTECTION (220V) €79.57
03
 Image coming soon 303-02001-004-006 CORD ARMOR €20.29
04
 Image coming soon 426-040000-00 EXTERNAL STAR WASHER (M4) €0.00 Not available for order
05
 Image coming soon 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7) €1.23
08
 Image coming soon 304-03017-000-005 SWITCH (220V) €302.67
10
 Image coming soon 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25) €0.00 Not available for order
11
 Image coming soon 203-0108-00004-002 COVER (110V&220V) €15.48
12
 Image coming soon 412-M04012070-050 PANHEAD MACHINE SCREW-W/WASHER (M4x12xP0.7) €0.00 Not available for order
13
 Image coming soon 0299-0040-20000-008 ELECTRONICS UNIT (220V) €268.33
14
 Image coming soon 406-M05025080-160 SOCKET CAP SCREW (M5x25xP0.8) €0.00 Not available for order
15
 Image coming soon 424-051210-10 FLAT WASHER (Ø5xØ12x1) €0.00 Not available for order
16
 Image coming soon 303-01129-164-001 TOP HANDLE (RED-187C) €5.40
17
 Image coming soon 201-0015-00026-002 MOTOR END CASTING (GRAY-RAL7016) €50.55
18
 Image coming soon 302-04009-000-004 BRUSH SPRING (0.4x4x3T) €2.39
19
 Image coming soon 418-M05000080-050 NYLOCK NUT (M5xP0.8) €0.00 Not available for order
20
 Image coming soon 407-M04006070-120 PANHEAD MACHINE SCREW (M4x6xP0.7) €0.00 Not available for order
21
 Image coming soon 305-00001-000-031 CARBON BRUSH (7x17x19)(220V) €0.12 Not available for order
22
 Image coming soon 0299-0141-00000-002 BRUSH HOLDER PLATE ASSY. €47.18
23
 Image coming soon 0201-0020-00026-012 MOTOR HOUSING (GRAY-RAL7016) €126.73
24
 Image coming soon 406-M06075100-080 SOCKET CAP SCREW (M6x75xP1.0) €2.04
25
 Image coming soon 303-01297-000-002 MOTOR INSULATION SLEEVE €26.30
26
 Image coming soon 299-0002-20000-080 STATOR (220V-100x54.1x75) €173.01
27
 Image coming soon 407-M05110080-050 PANHEAD MACHINE SCREW (M5x110xP0.8) €1.56
28
 Image coming soon 303-01057-004-019 FAN SHROUD (BLACK) €8.76
29
 Image coming soon 302-05514-000-008 BALL BEARING (6200) €27.07
30
 AGP Armature for Diamond Core Drill DM10 299-0001-23000-125 AGP Armature for Diamond Core Drill DM10 on Demand Only Call Us Before €328.88
31
 Image coming soon 302-05516-000-002 BALL BEARING (6202) €21.00
32
 Image coming soon 303-02002-004-036 OIL SEAL (Ø14xØ25x7) €25.10
33
 Image coming soon 0299-0125-00164-001 GEAR PLATE (RED-187C) €96.17
34
 Image coming soon 303-02054-000-001 .8×.22×2 GASKET €7.00
35
 Image coming soon 302-05105-000-005 NEEDLE BEARING (HK 0810) €17.23
36
 Image coming soon 302-04162-901-011 CLUTCH NUT (M12xP1.75x9T) €5.40
38
 Image coming soon 302-03220-000-001 PRESSURE DISC (Ø34.8xØ16x2.5) €12.00
41
 Image coming soon 302-06005-000-027 INPUT GEAR (M1.25x44T) €114.42
42
 Image coming soon 307-03006-000-002 BUSHING (Ø15.9xØ22x4.7) €4.50
43
 Image coming soon 302-06004-000-051 INPUT SHAFT (M1.5x27TxM1.5x20TxM1.5x13T) €269.77
44
 Image coming soon 302-05514-000-007 BALL BEARING (6200) €18.85
45
 Image coming soon 302-05107-000-004 NEEDLE BEARING (HK 1010) €13.74
46
 Image coming soon 422-W14-0 INTERNAL CIRCLIP (IS14) €0.00 Not available for order
47
 Image coming soon 0299-0182-00000-001 COUNTERSHAFT SET €92.32
48
 Image coming soon 302-06019-000-004 SPINDLE GEAR (M1.5x38T) €170.13
49
 Image coming soon 422-W18-0 INTERNAL CIRCLIP (IS18) €0.00 Not available for order
50
 Image coming soon 302-06002-000-039 LAY GEAR (M1.5x45T) €116.34
51
 Image coming soon 421-05040-10 PARALLEL KEY (5x5x40) €3.24
54
 Image coming soon 302-05128-000-001 NEEDLE BEARING (TA1815) €31.47
55
 Image coming soon 418-M20000150-080 NYLOOK NUT (M20xP1.5) €4.96
56
 Image coming soon 302-06008-000-055 OUTPUT GEAR (M2.0x35T) €178.08
57
 Image coming soon 302-05306-000-001 THRUST BEARING (NTB3047 + AS3047) €44.54
59
 Image coming soon 0201-0002-00026-090 GEAR HOUSING (GRAY-RAL7016) €243.12
60
 Image coming soon 406-M05012080-070 SOCKET CAP SCREW (M5x12xP0.8) €0.00 Not available for order
63
 Image coming soon 303-02009-004-018 O-RING (Ø20x3) €12.88
65
 Image coming soon 302-05129-000-001 NEEDLE BEARING (TA3020) €67.35
66
 Image coming soon 302-05304-000-002 THRUST BEARING (51106) €45.26
67
 Image coming soon 303-02002-004-025 OIL SEAL (Ø40xØ50x7) €6.45
68
 Image coming soon 301-03027-000-001 WATER FEED COLLAR €97.61
69
 Image coming soon 0299-0018-00000-023 WATER FEED CONNECTOR KIT (1/2") €97.17
71
 Image coming soon 406-M05040080-000 SOCKET CAP SCREW (M5x40xP0.8) €1.56
72
 Image coming soon 303-02002-004-037 OIL SEAL (Ø40xØ52x7) €6.45
74
 Image coming soon 421-06025-10 PARALLEL KEY (6x6x25) €2.04
75
 Image coming soon 470-0 DOWEL PIN (Ø4x11.8) €3.24
76
 Image coming soon 302-04225-907-001 ANTI-SEIZE CUP €34.17
77
 Image coming soon 303-02009-004-071 O-RING (Ø32x1.5) €1.65
78
 Image coming soon 302-05404-000-001 THRUST RING (3252) €6.35
79
 Image coming soon 302-04226-907-001 ANTI-SEIZE RING €37.58
80
 Image coming soon 303-02009-004-021 O-RING (Ø49x1.5) €0.00 Not available for order
87
 Image coming soon 0299-0172-00000-001 CLUTCH DISC SET €36.02
88
 Image coming soon 421-04030-00 PARALLEL KEY (4x4x30) €2.04
89
 Image coming soon 303-01336-000-001 OIL IMPELLER €4.20
90
 Image coming soon 303-02063-004-002 GASKET (BLACK) €2.76
91
 Image coming soon 303-02064-000-001 SWITCH BOOT €9.00
92
 Image coming soon 201-0068-00164-002 GEAR SELECTOR (RED-187C) €28.47
93
 Image coming soon 302-04026-901-079 SPRING (Ø0.6xØ3.8xØ5x11Tx35L) €0.00 Not available for order
94
 Image coming soon 201-0162-00906-001 RELEASE PIN €10.54
95
 Image coming soon 0299-0180-00000-003 COUNTERSHAFT SET €176.12
96
 Image coming soon 305-00093-000-001 BULLS-EYE LEVEL €9.76
97
 Image coming soon 202-0055-00901-007 SELECTOR DISC €16.92
98
 Image coming soon 304-04012-000-008 LED OVERLOAD LAMP (110V&220V) €8.76
99
 Image coming soon 303-01309-000-001 LAMP COVER €2.76
100
 Image coming soon 302-04003-000-141 SPINDLE (1 1/4"-7x1/2"BSP-296.5MM) €324.77
101
 Image coming soon 302-04498-000-002 STAINLESS BUSHING €47.18
102
 Image coming soon 423-00000-0 ZIP TIE (TCVS-170) €1.56
103
 Image coming soon 403-M04016002-050 PANHEAD TAPPING SCREW-B (M4x16) €0.00 Not available for order
104
 Image coming soon 456-4 BUTT SPLICE CONNECTORS €3.49

Shipping and delivery information will be available shortly.

AGP Europe Parts for Diamond Core Drill DM9 / 3 Speed

Fix Your DM9 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
MODEL : DM9 / 3 Speed diamond core drill

MODEL : DM9 / 3 Speed diamond core drill (AGP Europe) Version 2.4
# Part Num. Description
01 206-031503014-01 POWER SUPPLY CABLE (VDE-1.5x3Cx1.4M-H07RNF)
02 304-03013-004-008 PRCD INTERRUPTER PROTECTION (220V)
03 303-02001-004-006 CORD ARMOR
04 426-040000-00 EXTERNAL STAR WASHER (M4)
05 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7)
6 N/A
7 N/A
08 304-03017-000-005 SWITCH (220V)
9 N/A
10 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25)
11 203-0108-00004-002 COVER (110V&220V)
12 412-M04012070-050 PANHEAD MACHINE SCREW-W/WASHER (M4x12xP0.7)
13 0299-0040-20000-008 ELECTRONICS UNIT (220V)
14 406-M05025080-160 SOCKET CAP SCREW (M5x25xP0.8)
15 424-051210-10 FLAT WASHER (Ø5xØ12x1)
16 303-01129-164-001 TOP HANDLE (RED-187C)
17 201-0015-00026-002 MOTOR END CASTING (GRAY-RAL7016)
18 302-04009-000-004 BRUSH SPRING (0.4x4x3T)
19 418-M05000080-050 NYLOCK NUT (M5xP0.8)
20 407-M04006070-120 PANHEAD MACHINE SCREW (M4x6xP0.7)
21 305-00001-000-031 CARBON BRUSH (7x17x20)(220V)
22 0299-0141-00000-002 BRUSH HOLDER PLATE ASSY.
23 0201-0020-00026-012 MOTOR HOUSING (GRAY-RAL7016)
24 406-M06075100-080 SOCKET CAP SCREW (M6x75xP1.0)
25 303-01297-000-002 MOTOR INSULATION SLEEVE
26 299-0002-20000-080 STATOR (220V-100x54.1x75)
27 407-M05110080-050 PANHEAD MACHINE SCREW (M5x110xP0.8)
28 303-01057-004-019 FAN SHROUD (BLACK)
29 302-05514-000-008 BALL BEARING (6200)
30 299-0001-23000-125 ARMATURE (220V-100x54.1x75)
31 302-05516-000-002 BALL BEARING (6202)
32 303-02002-004-036 OIL SEAL (Ø14xØ25x7)
33 0299-0125-00164-001 GEAR PLATE (RED-187C)
34 303-02054-000-001 GASKET
35 302-05105-000-005 NEEDLE BEARING (HK 0810)
36 302-04162-901-011 CLUTCH NUT (M12xP1.75x9T)
37 N/A
38 302-03220-000-001 PRESSURE DISC (Ø34.8xØ16x2.5)
39 N/A
40 N/A
41 302-06005-000-027 INPUT GEAR (M1.25x44T)
42 307-03006-000-002 BUSHING (Ø15.9xØ22x4.7)
43 302-06004-000-051 INPUT SHAFT (M1.5x27TxM1.5x20TxM1.5x13T)
44 302-05514-000-007 BALL BEARING (6200)
45 302-05107-000-004 NEEDLE BEARING (HK 1010)
46 422-W14-0 INTERNAL CIRCLIP (IS14)
47 0299-0182-00000-001 COUNTERSHAFT SET
48 302-06019-000-004 SPINDLE GEAR (M1.5x38T)
49 422-W18-0 INTERNAL CIRCLIP (IS18)
50 302-06002-000-039 LAY GEAR (M1.5x45T)
51 421-05040-10 PARALLEL KEY (5x5x40)
52 N/A
53 N/A
54 302-05128-000-001 NEEDLE BEARING (TA1815)
55 418-M20000150-080 NYLOOK NUT (M20xP1.5)
56 302-06008-000-055 OUTPUT GEAR (M2.0x35T)
57 302-05306-000-001 THRUST BEARING (NTB3047 + AS3047)
58 N/A
59 0201-0002-00026-090 GEAR HOUSING (GRAY-RAL7016)
60 406-M05012080-070 SOCKET CAP SCREW (M5x12xP0.8)
61 N/A
62 N/A
63 303-02009-004-018 O-RING (Ø20x3)
64 N/A
65 302-05129-000-001 NEEDLE BEARING (TA3020)
66 302-05304-000-002 THRUST BEARING (51106)
67 303-02002-004-025 OIL SEAL (Ø40xØ50x7)
68 301-03027-000-001 WATER FEED COLLAR
69 0299-0018-00000-023 WATER FEED CONNECTOR KIT (1/2")
70 N/A
71 406-M05040080-000 SOCKET CAP SCREW (M5x40xP0.8)
72 303-02002-004-037 OIL SEAL (Ø40xØ52x7)
73 N/A
74 421-06025-10 PARALLEL KEY (6x6x25)
75 470-0 DOWEL PIN (Ø4x11.8)
76 302-04225-907-001 ANTI-SEIZE CUP
77 303-02009-004-071 O-RING (Ø32x1.5)
78 302-05404-000-001 THRUST RING (3252)
79 302-04226-907-001 ANTI-SEIZE RING
80 303-02009-004-021 O-RING (Ø49x1.5)
81 N/A
82 N/A
83 N/A
84 N/A
85 N/A
86 N/A
87 0299-0172-00000-001 CLUTCH DISC SET
88 421-04030-00 PARALLEL KEY (4x4x30)
89 303-01336-000-001 OIL IMPELLER
90 303-02063-004-002 GASKET (BLACK)
91 303-02064-000-001 SWITCH BOOT
92 201-0068-00164-002 GEAR SELECTOR (RED-187C)
93 302-04026-901-079 SPRING (Ø0.6xØ3.8xØ5x11Tx35L)
94 201-0162-00906-001 RELEASE PIN
95 0299-0180-00000-003 COUNTERSHAFT SET
96 305-00093-000-001 BULLS-EYE LEVEL
97 202-0055-00901-007 SELECTOR DISC
98 304-04012-000-008 LED OVERLOAD LAMP (110V&220V)
99 303-01309-000-001 LAMP COVER
100 302-04003-000-141 SPINDLE (1 1/4"-7x1/2"BSP-296.5MM)
101 302-04498-000-002 STAINLESS BUSHING
102 423-00000-0 ZIP TIE (TCVS-170)
103 403-M04016002-050 PANHEAD TAPPING SCREW-B (M4x16)
104 456-4 BUTT SPLICE CONNECTORS
＊ 4111-2 GEAR OIL (625cc)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DM9 Version 2.4
12 Items

Data sheet

Machine Type
Core Drill
MORE INFO:
[email protected]
SHIPPING IN
Usually Ships in 10/15 BUSINESS DAYS

Specific References

New

Download

Diagram AGP Europe DM9 / 3 Speed

Diagram AGP Europe DM9 / 3 Speed

Download (454.91KB)

You might also like

AGP Armature for Diamond Core Drill DM10
AGP EUROPE SKU: 299-0001-23000-125
AGP Armature for Diamond Core Drill DM10
AGP Armature for Diamond Core Drill DM10 Original Spare Part AGP Europe, Armature for Diamond Core Drill DM9 - DM10 - DM12 - DM14. Part for the following products: -  Diamond Core Drill DM9 / 3 Speed -  Diamond Core Drill...
on Demand Only Call Us Before €328.88
Details
Comments (0)
No customer reviews for the moment.
