AGP Europe Parts for Diamond Core Drill DM10/3 Speed

We have the original Spares AGP Europe Spare Parts for DM10/3 Speed Diamond Core Drill the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your DM10 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

AGP Europe Parts for Diamond Core Drill DM10 / 3 Speed
  • Online only
  • AGP Europe Parts for Diamond Core Drill DM10 / 3 Speed
  • AGP Europe Parts for Diamond Core Drill DM10 / 3 Speed
AGP EUROPE

AGP Europe Parts for Diamond Core Drill DM10 / 3 Speed

SKU: DM10 Version 2.5 Condition: New
€55.74
VAT included

AGP Europe Parts for Diamond Core Drill DM10/3 Speed

We have the original Spares AGP Europe Spare Parts for DM10/3 Speed Diamond Core Drill the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your DM10 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts.

settings 71 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
Machine Type: Core Drill
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
71 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

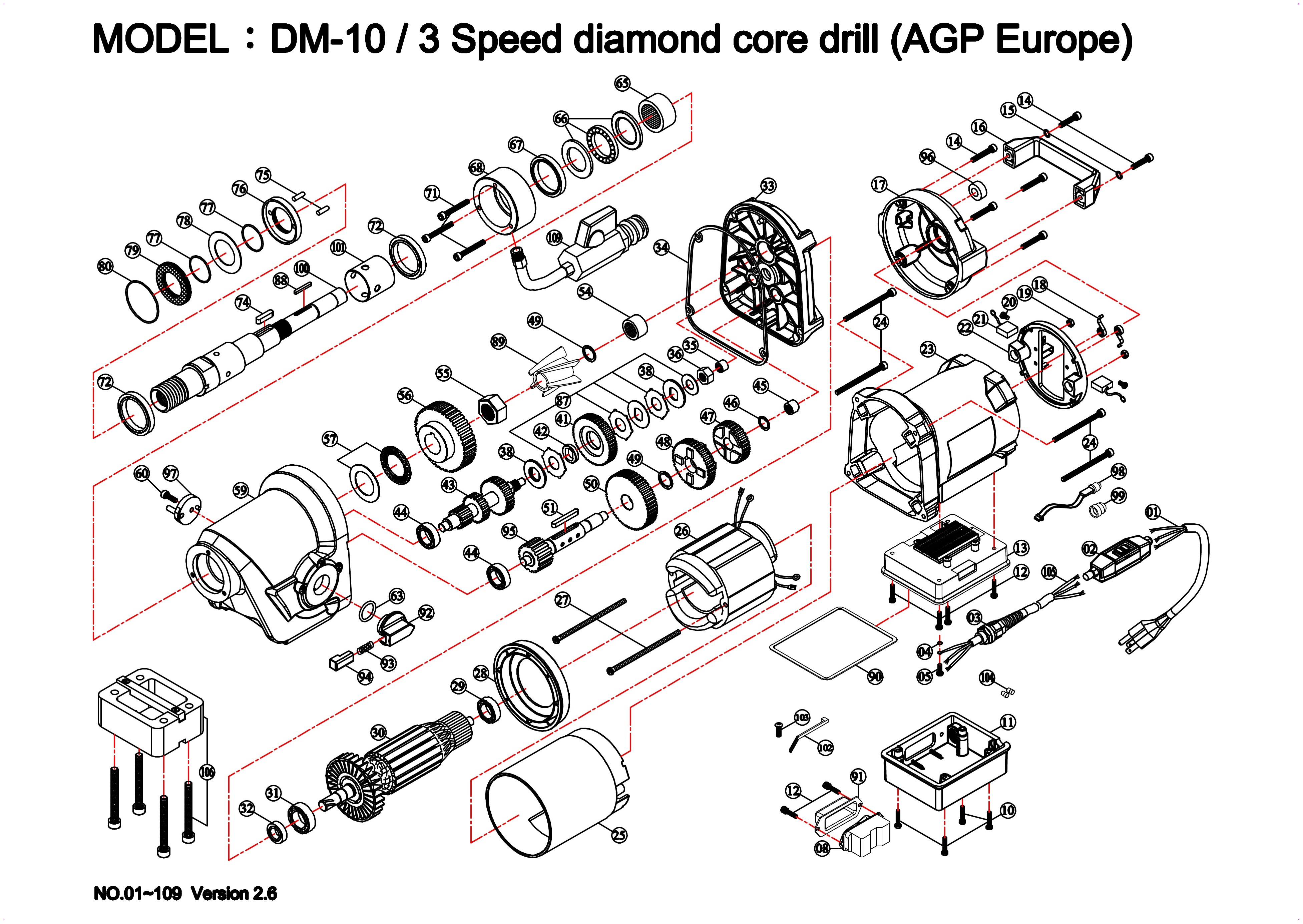

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
＊
 photo_cameraImage coming soon 4111-2 GEAR OIL (625cc) €1,037.56
01
 photo_cameraImage coming soon 206-031503014-01 POWER SUPPLY CABLE (VDE-1.5x3Cx1.4M-H07RNF) €55.74
02
 photo_cameraImage coming soon 304-03013-004-008 PRCD INTERRUPTER PROTECTION (220V) €79.57
03
 photo_cameraImage coming soon 303-02001-004-006 CORD ARMOR €20.29
05
 photo_cameraImage coming soon 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7) €1.23
08
 photo_cameraImage coming soon 304-03017-000-005 SWITCH (220V) €302.67
11
 photo_cameraImage coming soon 203-0108-00004-002 COVER (110V&220V) €15.48
13
 photo_cameraImage coming soon 0299-0040-20000-008 ELECTRONICS UNIT (220V) €268.33
16
 photo_cameraImage coming soon 303-01129-164-001 TOP HANDLE (RED-187C) €5.40
17
 photo_cameraImage coming soon 201-0015-00026-002 MOTOR END CASTING (GRAY-RAL7016) €50.55
18
 photo_cameraImage coming soon 302-04009-000-004 BRUSH SPRING (0.4x4x3T) €2.39
22
 photo_cameraImage coming soon 0299-0141-00000-002 BRUSH HOLDER PLATE ASSY. €47.18
23
 photo_cameraImage coming soon 0201-0020-00026-013 MOTOR HOUSING (GRAY-RAL7016) €126.73
24
 photo_cameraImage coming soon 406-M06075100-080 SOCKET CAP SCREW (M6x75xP1.0) €2.04
25
 photo_cameraImage coming soon 303-01297-000-002 MOTOR INSULATION SLEEVE €26.30
26
 photo_cameraImage coming soon 299-0002-20000-080 STATOR (220V-100x54.1x75) €173.01
27
 photo_cameraImage coming soon 407-M05110080-050 PANHEAD MACHINE SCREW (M5x110xP0.8) €1.56
28
 photo_cameraImage coming soon 303-01057-004-019 FAN SHROUD (BLACK) €8.76
29
 photo_cameraImage coming soon 302-05514-000-008 BALL BEARING (6200) €27.07
30
 AGP Armature for Diamond Core Drill DM10 299-0001-23000-125 AGP Armature for Diamond Core Drill DM10 on Demand Only Call Us Before €328.88
31
 photo_cameraImage coming soon 302-05516-000-002 BALL BEARING (6202) €21.00
32
 photo_cameraImage coming soon 303-02002-004-036 OIL SEAL (Ø14xØ25x7) €25.10
33
 photo_cameraImage coming soon 0299-0125-00164-001 GEAR PLATE (RED-187C) €96.17
34
 photo_cameraImage coming soon 303-02054-000-001 .8×.22×2 GASKET €7.00
35
 photo_cameraImage coming soon 302-05105-000-005 NEEDLE BEARING (HK 0810) €17.23
36
 photo_cameraImage coming soon 302-04162-901-011 CLUTCH NUT (M12xP1.75x9T) €5.40
38
 photo_cameraImage coming soon 302-03220-000-001 PRESSURE DISC (Ø34.8xØ16x2.5) €12.00
41
 photo_cameraImage coming soon 302-06005-000-027 INPUT GEAR (M1.25x44T) €114.42
42
 photo_cameraImage coming soon 307-03006-000-002 BUSHING (Ø15.9xØ22x4.7) €4.50
43
 photo_cameraImage coming soon 302-06004-000-051 INPUT SHAFT (M1.5x27TxM1.5x20TxM1.5x13T) €269.77
44
 photo_cameraImage coming soon 302-05514-000-007 BALL BEARING (6200) €18.85
45
 photo_cameraImage coming soon 302-05107-000-004 NEEDLE BEARING (HK 1010) €13.74
47
 photo_cameraImage coming soon 0299-0182-00000-001 COUNTERSHAFT SET €92.32
48
 photo_cameraImage coming soon 302-06019-000-004 SPINDLE GEAR (M1.5x38T) €170.13
50
 photo_cameraImage coming soon 302-06002-000-039 LAY GEAR (M1.5x45T) €116.34
51
 photo_cameraImage coming soon 421-05040-10 PARALLEL KEY (5x5x40) €3.24
54
 photo_cameraImage coming soon 302-05128-000-001 NEEDLE BEARING (TA1815) €31.47
55
 photo_cameraImage coming soon 418-M20000150-080 NYLOOK NUT (M20xP1.5) €4.96
56
 photo_cameraImage coming soon 302-06008-000-042 OUTPUT GEAR (M2.0x39T) €168.94
57
 photo_cameraImage coming soon 302-05306-000-001 THRUST BEARING (NTB3047 + AS3047) €44.54
59
 photo_cameraImage coming soon 0201-0002-00026-101 GEAR HOUSING (GRAY-RAL7016) €247.47
63
 photo_cameraImage coming soon 303-02009-004-018 O-RING (Ø20x3) €12.88
65
 photo_cameraImage coming soon 302-05129-000-001 NEEDLE BEARING (TA3020) €67.35
66
 photo_cameraImage coming soon 302-05304-000-002 THRUST BEARING (51106) €45.26
67
 photo_cameraImage coming soon 303-02002-004-025 OIL SEAL (Ø40xØ50x7) €6.45
68
 photo_cameraImage coming soon 301-03027-000-001 WATER FEED COLLAR €97.61
69
 photo_cameraImage coming soon 0299-0018-00000-023 WATER FEED CONNECTOR KIT (1/2") €97.17
71
 photo_cameraImage coming soon 406-M05040080-000 SOCKET CAP SCREW (M5x40xP0.8) €1.56
72
 photo_cameraImage coming soon 303-02002-004-037 OIL SEAL (Ø40xØ52x7) €6.45
74
 photo_cameraImage coming soon 421-06025-10 PARALLEL KEY (6x6x25) €2.04
75
 photo_cameraImage coming soon 470-0 DOWEL PIN (Ø4x11.8) €3.24
76
 photo_cameraImage coming soon 302-04225-907-001 ANTI-SEIZE CUP €34.17
77
 photo_cameraImage coming soon 303-02009-004-071 O-RING (Ø32x1.5) €1.65
78
 photo_cameraImage coming soon 302-05404-000-001 THRUST RING (3252) €6.35
79
 photo_cameraImage coming soon 302-04226-907-001 ANTI-SEIZE RING €37.58
87
 photo_cameraImage coming soon 0299-0172-00000-001 CLUTCH DISC SET €36.02
88
 photo_cameraImage coming soon 421-04030-00 PARALLEL KEY (4x4x30) €2.04
89
 photo_cameraImage coming soon 303-01336-000-001 OIL IMPELLER €4.20
90
 photo_cameraImage coming soon 303-02063-004-002 GASKET (BLACK) €2.76
91
 photo_cameraImage coming soon 303-02064-000-001 SWITCH BOOT €9.00
92
 photo_cameraImage coming soon 201-0068-00164-002 GEAR SELECTOR (RED-187C) €28.47
94
 photo_cameraImage coming soon 201-0162-00906-001 RELEASE PIN €10.54
95
 photo_cameraImage coming soon 0299-0180-00000-001 COUNTERSHAFT SET €176.12
96
 photo_cameraImage coming soon 305-00093-000-001 BULLS-EYE LEVEL €9.76
97
 photo_cameraImage coming soon 202-0055-00901-007 SELECTOR DISC €16.92
98
 photo_cameraImage coming soon 304-04012-000-008 LED OVERLOAD LAMP (110V&220V) €8.76
99
 photo_cameraImage coming soon 303-01309-000-001 LAMP COVER €2.76
100
 photo_cameraImage coming soon 302-04003-000-141 SPINDLE (1 1/4"-7x1/2"BSP-296.5MM) €324.77
101
 photo_cameraImage coming soon 302-04498-000-002 STAINLESS BUSHING €47.18
102
 photo_cameraImage coming soon 423-00000-0 ZIP TIE (TCVS-170) €1.56
104
 photo_cameraImage coming soon 456-4 BUTT SPLICE CONNECTORS €3.49

Shipping and delivery information will be available shortly.

AGP Europe Parts for Diamond Core Drill DM10/3 Speed

Fix Your DM10 / 3 Speed Diamond Core Drill. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
DM10/3 Speed Diamond Core Dril

MODEL : DM10 / 3 Speed Diamond Core Drill (AGP Europe) Version 2.5
NO. Code Parts Name
01 206-031503014-01 POWER SUPPLY CABLE (VDE-1.5x3Cx1.4M-H07RNF)
02 304-03013-004-008 PRCD INTERRUPTER PROTECTION (220V)
03 303-02001-004-006 CORD ARMOR
04 426-040000-00 EXTERNAL STAR WASHER (M4)
05 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7)
6 N/A
7 N/A
08 304-03017-000-005 SWITCH (220V)
9 N/A
10 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25)
11 203-0108-00004-002 COVER (110V&220V)
12 412-M04012070-050 PANHEAD MACHINE SCREW-W/WASHER (M4x12xP0.7)
13 0299-0040-20000-008 ELECTRONICS UNIT (220V)
14 406-M05025080-160 SOCKET CAP SCREW (M5x25xP0.8)
15 424-051210-10 FLAT WASHER (Ø5xØ12x1)
16 303-01129-164-001 TOP HANDLE (RED-187C)
17 201-0015-00026-002 MOTOR END CASTING (GRAY-RAL7016)
18 302-04009-000-004 BRUSH SPRING (0.4x4x3T)
19 418-M05000080-050 NYLOCK NUT (M5xP0.8)
20 407-M04006070-120 PANHEAD MACHINE SCREW (M4x6xP0.7)
21 305-00001-000-031 CARBON BRUSH (7x17x19)(220V)
22 0299-0141-00000-002 BRUSH HOLDER PLATE ASSY.
23 0201-0020-00026-013 MOTOR HOUSING (GRAY-RAL7016)
24 406-M06075100-080 SOCKET CAP SCREW (M6x75xP1.0)
25 303-01297-000-002 MOTOR INSULATION SLEEVE
26 299-0002-20000-080 STATOR (220V-100x54.1x75)
27 407-M05110080-050 PANHEAD MACHINE SCREW (M5x110xP0.8)
28 303-01057-004-019 FAN SHROUD (BLACK)
29 302-05514-000-008 BALL BEARING (6200)
30 299-0001-23000-125 ARMATURE (220V-100x54.1x75)
31 302-05516-000-002 BALL BEARING (6202)
32 303-02002-004-036 OIL SEAL (Ø14xØ25x7)
33 0299-0125-00164-001 GEAR PLATE (RED-187C)
34 303-02054-000-001 GASKET
35 302-05105-000-005 NEEDLE BEARING (HK 0810)
36 302-04162-901-011 CLUTCH NUT (M12xP1.75x9T)
37 N/A
38 302-03220-000-001 PRESSURE DISC (Ø34.8xØ16x2.5)
39 N/A
40 N/A
41 302-06005-000-027 INPUT GEAR (M1.25x44T)
42 307-03006-000-002 BUSHING (Ø15.9xØ22x4.7)
43 302-06004-000-051 INPUT SHAFT (M1.5x27TxM1.5x20TxM1.5x13T)
44 302-05514-000-007 BALL BEARING (6200)
45 302-05107-000-004 NEEDLE BEARING (HK 1010)
46 422-W14-0 INTERNAL CIRCLIP (IS14)
47 0299-0182-00000-001 COUNTERSHAFT SET
48 302-06019-000-004 SPINDLE GEAR (M1.5x38T)
49 422-W18-0 INTERNAL CIRCLIP (IS18)
50 302-06002-000-039 LAY GEAR (M1.5x45T)
51 421-05040-10 PARALLEL KEY (5x5x40)
52 N/A
53 N/A
54 302-05128-000-001 NEEDLE BEARING (TA1815)
55 418-M20000150-080 NYLOOK NUT (M20xP1.5)
56 302-06008-000-042 OUTPUT GEAR (M2.0x39T)
57 302-05306-000-001 THRUST BEARING (NTB3047 + AS3047)
58 N/A
59 0201-0002-00026-101 GEAR HOUSING (GRAY-RAL7016)
60 406-M05012080-070 SOCKET CAP SCREW (M5x12xP0.8)
61 N/A
62 N/A
63 303-02009-004-018 O-RING (Ø20x3)
64 N/A
65 302-05129-000-001 NEEDLE BEARING (TA3020)
66 302-05304-000-002 THRUST BEARING (51106)
67 303-02002-004-025 OIL SEAL (Ø40xØ50x7)
68 301-03027-000-001 WATER FEED COLLAR
69 0299-0018-00000-023 WATER FEED CONNECTOR KIT (1/2")
70 N/A
71 406-M05040080-000 SOCKET CAP SCREW (M5x40xP0.8)
72 303-02002-004-037 OIL SEAL (Ø40xØ52x7)
73 N/A
74 421-06025-10 PARALLEL KEY (6x6x25)
75 470-0 DOWEL PIN (Ø4x11.8)
76 302-04225-907-001 ANTI-SEIZE CUP
77 303-02009-004-071 O-RING (Ø32x1.5)
78 302-05404-000-001 THRUST RING (3252)
79 302-04226-907-001 ANTI-SEIZE RING
80 303-02009-004-021 O-RING (Ø49x1.5)
81 N/A
82 N/A
83 N/A
84 N/A
85 N/A
86 N/A
87 0299-0172-00000-001 CLUTCH DISC SET
88 421-04030-00 PARALLEL KEY (4x4x30)
89 303-01336-000-001 OIL IMPELLER
90 303-02063-004-002 GASKET (BLACK)
91 303-02064-000-001 SWITCH BOOT
92 201-0068-00164-002 GEAR SELECTOR (RED-187C)
93 302-04026-901-079 SPRING (Ø0.6xØ3.8xØ5x11Tx35L)
94 201-0162-00906-001 RELEASE PIN
95 0299-0180-00000-001 COUNTERSHAFT SET
96 305-00093-000-001 BULLS-EYE LEVEL
97 202-0055-00901-007 SELECTOR DISC
98 304-04012-000-008 LED OVERLOAD LAMP (110V&220V)
99 303-01309-000-001 LAMP COVER
100 302-04003-000-141 SPINDLE (1 1/4"-7x1/2"BSP-296.5MM)
101 302-04498-000-002 STAINLESS BUSHING
102 423-00000-0 ZIP TIE (TCVS-170)
103 403-M04016002-050 PANHEAD TAPPING SCREW-B (M4x16)
104 456-4 BUTT SPLICE CONNECTORS
＊ 4111-2 GEAR OIL (625cc)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
DM10 Version 2.5
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
Machine Type
Core Drill
MORE INFO:
[email protected]

Specific References

New

Download

Diagram AGP DM10 / 3 Speed

Diagram AGP DM10 / 3 Speed

Download (519.09KB)

You might also like

AGP Armature for Diamond Core Drill DM10
AGP EUROPE SKU: 299-0001-23000-125
AGP Armature for Diamond Core Drill DM10
AGP Armature for Diamond Core Drill DM10 Original Spare Part AGP Europe, Armature for Diamond Core Drill DM9 - DM10 - DM12 - DM14. Part for the following products: -  Diamond Core Drill DM9 / 3 Speed -  Diamond Core Drill...
on Demand Only Call Us Before €328.88
Details
Comments (0)
No customer reviews for the moment.
