AGP Europe Spare Parts for Drywall Sander GS9FE

SKU: GS9FE Version 1.1
€79.57
VAT included

AGP Europe Spare Parts for Drywall Sander GS9FE

We have the original Spares AGP Europe Spare Parts for Drywall Sander GS9FE the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Drywall Sander GS9FE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AGP Europe Spare Parts for Drywall Sander GS9FE
  • Online only
  • AGP Europe Spare Parts for Drywall Sander GS9FE
  • AGP Europe Spare Parts for Drywall Sander GS9FE
  • AGP Europe Spare Parts for Drywall Sander GS9FE
AGP EUROPE

AGP Europe Spare Parts for Drywall Sander GS9FE

SKU: GS9FE Version 1.1 Condition: New
€79.57
VAT included

AGP Europe Spare Parts for Drywall Sander GS9FE

We have the original Spares AGP Europe Spare Parts for Drywall Sander GS9FE the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Drywall Sander GS9FE. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 81 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

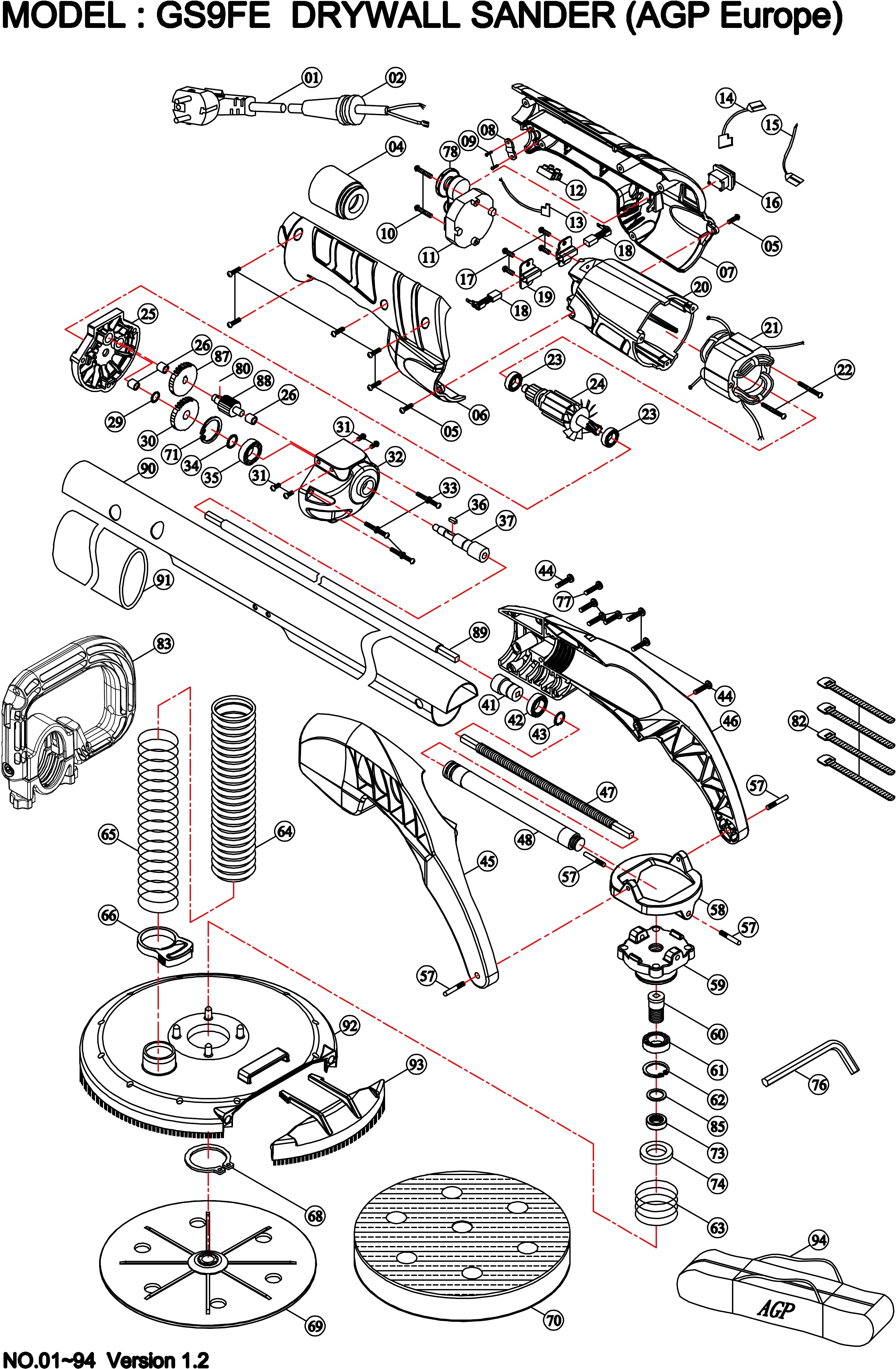

Esploso pagina 1
Pos. Item Price Buy
OP1.)
 photo_cameraImage coming soon 305-00183-000-002 SANDING DISCS (#60-9') €5.24
OP2.)
 photo_cameraImage coming soon 305-00183-000-003 SANDING DISCS (#80-9') €4.79
OP3.)
 photo_cameraImage coming soon 305-00183-000-004 SANDING DISCS (#100-9') €4.79
OP4.)
 photo_cameraImage coming soon 305-00183-000-005 SANDING DISCS (#120-9') €4.79
OP5.)
 photo_cameraImage coming soon 305-00183-000-006 SANDING DISCS (#150-9') €4.79
OP6.)
 photo_cameraImage coming soon 305-00183-000-007 SANDING DISCS (#180-9') €4.79
OP7.)
 photo_cameraImage coming soon 305-00183-000-008 SANDING DISCS (#220-9') €4.79
OP8.)
 photo_cameraImage coming soon 305-00183-000-009 SANDING DISCS (#400-9') €4.79
1.)
 photo_cameraImage coming soon 206-031002420-01 POWER SUPPLY CABLE (VDE-1.0x2Cx4.2M-H07RNF) €65.40
2.)
 photo_cameraImage coming soon 203-0004-00000-001 CORD ARMOR €3.24
4.)
 photo_cameraImage coming soon 303-01051-004-001 BAYONET HOSE CONNECTOR (BLACK) €4.08
5.)
 photo_cameraImage coming soon 403-M04016003-020 PANHEAD TAPPING SCREW-B (M4x16) €1.60
6.)
 photo_cameraImage coming soon 303-01013-053-001 HANDLE COVER-RIGHT (BLUE-2945C) €20.40
7.)
 photo_cameraImage coming soon 303-01014-053-001 HANDLE COVER-LEFT (BLUE-2945C) €20.40
8.)
 photo_cameraImage coming soon 303-01003-004-001 CABLE CLIP €1.60
9.)
 photo_cameraImage coming soon 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14) €1.60
11A.)
 photo_cameraImage coming soon 0204-0013-20000-002 SPEED CONTROL + SOFT START (220V) €138.60
12.)
 photo_cameraImage coming soon 0205-0022-00000-001 TERMINAL CONNECTOR BLOCK (PA-8-H) €1.52
13.)
 photo_cameraImage coming soon 306-01101518A016-01 WIRE LEAD (1015-18#16CM) €1.52
14.)
 photo_cameraImage coming soon 306-01101518A012-01 WIRE LEAD (1015-18#12CM) €1.99
15.)
 photo_cameraImage coming soon 306-01101518A016-02 WIRE LEAD (1015-18#16CM) €1.52
16.)
 photo_cameraImage coming soon 304-03004-004-001 MOTOR SWITCH (110V&220V) €11.31
17.)
 photo_cameraImage coming soon 403-M04008003-050 PANHEAD TAPPING SCREW-B (M4x8) €1.60
18.)
 photo_cameraImage coming soon 205-0002-00903-001 CARBON BRUSH (5x8x12) €7.35
19.)
 photo_cameraImage coming soon 307-02004-000-001 CARBON BRUSH HOLDER (5x8) €7.35
20.)
 photo_cameraImage coming soon 0203-0085-00004-037 MOTOR HOUSING (BLACK) €24.83
21.)
 photo_cameraImage coming soon 299-0002-20000-005 STATOR (220V-56x32x40) €54.91
23.)
 photo_cameraImage coming soon 302-05502-000-004 BALL BEARING (608) €9.91
24.)
 photo_cameraImage coming soon 299-0001-20000-005 ARMATURE (220V-56x32x40) €74.48
25.)
 photo_cameraImage coming soon 203-0012-00004-001 GEAR PLATE (BLACK) €21.10
26.)
 photo_cameraImage coming soon 307-01003-000-001 BUSHING (Ø6xØ10x8) €1.52
27A.)
 photo_cameraImage coming soon 302-06005-000-029 INPUT GEAR (M0.65x44T) €15.74
28A.)
 photo_cameraImage coming soon 302-06004-000-041 INPUT SHAFT (M0.8x11T) €21.57
30.)
 photo_cameraImage coming soon 302-06002-000-003 LAY GEAR (M0.8x41T) €21.57
32.)
 photo_cameraImage coming soon 201-0002-00001-002 GEAR HOUSING (SILVER) €53.04
35.)
 photo_cameraImage coming soon 302-05514-000-008 BALL BEARING (6200) €27.07
36.)
 photo_cameraImage coming soon 421-03008-10 PARALLEL KEY (3x3x8) €1.52
37.)
 photo_cameraImage coming soon 302-04003-000-002 SPINDLE (6.7MM) €21.57
38A.)
 photo_cameraImage coming soon 302-04021-901-001 FIRST DRIVE SHAFT (704MM) €27.63
39A.)
 photo_cameraImage coming soon 201-0008-00902-012 EXTENSION COLUMN (L1040MM) €146.99
40A.)
 photo_cameraImage coming soon 303-02005-004-001 FOAM HANDLE GRIP (253MM) €14.58
41.)
 photo_cameraImage coming soon 302-04022-000-001 SHAFT CONNECTOR €15.74
42.)
 photo_cameraImage coming soon 302-05507-000-011 BALL BEARING (6001) €24.37
45.)
 photo_cameraImage coming soon 303-01017-004-003 RIGHT DRIVE COVER (BLACK) €28.10
46.)
 photo_cameraImage coming soon 303-01018-004-003 LEFT DRIVE COVER (BLACK) €28.10
47.)
 photo_cameraImage coming soon 302-04024-000-001 SECONDARY DRIVE SHAFT (320MM) €28.10
48.)
 photo_cameraImage coming soon 303-02006-004-001 DRIVE SHAFT COVER €49.08
57.)
 photo_cameraImage coming soon 302-04052-903-001 75 SCREW PS32CTLC €1.52
58.)
 photo_cameraImage coming soon 201-0012-00001-001 PIVOT BASE (SILVER) €19.70
59.)
 photo_cameraImage coming soon 201-0011-00001-001 PIVOT CONNECTING BRACKET (SIKVER) €29.50
60.)
 photo_cameraImage coming soon 302-04025-000-001 CONNECTING SPINDLE (M14xP2.0) €14.58
61.)
 photo_cameraImage coming soon 302-05508-000-007 BALL BEARING (6002) €44.41
63.)
 photo_cameraImage coming soon 302-04026-901-001 SPRING (Ø2xØ45xØ49x40Lx4T) €1.99
64.)
 Vacuum Hose for Drywall Sander AGP GS9FE 303-02015-004-001 Vacuum Hose for Drywall Sander AGP GS9FE €24.22
65.)
 Vacuum Hose Spring for Drywall Sander AGP GS9FE 302-04027-901-001 Vacuum Hose Spring for Drywall Sander AGP GS9FE €7.52
66.)
 Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE 303-01019-004-001 Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE €3.69
67.)
 photo_cameraImage coming soon 0203-0008-00004-013 SANDING PLATE COVER (BLACK) €37.89
68.)
 photo_cameraImage coming soon 422-S40-0 EXTERNAL CIRCLIP (S-40) €1.52
69.)
 photo_cameraImage coming soon 203-0009-00004-001 SANDING PLATE BASE (BLACK) €37.89
70.)
 photo_cameraImage coming soon 303-02008-004-001 VELCRO SPONGE PAD (9') €46.52
73.)
 photo_cameraImage coming soon 302-04029-907-001 SHAFT RACE (M14xØ20x6.5) €9.21
74.)
 photo_cameraImage coming soon 303-02002-004-003 OIL SEAL (Ø20xØ32x5) €1.99
76.)
 photo_cameraImage coming soon 305-00010-901-003 HEX KEY (M6) €1.99
78.)
 photo_cameraImage coming soon 303-01020-100-001 THUMB WHEEL (ORANGE-021C) €1.52
80.)
 photo_cameraImage coming soon 421-03006-10 PARALLEL KEY (3x3x6) €1.52
82.)
 photo_cameraImage coming soon 305-00150-000-002 TIE STRAP €1.99
83.)
 photo_cameraImage coming soon 0203-0050-00004-001 BAIL HANDLE (BLACK) €53.04
84A.)
 photo_cameraImage coming soon 308-01001-149-003 CARRY BAG (ORANGE/BLACK/ORANGE-AGP) €124.15
85.)
 photo_cameraImage coming soon 308-03001-000-009 FELT OILER (Ø12.8xØ24x1) €1.52

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AGP Europe Spare Parts for Drywall Sander GS9FE

Fix Your AGP Europe Drywall Sander GS9FE. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.


In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
GS9FE Version 1.1
MODEL : GS9FE DRYWALL SANDER (AGP Europe) Version 1.1
NO. Code Parts Name
1.) 206-031002420-01 POWER SUPPLY CABLE (VDE-1.0x2Cx4.2M-H07RNF)
2.) 203-0004-00000-001 CORD ARMOR
3.) N/A
4.) 303-01051-004-001 BAYONET HOSE CONNECTOR (BLACK)
5.) 403-M04016003-020 PANHEAD TAPPING SCREW-B (M4x16)
6.) 303-01013-053-001 HANDLE COVER-RIGHT (BLUE-2945C)
7.) 303-01014-053-001 HANDLE COVER-LEFT (BLUE-2945C)
8.) 303-01003-004-001 CABLE CLIP
9.) 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14)
10.) 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25)
11A.) 0204-0013-20000-002 SPEED CONTROL + SOFT START (220V)
11B.) N/A
12.) 0205-0022-00000-001 TERMINAL CONNECTOR BLOCK (PA-8-H)
13.) 306-01101518A016-01 WIRE LEAD (1015-18#16CM)
14.) 306-01101518A012-01 WIRE LEAD (1015-18#12CM)
15.) 306-01101518A016-02 WIRE LEAD (1015-18#16CM)
16.) 304-03004-004-001 MOTOR SWITCH (110V&220V)
17.) 403-M04008003-050 PANHEAD TAPPING SCREW-B (M4x8)
18.) 205-0002-00903-001 CARBON BRUSH (5x8x12)
19.) 307-02004-000-001 CARBON BRUSH HOLDER (5x8)
20.) 0203-0085-00004-037 MOTOR HOUSING (BLACK)
21.) 299-0002-20000-005 STATOR (220V-56x32x40)
22.) 403-M04055001-050 PANHEAD TAPPING SCREW-A (M4x55)
23.) 302-05502-000-004 BALL BEARING (608)
24.) 299-0001-20000-005 ARMATURE (220V-56x32x40)
25.) 203-0012-00004-001 GEAR PLATE (BLACK)
26.) 307-01003-000-001 BUSHING (Ø6xØ10x8)
27A.) 302-06005-000-029 INPUT GEAR (M0.65x44T)
28A.) 302-06004-000-041 INPUT SHAFT (M0.8x11T)
29.) 422-S08-0 EXTERNAL CIRCLIP (S-8)
30.) 302-06002-000-003 LAY GEAR (M0.8x41T)
31.) 406-M05010080-070 SOCKET CAP SCREW (M5x10xP0.8)
32.) 201-0002-00001-002 GEAR HOUSING (SILVER)
33.) 402-M04035003-090 PANHEAD TAPPING SCREW-B-W/WASHER (M4x35)
34.) 422-S10-0 EXTERNAL CIRCLIP (S10)
35.) 302-05514-000-008 BALL BEARING (6200)
36.) 421-03008-10 PARALLEL KEY (3x3x8)
37.) 302-04003-000-002 SPINDLE (6.7MM)
38.) N/A
38A.) 302-04021-901-001 FIRST DRIVE SHAFT (704MM)
39.) N/A
39A.) 201-0008-00902-012 EXTENSION COLUMN (L1040MM)
40.) N/A
40A.) 303-02005-004-001 FOAM HANDLE GRIP (253MM)
41.) 302-04022-000-001 SHAFT CONNECTOR
42.) 302-05507-000-011 BALL BEARING (6001)
43.) 422-S12-0 EXTERNAL CIRCLIP (S-12)
44.) 403-M04020003-050 PANHEAD TAPPING SCREW-B (M4x20)
45.) 303-01017-004-003 RIGHT DRIVE COVER (BLACK)
46.) 303-01018-004-003 LEFT DRIVE COVER (BLACK)
47.) 302-04024-000-001 SECONDARY DRIVE SHAFT (320MM)
48.) 303-02006-004-001 DRIVE SHAFT COVER
49.) N/A
50.) N/A
51.) N/A
52.) N/A
53.) N/A
54.) N/A
55.) N/A
56.) N/A
57.) 302-04052-903-001 SCREW
58.) 201-0012-00001-001 PIVOT BASE (SILVER)
59.) 201-0011-00001-001 PIVOT CONNECTING BRACKET (SIKVER)
60.) 302-04025-000-001 CONNECTING SPINDLE (M14xP2.0)
61.) 302-05508-000-007 BALL BEARING (6002)
62.) 422-R32-0 INTERNAL CIRCLIP (R-32)
63.) 302-04026-901-001 SPRING (Ø2xØ45xØ49x40Lx4T)
64.) 303-02015-004-001 VACCUM HOSE
65.) 302-04027-901-001 SPRING (Ø1xØ30xØ32x363Lx30T)
66.) 303-01019-004-001 PLASTIC CLIP (BLACK)
67.) 0203-0008-00004-013 SANDING PLATE COVER (BLACK)
68.) 422-S40-0 EXTERNAL CIRCLIP (S-40)
69.) 203-0009-00004-001 SANDING PLATE BASE (BLACK)
70.) 303-02008-004-001 VELCRO SPONGE PAD (9')
71.) 422-R30-0 INTERNAL CIRCLIP (R-30)
72.) N/A
73.) 302-04029-907-001 SHAFT RACE (M14xØ20x6.5)
74.) 303-02002-004-003 OIL SEAL (Ø20xØ32x5)
75.) N/A
76.) 305-00010-901-003 HEX KEY (M6)
77.) 403-M05020002-050 PANHEAD TAPPING SCREW-B (M5x20)
78.) 303-01020-100-001 THUMB WHEEL (ORANGE-021C)
79.) N/A
80.) 421-03006-10 PARALLEL KEY (3x3x6)
81.) N/A
82.) 305-00150-000-002 TIE STRAP
83.) 0203-0050-00004-001 BAIL HANDLE (BLACK)
84.) N/A
84A.) 308-01001-149-003 CARRY BAG (ORANGE/BLACK/ORANGE-AGP)
85.) 308-03001-000-009 FELT OILER (Ø12.8xØ24x1)
Optional
OP1.) 305-00183-000-002 SANDING DISCS (#60-9')
OP2.) 305-00183-000-003 SANDING DISCS (#80-9')
OP3.) 305-00183-000-004 SANDING DISCS (#100-9')
OP4.) 305-00183-000-005 SANDING DISCS (#120-9')
OP5.) 305-00183-000-006 SANDING DISCS (#150-9')
OP6.) 305-00183-000-007 SANDING DISCS (#180-9')
OP7.) 305-00183-000-008 SANDING DISCS (#220-9')
OP8.) 305-00183-000-009 SANDING DISCS (#400-9')
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GS9FE Version 1.1
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Drywall Sander AGP GS9FE

Diagram Drywall Sander AGP GS9FE

Download (431.72KB)

You might also like

Vacuum Hose for Drywall Sander AGP GS9FE
AGP EUROPE SKU: 303-02015-004-001
Vacuum Hose for Drywall Sander AGP GS9FE
Vacuum Hose for Drywall Sander AGP GS9FE Original Spare Part AGP Europe, Vacuum Hose for Drywall Sander GS9FE. Ricambio per i seguenti prodotti: -  Drywall Sander GS9FE - Codice: 303-02015-004-001
Last items in stock €24.22
Details
Vacuum Hose Spring for Drywall Sander AGP GS9FE
AGP EUROPE SKU: 302-04027-901-001
Vacuum Hose Spring for Drywall Sander AGP GS9FE
Vacuum Hose Spring for Drywall Sander AGP GS9FE Original Spare Part AGP Europe, Vacuum Hose Spring  (Ø1xØ30xØ32x363Lx30T) for Drywall Sander GS9FE. Ricambio per i seguenti prodotti: -  Drywall Sander GS9FE - Codice: 302-04027-901-001
Last items in stock €7.52
Details
Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE
AGP EUROPE SKU: 303-01019-004-001
Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE
Vacuum Hose Plastic Clip for Drywall Sander AGP GS9FE Original Spare Part AGP Europe, Vacuum Hose Plastic Clip (BLACK) for Drywall Sander GS9FE. Ricambio per i seguenti prodotti: -  Drywall Sander GS9FE - Codice: 303-01019-004-001
Last items in stock €3.69
Details
Comments (0)
