AGP EUROPE

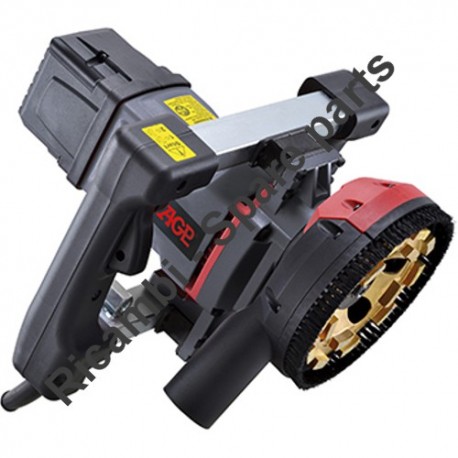

AGP Europe Spare Parts for Concrete Grinder G5

SKU: AGP G5 Version 3.0
€92.34
VAT included

AGP Europe Spare Parts for Concrete Grinder G5

We have the original Spares AGP Europe Parts for Concrete Grinder G5 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Grinder G5. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AGP Europe Spare Parts for Concrete Grinder G5
  • Online only
  • AGP Europe Spare Parts for Concrete Grinder G5
  • AGP Europe Spare Parts for Concrete Grinder G5
AGP EUROPE

AGP Europe Spare Parts for Concrete Grinder G5

SKU: AGP G5 Version 3.0 Condition: New
€92.34
VAT included

AGP Europe Spare Parts for Concrete Grinder G5

We have the original Spares AGP Europe Parts for Concrete Grinder G5 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Grinder G5. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 61 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
61 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
Pos. Item Price Buy
1.)
 photo_cameraImage coming soon 206-031502300-02 POWER SUPPLY CABLE (VDE-1.5x2Cx3M-H07RNF) €70.82
2.)
 photo_cameraImage coming soon 203-0004-00000-001 CORD ARMOR €3.24
3.)
 photo_cameraImage coming soon 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14) €1.60
4.)
 photo_cameraImage coming soon 303-01003-004-001 CABLE CLIP €1.60
5.)
 photo_cameraImage coming soon 0299-0014-00004-012 TRIGGER SWITCH (LOCK-ON) €51.25
7.)
 photo_cameraImage coming soon 303-01001-004-012 HANDLE HALF-RIGHT (BLACK) €11.65
8.)
 photo_cameraImage coming soon 303-01001-004-013 HANDLE HALF-RIGHT (BLACK) €12.31
12.)
 photo_cameraImage coming soon 303-01002-004-012 HANDLE HALF-LEFT (BLACK) €11.00
13.)
 photo_cameraImage coming soon 303-01002-004-013 HANDLE HALF-LEFT (BLACK) €11.65
14.)
 photo_cameraImage coming soon 305-03358-000-001 RUBBER PLUG €1.42
16.)
 photo_cameraImage coming soon 302-04450-903-001 CROSS BAR LOWER €51.25
17.)
 photo_cameraImage coming soon 302-04450-903-002 CROSS BAR UPPER €51.25
19.)
 Anti-Vibrtation Mount for Concrete Grinder AGP BG5 299-0178-00000-001 Anti-Vibrtation Mount for Concrete Grinder AGP BG5 €48.39
21.)
 photo_cameraImage coming soon 303-01008-004-018 MOTOR TAIL CASTING (BLACK) €9.90
22.)
 photo_cameraImage coming soon 303-01008-004-019 MOTOR TAIL CASTING (BLACK) €9.90
23.)
 photo_cameraImage coming soon 402-M04030003-020 PANHEAD TAPPING SCREW-B-W/WASHER (M4x30) €1.23
24.)
 photo_cameraImage coming soon 203-0010-00100-001 THUMB WHEEL (ORANGE-021C) €2.51
25.)
 photo_cameraImage coming soon 204-0004-22000-017 ELECTRONICS UNIT (220V) €166.98
26.)
 photo_cameraImage coming soon 305-00018-000-001 THREE WIRE PUSH IN CONNECTOR €1.42
28.)
 photo_cameraImage coming soon 302-04009-000-005 BRUSH SPRING (0.35x4x4T) €1.86
30.)
 photo_cameraImage coming soon 307-02006-000-002 CARBON BRUSH HOLDER (7x17) €9.26
31.)
 photo_cameraImage coming soon 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7) €1.23
32.)
 photo_cameraImage coming soon 424-041010-10 FLAT WASHER (Ø4xØ10x1) €1.23
33.)
 photo_cameraImage coming soon 432-M04000-00 RUBBER WASHER (Ø4xØ11x1) €1.23
34.)
 photo_cameraImage coming soon 302-01007-000-002 PICKUP MAGNET (Ø8xØ15x5) €2.71
35.)
 photo_cameraImage coming soon 302-04018-901-001 SPACER (Ø8xØ12x10.5) €1.97
36.)
 photo_cameraImage coming soon 303-01251-026-015 MOTOR HOUSING (GRAY-RAL7016) €28.18
37.)
 photo_cameraImage coming soon 299-0002-20000-126 STATOR (220V-94x54x45) €127.39
39.)
 photo_cameraImage coming soon 303-01057-004-005 FAN BAFFLE (BLACK) €7.95
40.)
 photo_cameraImage coming soon 302-05514-000-008 BALL BEARING (6200) €27.07
41.)
 photo_cameraImage coming soon 299-0001-20000-150 ARMATURE (220V-94x54x45) €174.37
42.)
 photo_cameraImage coming soon 302-05516-000-002 BALL BEARING (6202) €21.00
43.)
 photo_cameraImage coming soon 302-06018-000-009 ARMATURE GEAR (M1.5x12T) €44.50
44.)
 photo_cameraImage coming soon 201-0003-00164-059 GEAR PLATE (RED-187C) €34.28
46.)
 photo_cameraImage coming soon 303-01215-004-002 HANDLE BRACKET (BLACK) €3.17
47.)
 photo_cameraImage coming soon 302-05502-000-001 BALL BEARING (608) €10.33
48.)
 photo_cameraImage coming soon 302-06008-000-046 OUTPUT GEAR (M1.5x28T) €39.06
49.)
 photo_cameraImage coming soon 201-0002-00026-086 GEAR HOUSING (GRAY-RAL7016) €81.70
52.)
 photo_cameraImage coming soon 422-S17-0 EXTERNAL CIRCLIP (S-17) €1.23
53.)
 photo_cameraImage coming soon 302-05523-000-002 BALL BEARING (6303) €41.92
54.)
 photo_cameraImage coming soon 421-05012-10 PARALLEL KEY (5x5x12) €1.86
55.)
 photo_cameraImage coming soon 302-04003-000-170 SPINDLE (M14xP2.0-88MM) €69.92
60.)
 photo_cameraImage coming soon 406-M04010070-160 SOCKET CAP SCREW (M4x10xP0.7) €1.23
65.)
 photo_cameraImage coming soon 302-04222-903-008 INNER FLANGE (Ø22.2 / Ø25.4) €21.44
66.)
 photo_cameraImage coming soon 302-04114-901-004 OUTER FLANGE (M14) €16.65
67.)
 photo_cameraImage coming soon 305-00039-901-001 LOCK NUT WRENCH (30MM) €16.17
68.)
 photo_cameraImage coming soon 302-04179-901-001 FACE SPANNER WRENCH (93MM) €7.95
72.)
 photo_cameraImage coming soon 0205-0014-00000-003 WIRE SLEEVE (Ø6x45CM) €1.86
73.)
 photo_cameraImage coming soon 305-00010-904-013 SOCKET HEX KEY (M6) €9.26
80.)
 photo_cameraImage coming soon 303-01331-164-001 HALF-MOON DOOR (RED-187C) €7.51
81.)
 photo_cameraImage coming soon 203-0112-00004-005 CLEANING BRUSH (BLACK) €10.56
83.)
 photo_cameraImage coming soon 403-M04010003-020 PANHEAD TAPPING SCREW-B (M4x10) €1.23
84.)
 photo_cameraImage coming soon 303-01081-004-007 DUST SKIRT (BLACK) €19.70
85.)
 photo_cameraImage coming soon 203-0112-00004-006 CLEANING BRUSH (BLACK) €20.14
86.)
 photo_cameraImage coming soon 202-0145-00901-001 SHOULDER BOLT (M4xP0.7x26L) €2.51
87.)
 photo_cameraImage coming soon 413-M04010003-020 FLAT HEAD TAPPING SCREW-B (M4x10) €1.23
88.)
 photo_cameraImage coming soon 303-01300-004-001 COVER PANEL (BLACK) €6.65
89.)
 photo_cameraImage coming soon 302-04026-000-010 SPRING (Ø0.55xØ4.9xØ6x15Lx6T) €1.23
90.)
 photo_cameraImage coming soon 303-02002-004-053 OIL SEAL (Ø24xØ32x4) €3.84
91.)
 photo_cameraImage coming soon 302-03182-903-005 BEARING PLATE €12.42
92.)
 photo_cameraImage coming soon 305-00001-000-028 CARBON BRUSH (7x17x20) €10.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AGP Europe Spare Parts for Concrete Grinder G5

Fix Your Concrete Grinder G5. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.
AGP G5 Version 3.0
MODEL : G5 CONCRETE GRINDER (AGP Europe) Version 3.0
NO. Code Parts Name
1.) 206-031502300-02 POWER SUPPLY CABLE (VDE-1.5x2Cx3M-H07RNF)
2.) 203-0004-00000-001 CORD ARMOR
3.) 403-M04014003-020 PANHEAD TAPPING SCREW-B (M4x14)
4.) 303-01003-004-001 CABLE CLIP
5.) 0299-0014-00004-012 TRIGGER SWITCH (LOCK-ON)
6.) N/A
7.) 303-01001-004-012 HANDLE HALF-RIGHT (BLACK)
8.) 303-01001-004-013 HANDLE HALF-RIGHT (BLACK)
9.) 403-M04035003-020 PANHEAD TAPPING SCREW-B (M4x35)
10.) 403-M04020003-020 PANHEAD TAPPING SCREW-B (M4x20)
11.) 403-M04025003-020 PANHEAD TAPPING SCREW-B (M4x25)
12.) 303-01002-004-012 HANDLE HALF-LEFT (BLACK)
13.) 303-01002-004-013 HANDLE HALF-LEFT (BLACK)
14.) 305-03358-000-001 RUBBER PLUG
15.) 406-M04006070-050 SOCKET CAP SCREW (M4x6xP0.7)
16.) 302-04450-903-001 CROSS BAR LOWER
17.) 302-04450-903-002 CROSS BAR UPPER
18.) N/A
19.) 299-0178-00000-001 ANTI-VIBRATION MOUNT
20.) 403-M05035003-160 PANHEAD TAPPING SCREW-B (M5x35)
21.) 303-01008-004-018 MOTOR TAIL CASTING (BLACK)
22.) 303-01008-004-019 MOTOR TAIL CASTING (BLACK)
23.) 402-M04030003-020 PANHEAD TAPPING SCREW-B-W/WASHER (M4x30)
24.) 203-0010-00100-001 THUMB WHEEL (ORANGE-021C)
25.) 204-0004-22000-017 ELECTRONICS UNIT (220V)
26.) 305-00018-000-001 THREE WIRE PUSH IN CONNECTOR
27.) 403-M04010002-050 PANHEAD TAPPING SCREW-B (M4x10)
28.) 302-04009-000-005 BRUSH SPRING (0.35x4x4T)
30.) 307-02006-000-002 CARBON BRUSH HOLDER (7x17)
31.) 407-M04010070-050 PANHEAD MACHINE SCREW (M4x10xP0.7)
32.) 424-041010-10 FLAT WASHER (Ø4xØ10x1)
33.) 432-M04000-00 RUBBER WASHER (Ø4xØ11x1)
34.) 302-01007-000-002 PICKUP MAGNET (Ø8xØ15x5)
35.) 302-04018-901-001 SPACER (Ø8xØ12x10.5)
36.) 303-01251-026-015 MOTOR HOUSING (GRAY-RAL7016)
37.) 299-0002-20000-126 STATOR (220V-94x54x45)
38.) 402-M05060003-020 PANHEAD TAPPING SCREW-B-W/WASHER (M5x60)
39.) 303-01057-004-005 FAN BAFFLE (BLACK)
40.) 302-05514-000-008 BALL BEARING (6200)
41.) 299-0001-20000-150 ARMATURE (220V-94x54x45)
42.) 302-05516-000-002 BALL BEARING (6202)
43.) 302-06018-000-009 ARMATURE GEAR (M1.5x12T)
44.) 201-0003-00164-059 GEAR PLATE (RED-187C)
45.) 407-M04025070-050 PANHEAD MACHINE SCREW (M4x25xP0.7)
46.) 303-01215-004-002 HANDLE BRACKET (BLACK)
47.) 302-05502-000-001 BALL BEARING (608)
48.) 302-06008-000-046 OUTPUT GEAR (M1.5x28T)
49.) 201-0002-00026-086 GEAR HOUSING (GRAY-RAL7016)
50.) 406-M04012070-090 SOCKET CAP SCREW (M4x12xP0.7)
51.) 402-M05045003-020 PANHEAD TAPPING SCREW-B-W/WASHER (M5x45)
52.) 422-S17-0 EXTERNAL CIRCLIP (S-17)
53.) 302-05523-000-002 BALL BEARING (6303)
54.) 421-05012-10 PARALLEL KEY (5x5x12)
55.) 302-04003-000-170 SPINDLE (M14xP2.0-88MM)
56.) N/A
57.) N/A
58.) N/A
59.) N/A
60.) 406-M04010070-160 SOCKET CAP SCREW (M4x10xP0.7)
61.) N/A
62.) N/A
63.) N/A
64.) N/A
65.) 302-04222-903-008 INNER FLANGE (Ø22.2 / Ø25.4)
66.) 302-04114-901-004 OUTER FLANGE (M14)
67.) 305-00039-901-001 LOCK NUT WRENCH (30MM)
68.) 302-04179-901-001 FACE SPANNER WRENCH (93MM)
69.) N/A
70.) N/A
71.) 423-25100-2 ZIP TIE (2.5x100MM)
72.) 0205-0014-00000-003 WIRE SLEEVE (Ø6x45CM)
73.) 305-00010-904-013 HEX KEY (M6)
74.) N/A
75.) N/A
76.) N/A
77.) N/A
78.) N/A
79.) N/A
80.) 303-01331-164-001 HALF-MOON DOOR (RED-187C)
81.) 203-0112-00004-005 CLEANING BRUSH
82.) N/A
83.) 403-M04010003-020 PANHEAD TAPPING SCREW-B (M4x10)
84.) 303-01081-004-007 DUST SKIRT (BLACK)
85.) 203-0112-00004-006 CLEANING BRUSH
86.) 202-0145-00901-001 SHOULDER BOLT (M4xP0.7x26L)
87.) 413-M04010003-020 FLAT HEAD TAPPING SCREW-B (M4x10)
88.) 303-01300-004-001 COVER PANEL (BLACK)
89.) 302-04026-000-010 SPRING (Ø0.55xØ4.9xØ6x15Lx6T)
90.) 303-02002-004-053 OIL SEAL (Ø24xØ32x4)
91.) 302-03182-903-005 BEARING PLATE
92.) 305-00001-000-028 CARBON BRUSH (7x17x20)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AGP G5 Version 3.0
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Concr. Grinder AGP G5

Diagram Concr. Grinder AGP G5

Download (440.33KB)
