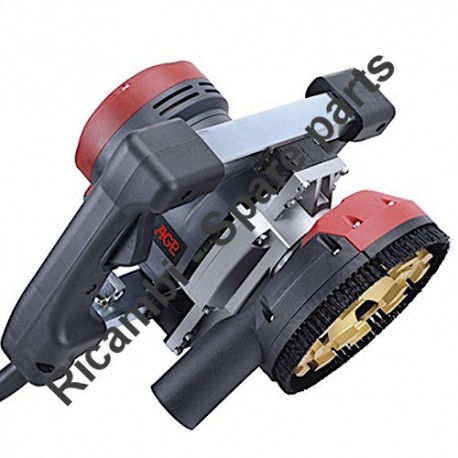

AGP Europe Spare Parts for Concrete Grinder BG5

SKU: BG5 Version 1.5
€0.96
VAT included

AGP Europe Spare Parts for Concrete Grinder BG5

We have the original Spares AGP Europe Spare Parts for Concrete Grinder BG5 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Grinder BG5. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
AGP Europe Spare Parts for Concrete Grinder BG5
  • Online only
  • AGP Europe Spare Parts for Concrete Grinder BG5
  • AGP Europe Spare Parts for Concrete Grinder BG5 - Drawing
AGP EUROPE

AGP Europe Spare Parts for Concrete Grinder BG5

SKU: BG5 Version 1.5 Condition: New
€0.96
VAT included

AGP Europe Spare Parts for Concrete Grinder BG5

We have the original Spares AGP Europe Spare Parts for Concrete Grinder BG5 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Grinder BG5. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 56 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
Pos. Item Price Buy
1.)
 photo_cameraImage coming soon 403-M04012003-080 PANHEAD TAPPING SCREW-B (M4x12) €1.23
2.)
 photo_cameraImage coming soon 303-01394-004-001 PLUG CAP €9.70
3.)
 photo_cameraImage coming soon 303-02009-004-095 O-RING (AS-137) €1.42
4.)
 photo_cameraImage coming soon 0299-0269-00000-001 MOTOR COUPLING CABLE SET €835.92
8.)
 photo_cameraImage coming soon 0299-0034-00000-001 HANDLE HALF-RIGHT (BLACK) €16.65
11.)
 photo_cameraImage coming soon 303-01001-004-015 HANDLE HALF-RIGHT (BLACK) €12.31
15.)
 photo_cameraImage coming soon 303-01002-004-012 HANDLE HALF-LEFT (BLACK) €11.00
16.)
 photo_cameraImage coming soon 303-01002-004-013 HANDLE HALF-LEFT (BLACK) €11.65
17.)
 photo_cameraImage coming soon 305-03358-000-001 RUBBER PLUG €1.42
19.)
 photo_cameraImage coming soon 302-04450-903-001 CROSS BAR LOWER €51.25
20.)
 photo_cameraImage coming soon 302-04450-903-002 CROSS BAR UPPER €51.25
21.)
 Anti-Vibrtation Mount for Concrete Grinder AGP BG5 299-0178-00000-001 Anti-Vibrtation Mount for Concrete Grinder AGP BG5 €48.39
22.)
 photo_cameraImage coming soon 303-01134-164-001 TAIL COVER €19.70
23.)
 photo_cameraImage coming soon 302-05514-000-009 BALL BEARING (6200-ZZ KOYO JAPAN) €19.70
24.)
 photo_cameraImage coming soon 0299-0004-00000-044 FIELD €286.42
25.)
 photo_cameraImage coming soon 302-04541-914-002 ROTOR SPACER €6.21
26.)
 photo_cameraImage coming soon 0299-0268-00000-002 MAGNET HOLDER €50.15
27.)
 photo_cameraImage coming soon 299-0001-00000-020 ARMATURE €237.25
28.)
 photo_cameraImage coming soon 302-03249-000-001 ROTOR END PLATE €7.51
29.)
 photo_cameraImage coming soon 302-04541-914-001 ROTOR SPACER €6.21
30.)
 photo_cameraImage coming soon 403-M04016003-160 PANHEAD TAPPING SCREW-B (M4x16) €1.23
31.)
 photo_cameraImage coming soon 303-01381-026-001 ELECTRONICS COVER €6.21
32.)
 photo_cameraImage coming soon 0299-0135-00000-004 LED INDICATOR LIGHT €14.92
34.)
 photo_cameraImage coming soon 0204-0021-00000-038 ELECTRONICS UNIT €199.39
35.)
 photo_cameraImage coming soon 303-01251-026-046 MOTOR HOUSING €37.32
36.)
 photo_cameraImage coming soon 302-05508-000-003 BALL BEARING (6002 KOYO JAPAN) €29.26
38.)
 photo_cameraImage coming soon 303-01111-000-003 Fan €6.65
39.)
 photo_cameraImage coming soon 302-05516-000-007 BALL BEARING (6202 KOYO JAPAN) €26.23
40.)
 photo_cameraImage coming soon 201-0003-00001-059 GEAR PLATE (SILVER) €34.06
41.)
 photo_cameraImage coming soon 302-06018-000-015 BEVEL PINION GEAR (M1.5x10T) €28.40
42.)
 photo_cameraImage coming soon 302-05502-000-001 BALL BEARING (608) €10.33
43.)
 photo_cameraImage coming soon 302-06008-000-063 OUTPUT GEAR (M1.5x31T) €61.03
44.)
 photo_cameraImage coming soon 201-0002-00001-086 GEAR HOUSING (SILVER) €81.70
46.)
 photo_cameraImage coming soon 425-050000-00 SPRING WASHER (M5) €1.23
48.)
 photo_cameraImage coming soon 422-S17-0 EXTERNAL CIRCLIP (S-17) €1.23
49.)
 photo_cameraImage coming soon 302-05523-000-002 BALL BEARING (6303) €41.92
50.)
 photo_cameraImage coming soon 421-05012-10 PARALLEL KEY (5x5x12) €1.86
51.)
 photo_cameraImage coming soon 302-04003-000-170 SPINDLE (M14xP2.0-88MM) €69.92
52.)
 photo_cameraImage coming soon 303-02002-004-053 OIL SEAL (Ø24xØ32x4) €3.84
54.)
 photo_cameraImage coming soon 406-M04010070-160 SOCKET CAP SCREW (M4x10xP0.7) €1.23
55.)
 photo_cameraImage coming soon 413-M04010003-020 FLAT HEAD TAPPING SCREW-B (M4x10) €1.23
56.)
 photo_cameraImage coming soon 303-01300-004-001 COVER PANEL (BLACK) €6.65
57.)
 photo_cameraImage coming soon 303-01331-164-001 HALF-MOON DOOR (RED-187C) €7.51
58.)
 photo_cameraImage coming soon 203-0112-00004-005 CLEANING BRUSH (BLACK) €10.56
59.)
 photo_cameraImage coming soon 302-04026-000-010 SPRING (Ø0.55xØ4.9xØ6x15Lx6T) €1.23
60.)
 photo_cameraImage coming soon 303-01081-004-007 DUST SKIRT (BLACK) €19.70
61.)
 photo_cameraImage coming soon 203-0112-00004-006 CLEANING BRUSH (BLACK) €20.14
62.)
 photo_cameraImage coming soon 202-0145-00901-001 SHOULDER BOLT (M4xP0.7x26L) €2.51
63.)
 photo_cameraImage coming soon 302-04222-903-008 INNER FLANGE (Ø22.2 / Ø25.4) €21.44
64.)
 photo_cameraImage coming soon 302-04114-901-004 OUTER FLANGE (M14) €16.65
65.)
 photo_cameraImage coming soon 305-00010-904-013 SOCKET HEX KEY (M6) €9.26
66.)
 photo_cameraImage coming soon 305-00039-901-001 LOCK NUT WRENCH (30MM) €16.17
67.)
 photo_cameraImage coming soon 302-04179-901-002 FACE SPANNER WRENCH (78MM) €7.51
68.)
 photo_cameraImage coming soon 4133-0 HEAT SHRINK BUTT CONNECTOR €8.60
70.)
 photo_cameraImage coming soon 302-03182-903-005 BEARING PLATE €12.42
72.)
 photo_cameraImage coming soon 0299-0014-00004-020 SWITCH ACTUATOR (BLACK)(LOCK-ON) €12.31

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AGP Europe Spare Parts for Concrete Grinder BG5

We have the original Spares AGP Europe Spare Parts for Concrete Grinder BG5 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Concrete Grinder BG5. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.


In the following table, look for the model of the Concrete Grinderl and the respective parts of the code.


MODEL：BG5 High Frequency Brushless Concrete Grinder (AGP Europe) Version 1.5
NO. Code Parts Name
1.) 403-M04012003-080 PANHEAD TAPPING SCREW-B (M4x12)
2.) 303-01394-004-001 PLUG CAP
3.) 303-02009-004-095 O-RING (AS-137)
4.) 0299-0269-00000-001 MOTOR COUPLING CABLE SET
5.) 4106-M04000070-000 CAP NUT
6.) 403-M04014003-160 PANHEAD TAPPING SCREW-B (M4x14)
7.) 303-01003-004-002 CABLE CLIP
8.) 0299-0034-00000-001 HANDLE HALF-RIGHT (BLACK)
9.) 302-04171-903-001 SPRING (Ø1.0 x Ø6.4 x Ø8.4 x 8.5T x 35L)
10.) N/A
11.) 303-01001-004-015 HANDLE HALF-RIGHT (BLACK)
12.) 403-M04035003-160 PANHEAD TAPPING SCREW-B (M4x35)
13.) 403-M04020001-160 PANHEAD TAPPING SCREW-A (M4x20)
14.) 403-M04025003-080 PANHEAD TAPPING SCREW-B (M4x25)
15.) 303-01002-004-012 HANDLE HALF-LEFT (BLACK)
16.) 303-01002-004-013 HANDLE HALF-LEFT (BLACK)
17.) 305-03358-000-001 RUBBER PLUG
18.) 406-M04006070-080 SOCKET CAP SCREW (M4x6xP0.7)
19.) 302-04450-903-001 CROSS BAR LOWER
20.) 302-04450-903-002 CROSS BAR UPPER
21.) 299-0178-00000-001 ANTI-VIBRATION MOUNT
22.) 303-01134-164-001 TAIL COVER
23.) 302-05514-000-009 BALL BEARING (6200-ZZ KOYO JAPAN)
24.) 0299-0004-00000-044 STATOR
25.) 302-04541-914-002 SPACER
26.) 0299-0268-00000-002 MAGNET HOLDER
27.) 299-0001-00000-020 ROTOR
28.) 302-03249-000-001 ROTOR END PLATE
29.) 302-04541-914-001 SPACER
30.) 403-M04016003-160 PANHEAD TAPPING SCREW-B (M4x16)
31.) 303-01381-026-001 ELECTRONICS COVER
32.) 0299-0135-00000-004 LED INDICATOR LIGHT
33.) 403-M04010003-160 PANHEAD TAPPING SCREW-B (M4x10)
34.) 0204-0021-00000-038 ELECTRONICS UNIT
35.) 303-01251-026-046 MOTOR HOUSING
36.) 302-05508-000-003 BALL BEARING (6002 KOYO JAPAN)
37.) 496-M04008001-040 TRUSS HEAD TAPPING SCREW-A (M4x8)
38.) 303-01111-000-003 FAN
39.) 302-05516-000-007 BALL BEARING (6202 KOYO JAPAN)
40.) 201-0003-00001-059 GEAR PLATE (SILVER)
41.) 302-06018-000-015 BEVEL PINION GEAR (M1.5x10T)
42.) 302-05502-000-001 BALL BEARING (608)
43.) 302-06008-000-063 OUTPUT GEAR (M1.5x31T)
44.) 201-0002-00001-086 GEAR HOUSING (SILVER)
45.) 406-M04012070-080 SOCKET CAP SCREW (M4x12xP0.7)
46.) 425-050000-00 SPRING WASHER (M5)
47.) 403-M05040003-160 PANHEAD TAPPING SCREW-B (M5x40)
48.) 422-S17-0 EXTERNAL CIRCLIP (S-17)
49.) 302-05523-000-002 BALL BEARING (6303)
50.) 421-05012-10 PARALLEL KEY (5x5x12)
51.) 302-04003-000-170 M14xP2.0-88mm
52.) 303-02002-004-053 OIL SEAL (Ø24xØ32x4)
53.) N/A
54.) 406-M04010070-160 SOCKET CAP SCREW (M4x10xP0.7)
55.) 413-M04010003-020 FLAT HEAD TAPPING SCREW-B (M4x10)
56.) 303-01300-004-001 COVER PANEL (BLACK)
57.) 303-01331-164-001 HALF-MOON DOOR (RED-187C)
58.) 203-0112-00004-005 CLEANING BRUSH
59.) 302-04026-000-010 SPRING (Ø0.55xØ4.9xØ6x15Lx6T)
60.) 303-01081-004-007 DUST SKIRT (BLACK)
61.) 203-0112-00004-006 CLEANING BRUSH
62.) 202-0145-00901-001 SHOULDER BOLT (M4xP0.7x26L)
63.) 302-04222-903-008 INNER FLANGE (Ø22.2 / Ø25.4)
64.) 302-04114-901-004 OUTER FLANGE (M14)
65.) 305-00010-904-013 SOCKET HEX KEY (M6)
66.) 305-00039-901-001 LOCK NUT WRENCH (30MM)
67.) 302-04179-901-002 FACE SPANNER WRENCH (78MM)
68.) 4133-0 HEAT SHRINK BUTT CONNECTOR
69.) 423-25100-2 ZIP TIE (2.5x100MM)
70.) 302-03182-903-005 BEARING PLATE
71.) N/A
72.) 0299-0014-00004-020 SWITCH ACTUATOR (BLACK)(LOCK-ON)

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AGP Europe websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to AGP Europe brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
