AEG BSB18C3BL-X02C Drill Driver Parts

SKU: AEG BSB18C3BL-X02C
€1.66
VAT included

AEG BSB18C3BL-X02C Drill Driver Spare Parts

Fix Your AEG BSB18C3BL-X02C Percussion Drill Driver. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG BSB18C3BL-X02C
AEG BSB18C3BL-X02C Drill Driver Spare Parts
  • AEG BSB18C3BL-X02C Drill Driver Spare Parts
  • AEG BSB18C3BL-X02C Drill Driver Parts Diagram

AEG BSB18C3BL-X02C Drill Driver Parts

SKU: AEG BSB18C3BL-X02C Condition: New
€1.66
VAT included

AEG BSB18C3BL-X02C Drill Driver Spare Parts

Fix Your AEG BSB18C3BL-X02C Percussion Drill Driver. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

AEG BSB18C3BL-X02C
settings 36 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
Usually Ships in: 7/10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:: AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

36 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1001
AEG BSB18C3BL Torx Screw 4931479525 AEG BSB18C3BL Torx Screw €1.66
1002
photo_cameraImage coming soon 4931479763 CHUCK €35.80
1003
photo_cameraImage coming soon 4931479764 SCREW €3.68
1004
photo_cameraImage coming soon 4931479765 HOLDING BRACKET €6.90
1005
photo_cameraImage coming soon 4931479766 SPRING €1.53
1006
photo_cameraImage coming soon 4931479767 AUXILIARY HANDLE €5.81
1008
photo_cameraImage coming soon 4931479768 SLIDER €4.38
1009
photo_cameraImage coming soon 4931479776 GEAR BOX ASSY €110.23
1010
photo_cameraImage coming soon 4931479770 ELECTRONIC €176.60
1011
photo_cameraImage coming soon 4931479534 SCREW €3.51
1012
photo_cameraImage coming soon 4931479535 BELT CLIP €3.51
1013
photo_cameraImage coming soon 4931479771 CAP €4.38
1014
AEG BSB18C3BL Housing 4931479777 AEG BSB18C3BL Housing €25.06
1015
photo_cameraImage coming soon 4931479536 BIT HOLDER €5.54
1016
photo_cameraImage coming soon 670820045 DOUBLE BIT €2.25
1017
photo_cameraImage coming soon 4931479569 SLIDER €1.53
1018
photo_cameraImage coming soon 4931479572 SCREW €3.51
1019
photo_cameraImage coming soon 4931479778 LABEL €1.53
1020
photo_cameraImage coming soon 4931479779 RATING PLATE €1.53
Page 2 local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
500
AEG L1820S 18V 2,0 AH Battery 4935472275 AEG L1820S 18V 2,0 AH Battery €84.60
501
AEG L1840S 18V 4,0 AH Battery 4935478636 AEG L1840S 18V 4,0 AH Battery €152.87
502
photo_cameraImage coming soon 4935478858 L1820SHD 18 V - 2,0 Ah - Battery HD €117.70
503
photo_cameraImage coming soon 4935478859 L1840SHD 18 v - 4,0 Ah - Battery HD €159.69
504
AEG L1850SHD 18V 4,0 AH HD Battery 4935478860 AEG L1850SHD 18V 4,0 AH HD Battery €175.12
505
photo_cameraImage coming soon 4935480049 L1860SHD 18 v - 6,0 Ah - Battery HD €189.09
506
photo_cameraImage coming soon 4932464231 L1890RHD 18 v - 9,0 Ah - Battery HD €257.80
507
AEG BL 18S 18V Charger 4935472276 AEG BL 18S 18V Charger €60.70
508
photo_cameraImage coming soon 4935480052 BL18C2 18 V - Charger 2 doors €165.04
509
photo_cameraImage coming soon 4935480051 BL18C6 18 V - Charger 6 doors €192.55
510
AEG BL1418 Fast Twin Charger 4932464542 AEG BL1418 Fast Twin Charger €89.48
511
photo_cameraImage coming soon 4932451538 BLK1218 Rapid Charger 12-18V €153.48
512
AEG Orange Tool Bag 4931427047 AEG Orange Tool Bag €19.70
512
photo_cameraImage coming soon 4935478932 SET L 1820S KIT ENERGY 2,0 Ah: Battery + Charger+ bag €136.29
513
photo_cameraImage coming soon 4935478944 SET L 1840SHD KIT ENERGY 4,0 Ah: 1 Battery 4,0 Ah HD + Charger + bag €177.57
514
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries 4935479809 AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries €263.23
515
AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries 4935478945 AEG Battery Charger kit + 2 18V 5.0 Ah HD Batteries €273.06

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

AEG BSB18C3BL-X02C Drill Driver Spare Parts

Fix Your AEG BSB18C3BL-X02C Percussion Drill Driver. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Drill Driver and their spare part.
AEG BSB18C3BL-X02C

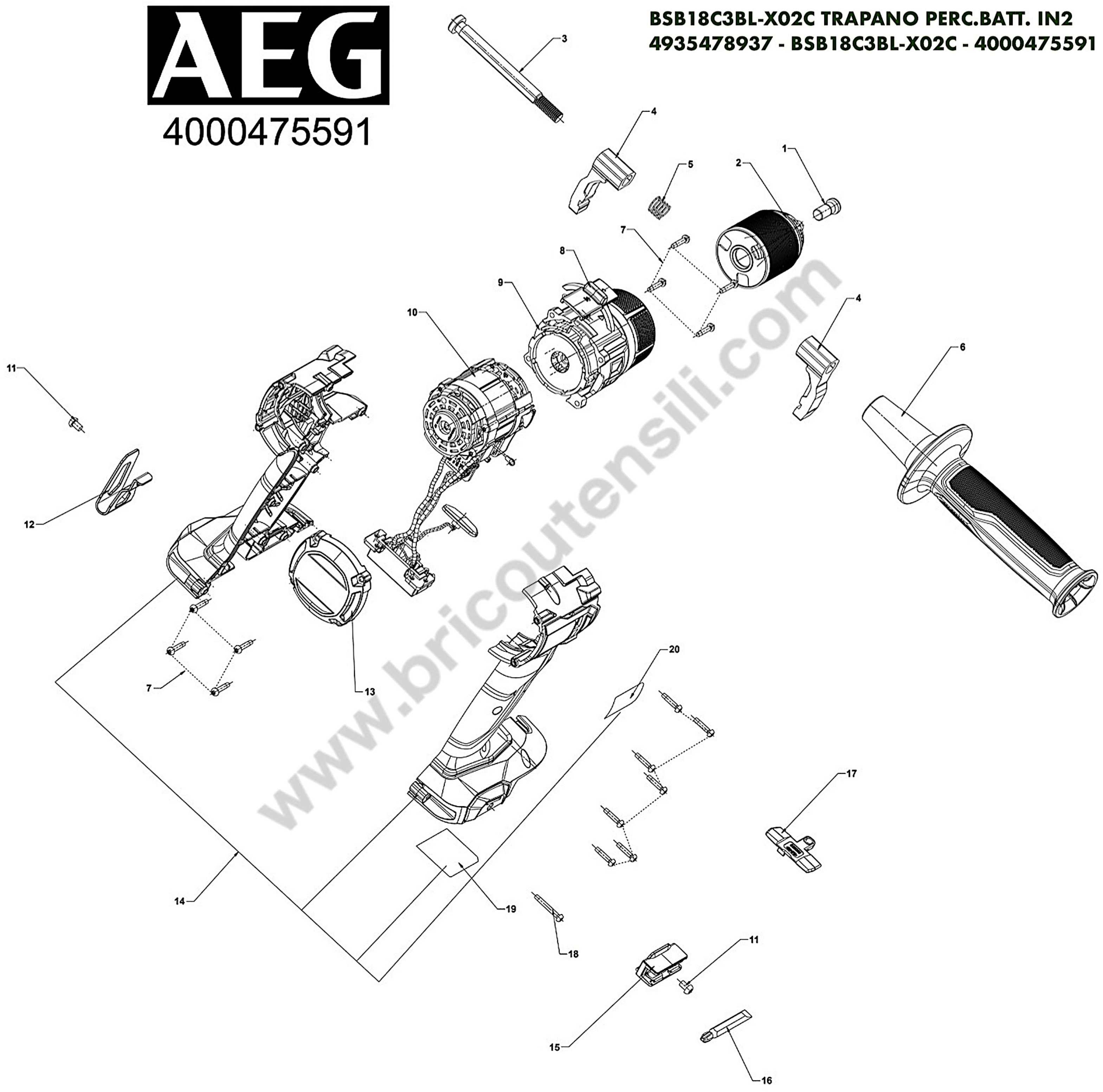

BSB18C3BL-X02C 18V BRUSH PERC. DRILL Parts IN2
4935478937 - BSB18C3BL-X02C - 4000475591
# Part number Description
1001 4931479525 SCREW
1002 4931479763 CHUCK
1003 4931479764 SCREW
1004 4931479765 HOLDING BRACKET
1005 4931479766 SPRING
1006 4931479767 AUXILIARY HANDLE
1008 4931479768 SLIDER
1009 4931479776 GEAR BOX ASSY
1010 4931479770 ELECTRONIC
1011 4931479534 SCREW
1012 4931479535 BELT CLIP
1013 4931479771 CAP
1014 4931479777 HOUSING
1015 4931479536 BIT HOLDER
1016 670820045 DOUBLE BIT
1017 4931479569 SLIDER
1018 4931479572 SCREW
1019 4931479778 LABEL
1020 4931479779 RATING PLATE
Accessories Pag.2
500 4935472275 L 1820S 18 v - 2,0 Ah (Li-on) | SUBCOMPACT
501 4935478636 L1840S 18 v - 4,0 Ah | SUBCOMPACT
502 4935478858 L1820SHD 18 V - 2,0 Ah | Battery HD
503 4935478859 L1840SHD 18 v - 4,0 Ah | Battery HD
504 4935478860 L1850SHD 18 v - 5,0 Ah | Battery HD
505 4935480049 L1860SHD 18 v - 6,0 Ah | Battery HD
506 4932464231 L1890RHD 18 v - 9,0 Ah | Battery HD
507 4935472276 BL18S 18 V | Charger SUBCOMPACT
508 4935480052 BL18C2 18 V | Charger 2 doors
509 4935480051 BL18C6 18 V | Charger 6 doors
510 4932464542 BL1418 18 V | Charger   14.4-18V
511 4932451538 BLK1218 Rapid Charger 12-18V
512 4935478932 SET L 1820S KIT ENERGY 2,0 Ah: Battery + Charger+ bag
512 4931427047
513 4935478944 SET L 1840SHD KIT ENERGY 4,0 Ah: 1 Battery 4,0 Ah HD + Charger + bag
514 4935479809 SET LL 1840SLK1 KIT ENERGY 4,0 Ah: 2 Batterie 4,0 Ah + Charger + bag
515 4935478945 SET L 1850SHD KIT ENERGY 5,0 AH: 2 Batterie 5,0 Ah HD + Charger + bag
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s AEG websites, which we consider as reliable.Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice.We strongly recommend using the published information as a basic information subject to AEG brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
AEG BSB18C3BL-X02C
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK AEG S/N:
AEG S/N START WITH (4) or (5) AND HAVE 10 DIGITS

Specific References

New

Download

AEG BSB18C3BL-X02C Diagram

AEG BSB18C3BL-X02C Diagram

Download (977.05KB)
